XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2

XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2? I’m using a trial version of Microsoft Intune and I’ve successfully integrated Intune with SCCM / ConfigMgr 2012 R2 infrastructure. Directory Sync Tool is used to Sync the On-premises AD users with Azure Active Directory.

Until now, everything worked well. Support Tool for Microsoft Intune Trial Management of Windows Phone 8/ 8.1 guide has been used to set up Microsoft Intune Company Portal application and .PFX certificate for Windows Phone enrollment. Following commands helped to set up the Microsoft Intune Company Portal application. All the source files are available in the above link.

cscript ConfigureWP8Settings_Field.vbs ACNCMPRI QuerySSPModelName
cscript ConfigureWP8Settings_Field.vbs ACNCMPRI SaveSettings ScopeId_DC491DDE-7D1A-4446-847F-FA0B6FC1F6DB/Application_7d18a3d7-43e7-4e32-ba87-3f4fdb8deda8

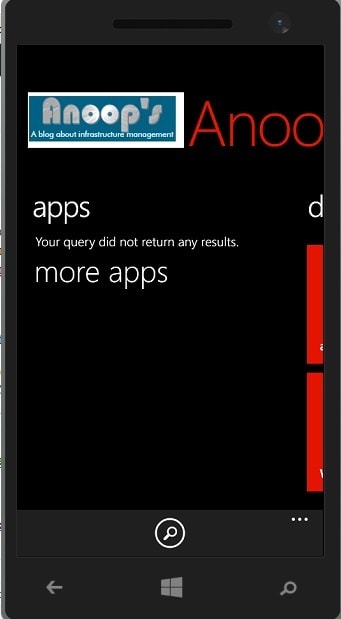

After completing the steps mentioned in the blog, I was able to enroll Windows Phone 8.1 devices. I was also able to log in to Company Portal. None of the sample XAP applications (Shapes.XAP, ClickMeV1.XAP and ClickMeV1.1.XAP) available in Intune Trail Management Toolkit were NOT getting published in Windows Phone 8.1 company portal. Under Apps I could see the message “your query did not return any results“.

Windows Mobile
XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2

Checked all the log file like dmpuploader.log and Deployment status in the console however I didn’t get any clue. What to do next, I left this issue for some days. Today again I take a look at the issue. I’ve noticed that the extension for Windows Intune node and one item underneath that node named “Windows Phone 8.1 Extension“.

Patch My PC
XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2
XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2

What I did for fixing the issue?

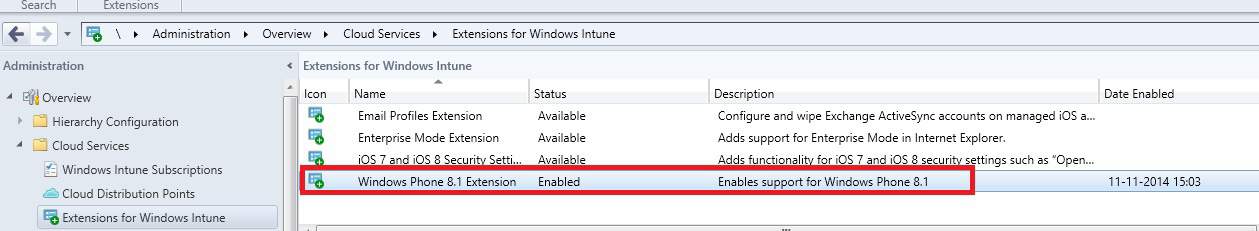

Windows Phone 8.1 Extension was DISABLED. I’ve enabled the Windows Phone 8.1 Extension from SCCM / ConfigMgr console path “\Administration\Overview\Cloud Services\Extensions for Windows Intune”. XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2.

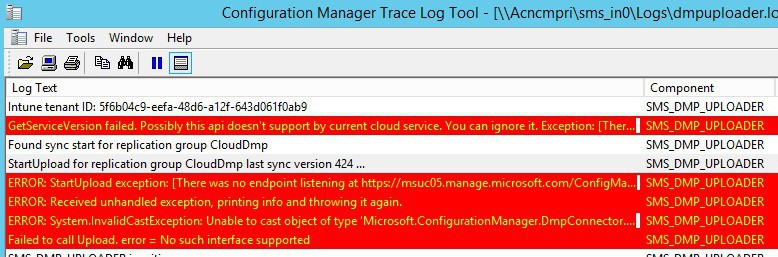

The new Microsoft Intune extension got enabled however dmpuploader.log in Intune integrated SCCM primary server started throwing the following errors. I thought this could be an internet connectivity issue or a timely issue and this will get fixed automatically.

GetServiceVersion failed. Possibly this api doesn't support by current cloud service. You can ignore it. Exception: [There was no endpoint listening at https://msuc05.manage.microsoft.com/ConfigManagerConnectorSecurityTokenService/IWSTrust.svc that could accept the message. This is often caused by an incorrect address or SOAP action. See InnerException, if present, for more details.]

StartUpload for replication group CloudDmp last sync version 424 ...
ERROR: StartUpload exception: [There was no endpoint listening at https://msuc05.manage.microsoft.com/SCCMConnectorService/SccmConnectorService.svc that could accept the message. This is often caused by an incorrect address or SOAP action. See InnerException, if present, for more details.]
ERROR: Received unhandled exception, printing info and throwing it again.
ERROR: System.InvalidCastException: Unable to cast object of type 'Microsoft.ConfigurationManager.DmpConnector.Connector.SCCMConnectorCacheServiceClient' to type 'System.ServiceModel.IClientChannel'.~~   at Microsoft.ConfigurationManager.DmpConnector.DataUpload.DataUploader.Upload()
Failed to call Upload. error = No such interface supported
SMS_DMP_UPLOADER is exiting...
ERROR: StartUpload exception: [The underlying connection was closed: A connection that was expected to be kept alive was closed by the server.]
XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2
XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2


What can we do now ? Restarted the server and wow !! The log file dmpuploader.log in Intune integrated SCCM primary server started showing the successful upload details.

1E Nomad

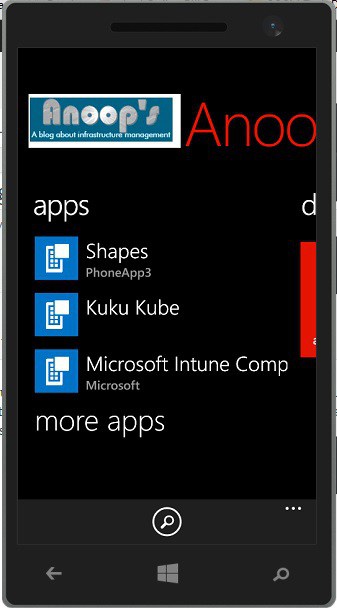

Logged into Windows Phone 8.1 Company Portal and here it’s I could see all the XAP applications which I published in the Company portal. Not only .XAP application, I could see Web application (Kuku Kube) which I published to that user.

XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2
XAP Applications are not getting published in Windows Phone 8.1 via Intune Integrated SCCM 2012 R2

So what we need to do to get all the application published in Windows Phone 8.1 ?

We need to enable Windows Phone 8.1 Extension from SCCM / ConfigMgr console path “\Administration\Overview\Cloud Services\Extensions for Windows Intune“.
