List of 43 SCCM Status Message Queries | Custom Query for SCCM Task Sequence Engine Status Messages

Let’s find out the list of SCCM status message queries. There are 43 default queries available in the latest SCCM Current Branch release. I have also shared a Custom Query for SCCM Task Sequence Engine Status Messages.

I have also shared the simple method to create and run a simple SCCM custom status message query. Most used SCCM status message queries are related to audit status messages. Various status message queries are available to find out who deleted and modified server components in SCCM.

You can also check the list of SCCM status message queries from SQL Server Management Studio. SCCM Status messages are very helpful to troubleshoot deployment and component installation issues.

The following are some examples of Audit status messages and SQL queries where you can find the details. This information can be used to track/audit the changes in Configuration Manager infrastructure initiated by admins.

Patch My PC

Custom Query for SCCM Task Sequence Engine Status Messages

Let’s see how to create custom SCCM status message queries in this section of the post. It’s a pretty simple process if you know the details, such as component details, process ID, Status ID, etc.

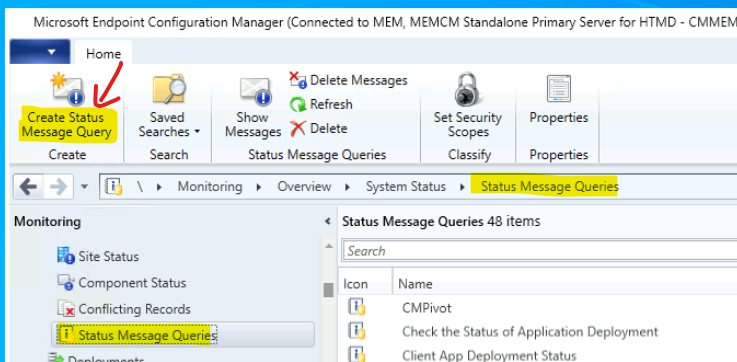

Navigate to \Monitoring\Overview\System Status\Status Message Queries from the SCCM admin console to create the custom status message query.

  • Click on Create Status Message Query button from the ribbon menu.
Create Custom SCCM Status Message Queries - Task Sequence Engine Status Message
Custom Query for SCCM Task Sequence Engine Status Messages

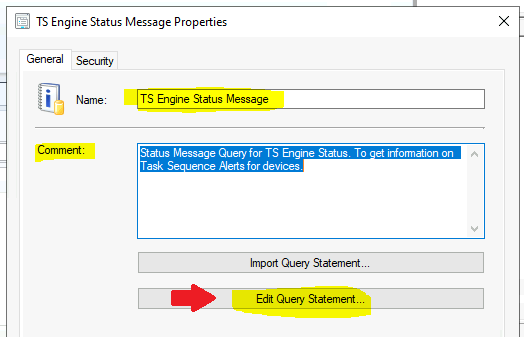

It’s time to enter the details of the custom query

  • Enter the Name of the Status Message Query – TS Engine Status Message.
  • Enter the Comment for the SCCM Status Message Query -> Status Message Query for TS Engine Status. To get information on Task Sequence Engine Alerts for devices.
  • Click on the Edit Query Statement button.
List of 43 SCCM Status Message Queries | Custom Query for SCCM Task Sequence Engine Status Messages
List of 43 SCCM Status Message Queries | Custom Query for SCCM Task Sequence Engine Status Messages

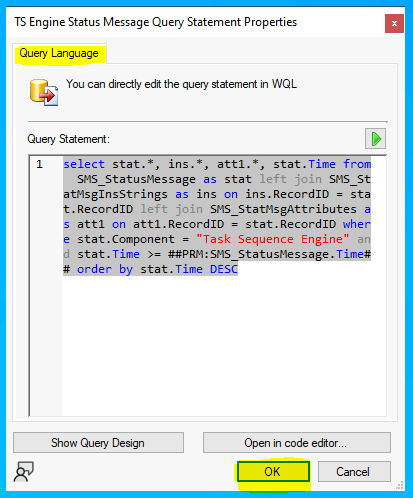

Click on the Show Query Language button from the General tab in the new window.

Custom Query for SCCM Task Sequence Engine Status Messages
List of 43 SCCM Status Message Queries | Custom Query for SCCM Task Sequence Engine Status Messages

You need to copy the following WQL query to Create Custom SCCM Status Message Queries for Task Sequence Engine Status Message. This query prompts you to select the time frame you want to cover.

select stat.*, ins.*, att1.*, stat.Time from  SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on ins.RecordID = stat.RecordID left join SMS_StatMsgAttributes as att1 on att1.RecordID = stat.RecordID where stat.Component = "Task Sequence Engine" and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time DESC

Click on the OK button to continue. Click on the Next button from the summary page and the Close button to finish the custom SCCM Status Message Queries for Task Sequence Engine.

Create Custom SCCM Status Message Queries - Task Sequence Engine Status Message
Create Custom SCCM Status Message Queries – Task Sequence Engine Status Message

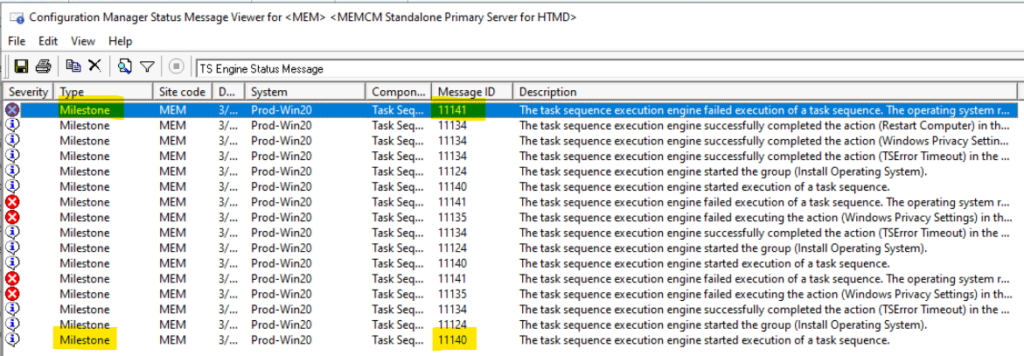

Results of the custom SCCM Status message query SCCM Task Sequence Engine Status Messages provide very useful information for troubleshooting scenarios.

SCCM Task Sequence Engine Status Messages
SCCM Task Sequence Engine Status Messages

SQL Queries for SCCM Status Messages

Let’s SQL Queries related to SCCM Status Messages. You need to follow the steps mentioned below to get the list from SSMS.

  • Open the SQL Server Management Studio (aka SSMS).
  • Connect your Database Engine.
  • Right Click on your database CM_XXX and click on ‘New Query.’

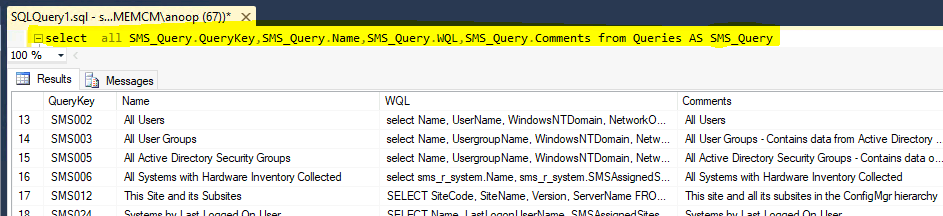

  • Copy the following SQL query to find the report list of SCCM Status Message Queries.
  • Click on the Execute button.
select all SMS_Query.QueryKey,SMS_Query.Name,SMS_Query.WQL,SMS_Query.Comments from Queries AS SMS_Query
SQL Queries for SCCM Status Messages
SQL Queries for SCCM Status Messages | Custom Query for SCCM Task Sequence Engine Status Messages

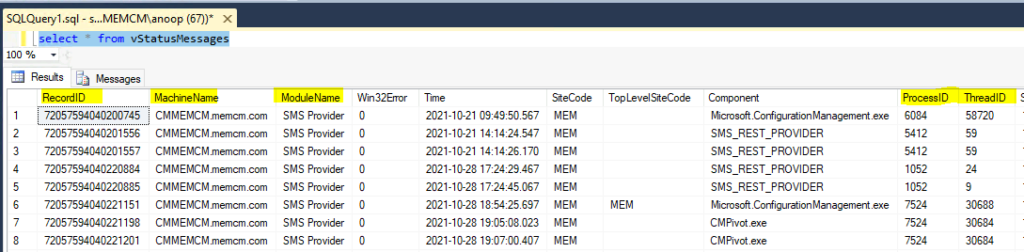

Let’s check the SCCM status messages from the SQL Database.

select * from vStatusMessages
SQL Queries for SCCM Status Messages
SQL Queries for SCCM Status Messages | Custom Query for SCCM Task Sequence Engine Status Messages

All SCCM Status Message Queries

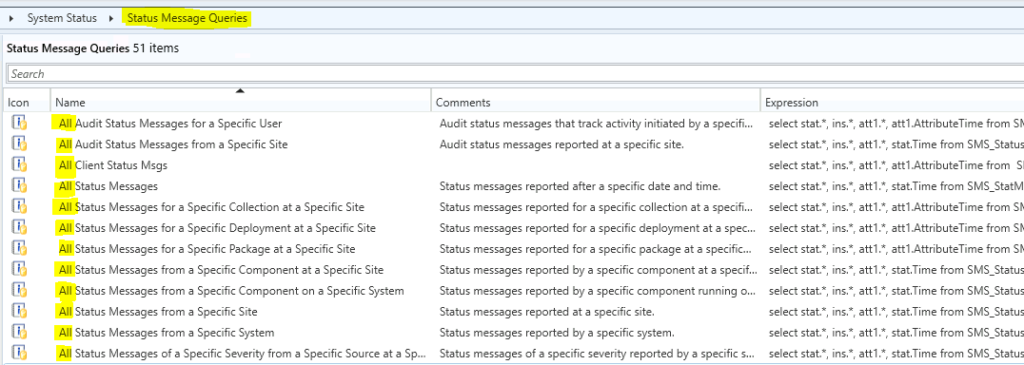

This section talks about All SCCM Status Message Queries. This includes audit status messages and all status messages for specific sites and collections. I like the All Status Messages query. This helps to analyze and understand the particular status messages and create custom queries.

Navigate to \Monitoring\Overview\System Status\Status Message Queries from the SCCM admin console to check the default list of SCCM SCCM status queries.

Create Custom SCCM Status Message Queries - Task Sequence Engine Status Message
Create Custom SCCM Status Message Queries – Custom Query for SCCM Task Sequence Engine Status Messages
All Audit Status Messages for a Specific UserAudit status messages that track activity initiated by a specific user (when prompted, use the form DOMAIN\username).select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where stat.MessageType = 768 and att2.AttributeID = 403 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
All Audit Status Messages from a Specific SiteAudit status messages are reported at a specific site.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
All Status MessagesStatus messages reported after a specific date and time.select stat.*, ins.*, att1.*, stat.Time from SMS_StatMsg as stat left join SMS_StatInsStr as ins on stat.RecordID = ins.RecordID left join SMS_StatAttr as att1 on stat.RecordID = att1.RecordID where stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
All Status Messages for a Specific Collection at a Specific SiteStatus messages reported for a specific collection at a specific site.select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where att2.AttributeID = 402 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
All Status Messages for a Specific Deployment at a Specific SiteStatus messages are reported for a specific deployment at a specific site.select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where att2.AttributeID = 401 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
All Status Messages for a Specific Package at a Specific SiteStatus messages are reported for a specific package at a specific site.select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where att2.AttributeID = 400 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
All Status Messages from a Specific Component at a Specific SiteStatus messages are reported by a specific component at a specific site.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.Component = ##PRM:SMS_StatusMessage.Component## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
All Status Messages from a Specific Component on a Specific SystemStatus messages are reported by a specific component running on a specific system.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.Component = ##PRM:SMS_StatusMessage.Component## and stat.MachineName = ##PRM:SMS_StatusMessage.MachineName## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
All Status Messages from a Specific SiteStatus messages reported at a specific site.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
All Status Messages from a Specific SystemStatus messages reported by a specific system.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MachineName = ##PRM:SMS_StatusMessage.MachineName## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
All Status Messages of a Specific Severity from a Specific Source at a Specific SiteStatus messages of a specific severity reported by a specific source at a specific site.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.Severity = ##PRM:SMS_StatusMessage.Severity## and stat.ModuleName = ##PRM:SMS_StatusMessage.ModuleName## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Create Custom SCCM Status Message Queries – Task Sequence Engine Status Message

SCCM Client Related Status Message Queries

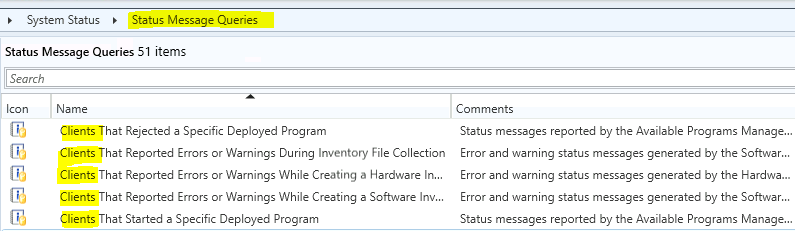

Let’s check the list of SCCM Client Related Status Message Queries available in SCCM as an out of the box solution. There are 13 Status message queries in the below table.

You can use the following queries to create custom queries as per your requirement. This process is already explained in the above section of this post.

You can navigate to \Monitoring\Overview\System Status\Status Message Queries from the SCCM admin console to check the default list of SCCM status queries related to the client status messages.

Create Custom SCCM Status Message Queries - Task Sequence Engine Status Message
Create Custom SCCM Status Message Queries – Custom Query for SCCM Task Sequence Engine Status Messages
Client Component Configuration ChangesAudit status messages that track changes to the client components” configuration are kept in the site control file.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30042 and stat.MessageID <= 30047 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Client Components Experiencing Fatal ErrorsStatus messages are reported by the ConfigMgr Client components when they experience fatal errors.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.ModuleName = ‘SMS Client’ and stat.MessageID = 669 and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Client Configuration Requests (CCRs) Processed UnsuccessfullyStatus messages are reported by the SMS Client Configuration Manager when it fails to process a client configuration request (CCR).select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.Component = ‘SMS_CLIENT_CONFIG_MANAGER’ and stat.MessageID >= 3010 and stat.MessageID <= 3011 and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Clients Assigned to or Unassigned from a Specific SiteStatus messages reported by the ConfigMgr Cli. Comp. Instl. Mgr. on client assignment to or unassignment from a site.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.Component = ‘Client Component Installation Manager’ and stat.MessageID >= 10202 and stat.MessageID <= 10203 and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Clients That Failed to Run a Specific Deployed Program SuccessfullyStatus messages are reported by the Available Programs Manager when a specific deployed program runs and completes unsuccessfully.select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where stat.ModuleName = ‘SMS Client’ and stat.MessageID >= 10006 and stat.MessageID <= 10007 and att2.AttributeID = 401 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
Clients That Failed to Start a Specific Deployed ProgramStatus messages are reported by the Available Programs Manager when it fails to start a specific advertised program.select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where stat.ModuleName = ‘SMS Client’ and (stat.MessageID = 10000 or stat.MessageID = 10001 or stat.MessageID = 10003 or stat.MessageID = 10004 or stat.MessageID = 10021) and att2.AttributeID = 401 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
Clients That Ran a Specific Deployed Program SuccessfullyStatus messages are reported by the Available Programs Manager when a specific advertised program runs and completes successfully.select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where stat.ModuleName = ‘SMS Client’ and stat.MessageID >= 10008 and stat.MessageID <= 10009 and att2.AttributeID = 401 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
Clients That Received a Specific Deployed ProgramStatus messages are reported by the Available Programs Manager when it receives a specific advertised program.select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where stat.ModuleName = ‘SMS Client’ and stat.MessageID = 10002 and att2.AttributeID = 401 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
Clients That Rejected a Specific Deployed ProgramStatus messages are reported by the Available Programs Manager when it receives and rejects a specific advertised program.select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where stat.ModuleName = ‘SMS Client’ and stat.MessageID >= 10018 and stat.MessageID <=10019 and att2.AttributeID = 401 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
Clients That Reported Errors or Warnings During Inventory File CollectionError and warning status messages are generated by the Software Inventory, Hardware Inventory, or File Collection Agents when they attempt to collect files on clients.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where (stat.MessageID=10651 or stat.MessageID=10602 or stat.MessageID=10603 or stat.MessageID=10508 or stat.MessageID=10509 or stat.MessageID=10510 or (stat.Component = ‘File Collection Agent’ and stat.Severity <> 1073741824)) and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Clients That Reported Errors or Warnings While Creating a Hardware Inventory FileError and warning status messages were generated by the Hardware Inventory Agent when it attempted to report a hardware inventory file.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where (stat.Component=’Hardware Inventory Agent’ and stat.Severity<>1073741824) and stat.MessageID<>10508 and stat.MessageID<>10509 and stat.MessageID<>10510 and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Clients That Reported Errors or Warnings While Creating a Software Inventory FileError and warning status messages were generated by the Software Inventory Agent when it attempted to report a software inventory file.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where (stat.Component=’Software Inventory Agent’ and stat.Severity<>1073741824) and stat.MessageID<>10602 and stat.MessageID<>10603 and stat.MessageID<>10651 and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Clients That Started a Specific Deployed ProgramStatus messages are reported by the Available Programs Manager when it starts running.select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where stat.ModuleName = ‘SMS Client’ and stat.MessageID = 10005 and att2.AttributeID = 401 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
Create Custom SCCM Status Message Queries – Task Sequence Engine Status Message

Specific Audit Status Message Queries from SCCM

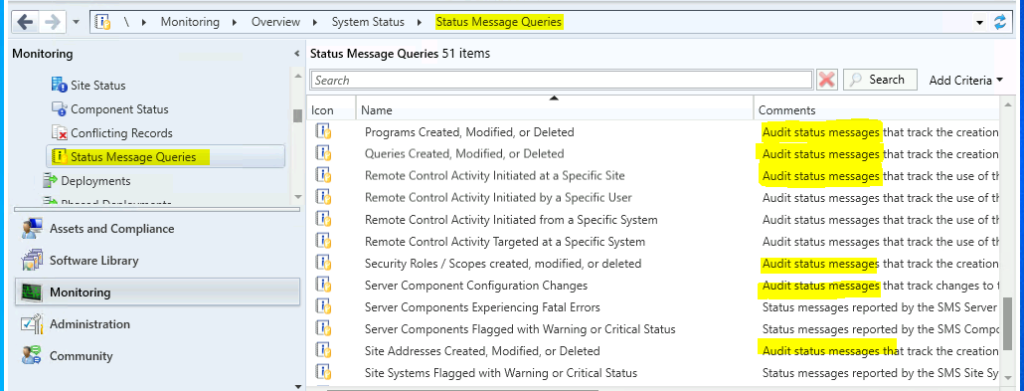

Let’s see what are Specific Audit Status Message queries available on SCCM Status Message Queries. These queries help understand who deleted collection, application, task sequence, etc.

Navigate to \Monitoring\Overview\System Status\Status Message Queries to check the details of each audit status message query.

Specific Audit Status Messages from SCCM
Specific Audit Status Message Queries from SCCM
Boundaries Created, Modified, or DeletedAudit status messages that track the creation, modification, and deletion of boundaries.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 40600 and stat.MessageID <= 40602 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Collection Member Resources Manually DeletedAudit status messages that track the manual deletion of collection member resources by an administrator.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30066 and stat.MessageID <= 30067 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Collections Created, Modified, or DeletedAudit status messages that track the creation, modification, and deletion of collections.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30015 and stat.MessageID <= 30017 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Deployments Created, Modified, or DeletedAudit status messages that track the creation, modification, and deletion of deployments.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30006 and stat.MessageID <= 30008 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Packages Created, Modified, or DeletedAudit status messages that track the creation, modification, and deletion of packagesselect stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30000 and stat.MessageID <= 30002 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Programs Created, Modified, or DeletedAudit status messages that track the creation, modification, and deletion of package programs.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30003 and stat.MessageID <= 30005 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Queries Created, Modified, or DeletedAudit status messages that track the creation, modification, and deletion of queries, including status message queries.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30063 and stat.MessageID <= 30065 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Specific Audit Status Message Queries from SCCM

Additional Audit SCCM Status Message queries to perform further troubleshooting steps.

Remote Control Activity Initiated at a Specific SiteAudit status messages that track the use of the Remote Control.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30069 and stat.MessageID <= 30087 and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Remote Control Activity Initiated by a Specific UserAudit status messages that track the use of the Remote Control by a specific user (when prompted, use the form DOMAIN\username).select stat.*, ins.*, att1.*, att1.AttributeTime from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgAttributes as att2 on stat.RecordID = att2.RecordID where stat.MessageType = 768 and stat.MessageID >= 30069 and stat.MessageID <= 30087 and att2.AttributeID = 403 and att2.AttributeValue = ##PRM:SMS_StatMsgAttributes.AttributeValue## and att2.AttributeTime >= ##PRM:SMS_StatMsgAttributes.AttributeTime## order by att1.AttributeTime desc
Remote Control Activity Initiated from a Specific SystemAudit status messages that track the use of the Remote Control by users of a specific system.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30069 and stat.MessageID <= 30087 and stat.MachineName = ##PRM:SMS_StatusMessage.MachineName## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Remote Control Activity Targeted at a Specific SystemAudit status messages that track the use of the Remote Control to remotely administer a specific system.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID inner join SMS_StatMsgInsStrings as ins2 on stat.RecordID = ins2.RecordID where stat.MessageType = 768 and stat.MessageID >= 30069 and stat.MessageID <= 30087 and ins2.InsStrIndex = 2 and ins2.InsStrValue = ##PRM:SMS_StatusMessage.MachineName## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Specific Audit Status Message Queries from SCCM – Create Custom SCCM Status Message Queries – Task Sequence Engine Status Message
Security Roles / Scopes created, modified, or deletedAudit status messages that track the creation, modification, and deletion of security rights.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and (stat.MessageID >= 31200 and stat.MessageID <= 31202 OR stat.MessageID >= 31220 and stat.MessageID <= 31222 OR stat.MessageID = 31207)  and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Server Component Configuration ChangesAudit status messages that track changes to the server components” configuration are kept in the site control file.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and ((stat.MessageID >= 30033 and stat.MessageID <= 30035) or (stat.MessageID >= 30039 and stat.MessageID <= 30041)) and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Site Addresses Created, Modified, or DeletedAudit status messages that track the creation, modification, and deletion of site addresses.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.MessageType = 768 and stat.MessageID >= 30018 and stat.MessageID <= 30020 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Specific Audit Status Message Queries from SCCM

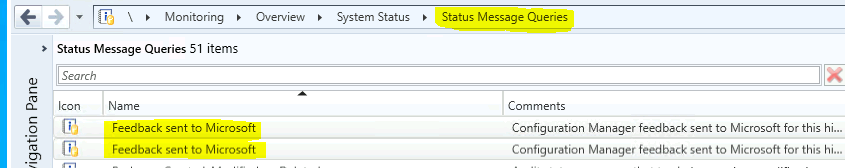

Feedback sent to Microsoft Status Message Queries

If you want to know details about Feedback sent to Microsoft, check out the following Microsoft Feedback Status Message Queries.

I see both the queries are the same? If so, I don’t understand why there is a duplicate query.

Feedback sent to Microsoft Status Message Queries
Feedback sent to Microsoft Status Message Queries – Create Custom SCCM Status Message Queries – Task Sequence Engine Status Message.
Feedback sent to MicrosoftConfiguration Manager feedback sent to Microsoft for this hierarchy.select stat.*, ins.*, att1.*, stat.Time from  SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on ins.RecordID = stat.RecordID left join SMS_StatMsgAttributes as att1 on att1.RecordID = stat.RecordID where stat.Time >= ##PRM:SMS_StatusMessage.Time## and (stat.MessageID = 53900 or stat.MessageID = 53901) order by stat.Time DESC
Feedback sent to MicrosoftConfiguration Manager feedback sent to Microsoft for this hierarchy.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.Time >= ##PRM:SMS_StatusMessage.Time## and (stat.MessageID = 53900 or stat.MessageID = 53901) order by stat.Time desc
Feedback sent to Microsoft Status Message Queries

Status Message Queries are reported by the SMS Server component

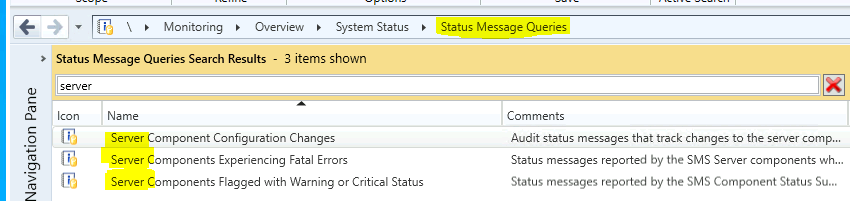

SCCM Status message Queries are reported by the SMS Server components. You can check the comments and WQL query to get the Status Message Queries.

Status Message Queries are reported by the SMS Server component
Status Message Queries are reported by the SMS Server component
Server Components Experiencing Fatal ErrorsStatus messages are reported by the SMS Server components when they experience fatal errors.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.ModuleName = ‘SMS Server’ and stat.MessageID = 669 and stat.SiteCode = ##PRM:SMS_StatusMessage.SiteCode## and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Server Components Flagged with Warning or Critical StatusStatus messages are reported by the SMS Component Status Summarizer when a server component has reported too many status messages.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.Component = ‘SMS_COMPONENT_STATUS_SUMMARIZER’ and ((stat.MessageID >= 4603 and stat.MessageID <= 4605) or (stat.MessageID >= 4608 and stat.MessageID <= 4613)) and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Site Systems Flagged with Warning or Critical StatusStatus messages are reported by the SMS Site System Status Summarizer when a storage object is inaccessible, low on storage space, or unavailable.select stat.*, ins.*, att1.*, stat.Time from SMS_StatusMessage as stat left join SMS_StatMsgInsStrings as ins on stat.RecordID = ins.RecordID left join SMS_StatMsgAttributes as att1 on stat.RecordID = att1.RecordID where stat.Component = ‘SMS_SITE_SYSTEM_STATUS_SUMMARIZER’ and stat.MessageID >= 4700 and stat.MessageID <= 4724 and stat.Time >= ##PRM:SMS_StatusMessage.Time## order by stat.Time desc
Status Message Queries are reported by the SMS Server component
