AVD Architecture Changes ARM Based | New Portal Admin Experience

Let’s discuss AVD Architecture Changes ARM Based | New Portal Admin Experience. Well, it’s not officially AVD ARM-based; instead, it’s a new Portal for AVD with a new Admin Experience. However, the AVD architecture for the 2020 spring update has changed significantly with the spring release.

AVD, which stands for Azure Virtual Desktop, is an essential desktop virtualization solution offered within Microsoft Azure. This comprehensive solution seamlessly delivers virtual desktop infrastructure functionality, encompassing pooled desktops, personal desktops, and published applications.

When deploying a virtual desktop infrastructure (VDI), it’s crucial to carefully consider the available applications and overall user experience to guarantee a successful implementation.

The previous Windows Virtual Desktop, known as classic WVD, was non-ARM-based. The new ARM-based version of WVD now features ARM-based service functionality in the Azure portal. Consequently, existing customer deployments will require migration to the new console using tools that Microsoft will soon release.

Patch My PC
Index
AVD New Arm Object Model
AVD Tenant = Workspace
Simplified AVD Architecture
AVD – Non-Regional Service
New Admin Experience for AVD v2
AVD Architecture Changes ARM Based | New Portal Admin Experience – Table 1

AVD New Arm Object Model

The following are the main changes in the high-level architecture with the Azure Virtual Desktop spring release (a.k.a AVD v2).

  • AVD v1 – non-Arm object model
  • AVD v2 – ARM object model
AVD Architecture Changes ARM Based | New Portal Admin Experience - Fig.1
AVD Architecture Changes ARM Based | New Portal Admin Experience – Fig.1
(Original Picture Credit to Microsoft – Christiaan Brinkhoff – AVD Architecture)

AVD Tenant = Workspace

With the spring update for AVD (a.k.a AVD v2), there is no longer a concept of an AVD tenant. Instead, the AVD tenant is now known as the Workspace.

A workspace is a logical grouping of application groups in AVD. Each AVD application group must be associated with a workspace where users can see the remote apps and desktops published to them.

Simplified AVD Architecture

The following are very high-level 4-tiers of AVD architecture.

Adaptiva
  1. Azure Front Door
  2. AVD Control-Plane (Azure PaaS services, as you can see in the blue box below)
  3. AVD Service Metadata (More details here)
    • Workspace Names
    • Host Pool Names
    • Application Group Names
    • User Principal Names (UPN)
  4. Virtual Machine and IaaS components

NOTE! – Azure Virtual Desktop stores global metadata information like tenant names, host pool names, app group names, and user principal names in a data centre.

AVD Architecture Changes ARM Based | New Portal Admin Experience - Fig.2
AVD Architecture Changes ARM Based | New Portal Admin Experience – Fig.2

Warning! – This is not an accurate representation of the architecture – Please refer to Microsoft docs for a more accurate representation

AVD – Non-Regional Service

Yes, AVD is a non-regional service, but as you know, some Azure regional dependencies are shown below.

  • AVD Control-planes are getting deployed globally soon.
    • Microsoft controls the selection of AVD control planes.
  • AVD Service Metadata locations are not available globally when I write this post.
    • The customer controls the selection of the AVD service metadata service region.
  • VMs and other IaaS components are owned by the customer and free to use in the Azure region as per the business requirement.
    • The customer controls the selection of the AVD IaaS VMs and other components.

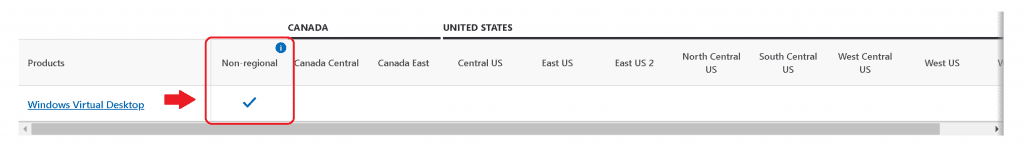

More details Azure Services – AVD – https://azure.microsoft.com/en-us/global-infrastructure/services/?products=virtual-desktop

AVD Architecture - non-regional service
AVD Architecture – non-regional service

New Admin Experience for AVD v2

AVD Architecture Changes ARM Based | New Portal Admin Experience - Fig.3
AVD Architecture Changes ARM Based | New Portal Admin Experience – Fig.3
