This post will guide you through deploying bare metal using the configuration manager (specifically for Windows 10 2004 using SCCM). The bare metal scenario arises when you need to deploy a new machine or when you want to wipe and redeploy an existing machine without preserving any existing data.
A PXE server is required to facilitate a Bare Metal deployment. When servers boot using PXE, they encounter a menu showcasing available deployment profiles.
The setup starts from a boot media, using a CD, USB, ISO, or Pre-Boot Execution Environment (PXE). You can also generate full offline media. The target can be a physical computer or a virtual machine.
What are the Deployment Processes for the New Machine Scenario?
> Start the setup from boot media (CD, USB, ISO, or PXE).
> Wipe the hard disk clean and create a new volume.
> Install the operating system image.
> Apply device drivers by detecting device manufacturers.
> Install applications.
> Apply Customization | Additional settings if needed.
> After taking these steps, the computer is ready for use.
Prerequisites
- Ensure you are running with the latest supported version of Configuration Manager.
- Boot images are updated or regenerated.
- Make sure that you added network and storage drivers to the boot image.
- Configured the boot image to deploy from a PXE-enabled distribution point.
Learn about the supported lists of Windows 10 versions for Configuration Manager, and check Microsoft Blog.
Note: It’s essential to extract the downloaded Windows 10 ISO Content into a folder. Create a folder, and Mount the ISO using File Explorer or any other option.
Download Windows 10 2004 ISO

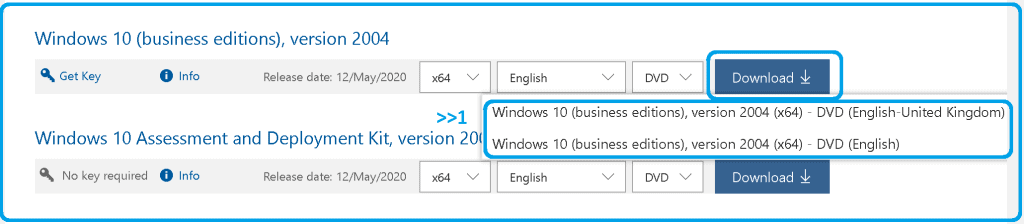

You can download the Windows 10 2004 version of the ISO from VLSC (Volume Licensing Service Center).

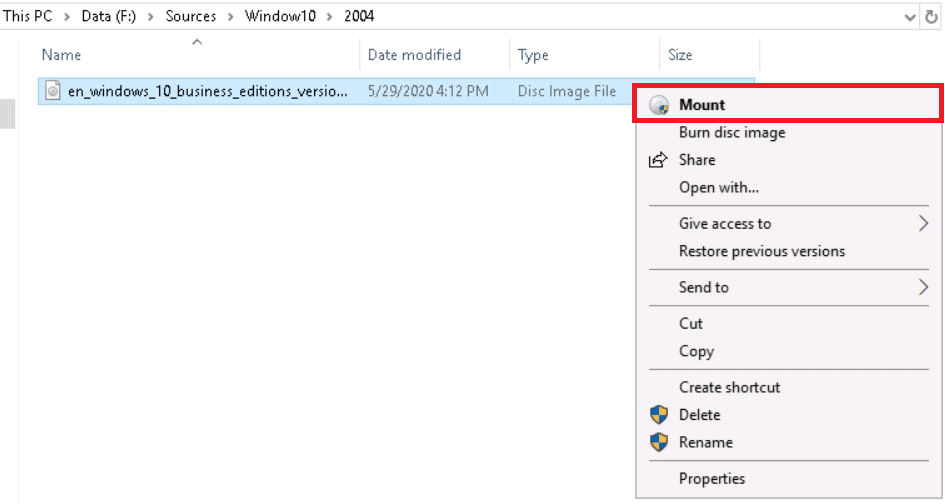

Right-click on the ISO file in File Explorer. Click on Mount.

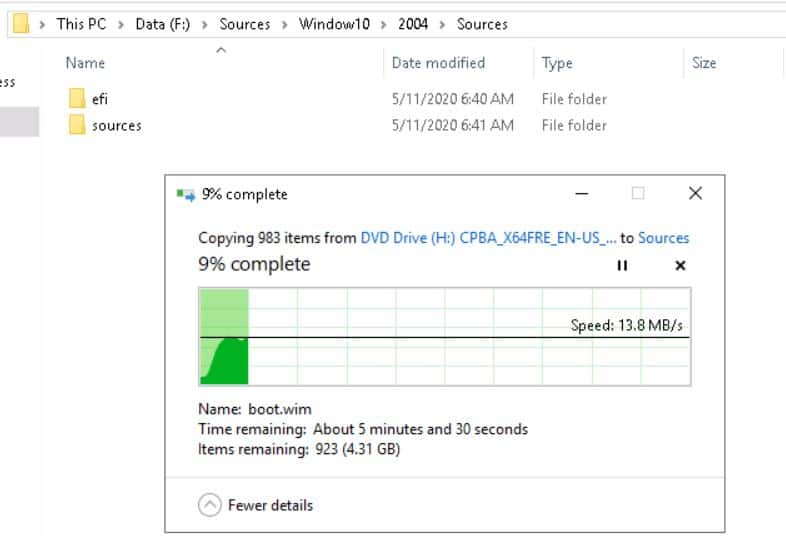

You will notice that Windows 10 ISO will create a disc drive that you can use to access content. Select all contents and copy them to a folder.
Import Windows 10 operating system image

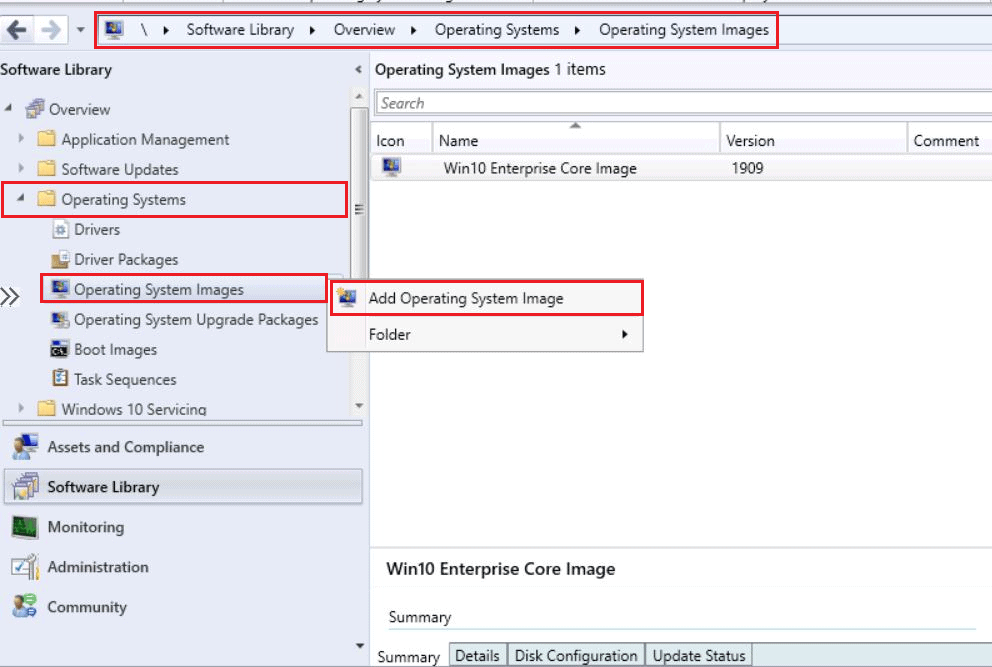

Open Configuration Manager Console, Go to Software Library > Operating Systems > Operating System Images.

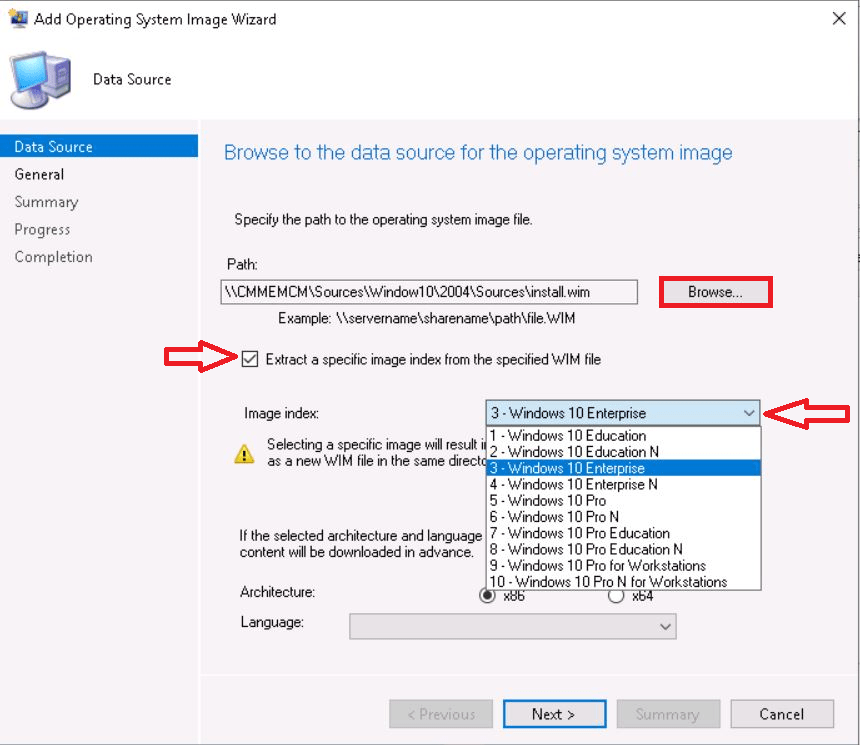

In Data Source, click Browse and specify the network shared path to the install.wim from the Windows 10 Source directory where you extracted the source of an ISO file.
Select the option to Extract a specific image index from the specified WIM file. Then, select the Image index from the drop-down list. Click Next.
You can now specify to automatically import a single Image index rather than all image indexes in the file. This option results in a smaller image file.

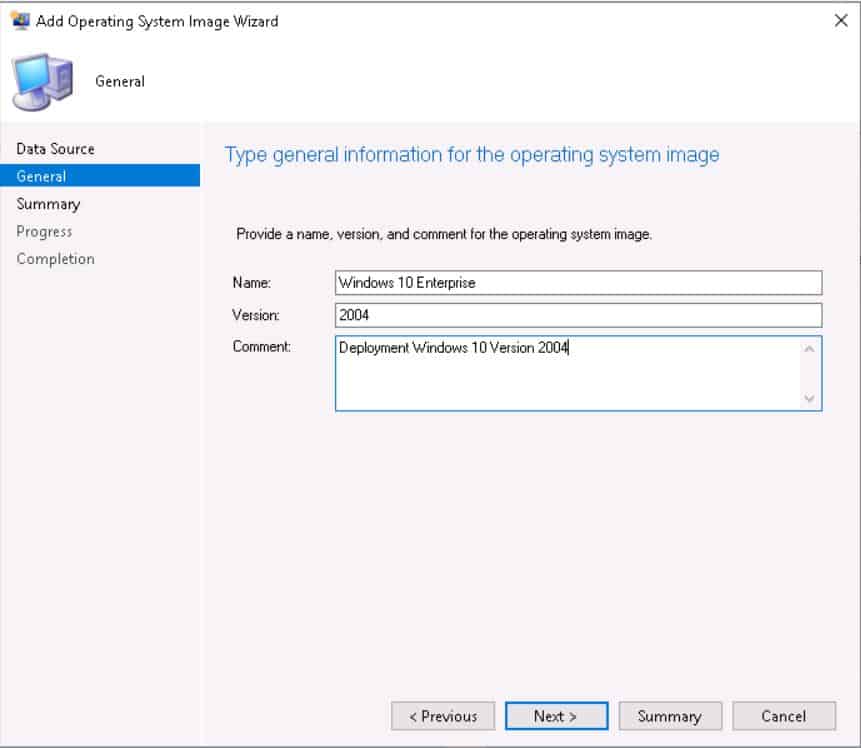

On the General page, assign the Name, Version, and Comment. Click Next.

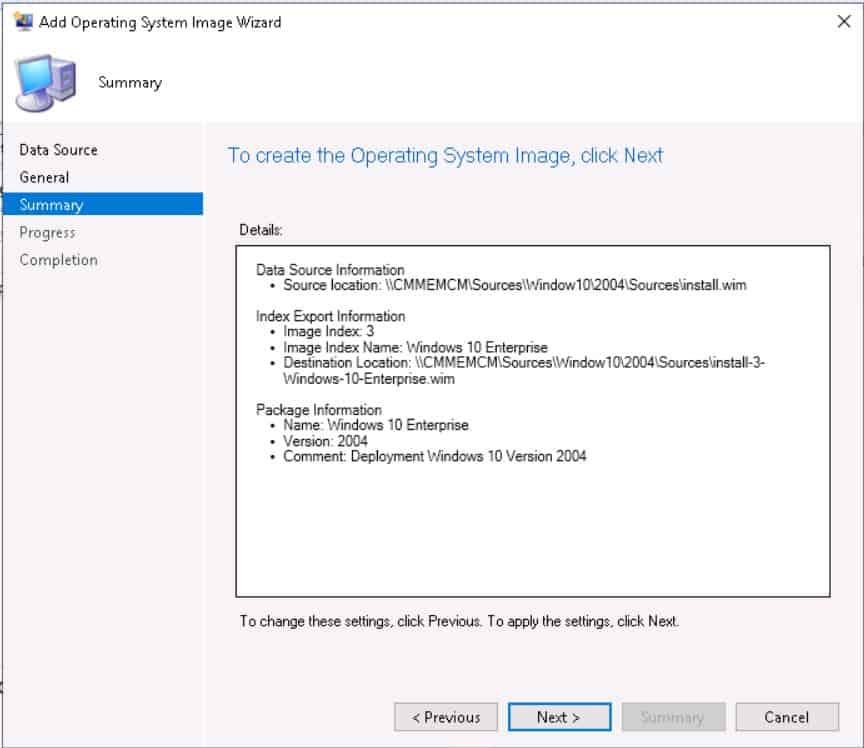

Review the provided information, and click Next to complete the Wizard.

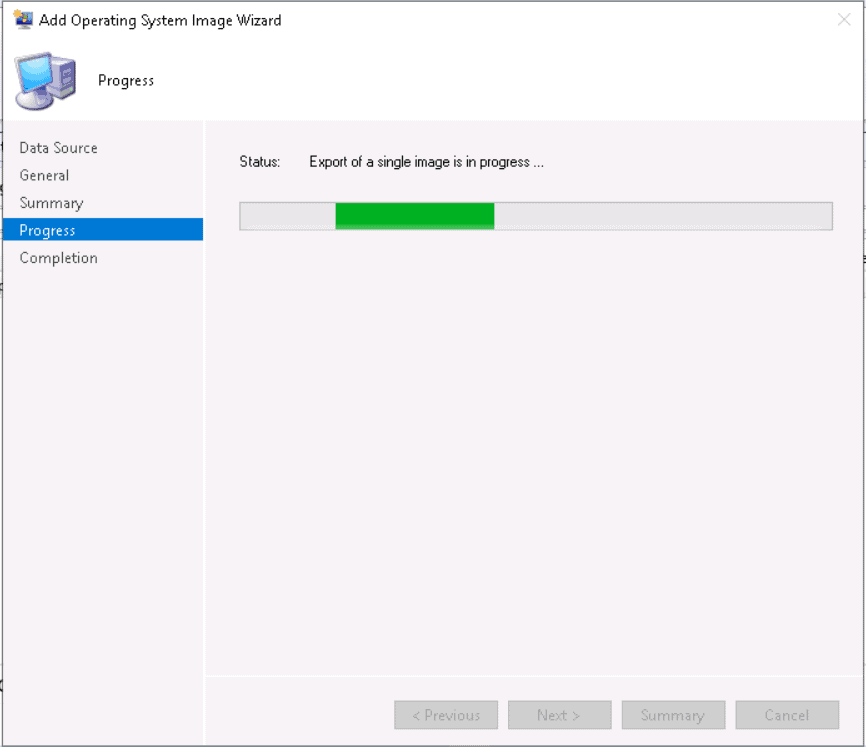

Wait for a moment while exporting is in progress.

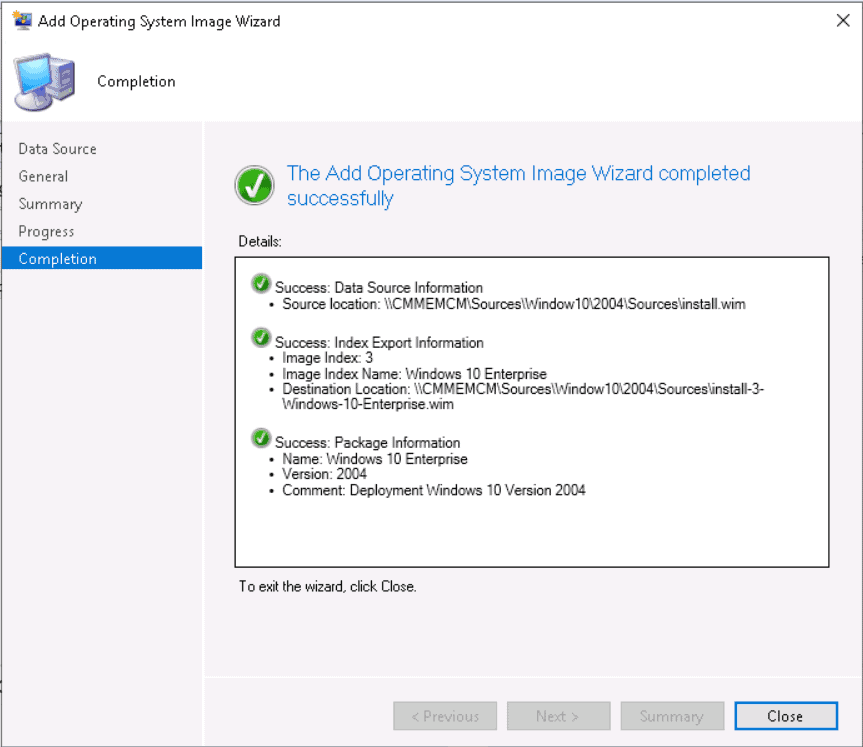

After successfully completion, click Close to exit the Wizard.

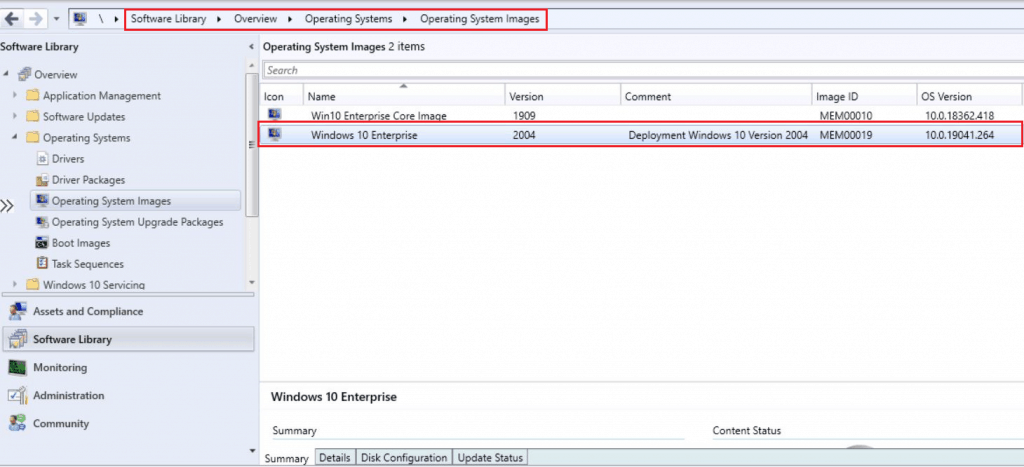

The Operating System Image is successfully imported to Configuration Manager.
Distribute Operating System Images

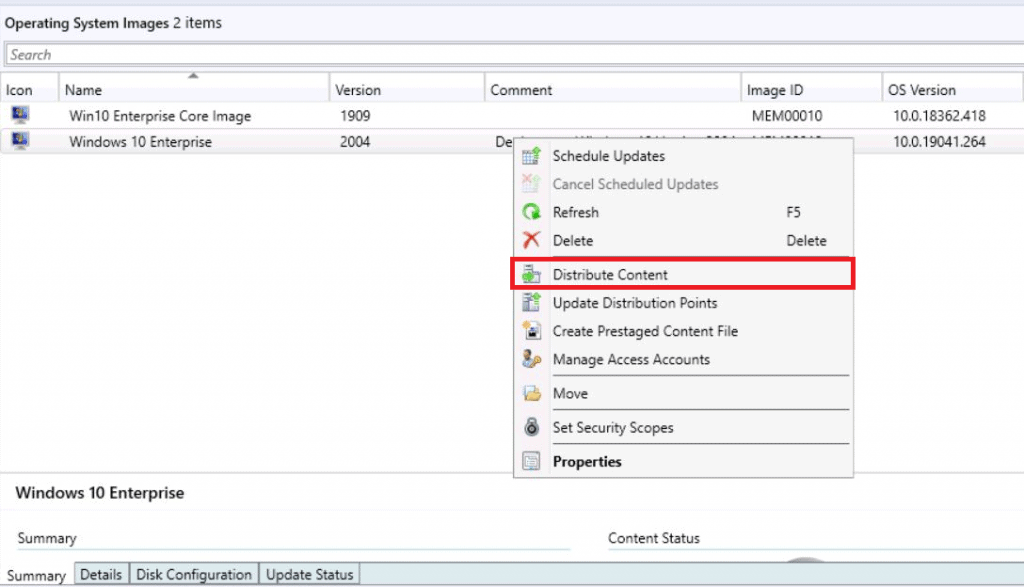

Right-click Windows 10 Enterprise and click Distribute Content.

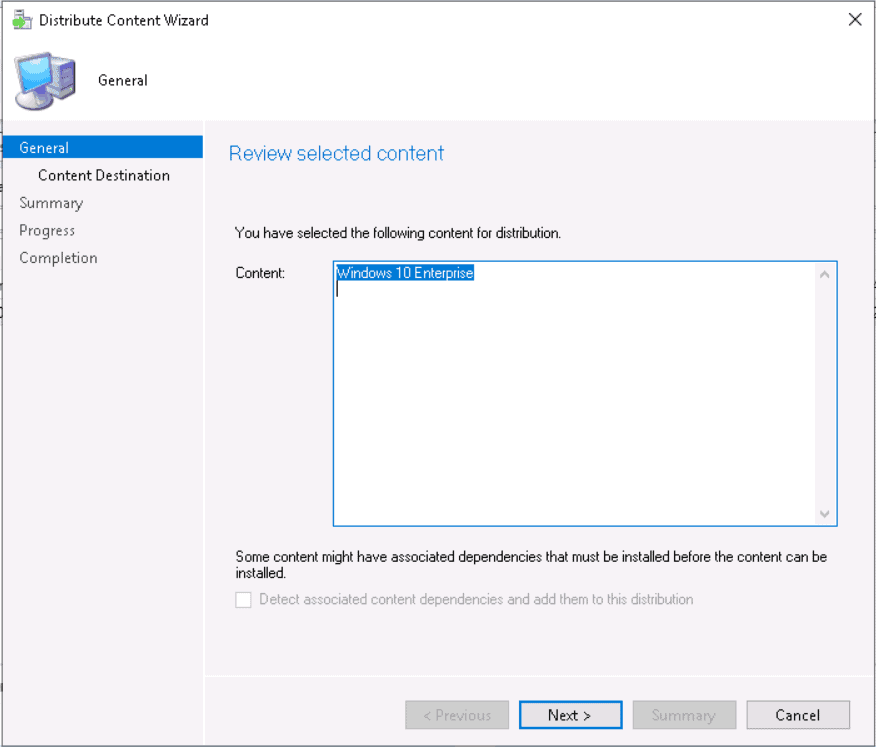

Review the selected content for distribution. Click Next.
Add the Distribution Point to distribute the content.
Review the selected distribution points and groups. Click Next.

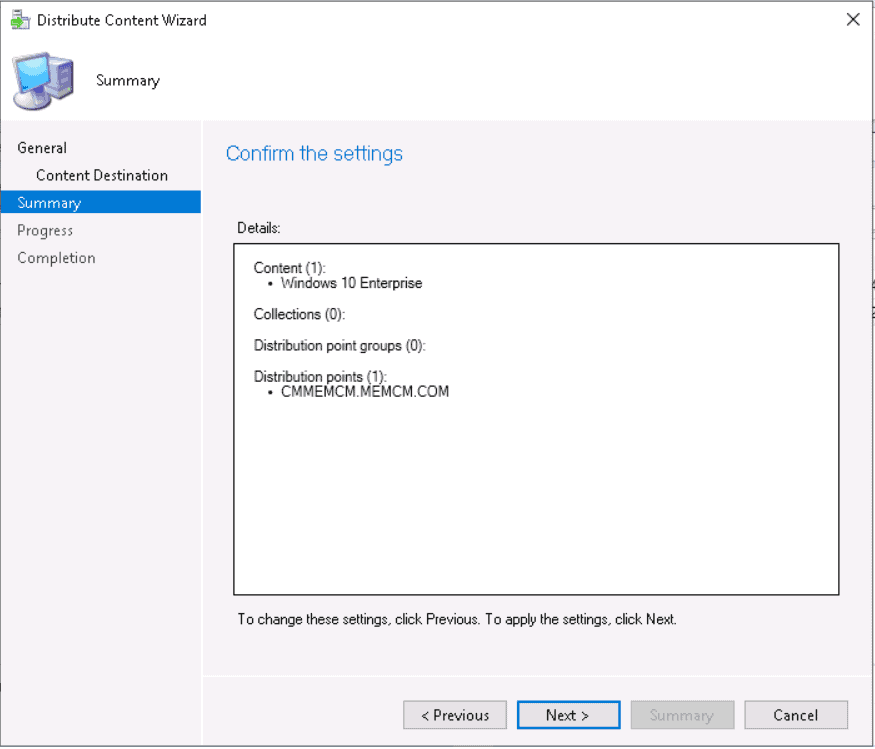

On the Summary page, review the settings. Click Next.

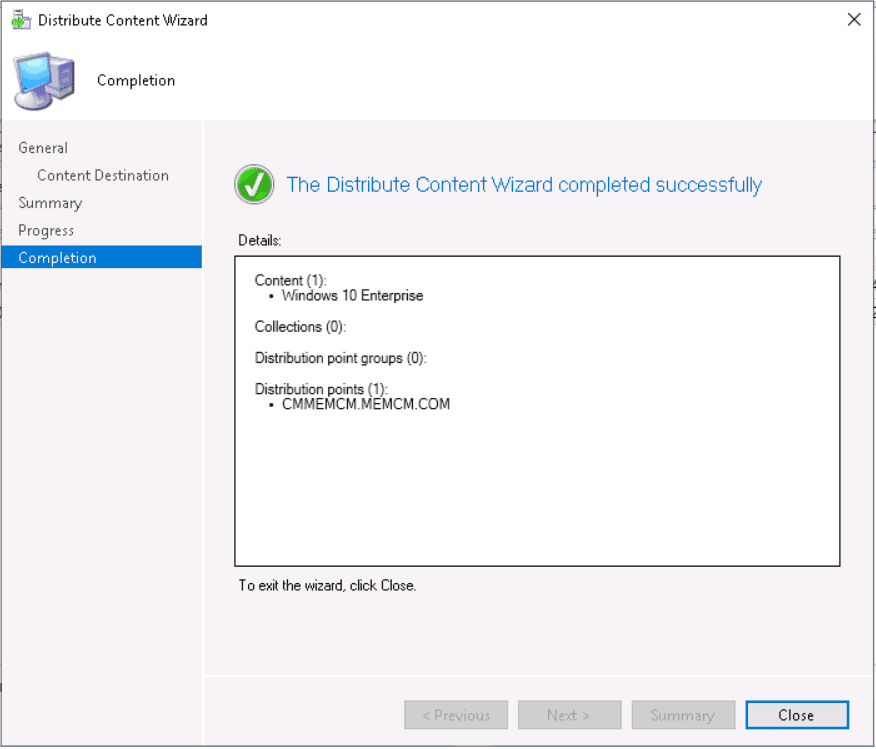

Click Close to complete the Distribute Content wizard.

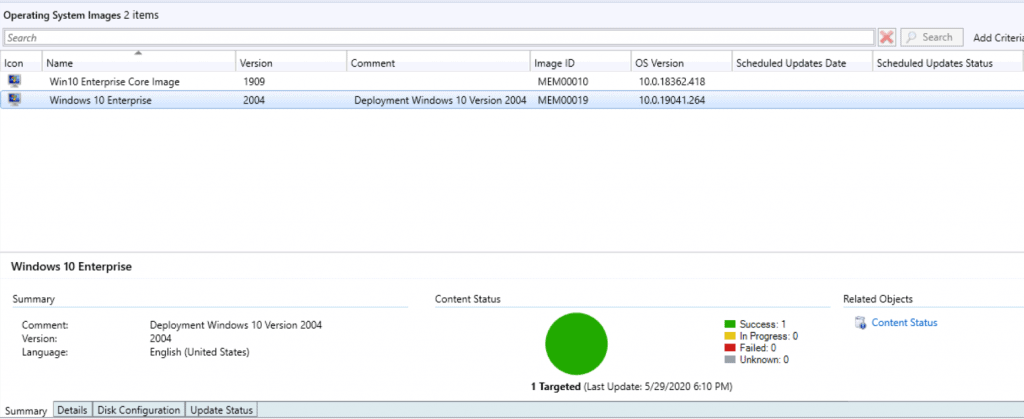

You can monitor the content status, if it’s showing a yellow color that means distribution is in progress. If the content distribution is successful, it will appear Green, as shown.
Create a Task Sequence to deploy an OS.
This section will walk you through creating a Configuration Manager task sequence to deploy the operating system image.

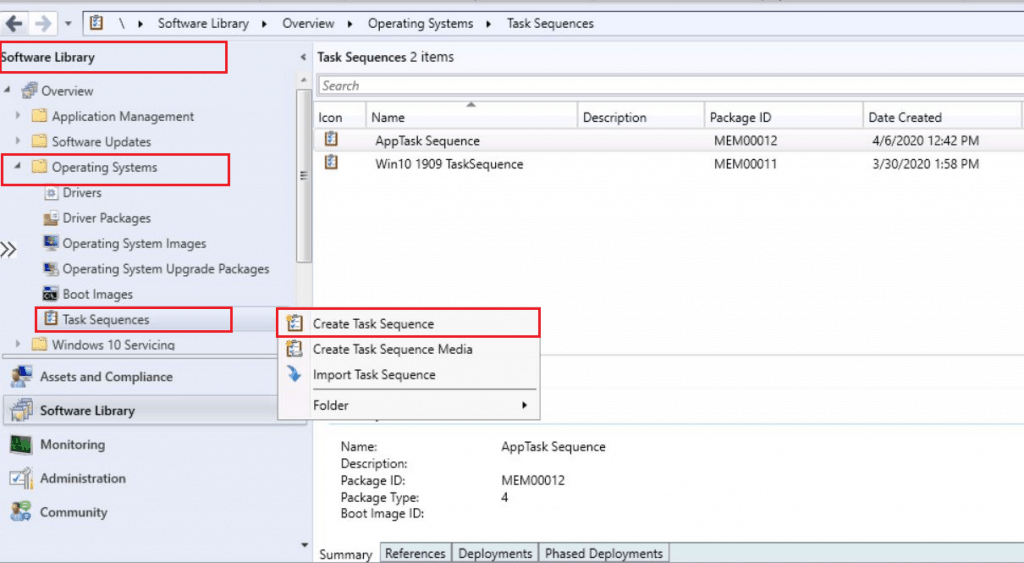

In the Configuration Manager console, Go to the Software Library workspace, expand Operating Systems, right-click Task Sequences and select Create Task Sequence.

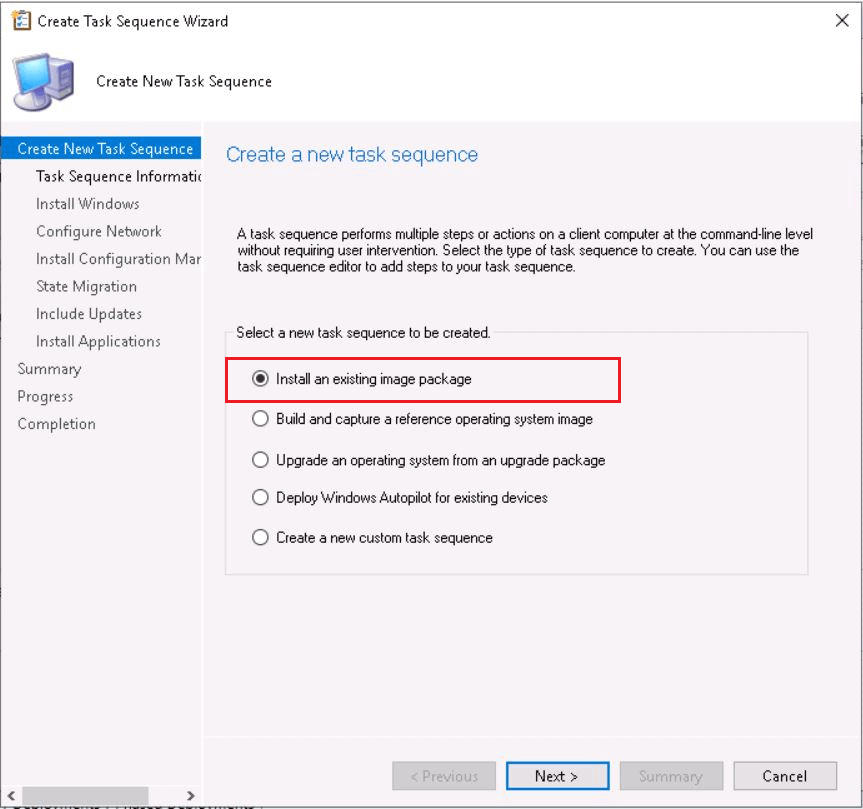

Select Install an existing image package, and then select Next.
On the Task Sequence Information page, specify the following settings:
- Task sequence name: Specify a name that identifies the task sequence.
- Description: Optionally specify a description

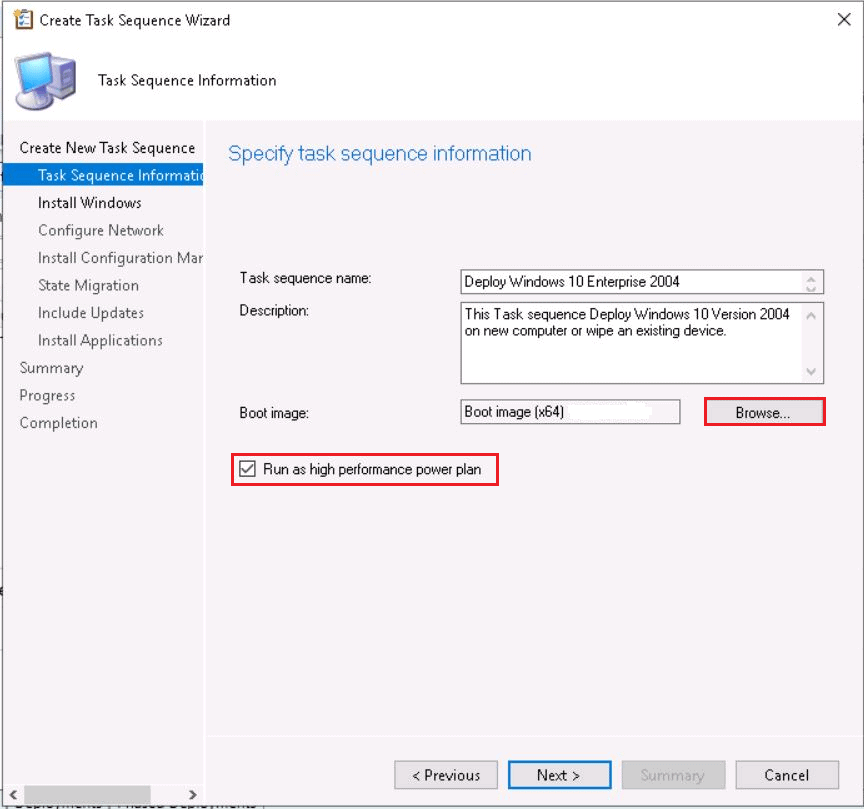

On the Boot Image, Click Browse and select the available boot image package.
Check in the Run as a high-performance power plan. Click Next.
Note – Running a task sequence with the High-Performance power plan to improve the speed of the task sequence execution. At the end of the task sequence, the power plan is reset to the stored value (Balanced Power Plan).
On the Install Windows page, specify the following settings:
- Image package: Click on Browse to select the image. Select Partition and format the target computer installing the operating system.
- Product key: you can specify the Windows product key for installing the OS.
Specify how to handle the administrator account for the new OS. Click Next.
On the Configure Network page, specify the following settings. Click Next.
- Join a workgroup: Add the destination computer to a workgroup.
- Join a domain: Add the destination computer to a domain. In Domain, click Browse to specify the name of the Domain. You can also select an organizational unit (OU) in the Domain OU field. This setting is optional.
- Account: The user name and password for the account with permission to join the specified Domain.
On the Install Configuration Manager page, specify the Configuration Manager client package is selected automatically. Click Next.

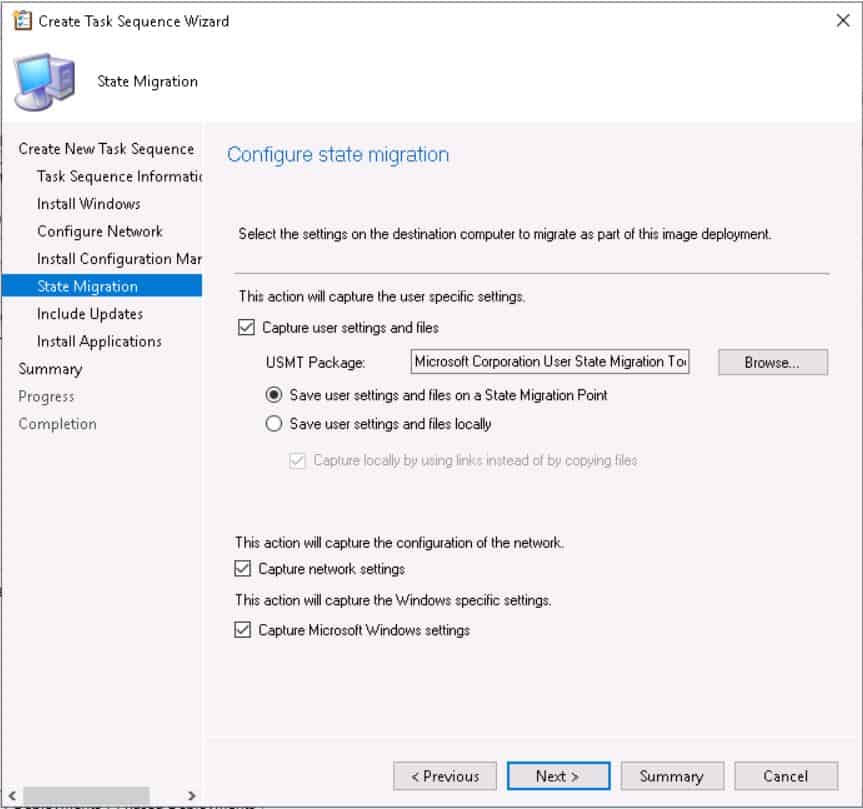

On the State Migration page, leave it to default as these steps are conditions based on a task sequence that will not run automatically. Click Next.
On the Include Updates page, you can specify whether to install required software updates or all software updates. I am not installing any software updates. Click Next.
On the Install Applications page, specify the applications to install, or later you can add in task sequence steps. Click Next.

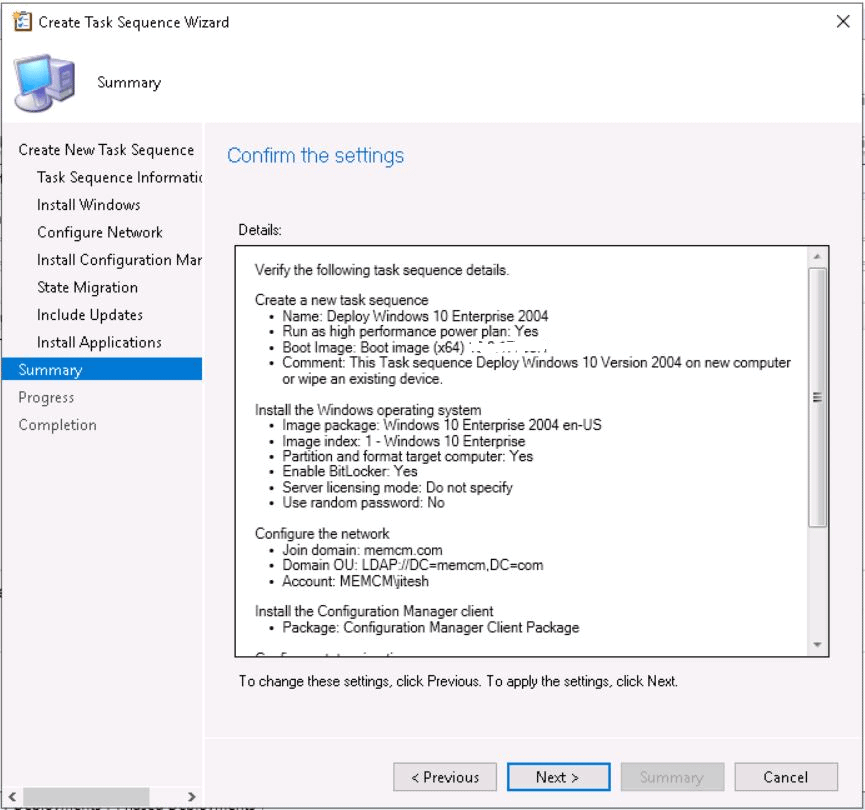

Review the settings and click Next.
Click Close to complete the Wizard.

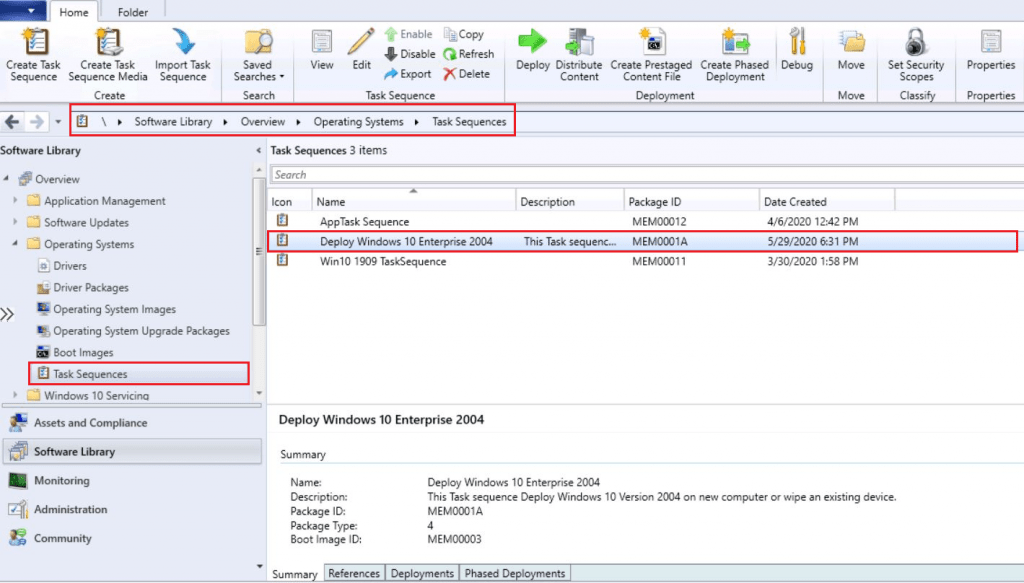

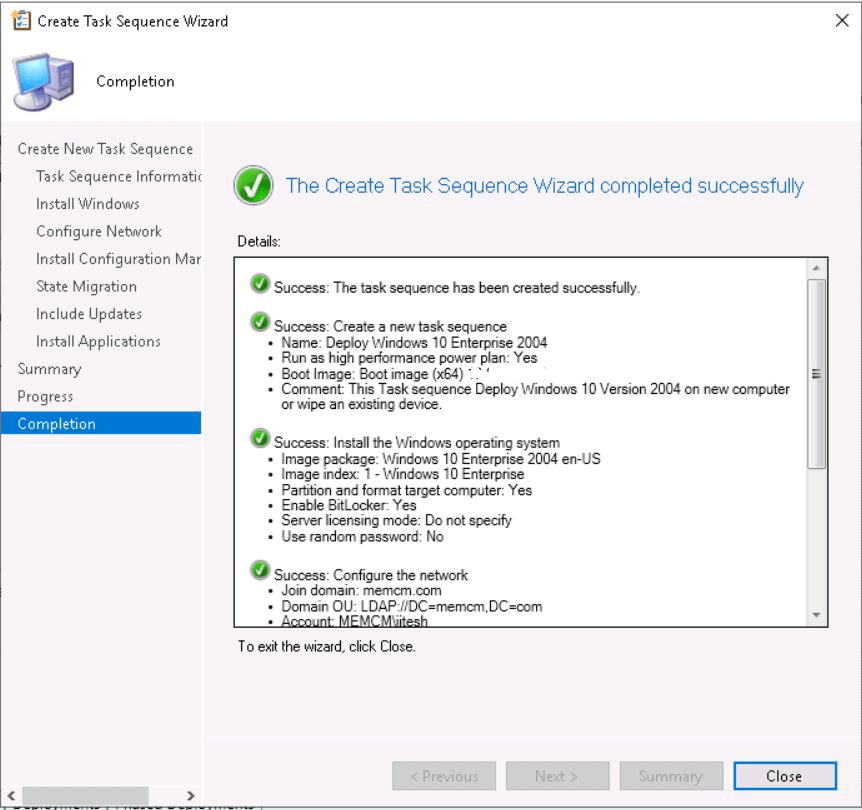

The Task Sequence is created successfully.
Customize Task Sequence
Use the following procedure to modify an existing task sequence

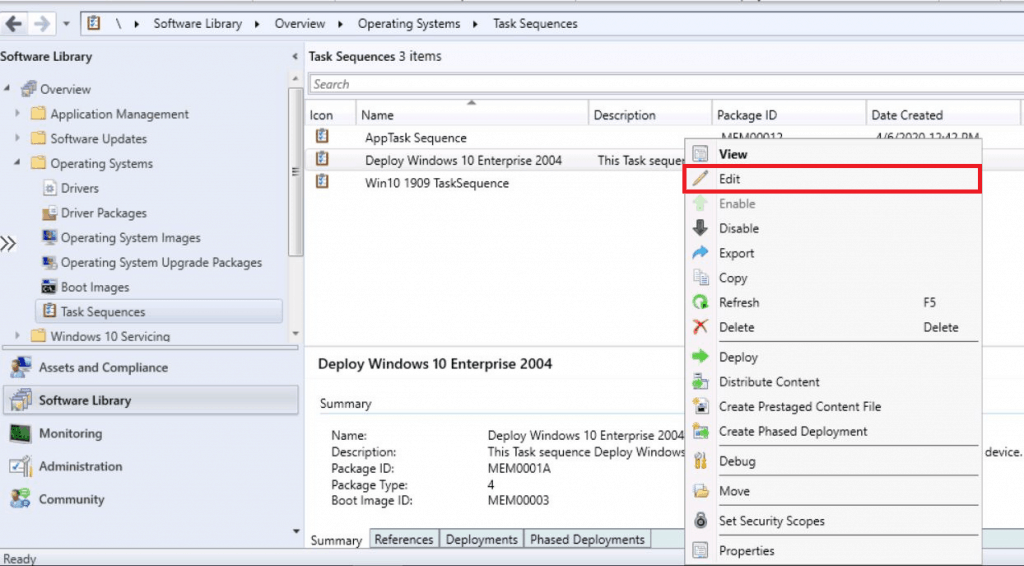

Under Software Library > Operating Systems > Task Sequences. Right-click on task sequences and select Edit.

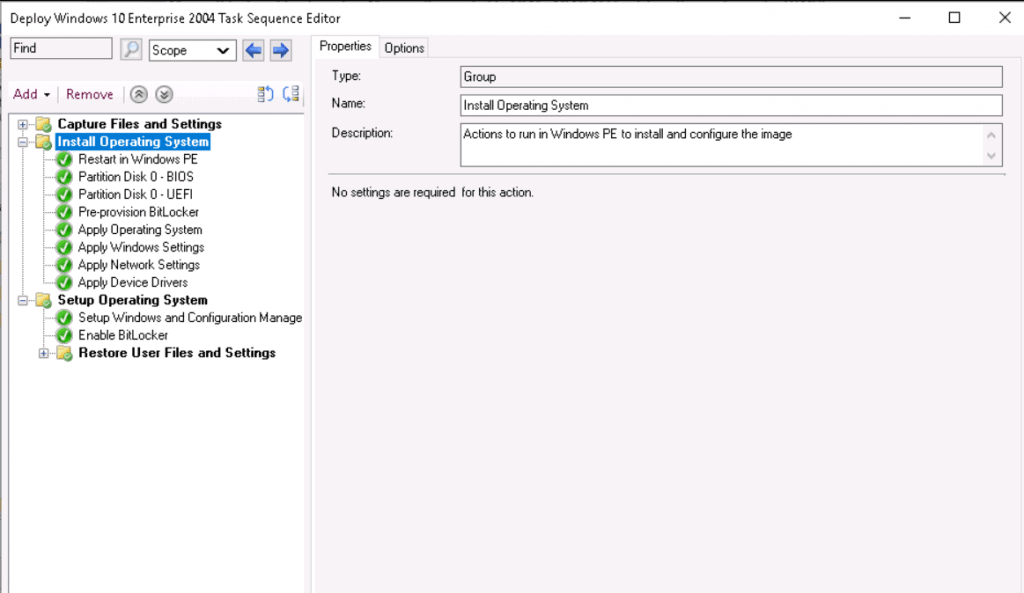

Edit the Task Sequence to add or remove settings – The Task Sequence uses these phases to determine which tasks must be completed.

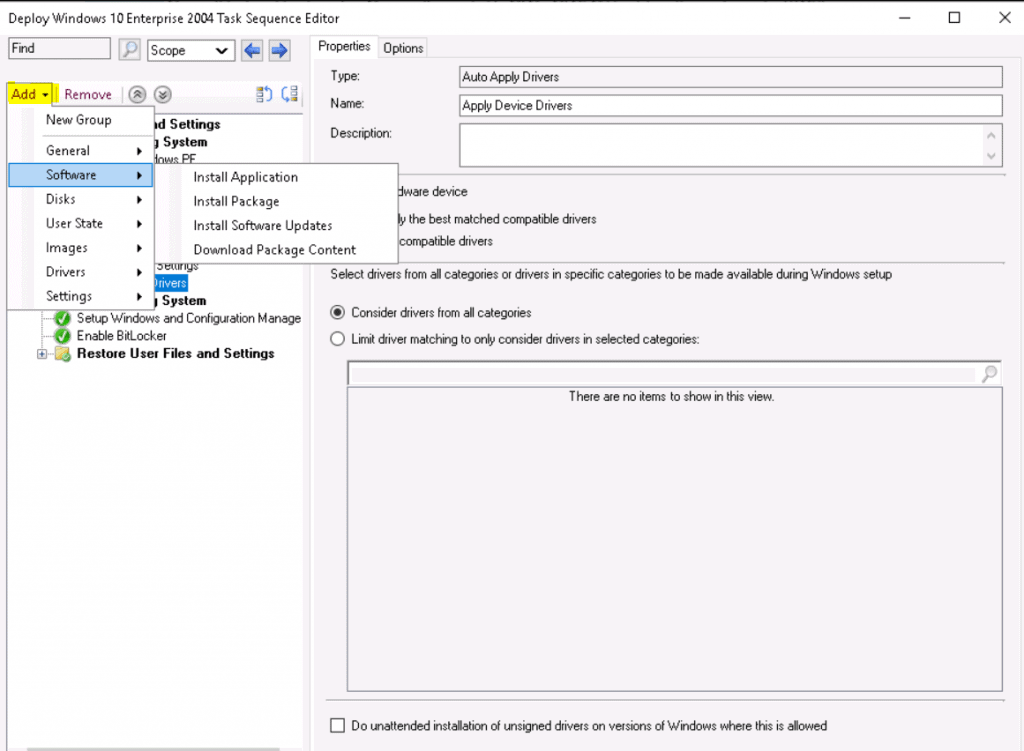

Based on requirements, you might need to add support files, software updates, tools, and applications to the task sequence.
Review drivers and applications that will be installed with the task sequence. Before you deploy the task sequence, make sure the drivers are compatible. To Import Drivers, Create Driver packages and Process to Integrate Driver packages into Task Sequence.
Review other settings added in Task Sequence, and make sure to apply all changes. Click Apply and OK, close the window.
Deploy Windows 10 2004 Task Sequence
Select the task sequence, Right-click, and select Deploy.

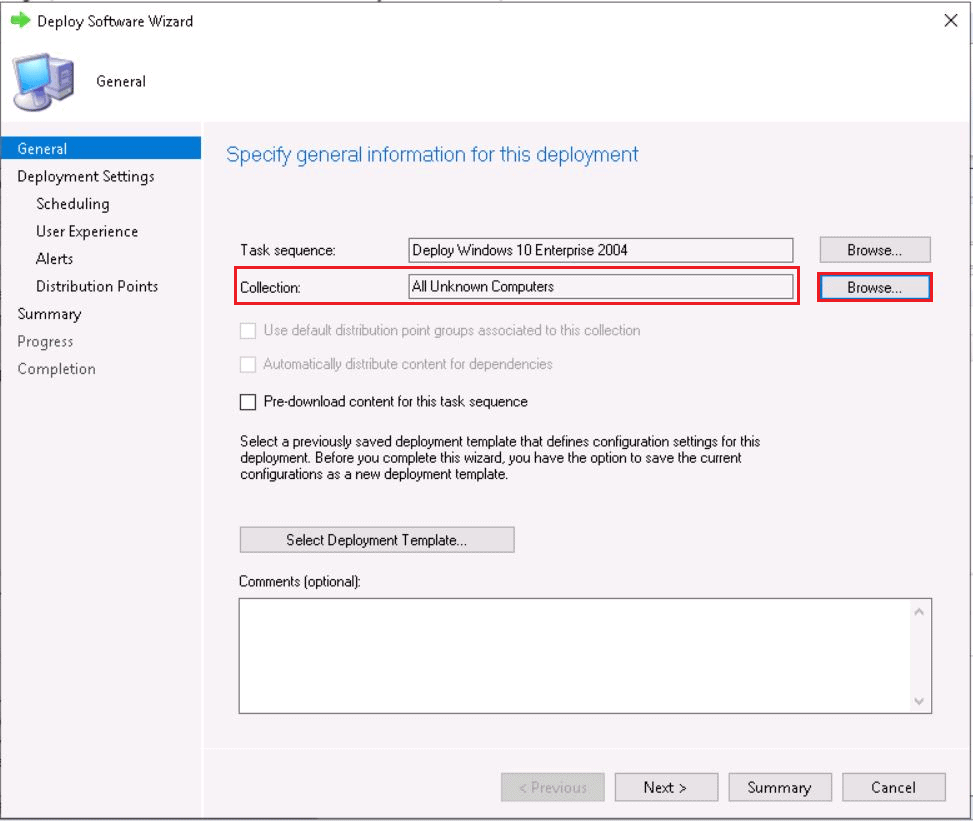

On the General, click Browse to select the device collection where you wish to perform the deployment.
Deploy to All Unknown Computers – Computers that are not managed by Configuration Manager or a computer that is not imported into Configuration Manager.
On the Deployment Settings, select the Purpose of the deployment.
- Available—Available deployments require that the user be present at the destination computer. The user must press the F12 key to continue the PXE boot process. If a user isn’t present to press F12, the computer boots into the current OS or from the next available boot device.
- Required – Required deployments use PXE without any user intervention.

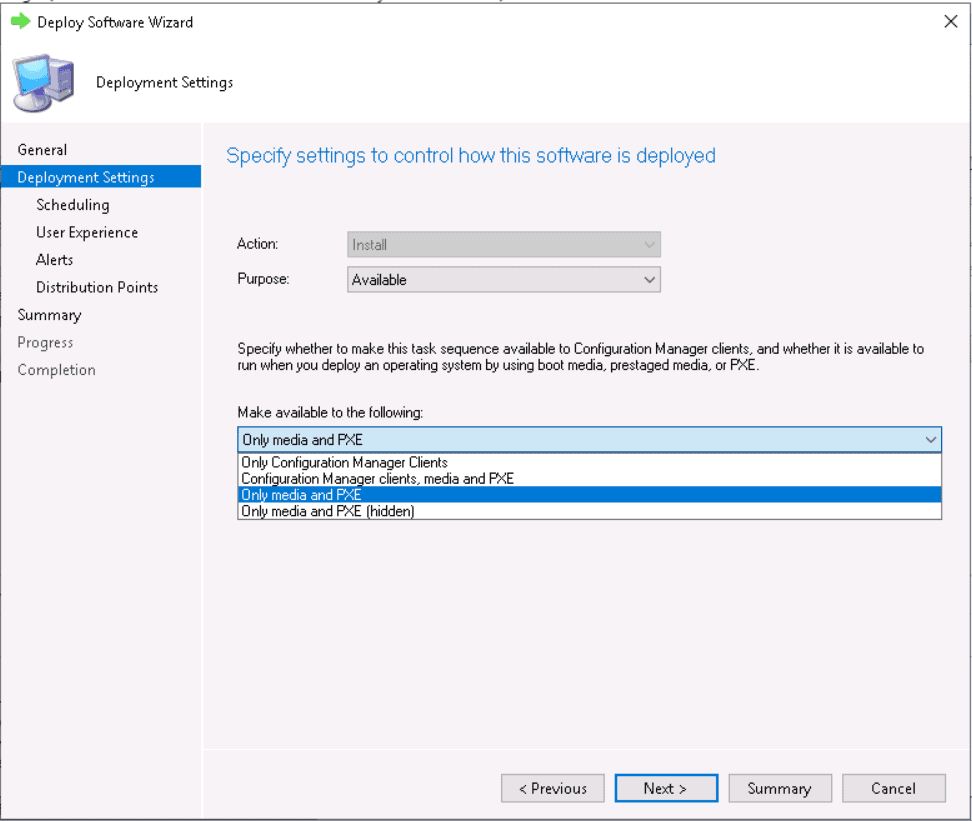

To use a PXE-initiated OS deployment, For the Make available to the following setting, select one of the following options –
- Configuration Manager clients, media, and PXE
- Only media and PXE
- Only media and PXE (hidden)

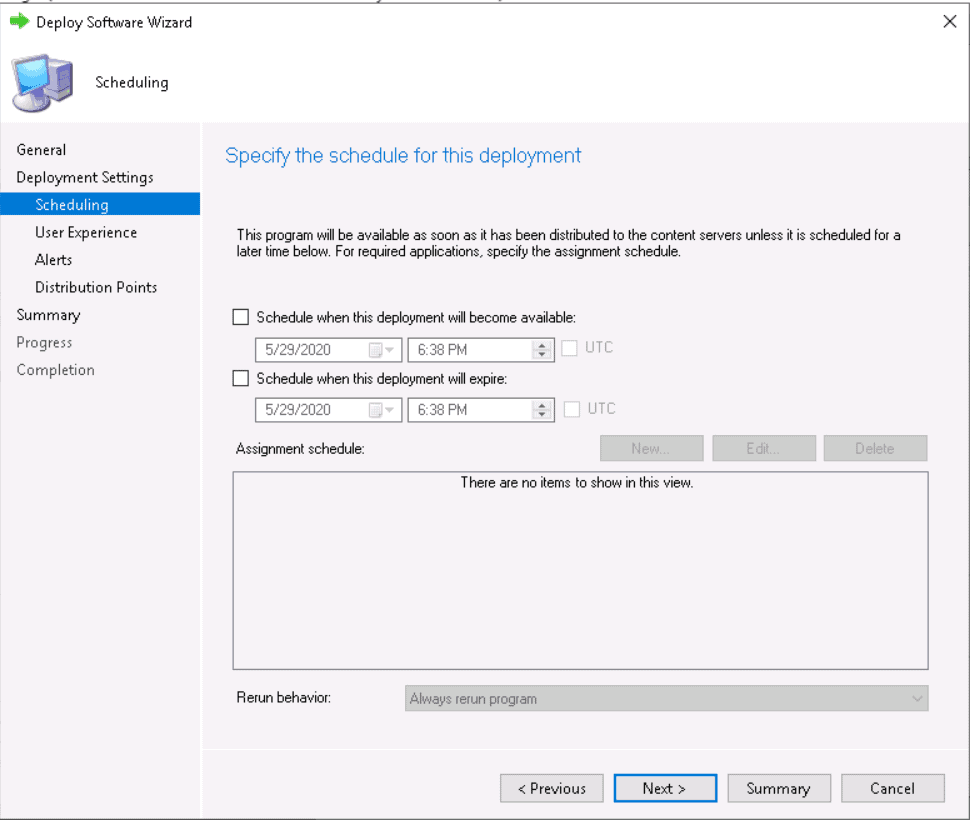

On the Scheduling tab, you can specify the schedule for this deployment. Click Next.

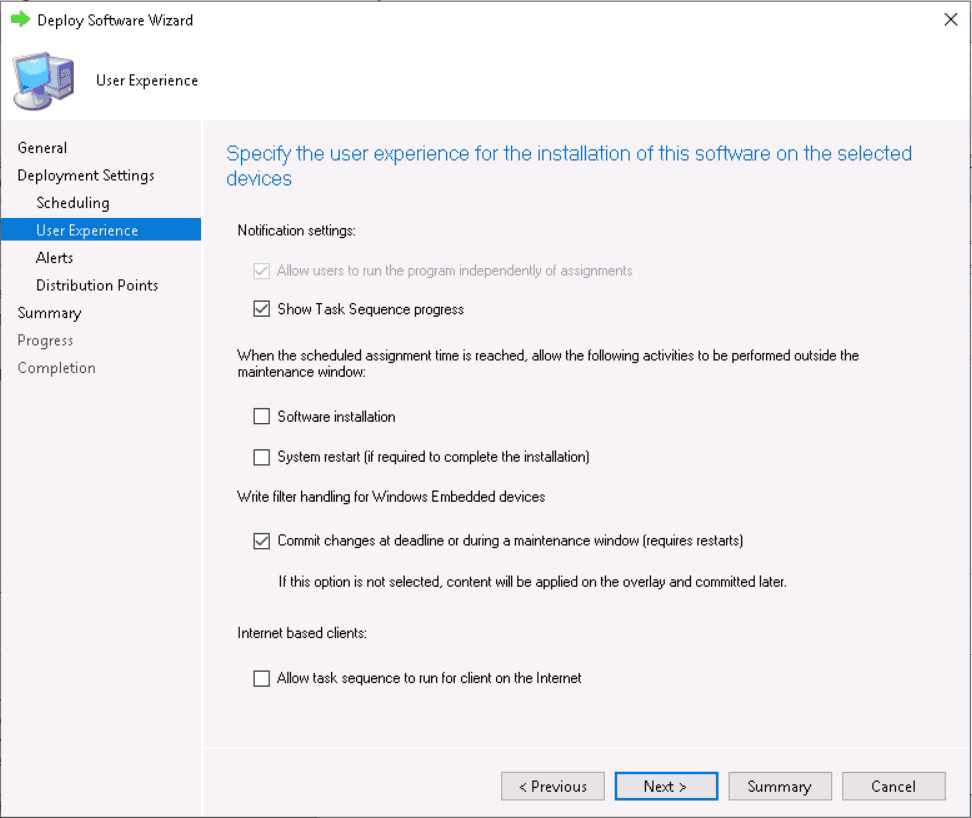

On the User Experience tab, leave the default selected options. Click Next.

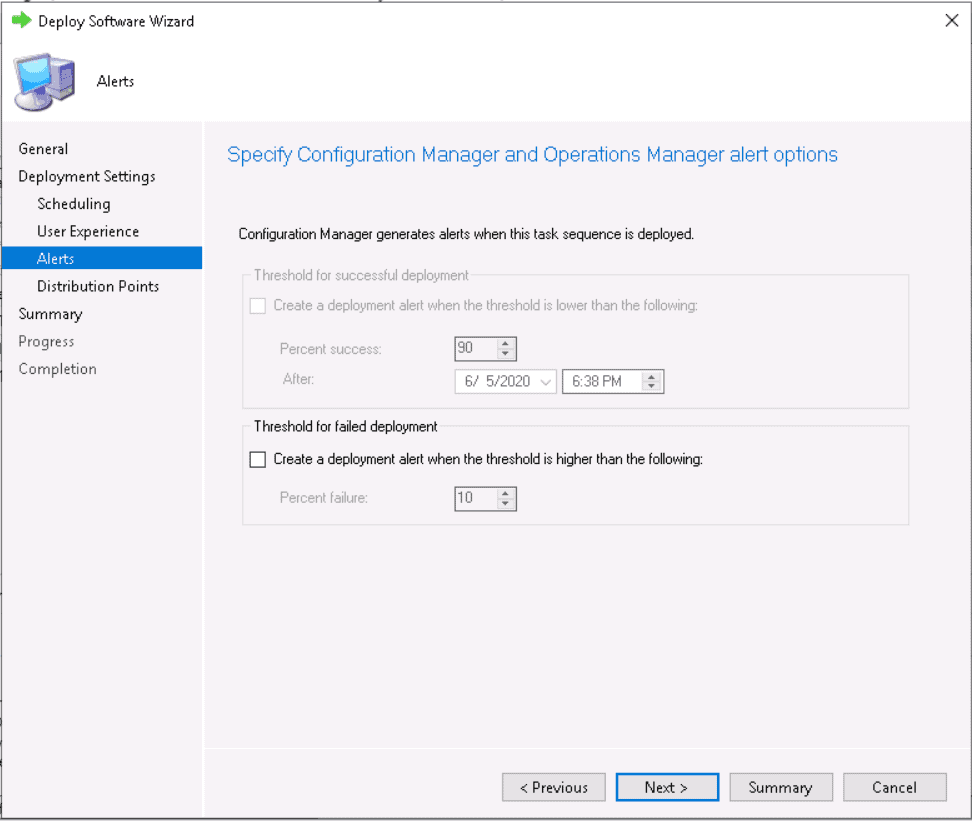

On the Alerts page, leave it as default. Click Next.

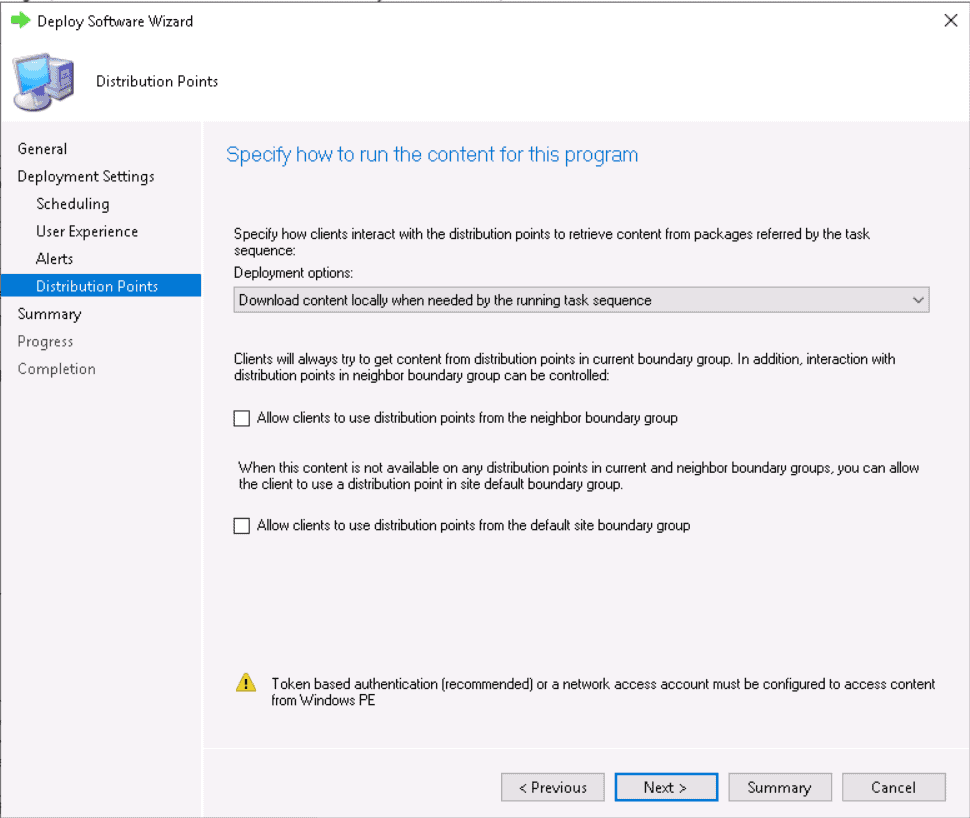

On the Distribution Points page, you can specify how clients interact with the DPs to retrieve content from reference packages. Click Next.

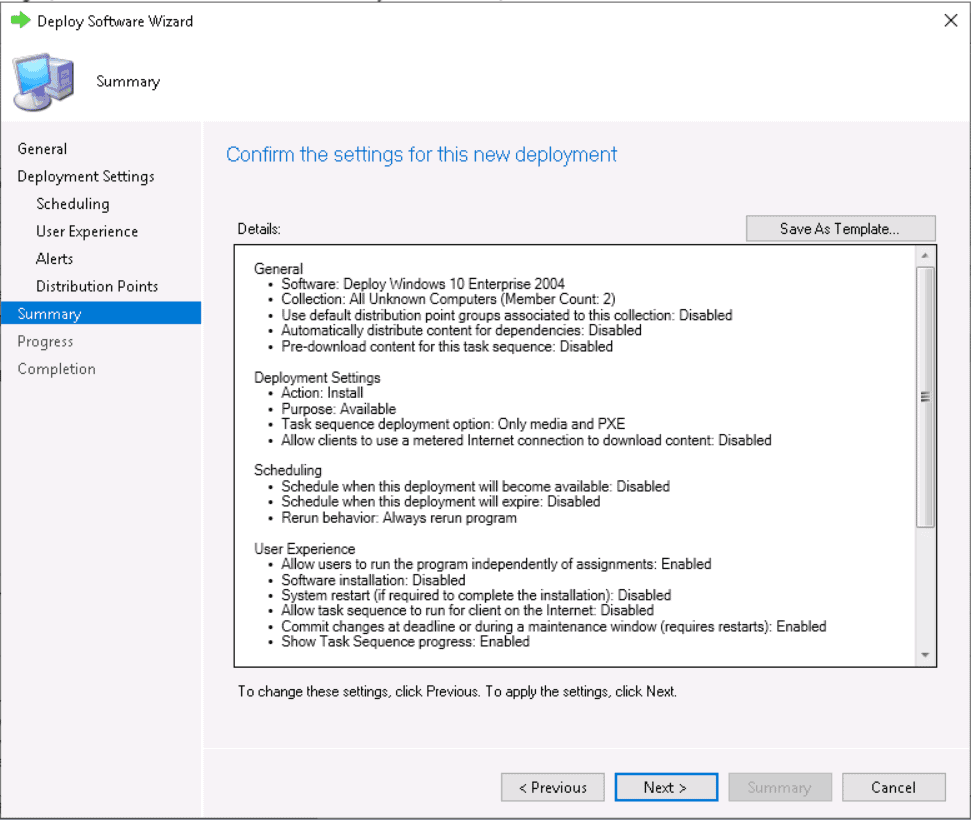

Review the selected settings and click Next.
The Deployment targeted successfully collection. Close the Wizard.
Results – Windows 10 Deployment
On Target Computers, it depends on deployment settings. Press the F12 key to continue the PXE boot process. Windows PE starts, and then the Task Sequence Wizard starts. You will be presented with the Welcome to the Task Sequence Wizard. If media is password protected, provide a password. Click Next.
Complete the Task Sequence Wizard by selecting the deployed task sequence. Click Next.
Once you complete the Wizard, the deployment of the new operating system begins. When the deployment process is complete, you will be prompted to Sign in to the device on the screen.

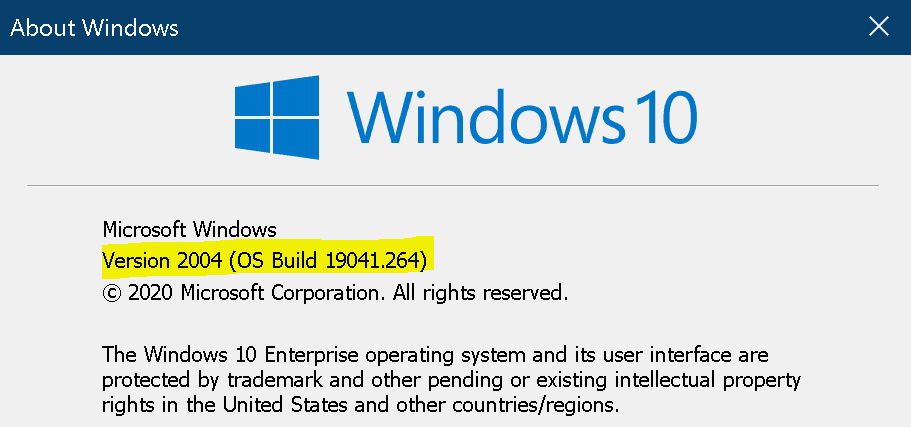

Sign in to the device with your domain or local credentials. Check the Windows Version; installed Windows 10 2004 successfully.
Troubleshooting – Windows 10 2004 Using SCCM
The first step in troubleshooting SCCM OSD Task Sequence issues is to check the SMSTS.log. Learn how to read SMSTS.log effectively.
The SMSTS.log updates the location depending on the phases of the deployment process.
| Phase | Log Location [Client Side] |
|---|---|
| WinPE (Before HDD are formatted and partitioned) | x:\windows\temp\smstslog\smsts.log |
| WinPE (After HDD are formatted) | x:\smstslog\smsts.log copied to c:\_SMSTaskSequence\Logs\Smstslog\smsts.log |
| Installed Operating System (Before the SCCM client was installed) | c:\_SMSTaskSequence\Logs\Smstslog\smsts.log |
| Installed Operating System (After the SCCM client is installed) | c:\windows\ccm\logs\Smstslog\smsts.log |
| Installed Operating System (When the Task Sequence is completed) | c:\windows\ccm\logs\smsts.log |
