Install WSUS for ConfigMgr Software Update Point Role | SUP | SCCM

In this post, you shall learn how to install WSUS for ConfigMgr Software Update Point (SUP). Let’s see how to install WSUS on Server 2019 for SCCM SUP.

NOTE! – Looking for Install New ConfigMgr Software Update Role Setup Guide| SUP | SCCM step by step guide?

Launch Server Manager

  • Launch Server manager and select Role-based or feature-based installation
  • Click Next
Role-based or Role-based of feature-based installation - Install WSUS for ConfigMgr
Role-based or Role-based of feature-based installation Install WSUS for ConfigMgr

Select Destination Server

  • Select destination server and click NEXT
Select Destination Server for WSUS installation - Install WSUS for ConfigMgr
Select Destination Server for WSUS installation – Install WSUS for ConfigMgr
Altaro Office 365 Backup
Advertisement Altaro Office 365 Backup

Select Server Roles

  • Select Windows Server Update Services from the server roles
  • Click on Add Features
  • Click on NEXT to continue
Select Server Roles -  Install WSUS for ConfigMgr
Select Server Roles – Install WSUS for ConfigMgr

Select Features

  • We don’t have to select anything in this page called “select the features.”
  • Click on NEXT to continue
Select Features for WSUS - Install WSUS for ConfigMgr
Select Features for WSUS – Install WSUS for ConfigMgr

Windows Server Update Services

  • Click on NEXT to continue
Windows Server Update Services Wizard
Windows Server Update Services Wizard

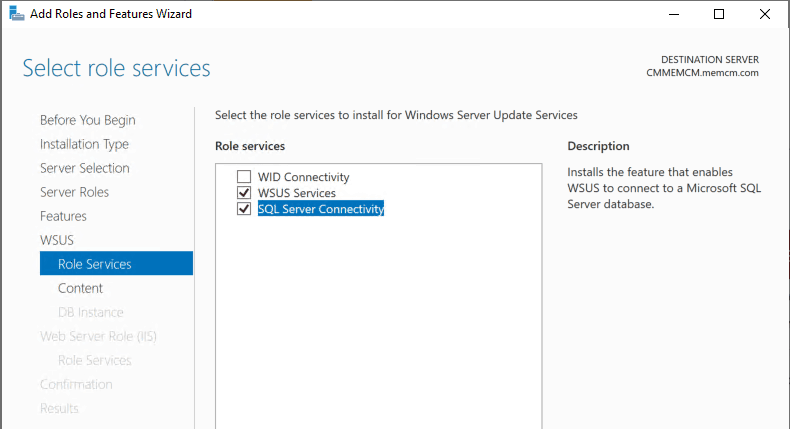

Select Role Services to Install WSUS

  • Select the role services to install for Windows Server Update Services (WSUS)
    • WSUS Services
    • SQL Server Connectivity
  • Click on Next to continue

NOTE! – Remote SUP site system role might or can be installed with WID connectivity. WID is Windows Internal Database.

Select Role Services
Select Role Services

Content Location Selection for WSUS

  • Select the content store location for WSUS content
  • Store Updates in the following location
    • F:\WSUS Content
Store Updates in the following location
Store Updates in the following location

Database Instance Selection

  • Specify an existing database server (machine name\Instance name) to install the WSUS database
  • Enter the SQL Database name “SQLMEMCM.memcm.com”
  • Click on Check Connection
    • Successfully connected to server
  • Click on NEXT button to continue
WSUS Database Instance Selection
WSUS Database Instance Selection

Web Server Role (IIS)

  • Click on NEXT to continue
Web Server Role (IIS) for WSUS Installation
Web Server Role (IIS) for WSUS Installation

Select Roles Services for IIS

  • Click on NEXT with default selection
Select Roles Services for IIS
Select Roles Services for IIS

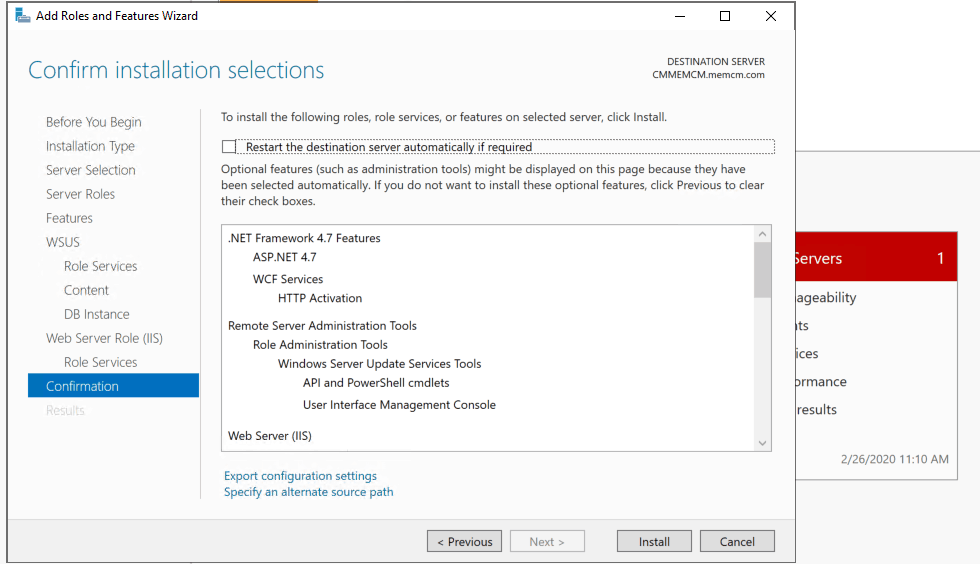

Install & Confirm Installation Selection

  • Confirm the selection
  • Click on INSTALL button to start the installation
Install & Confirm Installation Selection
Install & Confirm Installation Selection

Results

  • Completed the WSUS installation for ConfigMgr | SCCM | MEMCM.
  • Click on CLOSE button to finish the WSUS server setup for SCCM.
  • Don’t Launch Post-Installation Tasks for WSUS. This shall be managed from SCCM Console.
Results for WSUS Configuration SCCM
Results for WSUS Configuration SCCM

Complete WSUS Installation

  • Launch WSUS from Server Manager
  • Click on RUN
Complete WSUS Installation
Complete WSUS Installation
  • Progressing the post-installation Task
Post-Installation Tasks for WSUS
Post-Installation Tasks for WSUS
  • Completed the Post Installation Tasks
  • Click on CLOSE button
Finished the Post-Installation Tasks
Finished the Post-Installation Tasks

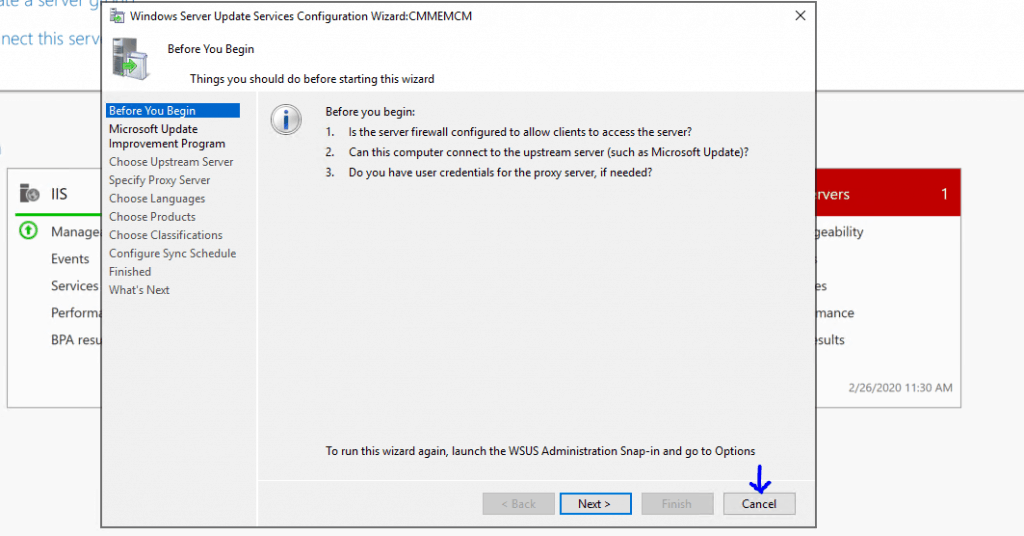

Cancel WSUS Configuration Wizard

  • Cancel the Windows Server Update Services (WSUS) Configuration Wizard
  • Let SCCM Software Update Point (SUP) do the configuration for you!
Install WSUS for ConfigMgr Software Update Point Role | SUP | SCCM 1
Windows Server Update Services (WSUS) Configuration Wizard

Completion – Install WSUS for ConfigMgr SUP

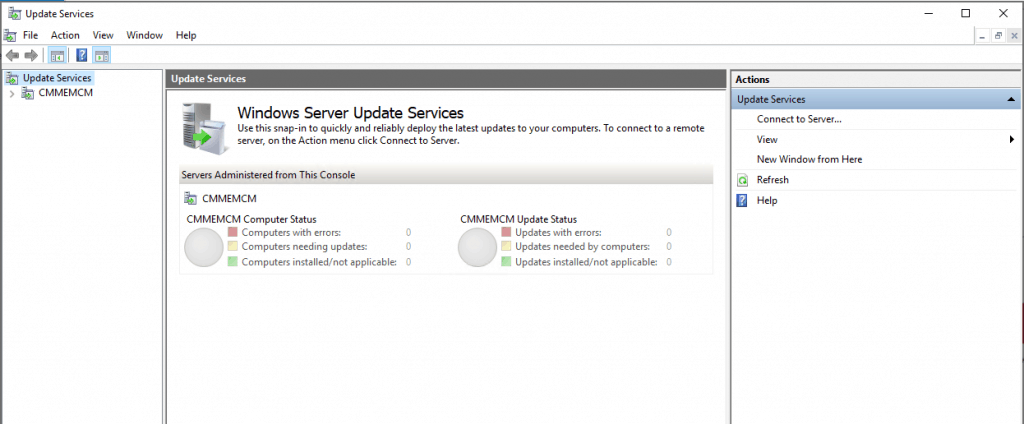

  • Windows Server Update Service (WSUS) console is launched successfully
Windows Server Update Service (WSUS) console
Windows Server Update Service (WSUS) console
  • Here is the SUSDB database created by this activity
SUSDB database WSUS DB
SUSDB database WSUS DB

Resources
