Automate Intune Firewall Policy Reports using Graph API and Get exportJobs FirewallStatus UPN Details

This post will explain generating an Intune Firewall Policy report using Microsoft Graph API. This method helps automate Intune Firewall Policy Reports using Graph API. Details This document aims to provide insights into developing the code to automate the Microsoft Intune Firewall Policy report through Microsoft Graph API.

Microsoft Graph is an API that lets you access data, intelligence, and insights from Microsoft 365 and other Microsoft Cloud services through a single endpoint. This includes Microsoft 365, Windows, and Enterprise Mobility + Security data.

The Microsoft Graph API is designed to perform the same range of Intune operations as those available through the portal. Using Microsoft Graph, developers can build intelligent applications that leverage the power of Microsoft 365 and other Microsoft services to enhance productivity and collaboration.

All reports transitioned to the Intune reporting infrastructure can be seamlessly exported via a single top-level export API. Microsoft Intune offers a wide range of reports within the admin center, which can be exported using Graph APIs. Microsoft Graph, a RESTful web API, facilitates access to Microsoft Cloud service resources.

Patch My PC

Know More About Intune Firewall Policy Reports

Firewall Policy Reports in Intune provide administrators with a detailed view of the traffic allowed or blocked by the organization’s firewall policies. These reports can be used to monitor and analyze network traffic, identify potential security risks, and troubleshoot issues related to firewall configuration.

Automate Microsoft Intune Firewall Policy Reports using Graph API. Fig.01
Automate Microsoft Intune Firewall Policy Reports using Graph API. Fig.01

By reviewing Firewall Policy Reports in Intune, you can ensure their firewall policies protect the network and data. They can also use the reports to adjust their policies to align with security goals and compliance requirements. This report provides a high-level view of the firewall status for Windows 10 or 11 managed devices with Intune.

Adaptiva

The report is available from the Reports node in the Microsoft Intune portal. You can navigate to Reports > Firewall > MDM Firewall status for Windows 10 and later. After clicking on Generate Report, the report will be generated. Intune will take a few seconds to create a firewall status report for all your Windows devices.

Available Properties
DeviceName
FirewallStatus
Managed by
Device ID
OS
User name
Microsoft Entra ID
UPN
Automate Intune Firewall Policy Reports using Graph API and Get exportJobs FirewallStatus UPN Details Table. 01

Use Graph Explorer to try Microsoft Graph APIs

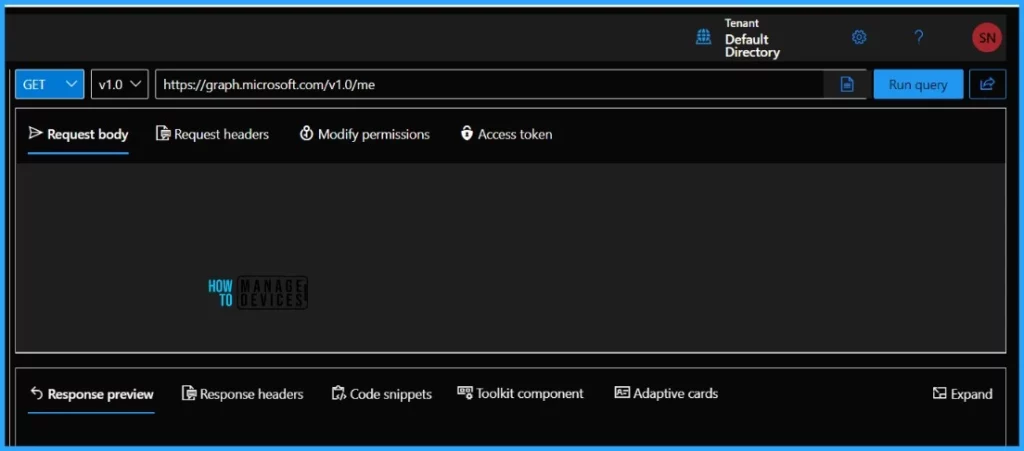

I will use Graph Explorer, a handy browser-based tool for running your Graph calls. However, it does not support commands in batch and is a single-line command executor. API calls will be made using Graph Explorer. When you go to Graph Explorer, you will get a webpage like the one below.

NOTE! You may need to log in to Graph Explorer using your credentials if it's your first time.
Automate Microsoft Intune Firewall Policy Reports using Graph API. Fig.02
Automate Intune Firewall Policy Reports using Graph API and Get exportJobs FirewallStatus UPN Details Fig.02

Generate Intune Firewall Policy Report using Microsoft Graph API

Let’s automate the Microsoft Intune Firewall Policy Reports using Graph API. You can use the Microsoft Graph API endpoint below to export reports in Microsoft Intune. Your request must use the POST HTTP method.

HTTP MethodsDescription
GETGET method is to retrieve data from the server simply
POST The POST HTTP request method sends data to the server for processing.
PUTThe PUT method completely replaces a resource identified with a given URL.
DELETEThe DELETE method removes or deletes a resource from a server.
Automate Intune Firewall Policy Reports using Graph API and Get exportJobs FirewallStatus UPN Details Table. 02

https://graph.microsoft.com/beta/deviceManagement/reports/exportJobs

You must provide a reportName parameter as part of the request body based on the report you would like to export using Microsoft Graph API. Use FirewallStatus as reportName in this example. Microsoft has documented the possible values for the reportName. The following table contains the possible output when calling the FirewallStatus report. Thanks to Microsoft for the table.

Available Properties
DeviceName
FirewallStatus
FirewallStatus_loc
_ManagedBy
UPN
Automate Microsoft Intune Firewall Policy Reports using Graph API. Table. 03
  • Sign in to the Graph Explorer and paste the Microsoft Graph API endpoint.
NOTE! The tenant must have an active Intune license to use the Microsoft Graph API for Intune. The Microsoft Graph API controls access to resources via permissions. You must specify the permissions you need to access Intune resources.

To execute the task, you must supply the request body below. Use the JSON body below, and Click on Run query.

{
    "reportName": "FirewallStatus",
    "format": "csv"
}

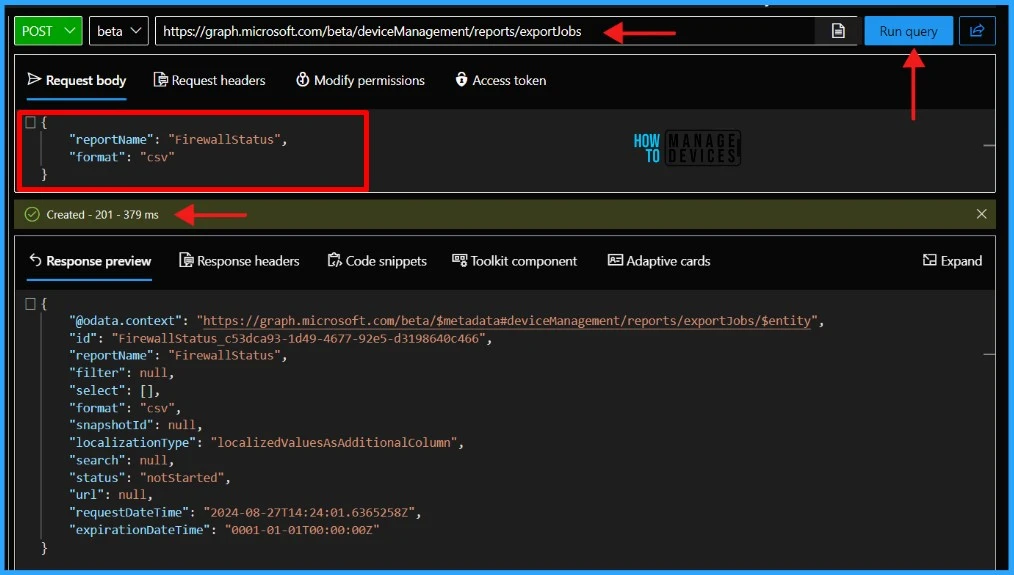

Automate Microsoft Intune Firewall Policy Reports using Graph API. Fig.03
Automate Intune Firewall Policy Reports using Graph API and Get exportJobs FirewallStatus UPN DetailsI. Fig.03

Well, once you click the Run Query button, the graph will return a response message. The requested data or the result of the operation is included in the response message.

{
    "@odata.context": "https://graph.microsoft.com/beta/$metadata#deviceManagement/reports/exportJobs/$entity",
    "id": "FirewallStatus_c53dca93-1d49-4677-92e5-d3198640c466",
    "reportName": "FirewallStatus",
    "filter": null,
    "select": [],
    "format": "csv",
    "snapshotId": null,
    "localizationType": "localizedValuesAsAdditionalColumn",
    "search": null,
    "status": "notStarted",
    "url": null,
    "requestDateTime": "2024-08-27T14:24:01.6365258Z",
    "expirationDateTime": "0001-01-01T00:00:00Z"
}

You must note the “id” value before proceeding. To retrieve the status of the export, it is recommended to query the id" field using a GET request. I will be using the below endpoint to generate the report.

https://graph.microsoft.com/beta/deviceManagement/reports/exportJobs(‘FirewallStatus_c53dca93-1d49-4677-92e5-d3198640c466’)

Paste the above endpoint URL and click on Run query. The id must be enclosed within single quotes (‘id’). The graph will return a response message once you click the Run query button.

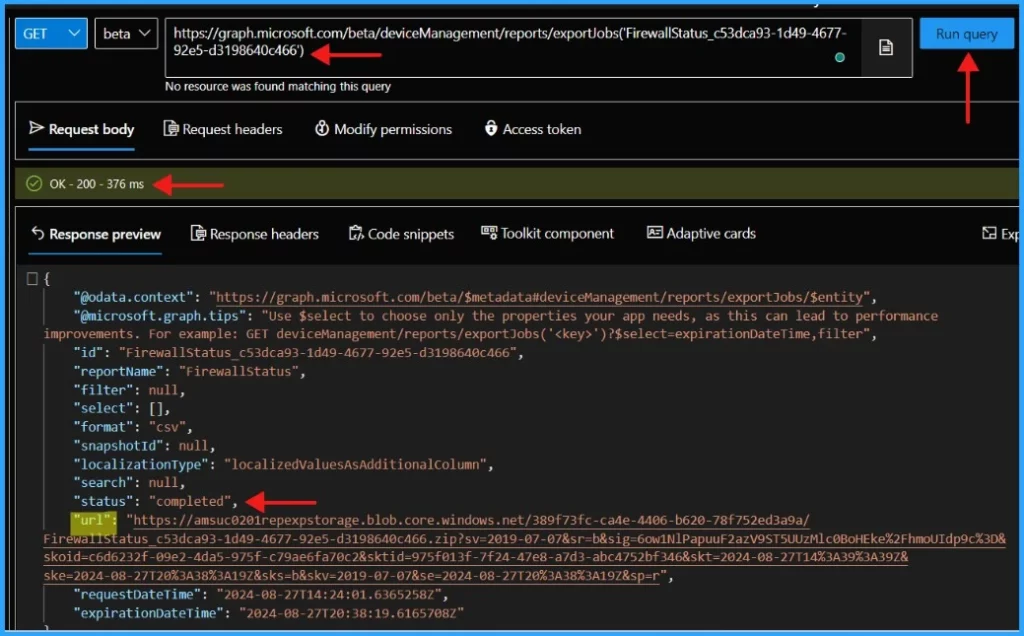

Automate Microsoft Intune Firewall Policy Reports using Graph API. Fig.04
Automate Microsoft Intune Firewall Policy Reports using Graph API. Fig.04

You will need to call this Microsoft Graph API endpoint repeatedly until you receive a response containing the status: completed attribute that looks like the example provided.

{
    "@odata.context": "https://graph.microsoft.com/beta/$metadata#deviceManagement/reports/exportJobs/$entity",
    "@microsoft.graph.tips": "Use $select to choose only the properties your app needs, as this can lead to performance improvements. For example: GET deviceManagement/reports/exportJobs('<key>')?$select=expirationDateTime,filter",
    "id": "FirewallStatus_c53dca93-1d49-4677-92e5-d3198640c466",
    "reportName": "FirewallStatus",
    "filter": null,
    "select": [],
    "format": "csv",
    "snapshotId": null,
    "localizationType": "localizedValuesAsAdditionalColumn",
    "search": null,
    "status": "completed",
    "url": "https://amsuc0201repexpstorage.blob.core.windows.net/389f73fc-ca4e-4406-b620-78f752ed3a9a/FirewallStatus_c53dca93-1d49-4677-92e5-d3198640c466.zip?sv=2019-07-07&sr=b&sig=6ow1NlPapuuF2azV9ST5UUzMlc0BoHEke%2FhmoUIdp9c%3D&skoid=c6d6232f-09e2-4da5-975f-c79ae6fa70c2&sktid=975f013f-7f24-47e8-a7d3-abc4752bf346&skt=2024-08-27T14%3A39%3A39Z&ske=2024-08-27T20%3A38%3A19Z&sks=b&skv=2019-07-07&se=2024-08-27T20%3A38%3A19Z&sp=r",
    "requestDateTime": "2024-08-27T14:24:01.6365258Z",
    "expirationDateTime": "2024-08-27T20:38:19.6165708Z"
}

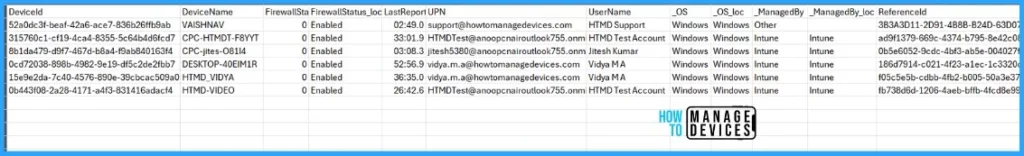

You will also get a url in the response. This URL should have the compressed CSV report. You can then directly download the compressed CSV from the url field.

Automate Microsoft Intune Firewall Policy Reports using Graph API. Fig.05
Automate Microsoft Intune Firewall Policy Reports using Graph API. Fig.05

This article will be a valuable resource for you and your organization. Thank you for being so patient in reading this post. I look forward to seeing you in the next post. Keep supporting the HTMD Community.
