Let’s understand how to use the SCCM Content Library Cleanup Tool (ContentLibraryCleanup.exe). The SCCM DP content library cleanup helps the admin remove orphaned content. This tool avoids hacking around WMI to remove orphaned content.

ContentLibraryCleanup.exe is NOT a GUI-based tool; instead, it’s a command-line tool. I don’t like command-line tools because they’re easy to make mistakes. So, it would be best if you understood the parameters of the ConfigMgr Content Library Cleanup Tool.

In this post, you’ll find everything about the SCCM Content Library Cleanup Tool. We’ll cover how it helps manage the Distribution Point and the basics of Configuration Manager, breaking down the details into simple, easy-to-understand terms.

Let me put the warning (This tool should be run carefully) as part of the prerequisite because it contains details of permissions required to run the Content Library Cleanup Tool.

Patch My PC

SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager – Requirements

The following are some critical requirements/prerequisites to run this tool.

  • Administrative access to the distribution point.
  • Full Administrator” RBAC role.
  • All” scope.
  • If running the tool remotely, please ensure your network is secure.
  • The tool runs in What-If mode and will not alter the content library.
  • The tool doesn’t support removing content from the site server with a single library.
  • The tool doesn’t support a content-enabled cloud management gateway or a cloud-based distribution point.
SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager - Fig.1
SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager – Fig.1

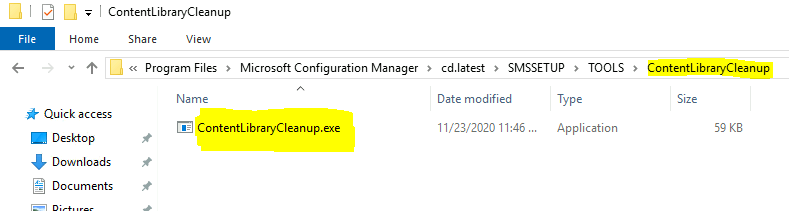

Where is ContentLibraryCleanup.exe

The Content Library Cleanup Tool command-line tool is part of the CD.latest folder.

  • F:\Program Files\Microsoft Configuration Manager\cd.latest\SMSSETUP\TOOLS\ContentLibraryCleanup\ContentLibraryCleanup.exe
SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager - Fig.2
SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager – Fig.2

How to Use the SCCM Content Library Cleanup Tool

You can copy the ContentLibraryCleanup.exe from the site server to the remote DP. Once copied to a remote distribution point, you can run the tool from that DP server. The following are some of the examples that you can use.

ScenarioCommand Line ExampleDetails
What-If @ DPContentLibraryCleanup.exe /dp DPserver1.MEMCM.comDP Server FQDN
What-If @ Secondary server DPContentLibraryCleanup.exe /dp DPserver1.MEMCM.com /ps PrimaryMEMCM.com /sc ABCPrimary Server FQDN and Primary server site code
Deletion @ DPContentLibraryCleanup.exe /dp DPServer.MEMCM.com /deleteRemote DP FQDN
Silent Switch to Delete @ DPContentLibraryCleanup.exe /q /dp DPServer.MEMCM.com /delete/q silent switch
Enable Logging with What-IfContentLibraryCleanup.exe /dp DPServer.MEMCM.com /log C:\Users\Administrator\Desktop/log to enable logging
Enable Logging with DeletionContentLibraryCleanup.exe /dp DPServer.MEMCM.com /delete /log C:\Users\Administrator\Desktop/Log /Delete deletion with logging
SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager – Table.1

What If Option with the Content Cleanup Tool

First, we need to analyze the content from the DP to reduce the risk. You can use the What-if mode to identify the orphaned content that would be deleted from the distribution point.

I recommend running the Content Library Cleanup tool’s what-if mode before the deletion. The following are the steps completed by the content library cleanup tool with the What-If parameter.

  • Are you sure you want to proceed (What-If mode)? ‘y’ = yes / ‘n’ = no:: Y
  • Gathering information…
  • Loading information from distribution point…
  • Analyzing local files, 0.00% complete…
  • Analyzing local files, 100.00% complete…
  • Loading package data from provider
  • Loading local package data…
  • Loading distributed packages from provider…
  • System.InvalidOperationException: This content library cannot be cleaned up now because package MEM00020 is not fully installed.

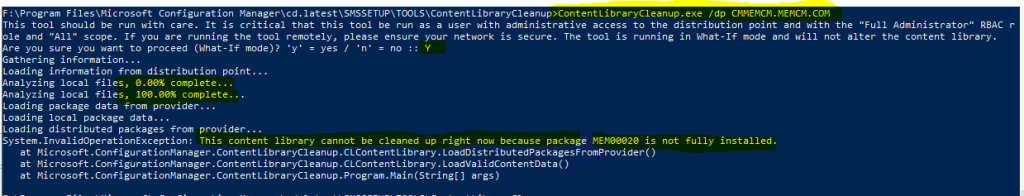

SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager - Fig.3
SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager – Fig.3

Errors with the Content Library Cleanup Tool

The above screenshot shows an error with the What-If mode. You need to complete the package distribution before you can proceed with using the SCCM DP content library cleanup tool. The screenshot below shows one more error.

NOTE! – If any of the package distribution is failed, then you can’t run this tool. It would be best if you fixed the package distribution for the DP, and then you can run the cleanup tool.

Content Library Cleanup Tool Error – System.InvalidOperationException: This content library cannot be cleaned up now because package MEM00020 is not fully installed.

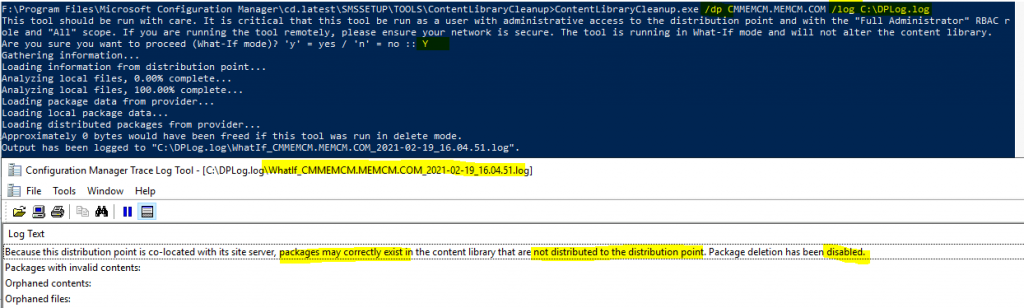

Primary and DP on same server Error—Approximately 0 bytes would have been freed if this tool had been run in delete mode. Because this distribution point is co-located with its site server, packages may correctly exist in the content library that is not distributed to the distribution point. Package deletion has been disabled.

SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager - Fig.4
SCCM Content Library Cleanup Tool | Distribution Point | Configuration Manager – Fig.4

Resources

SCCM package distribution failed to remote DP
