ConfigMgr SCCM Software Updates Patching WMI Troubleshooting Tips Endpoint Manager. This post will help you perform some of the WMI troubleshooting tips related to Software Updates.

Latest Post – SCCM CMPivot Query Patches Installed In Last 90 Days | ConfigMgr HTMD Blog (anoopcnair.com)

ConfigMgr SCCM Software Updates Patching WMI Troubleshooting Tips Endpoint Manager

ConfigMgr SCCM Software Updates Patching WMI Troubleshooting Tips Endpoint Manager.

  • WSUS Server details of a client
  • Compliancy detail of a particular update
  • Notification Settings of Software Updates – Patch Management
  • WSUS Server details of a client

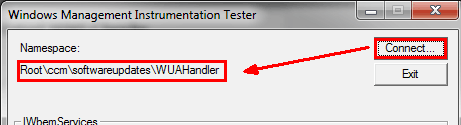

1. Connect to “Root\ccm\softwareupdates\WUAHandler.”

Patch My PC
Software Updates Patching WMI Troubleshooting

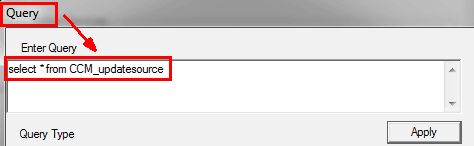

2. Click on “Query” and paste the following query in the “query” windows and click on “Apply.”

select * from CCM_updatesource

ConfigMgr SCCM Software Updates Patching WMI Troubleshooting Tips Endpoint Manager

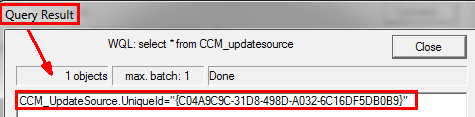

3. Double click the one row that is returned (note if there is more than one),

ConfigMgr SCCM Software Updates Patching WMI Troubleshooting Tips Endpoint Manager

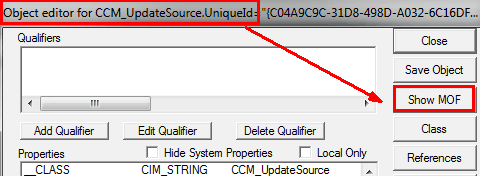

4. Click the “Show MOF” tab on the Object editor window.

ConfigMgr SCCM Software Updates Patching WMI Troubleshooting Tips Endpoint Manager

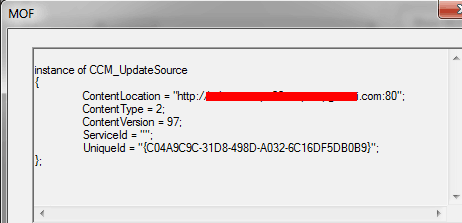

5. Review the setting for CCM_UpdateSource for the update we’ve selected. In this example, ContentLocation is set to WSUS Server we scanned against.

Software Updates Patching WMI Troubleshooting
ConfigMgr SCCM Software Updates Patching WMI Troubleshooting Tips Endpoint Manager

Compliancy detail of a particular update

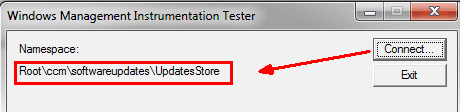

1. Connect to “Root\ccm\softwareupdates\UpdatesStore”

ConfigMgr SCCM Software Updates Patching WMI Troubleshooting Tips Endpoint Manager

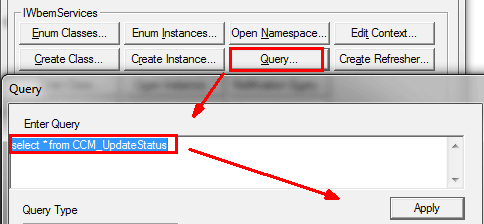

2. Click on “Query” and paste the following query in the “query” windows and click on “Apply.”

select * from CCM_UpdateStatus

Software Updates Patching WMI Troubleshooting

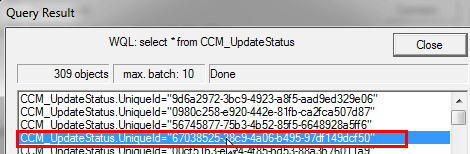

3. Double click the one row that is returned (note if there is more than one).

Software Updates Patching WMI Troubleshooting

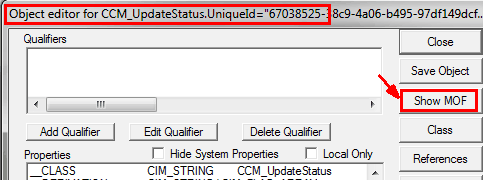

4. Click the “Show MOF” tab on the Object editor window.

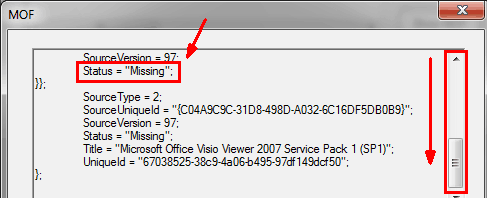

5. Review the setting for CCM_UpdateStatus for the update we’ve selected. In this example, STATUS = “Missing.”


Notification Settings of Software Updates – Patch Management

1. Connect to “Root\ccm\policy\machine\ActualConfig”

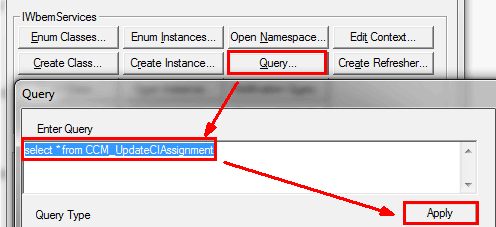

2. Click on “Query” and paste the following query in the “query” windows and click on “Apply.”

select * from CCM_UpdateCIAssignment

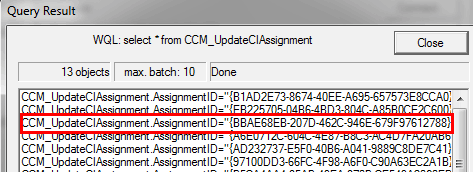

3. Double click the one row that is returned (note if there is more than one).

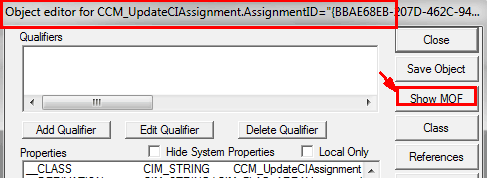

4. Click the “Show MOF” tab on the Object editor window.

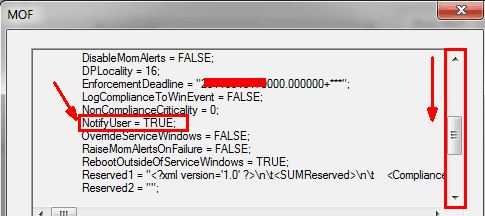

5. Review the setting for CCM_UpdateCIAssignment for the update we’ve selected. In this example NotifyUser = “TRUE“.


Note – You can also check out Reboot and Maintenance Window Settings from the above screenshot.
