Reinstall SCCM Service Connection Point

Let’s learn what are the options to troubleshoot SCCM service connection point issues. Reinstall SCCM service connection point role is one of the troubleshooting steps sometimes to fix download updates and servicing issues.

NOTE! – Update stuck in download issue is a common scenario in enterprise organizations and LAB environments. This issue is mostly because of proxy or some other internet-related issues.

What is Service Connection Point? A service connection point connects Configuration Manger to Microsoft cloud services and is used for Microsoft Intune subscription and servicing, and to update your Configuration Manager installation.

Introduction

ConfigMgr Updates are not available in my Technical Preview LAB environment. I decided to reinstall SCCM Service Connection Point to fix the updates and servicing download issues.

I have noticed that there are EIGHT Workers in Service Connection point role in SCCM. And those threads are:

reinstall SCCM Service Connection Point
reinstall SCCM Service Connection Point
  1. TelemetryUploaderWorker
  2. M365AUploadWorker
  3. M365ADeploymentPlanWorker
  4. M365ADeviceHealthWorker
  5. M365ATenantUpdateInfoCloudSettingsWorker
  6. OfficeCDNWorker
  7. CMGatewaySyncUploadWorker
  8. CMGatewayNotificationWorker
Altaro Office 365 Backup
Advertisement Altaro Office 365 Backup

Remove Service Connection Point Role

Let’s remove the Service Connection Point role from your SCCM infrastructure. Service connection point provides the connectivity between Microsoft Endpoint Manager ConfigMgr & cloud solutions.

  • Navigate – \Administration\Overview\Site Configuration\Servers and Site System Roles
  • Right Click on Service Connection Point Role and Select Remove
  • Click on Yes to confirm the removal of SCP role from the site system server or CAS or Primary

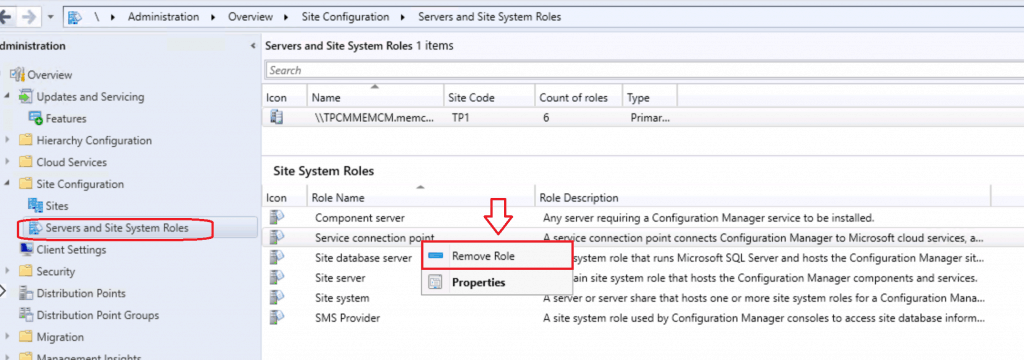

Remove Service Connection Role - Reinstall SCCM Service Connection Point
Remove Service Connection Role – Reinstall SCCM Service Connection Point

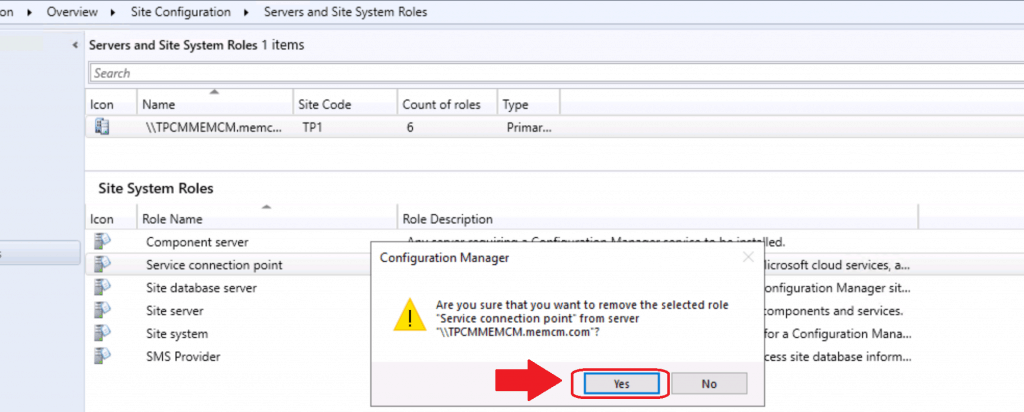

  • Click Yes to confirm the removal
Confirm YES to Delete Service Connection Point Role
Confirm YES to Delete Service Connection Point Role

Understand the Removal Process via Logs

As you know, SCCM logs are the best friend for admins. Let’s understand the remove processed via different log files.

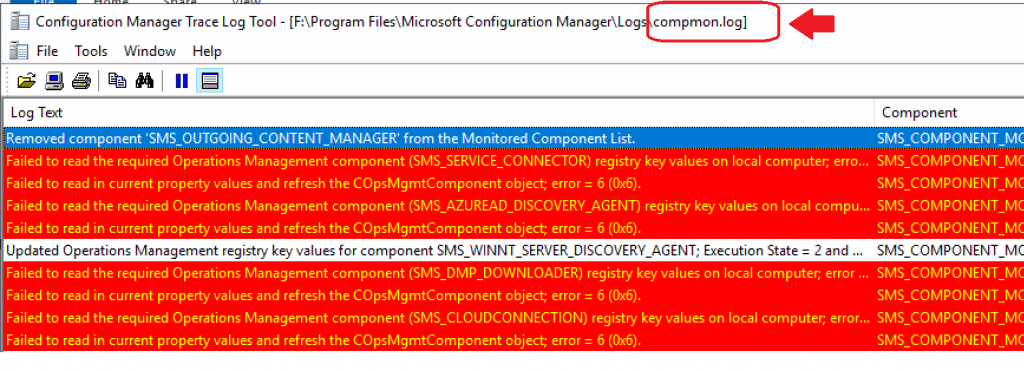

compmon.log

More details in compmon.log

Checking components …~
Can not get the current execution state for component SMS_OUTGOING_CONTENT_MANAGER since it is not installed or completed installing.~
Can not get the current execution state for component SMS_SERVICE_CONNECTOR since it is not installed or completed installing.~
Failed to read the required Operations Management component (SMS_AZUREAD_DISCOVERY_AGENT) registry key values on local computer; error = 6 (0x6).~
Failed to read in current property values and refresh the COpsMgmtComponent object; error = 6 (0x6).~
Can not get the current execution state for component SMS_CLOUD_USERSYNC since it is not installed or completed installing.~
Can not get the current execution state for component SMS_DMP_DOWNLOADER since it is not installed or completed installing.~
Can not get the current execution state for component SMS_CLOUDCONNECTION since it is not installed or completed installing.~
Can not get the current execution state for component SMS_DMP_UPLOADER since it is not installed or completed installing.~
reinstall SCCM Service Connection Point
reinstall SCCM Service Connection Point
Removed component 'SMS_CLOUD_USERSYNC' from the Monitored Component List.
Removed component 'SMS_DMP_UPLOADER' from the Monitored Component List.
Removed component 'SMS_OUTGOING_CONTENT_MANAGER' from the Monitored Component List

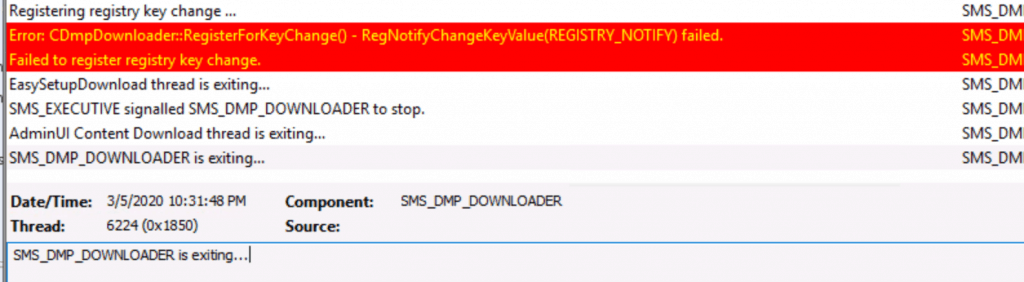

DMPDownloader.log

More Details from DMPDownloader.log

Error: CDmpDownloader::RegisterForKeyChange() - RegNotifyChangeKeyValue(REGISTRY_NOTIFY) failed.
Failed to register registry key change.
EasySetupDownload thread is exiting…
SMS_EXECUTIVE signalled SMS_DMP_DOWNLOADER to stop.
AdminUI Content Download thread is exiting…
SMS_DMP_DOWNLOADER is exiting…
reinstall SCCM Service Connection Point
reinstall SCCM Service Connection Point

Sitecomp.log

More details Sitecomp.log

Deinstallation successful.
LogEvent(): Successfully logged Event to NT Event Log (4, 126, 1073742847, (null))
.
STATMSG: ID=1096 SEV=I LEV=D SOURCE="SMS Server" COMP="SMS_AZUREAD_DISCOVERY_AGENT"
STATMSG: ID=1097 SEV=I LEV=D SOURCE="SMS Server" COMP="SMS_AZUREAD_DISCOVERY_AGENT"
STATMSG: ID=1023 SEV=I LEV=M SOURCE="SMS Server" COMP="SMS_AZUREAD_DISCOVERY_AGENT"
.
STATMSG: ID=1096 SEV=I LEV=D SOURCE="SMS Server" COMP="SMS_CLOUDCONNECTION"
.
STATMSG: ID=1096 SEV=I LEV=D SOURCE="SMS Server" COMP="SMS_CLOUD_USERSYNC"
.
STATMSG: ID=1096 SEV=I LEV=D SOURCE="SMS Server" COMP="SMS_DMP_DOWNLOADER"
.
STATMSG: ID=1096 SEV=I LEV=D SOURCE="SMS Server" COMP="SMS_DMP_UPLOADER"
.
STATMSG: ID=1096 SEV=I LEV=D SOURCE="SMS Server" COMP="SMS_OUTGOING_CONTENT_MANAGER"
.
STATMSG: ID=1096 SEV=I LEV=D SOURCE="SMS Server" COMP="SMS_SERVICE_CONNECTOR"
reinstall SCCM Service Connection Point
reinstall SCCM Service Connection Point

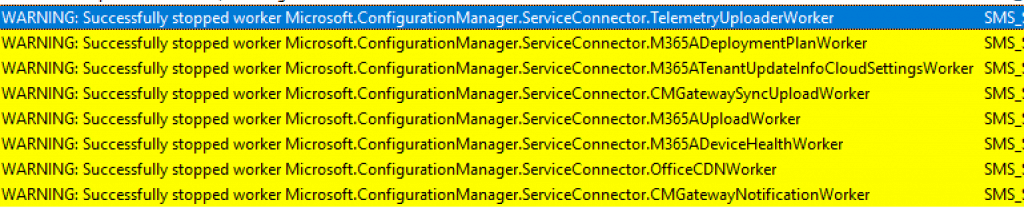

SMS_SERVICE_CONNECTOR.log

More details about SMS_SERVICE_CONNECTOR.log!!

The host's stop has been called, shutting down 8 workers
WARNING: Successfully stopped worker Microsoft.ConfigurationManager.ServiceConnector.TelemetryUploaderWorker
WARNING: Successfully stopped worker Microsoft.ConfigurationManager.ServiceConnector.M365AUploadWorker
WARNING: Successfully stopped worker Microsoft.ConfigurationManager.ServiceConnector.M365ADeploymentPlanWorker WARNING: Successfully stopped worker Microsoft.ConfigurationManager.ServiceConnector.M365ADeviceHealthWorker WARNING: Successfully stopped worker Microsoft.ConfigurationManager.ServiceConnector.M365ATenantUpdateInfoCloudSettingsWorker
WARNING: Successfully stopped worker Microsoft.ConfigurationManager.ServiceConnector.OfficeCDNWorker
WARNING: Successfully stopped worker Microsoft.ConfigurationManager.ServiceConnector.CMGatewaySyncUploadWorker
Successfully shut down the workers.
.
Successfully shut down the workers.
.
End main SMS_SERVICE_CONNECTOR thread

Reinstall SCM Service Connection Point

Now, let’s reinstall the service connection point to fix the SCCM servicing and updates download issues.

NOTE! – I have restarted the SCCM server after the removal of service connection point role to clean up all the left over configurations.

  • Navigate \Administration\Overview\Site Configuration\Servers and Site System Roles
  • Select the Site System server and Right Click on the server – Select Add Site System Roles

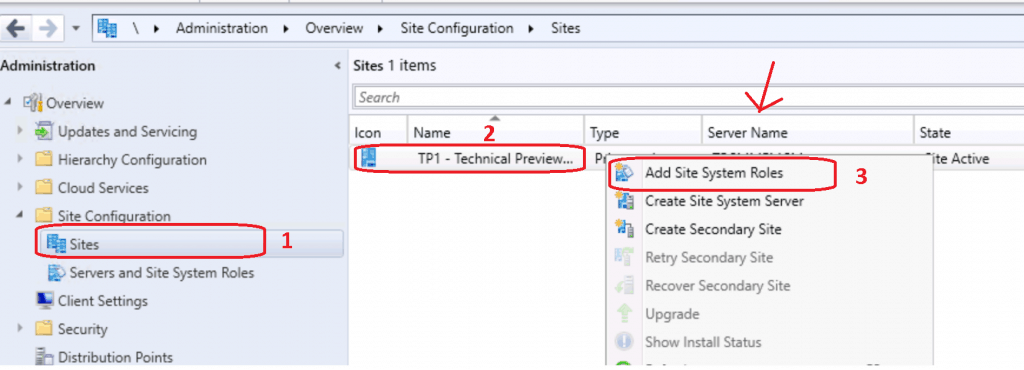

dd Site System Roles- Reinstall SCM Service Connection Point
dd Site System Roles – Reinstall SCM Service Connection Point
  • Click NEXT to continue

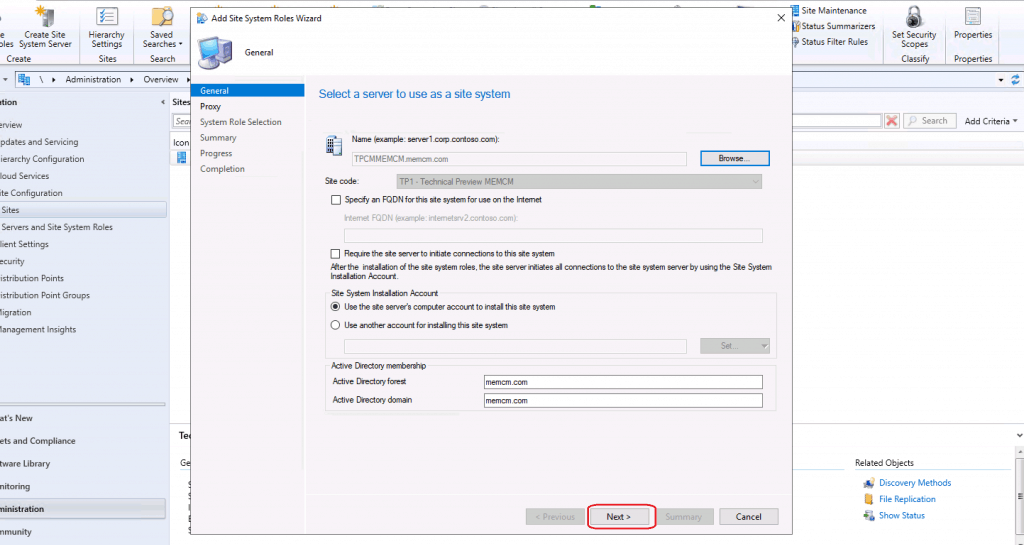

Select the base server as site system for Service connection point reinstall
Select the base server as site system for Service connection point reinstall

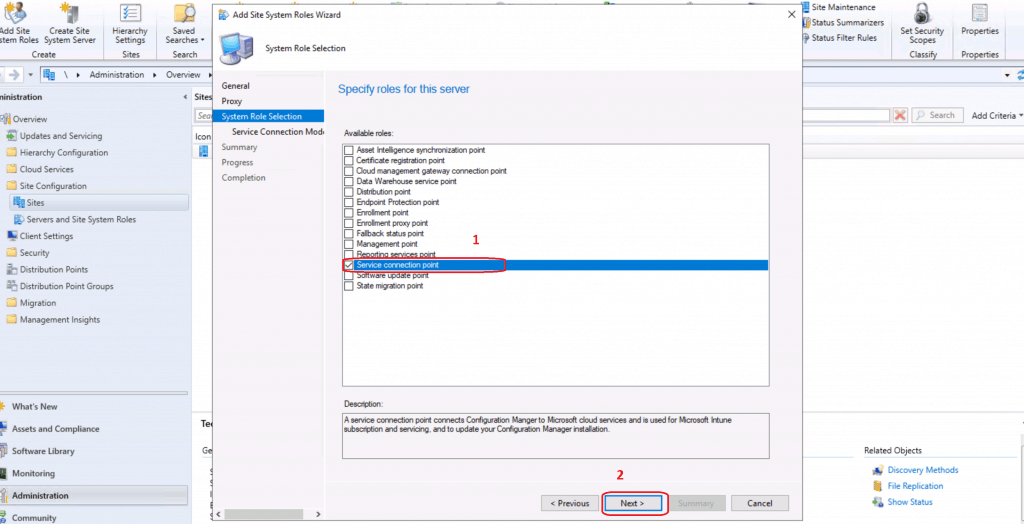

Select Site System Role – Service Connection Point

  • Click NEXT on the proxy configuration page. Proxy is not required for this Service Connection Point (SCP) role setup
  • Select Service Connection Point option and click NEXT button
Learn How to Install Reinstall SCCM Service Connection Point| ConfigMgr 1
reinstall SCCM Service Connection Point

Online or Offline Options

Service Connection point can be online or offline as per your security or connectivity baselines. However, when you install a technical preview version of ConfigMgr, the only option is to have ONLINE version of server connection point.

NOTE! – More details SCCM Online Service Connection Point Details – 2 Options

  • Select ONLINE Persistent Connection (Recommended option)
  • Click on NEXT to continue
ONLINE Persistent Connection - reinstall SCCM Service Connection Point
ONLINE Persistent Connection – reinstall SCCM Service Connection Point
  • Click NEXT on the confirm setting page
  • Click CLOSE button to finish the confirmation

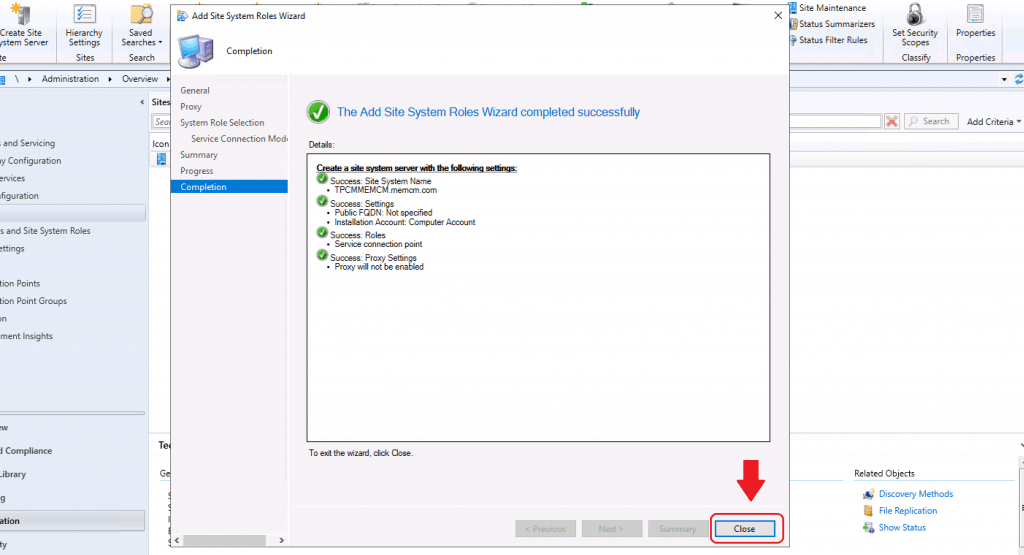

Completed the setup of Service Connection Point - reinstall SCCM Service Connection Point
Completed the setup of Service Connection Point – reinstall SCCM Service Connection Point

Check Installation Status

Check SMS_SERVICE_CONNECTOR.log to have more details about SCP installation progress.

Initializing Task Execution Manager instance as SMS_SERVICE_CONNECTOR
Starting component SMS_SERVICE_CONNECTOR
Component SMS_SERVICE_CONNECTOR started successfully.
