Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr

by

Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr. Microsoft has released a Microsoft-signed CAB file here to check and monitor Meltdown Spectre Vulnerabilities.

In this post, we will see a video tutorial that explains how to download, Import, and deploy the configuration baseline for Microsoft Security Advisory ADV180002.

I tested the CAB file import process on the SCCM CB 1710 production version. However, I’m not sure whether this will work for the previous version of the SCCM (SCCM 2012 R2) environment.

It may not work as it has the latest OS versions selected as Supported platforms (Server 2016 etc..)

Patch My PC
Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr – Video 1

Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr

This Compliance Settings configuration baseline confirms whether Windows 10, Windows 7, Server 2008, Server 2012, and Server 2016 have enabled the protections needed to protect against the Meltdown Spectre Vulnerabilities.

Download the Microsoft signed CAB file

Subscribe YouTube Channel

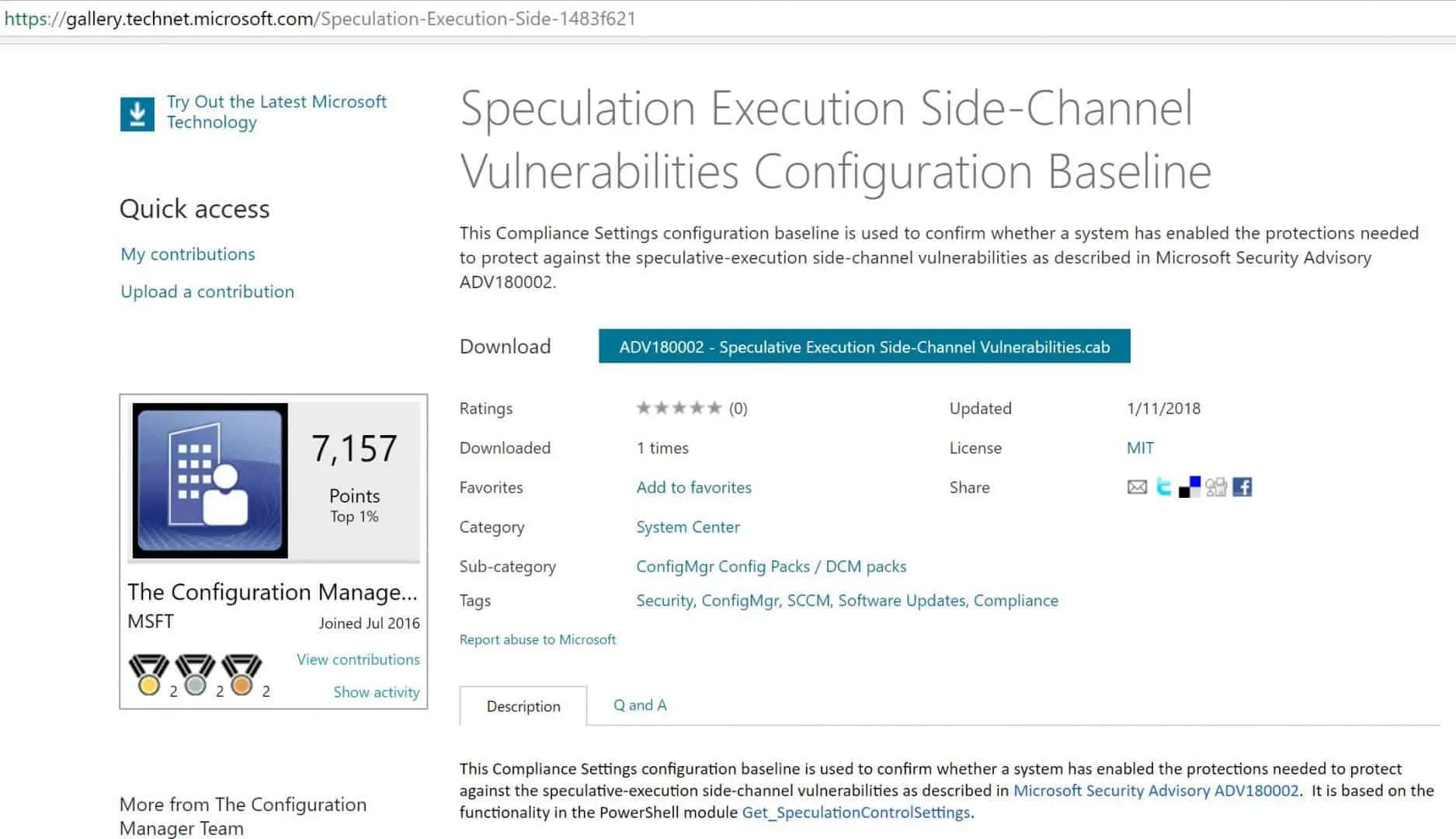

Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr - Fig.1
Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr – Fig.1

Following are the High-Level Steps

Download the Microsoft Signed CAB file from the TechNet Gallery. Import a configuration Data CAB file to check whether SCCM-managed machines are safe from Meltdown and Spectre.

Adaptiva
  1. Check Meltdown CI properties. The PowerShell script is used to confirm whether the systems are vulnerable or not.
  2. Check Spectre CI properties. The PowerShell script is used to confirm whether the system is vulnerable or not.
  3. Check and confirm the baseline properties before deploying it to devices.
  4. Monitor compliance report for Meltdown Spectre Vulnerabilities
NameTypeDevice TypeRevision
CVE-2017-5715-Branch Target InjectionApplication Windows1
CVE-2017-5754-Rogue Data Cache LoadApplicationWindows1
Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr – Table 1

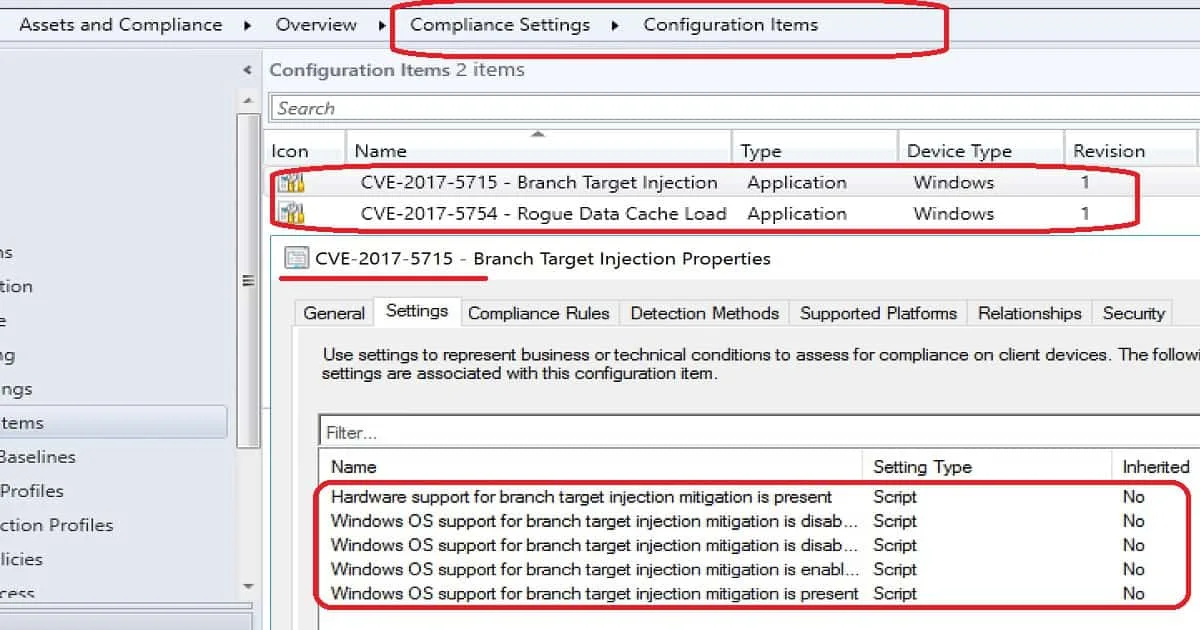

Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr - Fig.2
Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr – Fig.2

Resources

Microsoft has released a Microsoft-signed CAB file here to check and monitor Meltdown Spectre Vulnerabilities. In this post, we will see a video tutorial that explains how to download, Import, and deploy the configuration baseline for Microsoft Security Advisory ADV180002.

Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr – Video 2

We are on WhatsApp now. To get the latest step-by-step guides, news, and updates, Join our Channel. Click here. HTMD WhatsApp.

Author

Anoop C Nair is Microsoft MVP from 2015 onwards for consecutive 10 years! He is a Workplace Solution Architect with more than 22+ years of experience in Workplace technologies. He is a Blogger, Speaker, and Local User Group Community leader. His main focus is on Device Management technologies like SCCM and Intune. He writes about technologies like Intune, SCCM, Windows, Cloud PC, Windows, Entra, Microsoft Security, Career etc…

5 thoughts on “Monitor Meltdown Spectre Vulnerabilities with SCCM Configuration Manager ConfigMgr”

  1. Thanks for the helpful post. I imported the cab into our ConfigMgr 1706 server running Server 2016 and i get the following when i try to open the properties of the Configuration Baseline.

    ConfigMgr Error Object:
    instance of __ExtendedStatus
    {
    Operation = “GetObject”;
    ParameterInfo = “SMS_ConfigurationBaselineInfo.CI_ID=16839780”;
    ProviderName = “WinMgmt”;
    };

    Error Code:
    NotFound

    ——————————-
    Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlQueryException
    The SMS Provider reported an error.

    Stack Trace:
    at Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlResultObject.Get(ReportProgress progressReport)
    at Microsoft.ConfigurationManagement.AdminConsole.UtilityClass.GetWithStatus(IResultObject selectedResultObject)
    at Microsoft.ConfigurationManagement.AdminConsole.UtilityClass.RefreshForAction(ActionDescription actionItemDescription, IResultObject selectedResultObject)
    at Microsoft.ConfigurationManagement.AdminConsole.SccmTaskHandlerBase.DoTask(IList`1 navigationNodes, NavigationModelNodeTask task)
    at Microsoft.EnterpriseManagement.ConsoleFramework.WindowTaskHandler.WindowTaskOperation.ExecuteTaskJob(Object sender, ConsoleJobEventArgs jobArguments)
    at Microsoft.ConfigurationManagement.AdminConsole.ConsoleJobExceptionHandler.ExecuteJob(IComponent component, EventHandler`1 job, Object sender, ConsoleJobEventArgs args)

    ——————————-

    System.Management.ManagementException
    Not found

    Stack Trace:
    at Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlResultObject.Get(ReportProgress progressReport)
    at Microsoft.ConfigurationManagement.AdminConsole.UtilityClass.GetWithStatus(IResultObject selectedResultObject)
    at Microsoft.ConfigurationManagement.AdminConsole.UtilityClass.RefreshForAction(ActionDescription actionItemDescription, IResultObject selectedResultObject)
    at Microsoft.ConfigurationManagement.AdminConsole.SccmTaskHandlerBase.DoTask(IList`1 navigationNodes, NavigationModelNodeTask task)
    at Microsoft.EnterpriseManagement.ConsoleFramework.WindowTaskHandler.WindowTaskOperation.ExecuteTaskJob(Object sender, ConsoleJobEventArgs jobArguments)
    at Microsoft.ConfigurationManagement.AdminConsole.ConsoleJobExceptionHandler.ExecuteJob(IComponent component, EventHandler`1 job, Object sender, ConsoleJobEventArgs args)

    Reply

    • So if I understand correctly, CAB file is getting imported without any issue. After the import you are not able to open the CI. Is that correct understanding? Have you tried to close the console and reopen it?

      Reply

  2. Yes, the CAB imports and i can work with the CIs, but i can’t open, deploy etc the Configuration Baseline. I also can’t delete it. I’m assuming that it has something to do with WMI because it says it can’t find

    instance of __ExtendedStatus
    {
    Operation = “GetObject”;
    ParameterInfo = “SMS_ConfigurationBaselineInfo.CI_ID=16839780”;
    ProviderName = “WinMgmt”;
    };

    Reply
