Stuck at Post Installation SCCM ConfigMgr

Recently, we received an HTMD Forum question about SCCM 2002 KB4567007 Stuck at Post Installation. I thought of sharing the experience with KB4567007 ConfigMgr 2002 hotfix installation to fix the PXE boot and Task Sequence issues.

There is a known issue with the Configuration Manager (ConfigMgr) 2002 version as I mentioned in the ConfigMgr 2002 known issues.

New Features of Configuration Manager (A.K.A SCCM) 2002 version is explained in the following post – https://www.anoopcnair.com/configmgr-2002-list-of-new-features-enhancements-memcm-sccm/

Problem Statement

As explained in the blog post here, I installed the latest hotfix KB4567007 successfully. All the functionalities of SCCM worked fine after the installation of the hotfix.

I checked the monitoring workspace to check the status of the installation from \Monitoring\Overview\Updates and Servicing Status\Configuration Manager 2002 Hotfix (KB4567007).

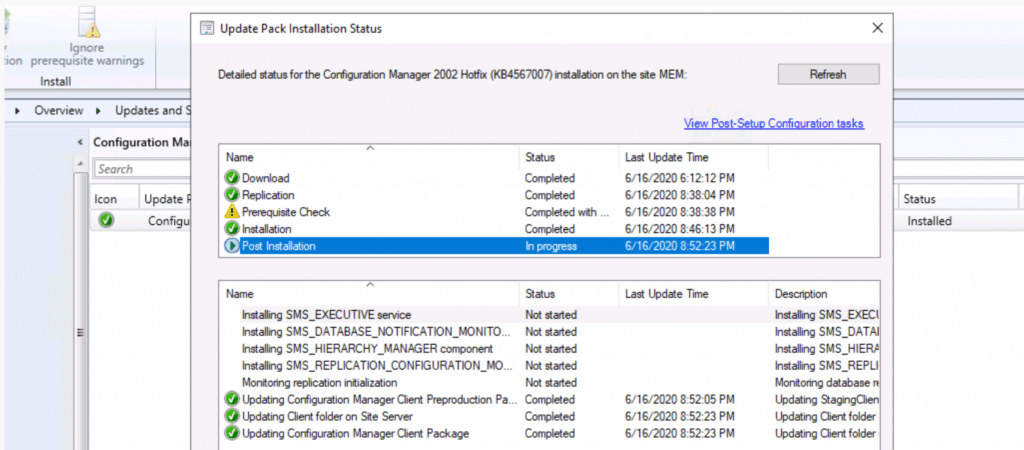

Post installation process got stuck as per the monitoring status in the console.

  • Installing SMS_Executive Service 👉 not started
  • Installing SMS_DATABASE_NOTIFICATION_MONITOR Component 👉 not started
  • Installing SMS_HIERARCHY_MANAGER component 👉 not started
  • Installing SMS_REPLICATION_CONFIGURATION_MONITOR Component 👉 not started
  • Monitoring replication initialization 👉 not started
SCCM 2002 KB4567007 Stuck at Post Installation | ConfigMgr
SCCM 2002 KB4567007 Stuck at Post Installation | ConfigMgr

Now, it’s confusing for all the SCCM admins and they keep waiting to get this status to turn green ✅ and completed!

Troubleshooting

  • I tried to check the close the console and launched the console again.
    • No luck with that. The status of the KB4567007 installation and it still stays at the same status!
  • Checked the SMS_Executive and other services running or not?
    • No luck there! All the services related to ConfigMgr are up and running!
SMS Services - SCCM 2002 KB4567007 Stuck at Post Installation | ConfigMgr
SMS Services – SCCM 2002 KB4567007 Stuck at Post Installation | ConfigMgr
  • SCCM client is able to communicate with the server and receive the policies etc..

FIX SCCM 2002 KB4567007 Stuck at Post Installation

The issue, KB4567007 Stuck at Post Installation, seems to be the UX issue. Because none of the Configuration Manager functionalities stopped working.

  • I tried to restart server to see whether that fixes the status issue highlighted above.

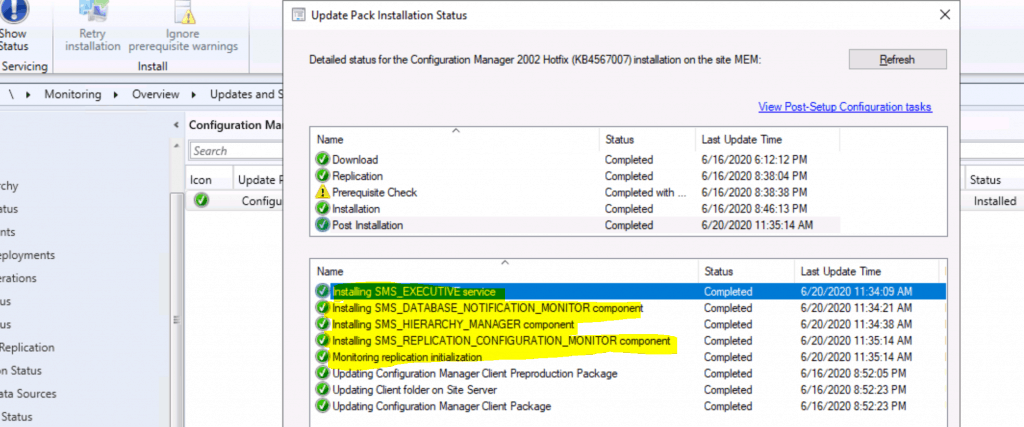

  • After the restart, the UX issue is FIXED (as you can see the screenshot below).
FIX SCCM 2002 KB4567007 Stuck at Post Installation
FIX SCCM 2002 KB4567007 Stuck at Post Installation

Resource

15 COMMENTS

  1. Anyone faced “Failed to apply update changes 0x8000405” error in Install files step ?

    Upgrading from 1910 to 2002 using offline servicing

  2. Thanks for your KB4567007 fix, helped me a lot, I have not wasted time to wait to be all green. Just checked the cmupdate.log to see when finished the upgrade process: “There is no pending update package to be processed.” Then verified all SMS_* services, server restarted, then verified again the status and all was green. So is looks like an UX bug exist as you presented.

  3. HI Anoop,

    The installation of 2002 is stuck and unable to see the status,

    i tried to reset the but im getting error.

    Running CMUpdateReset.exe tool …
    [Error]
    0x80131904 – Cannot open database “6347850b-bf04-488f-aa4b-2b68cdafa3e0” requested by the login. The login failed.
    Login failed for user Please assist on this issue.

  4. Hi Anoop,

    Goodday to you ,
    2002 installation got stuck show installing. i tired to reset the setup but faild.

    Running CMUpdateReset.exe tool …
    [Error]
    0x80131904 – Cannot open database “6347850b-bf04-488f-aa4b-2b68cdafa3e0” requested by the login. The login failed.
    Login failed for user
