SCCM Cloud Management Dashboard in the Console

The SCCM cloud management dashboard provides a centralized view of cloud management. This dashboard also displays data about Azure AD users and joined devices. In this post, we will see more details about cloud management details.

The cloud management gateway (CMG) gives an easy way to manage Configuration Manager clients online.

You can check the Tenant Attach Dashboard (a.k.a Co-Management) from the SCCM console. The cloud management dashboard details Cloud Management Gateway traffic and online clients.

You can check the workflow options of Cloud Management Gateway (CMG) before implementing them—the latest guide for SCCM CMG Implementation with an EHTTP Certificate.

Patch My PC

SCCM Cloud Management Dashboard

The Cloud Management dashboard helps you review cloud management services in the SCCM environment. It can help identify overall usage and provide a helicopter view of cloud management workflows that might need attention. The dashboard has two sections, which are given below.

The sections of Dashboard
Azure AD Statistics
Cloud Management Gateway Statistics
SCCM Cloud Management Dashboard in the Console – Table 1

SCCM Cloud Management Dashboard in the Console - Fig.1
SCCM Cloud Management Dashboard in the Console – Fig.1

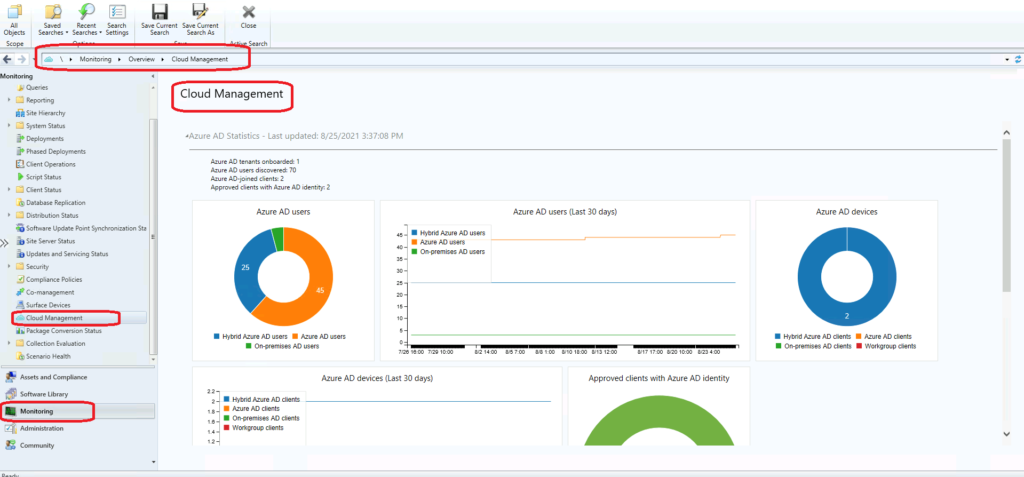

Launch SCCM Cloud Management Dashboard

You can launch a Cloud Management dashboard from the SCCM console itself. You don’t see any data in this dashboard if you have not enabled the Cloud Management feature. Let’s follow the steps mentioned below to launch:

  • Launch CofigMgr Console
  • Navigate \Monitoring\Overview\Cloud Management

Azure AD Statistics

The Azure AD statistics are available in this section of the dashboard. You will get details about Azure AD tenants, AAD users, Azure AD joined clients, etc. There are four categories available in this cloud management dashboard.

  1. Azure AD tenants onboarded: 1
  2. Azure AD users discovered: 70
  3. Azure AD-joined clients: 2
  4. Approved clients with Azure AD identity: 2

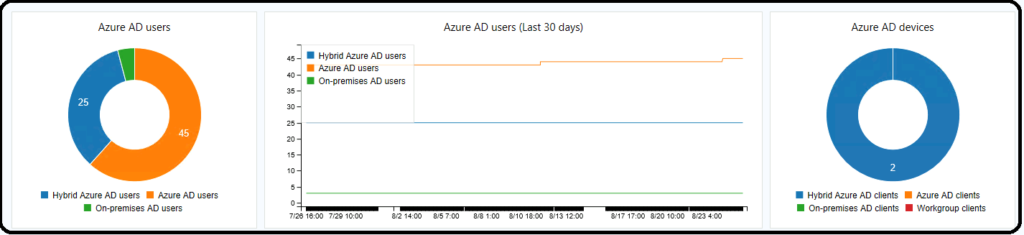

The dashboard’s user section contains different types of users, including On-Premises AD users, Hybrid Azure AD Users, and Azure AD Users.

SCCM Cloud Management Dashboard in the Console - Fig.2
SCCM Cloud Management Dashboard in the Console – Fig.2

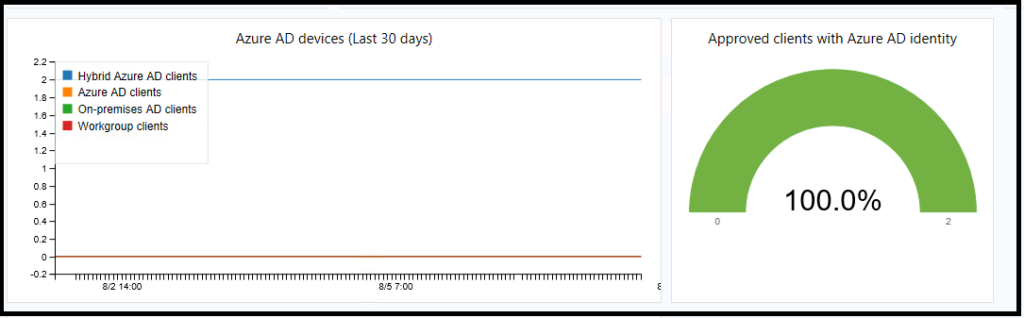

The following section provides Azure AD devices – Hybrid Azure AD clients, Azure AD Clients, On-premises AD clients, and Workgroup clients. You can also see Approved clients with Azure AD identity.

SCCM Cloud Management Dashboard in the Console 1
SCCM Cloud Management Dashboard in the Console

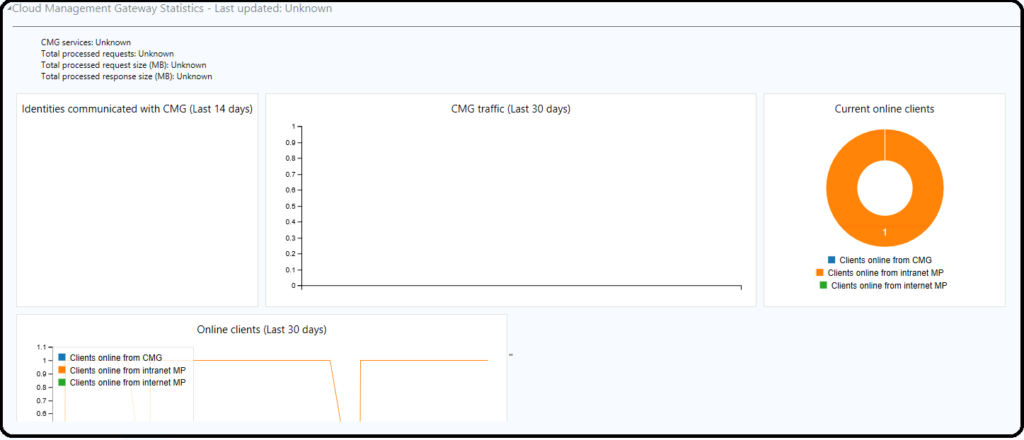

Cloud Management Gateway Dashboard

I don’t have Cloud Management Gateway (CMG) in the lab environment, but I can try to give you some idea about identities communicated with CMG, CMG traffic, and Current online clients. You can also get Clients online from CMG, Clients Online from intranet MP, and Clients online from internet MP.

  • CMG services: Unknown
  • Total processed requests: Unknown
  • Total processed request size (MB): Unknown
  • Total processed response size (MB): Unknown

NOTE! I think the SCCM CMG traffic details are useful for analyzing and estimating the cost of CMG.

SCCM Cloud Management Dashboard in the Console
SCCM Cloud Management Dashboard in the Console
