How do I fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager? I think this post will help us understand the default settings of IIS when it’s installed and configured by SCCM / ConfigMgr vNext (2016) itself.

The IIS role is installed and configured by SCCM when you install the DP site system server role. These are the IIS configurations of the SCCM vNext TP 3 lab. I’ve seen SCCM admins change the IIS settings manually to work around some issues.

Introduction—Fix SCCM Default IIS Configurations DP Troubleshooting Issues—However, it’s hard to find the default settings of a freshly installed SCCM server once we change IIS configurations. This post may help in those situations. The version of IIS is IIS 8.

One of our posts shows how to Install SCCM DP on Windows 11. This post also details Configuration Manager Distribution Point configuration and troubleshooting tips. Install ConfigMgr PXE Server on Windows 11.

Patch My PC
Index
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager
DP Troubleshooting Issues ConfigMgr Configuration Manager
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Table 1

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager

Let’s discuss the Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager. Fix for SCCM Default IIS Configurations DP MP Troubleshooting Issues are explained below in detail.

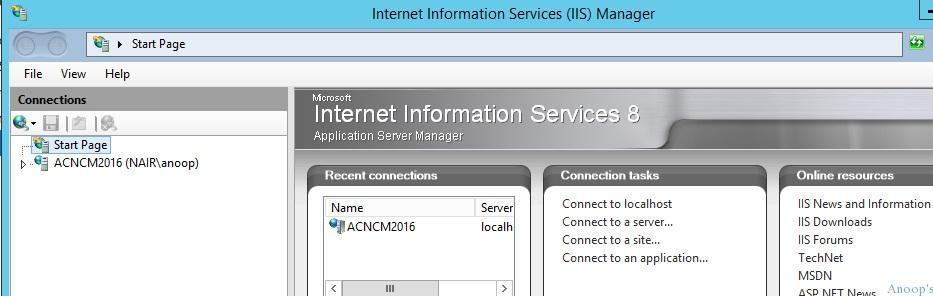

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.1
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.1

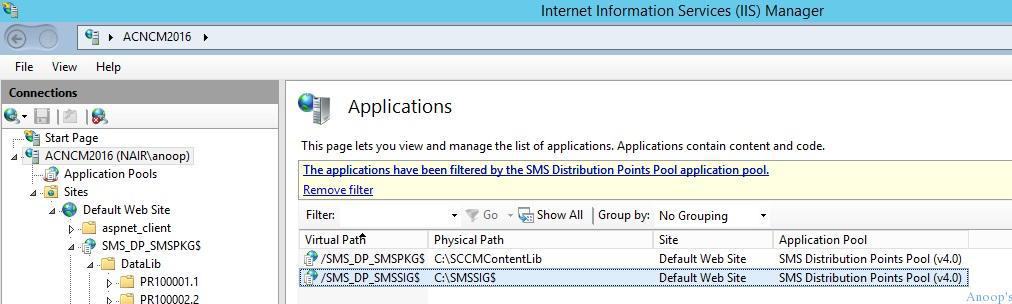

The two applications created in IIS for SCCM DP are content and signature files. The table below provides more details.

Two Applications Created in IIS for SCCM DP
ACNCM2016\Sites\Default Web Site\SMS_DP_SMSPKG$
ACNCM2016\Sites\Default Web Site\SMS_DP_SMSSIG$
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Table 2
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.2
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.2

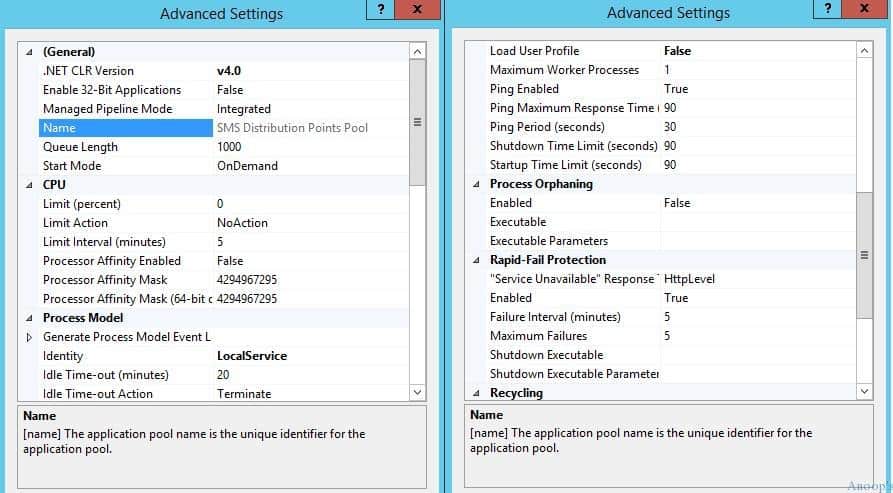

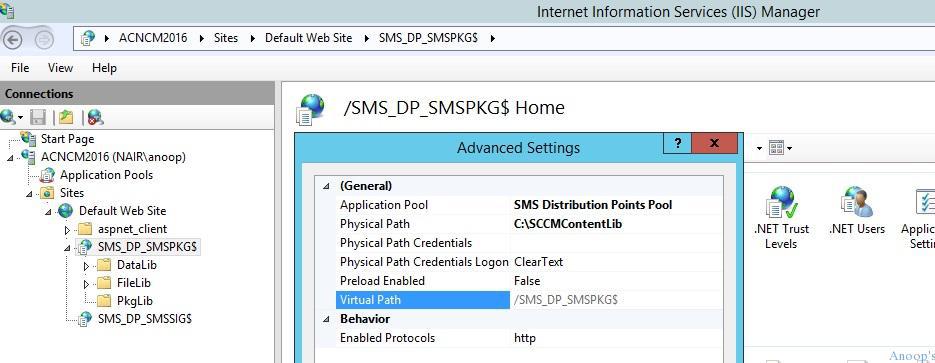

The screenshot below helps you see the Advanced settings. The Advanced settings include different tabs, such as General settings, CPU, Process Model, Process orphaning, etc.

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.3
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.3

DP Troubleshooting Issues ConfigMgr Configuration Manager

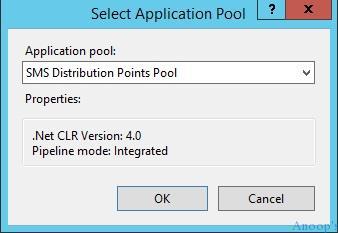

SMS Distribution Points Pool Application advanced settings. .NET CLR Version is v4.0, Enabled 32-Bit Applications = False, Managed Pipeline Mode = Integrated. SMS Distribution Points Pool Application Basic Setting.

Adaptiva
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.4
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.4

SCCM IIS Application Pool settings:- SMS Distribution Points Pool – Identity is LocalService, and this application pool is assigned to 2 applications.

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.5
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.5

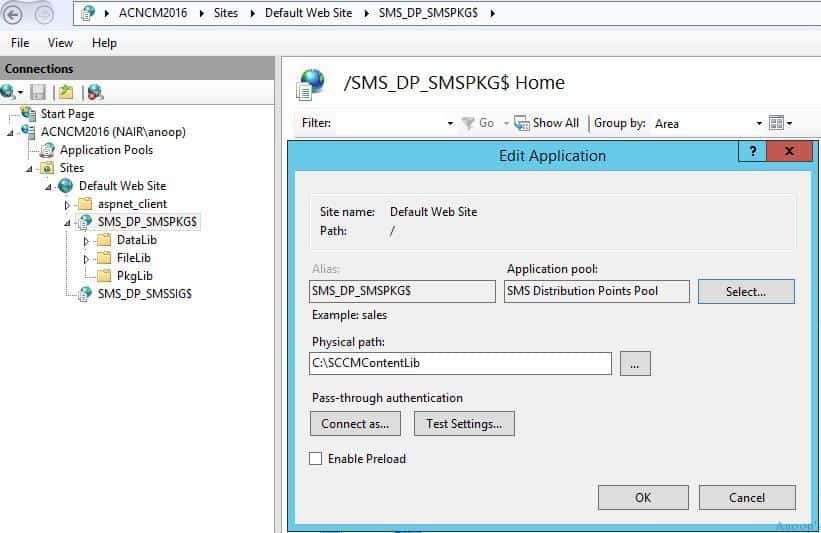

Two Virtual directories are created in IIS for SCCM DP: SMS_DP_SMSPKG$ and subfolders where SCCM applications and Packages’ contents are stored—DataLib, FileLib, and PkgLib! SMS_DP_SMSSIG$ is the signature folder.

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.6
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.6

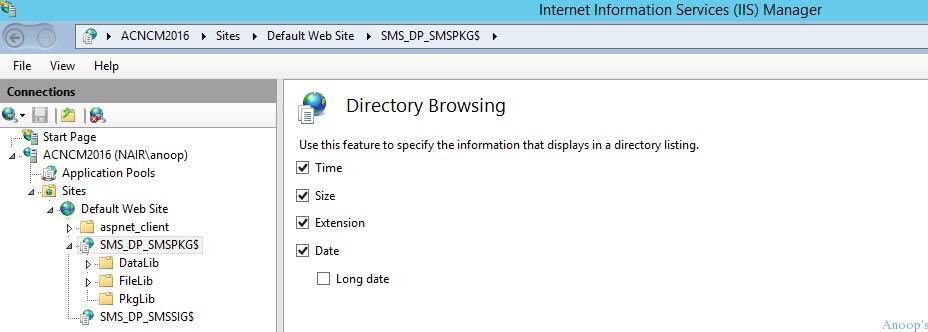

Directory Browsing is enabled for these virtual directories of package content. Use the Directory Browsing feature to specify the information displayed in a directory listing.

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.7
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.7

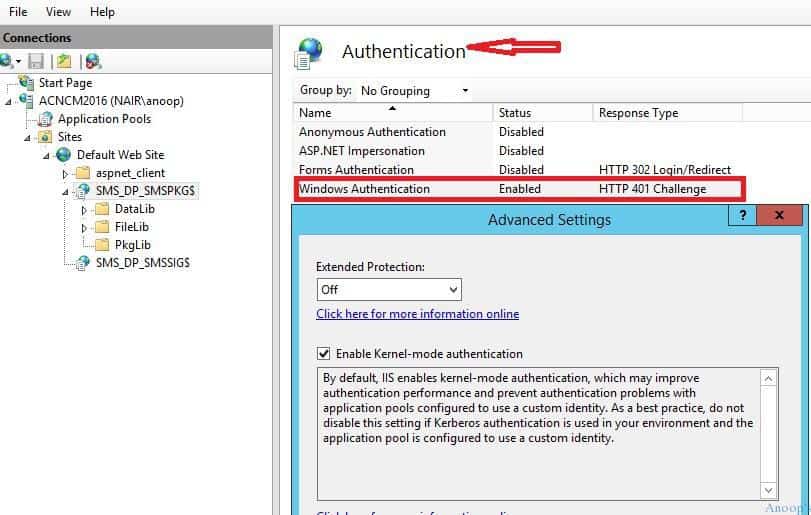

Authentication of SCCM-related IIS virtual folders is also essential. Windows Authentication is the only authentication method IIS enables kernel-mode authentication.

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.8
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.8

Edit SCCM IIS-related applications using the following:- We can test the authentication and connectivity from this IIS wizard.

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.9
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.9

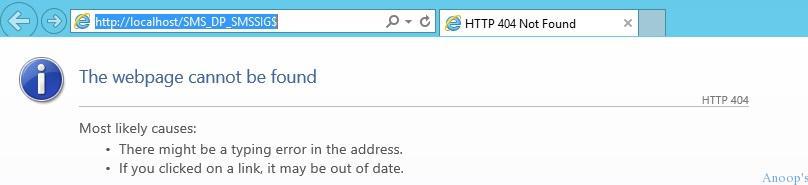

Websites of the root virtual folders like SMS_DP_SMSPKG$ and SMS_DP_SMSSIG$:- 404 not found error. Browse options won’t work! http://localhost/SMS_DP_SMSPKG$ and http://localhost/SMS_DP_SMSSIG$.

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.10
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.10

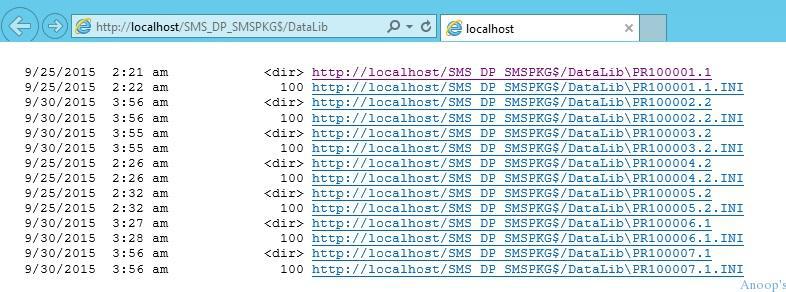

The browse the IIS website option will work for SCCM content library folders like – DataLib, FileLib, and PkgLib.

  • http://localhost/SMS_DP_SMSPKG$/DataLib
  • http://localhost/SMS_DP_SMSPKG$/FileLib
  • http://localhost/SMS_DP_SMSPKG$/PkgLib
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.11
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.11

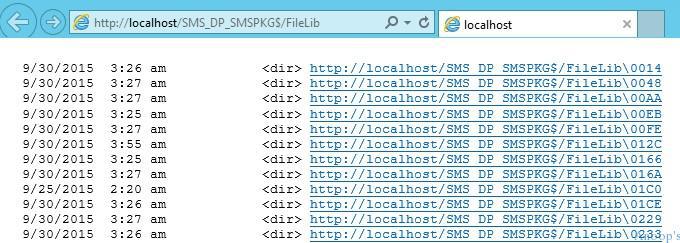

The screenshot below helps you show the http://localhost/SMS_DP_SMSPKG$/FileLib specific location or resource within an SCCM infrastructure.

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.12
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.12

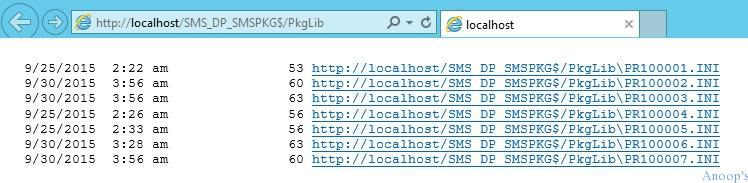

The screenshot below helps you show the http://localhost/SMS_DP_SMSPKG$/PkgLib specific location or resource within an SCCM infrastructure.

Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager - Fig.13
Fix SCCM Default IIS Configurations DP MP Troubleshooting Issues ConfigMgr Configuration Manager – Fig.13

Resources
