Setup Configure SCCM Reporting Services Point Configuration Manager ConfigMgr

Let’s Setup Configure SCCM Reporting Services Point. SCCM has rich capabilities to collect lots of information from endpoints. This information is stored in SCCM SQL DB. We can make beautiful reports with the data collected by SCCM.

SCCM has near about 500 default reports those are available out of the box. To access these default SCCM reports, you need to set up Configure SCCM CB Reporting Services point.

I have uploaded a video tutorial to cover the following topics of SCCM CB Reporting Services point.

Setup Configure SCCM Reporting Services Point Configuration Manager ConfigMgr 1

I have a previous blog post listing default SCCM 2012 reports, “List of SCCM 2012 Default Reports“.

Patch My PC
  • Check SQL Reporting Services Configuration Manager (Pre Requisite)
  • SCCM CB Reporting Services Point Installation and Configuration
  • SCCM CB Reporting Services Point Log Files
  • Check the Results- Launch SCCM CB SSRS Default Reports
  • SQL ReportServer DB Overview

Check SQL Reporting Services Configuration Manager

Prerequisite

SQL Server Reporting Services (SSRS) is one of the SCCM CB reporting services point requirements. The SQL reporting service is part of SQL Server installation. Ensure that the SSRS component is installed before going to the next step.

Architecture

The reporting services point in SCCM communicates with SSRS to copy SCCM reports to a specified report folder. SCCM will configure Reporting Service’s general and security settings. Reporting Services connects to the SCCM site DB to retrieve returned data when you run reports.

SQL Server Reporting Services Configuration Checks

Login to the SQL server (or the primary server where the SQL management console is installed) and Launch SQL Server Reporting Services Configuration Manager from the Start menu. Click All Programs, and click Microsoft SQL Server 2014.

  • “C:\Program Files (x86)\Microsoft SQL Server\120\Tools\Binn\RSConfigTool.exe”
SCCM CB Reporting Services Point
Setup Configure SCCM Reporting Services Point Configuration Manager ConfigMgr 2

Connect to the SQL Report Server Instance. Make sure the report service status is in the started stage. If not prompted, click on START.

  • SQL Server Instance: MSSQLServer
  • Instance ID: MSRS12.MSSQLSERVER
  • Edition: ENTERPRISE EDITION
  • Product Versions: 12.0.4100.1
  • Report Server Database Name: ReportServer
  • Report Server Mode: Native
  • Report Service Status: Started 3.

Make sure the reporting server service account is configured correctly. Make sure all the following sections are precisely set up. You can have more details in the YouTube video.

  • Web Service URL
  • Database
  • Report Manager URL
  • E-mail Settings
  • Execution Account
  • Encryption Keys
  • Scale-out Deployment

SCCM CB Reporting Services Point Installation and Configuration

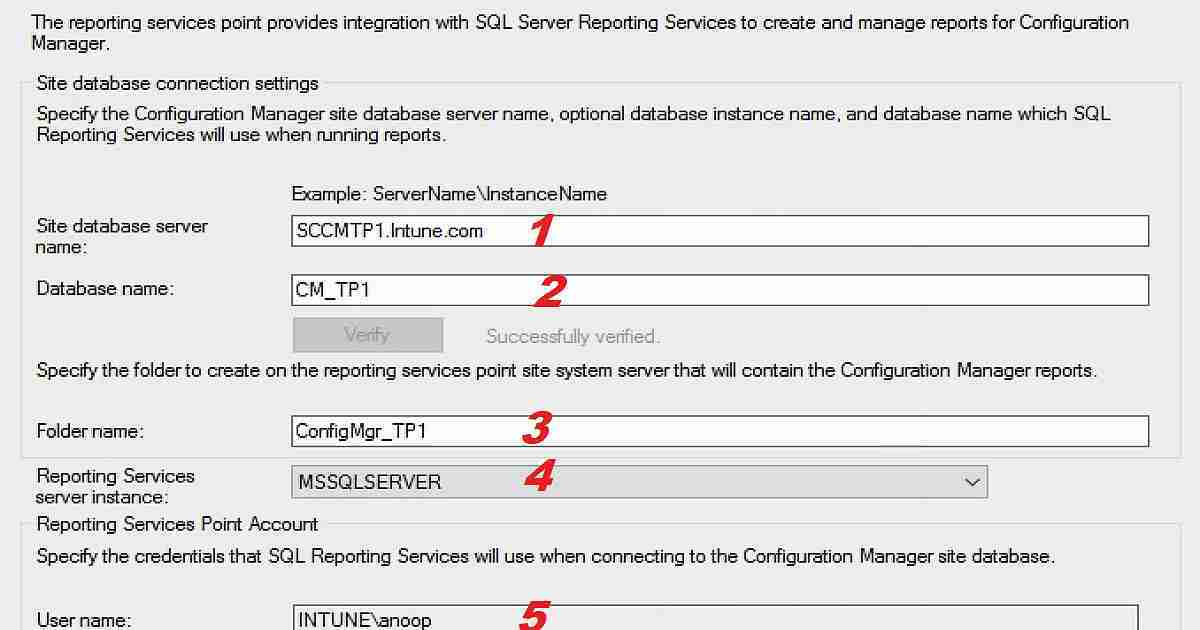

Launch the SCCM CB console and navigate via \Administration\Overview\Site Configuration \Servers and Site System Roles. Select the Site system – Add Site System role. In the Add new site system role wizard, select the “Reporting services point” role. Reporting Services Point page configurations

  • Site Database Server Name: SQL_Server_Name\SQL_Instance_Name
  • Database Name: CM_TP1
  • Folder Name: ConfigMgr_TP1
  • Reporting Services Server Instance: MSSQLSERVER (Default instance)
  • Reporting Services Point Account: Intune\anoop

Following is the main configuration page for the SCCM reporting services point. Click on VERIFY button to confirm the connectivity with the SQL server and access rights. Click NEXT – NEXT and finish the wizard.

SCCM CB Reporting Services Point
Setup Configure SCCM Reporting Services Point Configuration Manager ConfigMgr 3

Check SCCM CB Reporting Services Point Log Files

Once the SCCM CB reporting services point installation wizard is completed, you can check and confirm the success of the installation of log files.

The first log I would prefer to look at is srsrpsetup.log, and make sure the following lines are present at the end of the log file.

Cannot delete old installation directory C:\Program Files\SMS_SRSRP. Error Code=5. The installation will continue.
No versions of SMSSRSRP are installed. Installing new SMSSRSRP.
No versions of SMSSRSRP are installed. Installing new SMSSRSRP.
Enabling MSI logging. srsrp.msi will log to C:\Program Files\Microsoft Configuration Manager\logs\srsrpMSI.log
Installing C:\Program Files\Microsoft Configuration Manager\bin\x64\srsrp.msi SRSRPINSTALLDIR=”C:\Program Files\SMS_SRSRP” SRSRPLANGPACKFLAGS=0
srsrp.msi exited with return code: 0
Installation was successful.
Installation was successful.
~RoleSetup().

The next stage in the SCCM CB reporting services point installation verification is with srsrp.log. This log will be going to take 5 minutes to complete the creation of all the default reports in SCCM. You can see all the report and folder creation details in this log file.

Successfully created srsserver~ $<02-27-2018 12:11:41.899-330>
Reporting Services URL from Registry [http://sccmtp1/ReportServer/ReportService2005.asmx]~ $<02-27-2018 12:11:42.049-330>
Reporting Services is running $<02-27-2018 12:11:42.073-330>
Retrieved datasource definition from the server. $<02-27-2018 12:11:42.120-330>
Retrieved datasource definition from the server. $<02-27-2018 12:11:42.340-330>
[SCCMTP1.Intune.com] [CM_TP1] [ConfigMgr_TP1] [SCCMTP1.INTUNE.COM]~ $<02-27-2018 12:11:42.358-330>
[MSSQLSERVER] [1] [] [INTUNE\anoop]~ $<02-27-2018 12:11:42.480-330>
[1] [0]~ $<02-27-2018 12:11:42.603-330>
Confirmed version [12.0.4100.1] for the Sql Srs Instance. $<02-27-2018 12:11:43.024-330>

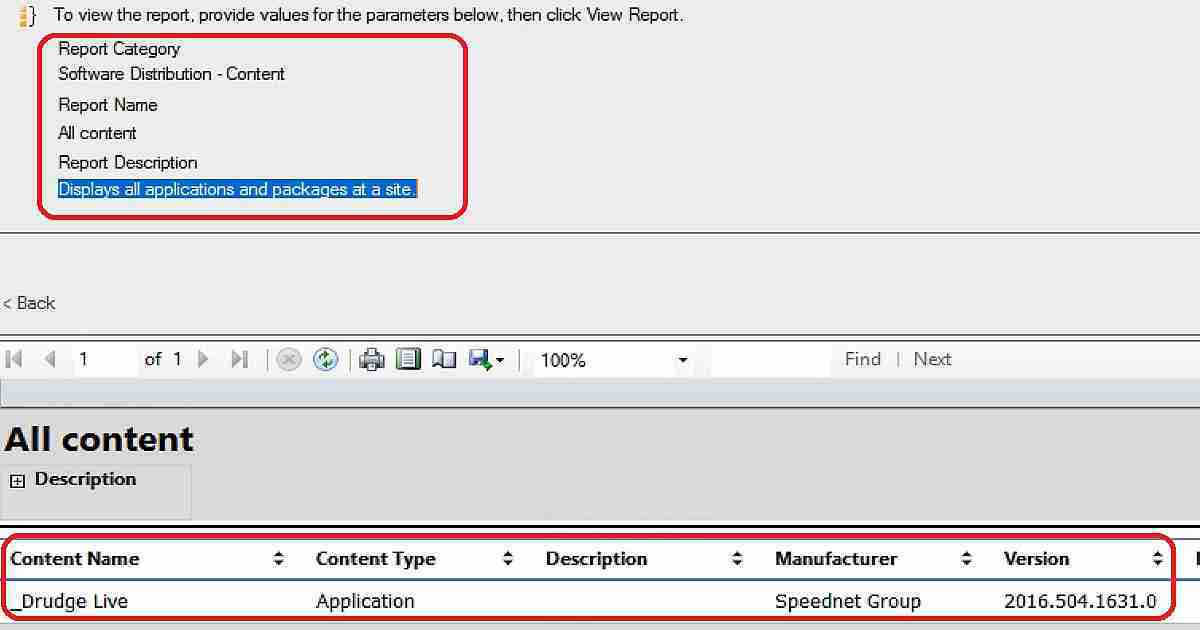

Check the Results – Launch SCCM CB SSRS Default Reports

Let’s wait for some time before launching the report server URL to check the availability of SCCM default reports. You can confirm whether the report creation process is completed from the above log file.

There are two methods to access the SCCM SSRS reports

  1. Launch the reports from the web browser (http://sccmtp1/ReportServer/)
  2. Launch reports from SCCM Console via \Monitoring\Overview\Reporting\Reports

You can see more details and video experience accessing SCCM SSRS reports in the following video tutorial.

SCCM CB Reporting Services Point
Setup Configure SCCM Reporting Services Point Configuration Manager ConfigMgr 4

SQL ReportServer DB Overview

I have gone through all the default configurations of ReportServer DB for SCCM SSRS in the following video.

Setup Configure SCCM Reporting Services Point Configuration Manager ConfigMgr 5

Resources

Configuring reporting in System Center Configuration Manager

Author

Anoop is Microsoft MVP! He is a Solution Architect in enterprise client management with more than 20 years of experience (calculation done in 2021) in IT. He is Blogger, Speaker, and Local User Group HTMD Community leader. His main focus is on Device Management technologies like SCCM 2012, Current Branch, and Intune. He writes about ConfigMgr, Windows 11, Windows 10, Azure AD, Microsoft Intune, Windows 365, AVD, etc……………
