SCCM ConfigMgr CB 1606 How to Plan Backup and Recovery

Video Tutorial will help you understand better options for backup and recovery in terms of SCCM CB and what are the new requirements of SCCM CB backup.

1
Advertisement

What are the changes there in backup and recovery options in SCCM ConfigMgr CB 1606? Nothing much changed in terms of backup apart from taking backup of CD.Latest folder. CD.LATEST folder is also getting backed up as part of SCCM CB full backup. Why do we need CD.LATEST as part of SCCM CB full backup? It’s because, this is source file when you want to recover a SCCM CB site server ! Why can’t we use the baseline version which can be downloaded from MSDN/Volume Licensing sites? Those binaries can’t be used because that is not the same version of SCCM CB which is installed in your primary server/CAS. The baseline version of SCCM CB production is 1511 and if you upgraded/updated the site to SCCM CB 1606 using Updates and Servicing then you can’t use 1511 version source files to recover the primary site. When do you want to Run SCCM CB Setup from CD.LATEST Folder? Only when you are trying recover a site !! In the following video, I try to explain the process of the back and restore. Also, when to select which option during the recovery process.

There is always a question whether to use SCCM full backup or just use SQL backup to restore the functionality of SCCM sites. So my answer to that question would be “it depends”. SCCM CB supports both the scenarios mentioned above however in some of the scenarios you may need full SCCM CB backup to complete the restore. The SCCM restore and recovery comes with loads of permutations and combinations as I explained in the below table and the above video. I hope, you will get some clarity about those scenarios after watching the video.

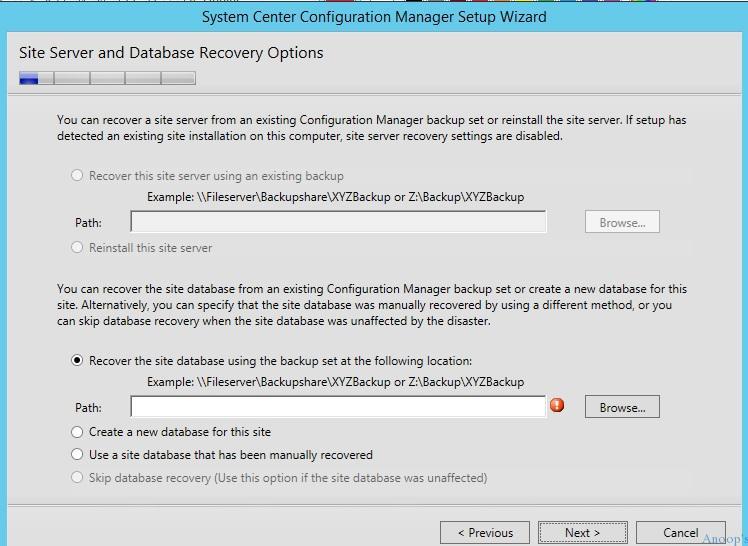

SCCM_CB_1606_Backup_and_Recovery_options_1

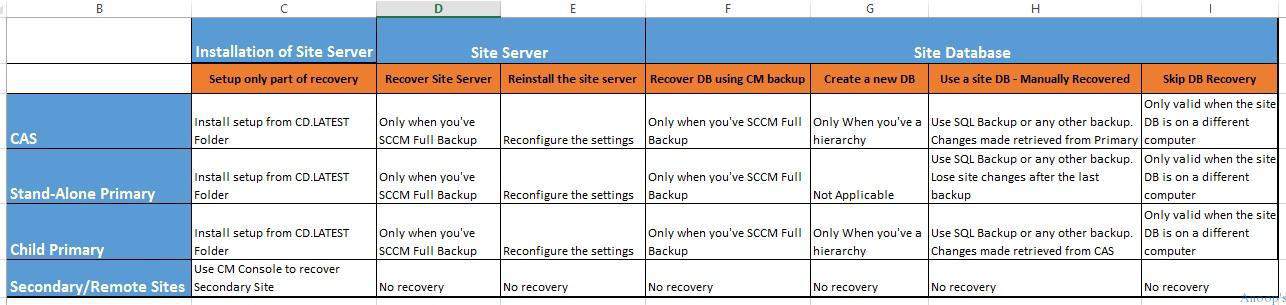

Table 1 : SCCM CB Site Server and Site Database Recovery options

SCCM_CB_1606_Backup_and_Recovery_options_2

Installation       Site Server                               Site Database
Setup only part of recoveryRecover Site ServerReinstall the site serverRecover DB using CM backupCreate a new DBManually Recovered DBSkip DB Recovery
CASInstall setup from CD.LATEST FolderOnly when you’ve SCCM Full BackupReconfigure the settingsOnly when you’ve SCCM Full BackupOnly When you’ve a hierarchyUse SQL Backup or any other backup. Changes made retrieved from PrimaryOnly valid when the site DB is on a different computer
Stand-Alone PrimaryInstall setup from CD.LATEST FolderOnly when you’ve SCCM Full BackupReconfigure the settingsOnly when you’ve SCCM Full BackupNot ApplicableUse SQL Backup or any other backup. Lose site changes after the last backupOnly valid when the site DB is on a different computer
Child PrimaryInstall setup from CD.LATEST FolderOnly when you’ve SCCM Full BackupReconfigure the settingsOnly when you’ve SCCM Full BackupOnly When you’ve a hierarchyUse SQL Backup or any other backup. Changes made retrieved from CASOnly valid when the site DB is on a different computer
SecondaryUse CM Console to recover Secondary SiteNo recoveryNo recoveryNo recoveryNo recoveryNo recoveryNo recovery

Reference :- here
