Let’s understand the process of the ConfigMgr Client Push Installation Method. The installation of the client is one of the essential parts of the ConfigMgr manager environment.
As you know, the client installation strategy is very important for every organization. You can install the Configuration Manager client software using various methods. Choose one method or utilize a combination of methods.
I like the Client Push Installation method, which we will learn about in this post. Let’s begin with a step-by-step guide to the ConfigMgr Client Push installation method.
What are the Client Installation Methods in Configuration Manager?
The following are the client installation methods.
1. Client push installation (From SCCM Console)
2. Software update point-based installation (GPO GPEDIT.MSC)
3. Group policy installation (GPO – GPEDIT.MSC)
4. Using Microsoft Intune (Intune/Azure Console)
5. Package and program installation (SCCM Console)
6. OSD Task Sequence (SCCM Console)
7. Logon script installation (AD)
8. Workgroup computers (Manual)
9. Internet-based client management (SCCM/Manually ?)
10. Provision of client installation properties (GPO)
11. Manual installation (Manual via command prompt?)
ConfigMgr Client Push Installation Method
Client push is the easiest method to install the client. The installation tool can install the client on a single computer, a collection of computers, or based on the results from a query. Additionally, it has the capability to install the client on all discovered computers automatically.
This process is streamlined because it automatically uses the client installation properties defined on the Client tab in the Client Push Installation Properties dialogue box.
Requirements
- Admin$ share should present
- Admin$ SMB access to Windows 10 devices.
- Client Push Account should have administrator access on a Windows 10 client device.
- Or the SCCM site server should be part of the Administrators group on the Windows 10 device.
- Devices should be discovered and the Device records should be available in the SCCM console.
- Ensure Client Push firewall ports and defender settings are ok before starting the following process.
- Connectivity to Management Point.
| Description | UDP | TCP |
|---|---|---|
| SMB between the site server and the client computer | — | 445 |
| RPC endpoint mapper between the site server and the client computer | 135 | 135 |
| RPC dynamic ports between the site server and the client computer | — | 49152-65535 |
| Hypertext Transfer Protocol (HTTP) from the client computer to a management point when the connection is over HTTP | — | 80/443 |
NOTE! – Configuration Manager tries to install the client on all discovered resources. It retries any failures for up to seven days.
Initiate SCCM Client Install
Right-click on one of the devices or device collections. Install ConfigMgr Client Using ClientPush Installation Method.
- Select Install Client.
Click the Next button.

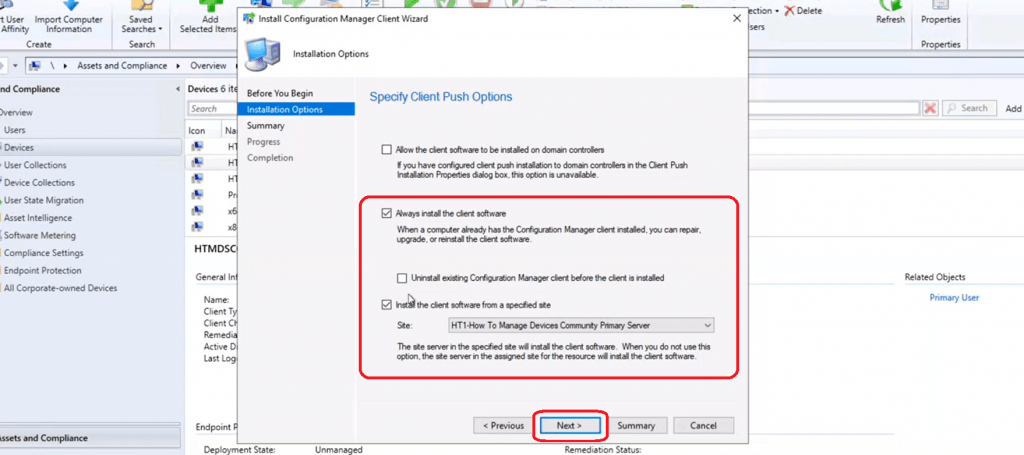

Select the two options below to install the client on a Windows 10 device. Enable the option called Always install SCCM client.
- Repair or upgrade it if the client has already installed it.
- Uninstall the SCCM client before installing its option is to have a clean installation of the client.
Click Next, Next, and Close to complete the ConfigMgr Client Push Installation Wizard.
Server Side Log CCM.log
Let’s check CCM.log from site server F:\Program Files\Microsoft Configuration Manager\Logs.
- The following are the important log file entries.
- Search for the following entry in ccm.log Started service “ccmsetup” on machine “HTMDWin10.htmd.com”.
- Once you have this entry for the client, everything will be OK from the server side.
---> Trying each entry in the SMS Client Remote Installation account list ---> Warning: no remote client installation account found ---> Attempting to connect to administrative share '\HTMDWin10.htmd.com\admin$' using machine account. ---> Connected to administrative share on machine HTMDWin10.htmd.com ---> Trying the 'best-shot' account which worked for previous CCRs (index = 0xFFFF) ---> Attempting to make IPC connection to share <\HTMDWin10.htmd.com\IPC$> ---> Searching for SMSClientInstall.* under '\HTMDWin10.htmd.com\admin$\' ---> System OS version string "10.0.19041" converted to 10.00 ---> Unable to connect to WMI (root\ccm) on remote machine "HTMDWin10.htmd.com", error = 0x8004100e. $$<06-27-2020 14:09:29.685+00> ---> Creating \ VerifyingCopying existence of destination directory \HTMDWin10.htmd.com\admin$\ccmsetup.~ ---> Copying client files to \HTMDWin10.htmd.com\admin$\ccmsetup.~ ---> Copying file "F:\Program Files\Microsoft Configuration Manager\bin\I386\MobileClient.tcf" to "MobileClient.tcf" ---> Copying file "F:\Program Files\Microsoft Configuration Manager\bin\I386\ccmsetup.exe" to "ccmsetup.exe" ---> Created service "ccmsetup" on machine "HTMDWin10.htmd.com". Submitted request successfully Getting a new request from queue "Incoming" after 100 millisecond delay. \Program Files\Microsoft Configuration Manager\inboxes\ccr.box" for queue "Incoming", (30 minute backup timeout). ---> Started service "ccmsetup" on machine "HTMDWin10.htmd.com". ---> Deleting SMS Client Install Lock File '\HTMDWin10.htmd.com\admin$\SMSClientInstall.HT1 Execute query exec [sp_CP_SetLastErrorCode] ---> Completed request "2097152002", machine name "HTMDWIN10". Deleted request "2097152002", machine name "HTMDWIN10" Execute query exec [sp_CP_SetPushRequestMachineStatus] 2097152002 Execute query exec [sp_CP_SetLatest] 2097152002
Client-Side Log File – CCMSetup.Log & Client.MSI
Let’s check the Log Files related to the Client Push method from the client side.
- Go to C:\Windows\ccmsetup\Logs
- ccmsetup.log
- Client.Msi.log to confirm the installation status
- Make sure there is NO entry called “Return Value 3“.
Product: Configuration Manager Client -- Installation operation completed successfully. Windows Installer installed the product. Product Name: Configuration Manager Client. Product Version: 5.00.8968.1000. Product Language: 1033. Manufacturer: Microsoft Corporation. Installation success or error status: 0.
Results – Client Push Installation

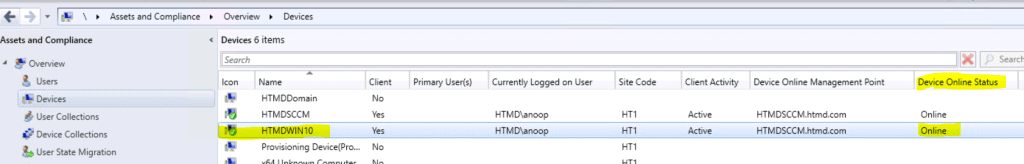

The client got installed and is showing as online in the Configuration Manager console.
- The ConfigMgr client push installation was successful.
Video Recording
The video given below will teach us about the ConfigMgr Client Push Installation Method process.
Resources
- How to Perform SCCM AD Discovery Install SCCM Client
- Windows Firewall and port settings for clients in Configuration Manager
- ConfigMgr Client push installation
