How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method

I hope most ConfigMgr admins know how to Create and Deploy Adobe Acrobat applications using SCCM or a different application.

However, I will share my knowledge in this blog post on creating Adobe Applications in SCCM for those who recently started learning ConfigMgr (A.K.A. SCCM). This post will help newcomers or freshers.

Before registering or adding any application to the ConfigMgr console, you must test it manually. Make sure you use all the use cases while trying to check all the application functionality. I suggest asking your packaging team for help creating a package and then adding an application to the SCCM console.

First, download the required Adobe application from the site. Test and verify the application, then use the silent switch with the command line to install it.

Patch My PC

As I said, you can also ask your packaging member for help once everything is ready. Use the below step to create an application in SCCM. Check out this blog post: SCCM Install Behavior for Applications.

How to Create and Deploy Adobe Acrobat Application using SCCM

Let’s start with the creation of the Adobe Acrobat application.

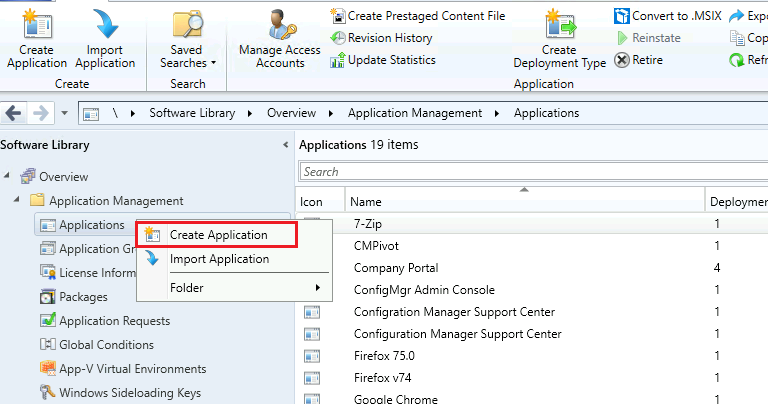

  • Launch ConfigMgr Console
  • Navigate to \Software Library\Overview\Application Management\Applications
  • Right Click on the Applications node
  • Select Create Application
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.1
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.1

Specify Settings for this Application – Create Deploy Adobe Acrobat Application using SCCM.

  • Select the option called “Manually specify the application information.
  • Click on the Next button
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.2
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.2

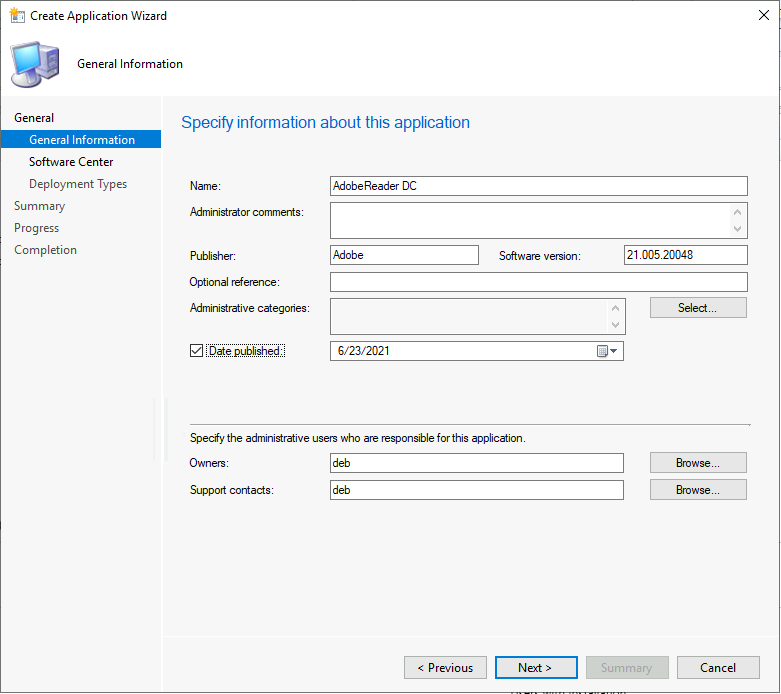

Enter the name of the application you want to deploy – AdobeReader DC

Enter the Publisher Name – Adobe

Click on NEXT to continue

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.3
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.3

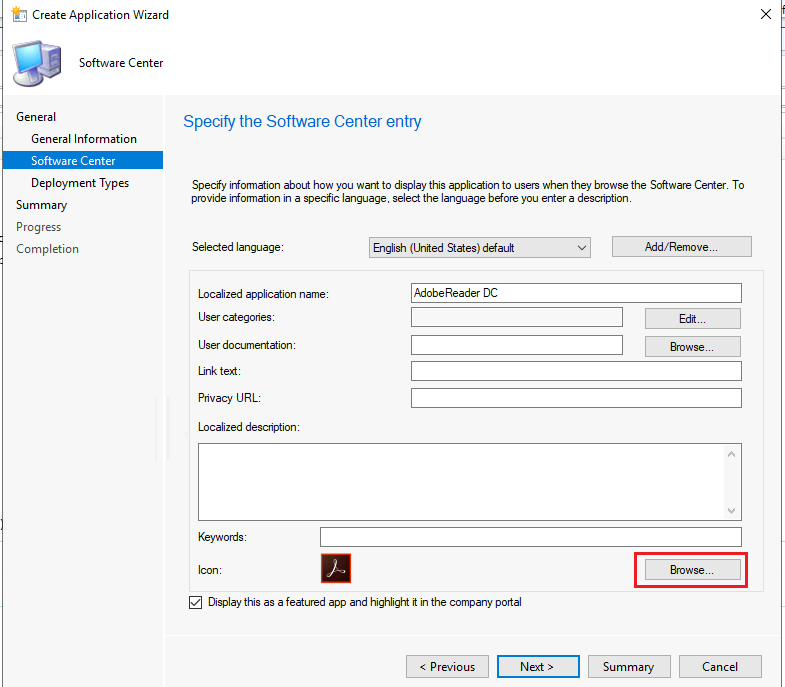

Click on Browse in the Software Center tab to select the Software Center ICON for Adobe.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.4
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.4

Click on the Next button once the Adobe ICON is uploaded

Use the Easy Steps Software Center Icon for SCCM Application Deployment | ConfigMgr | Endpoint Manager for more information about uploading icons.

  • On the Deployment Types page, you need to provide the following details.
    • Deployment Types include information about the installation method and the source files for the application.
  • Click on the ADD button to configure the AdobeReader DC application

Deployment Type Creation for AdobeReader DC

Specify the settings for this deployment type. Type of the Application – Script Installer. Manually specify the deployment type information option, which will be auto-selected.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.5
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.5

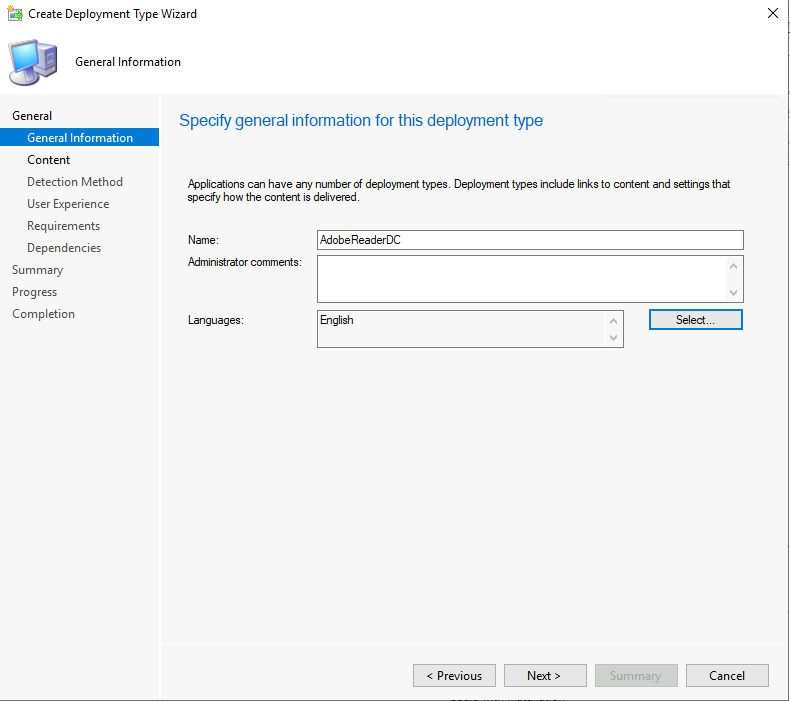

Specify general information for this deployment type

Name – AdobeReaderDC. Language – Select English. Click on NEXT to continue

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.6
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.6

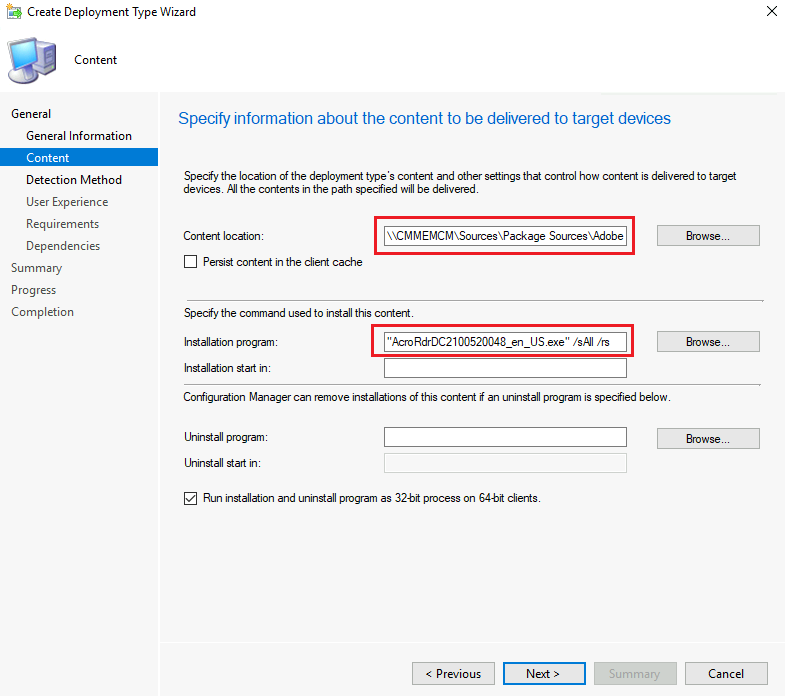

Specify the Content location of this deployment type.

Specify the Installation program“AcroRdrDC2100520048_en_US.exe” /sAll /rs

Click on NEXT to continue.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.7
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.7

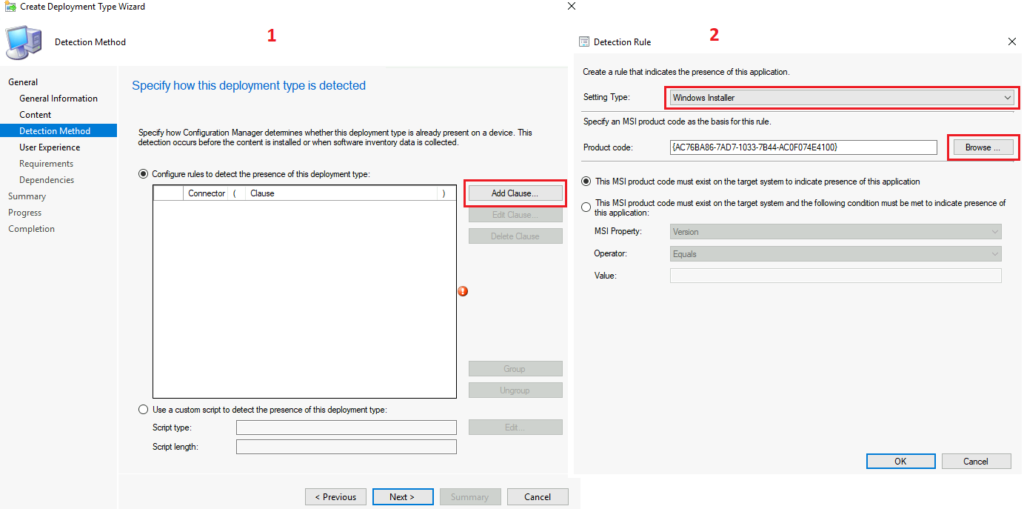

Specify the detection method for this deployment type. Setting Type – Windows Installer. Product Code – {AC76BA86-7AD7-1033-7B44-AC0F074E4100}

Click on OK. Click on NEXT to continue.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.8
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.8

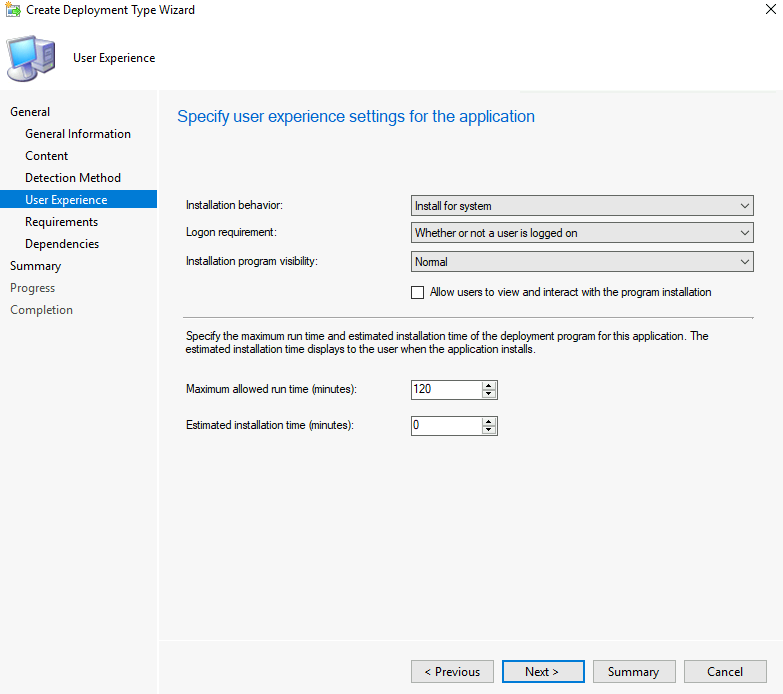

Specify the User Experience of this deployment type

Installation behavior – Install for the system. Logon requirement – Whether or not a user is logged on. Installation program visibility – Normal.

Click on NEXT to continue.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.9
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.9

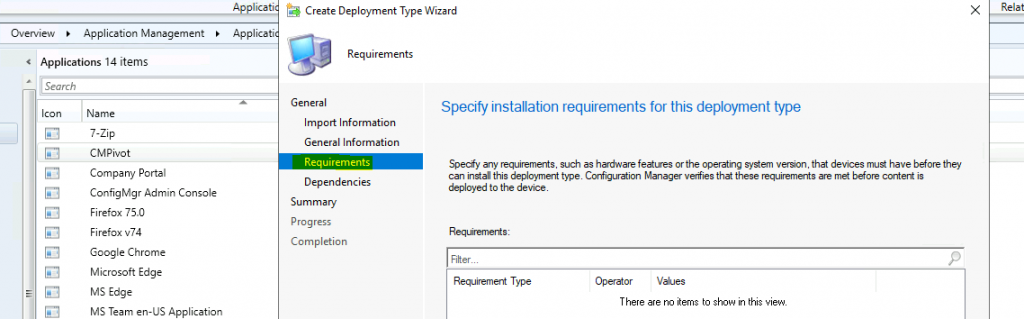

Click on NEXT to continue on the Requirements page

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.10
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.10

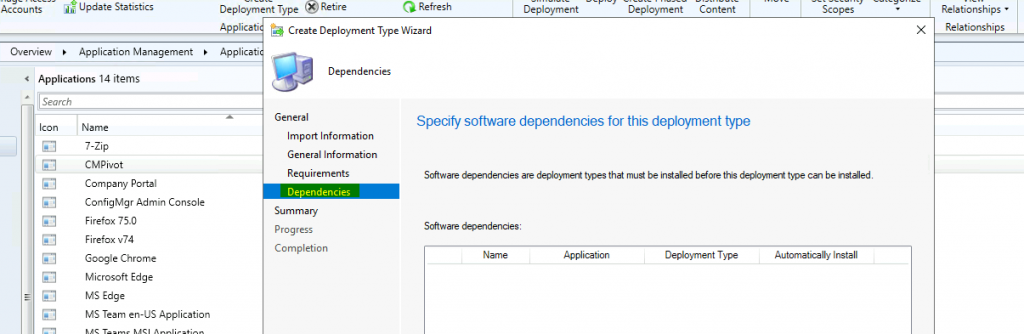

Select the Software Dependencies of the AdobeAcrobat DC application

Click the NEXT to Continue

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.11
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.11

Confirm the Settings of Teams Deployment configuration. Click on NEXT to continue. Click on CLOSE to complete the AdobeAcrobar DC Application Deployment type using SCCM. Click on NEXT to Continue.

Click NEXT, NEXT, and CLOSE to complete the application creation process.

Deploy Adobe Acrobat Using SCCM – Create and deploy the Adobe Acrobat application using SCCM.

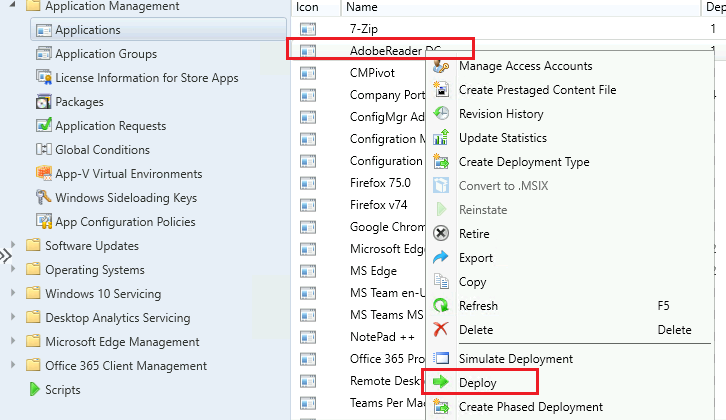

Navigate to \Software Library\Overview\Application Management\Applications. Right-click on the Adobe Acrobat application that we created in the above section.

Right-click and select DEPLOY.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.12
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.12

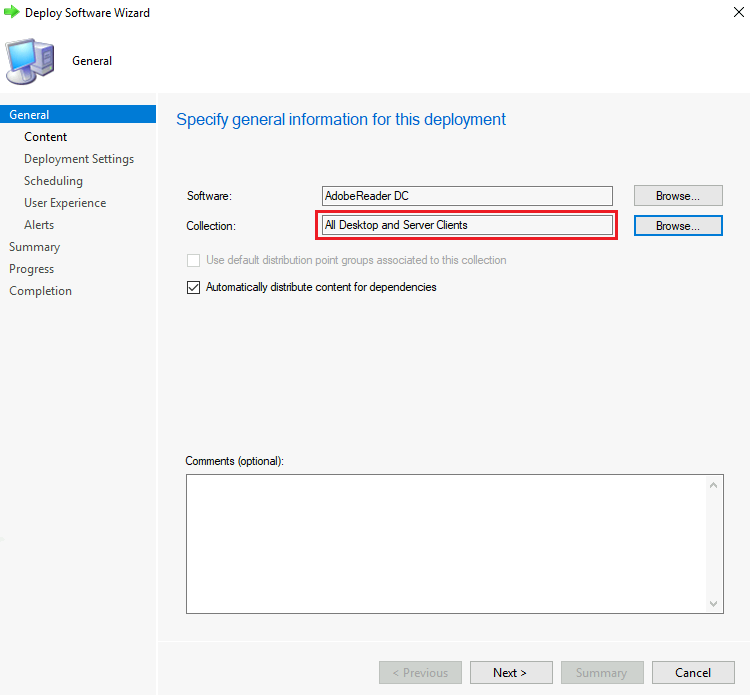

Click on the BROWSE button near Collection. Select the Device COLLECTION you want to deploy AdobeReader DC application.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.13
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.13

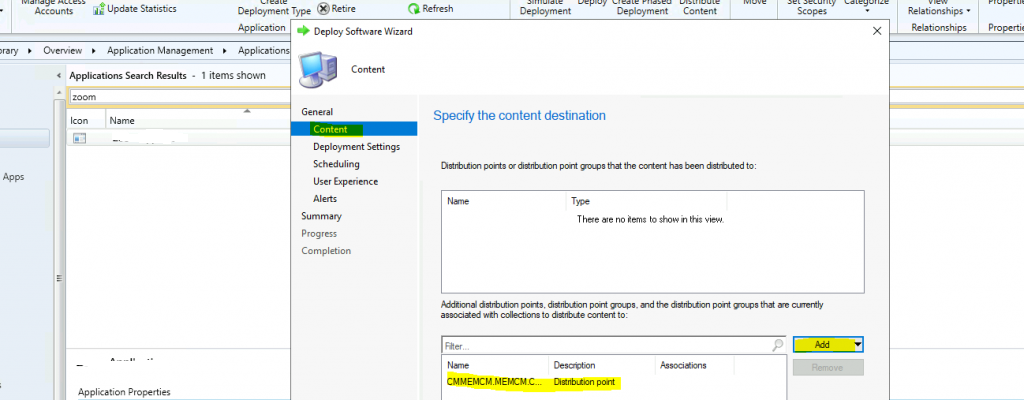

Click on the ADD button to distribute the Source files of the Teams application to the Distribution Point server.

Select the Distribution Point option.

Click OK to continue.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.14
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.14

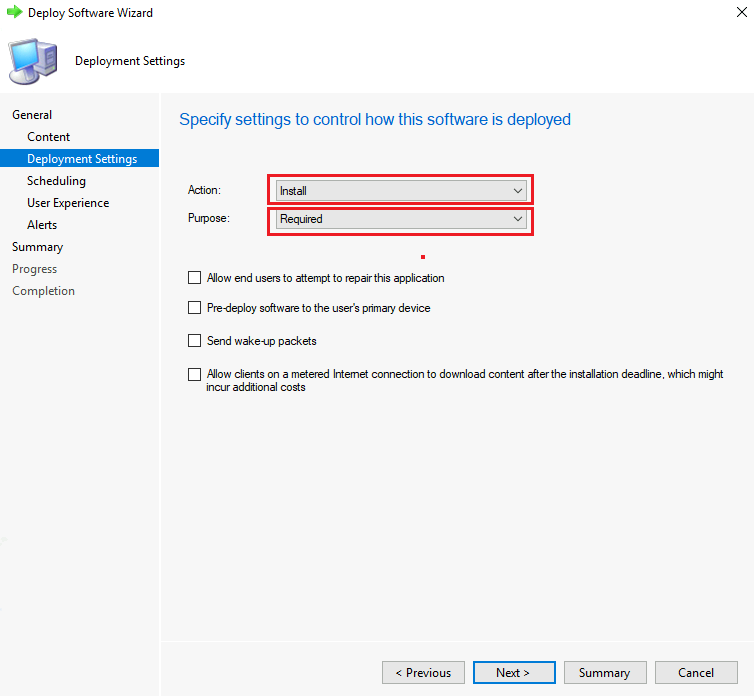

Click on NEXT to continue. Select the installation ACTION as INSTALL. Select the Purpose as REQUIRED.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.15
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.15

Schedule the installation of the Adobe Acrobat application on Windows 10 devices.

Installation Deadline

Specify the date and time the application will be scheduled to be available. Also, set the date and time of the Installation Deadline.

Click on the NEXT button on the USER EXPERIENCE page. Click on the NEXT button on the ALERTS page. Click NEXT and Confirm the summary page. Click CLOSE to finish the deployment of Adobe Acrobat using SCCM.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.16
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.16

Results – Adobe Acrobat Application

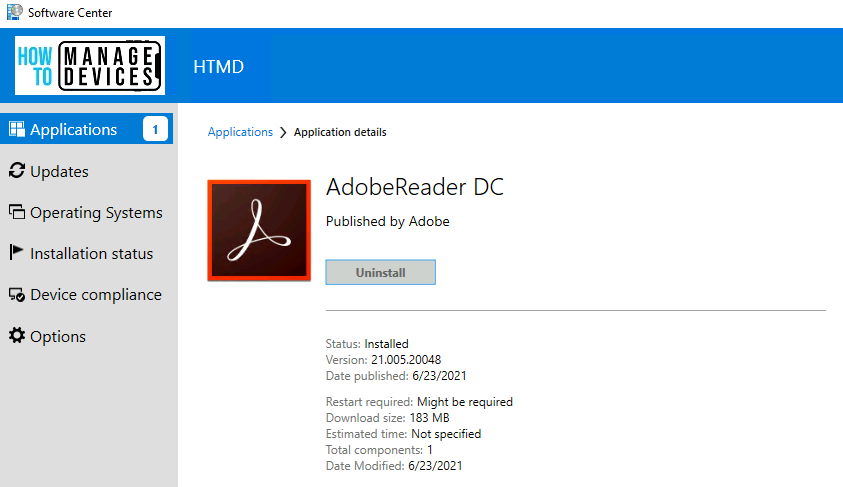

Make sure the content is distributed to the DP. Software Center shows that the Adobe Acrobat application has been successfully installed on the Windows 10 Device.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.17
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.17
ApplicationApplication Details
StatusInstalled
Version21.005.20048
Date pubished6/23/2021
Restart RequiredMight be required
Dowload size183 MB
Estimated TimeNot specified
Total componenets1
Date Modified6/23/2021
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Table 1

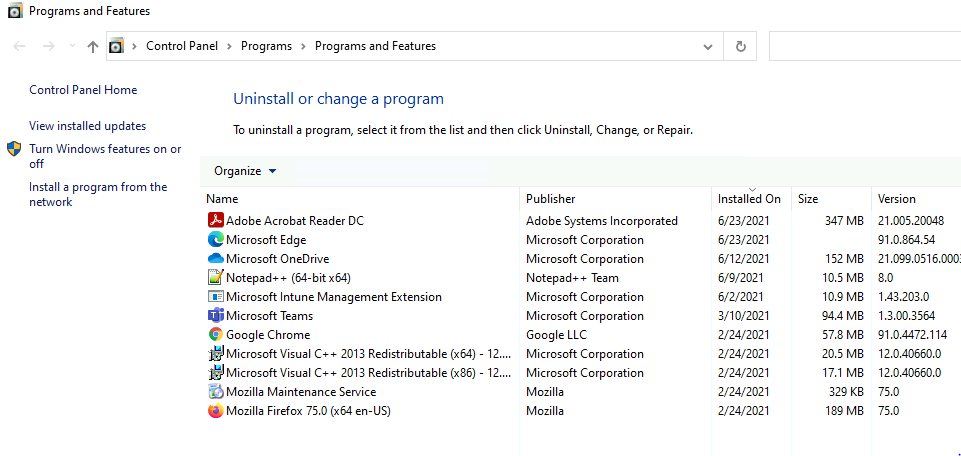

Also, verify the Adobe Acrobat installation status from the Program and Features.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.18
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.18

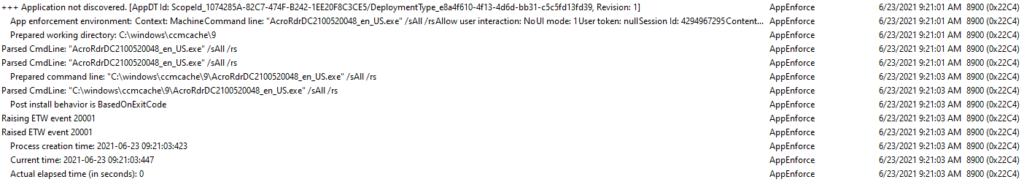

Verify the AppEnforce.log from this C:\Windows\CCM\Logs folder.

How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method - Fig.19
How to Create Deploy Adobe Acrobat Application using SCCM ConfigMgr Easiest Method – Fig.19

Details of the application that you created for Abode Acrobat.

+++ Application not discovered. [AppDT Id: ScopeId_1074285A-82C7-474F-B242-1EE20F8C3CE5/DeploymentType_e8a4f610-4f13-4d6d-bb31-c5c5fd13fd39, Revision: 1] AppEnforce 6/23/2021 9:21:01 AM 8900 (0x22C4)
App enforcement environment:
Context: Machine
Command line: "AcroRdrDC2100520048_en_US.exe" /sAll /rs
Allow user interaction: No
UI mode: 1
User token: null
Session Id: 4294967295
Content path: C:\windows\ccmcache\9
Working directory: AppEnforce 6/23/2021 9:21:01 AM 8900 (0x22C4)
Prepared working directory: C:\windows\ccmcache\9 AppEnforce 6/23/2021 9:21:01 AM 8900 (0x22C4)
Parsed CmdLine: "AcroRdrDC2100520048_en_US.exe" /sAll /rs AppEnforce 6/23/2021 9:21:01 AM 8900 (0x22C4)
Parsed CmdLine: "AcroRdrDC2100520048_en_US.exe" /sAll /rs AppEnforce 6/23/2021 9:21:01 AM 8900 (0x22C4)
Prepared command line: "C:\windows\ccmcache\9\AcroRdrDC2100520048_en_US.exe" /sAll /rs AppEnforce 6/23/2021 9:21:03 AM 8900 (0x22C4)
Parsed CmdLine: "C:\windows\ccmcache\9\AcroRdrDC2100520048_en_US.exe" /sAll /rs AppEnforce 6/23/2021 9:21:03 AM 8900 (0x22C4)
Post install behavior is BasedOnExitCode AppEnforce 6/23/2021 9:21:03 AM 8900 (0x22C4)
Raising ETW event 20001 AppEnforce 6/23/2021 9:21:03 AM 8900 (0x22C4)
Raised ETW event 20001 AppEnforce 6/23/2021 9:21:03 AM 8900 (0x22C4)
Process creation time: 2021-06-23 09:21:03:423 AppEnforce 6/23/2021 9:21:03 AM 8900 (0x22C4)
Current time: 2021-06-23 09:21:03:447 AppEnforce 6/23/2021 9:21:03 AM 8900 (0x22C4)
Actual elapsed time (in seconds): 0 AppEnforce 6/23/2021 9:21:03 AM 8900 (0x22C4)
