List of Intune Devices with Patch Deployment Status and Country Details using KQL queries

Learn how to get a list of Intune Devices within patch deployment status and country details using KQL queries. Let’s get patch deployment status (Not Started, Unknown, Last Scan, etc.) from Intune managed devices.

The following details of devices, such as deployment status, country, Alert Status, etc., are important with Intune Patching process and troubleshooting. To get these details from clients, you need to enable Update Compliance.

Troubleshooting on Intune patch issue is one of the primary scenarios for this post. Reporting on Intune patch deployments is discussed in the previous post. Also, many community-driven PowerBI dashboards are available to produce detailed reports.

Let’s see how to join two tables from Update compliance, such as UCCClient and UCUpdateAlert, to get the country details of the device along with Alert Classification and Alert Sub type details. Most of these are achieved using KQL queries.

Patch My PC
[sibwp_form id=2]

List of Update Compliance Tables

The following is the list of Update Compliance tables available with the Update Compliance solution. You can get more details on Update Compliance setup and configuration details from the following post -> Configure Update Compliance Patch Management Reports Using Intune And Log Analytics.

Table NameDescription
UCClientThis event acts as an individual device’s record, containing data like the current build installed, the device’s name, the OS Edition, active hours (quantitative), and so on.
UCClientReadinessStatusStatus message for a UC client device indicates update readiness of the given device for a specific target version.
UCClientUpdateStatusUpdate Compliance – Update Event that combines the latest client-based data with the latest service-based data to create a complete picture for one device (client) and one update.
UCDeviceAlertThese alerts are activated due to an issue that is device-specific and not specific to a specific update and a specific device.
UCServiceUpdateStatusUpdate Event that comes directly from the service side and only tells the “service-side” of the story for one device (client) and one update in one deployment. As such, this event is stripped of certain fields to show data in near real-time.
UCUpdateAlertAlert for both Client and Service Update will contain information that needs attention relative to one device (client), one update, and one deployment (if relevant).
WaaSDeploymentStatusRecords track a specific update’s installation progress of a particular device. Multiple WaaSDeploymentStatus records can exist simultaneously for a given device, as each form is specific to a given update and its type.
WaaSUpdateStatusRecords contain device-centric data and act as the device record for Update Compliance. Each description in daily snapshots maps to a single device in a single tenant.
WUDOAggregatedStatusRecords provide information, across all devices, on their bandwidth utilization for a specific content type in the event they use Delivery Optimization over the past 28 days.
WUDOStatusRecords provide information, for a single device, on their bandwidth utilization for a specific content type in the event they use Delivery Optimization and other information to create more detailed reports and splice on certain common characteristics.
List of Intune Devices with Patch Deployment Status and Country Details – Table 1

Video Tutorial – Join Update Compliance Tables using KQL Queries

Let’s see how to join Update Compliance tables using KQL queries.

Learn How to join Update Compliance tables using KQL query

Log Analytics Workspace

You need to log in to Log Analytics Workspace, where the Update Compliance data is collected from the client devices using telemetry. The Windows 10 or Windows 11 client collects the telemetry data and sends this across to the log analytics space.

Adaptiva

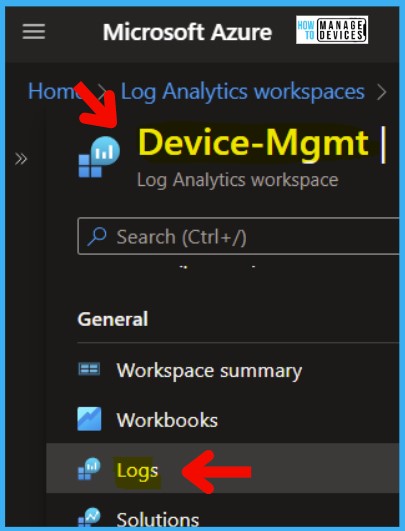

  • Login to Portal.Azure.com -> Search “log analytics workspaces.”
  • Open Log Analytics Workspaces Azure Service.
  • Select the workspace you created (e.g., Device-Mgmt) and Navigate to Logs blade.
  • Close the Queries popup blade.
  • Check whether the Tables listed above are already there or not.

NOTE! – If the tables are not created, you need to wait until they get populated. It takes 48 hours to get the telemetry data from Windows devices and the Update Compliance to process it before putting those into the tables.

List of Intune Devices with Patch Deployment Status and Country Details using KQL Query 2
List of Intune Devices with Patch Deployment Status and Country Details using KQL Query 2

Intune Patch Report with Not Started Status

Let’s check the Intune Patch Report with the not Started Status and unknown status devices. You can use very Powerful options in the KQL query to filter out and add additional details to the results.

NOTE! – You need to know KQL queries to get these results. I have given the details below, so you don’t need to worry much about the details for now.

To get the details of Intune patch deployment status, you need to use the WaaSDeploymentStatus table from Update Compliance. Follow the steps explained below.

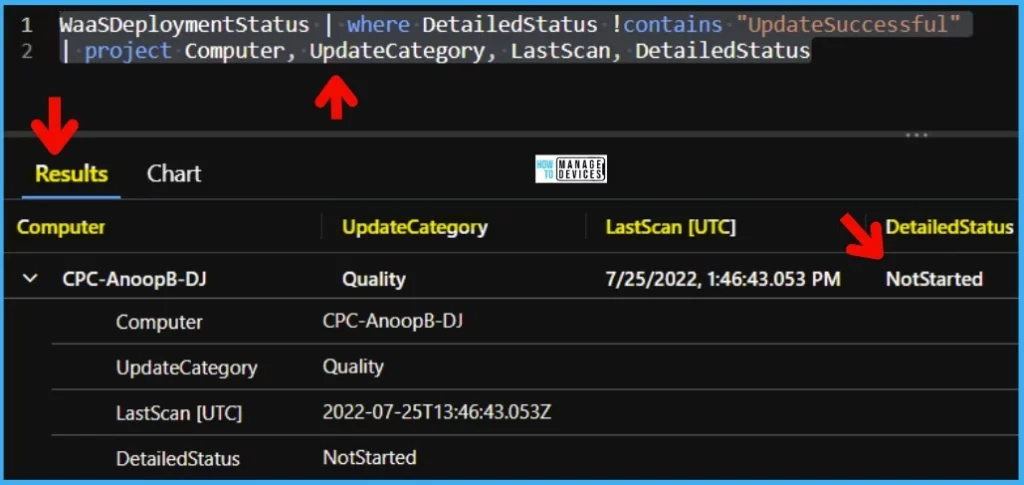

  • Paste the KQL query as shown in the screenshot below.
  • The default Time Range is set to 24 hours. You can change to the last hour, last 4 hours, or custom time range.
  • Click the Run button to get the list of devices with NOT Started patch deployment status.
WaaSDeploymentStatus | where DetailedStatus !contains "UpdateSuccessful"
| project Computer, UpdateCategory, LastScan, DetailedStatus
List of Intune Devices with Patch Deployment Status and Country Details using KQL Query 3
List of Intune Devices with Patch Deployment Status and Country Details using KQL Query 3

You can use the following KQL query as an example to drill down on the Detailed Status of Windows Update deployment. In this scenario, I tried to get the list of devices where deployment status is set to NotStarted.

WaaSDeploymentStatus | where DetailedStatus contains "NotStarted"
| project Computer, UpdateCategory, LastScan, DetailedStatus

Intune Devices with Patch Deployment Status is Unknown

Let’s try to get the details of Intune devices with the patch Deployment Status is Unknown. You can use the same table WaaSDeploymentStatus to get the devices with unknown deployment status. Follow the below steps to get the list of devices with unknown deployment status.

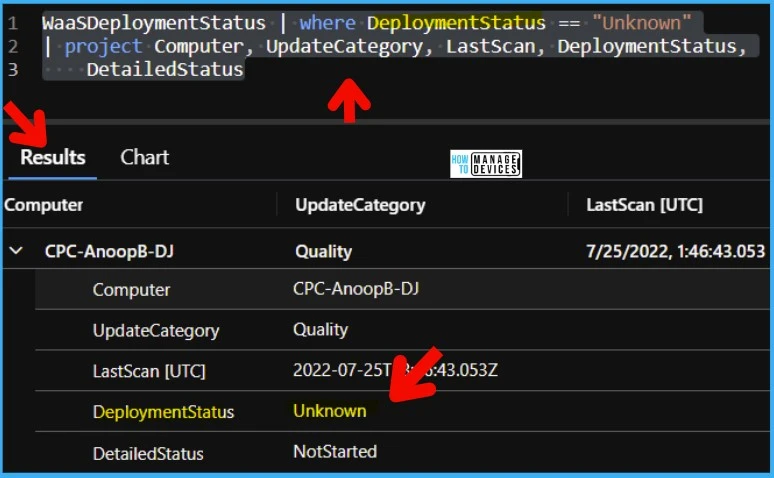

  • Paste the KQL query as shown in the screenshot below.
  • The default Time Range is set to 24 hours. You can change if you want to the last hour, last 4 hours, or custom time range.
  • Click on the Run button to get the list of devices with Unknown patch deployment status.
WaaSDeploymentStatus | where DeploymentStatus == "Unknown"
| project Computer, UpdateCategory, LastScan, DeploymentStatus,
    DetailedStatus
List of Intune Devices with Patch Deployment Status and Country Details using KQL Query 4
List of Intune Devices with Patch Deployment Status and Country Details using KQL Query 4

List of Intune Devices with Patch Deployment Status and Country Details

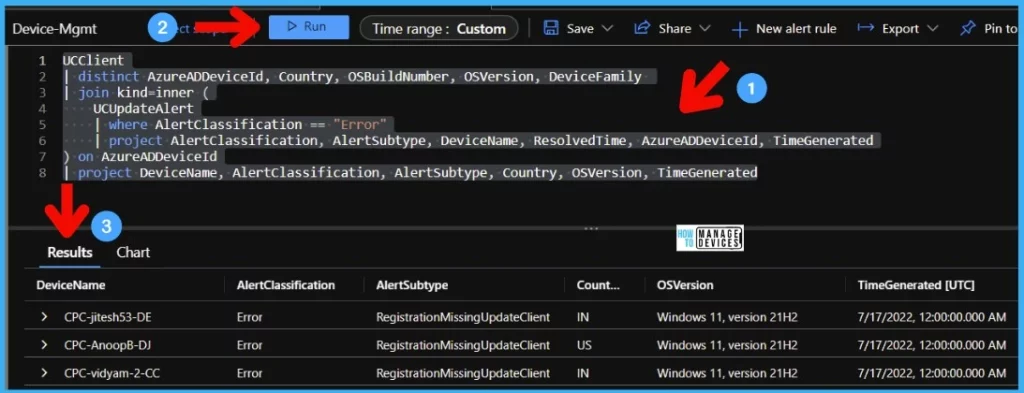

Let’s get the list of Intune devices with patch deployment status and country details using the KQL query given below. I have joined two tables to get these details from Update Compliance.

  • UCClient
  • UCUpdateAlert

I have joined these tables base on the common column called AzureADDeviceId. There are other common columns between these tables, but I thought this column would be more accurate.

A row is created in the resulting set that includes columns from both tables for each row in UCClient, where the value in AzureADDeviceId has the same value in the AzureADDeviceId column in UCUpdateAlert.

This is just a sample KQL query to get the list of devices with DeviceName, Alert Classification, Alert Subtype, Country, OS Version, and Time Generated.

UCClient
| distinct AzureADDeviceId, Country, OSBuildNumber, OSVersion, DeviceFamily
| join kind=inner (
    UCUpdateAlert
    | where AlertClassification == "Error"
    | project AlertClassification, AlertSubtype, DeviceName, ResolvedTime, AzureADDeviceId, TimeGenerated
) on AzureADDeviceId
| project DeviceName, AlertClassification, AlertSubtype, Country, OSVersion, TimeGenerated
List of Intune Devices with Patch Deployment Status and Country Details using KQL Query 5
List of Intune Devices with Patch Deployment Status and Country Details using KQL Query 5

Resource Tutorial: Kusto queries | Microsoft Docs
