Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe

Let’s learn more about Intune Management Extension Health Evaluation tasks. Intune Management Extension (IME) handles Win32 app deployment on a managed Windows 10 endpoint. The task scheduler has some tips about IME health-related tasks.

Windows 10 MDM channel is capable of deploying simple MSI applications. You can’t use the Windows 10 MDM channel and Intune LOB app deployment method when you deploy multiple files as part of the MSI application. You can read more details from the Intune Application Model Deployment Guide | MEM post.

Win32 app deployment uses Intune management extension agent to deliver and install applications on managed Windows 10 devices.

Vimal explained the architecture of Win32 application deployment in the following post: Intune Win32 App Deployment using Modern Management.

Intune Management Extension Error

You can check the Intune Management Extension error details in the following post from Joy. Intune Management Extension Deep Dive – Win32 App Deployment Troubleshooting Help Guide. He explained the following IME Win32 errors in the above post.

The following list of errors is not fixed via IME health tasks. They are more related to the Win 32 application deployment operations.

List of Errors
(0x80070004)
(0x8007026B)
Access is denied.(0x80070005)
Error downloading content.(0x87D30067)
Error unzipping downloaded content.(0x87D30065)
Failed to retrieve content information.(0x87D30065)
The Application was not detected after the installation was completed successfully(0x87D1041C)
The unmonitored process is in progress; however, it may timeout(0x87D300C9)
The system cannot find the file specified(0x80070002)
The unmonitored process is in progress, however, it may timeout(0x87D300C9)
The user logged off while the app policy was being processed(0x87D300CD)
Unknown(0x87D30000)

Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler – Table 1

Intune Management Extension Health Evaluation | ClientHealthEval.exe

Intune Management Extension Health Evaluation tasks were fundamental to writing this post. I’m sure this will improve over time, and more health checks might be added to the list.

You can check the IME health evaluation task details from the Windows 10 Task Scheduler.

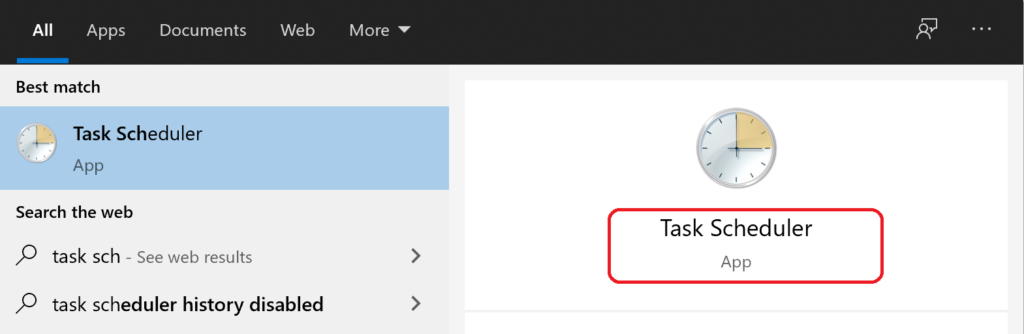

Click on the Start Menu
Start typing Task Scheduler.
Click on the Task Scheduler application from the list.

Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler - Fig.1 — Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler – Fig.1

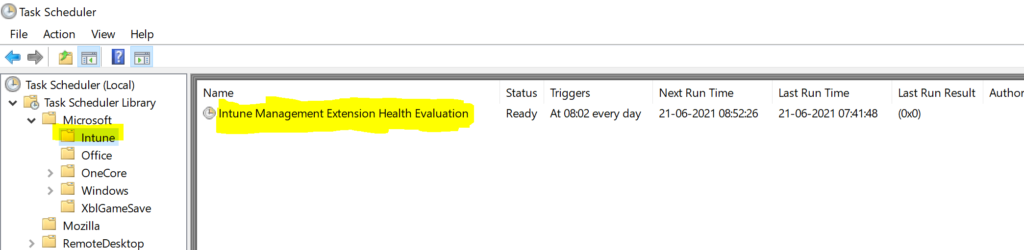

Expand Task Scheduler Library.
Expand Microsoft -> Intune folder.

Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler - Fig.2 — Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler – Fig.2

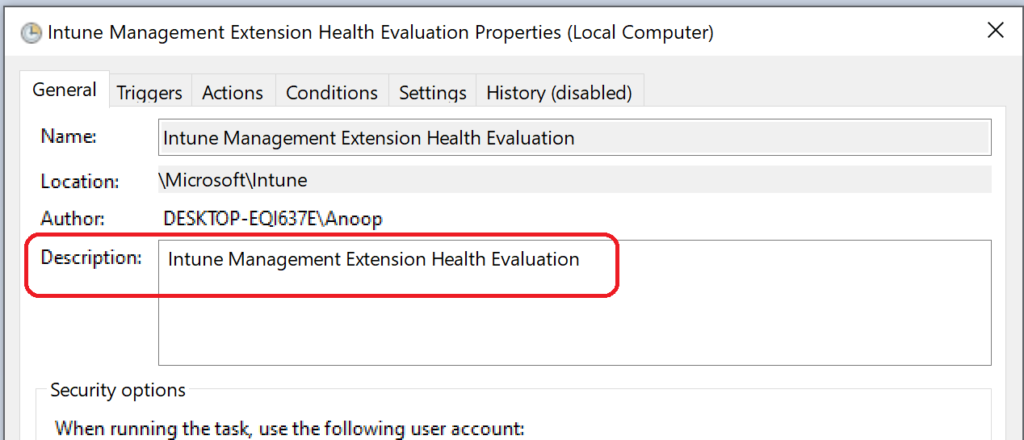

Right-click on Intune management extension health evaluation task sequence.
Click on properties.

Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler - Fig.3 — Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler – Fig.3

Schedule options for Intune Management Extension Health Evaluation?

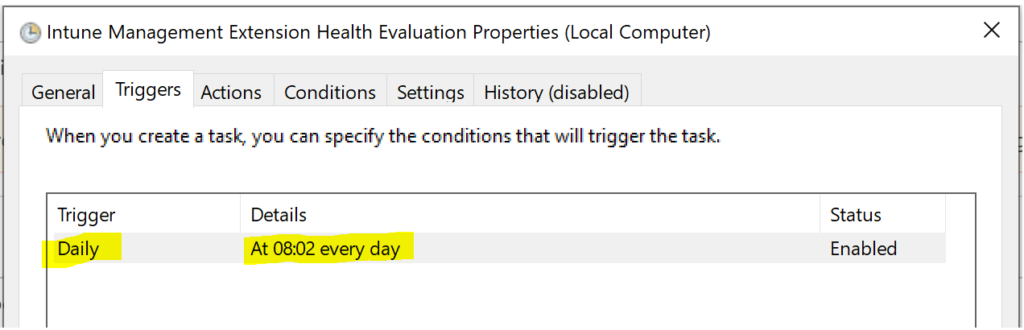

At the moment, there is no UI option to schedule the health evaluation for Intune Management Extension. The default IME health evaluation schedule is given below:

Daily 8:02 AM

Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler - Fig.4 — Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler – Fig.4

What are the Intune Management Extension Health Checks?

Well, at the moment, the IME health check activities are very minimal. It checks whether the IME service is running, etc. Let’s have a look at the action that is initiated as part of a health check.

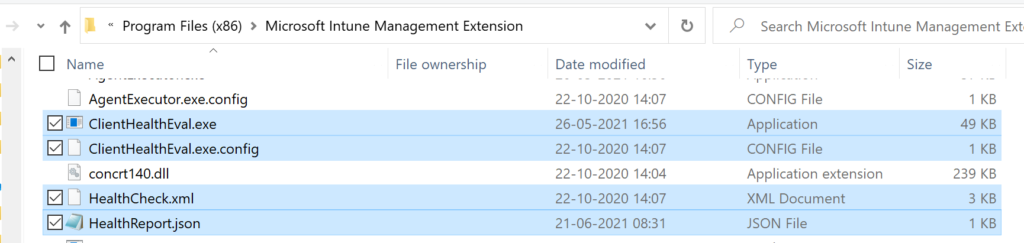

The following ClientHealthEval.exe tool gets triggered daily at 8:02 AM as per the scheduled task on my Windows laptop. The location where you can find the IME client health evaluator tool is the following.

C:\Program Files (x86)\Microsoft Intune Management Extension\ClientHealthEval.exe

Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler - Fig.5 — Intune Management Extension Health Evaluation | IME Health Issue | ClientHealthEval.exe | Task Scheduler – Fig.5

You can check HealthCheck.XML to find more details about the health check tasks of Intune Management Extension.

Verify that the Intune Management Extension service exists
Verify/Remediate Intune Management Extension Service startup type
Verify/Remediate Intune Management Extension service status
Verify/Remediate Intune Management Extension memory usage

Sample HealthCheck XML for IME

The XML code below provides the details of HealthCheck.XML. The following entry is just a reference to track how this IME health check will improve over time.

<?xml version="1.0" ?>
<ClientHealth Version="1.0">
  <HealthCheck Description="Verify Intune Management Extension service exists." ID="---------" Type="Services">
    <Applicability OS="ALL" ClientVersion="ALL"/>
    <PARAM Order="1" Description="Services Check">
      ServiceExists
    </PARAM>
    <PARAM Order="2" Description="Service Name">
      IntuneManagementExtension
    </PARAM>
  </HealthCheck>
  <HealthCheck Description="Verify/Remediate Intune Management Extension Service startup type." ID="-----" Type="Services" DependsOn="---------">
    <Applicability OS="ALL" ClientVersion="ALL"/>
    <PARAM Order="1" Description="Service Check">
      ServiceStartupType
    </PARAM>
    <PARAM Order="2" Description="Service Name">
      IntuneManagementExtension
    </PARAM>
    <PARAM Order="3" Description="Expected Service Startup State">
      Automatic
    </PARAM>
    <Remediate>
      <PARAM Order="1" Description="Services Remediation">
        ServiceStartupType
      </PARAM>
      <PARAM Order="2" Description="Service Name">
        IntuneManagementExtension
      </PARAM>
      <PARAM Order="3" Description="Desired Service Startup State">
        Automatic
      </PARAM>
    </Remediate>
  </HealthCheck>
  <HealthCheck Description="Verify/Remediate Intune Management Extension service status." ID=-------" Type="Services" DependsOn="--------">
    <Applicability OS="ALL" ClientVersion="ALL"/>
    <PARAM Order="1" Description="Service Check">
      ServiceStatus
    </PARAM>
    <PARAM Order="2" Description="Service Name">
      IntuneManagementExtension
    </PARAM>
    <PARAM Order="3" Description="Expected Service Status">
      Active
    </PARAM>
    <Remediate>
      <PARAM Order="1" Description="Services Remediation">
        ServiceStatus
      </PARAM>
      <PARAM Order="2" Description="Service Name">
        IntuneManagementExtension
      </PARAM>
      <PARAM Order="3" Description="Desired Service Status">
        Running
      </PARAM>
    </Remediate>
  </HealthCheck>
  <HealthCheck Description="Verify/Remediate Intune Management Extension memory usage." ID="------" Type="Memory" DependsOn="-------">
    <Applicability OS="ALL" ClientVersion="ALL"/>
    <PARAM Order="1" Description="Memory Check">
      Memorycheck
    </PARAM>
    <PARAM Order="2" Description="Process">
      Microsoft.Management.Services.IntuneWindowsAgent
    </PARAM>
    <PARAM Order="3" Description="Memory threshold">
      200
    </PARAM>
    <Remediate>
      <Applicability OS="ALL" ClientVersion="ALL"/>
      <PARAM Order="1" Description="Restart service">
        RestartIntuneManagementExtensionService
      </PARAM>
    </Remediate>
  </HealthCheck>
</ClientHealth>
