Intune Application Deployment using MSI EXE IntuneWin Formats

In this post, let’s discuss Intune Application Deployment using MSI EXE IntuneWin Formats. I can help you deploy Windows apps with Microsoft Intune through this guide.

We faced a major limitation of Intune Win32 App Deployment (Intune Management Extension). Intune supported only a single MSI file, so we could not deploy applications with EXE, multiple MSIs, MST, batch files, etc. Intune solved its limitations with the Intune Win32 App Deployment solution.

Intune Win32 App Deployment allows for the deployment of complex Windows applications through Intune. By creating IntuneWin packages, you can efficiently manage software deployments and overcome any limitations.

Intune offers a diverse range of supported application types, catering to various platforms and requirements. It includes applications such as Store apps, Microsoft apps, Android enterprise system apps, LOB apps, macOS apps, and Windows apps; check more about the List Of Supported Intune Application Types.

Patch My PC
Index
What is Intune Win32 App Deployment or Intune Application Deployment
Pre-requisites of Intune Win32 App Deployment / Intune Management Extension
Limitations of Win32 App Deployment / Intune Management Extension
Download the Win32 App Packaging Tool.
How to Prepare Win32 App Installation Source for Intune
How to Create and Deploy Win32 App in Intune
Intune Application Deployment using MSI EXE IntuneWin Formats – Table.1

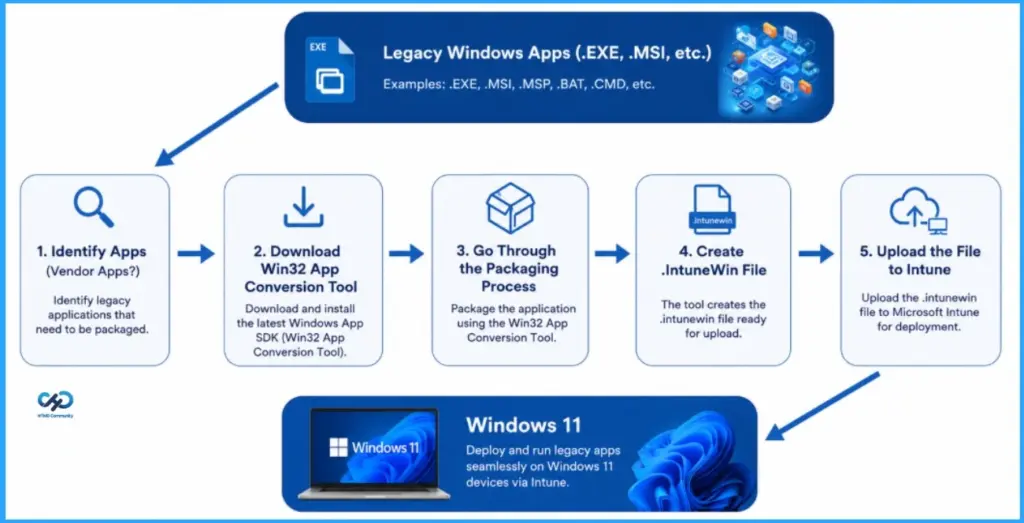

What is Intune Win32 App Deployment or Intune Application Deployment

Win32 application deployment is for 32-bit and 64-bit application deployments. Using Intune Win32 App deployment, you can deploy x86 and x64-bit applications.

Windows 10 MDM channel has limitations in deploying complex Windows applications.

To overcome Windows 10 MDM channel limitation, Intune and the Windows team came up with an agentbased (Intune Management Extension) solution to deploy complex Windows applications (EXE, multiple MSIs, MST, batch files, etc.).

So now, Windows 10 (client-side) is ready to deploy complex Windows apps via the Win32 app deployment agent. Intune (Server-side) has implemented a solution called “Intune Win32 App Deployment” to deploy complex Windows applications via the Intune portal.

Adaptiva
Intune Application Deployment using MSI EXE IntuneWin Formats -Fig.1
Intune Application Deployment using MSI EXE IntuneWin Formats -Fig.1

Pre-requisites of Intune Win32 App Deployment / Intune Management Extension

Let’s look into the prerequisites of Intune Win32 App deployment or Intune Management Extension.

  • Windows 10 Ent/Edu (1607 version and above)
  • Joined to Azure Active Directory (AAD) or Hybrid Azure Active Directory
  • Enrolled into Intune MDM

Limitations of Win32 App Deployment / Intune Management Extension

Now check the limits of Win32 App Deployment or Intune Management Extension.

  • User context app installation is not available.
  • No dependency and supersedence support.
  • The application size limit is 30 GB.

Download the Win32 App Packaging Tool.

Download the Win32 to app “packaging” tool from GitHub. Is that a packaging tool? Do we need packaging skills to convert complex Windows apps? IntuneWin format?

The .intunewin file is created by the Microsoft Win32 Content Prep Tool, which converts application installation files into the .intunewin format.

IntuneWin Extension Packaging Tool (Intune Management Extension)https://www.anoopcnair.com/intune-application-model-intunewin-packages/

Download the IntuneWinAppUtil.exe.

You don’t need any packaging skills to repackage existing Windows apps like MSI, EXE, or IntuneWin Extention. This Intune win32 app packaging is similar to zipping a folder using Winzip or 7 Zip.

[Intune Win32 App Deployment Troubleshooting postIntune Win32 app Troubleshooting]

How to Prepare Win32 App Installation Source for Intune

Intune allows single package files wrapped using Intune prep tool for win32 app (Intune Management Extension) deployment.

We will see a step-by-step configuration to use the tool. Intune Win32 App Deployment; more details are available in the following section.

  • Download the Intune prep tool (intuneWinAppUtil.exe).

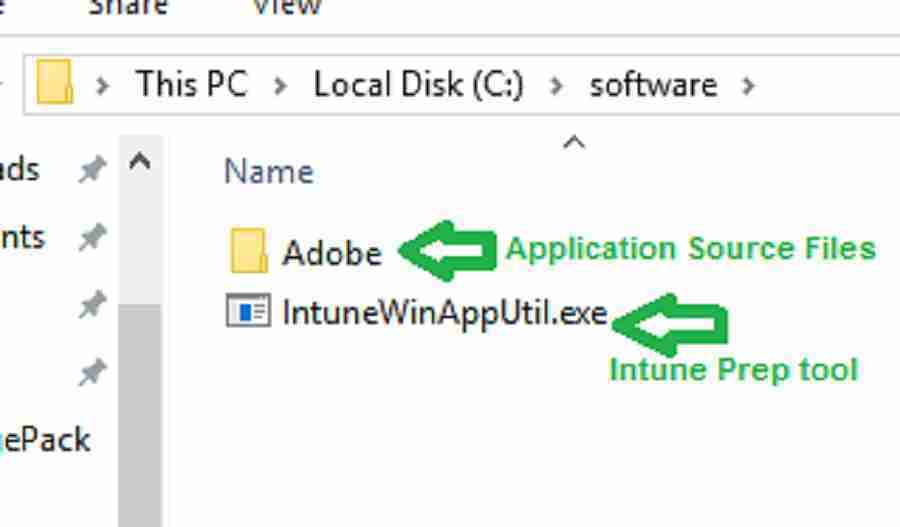

  • As shown below, make sure you copy all the installation files inside the source folder (example here: Adobe)
  • Keep the tool(intuneWinAppUtil.exe) outside of the installation source folder.
Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.2
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.2

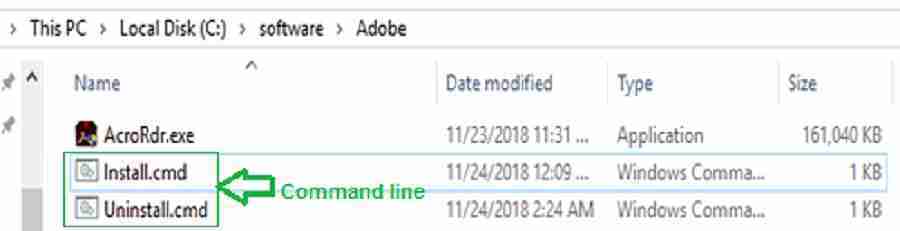

It is recommended to use cmd or batch files to trigger the installation. This approach will provide better control and sequence. I would suggest creating a “cmd” file for installation and uninstall.

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.3
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.3

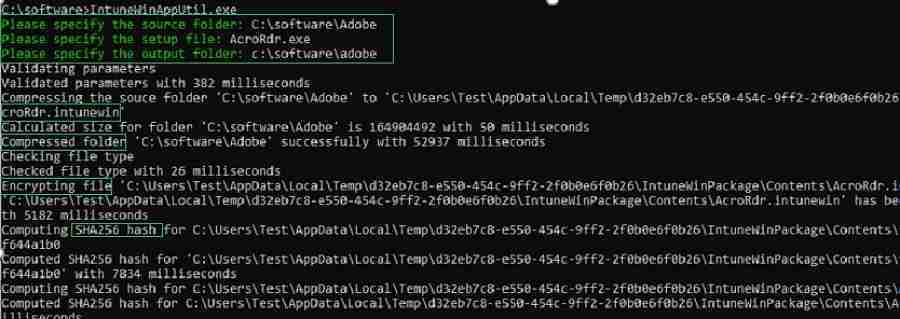

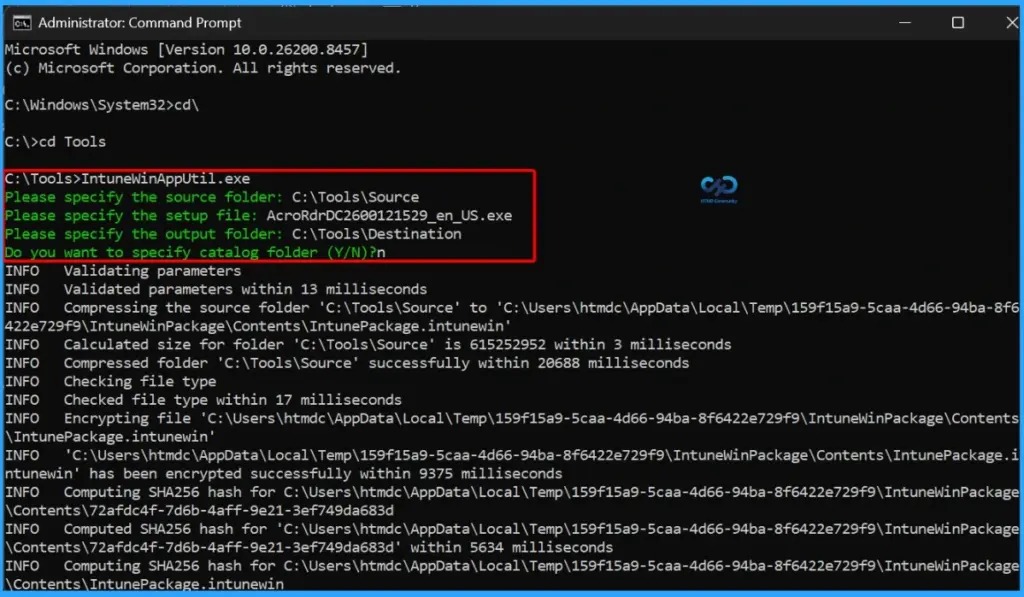

  • Execute the Intune prep tool (intuneWinAppUtil.exe). As shown below, specify the source and output folders as the same path. This tool will create the wrapped file. You can see the file with the extension “Intunewin” created.
  • Provide the setup file name. This filename is just for reference. In this example, you will use the cmd file to trigger the installation.
  • The Intunewin file is compressed and encrypted with a SHA256 hash.

(Intune Win32 App Deployment more details are available in the following section)

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.4
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.4

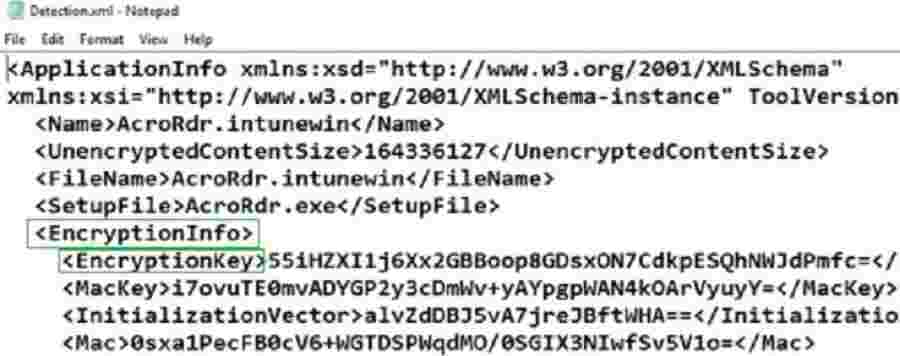

You can use tools like 7-zip to extract the Intunewin file and see what’s inside. You can see Detection.xml and the install source files. The Detection.xml file is created based on the setup file metadata. Detection.xml file includes encryption key details.

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.5
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.5

How to Create and Deploy Win32 App in Intune

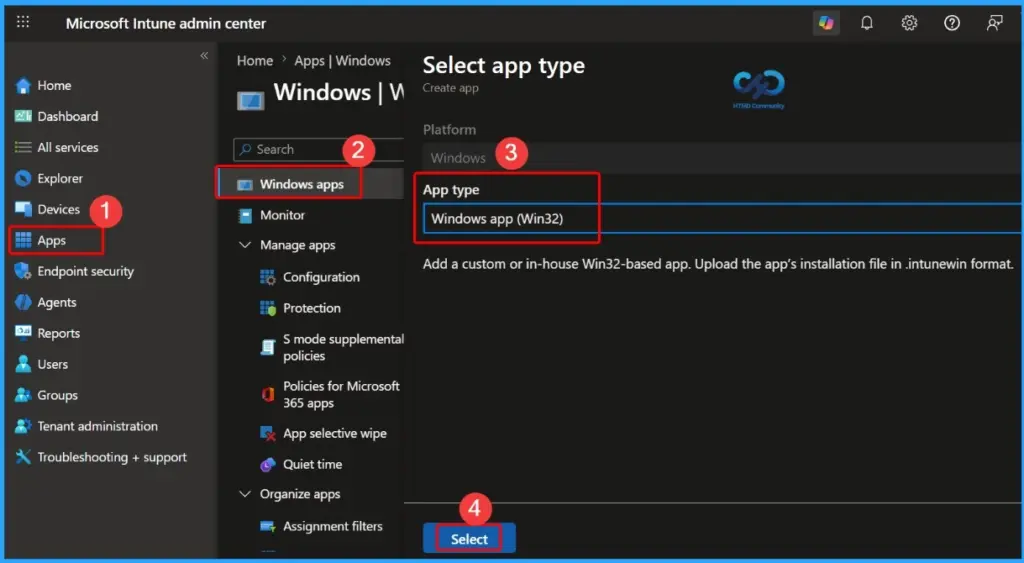

Let’s follow the steps below to create a Windows app (Win32) using Intune. You already have the intunewin file required to create the app.

  • Sign in to the Microsoft Intune admin center https://intune.microsoft.com/.
  • Select Apps > All AppsAdd, or navigate to Apps > Windows > Windows Apps.
  • On the Select app type pane, select Windows app (Win32) under the Other app types and click Select.
Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.6
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.6

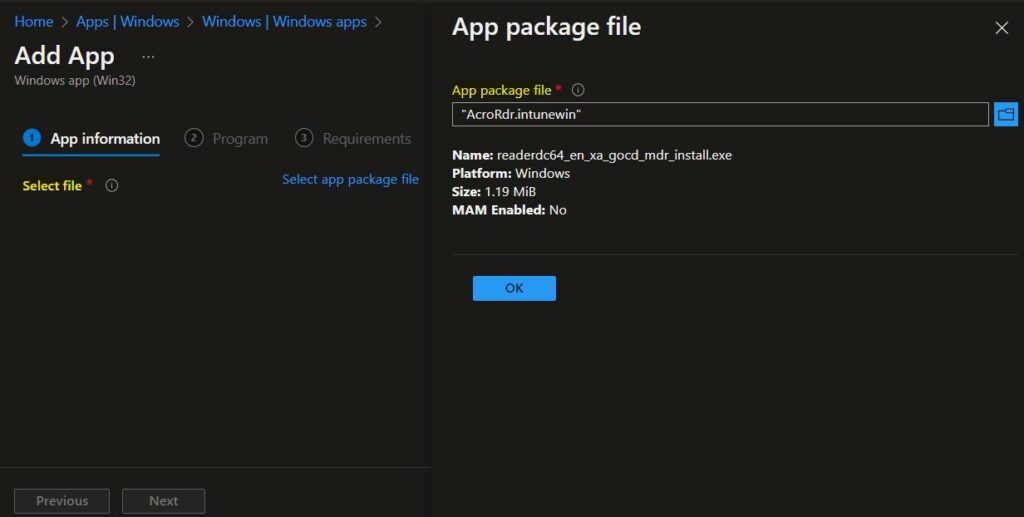

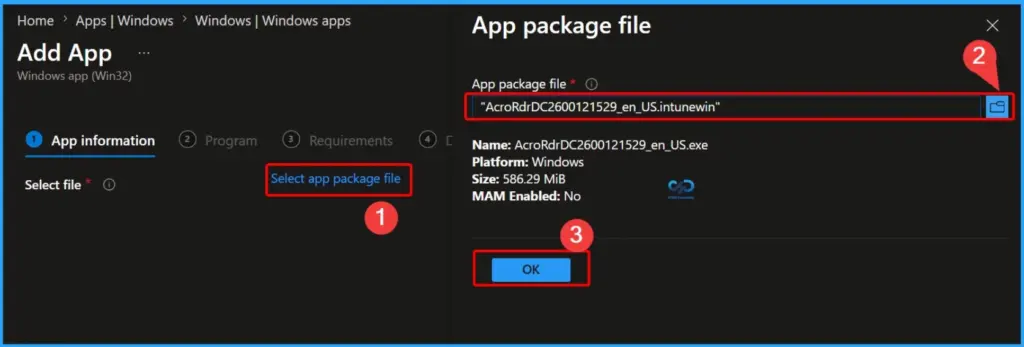

On the Add app pane, click Select app package file. Select the browse button. Then, Select the previously created intunewin file using the Intune prep tool. The app details appear.

  • When you’re finished, select OK on the App package file pane.
Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.7
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.7

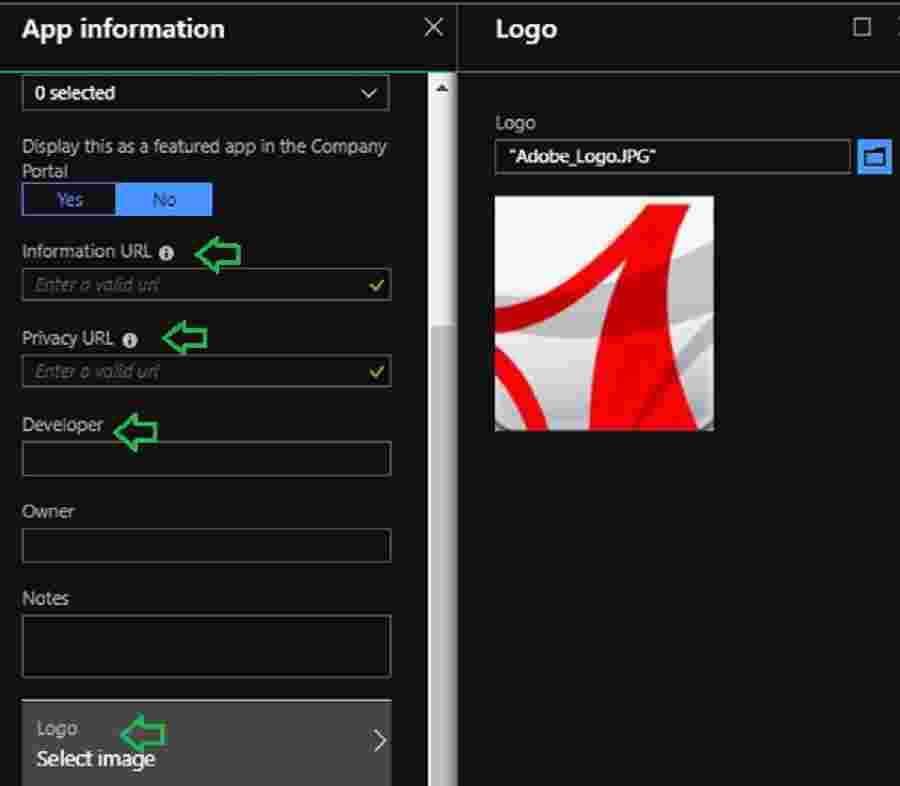

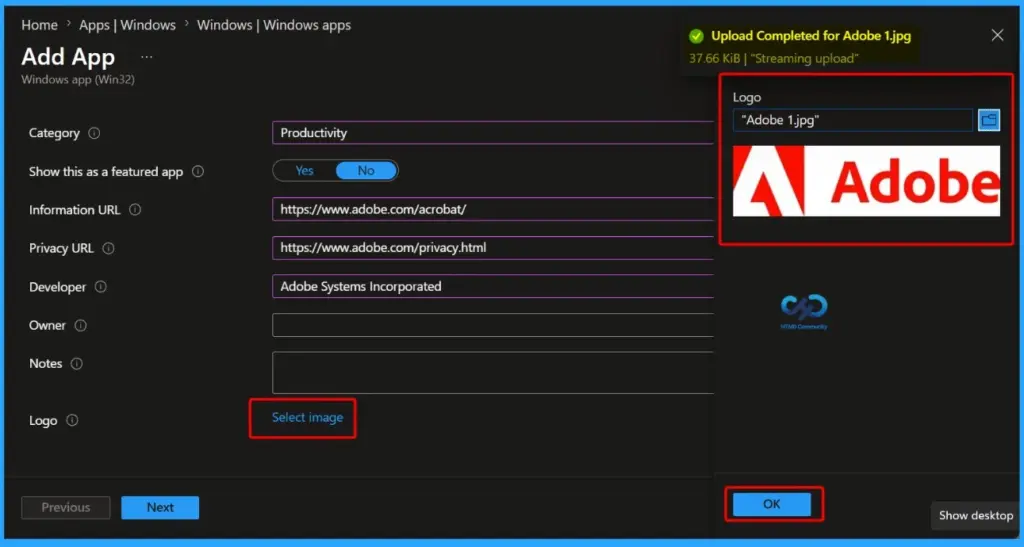

Update the app information such as Name, Description, Publisher, Category, Logo, etc. (Intune Win32 App Deployment more details are available in the following section)

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.8
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.8

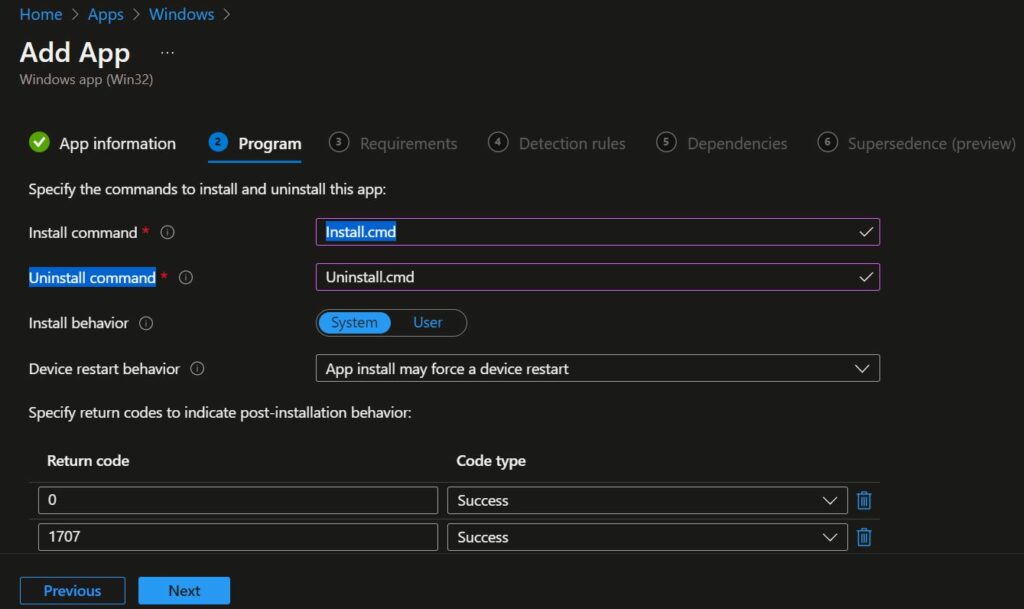

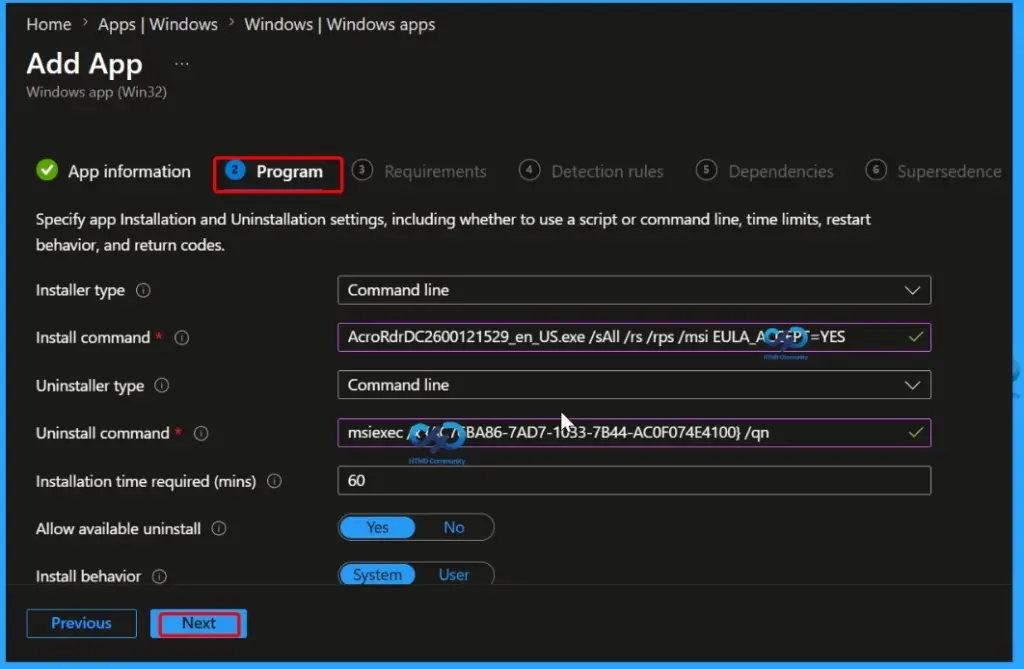

On the Program page, configure the app installation and removal commands for the app.

  • Install command: Add the complete installation command line to install. For Example, Install.cmd (Contains the installation command for Adobe)
  • Uninstall command: Add the complete command line to uninstall. For Example, Uninstall.cmd (Contains the uninstallation command for Adobe file)
  • Install behaviour: Set the install behaviour to System or User.

You can also specify the Device restart behaviour and Post-installation behaviour. Click Next to continue.

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.9
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.9

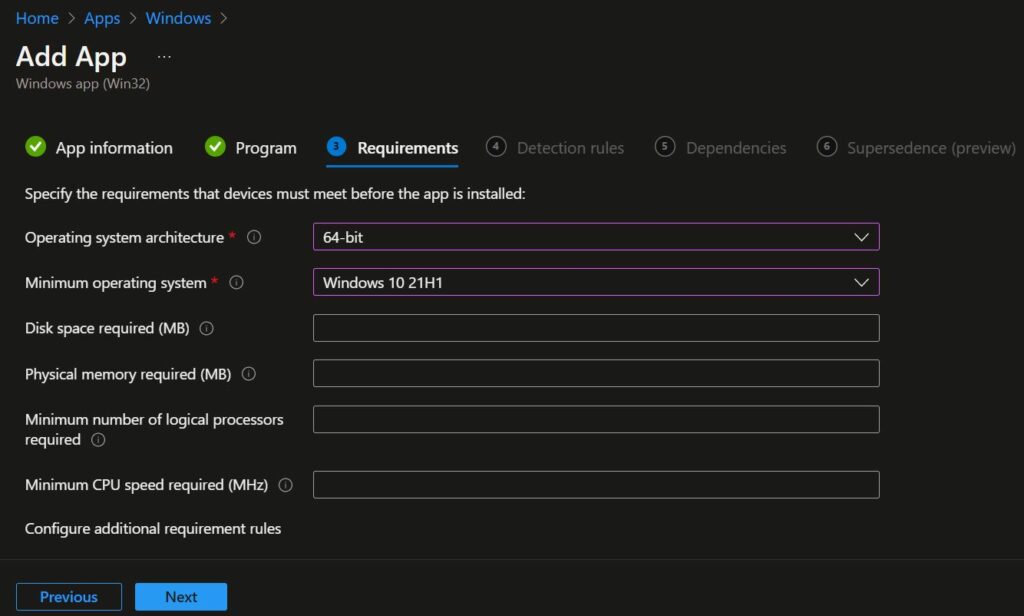

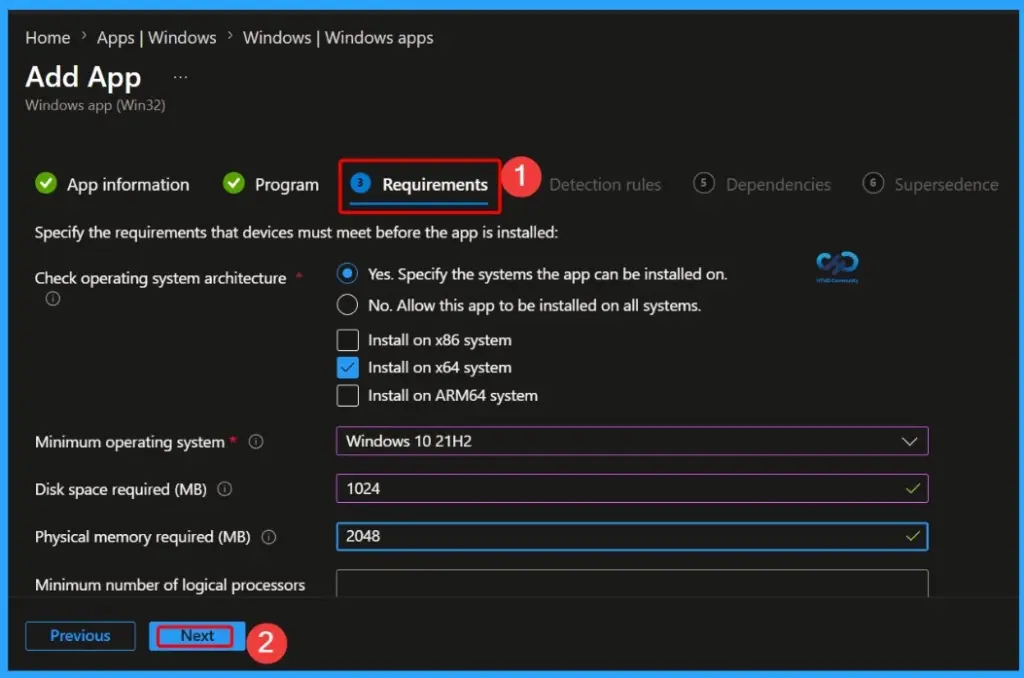

You can configure the application pre-requirements. On the Requirements page, specify the mandatory requirements that devices must meet before installing the update and click Next.

  • Operating system architecture: Choose the architectures needed to install the app.
  • Minimum operating system: Select the minimum operating system needed to install the app.

You can choose from some built-in and custom requirements rules when creating your Win32 application. Explore Intune Win32 App Requirement Rules.

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.10
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.10

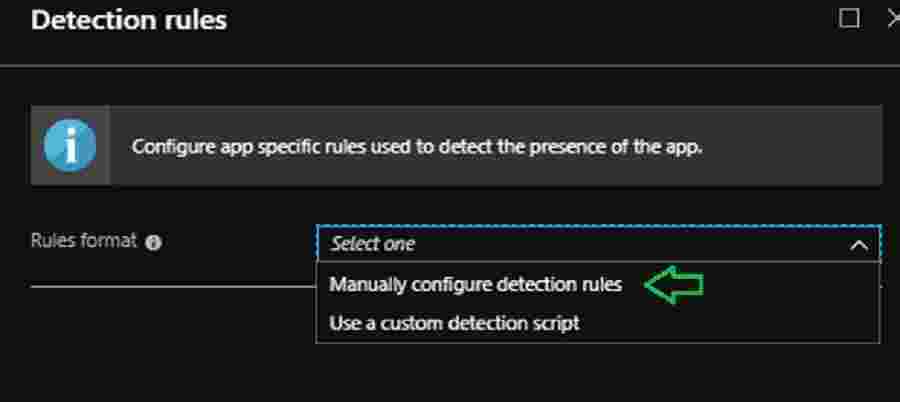

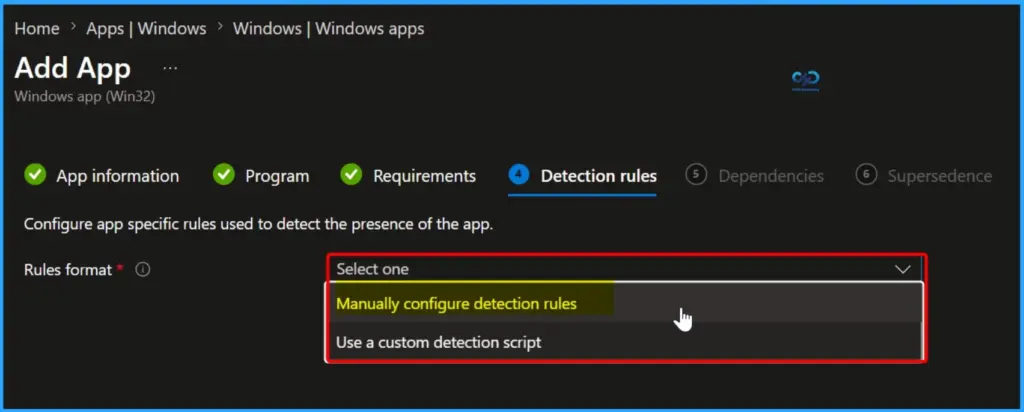

Configure the app detection rule and select “manually configure detection rule.”

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.11
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.11

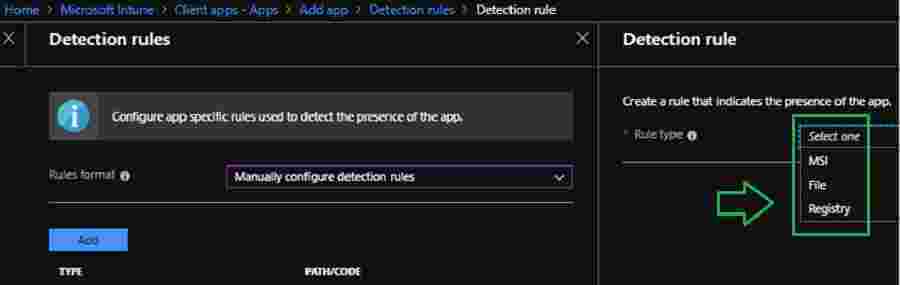

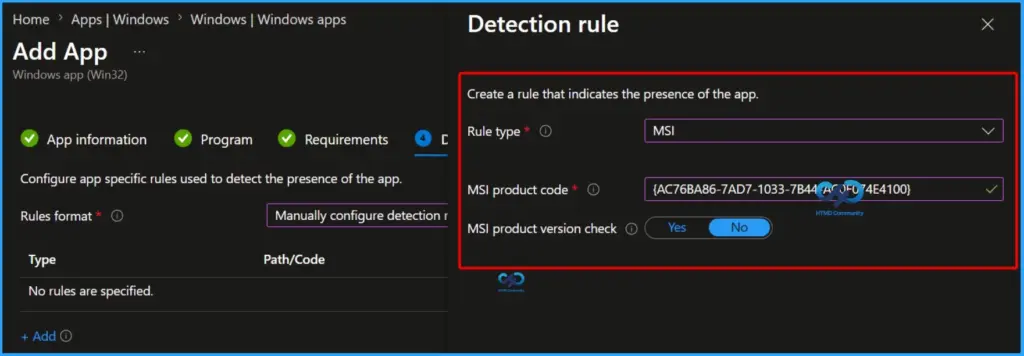

You can select any one of the below detection rule types. Here, you can check the registry path for the applications. Most apps are installed in the same location, depending on the app architectureDetection Method for Intune Win32 App.

  1. MSI
  2. File
  3. Registry
Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.12
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.12

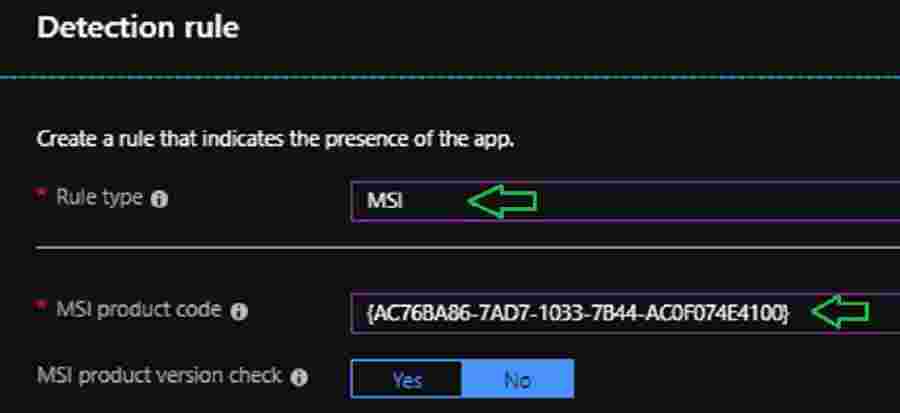

I will use the MSI product code as a detection rule in this example. The below screenshot will guide you.

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.13
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.13

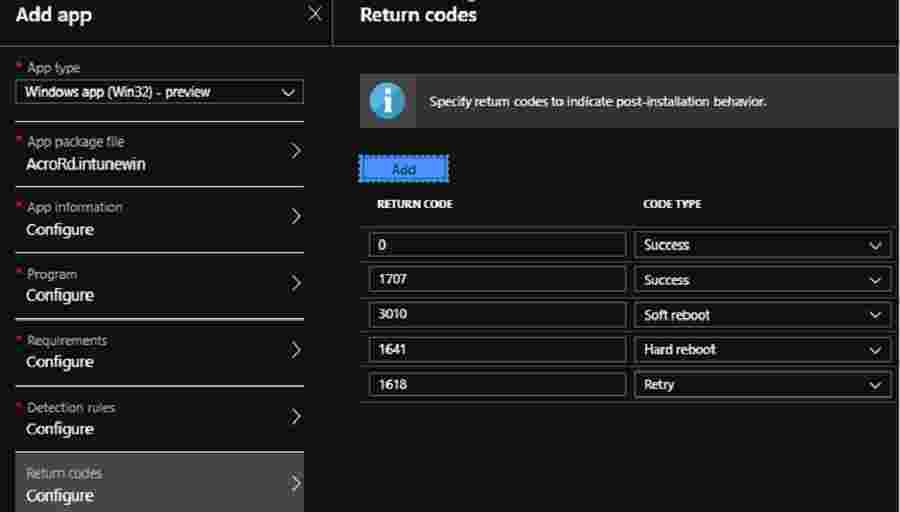

Based on your requirement, update the return code and post-installation behaviour.

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.14
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.14

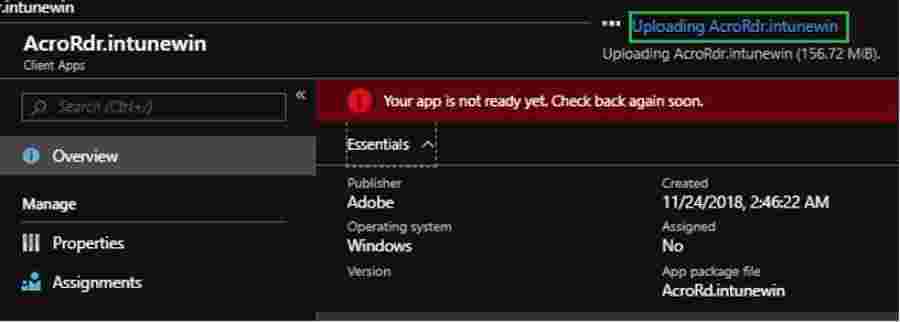

After completion, the app is uploaded to Intune. It also shows a banner message that “Your app is not ready yet. Check back again soon“.

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.15
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.15

You can see the upload status by selecting the notification tab. The uploading is completed at 78%. It also shows a message that the Application has been created successfully.

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.16
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.16

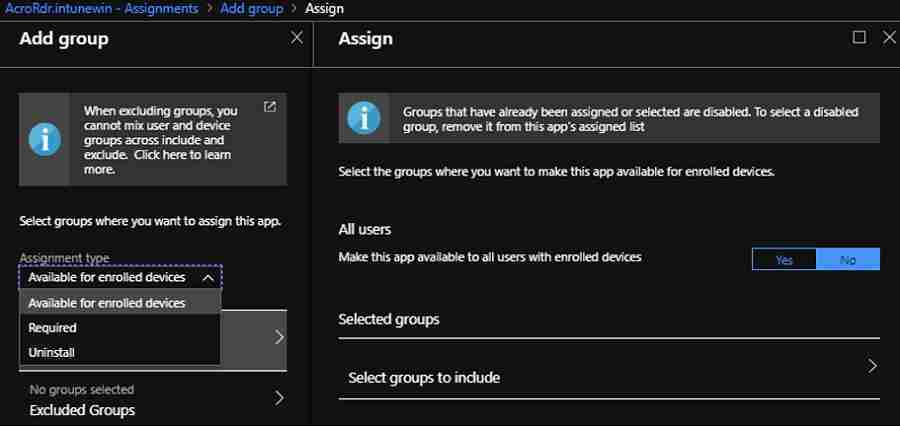

I will deploy this application as “available “for all users for testing. (Intune Win32 App Deployment more details are available in the following section). In the next post, 2, we will dive deep into Intune client-side events during Intune Win32 app deployment.

[Intune Win32 App Deployment Troubleshooting postIntune Win32 app Troubleshooting]

Intune Application Deployment using MSI EXE IntuneWin Formats - Fig.17
Intune Application Deployment using MSI EXE IntuneWin Formats – Fig.17
