Let us learn about Reset SCCM CB Critical Site Component Status Summarizer Counter ConfigMgr.We don’t like red alerts in SCCM monitoring nodes especially related critical site Component status.
We can reset the SCCM site status message count on any component or site system to remove the red alerts from console. I won’t recommend the reset of SCCM component or site system summarizer counter.
Instead, you need to check and understand why there is a critical alert in SCCM site status summarizer.
Checkout the Video Tutorial Reset SCCM CB Critical Site Component Status
Content of this post
- Why to Reset SCCM Site status Summarizer counter?
- What is the SCCM Site Component Status Summarizer?
- What are the options to reconfigure SCCM Site & Component Status Summarizers?
- How to Reset the Critical Site or Component Status Summarizer Counters
Why to Reset SCCM Site status Summarizer counter?
As mentioned above, I don’t recommend to reset site or component status summarizer counter before fixing the actual issue. If you have critical site status then, fix the issue before resetting the counter.
SCCM/ConfigMgr site and component status message counts are automatically reset at the end of threshold periods. As part of troubleshooting, we may need to reset the counters to confirm whether everything is ok or not.
- \Monitoring\Overview\System Status\Site Status
- \Monitoring\Overview\System Status\Component Status
What is the SCCM Site Component Status Summarizer?
SCCM Status Summarizer helps admins determine the health or status of different aspects of SCCM/ConfigMgr CB Infrastructure. The SCCM site and components status summarizers are getting input from status messages, states, and counts.
There are four (4) status summarizers in the current branch version of SCCM. You can read more information about these components in the following post SCCM Site Component Status Summarizers Troubleshoot Issues.
What are the Options to Reconfigure SCCM Site & Component Status Summarizers?
Application Deployment Summarizer – The application deployment summarizer can be used to get the application deployment status from SCCM clients. To Configure application deployment summarizer:-

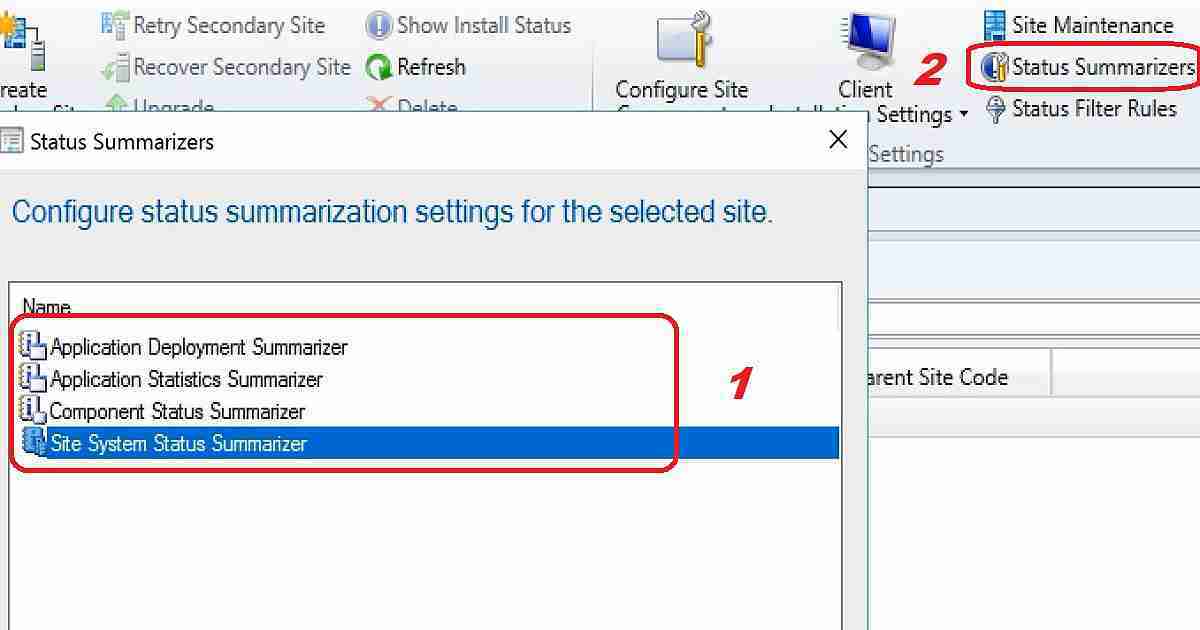

- Navigate via \Administration\Overview \Site Configuration\Sites – click on the status summarizer ribbon button.
- In the Status Summarizers dialog box, click Application Deployment Summarize, and click Edit.
- In the Application Deployment Summarizer Properties dialog box, configure the required summarization intervals and then click OK.
Default Settings of Application Deployment Summarizer Frequency of status updates for deployment was modified in the last 30 days Number of Minutes: 60. The frequency of status updates for deployment was altered in the last 31 to 60 days. Number of Hours: 24. The frequency of status updates for deployment was modified over the last 90 days ago. Number of days: 7
Application Statistics Summarizer is specify how often application statistic should be updated. Intervals are based upon the date the application is last modified. To change the application Statistics Summarizer configuration, follow the same steps mentioned above to change the configuration.
Summarization Frequency Frequency of the status updates for deployment was last modified in the last 30 days Number of minutes 240 Frequency of the status updates for deployment was later changed in the previous 31 to 90 days Number of hours 240 Frequency of the status updates for deployment was last modified over 90 days Number of days 7
Component Status Summarizer allows to set threshold for each SCCM components. There are two (2) types of thresholds and those are Warning threshold and Critical threshold. We have options to disable SCCM status summarization for component status. Also there are options to set the component status replication priority to parent site.
To change the component Status Summarizer configuration, follow the same steps mentioned above to change the configuration.
Site System Status Summarizer gives an ability to disable the status summarization for site system status. This allows setting the replication priority of site system status to parent site in your SCCM hierarchy. This also gives an option to set status summarization schedule. But I have never used this option.
Site System summarizer threshold gives an option to specify the free space for displaying warning or critical icons in the site system. To change the configuration of Site System Status Summarize, follow the steps mentioned above.
How to Reset the Critical Site or Component Status Summarizer Counters
Reset the count of site and component status summarizer count is achieved from SCCM console monitoring workspace. This will help to eliminate some red alerts from your SCCM monitoring console.
How to Reset the SCCM Critical Site Status Summarizer counters?
\Monitoring\Overview\System Status\Site Status
- Open SCCM CB console
- Navigate via \Monitoring\Overview\System Status\Site Status
- Select the site status message you want to reset
- Click on the ribbon – Reset Counts icon
- As you can see in the video tutorial, click the Refresh button to make RED alerts GREEN.
How to Reset the SCCM Critical Component Status Summarizer counters?
\Monitoring\Overview\System Status\Component Status
- Open SCCM CB console
- Navigate via \Monitoring\Overview\System Status\Component Status
- Select the component status message you want to reset
- Click on the ribbon – Reset Counts icon
- As you can see in the video tutorial, click the Refresh button to make RED alerts GREEN.
Resources
Status Message Queries – Track Who Deleted Modified Changed SCCM Settings
hello,
Not very helpful when you have a “site status” system role status flagged as “critical” and there are no space issue, no errors nor warnings in the “messages”.
i checked the registry on the impacted server : HKLM\SOFTWARE\Microsoft\SMS\Operations Management\SMS Server Role\SMS Software update point
and see the DWORD KEY “Availability State” with value 0 (which should be OK)
Still don’t know why the status is critical.
any idea?
I normally look at the log file related to site components… hman.log sitecomp.log etc to get more details about errors. If you don’t find any critical issues related to components in logs then you can easily ignore there critical status because this status could be because of the threshold you set in the component summary. Log files Details ->https://www.anoopcnair.com/sccm-logs-files-list-of-configmgr-log-files/
Hi. Thank you for a good site.
How do you automatically reset old critical alerts in the Component Status overview?
I learned they are reset at midnight, but i would like to reset it also after a short period of time after its last error in the messages. For instance a critical alert on the SMS_Execute component, but when i check the messages, it was solved 10 hours ago, yet there is still a critical alert in the overview.
Anyway to reset it at an interval after a critical alert?
Thanks
