SCCM 2002 Hotfix Rollup KB4560496 ConfigMgr

Microsoft released a major rollup update for SCCM 2002 with 30 fixes. Also, there could be many more undocumented fixes available in this Hotfix Rollup KB4560496 for ConfigMgr 2002 production version.

I have posted about the known issues of Configuration Manager 2002. More details available – SCCM 2002 Known Issues Bugs Fixes. The following are the KBs available for the 2002 version.

KB 4560496 Replacement Information

This update replaces the following previously released updates.

  • KB 4553501 Update for Microsoft Endpoint Configuration Manager version 2002, early update ring
  • KB 4563473 Update rollup for Configuration Manager version 2002 tenant attach issues
  • KB 4567007 PXE Boot failures or task sequence delays after updating to Configuration Manager current branch, version 2002

SCCM Secondary Server Hotfix Update

Follow the steps mentioned below:

SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr | Update Rollup | 30 Fixes 1
  • To update a secondary site in the ConfigMgr console.

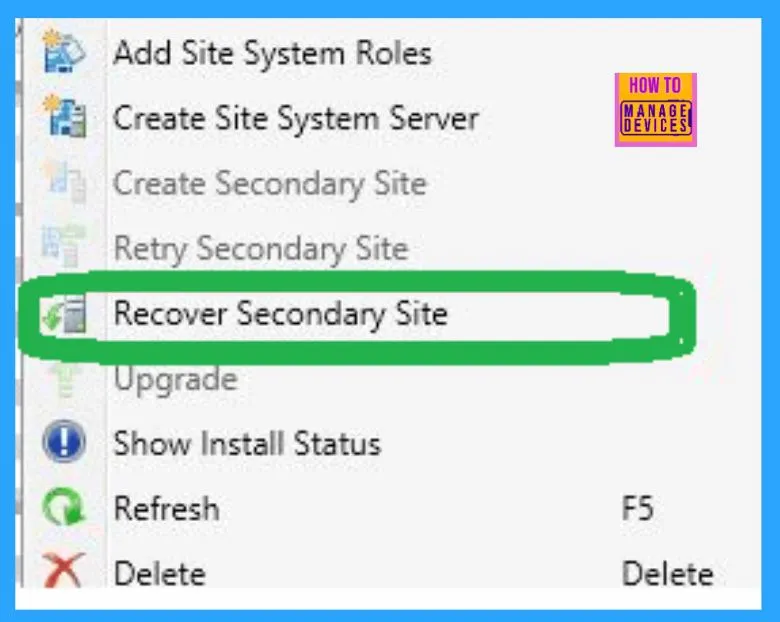

  • Click Administration, click Site Configuration, click Sites, click Recover Secondary Site
  • Then select the secondary site you want to upgrade.
  • The primary site then reinstalls that secondary site by using the updated files.

NOTE! – Configurations and settings for the secondary site are not affected by this reinstallation.

Install KB4560496 – Install Update Pack

This is the step to update standalone primary server or CAS server. The child primary servers shall get automatically updated.

  • Launch the Configuration Manager Console,
  • Select the Administration tab,
  • Expand Overview -> Select Updates and Services

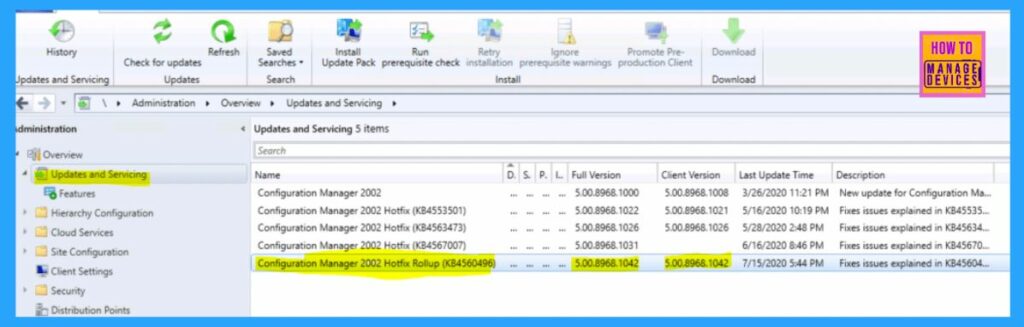

  • The update Configuration Manager 2002 Hotfix Rollup KB4560496 is Ready to install stage
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr 2002 Rollup Update
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr 2002 Rollup Update

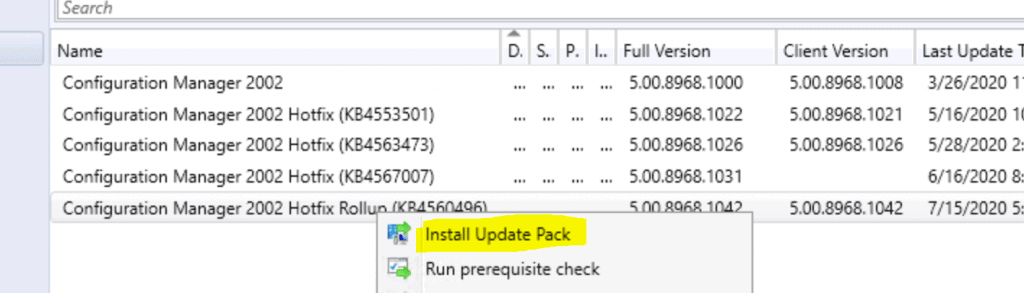

  • Click on Install Update Pack
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr 2002 Rollup Update
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr 2002 Rollup Update

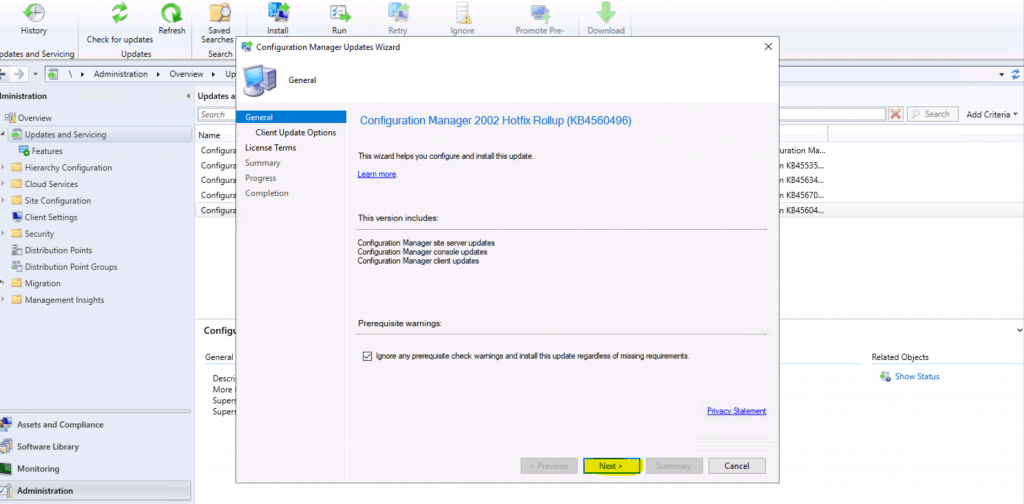

  • Click Next
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr | Update Rollup | 30 Fixes 2

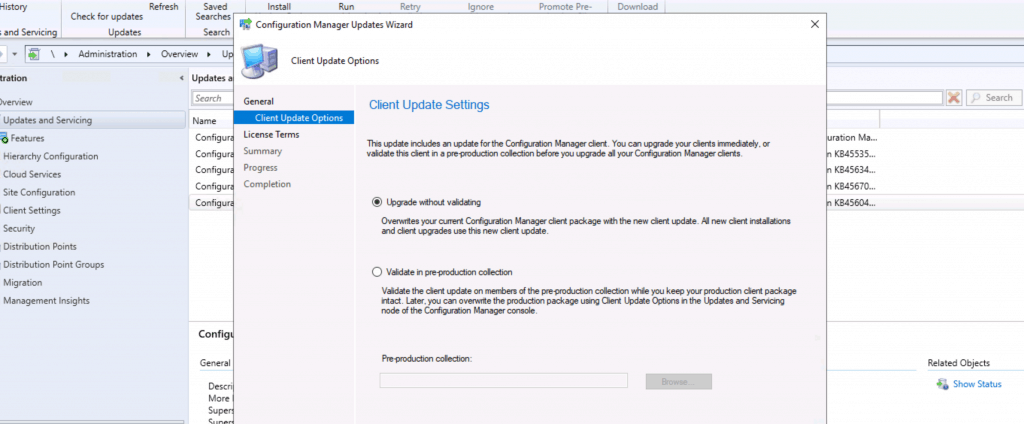

  • Select Client Update Settings.
  • Click on Next.
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr | Update Rollup | 30 Fixes 3

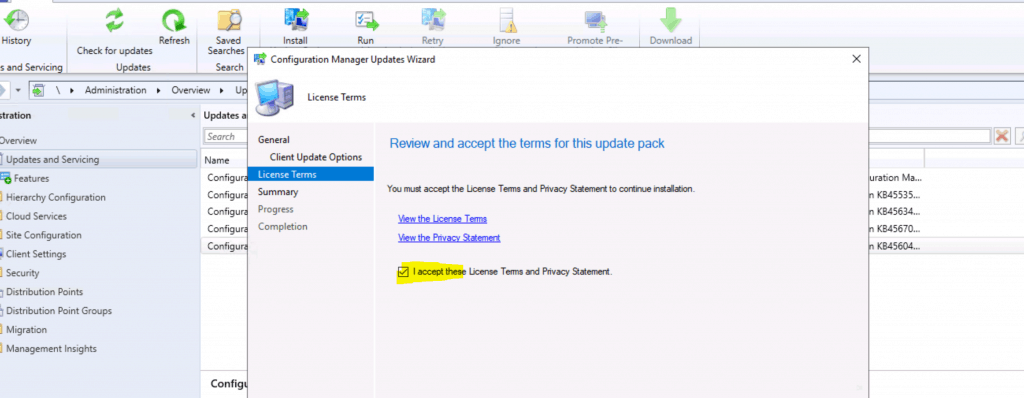

  • Accept the license and click on Next to continue.
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr | Update Rollup | 30 Fixes 4

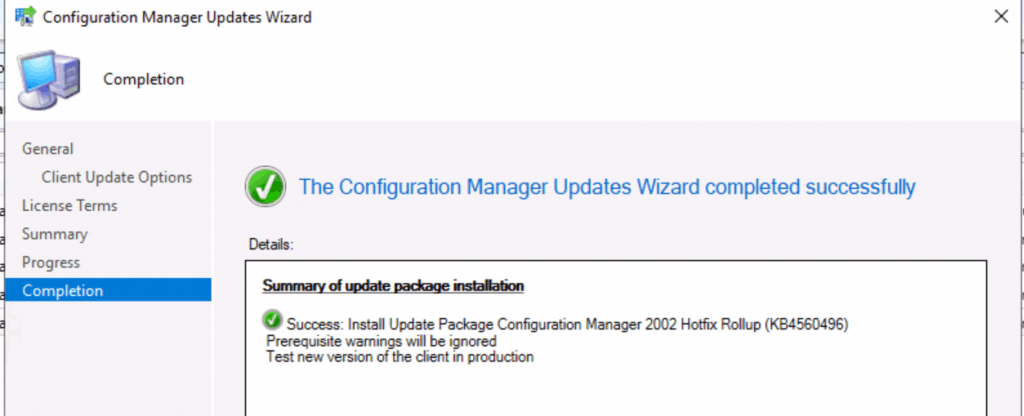

  • Summary of update package installation
  • Install Update Package Configuration Manager 2002 Hotfix Rollup (KB4560496)
  • Prerequisite warnings will be ignored
  • Test new version of the client in production
  • Click on Close to complete Configuration Manager Updates Wizard.
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr 2002 Rollup Update
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr 2002 Rollup Update

Error – SCCM 2002 Hotfix Rollup KB4560496

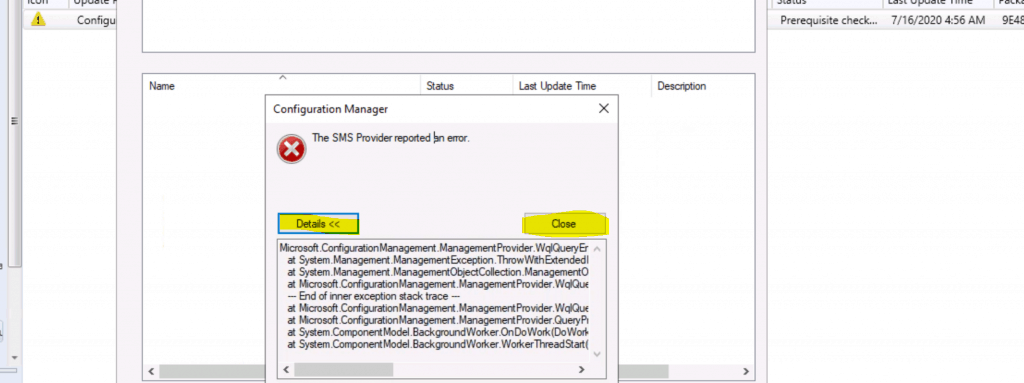

While checking the status of ConfigMgr 2002 hotfix update, I got the following error. I just restarted the Configuration Manager 2002 console to fix the issue.

SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr 2002 Rollup Update
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr 2002 Rollup Update
Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlQueryException: The SMS Provider reported an error. ---> System.Management.ManagementException: Generic failure
   at System.Management.ManagementException.ThrowWithExtendedInfo(ManagementStatus errorCode)
   at System.Management.ManagementObjectCollection.ManagementObjectEnumerator.MoveNext()
   at Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlQueryResultsObject.<GetEnumerator>d__75.MoveNext()
   --- End of inner exception stack trace ---
   at Microsoft.ConfigurationManagement.ManagementProvider.WqlQueryEngine.WqlQueryResultsObject.<GetEnumerator>d__75.MoveNext()
   at Microsoft.ConfigurationManagement.ManagementProvider.QueryProcessorBase.ProcessQuery(Object sender, DoWorkEventArgs e)
   at System.ComponentModel.BackgroundWorker.OnDoWork(DoWorkEventArgs e)
   at System.ComponentModel.BackgroundWorker.WorkerThreadStart(Object argument)

Verification

Following are the verification steps for SCCM 2002 Hotfix Rollup KB4560496 Rollup Update.

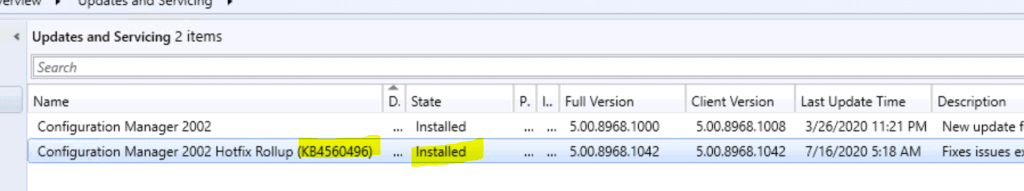

  • Check the monitoring workspace
  • \Monitoring\Overview\Updates and Servicing Status\Configuration Manager 2002 Hotfix Rollup (KB4560496)
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr | Update Rollup | 30 Fixes 5

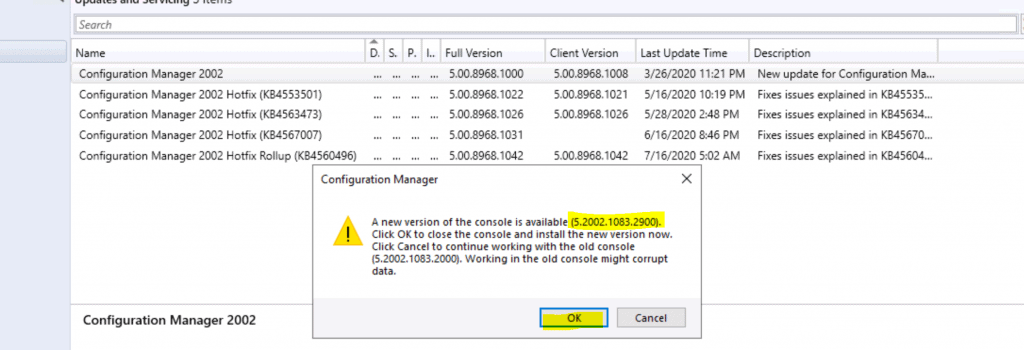

  • Make sure the ConfigMgr Admin console is updated to latest.
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr | Update Rollup | 30 Fixes 6
Console version

Verification of Secondary Site Upgrade

Run the following SQL Server command on the site database to check whether the updated version of a ConfigMgr secondary site matches that of its parent primary site:

select dbo.fnGetSecondarySiteCMUpdateStatus ('SiteCode_of_secondary_site')
  • If the value 1 is returned, the site is up to date, with all the hotfixes applied on its parent primary site.
  • If the value 0 is returned, the site has not installed all the fixes that are applied to the primary site, and you should use the Recover Secondary Site option to update the secondary site.

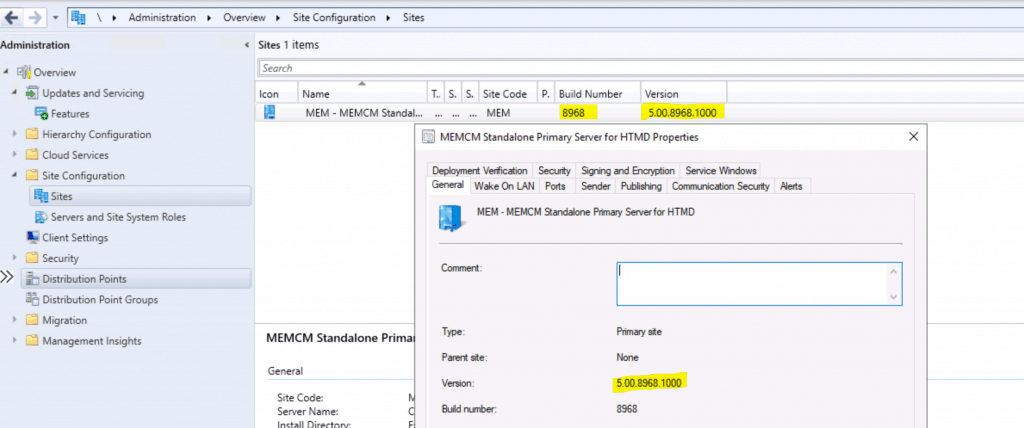

Version Numbers

  • Full Version = 5.00.8968.1042
  • Client Same = 5.00.8968.1042
  • Console – 5.2002.1083.2900
  • Site Version 5.00.8968.1000
  • Build Number = 8968
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr | Update Rollup | 30 Fixes 7
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr | Update Rollup | 30 Fixes 8
SCCM 2002 Hotfix Rollup KB4560496 | ConfigMgr 2002 Rollup Update

Fixes

The following are the fixes included in the latest version of SCCM 2002 Hotfix Rollup KB4560496.

Sl NoKnown Issues
1The option to schedule updates is unavailable when applying software updates to an image (offline servicing) for Windows Server,   2004.
2Hybrid Azure Active Directory domain joined ConfigMgr Clients are detected as Intranet ConfigMgr Clients when communicating with the CMG. User based deployments are blocked as a result.
3Users are unable to submit feedback from the SCCM console when using a Japanese   of the operating system.
4The value for dynamic task sequence variables are still displayed even after selecting the option Do not display this value in the SCCM console.
5After changing Enable third party software updates to “Yes” in ConfigMgr Client settings, ConfigMgr Clients perform an extra group policy update on startup resulting in increased load on domain controllers.
6The SetupComplete.cmd window is now hidden during Windows 10 upgrade task sequences.
7The SCCM console may terminate unexpectedly after entering Microsoft Azure login credentials in the Co-Management Configuration Wizard.
8After deleting a setting from the Co-management node in the SCCM console, the Configure co-management option is unexpectedly grayed out and unavailable. This blocks you from re-enabling co-management and is a variation of the issue first resolved in KB 4540794.
9After updating to SCCM   2002, content download for updates may fail when Allow ConfigMgr Clients to download delta content when available is enabled in ConfigMgr Client software update settings.
10When multiple pilot groups are selected for co-management, the Automatic enrollment into Intune process may take longer than expected.
11The co-management pilot process generates extraneous policy updates on SCCM ConfigMgr Clients.
12After clearing the Use a boot image option from the properties of a task sequence the reference is not removed as expected. This results in the boot image being referenced in the deployment and download of the task sequence.
13The SMS Agent Host service (ccmexec.exe) may sporadically cause high CPU utilization on ConfigMgr Client computers if the local time zone setting is changed. This CPU utilization typically only persists until the ConfigMgr Client computer restarts, or for the delta between the old and new time zones.
14The SCCM console hangs when opening automatic deployment rules (ADR) when multiple languages are selected.
15After updating to SCCM 2002, ConfigMgr Client policy data may fail to apply. Messages resembling the following are recorded in the PolicyEvaluator.log file.
A newer   of policy {policy_guid}:98.00 is already in queue. Ignoring the older   101.00
A newer   of policy {policy_guid}:98.00 is already in queue. Ignoring the older   102.00
16Group policy updates are incorrectly triggered if SCCM is set to manage Delivery Optimization (DO) settings on a ConfigMgr Client but DO is not yet implemented in the environment.
17Co-managed device data, such as the operating system  , may be missing when viewed in the Intune portal. This occurs if the data was unavailable (null) when the device was first synchronized during the onboarding process, even if it was added later.
18The Configurations tab of the ConfigMgr Client control panel applet may hang on Windows 10 ARM64 devices.
19ConfigMgr Client computers do not restart as required after a software update installation. This occurs when a software update group contains both an update that can install within the maintenance window, and one that cannot install within the maintenance window.
20Expected subscriptions are not listed in the Create CMG Wizard after signing in with the correct subscription admin account.
21After updating to SCCM 2002, management points do not process domain data from ConfigMgr Client heartbeat discover data records (DDR). This leaves ConfigMgr Client records without domain data until Active Directory System Discovery runs.
22Collections with the option Make this collection available to assign Microsoft Defender ATP policies in Intune enabled can no longer be deleted from the SCCM console; that option must be disabled before deletion is available.
23An operating system upgrade task sequence does not resume after the target computer restarts. This occurs when the task sequence incorrectly tries to take the ConfigMgr Client out of provisioning mode. Errors resembling the following are recorded in the TSAgent.log file.
Could not execute WMI method SMS_ConfigMgr Client.SetConfigMgr ClientProvisioningMode
Failed to put ConfigMgr Client out of provisioning mode (0x800706BE)
24The BytesDownloaded property of instances in the CCM_CTM_DownloadHistory class does not record values larger than 4GB, leading to potential inaccuracies in reporting.
25The Co-management Configuration Wizard may terminate unexpectedly when selecting a collection to upload.
26The installation or removal of Office updates may fail. This occurs when the SMS Agent Host (ccmexec.exe) incorrectly holds a lock on Office add-in files, such as Visual Studio Tools for Office (VSTO) add-ins, after hardware inventory runs. Office updates fail to install via SCCM in this scenario.
27Additionally, users that install or uninstall Office updates manually in these environments may encounter errors resembling the following.
Something went wrong
Error Code: 30010-4
28Operating system deployment task sequences may fail in an environment with a mix of management points using HTTP and HTTPS for communications. This is most common with a HTTPS management points used for a CMG, and operating system boot images are not configured to use ConfigMgr Client authentication certificates.
29After updating to SCCM 2002, delta hardware inventory files may be rejected at a primary site and copied to the \BADMIFS folder. Errors resembling the following are recorded in the dataldr.log on the primary site.
30Violation of PRIMARY KEY constraint ‘BROWSER_USAGE_HIST_PK’. Cannot insert duplicate key in object ‘dbo.BROWSER_USAGE_HIST’. The duplicate key value is (38284100, 1). : dbo.dBROWSER_USAGE_DATA
ERROR – is NOT retyrable.
Rollback transaction: Machine={ConfigMgr Client_name}GUID:{smsid}

Resources
