Let’s learn how many admins connected to the ConfigMgr console (Console Connections). Microsoft introduced view recently connected consoles feature with SCCM 1902 version.
You can navigate to SCCM console via \Administration\Overview\Security\Console Connections and view recently connected consoles. You know about Windows 10 startup time. Do you have any clue what is ConfigMgr console startup time?
NOTE! – I know most of your organization’s SCCM console doesn’t show this information under Console Connections. I will help you to find out more details of this issue in this post.
Requirements
- Configuration Manager version 1902 or later.
- Enable Windows server role Web Server (IIS).
- All the firewall ports should be opened for Administrative services. More details https://docs.microsoft.com/en-us/mem/configmgr/develop/adminservice/overview
- Install the .NET Framework version 4.5 or later.
- Enable the SMS Provider to use a certificate. Use one of the following options:
- Manually bind a PKI-based certificate to port 443 in IIS on the server that hosts the SMS Provider role.

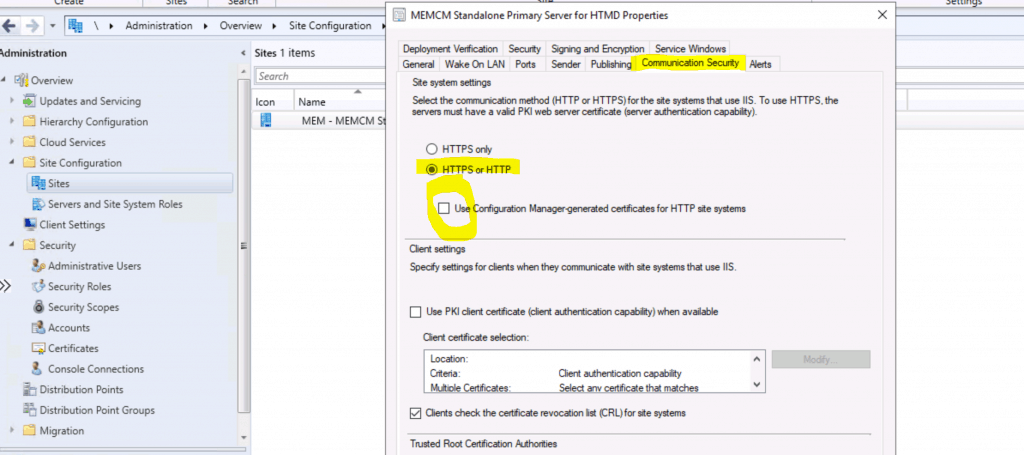

- Enable secure HTTPS communication (EHTTP) with a trusted certificate. For more information, see Enable secure HTTPS communication.
- The admin account needs to have the Read permission on the SMS_Site object.
NOTE – If you want to view the recently connected console when you have configured CMG, you need to have an account in Azure Active Directory (Azure AD).
ConfigMgr Console Startup Time Performance
With view recently connected consoles feature, you might be able to analyze the performance of the ConfigMgr console. The recently connected admin console option provides the startup time of the console.
This shall help to analyze the performance of the console along with the right client tools etc. The following are the supported columns available with ConfigMgr 2002 version:
- User name.
- Machine name.
- Connected site code.
- Console version.
- Source (application – console or some other connections).
- Last Heartbeat: When the user last opened the console.
- Startup Time – Load Time for SCCM Console.
Background Process via Logs – Console Connections
Let’s look at the following logs to troubleshoot issues with the view recently connected ConfigMgr Console:
- AdminService.log
- SMS_REST_PROVIDER.log
- SmsAdminUI.log (\AdminConsole\AdminUILog)
AdminService.log
Created logging middleware. Processing incoming request for resource [https://cmmemcm.memcm.com/AdminService/v1.0/%24metadata], method: [GET], User - [MEMCM\deb] Header: [SMSAppName]=[Configuration Manager Administrator console] Header: [MachineName]=[CMMEMCM.memcm.com] Header: [UserName]=[MEMCM\deb] Header: [ObjectLockContext]=[fe214b72-73d7-4e32-a8b5-c173f15a5313] Header: [ApplicationName]=[Microsoft.ConfigurationManagement.exe] Header: [ApplicationVersion]=[5.2002.1056.1000] Header: [LocaleID]=[MS\0x409] Header: [Authorization]=[] Header: [Host]=[cmmemcm.memcm.com] Context: [RemoteIpAddress]=[fe80::7011:3441:e910:1b04%3] Context: [RemotePort]=[50060] Context: [ContentType]=[] Context: [Accept]=[] Completing request with response code [200] reason [OK]

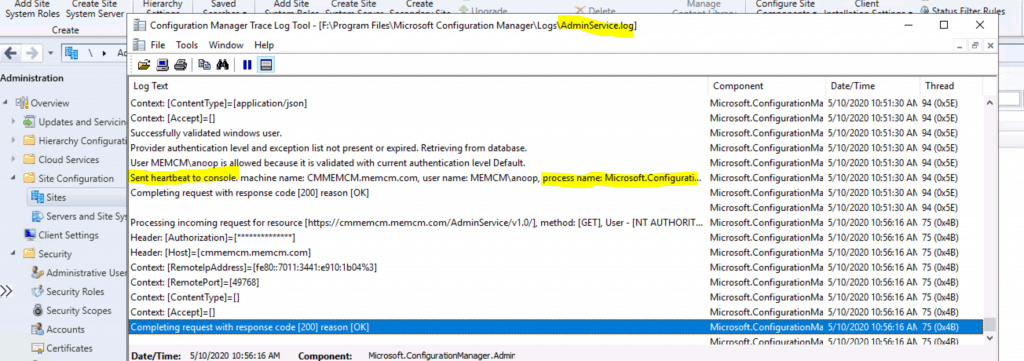

AdminService.log
Processing incoming request for resource [https://cmmemcm.memcm.com/AdminService/v1.0/ConsoleUsageData/AdminService.UpdateConsoleHeartbeat], method: [POST], User - [MEMCM\Deepak] Header: [SMSAppName]=[Configuration Manager Administrator console] Sent heartbeat to console. machine name: CMMEMCM.memcm.com, user name: MEMCM\deepak, process name: Microsoft.ConfigurationManagement
SQL Query

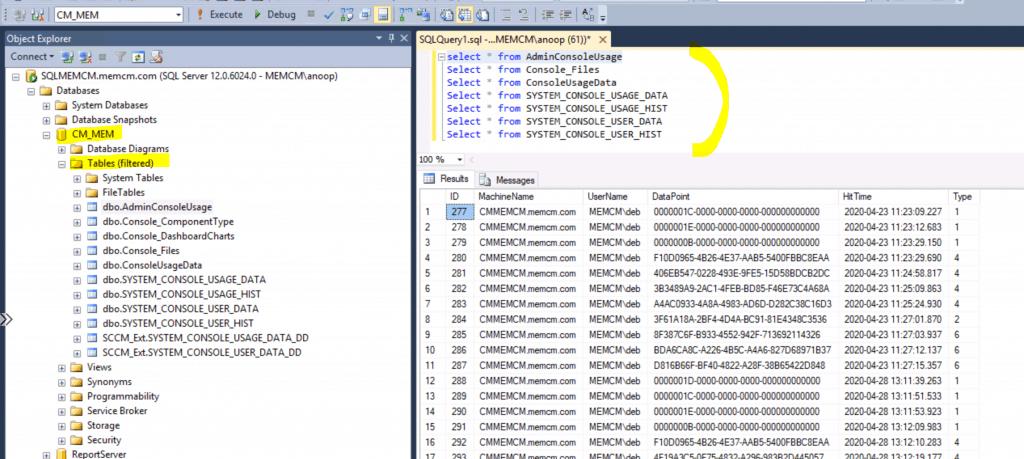

If you like to look at SQL DB to check the details of the console connection details, you can do this using the following query:
select * from AdminConsoleUsage Select * from Console_Files Select * from ConsoleUsageData Select * from SYSTEM_CONSOLE_USAGE_DATA Select * from SYSTEM_CONSOLE_USAGE_HIST Select * from SYSTEM_CONSOLE_USER_DATA Select * from SYSTEM_CONSOLE_USER_HIST
Troubleshooting
Logs files are your best friend to analyze as I mentioned in the above section called background process.
- AdminService.log
- SMS_REST_PROVIDER.log
- SmsAdminUI.log (\AdminConsole\AdminUILog)

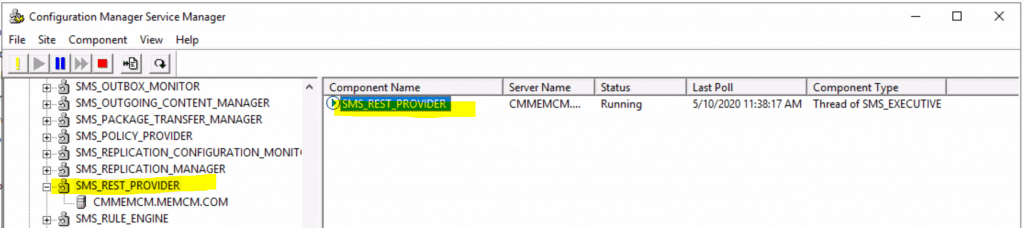

Another option is to launch component status under Monitoring > System Status > Component Status and check SMS_Rest_Provider is running or not.
Where is Tools ConfigMgr Service Manager Option in SCCM Console? Check out https://www.anoopcnair.com/configmgr-service-manager-option-in-sccm-console/
Resources
- View recently connected consoles – https://docs.microsoft.com/en-us/mem/configmgr/core/servers/manage/admin-console#bkmk_viewconnected
- What is the administration service in the Configuration Manager?
