How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging

Let’s understand How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging. One old topic and an old post. A great post from Ismail-TS is on logging (offline now).

I think many topics are covered in all the parts related to ConfigMgr logging.

Some of them are still relevant for Configuration Manager CB. I have not checked and confirmed all the registry keys. Please carry out these changes in a staging environment.

This post will give us more details about “SCCM ConfigMgr How to Turn On Verbose SQL NAL logging.”

Patch My PC

How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging

SCCM does not see much information here. You can check the logs for him having trouble with Verbose / Debug, or NAL may need to turn on logging. This logging will give you much more detailed information and help you find the source of the problem.

How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging - Fig.1
How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging – Fig.1

Server verbose logging

  • 1 – open means
  • 0 – off means

SCCM and Components

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\Tracing\ENABLED = 1 – (REG_DWORD – General SCCM turn on Logging)

Adaptiva

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\Tracing\ xxxxxxx\ Enabled = 1 – (REG_DWORD – The Role SCCM’de If you change the compositions according to him)

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\Tracing\xxxxxxx\ MaxFileSize = 3000000 – (REG_DWORD – 3 MB large – NAL and Debug Logging for growth with more than it is worth)

Enable Verbose Logging for SCCM Server Components

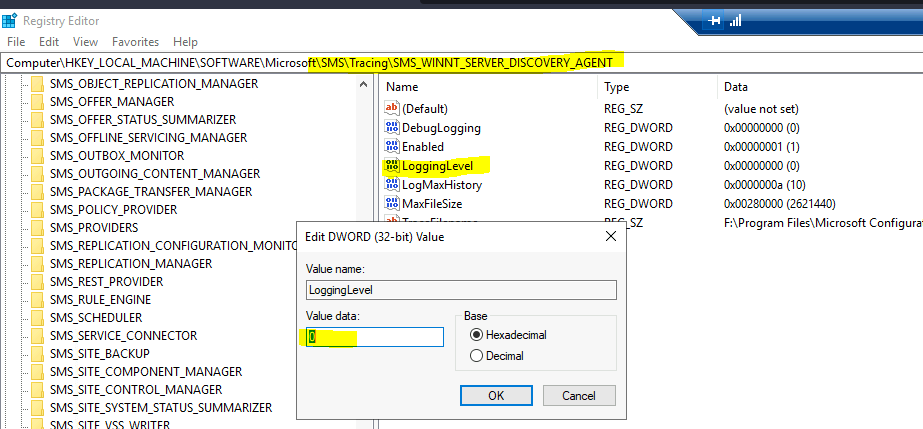

Follow the method mentioned below to Enable Verbose Logging for SCCM Server Components. You must enable the logging level to be verbose by changing the value to 0.

LoggingLevel = 0

Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\Tracing\SMS_WINNT_SERVER_DISCOVERY_AGENT

How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging - Fig.2
How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging – Fig.2

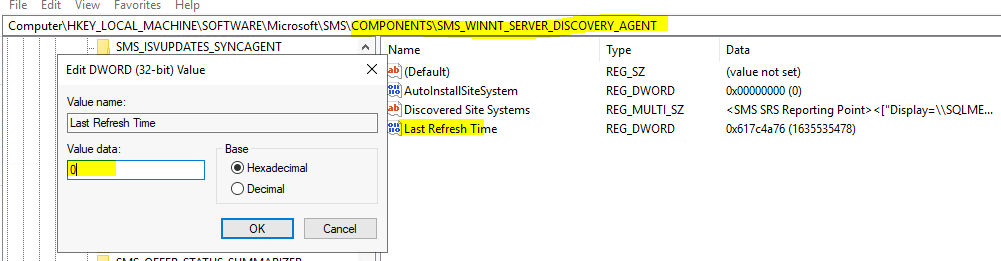

And make sure you reset the refresh time of that component from the following registry key

Reset Refresh time of the component – Last Refresh Time = 0

Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\COMPONENTS\SMS_WINNT_SERVER_DISCOVERY_AGENT

How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging - Fig.3
How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging – Fig.3

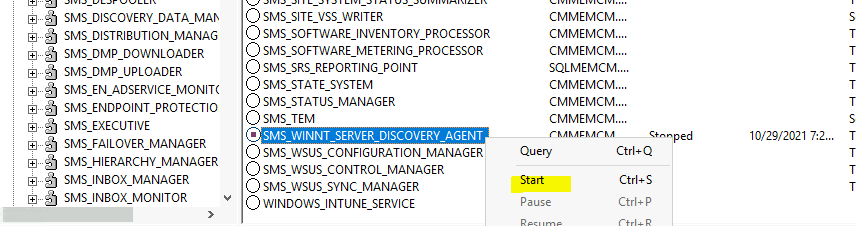

You can go to Service Manager and restart that component Where Is Tools ConfigMgr Service Manager Option In SCCM Console (anoopcnair.com)

How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging - Fig.4
How to Turn On Verbose SQL NAL Logging SCCM Server-Side Logging – Fig.4

Important Components to be Linked to SQL for SQL Logging, open the key

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\Tracing\Sqlenabled = 1 – (REG_DWORD)

Component of SQL and SCCM logs, including

  • ciamgr.log – SMS_CI_ASSIGNMENT_MANAGER
  • Colleval.log – SMS_COLLECTION_EVALUATOR
  • compsumm.log – SMS_COMPONENT_STATUS_SUMMARIZER
  • Dataldr.log – SMS_INVENTORY_DATA_LOADER
  • ddm.log – SMS_DISCOVERY_DATA_MANAGER
  • Distmgr.log – SMS_DISTRIBUTION_MANAGER
  • Hman.log – SMS_HIERARCHY_MANAGER
  • objreplmgr.log – SMS_OBJECT_REPLICATION_MANAGER
  • offermgr.log – SMS_OFFER_MANAGER
  • Offersum.log – SMS_OFFER_STATUS_SUMMARIZER
  • policypv.log – SMS_POLICY_PROVIDER
  • sinvproc.log – SMS_SOFTWARE_INVENTORY_PROCESSOR
  • Sitestat.log – SMS_SITE_SYSTEM_STATUS_SUMMARIZER
  • smsdbmon.log – SMS_DATABASE_NOTIFICATION_MONITOR
  • statesys.log – SMS_STATE_SYSTEM
  • Statmgr.log – SMS_STATUS_MANAGER
  • swmproc.log – SMS_SOFTWARE_METERING_PROCESSOR
  • wcm.log – SMS_WSUS_CONFIGURATION_MANAGER
  • wsyncmgr.log – SMS_WSUS_SYNC_MANAGER

SMS Provider

  • HKEY_LOCAL_MACHINE\Software\Microsoft\SMS\Providers\Logging Level = 1 – (REG_DWORD)
  • HKEY_LOCAL_MACHINE\Software\Microsoft\SMS\Providers\SQL Cache Logging Level = 1 – (REG_DWORD)
  • HKEY_LOCAL_MACHINE\Software\Microsoft\SMS\Providers\Log Size MB = 1 – (REG_DWORD)

SCCM Log with the Logging Provider are as follows

  • Smsprov.log

NAL logging

Sometimes, it may be enough, and NAL logs verbose information in the pop-up. Caution: The NAL log file is too big for him. Keeping detailed logs has benefits.

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\NAL\Logging

  • DataType: REG_DWORD – Log To = 3
  • DataType: REG_DWORD – Verbosity = 7

NAL logging, set the values:

  • NAL_LOG_VERBOSITY_LEVEL_1 = Errors
  • NAL_LOG_VERBOSITY_LEVEL_2 = Warnings
  • NAL_LOG_VERBOSITY_LEVEL_4 = Information
  • NAL_LOG_VERBOSITY_LEVEL_7 = Errors, Warnings, Information

SCCM loglarımız with NAL logging are as follows:

  • compsumm.log – SMS_COMPONENT_STATUS_SUMMARIZER
  • Distmgr.log – SMS_DISTRIBUTION_MANAGER
  • inboxmgr.log – SMS_INBOX_MANAGER
  • ntsvrdis.log – SMS_WINNT_SERVER_DISCOVERY_AGENT
  • sitecomp.log – SMS_SITE_COMPONENT_MANAGER
  • Sitestat.log – SMS_SITE_SYSTEM_STATUS_SUMMARIZER
  • smsexec.log – SMS_EXECUTIVE

IMPORTANT: Registry changes to work:

  • Stop the SMS_SITE_COMPONENT_MANAGER
  • Stop the SMS_EXECUTIVE
  • Start the SMS_EXECUTIVE
  • Start SMS_SITE_COMPONENT_MANAGER

SCCM Agent (Workstation):

CCM for the verbose logging:

For Administrator Key, “full rights” to provide the necessary – there is no default.

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\CCM\Logging\@GLOBAL

Set of the following values:

  • LogEnabled = 1
  • LogLevel = 0
  • LogMaxSize = 40000000
  • LogDirectory = c: \windows\system32\ccm\logs (If you want to print the logs to a different location)
  • LogMaxHistory = 1 (Although the size of the logs is filled with incense,> here is one: will be holding an old log. Example: Execmgr.log and will execmgr.lo_.
    Verbose logging is not enough DebugLogging CCM:

This is necessary to create the reg KEYI:

HKEY_LOCAL_MACHINE \SOFTWARE\Microsoft\CCM\Logging\DebugLogging

  • DataType: REG_SZ – Enabled = TRUE

WMI

SCCM agent is based entirely on WMI WMI is useful to turn verbose logging:

  • HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\WBEM\CIMOM\Logging = 0 – (REG_SZ – Disabled)
  • HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\WBEM\CIMOM\Logging = 1 – (REG_SZ – Error only)
  • HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\WBEM\CIMOM\Logging = 2 – (REG_SZ – Verbose)
    HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\WBEM\CIMOM\Log File Max Size = 4000000 – (REG_DWORD – If you need to WMI 2)

IMPORTANT: To study the changes in the registry and WMI

Restart the Computer

Other Important Components are WSUS + SCCM Component

  • Set HKLM\SOFTWARE\Microsoft\SMS\Components\SMS_WSUS_SYNC_MANAGER
  • DataType: REG_DWORD – LogLevel = 3
    LOG_SUMMARY = 1;
  • LOG_DETAIL = 2; default
  • LOG_VERBOSE = 3;
  • LOG_DEBUG = 4;
