Many folks like me have been troubled by the SCCM MP rotation issue. SCCM has a workaround for the Management Point Rotation issue. More details about the MP rotation issue are in SCCM’s “Workaround for Untrusted Forest SCCM 2012 MP Rotation Issue“.

FIX MP Rotation with Registry—Microsoft introduced a registry key called “AllowedMPs.” With this key, you can force the client to communicate with a specific MP that you’ve mentioned in the registry key’s value.

You can set the FQDN of the MP that your client wants to communicate with. Another update in ConfigMgr / SCCM 2012 R2 CU3 relates to software update sync. Microsoft has introduced an essential registry workaround to avoid partial software update Sync of children’s primary or secondary sites.

Sometimes, your SCCM 2012 R2 CAS or primary site is under heavy load, and then the Child sites may perform partial WSUS synchronization.

Patch My PC

FIX SCCM Partial WSUS Synchronization

You can set a value for the registry key called “SyncGracePeriod” to avoid this. This grace period will help to prevent partial software update sync scenarios in your environment. The maximum grace period allowed is 10 minutes.

FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue - Fig.1
FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue – Fig.1

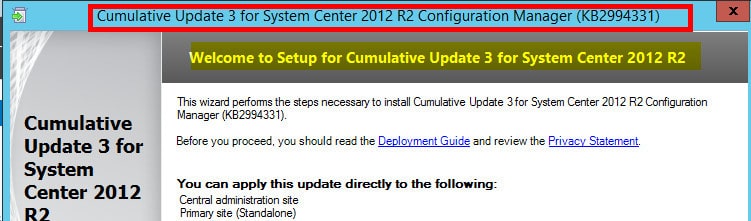

Also, ConfigMgr SCCM 2012 R2 CU3 has included support for another list of non-windows operating systems for application and package deployment. Installation of the CM 12 R2 CU3 is very straightforward.

Adaptiva

The Logfile related to installation is located at Windows/Temp/cm12-r2cu3-kb2994331-x64-enu.log and cm12-r2cu3-kb2994331-x64-enu.msi.log. Installation-related errors can be reviewed from these logs. SCCM 2012 R2 CU3 admin console update associated log file is configmgr2012adminui-r2-kb2994331-i386.msp.log.

In this post, I will provide details about two workarounds provided by Microsoft.

  1. How do I set a registry key to stop the SCCM ConfigMgr 2012 MP rotation Issue?
  2. How do we set a registry key to stop the SCCM ConfigMgr 2012 Partial Software Update Sync Issue?
  3. How do we set the registry key to stop the SCCM ConfigMgr 2012 MP rotation Issue?
  4. Install the SCCM 2012 R2 CU3 update on your site servers.
  5. Install SCCM 2012 R2 CU3 on the client machine

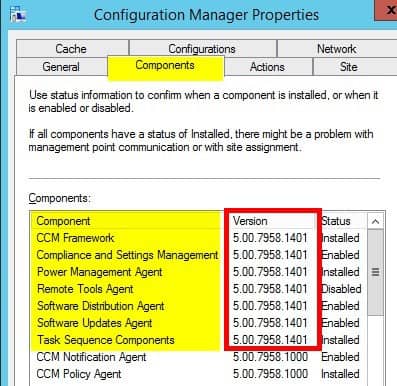

  6. SCCM 2012 R2 CU3 Client version must be updated to 5.00.7958.1401
FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue - Fig.2
FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue – Fig.2

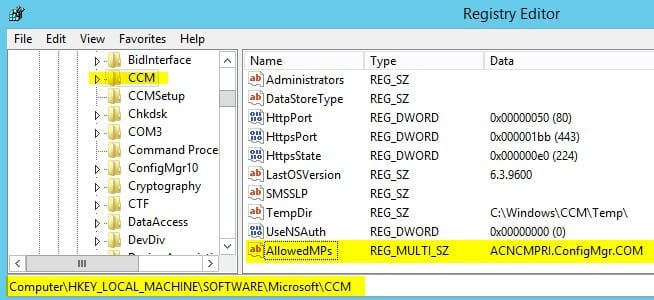

3. Navigate to the registry key HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\CCM . Create a REG_MULTI_SZ registry value named “AllowedMPs“. Add the FQDN name of MP to the registry value mentioned in the following picture. This registry entry would be useful for the scenarios explained in the post “SCCM 2010 Workaround To Delete Collections Issue ConfigMgr HTMD Blog (anoopcnair.com).

FIX SCCM Partial WSUS SynchronizationDetails
CCM Framework5.00.7958.1401
Compliance and Settings Management5.00.7958.1401
Power Management5.00.7958.1401
Software Distribution Agent5.00.7958.1401
Software Update Agent5.00.7958.1401
Task Sequence Components5.00.7958.1401
FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue – Table 2

The “AllowedMPs” entry will restrict which SCCM 2012 management point (MP) a client can communicate with. In the following example, my client will only communicate with the MP FQDN provided in the value “ACNCPRI.ConfigMgr.COM“.

FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue - Fig.3
FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue – Fig.3

Lcoationservice.log will notify you about ignoring the rest of the MPs in the MPlist and accepting only one MP in AllowedMPs.

MP List is forced, ignoring MP 'ACNCMMP3.ConfigMgr.com'
MP List is forced, ignoring MP 'ACNCMMP4.ConfigMgr.com'
MP List is forced, ignoring MP 'ACNCMMP5.ConfigMgr.com'
FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue - Fig.4
FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue – Fig.4

How Do We Set the Registry Key to Stop the SCCM ConfigMgr 2012 Partial Software Update Sync Issue?

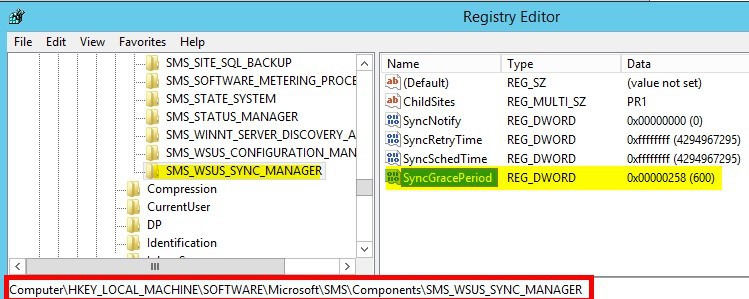

Log in to the topmost site server in your SCCM ConfigMgr 2012 R2 hierarchy. It could be a ConfigMgr 2012 CAS server or a standalone ConfigMgr Primary Server. Navigate to HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\Components\SMS_WSUS_SYNC_MANAGER.

  • 3. Create a New sub key SyncGracePeriod with REG_DWORD value 600 seconds (10 minutes)

The partial synchronization issue can occur when the WSUS Synchronization Manager component on a primary site begins synchronization before WSUS has completed processing all updates metadata. To prevent this scenario, the following registry subkey can be configured to use a new value in seconds.

FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue - Fig.5
FIX SCCM Management Point MP Rotation Issue Partial WSUS Sync Issue – Fig.5
