SCCM Secondary Server Upgrade Process

Let’s learn the process of the SCCM Secondary Site Server Upgrade to 2006 Version. I have already explained how to start the upgrade of the primary server to the 2006 version. Make sure you have all the prerequisites in place.

Related PostsHow to Install Secondary server & How to FIX SCCM secondary server installation failure.

Start SCCM Secondary Site Server Upgrade

You can start the installation of the secondary server once the parent primary server is upgraded to the latest version of ConfigMgr. Let’s start the upgrade of SCCM Secondary Site Server Upgrade.

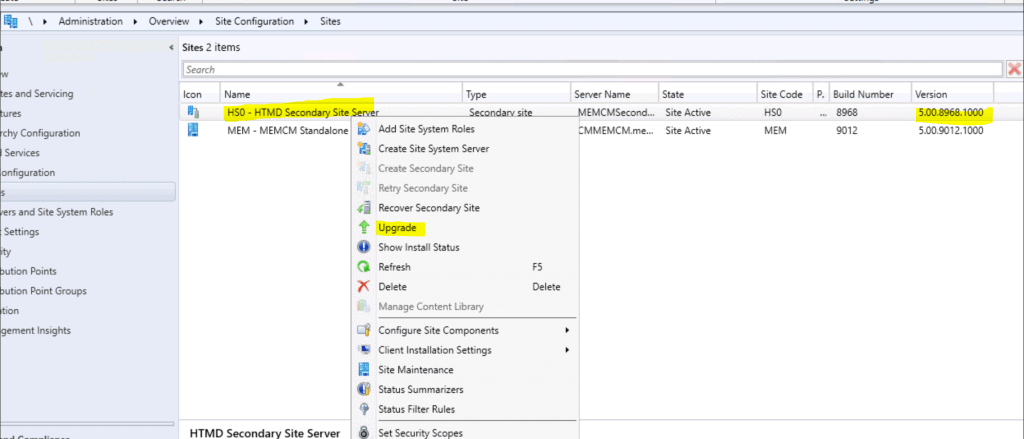

  • Navigate to \Administration\Overview\Site Configuration\Sites.
  • Select the Secondary server.
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr

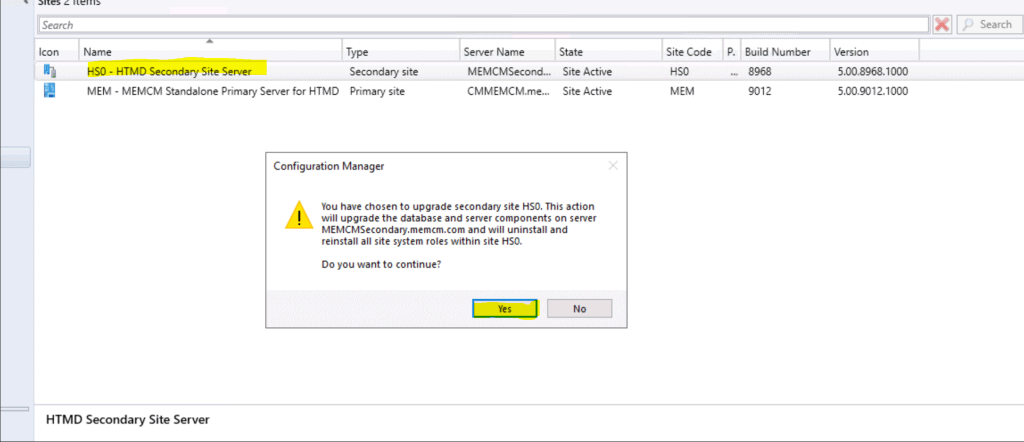

NOTE! – You have chosen to upgrade secondary site HS0. This action will:

  • 1. Upgrade the database
  • 2. Upgrade server components on secondary server MEMCMSecondary.memcm.com
  • 3. Uninstall and reinstall all site system roles within site HS0.
  • Click on Yes from the popup window.
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr

Progress of Secondary Site Upgrade

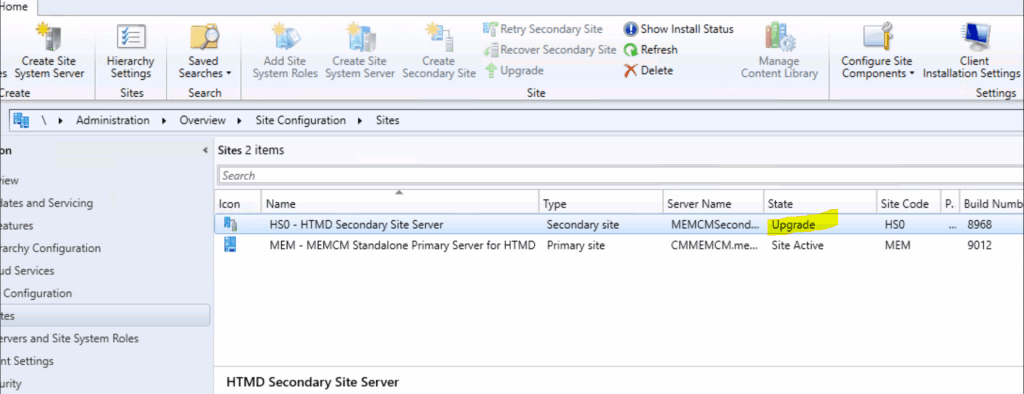

  • Secondary site state is changed from Site Active to Upgrade.
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr

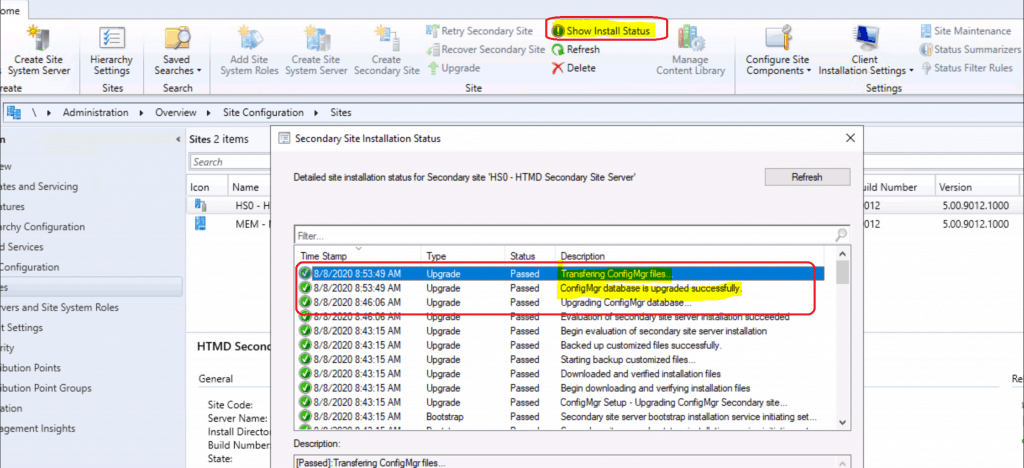

Show Install Status

You can check the Configuration Manager secondary site server upgrade status from the primary server console.

  • Navigate to \Administration\Overview\Site Configuration\Sites.
  • Select the Secondary server.
  • Click on Show Install Status from ribbon menu.
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr

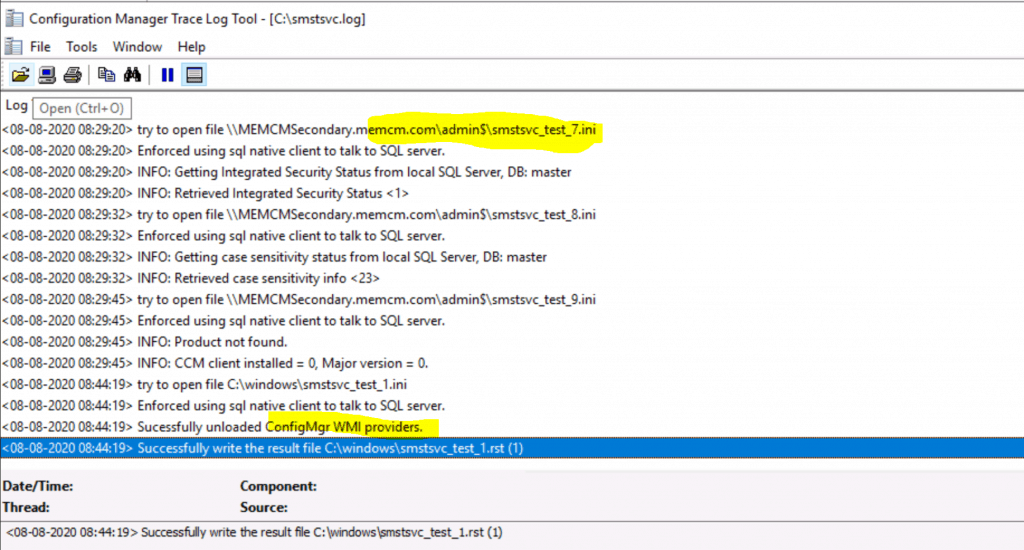

SMStsvc.log @ Secondary Server

Once the prerequisite checks are completed, the secondary server starts the upgrade process. You can check the details about the initial upgrade process using SMStsvc.log.

try to open file \MEMCMSecondary.memcm.com\admin$\smstsvc_test_5.ini
Enforced using sql native client to talk to SQL server.
INFO: NONLBSUPS: Database:.
INFO: NONLBSUPS: return 1.
try to open file \MEMCMSecondary.memcm.com\admin$\smstsvc_test_6.ini
Enforced using sql native client to talk to SQL server.
INFO: Parameter SQL Server MEMCMSecondary.memcm.com, Database master.
INFO: SQLADMIN return 1
try to open file \MEMCMSecondary.memcm.com\admin$\smstsvc_test_7.ini
Enforced using sql native client to talk to SQL server.
INFO: Getting Integrated Security Status from local SQL Server, DB: master
INFO: Retrieved Integrated Security Status <1>
try to open file \MEMCMSecondary.memcm.com\admin$\smstsvc_test_8.ini
Enforced using sql native client to talk to SQL server.
INFO: Getting case sensitivity status from local SQL Server, DB: master
INFO: Retrieved case sensitivity info <23>
try to open file \MEMCMSecondary.memcm.com\admin$\smstsvc_test_9.ini
Enforced using sql native client to talk to SQL server.
INFO: Product not found.
INFO: CCM client installed = 0, Major version = 0.
try to open file C:\windows\smstsvc_test_1.ini
Enforced using sql native client to talk to SQL server.
Sucessfully unloaded ConfigMgr WMI providers.
Successfully write the result file C:\windows\smstsvc_test_1.rst (1)
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr 1

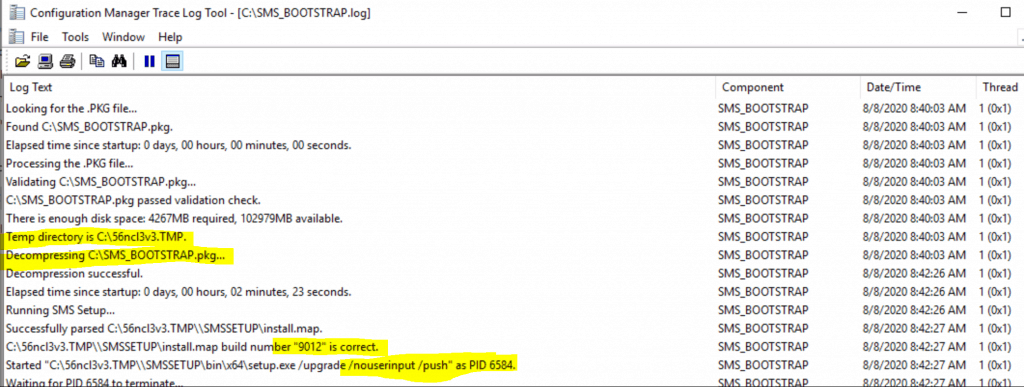

SMS_Bootstrap.log @ Secondary Server

You can see the SCCM 2006 source files being copied from primary to the secondary server through SMS_Bootstratp.log file in the C:\ drive. You can also notice that the SMS setup started running.

Microsoft Endpoint Configuration Manager v5.00 (Build 9012)
Starting SMS_BOOTSTRAP.
Microsoft Endpoint Configuration Manager v5.00 (Build 9012)
Copyright (C) 2011 Microsoft Corp.
Set current directory to C:.
INFO:Action:.
Successfully read C:\SMS_BOOTSTRAP.ini.
Started for the first time.
Current time: Sat Aug 08 08:40:03 2020
Looking for the .PKG file…
Found C:\SMS_BOOTSTRAP.pkg.
Elapsed time since startup:
Processing the .PKG file…
Validating C:\SMS_BOOTSTRAP.pkg…
C:\SMS_BOOTSTRAP.pkg passed validation check.
There is enough disk space: 4267MB required, 102979MB available.
Temp directory is C:\56ncl3v3.TMP.
Decompressing C:\SMS_BOOTSTRAP.pkg…
Decompression successful.
Elapsed time since startup: 0 days, 00 hours, 02 minutes, 23 seconds.
Running SMS Setup…
Successfully parsed C:\56ncl3v3.TMP\SMSSETUP\install.map.
C:\56ncl3v3.TMP\SMSSETUP\install.map build number "9012" is correct.
Started "C:\56ncl3v3.TMP\SMSSETUP\bin\x64\setup.exe /upgrade /nouserinput /push" as PID 6584.
Waiting for PID 6584 to terminate…
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr 2

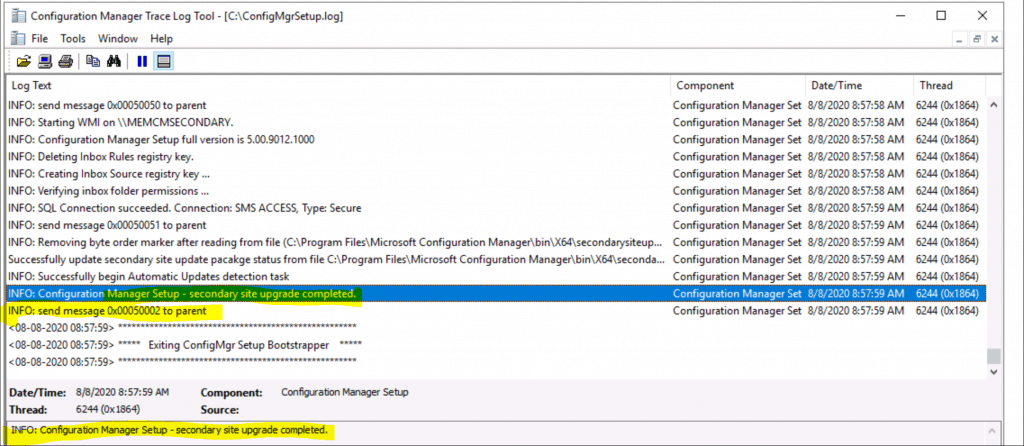

ConfigMgrSetup.Log @ Secondary Server

The ConfigMgrSetup.log at the secondary server to confirm the upgrade of the ConfigMgr secondary server.

INFO: SQL Connection succeeded. Connection: SMS ACCESS, Type: Secure
INFO: send message 0x00050051 to parent
INFO: Removing byte order marker after reading from file (C:\Program Files\Microsoft Configuration Manager\bin\X64\secondarysiteupdatepackage.xml)
Successfully update secondary site update package status from file C:\Program Files\Microsoft Configuration Manager\bin\X64\secondarysiteupdatepackage.xml
INFO: Successfully begin Automatic Updates detection task
INFO: Configuration Manager Setup - secondary site upgrade completed.
INFO: send message 0x00050002 to parent
Exiting ConfigMgr Setup Bootstrapper
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr 3

Results

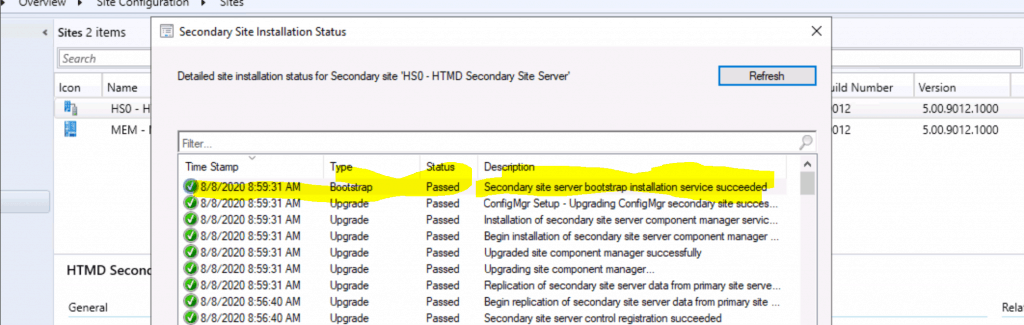

You can verify the successful upgrade of the SCCM CB 2006 secondary server from the Primary server show install status button.

  • Navigate to \Administration\Overview\Site Configuration\Sites.
  • Select the Secondary server.
  • Click on Show Install Status from ribbon menu.
[Passed]:Secondary site server bootstrap installation service succeeded
[Passed]:ConfigMgr Setup - Upgrading ConfigMgr secondary site successfully.
[Passed]:Installation of secondary site server component manager service succeeded
[Passed]:Upgraded site component manager successfully
SCCM Secondary Site Server Upgrade to 2006 Version | ConfigMgr 4

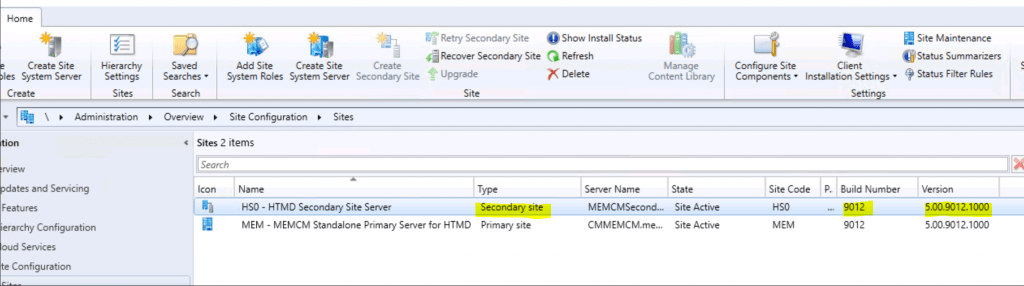

  • You can check the state of the secondary site server. The state changed from Upgrade to Site Active.
  • And the Secondary Site Server version is 5.00.9012.1000.
  • Successfully completed the upgrade of Secondary server.
