The site database server is one of the critical roles of SCCM architecture. SCCM site database is a server that runs a supported version of Microsoft SQL Server.
SQL Server DB is the database used to store information for SCCM sites and clients. Let’s see SCCM SQL Server Database Migration.
Each SCCM site in an SCCM hierarchy contains a site database and a server assigned the site database server role. You can learn more about the supported versions of SQL Server for SCCM here.
In this post, I will cover end-to-end SCCM DB migration topics. My previous post described detailed steps for installing SQL Server 2017 and industry best practices.
Table of Contents
Related Post – New ConfigMgr Primary Server Installation Step-by-Step Guide | SCCM
Introduction – SCCM SQL Server Database Migration | Part 2 | ConfigMgr | Step by Step
This is a continuation of my series of posts, The Complete Guide for SCCM Server Migration. The Complete Guide for SCCM Server Migration Part 1 – SQL 2017 -SCCM SQL Server 2017 Installation and Best Practices.
| Introduction – SCCM SQL Server Database Migration | Part 2 | ConfigMgr | Step by Step |
|---|
| The Complete Guide for SCCM Server Migration Part 2 – Database Migration |
| The Complete Guide for SCCM Server Migration Part 3 – WSUS Server Migration |
| The Complete Guide for SCCM Server Migration Part 4 – Primary Server Migration – SCCM Site Restore without SCCM Backup |
- FIX SCCM SQL Replication Issues using Replication Link Analyzer
- Troubleshoot and FIX SCCM SQL Backlog Issues using SSMS
- FIX SCCM SQL-Based Database Replication Failure Between CAS Primary
The content of this post
- Pre-requisite required for migrating the SCCM DB from old server to new SQL Server 2017 - Steps involved in Migrating the database - Post SCCM DB Migration checks
Pre-requisite for Migrating SCCM Database
Reboot the Primary Site and new/old SQL Server to avoid any pending reboot instances. Run the script and store the output in a notepad to capture the logins from the old SQL server. The user should have the appropriate permissions on the SQL to perform these actions(sysadmin is preferred).
;WITH Logins AS (
SELECT prn.name PrincipalName
,prn.default_database_name
,rol.name RoleName
FROM sys.server_principals prn
LEFT OUTER JOIN sys.server_role_members mem
ON prn.principal_id = mem.member_principal_id
LEFT OUTER JOIN sys.server_principals rol
ON mem.role_principal_id = rol.principal_id
WHERE prn.is_disabled = 0
AND prn.type IN ('U','G')
AND prn.name NOT LIKE @@SERVERNAME+N'%'
)
SELECT N'USE [master];' AS CommandsToKeepAndRun
UNION ALL
-- Logins
SELECT N'IF NOT EXISTS (SELECT name FROM sys.server_principals WHERE name = N'''+PrincipalName+N''')
CREATE LOGIN ['+PrincipalName+N'] FROM WINDOWS WITH DEFAULT_DATABASE = ['+ISNULL(default_database_name,N'master')+N'];
'
FROM Logins
UNION ALL
-- Server Roles
SELECT N'IF (
SELECT ISNULL(rol.name,N''NULL'')
FROM sys.server_principals prn
LEFT OUTER JOIN sys.server_role_members mem
ON prn.principal_id = mem.member_principal_id
LEFT OUTER JOIN sys.server_principals rol
ON mem.role_principal_id = rol.principal_id
WHERE prn.name = N'''+PrincipalName+N'''
) != N'''+RoleName+N'''
ALTER SERVER ROLE '+RoleName+N' ADD MEMBER ['+PrincipalName+N'];
'
FROM Logins
WHERE RoleName IS NOT NULL
UNION ALL
-- Server Permissions Extended:
SELECT CASE prm.class
WHEN 100 THEN prm.state_desc+' '+prm.permission_name+' TO ['+pal.name+'];' COLLATE SQL_Latin1_General_CP1_CI_AS
WHEN 105 THEN prm.state_desc+' '+prm.permission_name+' ON ENDPOINT :: ['+(SELECT name FROM sys.endpoints WHERE endpoint_id = prm.major_id)+'] TO ['+pal.name+'];' COLLATE SQL_Latin1_General_CP1_CI_AS
END
FROM sys.server_permissions prm
INNER JOIN sys.server_principals pal
ON prm.grantee_principal_id = pal.principal_id
AND pal.is_disabled = 0
AND pal.name NOT LIKE @@SERVERNAME+N'%'
AND pal.type IN ('U','G')
UNION ALL
SELECT N'GO';
--Courtesy: Benjamin Reynolds--

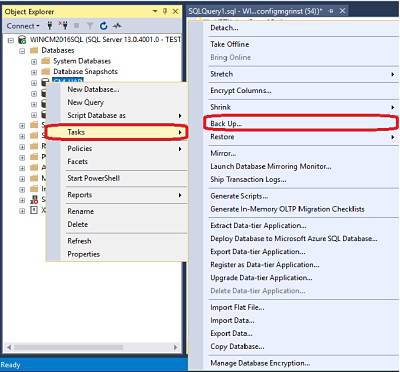

3. Stop the SCCM services on the Primary site and take the DB backup to avoid any data loss. 4. Backup SCCM DB. a. Initiate the backup by right-clicking the SCCM database selecting the tasks, and then Backing up.

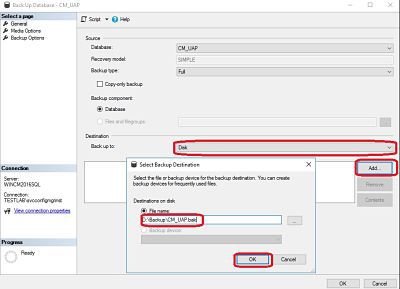

b. Select the backup destination on Disk and add the backup location to save the file. Mention the file name with the .bak extension.

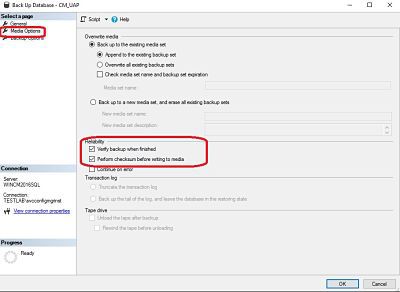

c. Select the media option on the left, select the checkboxes for Verify backup when finished, and Perform checksum before writing to media.

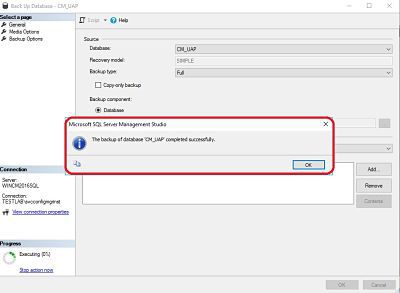

d. Select OK to start the backup and wait for it to complete. You may check the backup progress on the backup GUI or run the query below to see detailed progress.
select command
,CAST(total_elapsed_time/1000.0/60.0 AS NUMERIC(8,2)) AS [Elapsed Min]
,CAST(estimated_completion_time/1000.0/60.0 AS NUMERIC(8,2)) AS [ETA Min]
,CAST(estimated_completion_time/1000.0/60.0/60.0 AS NUMERIC(8,2)) AS [ETA Hours]
,CAST(percent_complete AS NUMERIC(8,2)) AS [Percent Complete]
from sys.dm_exec_requests
where session_id = (select max(spid) from master.dbo.sysprocesses with (nolock) where cmd in ('RESTORE DATABASE','BACKUP DATABASE'))
- 5. Once the backup is completed, stop the SQL Services on the old SQL Server and copy the backup to the new server.

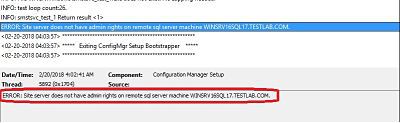

6. Add the Primary site server to the new SQL Server’s Local Admin group. It should be a direct member, not a security group member. This is a must; otherwise, the DB move will fail.

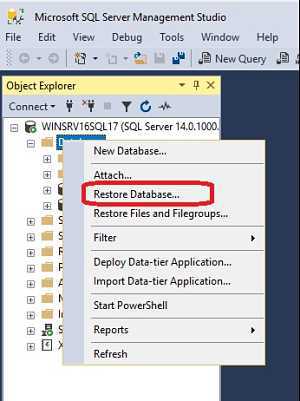

7. Restore the Database on the new SQL Server. I am using a SQL server 2017 on Windows Server 2016. a. Initiate restore by right-clicking the databases and selecting Restore.

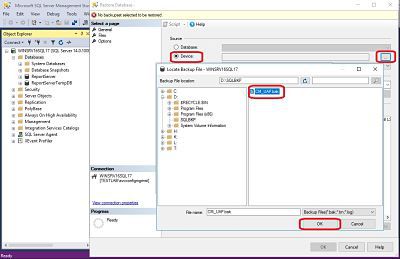

b. Select the backup location as a device and add the backup location by navigating to the location where you have copied the backup from the old server to the new server.

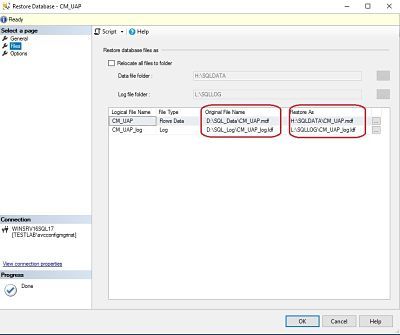

c. Select the files tab to see the previous and new file locations here.
There is no restriction that you have to use the same drive layout of the old SQL server on the new one.

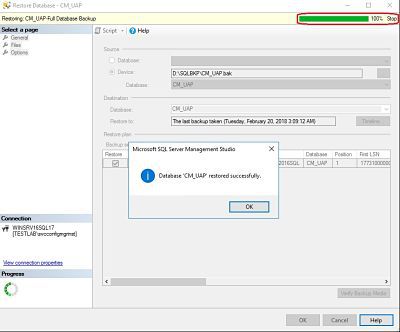

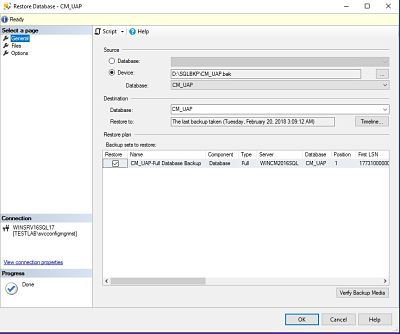

d. Select OK to initiate the restore process. In 4. d, check the restore progress on the Restore GUI or the above script.
8. Enable CLR
EXECUTE sp_configure 'clr enabled', 1;
RECONFIGURE WITH OVERRIDE;
9. Restore the logins by running the script, which was received as the output from step 2. 10. Reconfigure the restored database where XXX is your site code.
- a. Enable the SQL Broker on the Site database
USE master;
GO
ALTER DATABASE CM_XXX SET ENABLE_BROKER
GOb. SET the Site Database as trustworthy
USE master;
GO
ALTER DATABASE CM_XXX SET TRUSTWORTHY ON
GO
c. SET the Database to honor the HONOR_BROKER_PRIORITY
USE master;
GO
ALTER DATABASE CM_XXX SET HONOR_BROKER_PRIORITY ON;
GO

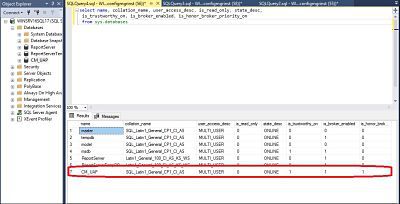

11. Verify the SQL Server configuration on the new server. Use the below query to check the database settings. Make sure is_trustworthy_on and is_broker_enabled settings are on for the SCCM database
select name, collation_name, user_access_desc, is_read_only, state_desc,
is_trustworthy_on, is_broker_enabled, is_honor_broker_priority_on from sys.databases
12. Start the SCCM Services on the Primary site. With all pre-requisite tasks completed, we are ready to move the SCCM database now.
Move the SCCM Database

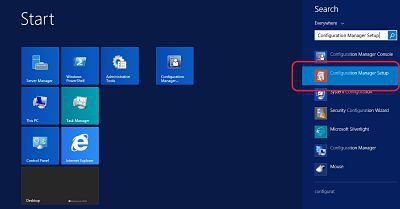

- On the primary site, open the SCCM Setup Wizard from the server and proceed to The Getting Started page.

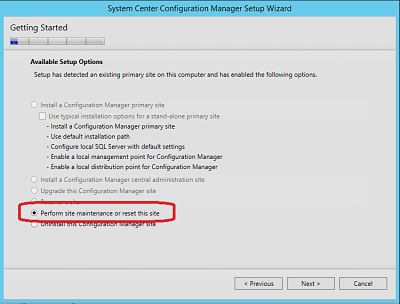

2. On The Getting Started page, select Perform Site Maintenance or reset this site and click next.

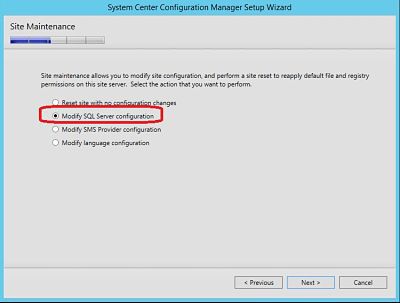

3. On the Site Maintenance window, select Modify SQL Server Configuration and select Next.

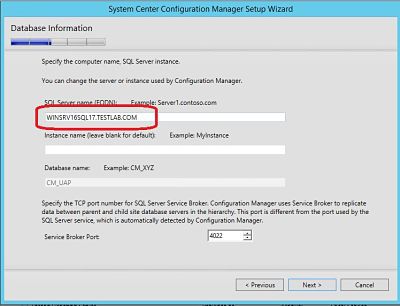

4. provide the new SQL Server FQDN and select Next on the Database Information Window.

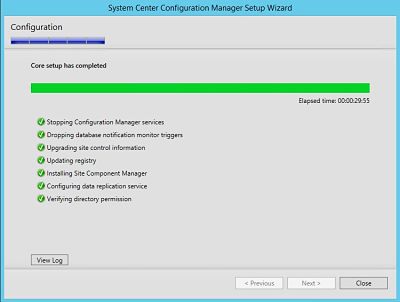

5. On Configuration Windows, you can view the setup progress, and detailed information is also available in ConfigMgrSetup.log.
Post SCCM DB Move Checks
If you have moved the SQL server of a primary site in a multi-tiered hierarchy, then the site will be in maintenance mode (Recovering Deltas). The site will re-initialize the replication groups, which need to be updated. So, you need to monitor the site replication closely.
- Verify the sitecomp.log for bootstrap operation post-DB move. Don’t reboot the server if the bootstrap operations are continuing.
- Verify the logs of on-site systems connecting to the database, such as MP, WSUS, etc.
- Create a test package and distribute it to the test distribution points
- We plan to move the reporting services along with the custom reports from the old SQL server to the new SQL Server.
- Plan for moving the WSUS database from the old server to the new SQL server.
