SCCM HTTPS Setup Guide for MP DP SUP Site Systems

SCCM HTTPS Setup Guide for MP DP SUP Site Systems in co-management and ConfigMgr HTTP-only Client Communication Is Going Out Of Support context.

Learn how to set up HTTPS communication for SCCM DP, MP, and SUPs once you have completed PKI certificates pre-requisites, ready to configure SCCM MP and SUP site systems components to use SSL/HTTPS.

HTTPS MP and HTTPS SUP configurations are explained in this post via video tutorial and step-by-step instructions. All these configurations are described with SCCM 1802 production version infrastructure.

Let’s understand what HTTPS is and how the HTTPS communications between the SCCM server and client are secured or not.

Patch My PC

eHttp Implementation Guide -> Best Guide To Enable ConfigMgr Enhanced HTTP Configuration | SCCM | EHttp

Basics of HTTPS

SCCM HTTPS Setup Guide for MP DP SUP Site Systems starts with an excellent HTTPS communication diagram produced by Alex Xu. He has explained HTTPS communication simplistically.

How is the data encrypted and decrypted?

Step 1 – The client (browser) and the server establish a TCP connection.

Step 2 – The client sends a “client hello” to the server. The message contains a set of necessary encryption algorithms (cipher suites) and the latest TLS version it can support. The server responds with a “server hello” so the browser knows whether it can help the algorithms and TLS version.

Adaptiva

The server then sends the SSL certificate to the client. The certificate contains the public key, hostname, expiry dates, etc. The client validates the certificate.

Step 3 – After validating the SSL certificate, the client generates a session key and encrypts it using the public key. The server receives the encrypted session key and decrypts it with the private key.

Step 4 – Now that the client and the server hold the same session key (symmetric encryption), the encrypted data is transmitted in a secure bi-directional channel.

Why does HTTPS switch to symmetric encryption during data transmission? There are two main reasons:

1. Security: The asymmetric encryption goes only one way. If the server tries to send the encrypted data back to the client, anyone can decrypt the data using the public key.

2. Server resources: The asymmetric encryption adds a lot of mathematical overhead. It is not suitable for data transmissions in long sessions.

Over to you: how much performance overhead does HTTPS add compared to HTTP?

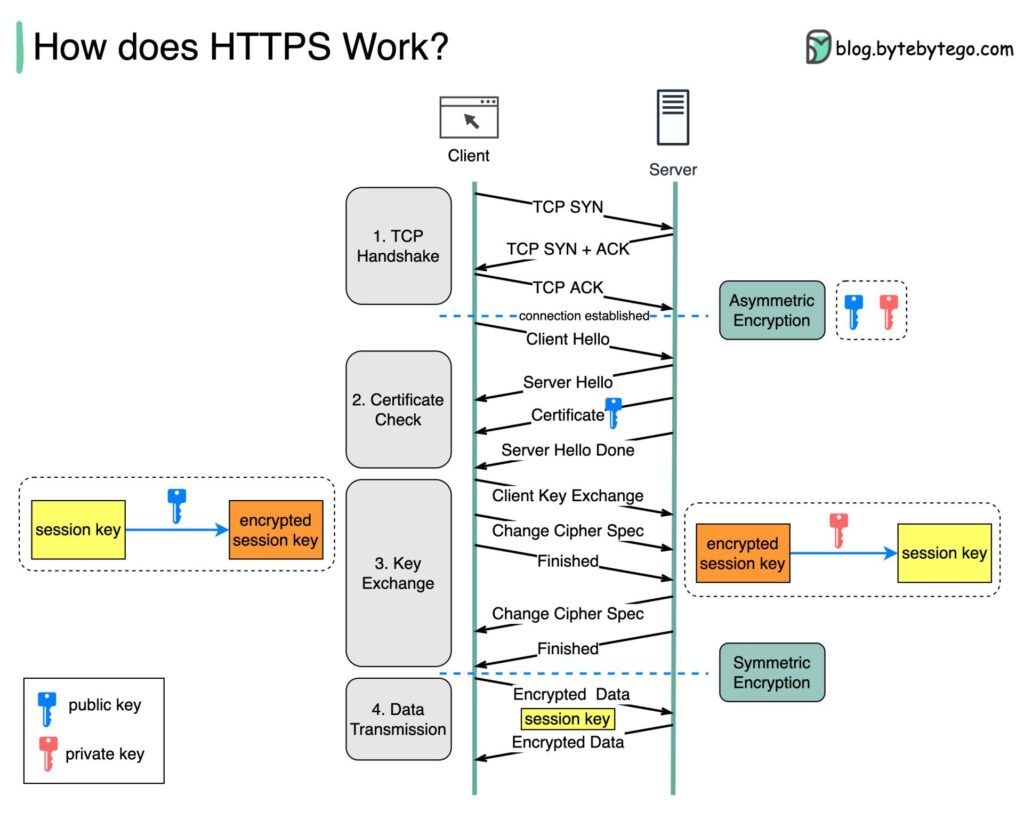

SCCM HTTPS Setup Guide for MP DP SUP Site Systems 1 | Pic Credit to Alex Xu
SCCM HTTPS Setup Guide for MP DP SUP Site Systems 1 | Pic Credit to Alex Xu

Video Tutorial to Setup HTTPS/SSL MP and SUP Site System Server

A quick video tutorial on setting up HTTPS/SSL MP and SUP Site System Server.

SCCM HTTPS Setup Guide for MP DP SUP Site Systems

How to Setup HTTPS MP DP – How to make MP communication via SSL channel?

There are two parts in the configuration of the management point (MP) and DP. The first part of the configuration should be done from the SCCM CB console.

The second part of the configuration should be done from the Management Point server IIS console. I have shown these two options in this video tutorial

HTTPS MP is one of the requirements for co-management with the SCCM 1802 version.

SCCM MP/DP HTTPS Configuration

A management point provides policy and content location information to clients. It also receives configuration data from clients. This section is HTTPS MP configuration from SCCM Cb 1802 console.

1. Open SCCM console –> Administration Work space –> Site Configuration –> Servers and Site System Roles
2. Select the Management Point (MP) server and Right Click on MP Role, and Click Properties
3. Select HTTPS from the client connections section under the GENERAL tab of the MP site system properties windows. This will reinstall the MP component.

4. CHOOSE “Allow Configuration Manager Cloud Management Gateway traffic.
Microsoft is constantly improving the designs of Client – CMG – MP communication. Hence, I would recommend reading the latest Microsoft documentation if you are in doubt about whether this is a suitable option for you or not.

5. CHOOSE to allow mobile devices and Mac computers to use the management point (when required). Click OK to close the window.

IIS Configurations – SCCM MP HTTPS Configuration

Let’s see IIS Configurations – SCCM MP/DP/SUP HTTPS Configuration. Login to Management Point (MP) server for IIS configurations. This section explains the HTTPS MP configuration from the IIS console side.

1. Make sure you have successfully enrolled the web certificate to that MP server.

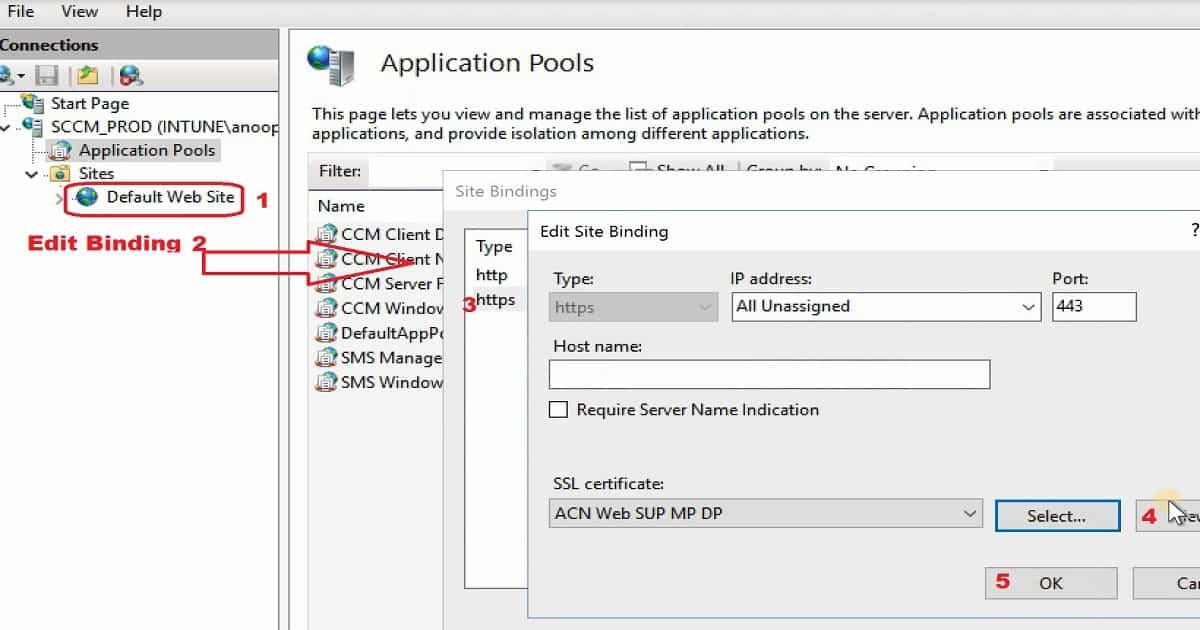

2. Open Internet Information Services (IIS) Manager. Expand Sites – select your MP website (usually ‘Default Web Site‘) and select Bindings

3. Select the HTTPS entry and Edit
4. Select the new Web cert and click OK and Close
5. Test the HTTPS/SSL connectivity by browsing your MP website using the FQDN and HTTPS with no certificate errors.

HTTPS MP
SCCM HTTPS Setup Guide for MP DP SUP Site Systems

How to Configure Setup Software Update Point (SUP) to use SSL/HTTPS

There are two parts to Software Update Point (SUP) configuration. The first part of the configuration should be done from the SCCM CB console. The second part of the configuration should be done from the SUP server IIS console.

SCCM CB Console Actions

A software update point(SUP) integrates with WSUS to provide software updates to SCCM clients. For SCCM to use a software update point that is not installed on the site server, you must first install the WSUS admin console on the site server. I prefer to use Windows Update for Business for the software update or patching.

1. Open SCCM console –> Administration Workspace –> Site Configuration –> Servers and Site System Roles
2. Select the Software Update Point (SUP) server and Right Click on MP Role, and Click Properties
3. The ports should already be listed
                      WSUS Configuration details are given below:-
                      Port Number: 8530
                      SSL port Number: 8531

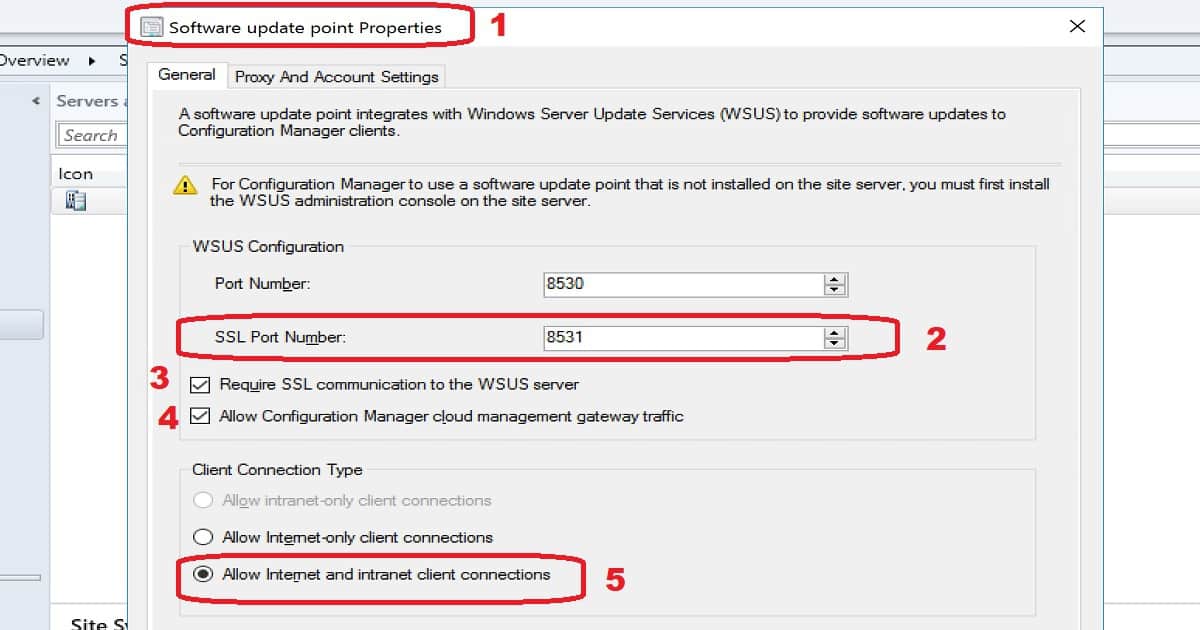

4. Click Require SSL communication to the WSUS server
5. Click Allow Configuration Manager cloud management gateway traffic

6. Choose “Allow Internet and intranet client connections” from the Client Connection Type section. This option will automatically get selected when selecting “Allow Configuration Manager cloud management gateway traffic.” Click OK to close the window.

HTTPS MP SUP
SCCM HTTPS Setup Guide for MP DP SUP Site Systems

SUP Server IIS Console

Log in to Software Update Point (SUP) server for IIS configurations. This section explains the HTTPS SUP configuration from the IIS console side. To configure SSL on the WSUS server by using IIS 7.0

1. On the WSUS server, open the Internet Information Services (IIS) Manager.
2. Expand Sites, and then expand the Web site for the WSUS server WSUS Administration.

3. Perform the following steps on the following virtual directories under the WSUS Web site WSUS Administration.

APIRemoting30
ClientWebService
DSSAuthWebService
ServerSyncWebService
SimpleAuthWebService

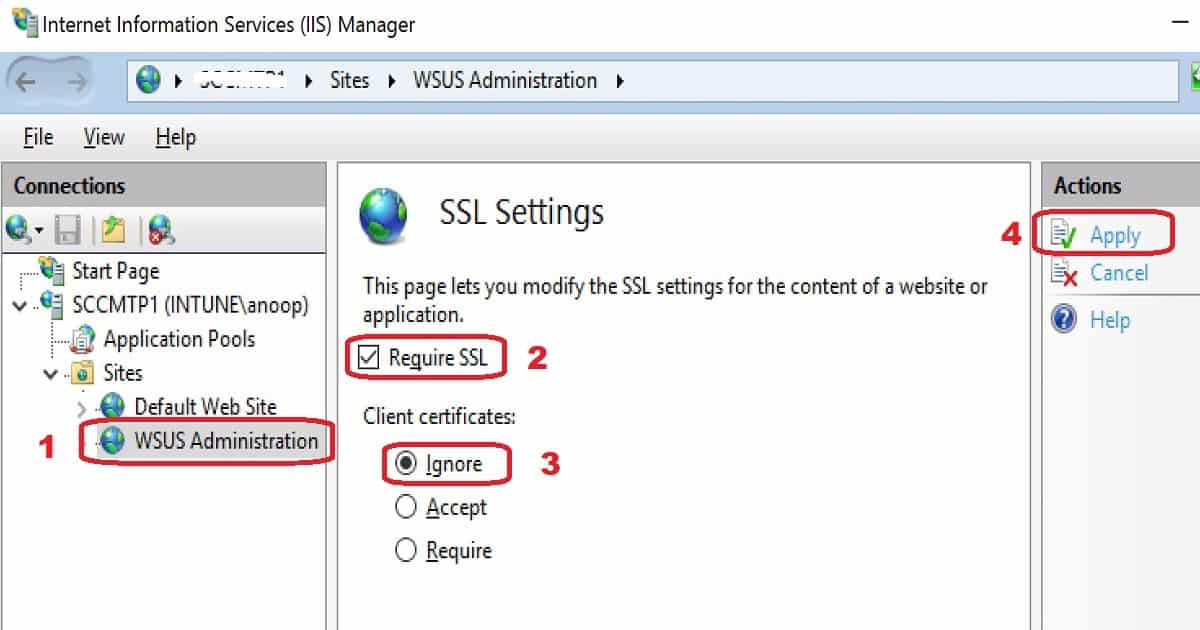

4. In Features View, double-click SSL Settings.
5. On the SSL Settings page, select the Require SSL checkbox. Ensure that Client certificates are set to Ignore.
6. In the Actions pane, click Apply.
7. Close Internet Information Services (IIS) Manager.

8. Run the following command from <WSUS Installation Folder>\Tools: WSUSUtil.exe configuressl <Intranet FQDN of the SUP site system server>
9. Restart the IIS services or Click the ok Recycle button from the IIS console

HTTPS MP HTTPS SUP
SCCM HTTPS Setup Guide for MP DP SUP Site Systems

Bonus Video – How to Setup PKI for SCCM CB Lab

SCCM HTTPS Setup Guide for MP DP SUP Site Systems
Overview Windows 10 Co-Management with Intune and SCCM
Custom Report to Identify Machines Connected via SCCM CMG
How to Setup Co-Management - Introduction - Prerequisites Part 1
How to Setup Co-Management - Firewall Ports Proxy Requirements Part 2
Setup Co-Management - AAD Connect UPN Suffix Part 3
Setup Co-Management - CA PKI & Certificates Part 4
Setup Co-Management Cloud DP Azure Blob Storage Part 5
Setup Co-Management Azure Cloud Services CMG Part 6 (This Post)

Resources

For more information, see Enable management point for HTTPS.

https://docs.microsoft.com/en-us/sccm/core/plan-design/network/example-deployment-of-pki-certificates#BKMK_webserver42008
