Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM

You can easily setup ConfigMgr LAB Infrastructure in Azure IaaS. In this post, I will try to help you set up an SCCM LAB in Azure (Setup ConfigMgr LAB Infrastructure).

It would help to have a valid Azure subscription to build the EndPoint Manager LAB environment in Azure.

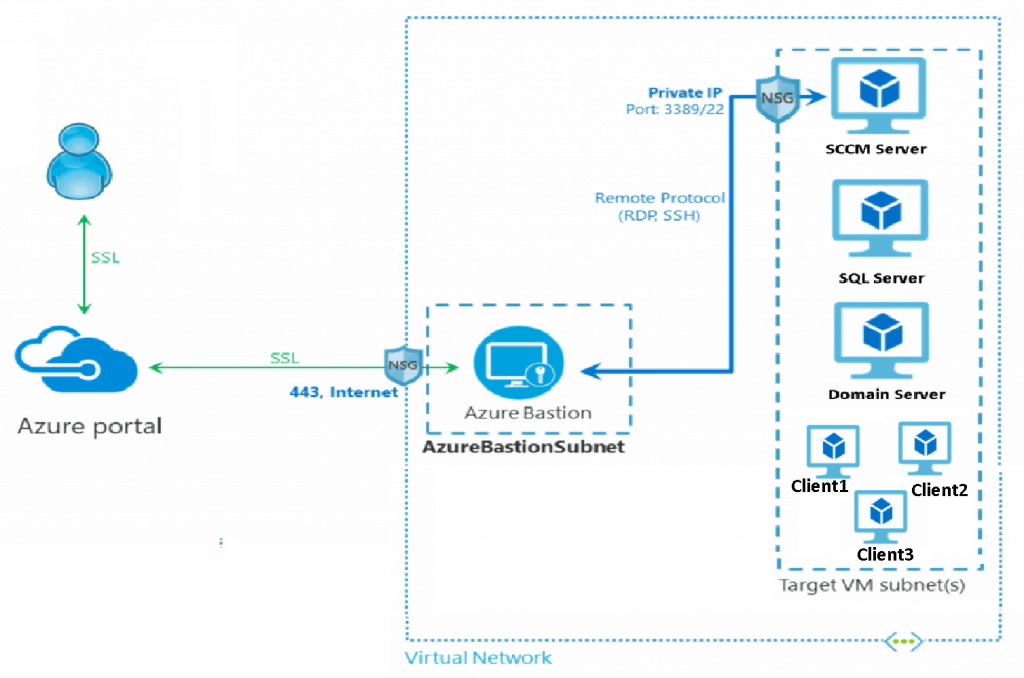

I think this is the best representation of my SCCM LAB architecture. I have built the following components:

  • Resource Group
  • Virtual Networks
  • MEMCM Subnet
  • Domain Server, SQL Server, SCCM Server, and Windows 10 Clients
  • Azure Bastion Subnet for the Remote access for SCCM LAB Infra
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.1
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.1
Index
Prerequisites (Setup ConfigMgr LAB Infrastructure)
Create Resource Group
Create Virtual Networks & Subnet
Build Virtual Machines
Basic Configuration of Virtual Machine
Disk Configurations
Select Network Configuration
Virtual Server Management Options
Advanced and Tags
Successfully Created VM
Tips
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Table 1

Prerequisites (Setup ConfigMgr LAB Infrastructure)

There are some prerequisites (Of course!) before you can start building ConfigMgr LAB infrastructure in Azure.

Patch My PC
  • Valid Azure Subscription with appropriate credits or pay as you go!

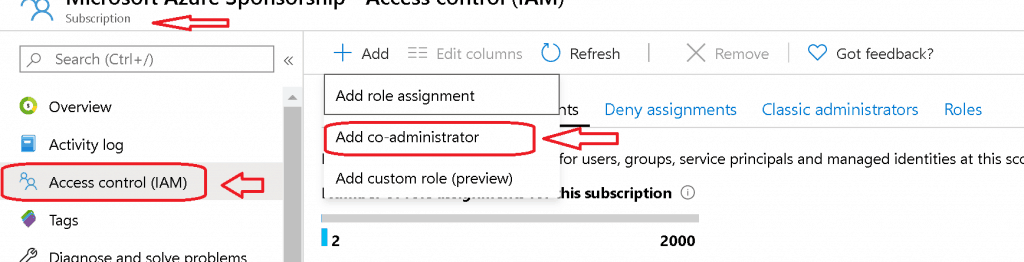

  • Appropriate Access Rights on Subscription – Add the admin user as Co-Administrator is one of the options to provide reasonable access
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.2
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.2
  • SCCM Prerequisites mentioned in the following blog post to setup SCCM LAB Infrastructure (Releasing Soon)

Create Resource Group

A resource group is a container with related resources for an Azure solution. The Azure resource group includes those resources that you want to manage as a group. See more details about Resource groups.

  • Login to Azure Portal
  • Search for “Resource Group
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.3
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.3

Click on ADD button to create the resource group.

Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.4
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.4

Before proceeding, please ensure the Azure Region is set to (US) East US 2. Select the appropriate Azure Subscription, specify the Resource Group Name as MEMCM, and click “Review + Create”. Once the validation has passed, proceed by clicking on “Create”.

  • Select Azure Region ==> (US) East US 2
  • Project Details
    • Select the Azure Subscription
    • Resource Group Name => MEMCM
  • Resource Details
    • Region => (US) East US 2
  • Click on Review + Create
    • Validation passed
  • Click on Create
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.5
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.5

Successfully created Resource Group

Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.6
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.6

Create Virtual Networks & Subnet

Azure Virtual Network (VNet) is the fundamental building block for your private network in Azure. VNet enables many types of Azure resources.

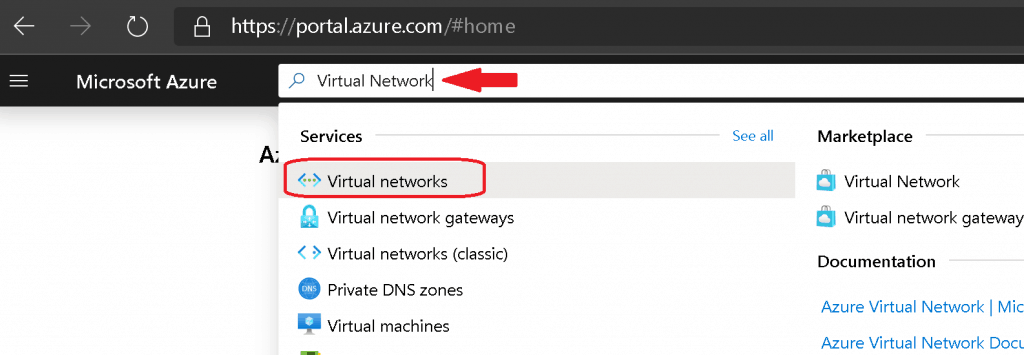

  • Create Virtual Networks for Setup ConfigMgr LAB Infrastructure
  • Search for Virtual Networks
  • Click on Virtual Networks
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.7
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.7

Under Virtual network, Click +Add

Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.8
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.8
  1. Name of the Virtual Networks – Enter MEMCMNet.
  2. Address space – Enter 10.1.0.0/16.
  3. Subscription – Select the Azure Subscription you want to use.
  4. Resource group – Select MEMCM from the drop-down option.
  5. Location – Select East US 2.
  6. Subnet Name – Enter MEMCM.
  7. Subnet – Address range- Enter 10.1.0.0/24.
  8. DDoS protection – Select Basic
  9. Service Endpoints – Select Disabled
  10. FirewallDisabled (You can enable it as per your requirements)
  11. Click on Create button to start the creation process of Azure Virtual Networks for Setting up ConfigMgr LAB Infrastructure.
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.9
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.9

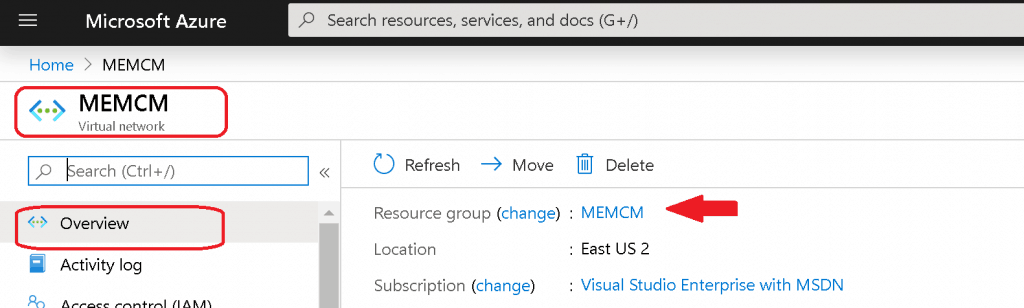

Successfully created the Virtual Network Azure

Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.10
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.10

Build Virtual Machines

Let’s build Domain, SQL, and SCCM servers in Azure IaaS. Microsoft Documentation for creating and managing Windows virtual machines in Azure.

  • Search “Virtual Machines” from Azure Portal
  • Click on Virtual click Machines
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.11
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.11

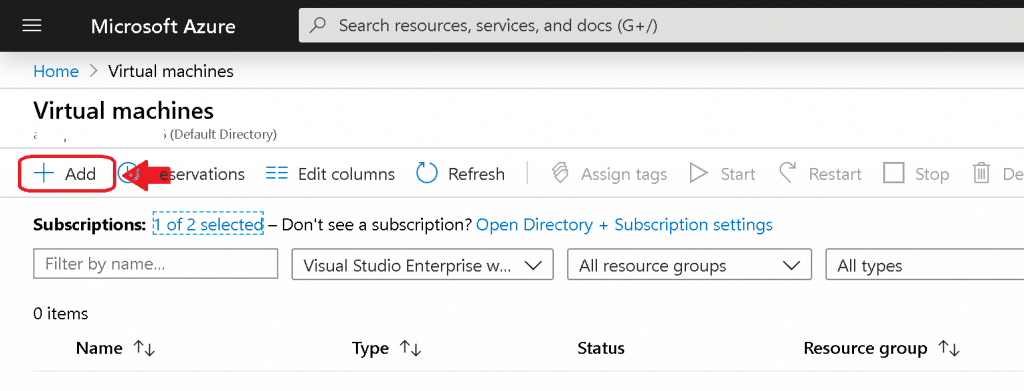

Click on +Add to create new Windows VMs

Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.12
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.12

Basic Configuration of Virtual Machine

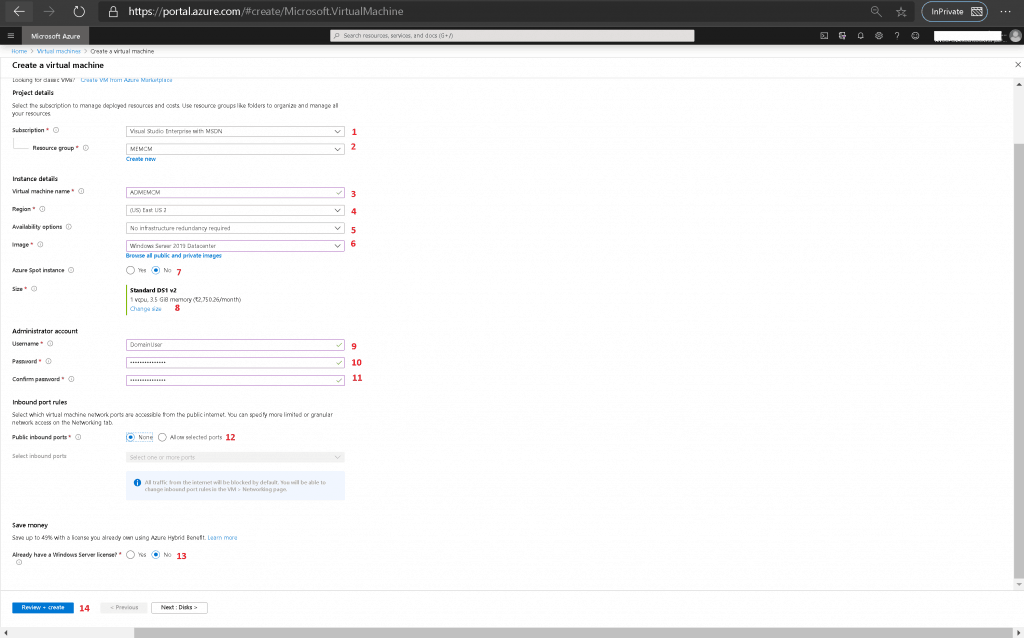

When setting up the Azure subscription, ensure to select the “MEMCM” Resource Group. For the Instance Details, input “ADMEMCM” as the Virtual Machine Name and choose “East US 2” as the Region. Ensure no infrastructure redundancy is needed and select “Windows Server 2019 Datacenter” as the Operating System Image.

Choose “NO” for Azure Spot Instance and “Standard DS1 v2” as the preferred size. Use “DomainUser” as the Username for the Administrator Account and configure the inbound port rules appropriately. Then, confirm that a Windows Server License is not already available and proceed to the next step by clicking “Next—Disks.”

  • Subscription – Select the Azure Subscription you want
    • Resource Group – Select the Resource Group Name we created – MEMCM
  • Instance Details
    • Virtual Machine Name – Enter the AD Server Name – ADMEMCM
    • Region – Select the Region as (US) East US 2
    • Availability Options – No Infrastructure redundancy is required
    • Image – Select the Operating System Image as Windows Server 2019 Datacenter
    • Azure Spot Instance – Select the option NO
    • Size – Select the best-preferred size for you – Standard DS1 v2
    • Administrator Account
      • Username – DomainUser
      • Password
      • Confirm Password
    • Inbound port rules – Select the virtual machine network ports accessible from the public internet.
      • Public inbound ports – Select the option called None
  • Save Money
    • Already have a Windows Server License – Select the option – NO
  • Click NextDisks >
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.13
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.13

Disk Configurations

Let’s configure the Disk for the virtual machine. You should add additional disks to install SQL and SCCM on other Disks for your SQL and SCCM virtual servers.

  • Disk Options
    • OS Disk Type – Select Premium SSD for better performance
      • Enable Ultra Disk compatibility – Select NO
        • Ultra Disk compatibility is not available for this VM size and location.
  • Data disks – Add Additional Data Disks – You can add and configure additional data disks for your virtual machine or attach existing disks. This VM also comes with a temporary disk.
    • Click to Create and Attach a New Disk
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.14
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.14
  • Create a new disk
    • Create a new disk to store applications and data on your VM. Disk pricing varies based on disk size, storage type, and the number of transactions. Learn more about Azure Managed Disks
    • Name – Enter the name of the Data Disk – ADMEMCM_DataDisk_0
    • Source Type – Select None (Empty Disk)
    • Size – Select the size of the data disk 64 GiB
      • Premium SSD
    • Click OK to continue
    • Click on Next: Networking>
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.15
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.15

Select Network Configuration

Define network connectivity for your virtual machine by configuring network interface card (NIC) settings. You can control ports and inbound and outbound connectivity with security group rules or place them behind an existing load-balancing solution. Learn more Network interface.

  • Network interface
    • Virtual Network – Select the virtual network – MEMCM
    • Subnet – Select the Subnet where all the other virtual machines of SCCM LAB shall be part of – MEMCM (10.1.0.0/24)
    • Public IP – Select the option NONE
    • NIC network security group – Select the option None
    • Public inbound ports – Select the option None
    • Accelerated networking – Select the option Off
      • The selected VM size does not support accelerated networking.
  • Load balancing
    • You can place this virtual machine in the backend pool of an existing Azure load-balancing solution. Learn more
    • Place this virtual machine behind an existing load-balancing solution. – Select the NO option
  • Click on the Next: Management button to continue.
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.16
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.16

Virtual Server Management Options

The following are the management configurations I prefer for SCCM | ConfigMgr LAB Infrastructure. You can customize all these settings according to your requirements.

  • Monitoring
    • Boot diagnostics – Select the option On
    • OS guest diagnostics – Select the option Off
  • Identity
    • System assigned managed identity – Select the option – Off
  • Azure Active Directory
    • Login with AAD credentials (Preview) – Off
  • Auto-shutdown
    • Enable auto-shutdown – Select ON if you want to save some money
  • Backup
    • Enable backup – Select the option – OFF
  • Click on Next: Advanced to continue
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.17
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.17

Advanced and Tags

I have selected the default options for the Advanced and Tags tab during the virtual machine configuration options.

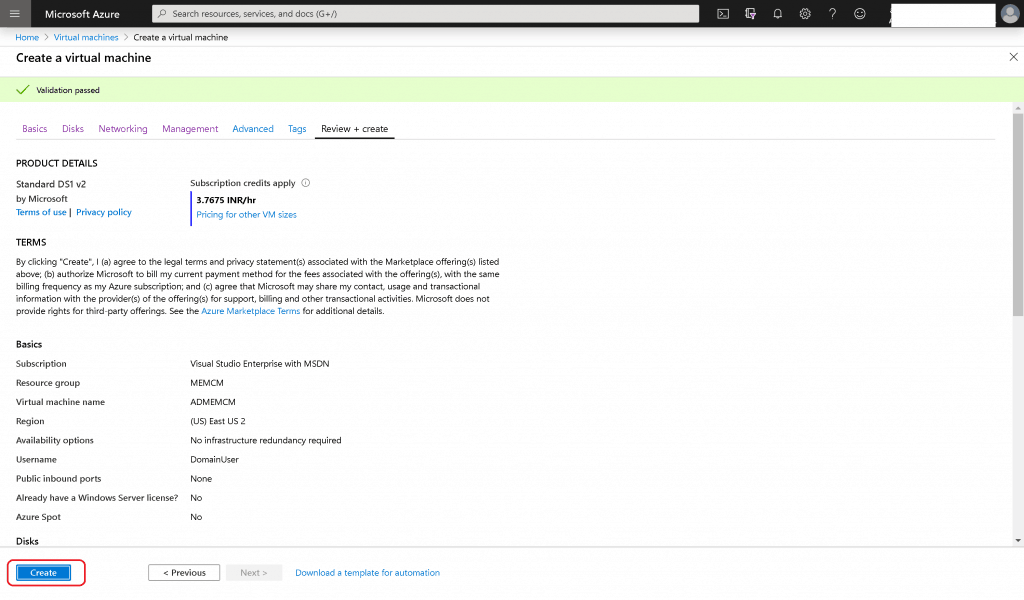

  • Click on Next: Tags
  • Click on the Review + Create button to review the virtual machine’s configuration.
  • Once the Validation is Passed
  • Click on CREATE button to launch the build process
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.18
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.18

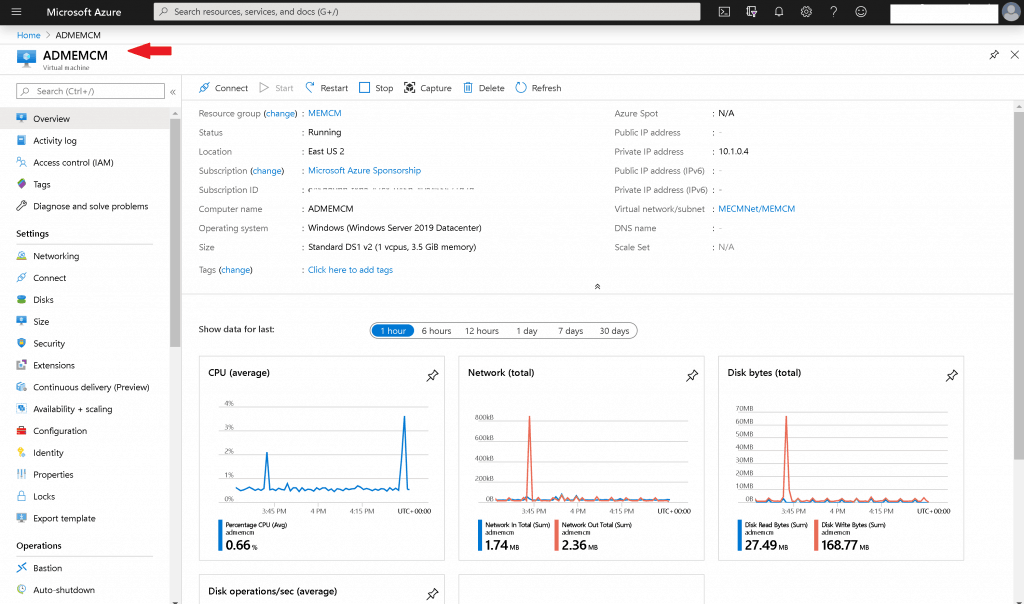

Successfully Created VM

Domain Server is created successfully.

  • Repeat the above steps mentioned under the “Build Virtual Machines” section to create virtual machines for SQL and SCCM servers.
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.19
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.19

Tips

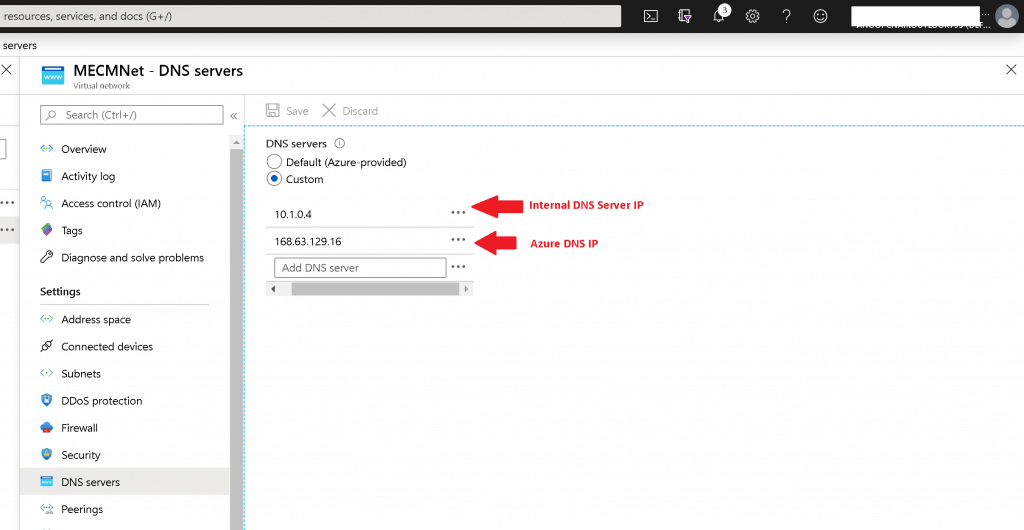

You might need to change the DNS configuration of Virtual Networks to get domain join working for SQL and SCCM servers. Make sure the DNS configuration is as follows:

  • Open Virtual Networks – MECMNet
  • Click on DNS Servers
  • Click on Custom
  • Add 10.1.0.4 – Internal DNS Server IP
  • Add Azure DNS IP – 168.63.129.16
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM - Fig.20
Setup ConfigMgr LAB Infrastructure in Azure IaaS | SCCM | MEMCM – Fig.20
