Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM

Let’s discuss the Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM. Microsoft released Administrative Templates (.admx) for Windows 10 Fall Creators Update (1709).

Group Policy tools use Administrative template files to populate policy settings in the user interface.

This allows administrators to manage registry-based policy settings. In this post, we will see “Configure ADMX ADML WMI Filter for Windows 10 1709 Devices.” We are still waiting for the Windows 10 1802 admx file.

The ADMX files contain the technical information for the settings, such as the registry critical path and values set for Windows 10 1709. The ADML had the language-specific displayed text when you went into the Group Policy Management Console to edit real GPOs.

Patch My PC

What are ADMX and ADML Files? Configure Group Policy ADMX – Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM

Redstone 3,” or RS3) ADMX files should be copied to the “C:\Windows\PolicyDefinitions” folder. The ADML files are language-specific files, and they should be copied to the “C:\Windows\Policy Definitions/En-US” folder if you have only En-US machines.

Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM - Fig.1
Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM – Fig.1

Group Policy Errors After ADMX File Import

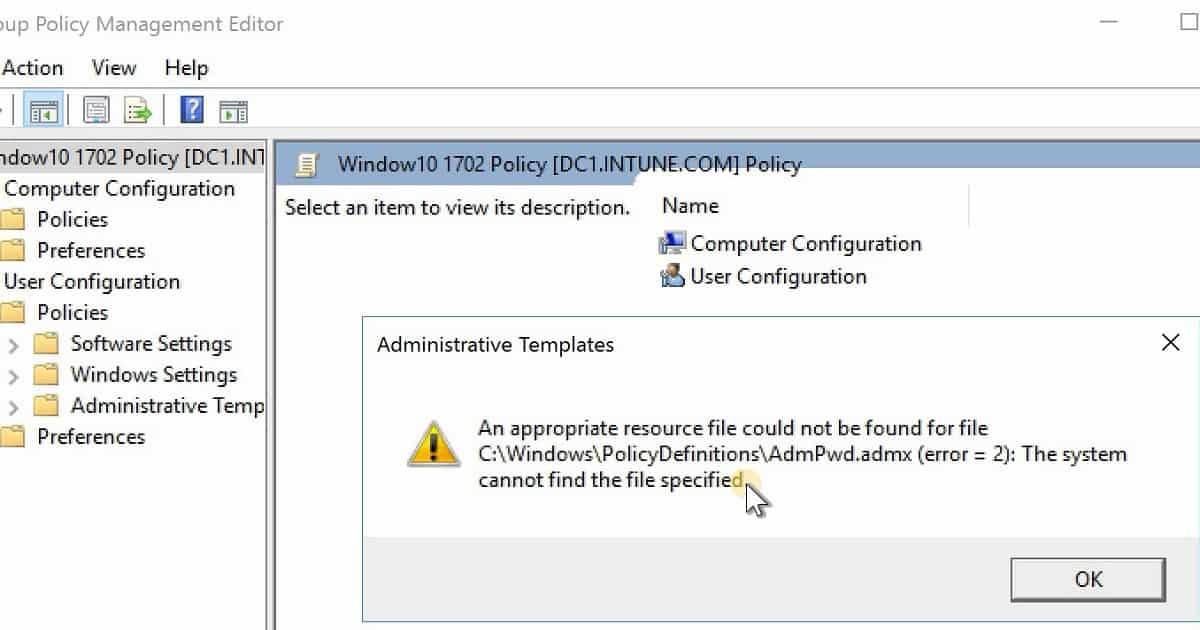

I received the following error when I copied Windows 10 1709 ADMX files should be copied to the “C:\Windows\PolicyDefinitions” folder. But I didn’t copy ADML files to  “C:\Windows\ Policy Definitions/En-US“.

An appropriate resource file could not be found for the file C: Windows\PolicyDefinitions\AdmPwd.admx (error=2): The system cannot find the files specified.

Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM - Fig.2
Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM – Fig.2

How to Configure Windows 10 Related ADMX ADML WMI Filter

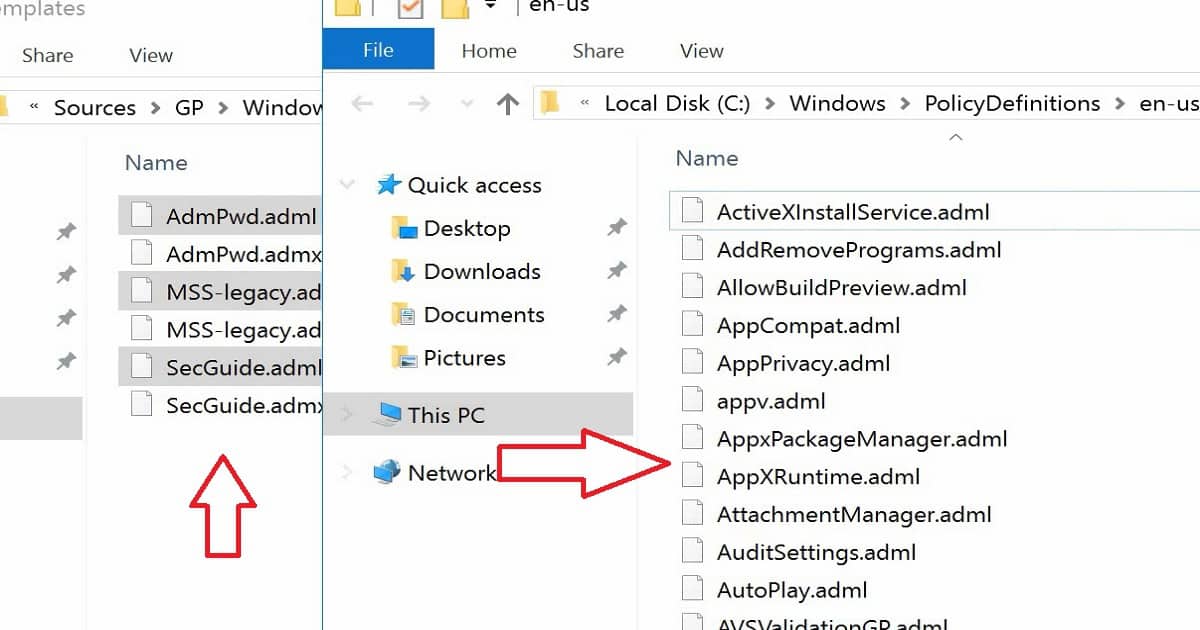

The issue was resolved after the ADML file was sent to the respective language folder, as mentioned below.

Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM – Video 1

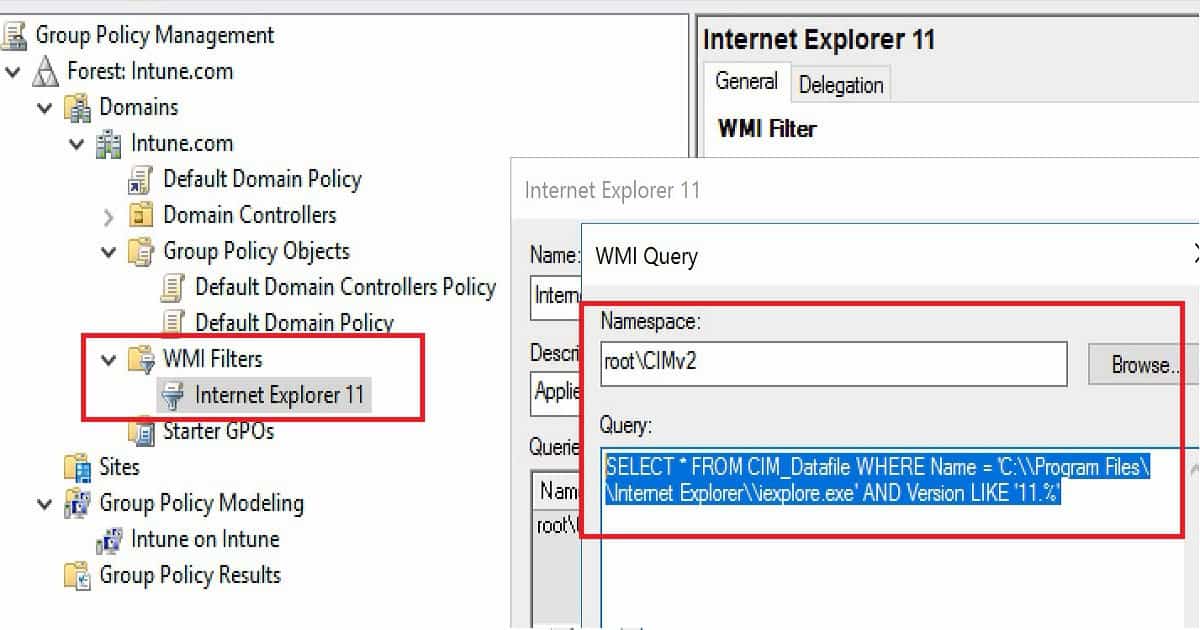

What are WMI Filters – Group Policy Management

I’m not a big fan of using WMI filters to apply Group Policies to Windows 10 devices. However, WMI Filters can help when using certain policies based on special characteristics of instruments like Operating System version, network configuration, or other criteria.

Adaptiva

The MOF files can be imported into the group policy management tool to create WMI filters. However, I would deploy MDM policies to Windows 10 devices using SCCM or Intune. The video tutorial provides more details.

WMI Filters
Internet Explorer 11
Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM – Table 1
Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM - Fig.3
Configure Group Policy ADMX ADML WMI Filter for Windows 10 ConfigMgr SCCM – Fig.3

Resources

We are on WhatsApp now. To get the latest step-by-step guides, news, and updates, Join our Channel. Click here. HTMD WhatsApp.

Author

Anoop C Nair is Microsoft MVP! He is a Device Management Admin with more than 20 years of experience (calculation done in 2021) in IT. He is a Blogger, Speaker, and Local User Group HTMD Community leader. His main focus is on Device Management technologies like SCCM 2012, Current Branch, and Intune. He writes about ConfigMgr, Windows 11, Windows 10, Azure AD, Microsoft Intune, Windows 365, AVD, etc.
