Key Takeaways

  • This policy controls whether Windows Sandbox uses a virtualized GPU or software rendering.
  • Enabling this policy allows Windows Sandbox to use the virtualized GPU.
  • Disabling this policy makes Windows Sandbox use software rendering, which is slower.
  • Keeping vGPU enabled provides better graphics performance.

Hey, let’s discuss about how to Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface. This policy setting controls whether Windows Sandbox uses a virtualized GPU (vGPU) or software rendering. If you enable this setting, Windows Sandbox can use the computer’s GPU, which provides faster and smoother graphics performance.

Table of Contents

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface

If you disable this setting, Windows Sandbox will use software rendering instead of the GPU. This uses the CPU to process graphics, which can be slower. If you do not configure this setting, vGPU is enabled by default, so Windows Sandbox will use hardware acceleration automatically.

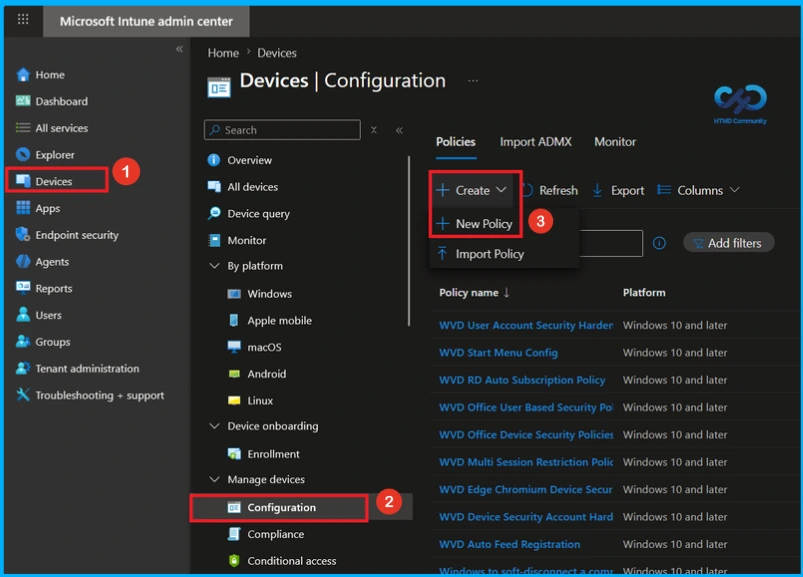

How to Create a Policy

To create a new policy, first sign in to the Microsoft Intune admin center. After you sign in, go to the left menu and click Devices. Next, select Configuration, click Create, and then choose New policy to start creating the policy.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.1
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.1

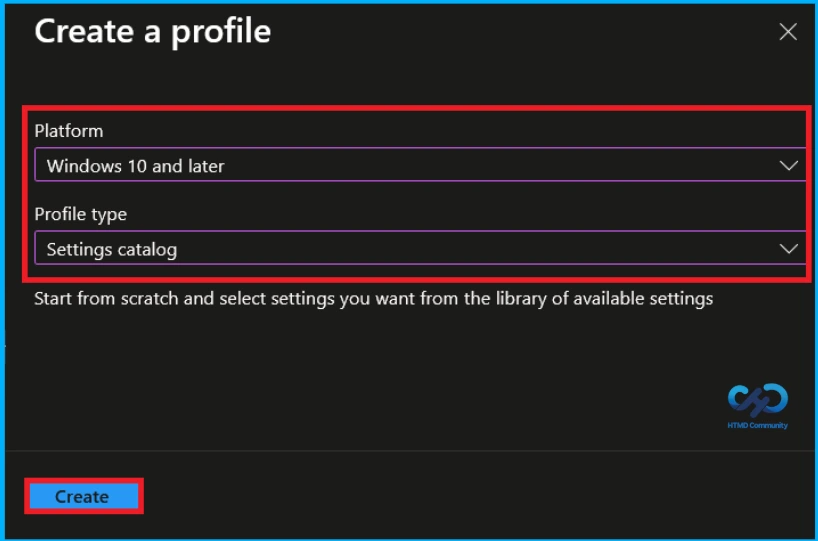

Create a Profile

On this page, select the Platform and Profile type before creating the policy. This is a required step, and you must complete it to continue. Choose Windows 10 and later as the platform and Settings Catalog as the profile type, then click Create.

Patch My PC
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.2
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.2

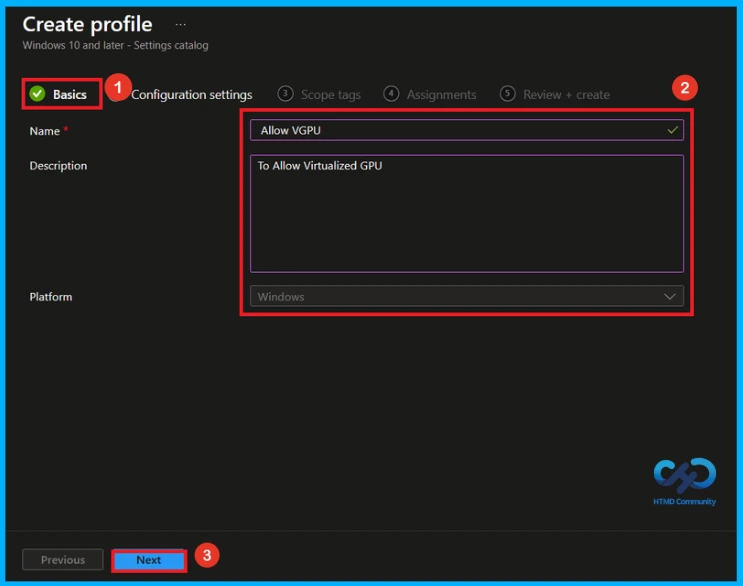

Basic Tab of VGPU Policy

The Basic tab allows you to provide details about the policy you are creating. Enter the policy Name as Allow vGPU and add a description such as To Allow Virtualized GPU. The Name field is required, while the Description field is optional. After entering the details, click the Next button to continue.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.3
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.3

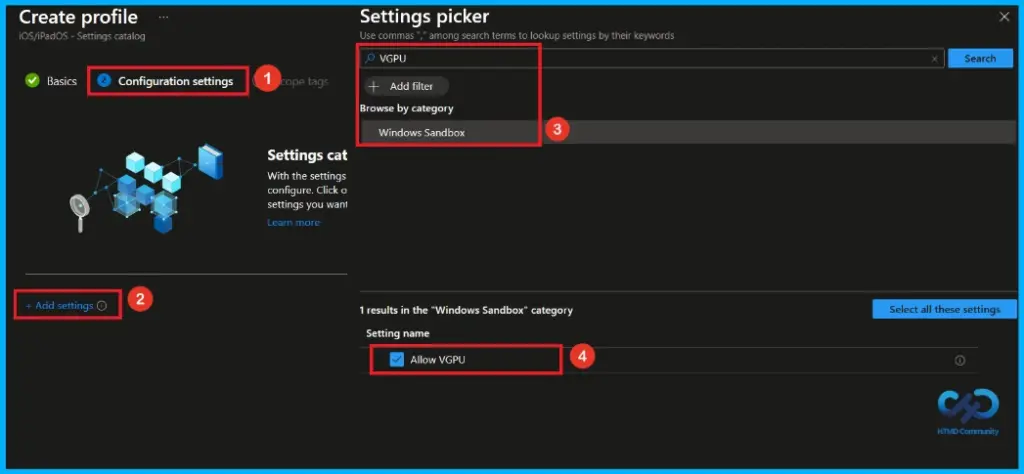

Configure VGPU Policy

From the Configuration tab, click the + Add settings link to find and select the required settings. After clicking this link, the Settings Picker window will open. In this window, select the Windows Sandbox category or search VGPU on search bar and choose the Allow vGPU setting to configure the policy.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.4
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.4

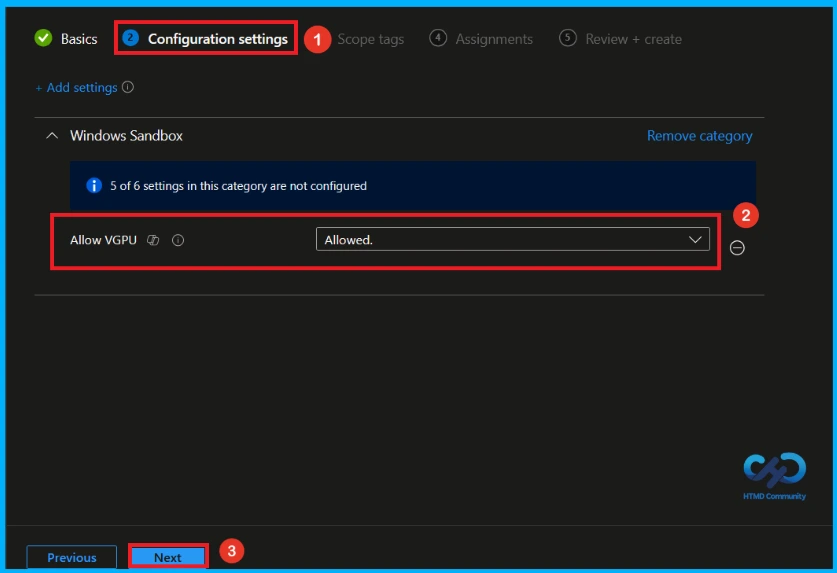

Allow VGPU

After closing the Settings Picker, you can see the Allow vGPU(Virtualized GPU) setting on the Configuration settings page. By default, the Allow vGPU setting is set to Allowed. Keep the default setting and click Next to continue.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.5
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.5

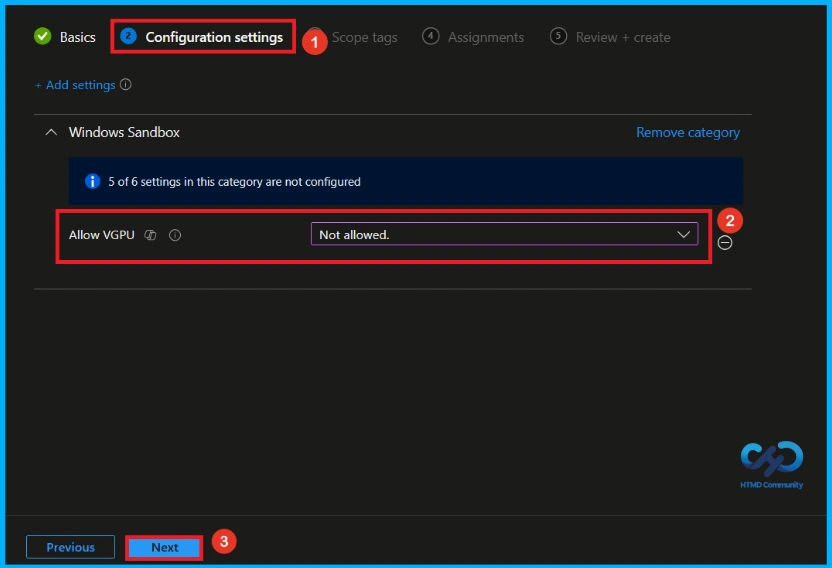

Not Allowed VGPU

To disable the Allow vGPU policy, change the setting from Allowed to Not allowed using the drop-down menu. After selecting Not allowed, the vGPU feature will be disabled. Click the Next button to continue with the configuration.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.6
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.6

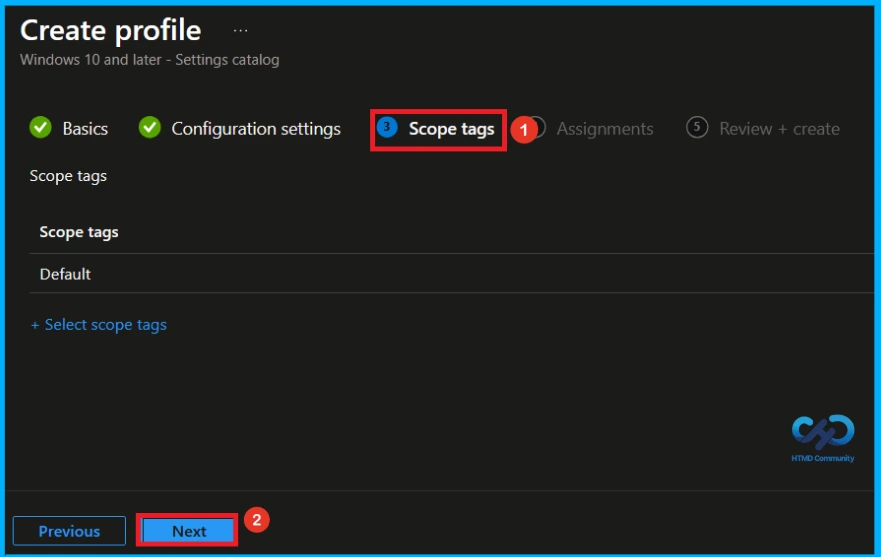

What is Scope Tag

A scope tag in Intune is used to control visibility and access to Intune resources based on administrative roles. Scope tags are not mandatory. You can add the scope tag using the select scope tags button. Click Next to continue.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.7
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.7

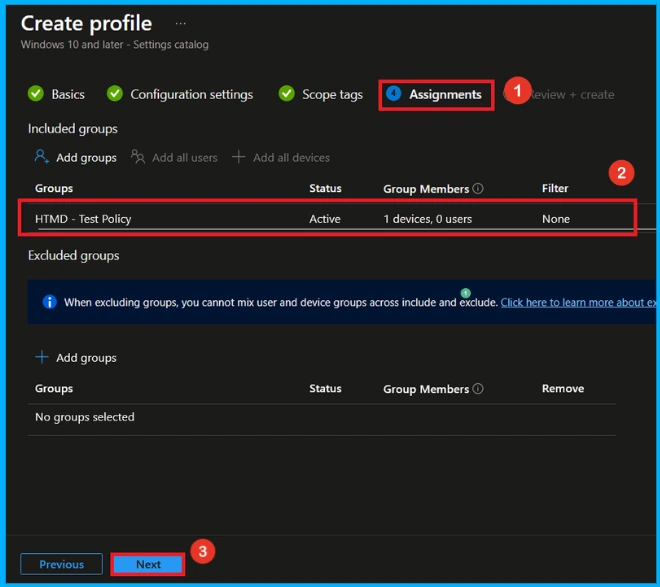

Assignment Tab of VGPU Policy

To assign the policy to specific groups, you can use the Assignment Tab. Here I click, +Add groups option under Included groups. I choose a group(HTMD _Test Policy) from the list of groups and click on the Select button. Again, I click on the Select button to continue.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.8
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.8

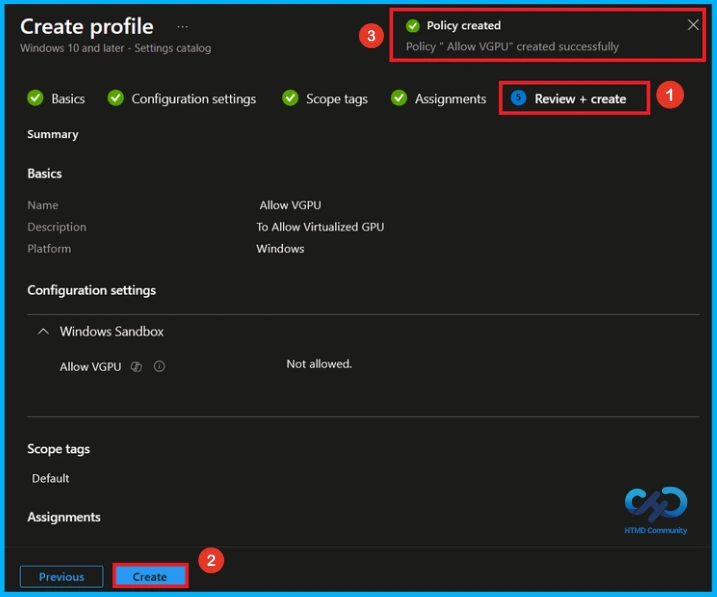

Final Step of VGPU Policy Creation

In the Review + create step, review all the selected settings to make sure there are no errors or incorrect configurations. If any changes are needed, click Previous to go back and update the settings. After confirming all details are correct, click Create to finish creating the Allow vGPU policy. A notification will appear confirming that the policy was created successfully.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.9
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.9

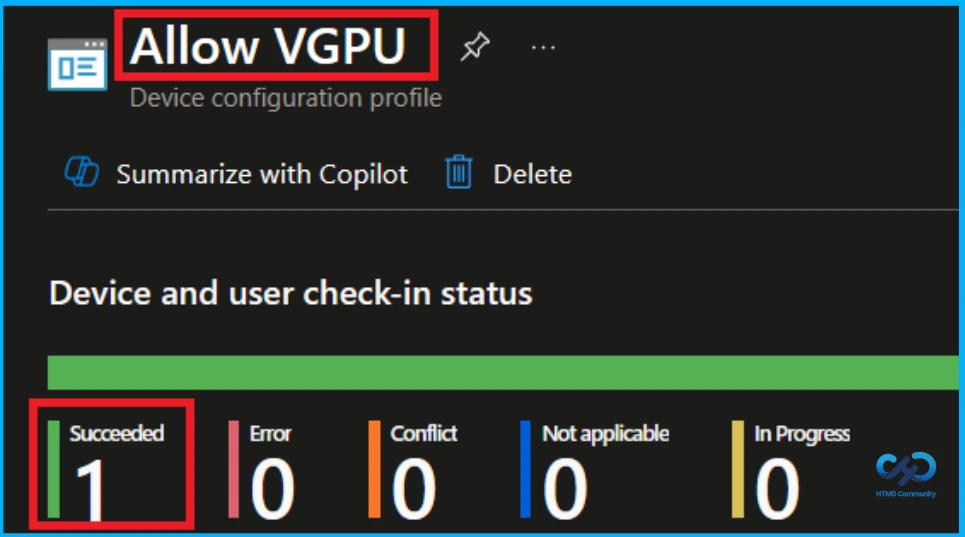

Review and Deploy the Policy

The Monitoring Status page shows whether the policy has succeeded or not. To quickly configure the policy and take advantage of the policy sync the assigned device on Company Portal. Open the Intune Portal. Go to Devices > Configuration > Search for the Policy. Here, the policy shows as successful.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.10
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.10

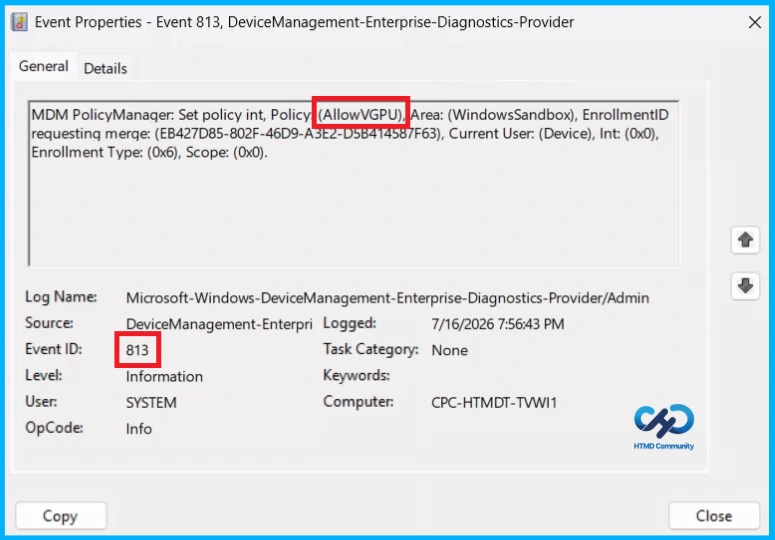

Client Side Verification

Event Viewer helps you check the client side and verify the policy status. Open the Client device and open the Event Viewer. Go to Start > Event Viewer. Navigate to Logs: In the left pane, go to Application and Services Logs > Microsoft >  Windows > DeviceManagement-Enterprise-Diagnostics-Provider. Event ID 813.

MDM PolicyManager: Set policy int, Policy(AllowVGPU), Area: (WindowsSandbox), EnrollmentID
requesting merge: (EB427D85-802F-46D9-A3E2-D5B414587F63), Current User: (Device), Int: (0x0),
Enrollment Type: (0x6), Scope: (0x0).

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.11
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.11

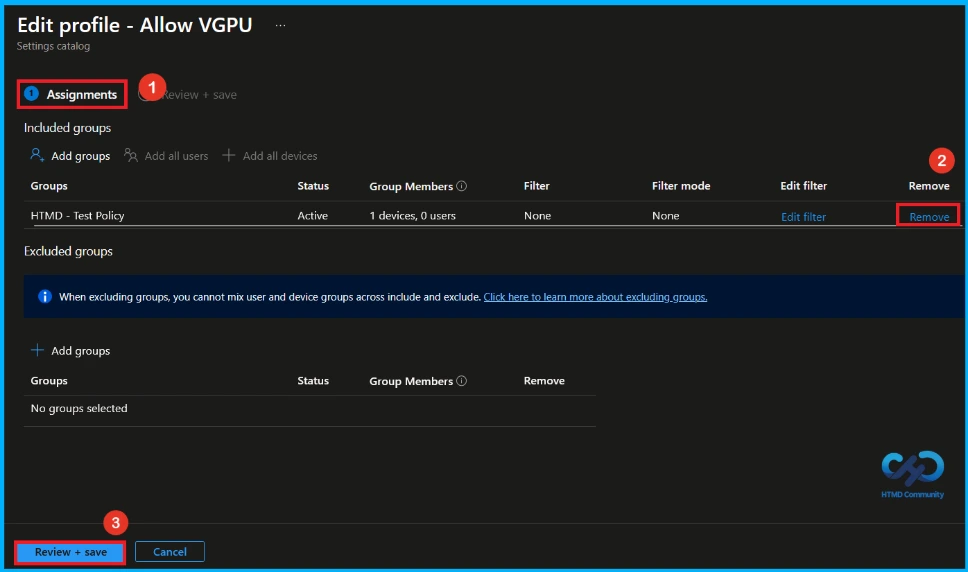

How to Remove Assigned Group from VGPU

If you want to remove the Assigned group from the policy, it is possible from the Intune Portal. To do this, open then Allow VGPU Policy on Intune Portal and click the edit option on the Assignments tab and the Remove Policy.

To get more detailed information, you can refer to our previous post – Learn How to Delete or Remove App Assignment from Intune using by Step-by-Step Guide.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.12
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.12

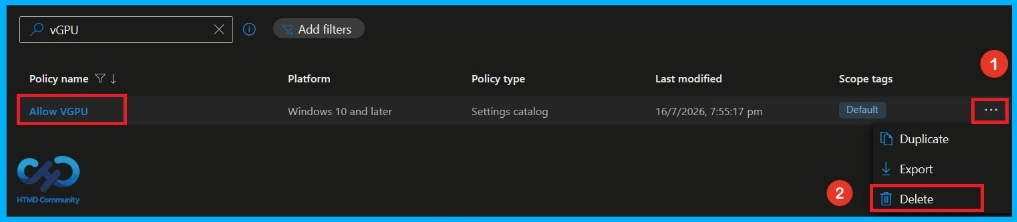

How to Delete Allow VGPU Policy from Intune

You can easily delete the Policy from the Intune Portal. From the Configuration section, select the policy(Allow VGPU) and click the 3 dots. Here, you can delete the policy and It will completely remove it from the client devices.

For detailed information, you can refer to our previous post – Learn How to Delete or Remove App Assignment from Intune using by Step-by-Step Guide.

Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface - Fig.13
Configure Windows Sandbox vGPU Policy using Intune for Better Graphics Performance or Reduced Attack Surface – Fig.13
