Intune to deploy apps with User Interaction using ServiceUI

Let’s look at Intune for deploying apps with User Interaction using ServiceUI. I encountered a unique client requirement to deploy an interactive-mode application. This post shows you how to use ServiceUI with Intune to Bring the SYSTEM Process to Interactive Mode while deploying an application.

Let’s learn how to make the Intunewin32 application deployment with a message popup. Well, not with user access but with System access. I wrote several posts on Intune win32-based app deployment (Part 1 and Part 2).

Every program on your computer needs a process that belongs to a Session. In the Windows operating system, the system process executes in session 0, and the user process in session 1 and above.

It is a security control that prevents user process interference with the system process by design. This post will discuss bringing the system process to interactive mode during intune deployment.

Patch My PC
  • Session 0 hosts the System process, which includes the Intune app install process
  • Session 1 hosts User login and user-initiated process
Index
Intune to deploy apps with User Interaction using ServiceUI
Change the Installation Behavior
Use the ServiceUI with Intune
Result Scenario 1 – Intune to deploy apps with User Interaction using ServiceUI
Result Scenario 2 – Intune to deploy apps with User Interaction using ServiceUI
Resources
Intune to deploy apps with User Interaction using ServiceUI – Table 1

Intune to deploy apps with User Interaction using ServiceUI

The process and session details can be seen from the task manager. By default, Windows does not show the Session ID. You can see it by clicking on the View menu item -> “Select Columns…” and Turning on the option “Session ID.”

Intune to deploy apps with User Interaction using ServiceUI - Fig.1
Intune to deploy apps with User Interaction using ServiceUI – Fig.1

Intune uses system context to install an application in session 0 by default. A user in session 1 will not view any dialogue box or message box from Intune. There will be some scenarios that need end-user interaction with the Intune process. Below are some of them.

Scenario 1: Some apps cannot be packaged because of how the software is developed. Or the user needs to interact with the app during installation to input the license key. So, how can this type of app be deployed from Intune?

Scenario 2: If IT wants to send a pop-up message to the end-user before app installation, it could notify the end-user to close IE.

Adaptiva

The solution for both scenarios is moving the system from session 0 to session 1. There are two approaches to achieving this.

Change the Installation Behavior

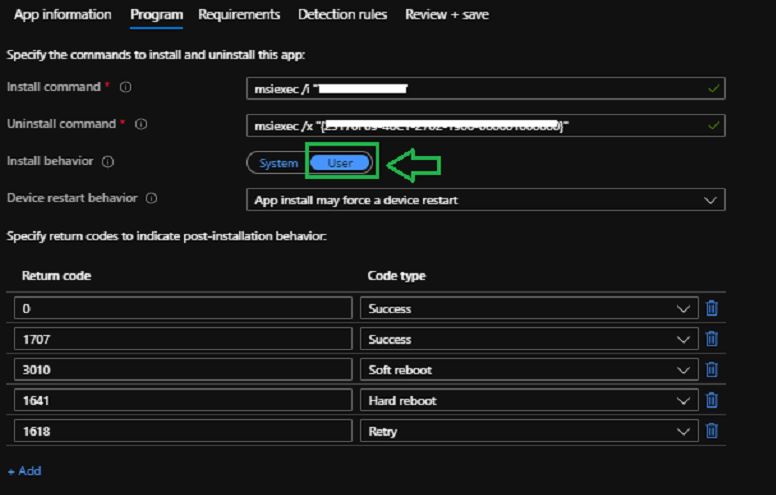

By default, the App install behaviour is System. As shown below, I changed from “System” to “User.”

Intune to deploy apps with User Interaction using ServiceUI - Fig.2
Intune to deploy apps with User Interaction using ServiceUI – Fig.2

This approach launches the installation of the app under the user context instead of the system context. As shown below, you see the install process context details from the Log – IntuneManagementExtension.log

Intune to deploy apps with User Interaction using ServiceUI - Fig.3
Intune to deploy apps with User Interaction using ServiceUI – Fig.3

The drawback of this approach is user permission. The user interacting with the installation may need elevated rights based on the apps.

Use the ServiceUI with Intune

ServiceUI is an executable that comes with the Microsoft deployment toolkit. ServiceUI can detect the user session and allow user interaction. You can download MDT from here and install it. Once MDT is installed, you can find the exe in the below path. The syntax is shown below.

Intune to deploy apps with User Interaction using ServiceUI - Fig.4
Intune to deploy apps with User Interaction using ServiceUI – Fig.4

Let’s discuss how to use the serviceui along with Intune. This is the method Intune uses to deploy apps with User Interaction using ServiceUI Fig.3

  • Step 1: Copy the serviceui64.exe to your package source file folder, as shown below. Then Convert the install source folder to intunewin format for Intune deployment. For more details on Intune win deployment, refer here.
Intune to deploy apps with User Interaction using ServiceUI - Fig.5
Intune to deploy apps with User Interaction using ServiceUI – Fig.5
  • Step 2: Upload the intunewin file to intune. For more details, refer here.

Step 3: Configure the command line as shown below. In install, the command makes sure you Call ServiceUI using the end-user’s process.

I used “explorer.exe” in the example below because it exists in every user session. This enables ServiceUI to detect the end-user’s session and allow it to interact with it.

ServiceUIx64.exe -process:explorer.exe Install.bat

Intune to deploy apps with User Interaction using ServiceUI - Fig.6
Intune to deploy apps with User Interaction using ServiceUI – Fig.6

Result Scenario 1 – Intune to deploy apps with User Interaction using ServiceUI

Users will get an installation wizard to interact, as shown below.

Installation wizard launched in system context even though the user can interact.

Intune to deploy apps with User Interaction using ServiceUI - Fig.7
Intune to deploy apps with User Interaction using ServiceUI – Fig.7

Result Scenario 2 – Intune to deploy apps with User Interaction using ServiceUI

If you are required to send a popup message, you can write a script and deploy it as an Intune win32 app.

Intune to deploy apps with User Interaction using ServiceUI - Fig.8
Intune to deploy apps with User Interaction using ServiceUI – Fig.8

Resources

We are on WhatsApp. To get the latest step-by-step guides and news updates, Join our Channel. Click here –HTMD WhatsApp.

Author

Vimal Das has over 10 years of experience in SCCM device management solutions. His main focus is on Device Management technologies like Microsoft Intune, ConfigMgr (SCCM), OS Deployment, and Patch Management. He writes about SCCM, Windows 10, Microsoft Intune, and MDT.

9 thoughts on “Intune to deploy apps with User Interaction using ServiceUI”

  1. Vimal, your article is amazing. Thank you. I just have a question on the install command for different files like .vbs when you run it as a system?

    Thanks

    Reply
  2. Safe to assume that the installation will fail if no user session exists? And then retry and eventually succeed after a user has logged on?

    Reply
  3. Slightly confused. You talk about getting the file SERVICEUI.EXE from the MDT folder but then start referring to SERVICEUI64.exe and a screen shot mentioning SERVICEUIX64.exe.
    Can you clear this up for me please?

    Reply
  4. Oh god, that’s excactly what I needed! Damn Adobe Creative Cloud xD, won’t Install properly so I switched to PSAppDeploymentTool, but it wouldn’t show the close apps windows. Now it does, again BIG THANKS!!!!!!

    Reply
  5. When I try to deploy the application using ServiceUI.exe, the command prompt is also elevated as I am using Install.bat. What should be done to just elevate the prompt that I am giving via .vbs file which I am calling under Install.bat and not the command prompt along with it.

    Reply
  6. Is there a way to force the program to appear in the foreground?
    If launched from the Intune Company Portal the installer gets hidden behind it.

    Reply
  7. Let me try replying to a few of the questions asked. @kailash, instead of calling the batch file, call the vb script or call cscript.exe . @geoff, if you are deploying as only if user logged on, the process will wait, but if you deploy as system or as whether users logged on or not, kind of defeats the need for interaction.

    Reply
