Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr. I provided a bit more details about the Client’s online status & Types in the SCCM console, related components, SQL tables, and Logs.

As we all know, the ‘client’s online status indicates whether the computer is online or offline. This feature was introduced in SCCM CB 1602, and it works through BGB (Big Green Button) channel.

If the management point doesn’t receive status in 5mins, the client is considered offline. Anoop has a “Fast Channel Online status” post; read about his experience in “Video Guide to Troubleshoot SCCM CB Fast Channel Push Notification Issues.”

Patch My PC
  • Quick Glance at the post
  • SCCM Client Online Offline Flow Chart
  • Log Flow – Notification agent(Client)
  • Log Flow – Notification Server(Management Point)
  • Log Flow – Notification Manager(Site Server)
  • Registry Entries Related to Client Online Status in SCCM Console
  • SQL Queries Related to Client Online Status in SCCM Console
  • SCCM Client online status in Site Server WMI

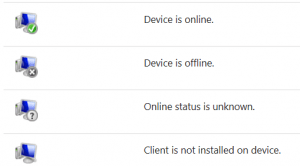

The below icon indicates the status on the device, and we can also see the last offline & online status in the SCCM console.

SCCM Client Online Status in SCCM Console Offline
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 1
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 1
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 2

SCCM Client Online Offline Flow Chart

Log Flow:

Notification agent(Client):

The notification agent(Client) will attempt to connect the TCP to the current management point using 10123 Port. Once it’s successful, the client will send the keep-alive message every 5 minutes through ClientNotificationAgent.log & CCMMessaging.log to MP.

If the client fails to establish a TCP Connection(Port 10123), the notification agent will try the HTTP protocol.

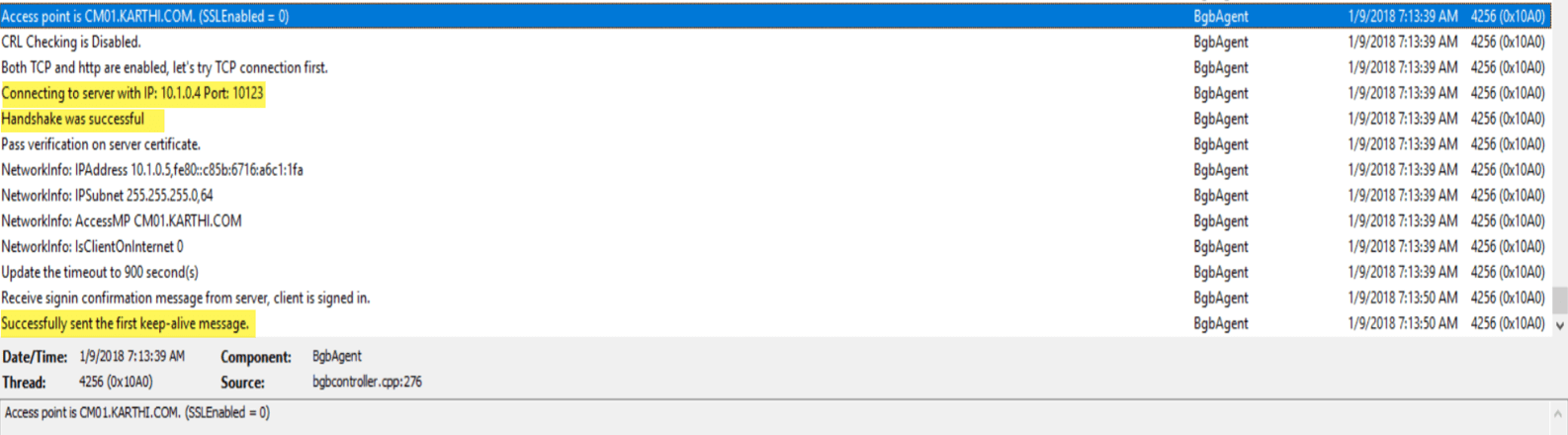

CcmNotificationAgent.log

Access point is CM01.KARTHI.COM. (SSLEnabled = 0) BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
CRL Checking is Disabled. BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
Both TCP and http are enabled, let’s try TCP connection first. BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
Connecting to server with IP: 10.1.0.4 Port: 10123
BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
Handshake was successful
BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
Pass verification on server certificate. BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
NetworkInfo: IPAddress 10.1.0.5,fe80::c85b:6716:a6c1:1fa BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
NetworkInfo: IPSubnet 255.255.255.0,64 BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
NetworkInfo: AccessMP CM01.KARTHI.COM BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
NetworkInfo: IsClientOnInternet 0 BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
Update the timeout to 900 second(s) BgbAgent 1/9/2018 7:13:39 AM 4256 (0x10A0)
Receive signin confirmation message from server, client is signed in. BgbAgent 1/9/2018 7:13:50 AM 4256 (0x10A0)
Successfully sent the first keep-alive message. BgbAgent 1/9/2018 7:13:50 AM 4256 (0x10A0)

SCCM Client Online Status in SCCM Console Log 4
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 3

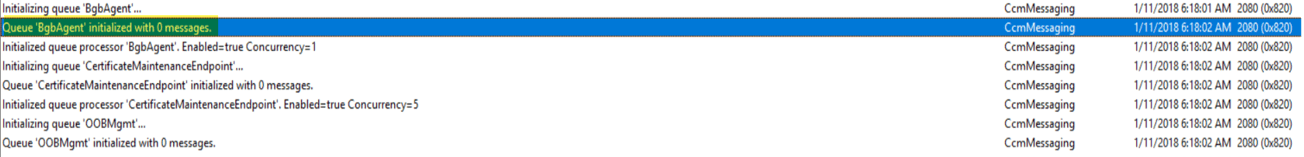

CCMMessaging.log

Initializing queue ‘BgbAgent’… CcmMessaging 1/11/2018 6:18:01 AM 2080 (0x0820)
Queue ‘BgbAgent’ initialized with 0 messages. CcmMessaging 1/11/2018 6:18:02 AM 2080 (0x0820)
Initialized queue processor ‘BgbAgent’. Enabled=true Concurrency=1 CcmMessaging 1/11/2018 6:18:02 AM 2080 (0x0820)
Initializing queue ‘CertificateMaintenanceEndpoint’… CcmMessaging 1/11/2018 6:18:02 AM 2080 (0x0820)
Queue ‘CertificateMaintenanceEndpoint’ initialized with 0 messages. CcmMessaging 1/11/2018 6:18:02 AM 2080 (0x0820)
Initialized queue processor ‘CertificateMaintenanceEndpoint’. Enabled=true Concurrency=5 CcmMessaging 1/11/2018 6:18:02 AM 2080 (0x0820)
Initializing queue ‘OOBMgmt’… CcmMessaging 1/11/2018 6:18:02 AM 2080 (0x0820)
Queue ‘OOBMgmt’ initialized with 0 messages. CcmMessaging 1/11/2018 6:18:02 AM 2080 (0x0820)

Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 2
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 4

Notification Server(Management Point)

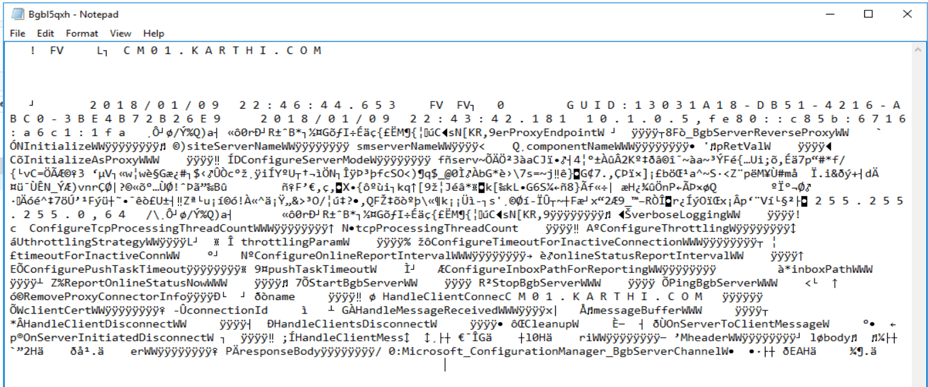

Notification Server on the Management Point will receive clients’ requests, generate online status every 5 minutes, and place it under <Installation Directory>\inboxes\bgb.box\*.BOS on the site server.

BgbSetup.log & bgbisapiMSI – Records the installation & uninstallation process.

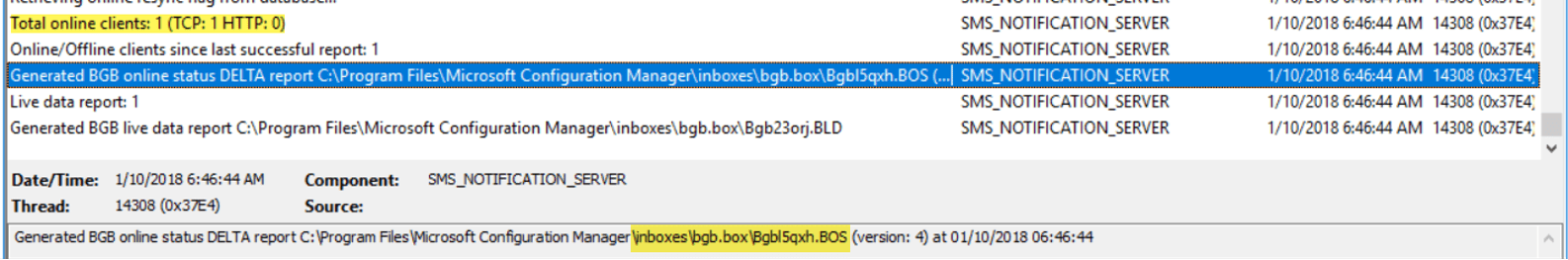

BGBServer.log

Total online clients: 1 (TCP: 1 HTTP: 0) SMS_NOTIFICATION_SERVER 1/10/2018 6:46:44 AM 14308 (0x37E4)
Online/Offline clients since last successful report: 1 SMS_NOTIFICATION_SERVER 1/10/2018 6:46:44 AM 14308 (0x37E4)
Generated BGB online status DELTA report C:\Program Files\Microsoft Configuration Manager\inboxes\bgb.box\Bgbl5qxh.BOS (version: 4) at 01/10/2018 06:46:44 SMS_NOTIFICATION_SERVER 1/10/2018 6:46:44 AM 14308 (0x37E4)

Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 3
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 5
SCCM Client Online Status in SCCM Console 6
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 6

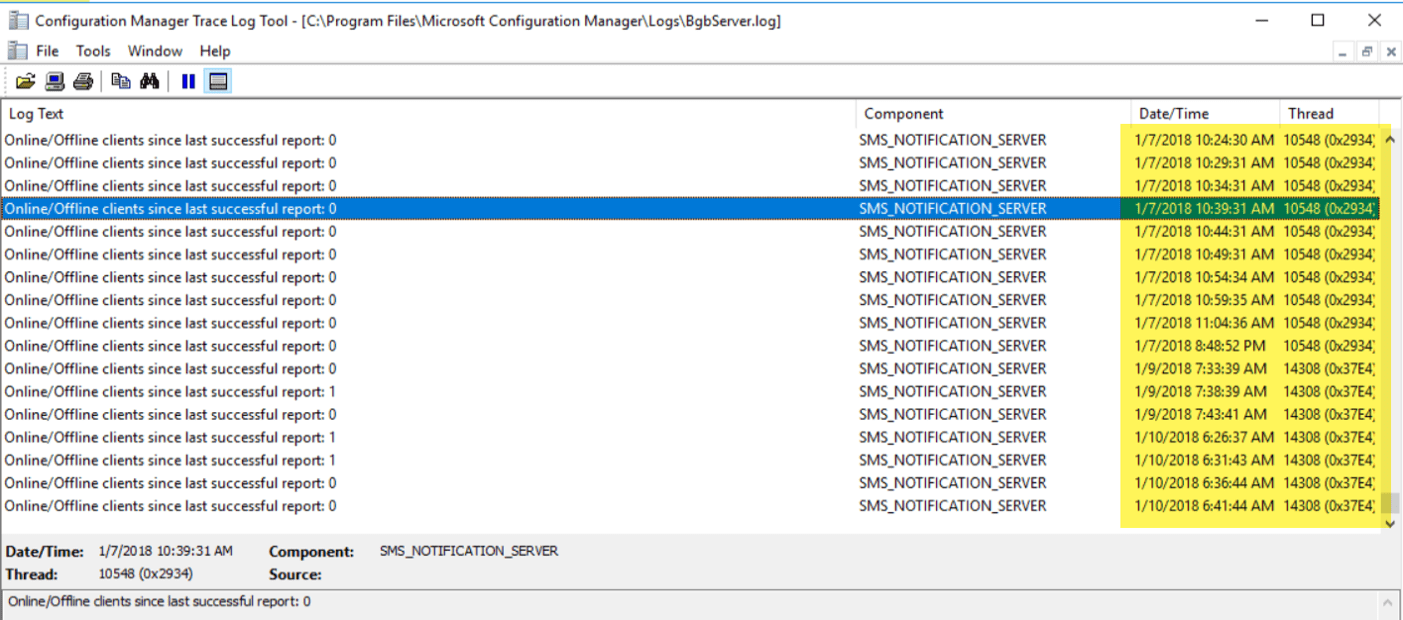

I filtered out only the status report details in the BGBServer log. As you can see in the Date/Time column, MP sends the report every 5 mins to the site server.

Online/Offline clients since last successful report: 0 SMS_NOTIFICATION_SERVER 1/7/2018 10:24:30 AM 10548 (0x2934)
Online/Offline clients since last successful report: 1 SMS_NOTIFICATION_SERVER 1/9/2018 7:38:39 AM 14308 (0x37E4)
Online/Offline clients since last successful report: 0 SMS_NOTIFICATION_SERVER 1/9/2018 7:43:41 AM 14308 (0x37E4)
Online/Offline clients since last successful report: 1 SMS_NOTIFICATION_SERVER 1/10/2018 6:26:37 AM 14308 (0x37E4)

SCCM Client Online Status in SCCM Console Log
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 7

Notification Manager(Site Server):

The notification manager will process the Online files (*.BOS) from bgb. box and update the online information in the site database

BGBManager.log

Successfully ran sql task for file C:\Program Files\Microsoft Configuration Manager\inboxes\bgb.box\Bgbl5qxh.BOS SMS_NOTIFICATION_MANAGER 12/26/2017 7:52:05 PM 15452 (0x3C5C)
Successfully processed file C:\Program Files\Microsoft Configuration Manager\inboxes\bgb.box\Bgbl5qxh.BOS SMS_NOTIFICATION_MANAGER 12/26/2017 7:52:05 PM 15452 (0x3C5C)
Successfully processed file Bgbl5qxh.BOS, clean it. SMS_NOTIFICATION_MANAGER 12/26/2017 7:52:05 PM 15452 (0x3C5C)

Registry Entries Related to Client Online Status in SCCM Console:

The below registry is related to the Notification Manager in the site server. We can modify the interval cycle & Client notification trigger timed out (ex., Machine policy, Collect H/W inventory..etc. trigger timed out) in the SCCM console.

If the machine is offline, the triggered actions will be timed out after the configured seconds in the below registry.

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\COMPONENTS\SMS_NOTIFICATION_MANAGER

SQL Queries Related to Client Online Status in SCCM Console:

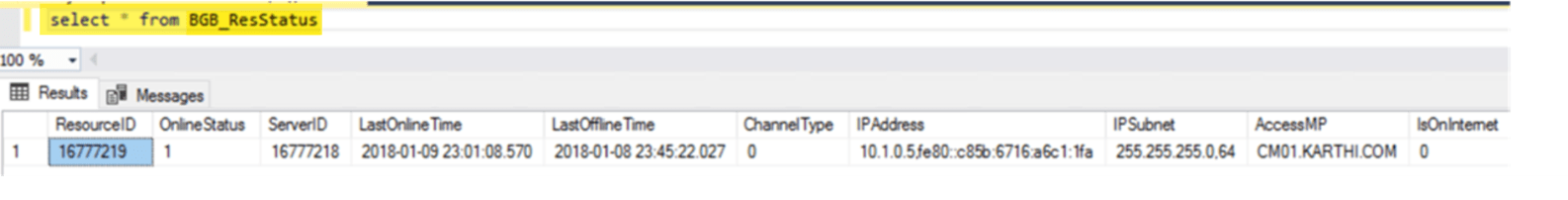

  1. The below query lists the resourceID with online status details.

select * from BGB_ResStatus

SCCM Client Online Status in SCCM Console
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 8

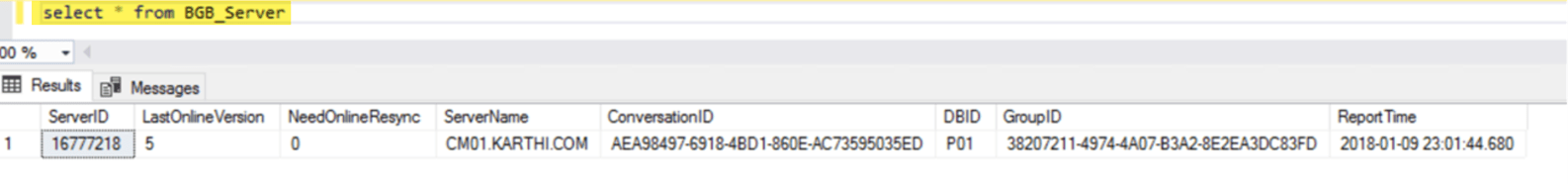

2. List the Notification Servers details.

select * from BGB_Server

SCCM Client Online Status in SCCM Console
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 9

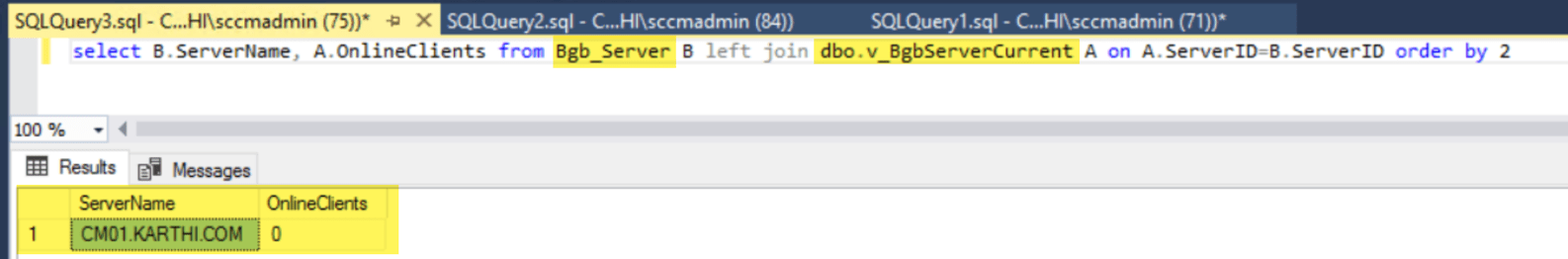

3. List the total number of online clients count with Notification Server(Management Point).

select B.ServerName, A.OnlineClients from Bgb_Server B left join dbo.v_BgbServerCurrent A on A.ServerID=B.ServerID order by 2

SCCM Client Online Status in SCCM Console
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 10

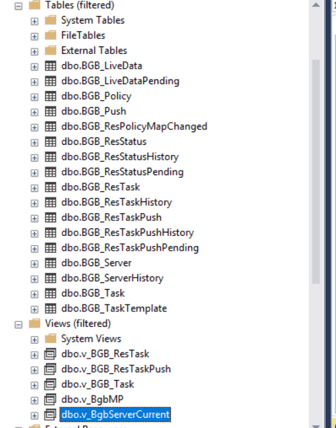

BGB Related tables the below

SCCM Client Online Status in SCCM Console
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 11

BGB_TaskTemplate table provides the details of client notifications actions and valid seconds.

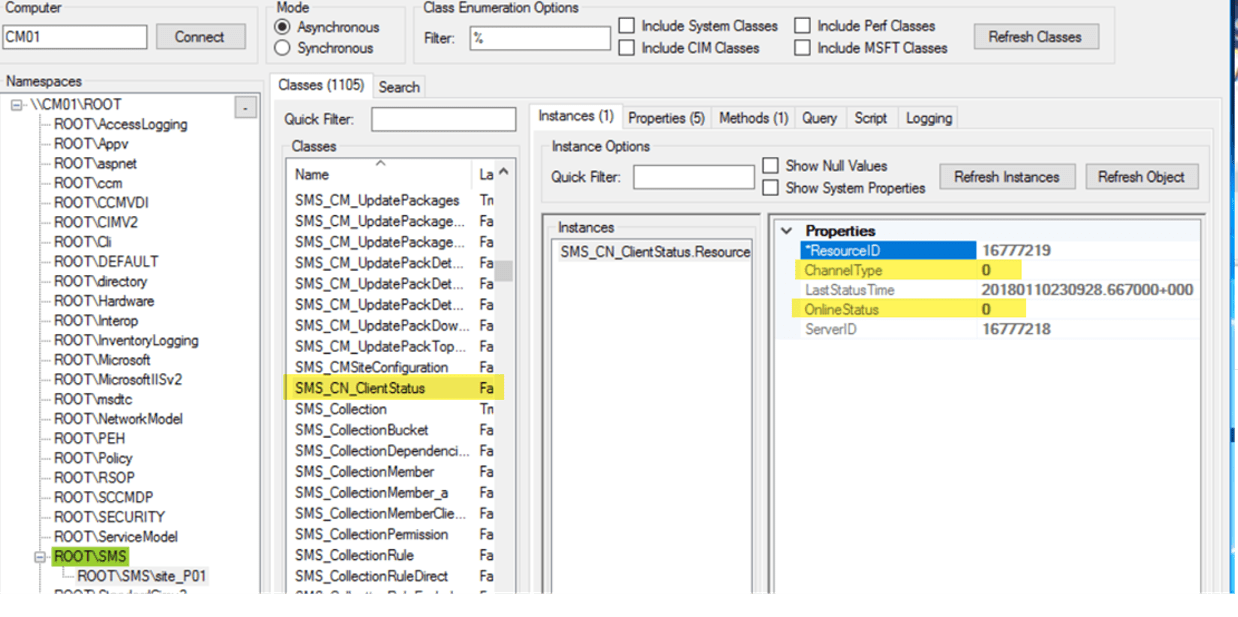

SCCM Client online status in Site Server WMI:

Value 1 means online, and 0 represents offline. ChannelType = 0 stands for TCP Protocol and 1 is HTTP protocol.

\CM01\ROOT\SMS\site_P01:SMS_CN_ClientStatus.ResourceID=16777219

SCCM Client Online Status in SCCM Console
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 12

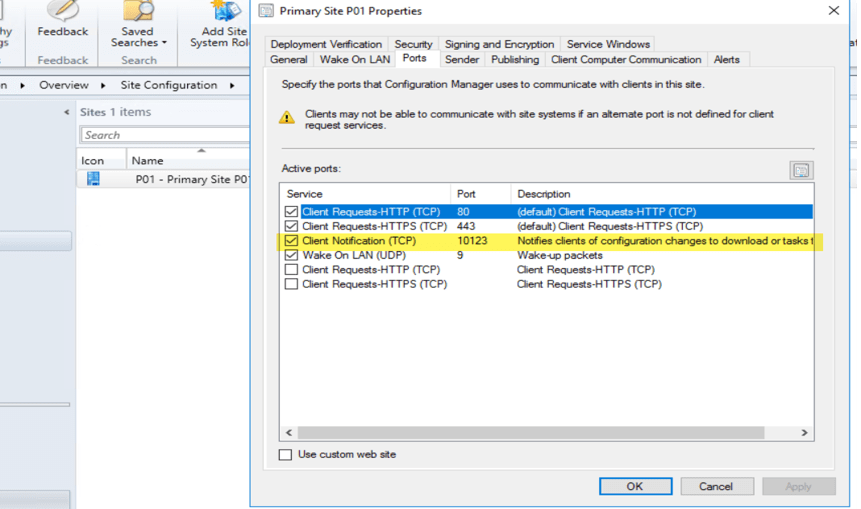

Client Notification port settings in the Site Properties

SCCM Client Online Status in SCCM Console
Overview of Client Online Status in SCCM Console Configuration Manager ConfigMgr 13

I hope this post helps you. Thank you for reading
