Clean-up SCCM CMG and Cloud Services from SCCM

0
Remove SCCM CMG

Most of the SCCM admins have isolated lab environment to test the new features of SCCM. Setting up Azure cloud services for testing new SCCM CMG (Cloud Management Gateway), Azure AD User Discovery, and Cloud DP is costly. My recommendation is to create Azure trial subscription and try to test the SCCM features. You will learn how to remove SCCM CMG and other cloud services from this post.

[Related PostHow to Remove SCCM Cloud DP]

Tips Before Removing SCCM CMG and Cloud Services

Don’t remove the Azure PaaS server and blob storage before removing the CMG from SCCM console. You can follow the steps mentioned in the below section to remove SCCM CMG (Cloud Management Gateway) from your environment.

When you have enabled SCCM CMG as CDP, your Cloud DP will also get removed when you delete or remove SCCM CMG. Make sure your internet client management won’t get impacted when you perform this deletion action in a production environment. You should have an additional CMG for internet client management.

There are different scenarios in which you need to remove SCCM CMG and other cloud services. One of the situation is to clean-up your lab environment. Another situation is to remove SCCM CMG or other cloud services like Azure AD user discovery as part of troubleshooting or migration etc.

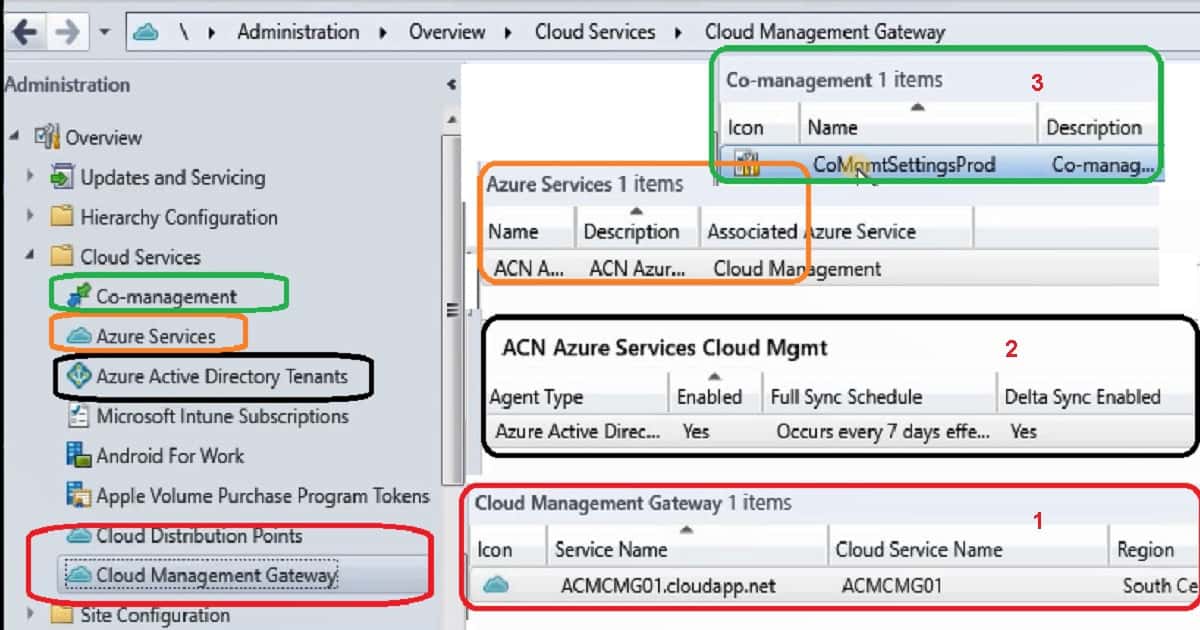

Remove SCCM CMG

Video Tutorial – How to Remove SCCM CMG and Cloud Services?

The following topics are discussed in the video tutorial. I hope this will give a video experience and a better understanding.

  • Why Delete Azure Cloud Services
  • Check Azure Portal before Deleting
  • Remove SCCM CMG and Cloud DP
  • Remove the SCCM Cloud Management Connection Point Role
  • How to validate SCCM CMG Deletion (Log Files)
  • Remove Cloud Services and Azure AD User Discovery
  • Remove Co-Management Configurations
  • Remove Azure Active Directory Tenants

[Related PostHow to Remove SCCM Cloud DP]

How to Remove SCCM CMG (Cloud Management Gateway & CDP)?

Yes, it’s easy to remove or delete Cloud DP and CMG if you compare it with the installation of both those roles or services. Follow the below steps to remove SCCM CMG and, Cloud DP configured in the CMG.

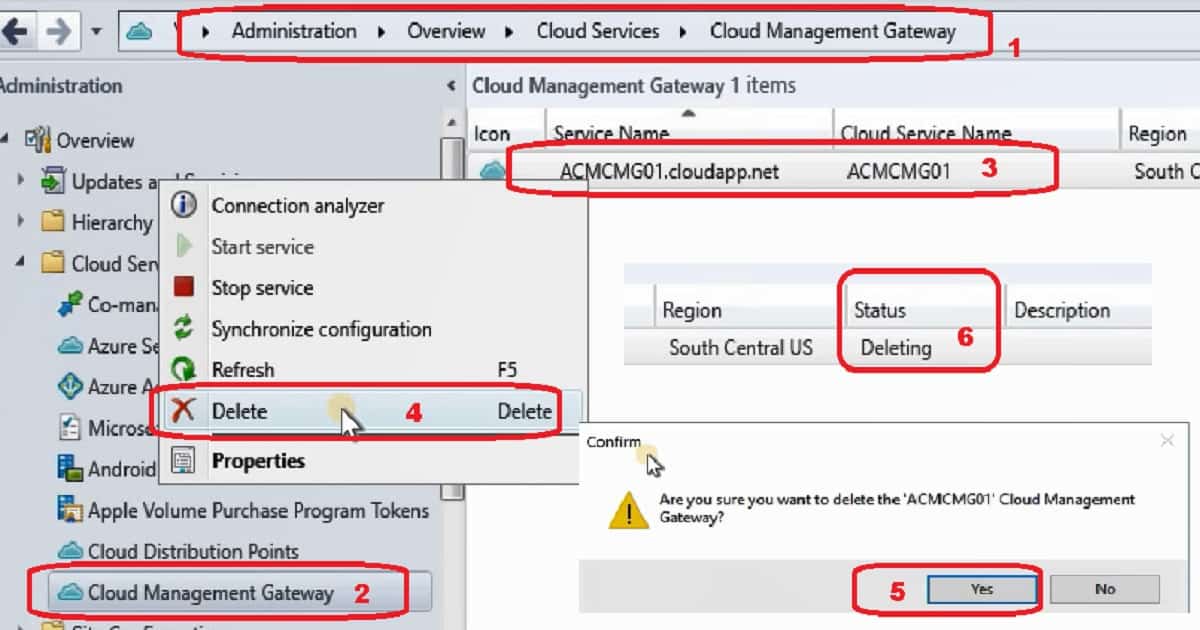

  1. Navigate to \Administration\Overview\Cloud Services\Cloud Management Gateway
  2. Select the Cloud Management Gateway – go to properties – Content – And make sure there are no packages distributed (other than default packages which can’t be removed) to that Cloud DP
  3. Click on Delete button from the ribbon menu to remove SCCM CMG
  4. Click on Yes button from the confirmation windows to initiate the CMG deletion process
  5. Step #4 launches the deletion process from the SCCM side and Azure side as well

Remove SCCM CMG

How to Confirm Whether SCCM CMG is Removed?

You can confirm whether the SCCM CMG got removed from Azure and SCCM. The best way is to check the log files like CloudMgr.log. Another option is to check the monitoring the status in Cloud Management Gateway node in SCCM console.

Another option is to check the Azure Portal to confirm whether the SCCM CMG Azure blob storage account and Azure CMG Virtual server (PaaS) got removed or not.

How to – Remove SCCM Cloud Management Connection Point Role?

You can remove the connector role before or after the removal of SCCM CMG. In the above video and this guide, I removed the SCCM cloud management connection point role after removing CMG. Follow the steps to remove the SCCM cloud management connection point role.

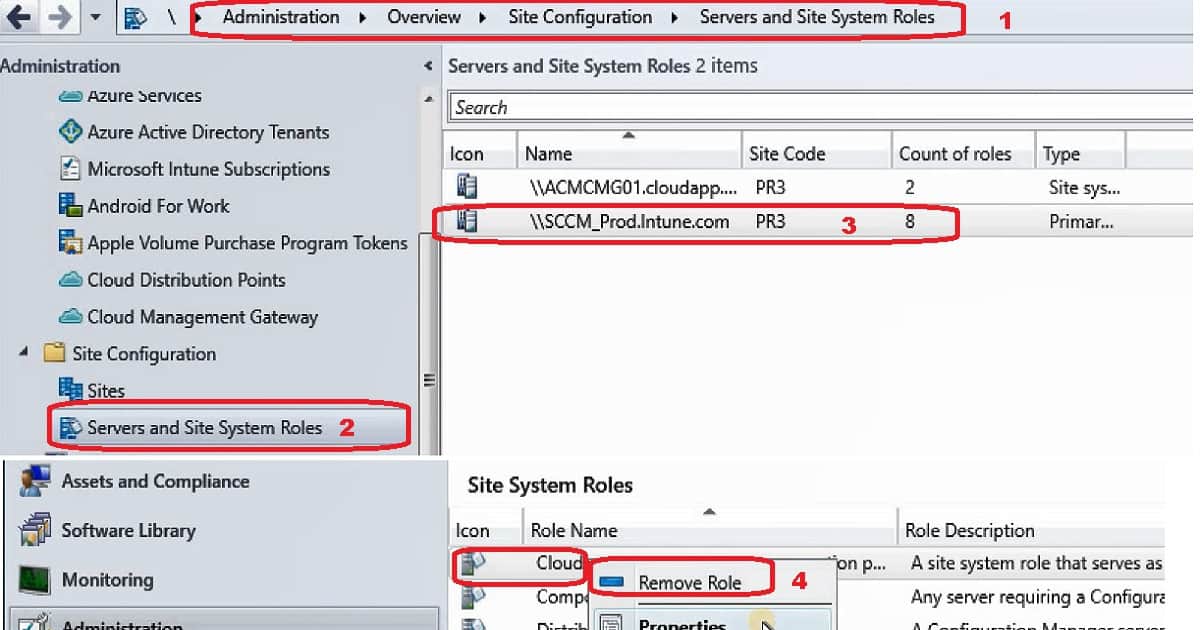

  1. Navigate to \Administration\Overview\Site Configuration\Servers and Site System Roles
  2. Select the server where you have installed CMG connection point role
  3. Go to Details Pane in SCCM console then Right-click & select Remove Role – the cloud management connection point role
  4. The above step #3 launches the process to delete the role from the SCCM primary server or remote site system

Remove SCCM CMG Connection Point

[Related PostHow to Remove SCCM Cloud DP]

Remove – Azure AD User Discovery and Azure Services from SCCM

You can remove the Azure Active Directory user discovery details from SCCM console. This option is available under the Azure services node.

  1. Navigate to \Administration\Overview\Cloud Services\Azure Services
  2. Select the Azure service name which you want to remove the AAD User discovery
  3. Go to Details Pane in SCCM console then Right-click & select Remove the discovery (optional)
  4. Right click on Azure Service name and Delete

Remove – Azure Active Directory Tenants and Server and Client Azure Apps

You can remove the Azure Active Directory tenant details from SCCM console. This option is available under the Azure Active Directory tenant node. From this node, you can delete Azure server and client apps which get created during the cloud services onboarding process.

  1. Navigate to \Administration\Overview\Cloud Services\Azure Active Directory Tenant
  2. Select the Azure Tenant name which you want to remove the server and client apps
  3. Go to Details Pane in SCCM console then Right-click & select Remove the server app and then client app. Or you can click on DELETE button from the ribbon menu
  4. Right click on Azure Active Directory Tenant name and Delete to remove the tenant details from SCCM

Remove – Co-Management Configurations from SCCM

You can remove the co-management details from SCCM console. This option is available under Co-Management node. From this node, you can delete SCCM co-management configurations.

  1. Navigate to \Administration\Overview\Cloud Services\Co-Management
  2. Select the Co-management option list view
  3. Right click on Co-Management configuration and Delete to remove the co-management configuration from SCCM

Remove SCCM CMG - Co-management

Resources

How to Setup Co-Management Video Tutorials

Integrate Apps with Azure AD – https://docs.microsoft.com/en-gb/azure/active-directory/develop/quickstart-v1-integrate-apps-with-azure-ad
