SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr

Let’s see how to Customize Windows Out of Box Experience using SCCM. In this post, I will explain to you the scenarios where you will able to display language and region settings for user’s inputs in Windows Out of Box Experience (OOBE) after operating system deployment using the configuration manager.

The purpose to show OOBE is to allow flexibility for end-users to specify settings for customizing the Windows 10 first-run experience. There are several pages in the OOBE flow, each one requests a specific action or input from the user.

I have customized the complete OOBE flow to suppress OOBE flow except for region and keyboard layout with the answer file. In the same way, you can also customize based on your requirements.

Lets start with the process to create an answer file to customize an image.

Customize the Out of Box experience(OOBE)

Windows System Image Manager (Windows SIM) is the tool included with the Windows ADK that you can use to create unattended Windows Setup answer files. Download and install the Windows ADK.

Windows SIM uses Windows image (.wim) files and catalog (.clg) files to display the available components and packages that can be added to an answer file (Unattend.xml).

Windows images and catalog files contain configurable settings that you can modify after the component or package is added to an answer file.

Overview

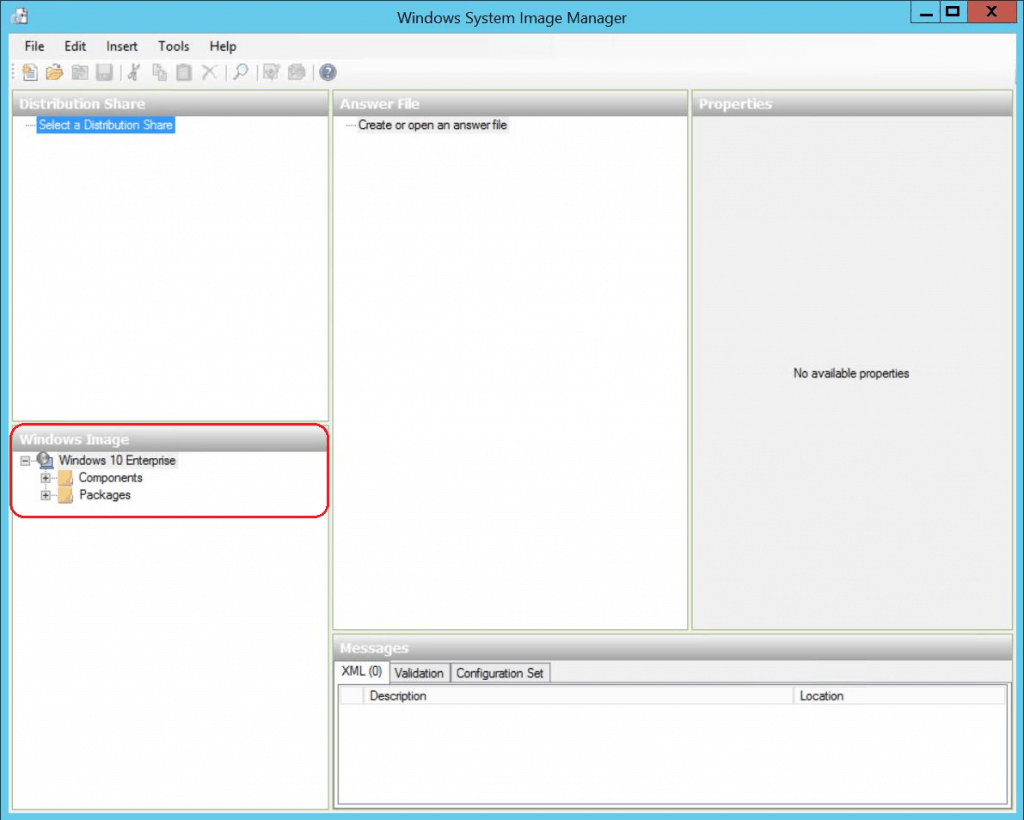

The Windows System Image Manager user interface contains a series of panes. The following screen shot illustrates the Windows SIM user interface. More Details Windows SIM Overview.

windows sim user interface - SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
Windows System Image Manager User Interface Overview – Credit Microsoft – Customize Windows OOBE using SCCM

Limitations

Create a catalog file

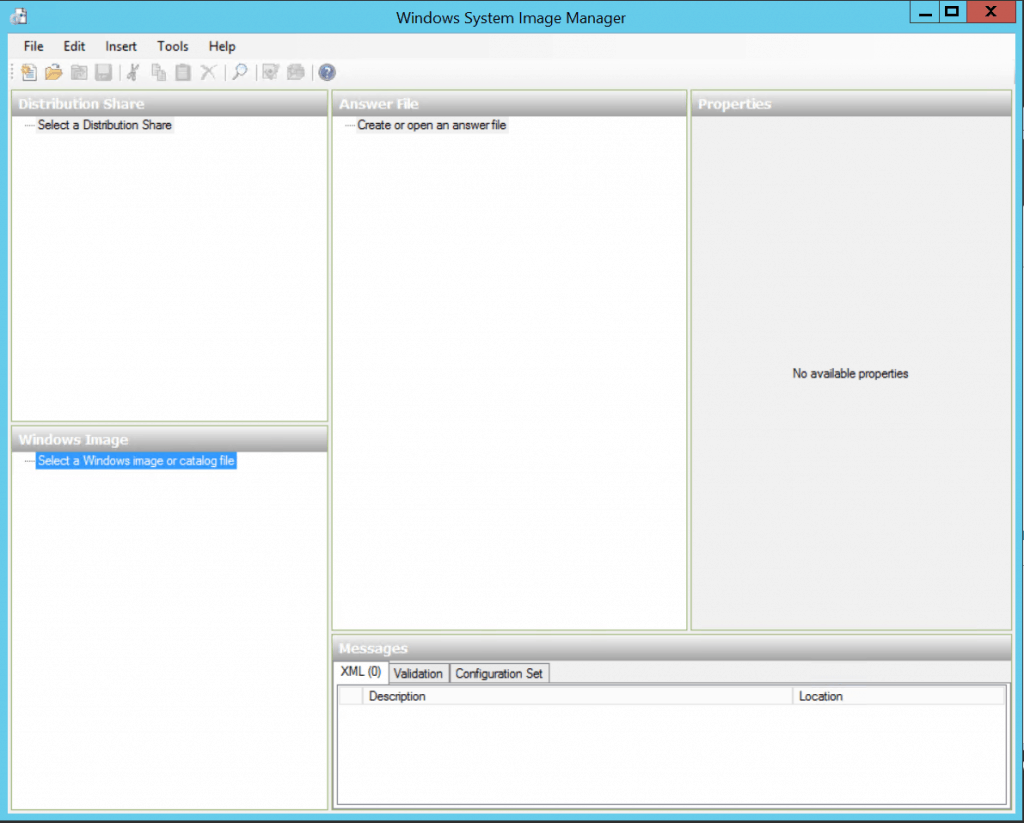

  • Start Windows System Image Manager, You can open Windows SIM by searching your computer for “Windows System Image Manager”.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
Windows System Image Manager – SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr

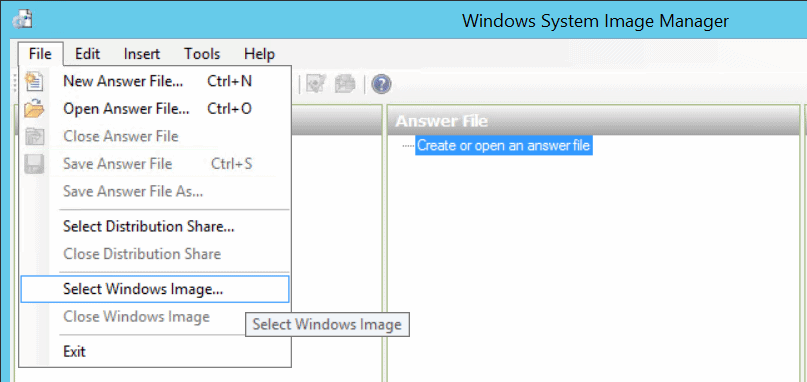

  • Click File > Select Windows Image.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
Select Windows Image – SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr

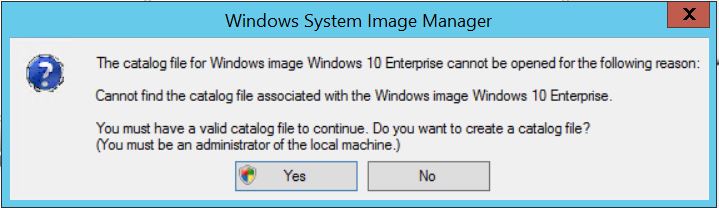

  • In Select, a Windows Image, browse to and select the image file (install.wim) and click OK. Click Yes to create the catalog file.

Note – Install.wim is located in the Sources folder of downloaded Windows ISO.

  • Windows SIM creates the file based on the image file and saves it to the same folder as the image file. This process can take several minutes.

The catalog file appears in the Windows Image pane with lists the configurable components and packages in that image.

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
Windows Image – Components, Packages – SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr

Create New Answer File

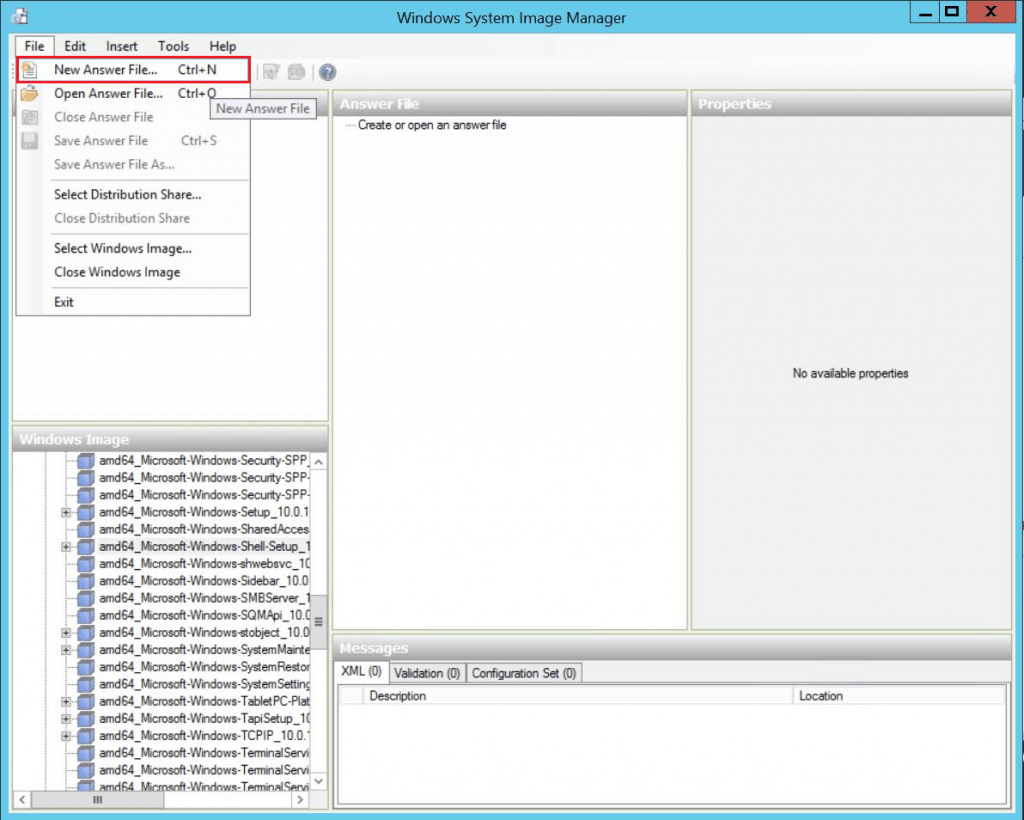

  • Click File > New Answer File. The new answer file appears in the Answer File pane.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 2
Click File > New Answer File

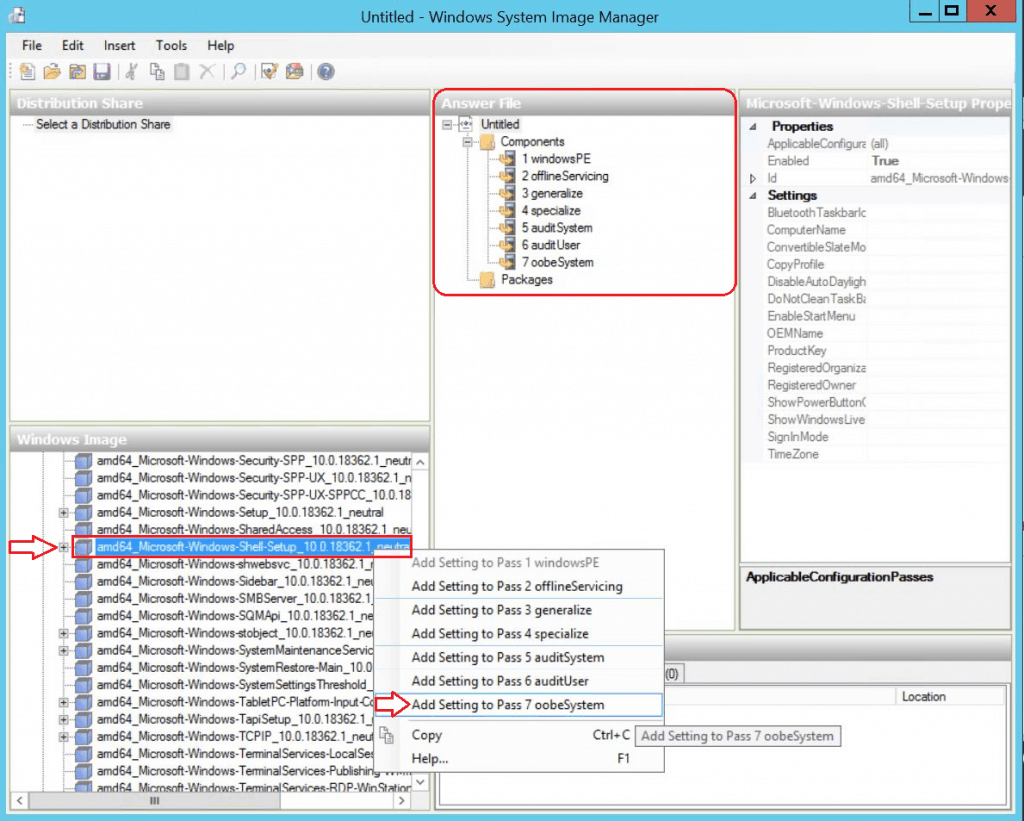

  • Add new answer file settings, In the Windows Image pane, expand Components, right-click amd64_Microsoft-Windows-Shell-Setup_(OS Build version)_neutral, and then select Add Setting to Pass 7 oobeSystem.
  • oobeSystem: Most of these settings run after the user completes OOBE.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr

You can specify which configuration pass to add new settings to pre-configure the Out of Box Experience. I had specifies the behavior of some of the Windows Out of Box Experience (OOBE) screens to skip pages from appearing in OOBE. Refer Microsoft article to Automate OOBE.

SettingDescription
HideEULAPageHides the Microsoft Software License Terms page.
HideLocalAccountScreenHides the Administrator password screen. This setting applies only to the Windows Server editions.
HideOEMRegistrationScreenHides the OEM registration page.
HideOnlineAccountScreensSpecifies whether the user will be required to sign-in during OOBE.
HideWirelessSetupInOOBEHides the Join Wireless Network page.
NetworkLocationSpecifies the network type.
OEMAppIDEnables the OEM to specify app information.
ProtectYourPCHides the Help protect your computer and improve Windows automatically page. That page specifies whether updates are automatically downloaded and installed.
UnattendEnableRetailDemoUse to enable retail demo mode on the device.
VMModeOptimizationsUse to customize the user experience when in VM mode.
AutoLogonSpecifies credentials for an account that is used to automatically log on to the computer.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 3

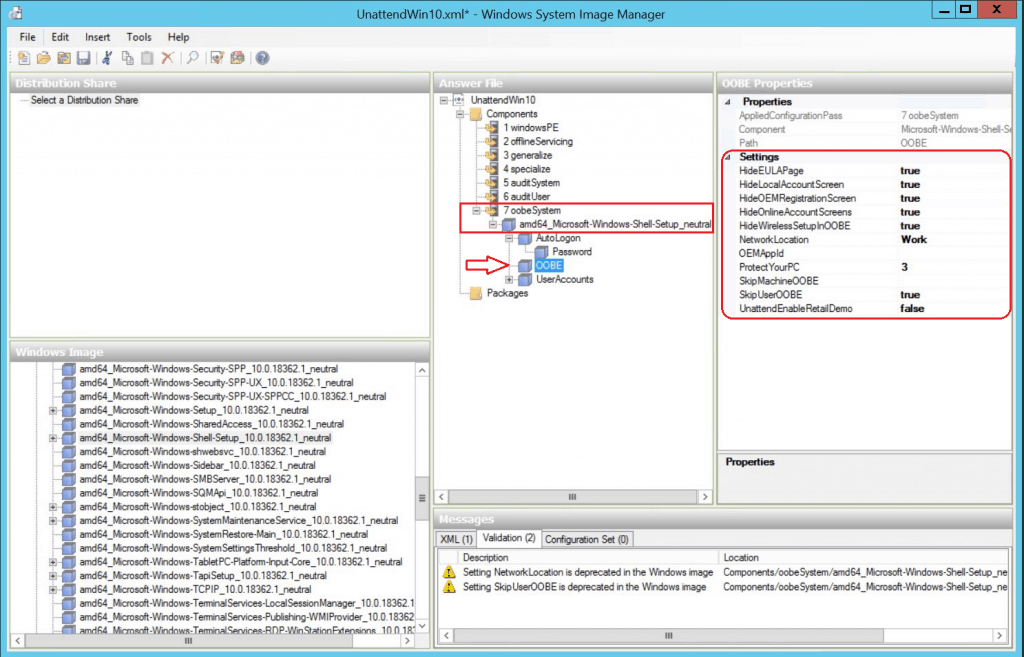

Configure oobeSystem Phase

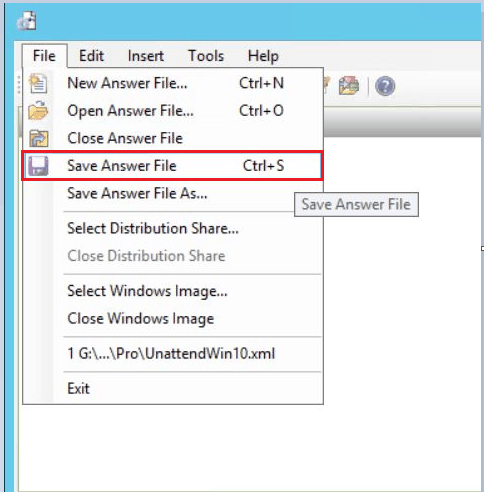

  • Save the answer file, for example: D:\AnswerFiles\UnattendWin10.xml
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 4
Save Answer File

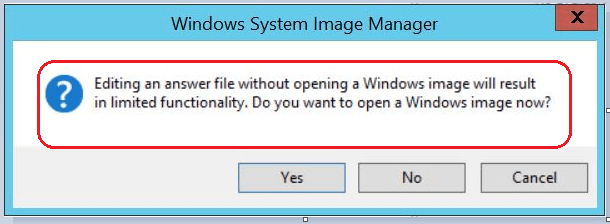

Note – If you open an existing answer file, you might be prompted to associate the answer file with the image. Click Yes.

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 5

Prepare Scripts

In order to configure OOBE, You can run the following powershell script to get started with configuration.

Start-Process -FilePath "C:\windows\system32\sysprep\sysprep.exe" -ArgumentList "/oobe /reboot /unattend:C:\Windows\Temp\UnattendWin10.xml"

Special Thanks to Jörgen Nilsson for the post How to show OOBE for AzureAD Join after OSD with SCCM and Mani for sharing Tips.

Next I am going to create a batch file and use the powershell script and unattended file to copy to location (C:\Windows\Temp) for execution.

copy /y "%~dp0WindowsOOBE.ps1" "C:\Windows\Temp"
copy /y "%~dp0UnattendWin10.xml" "C:\Windows\Temp"

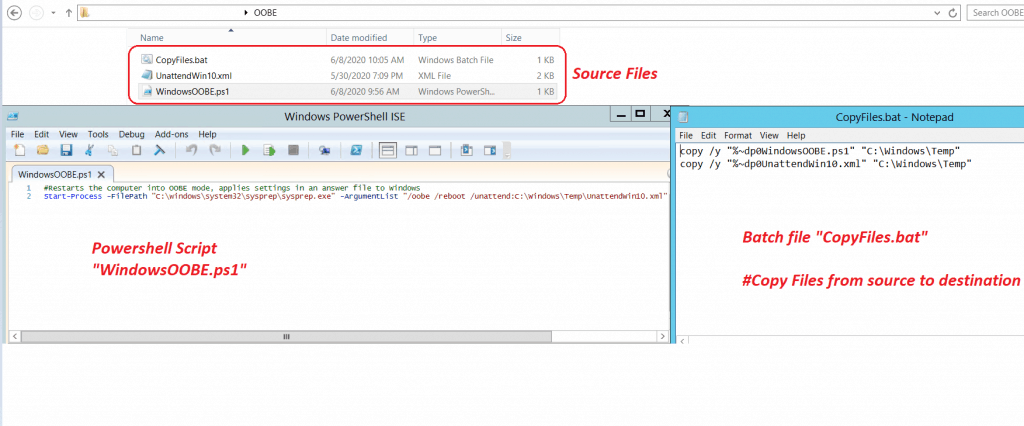

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 6
Package Source

Create Package in SCCM

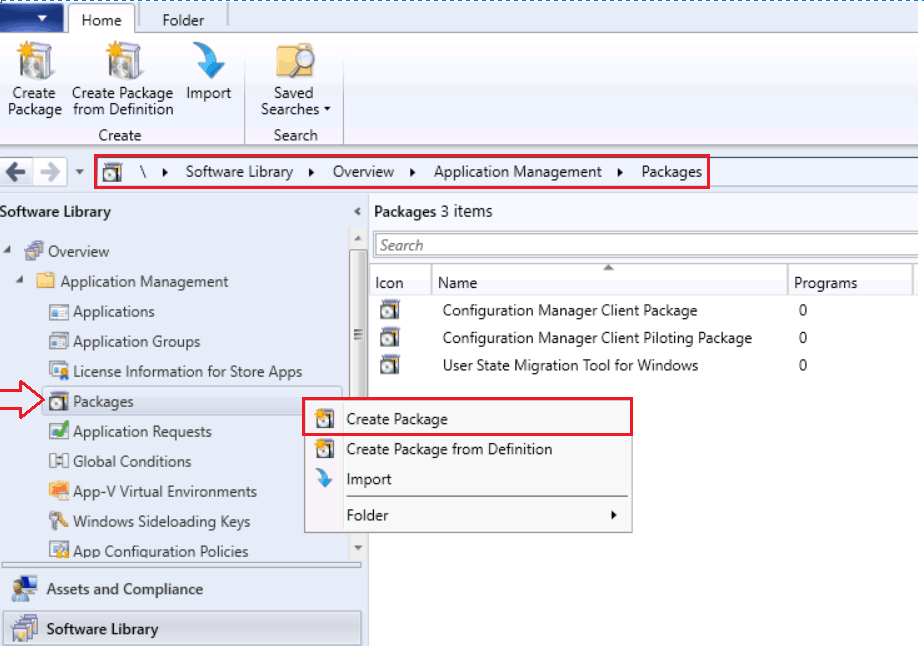

In the Configuration Manager console, Go to the Software Library workspace, expand Application Management, right click Packages and select Create Package.

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
Create Package – SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr

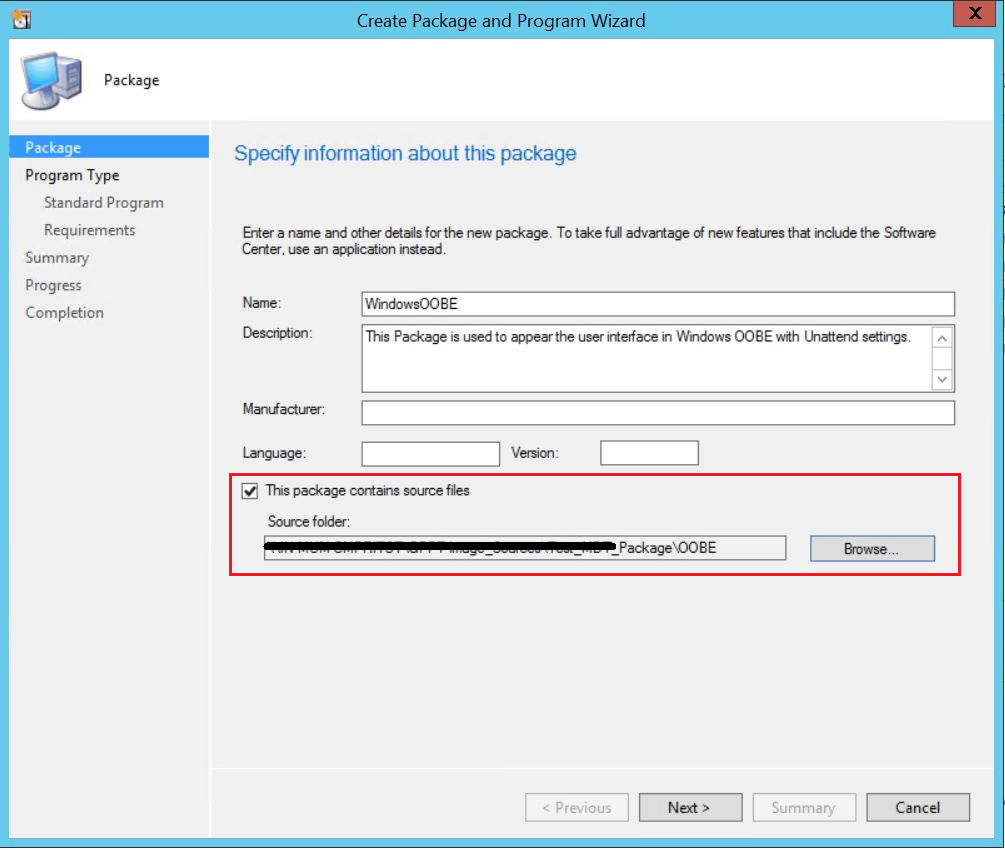

  • On the Package page, Specify the following information and Click Next.
  • Name: Specify a name for the package.
  • Description: Specify a description for this package.
  • Source folder: Choose to Browse to select the UNC path and then specify the location of the source files for the package.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 7
Specify information for package – Name, Source files.

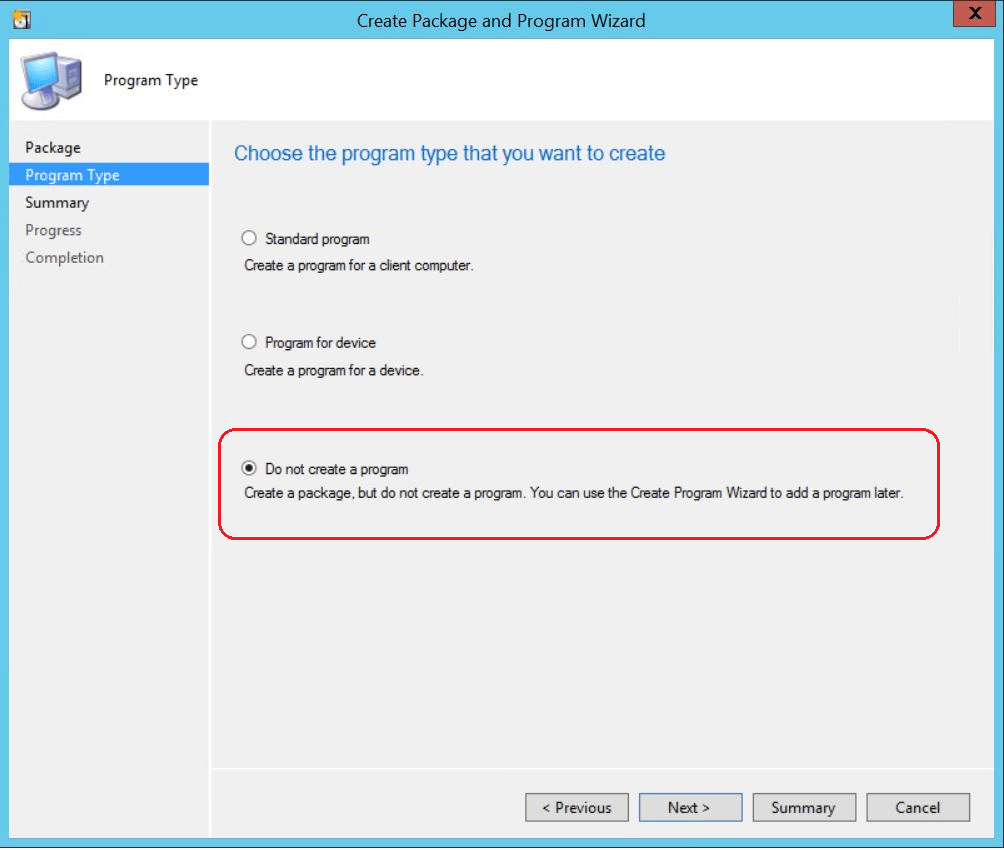

  • On the Program Type, Choose the type of program Do not create a program. Click Next.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
Select Do not create a program – SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
  • Review the settings, Click Next.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
Confirm the settings – SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr

Click Close to Complete the wizard.

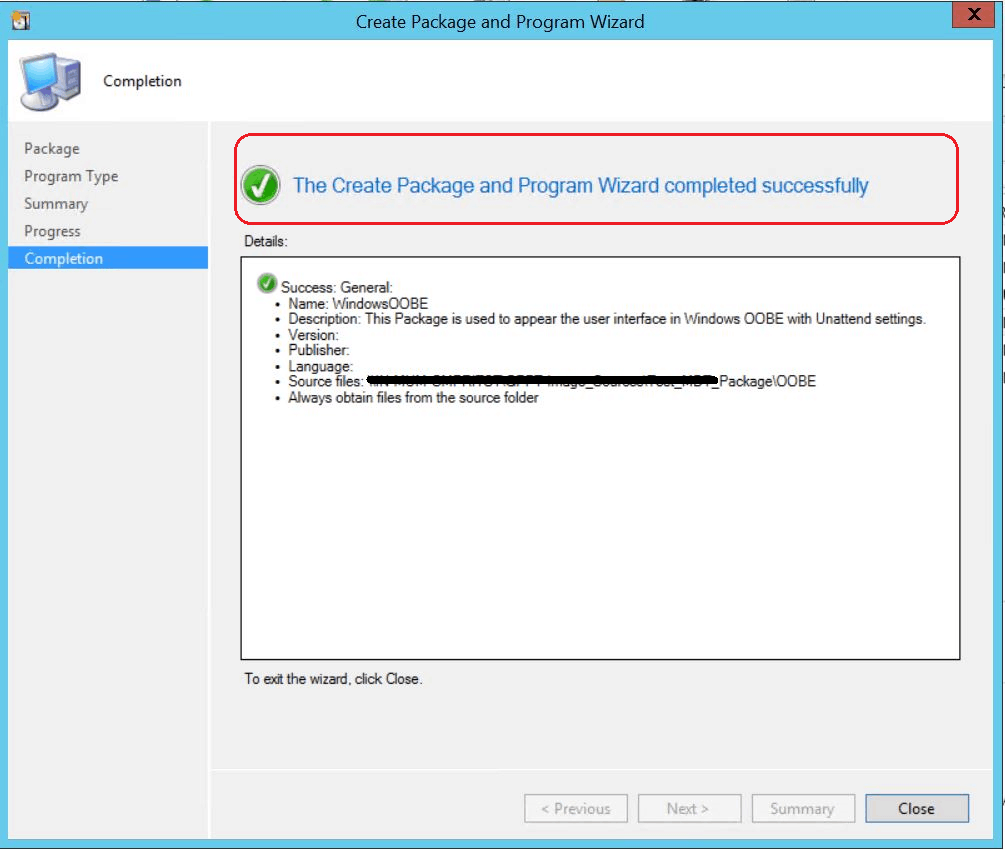

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 8
The Create Package completed successfully

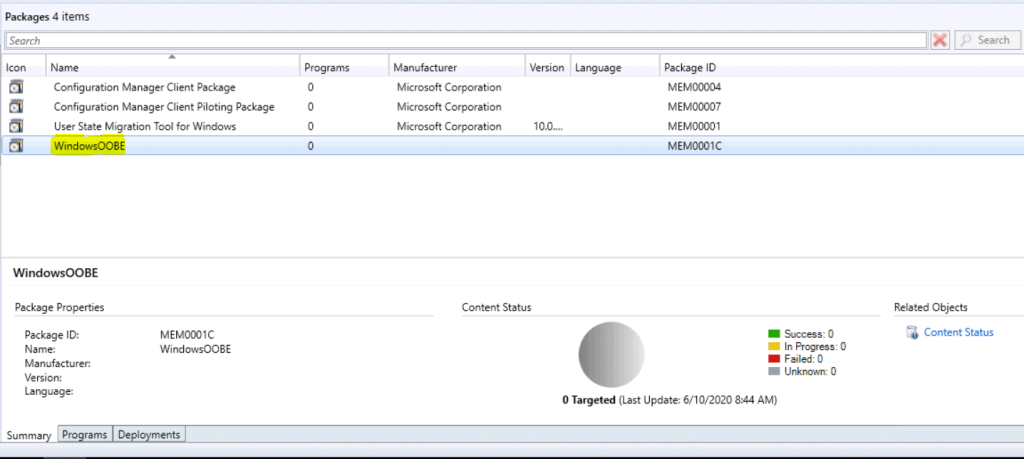

  • The Package is created successfully.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 9

Distribute Package

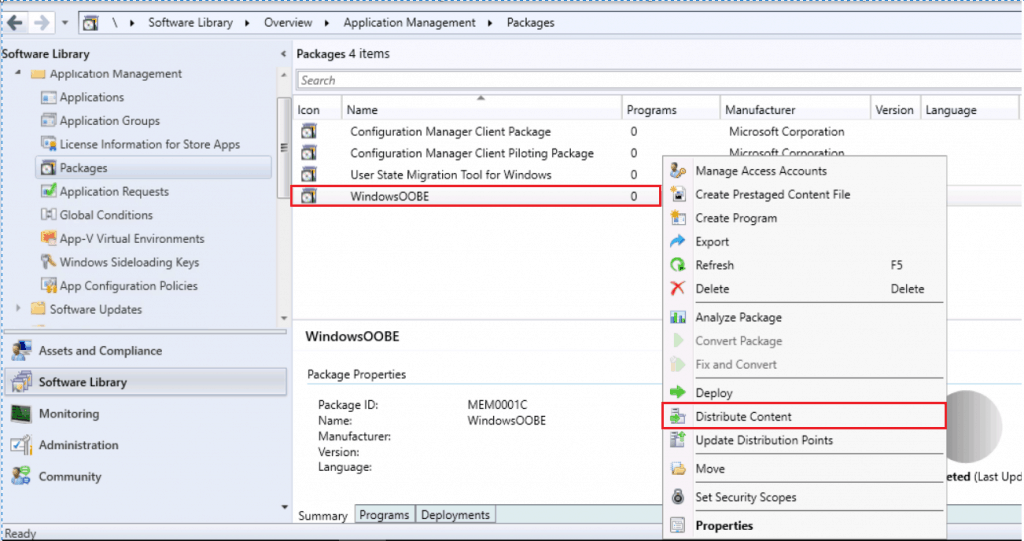

  • You must distribute the content to the distribution point. Right-click on package and click Distribute Content.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 10
Package – Distribute Content

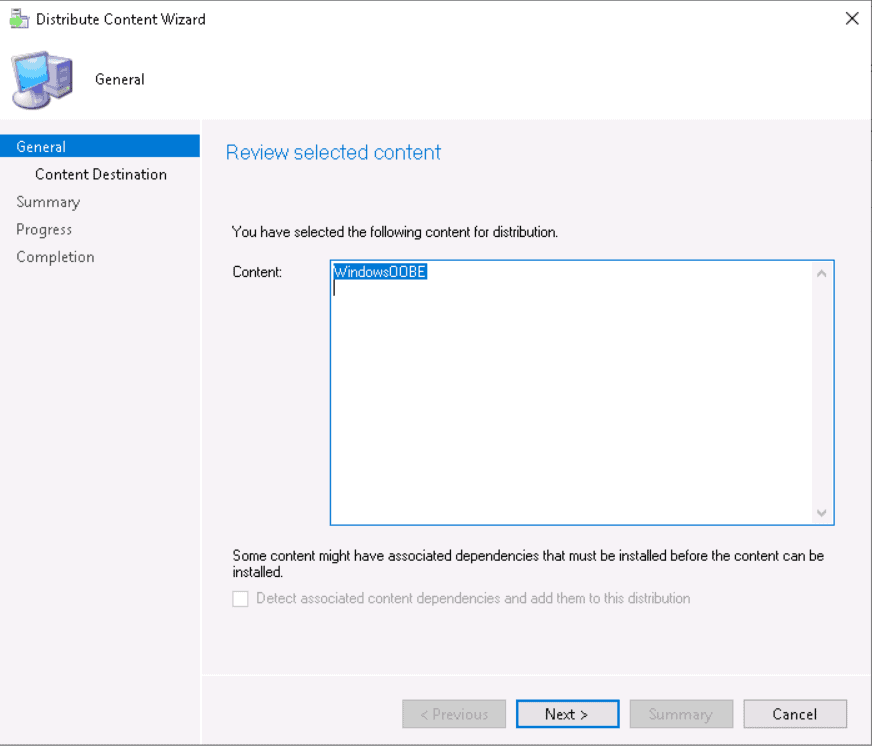

  • Review the selected content for distribution. click Next.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 11
Review selected content for distribution

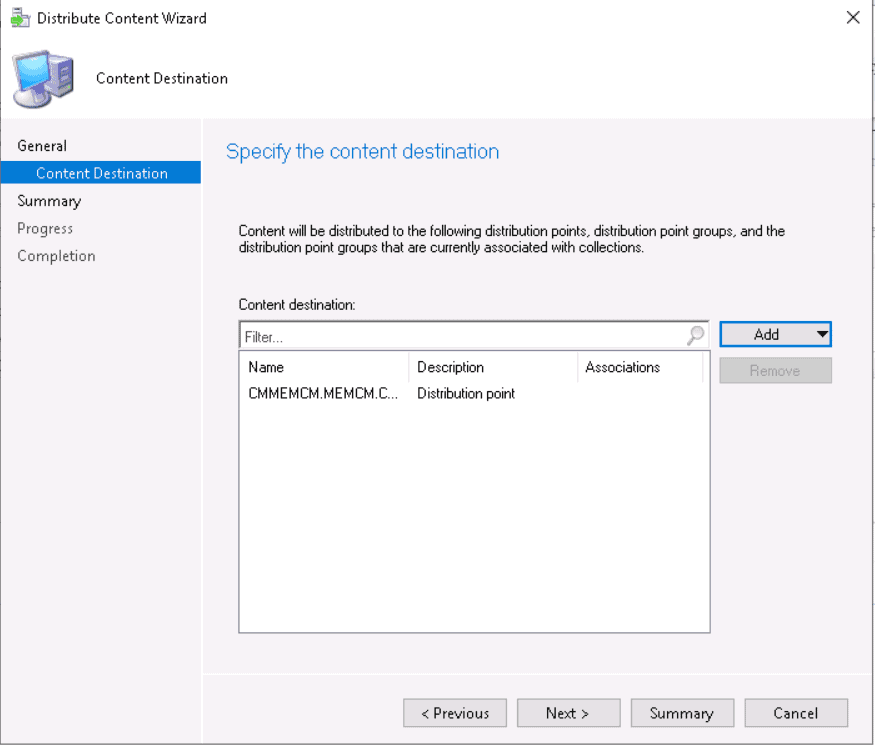

  • Add the distribution point or distribution point groups. Review the selected distribution points, groups and click Next.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
Added Distribution Point – SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr

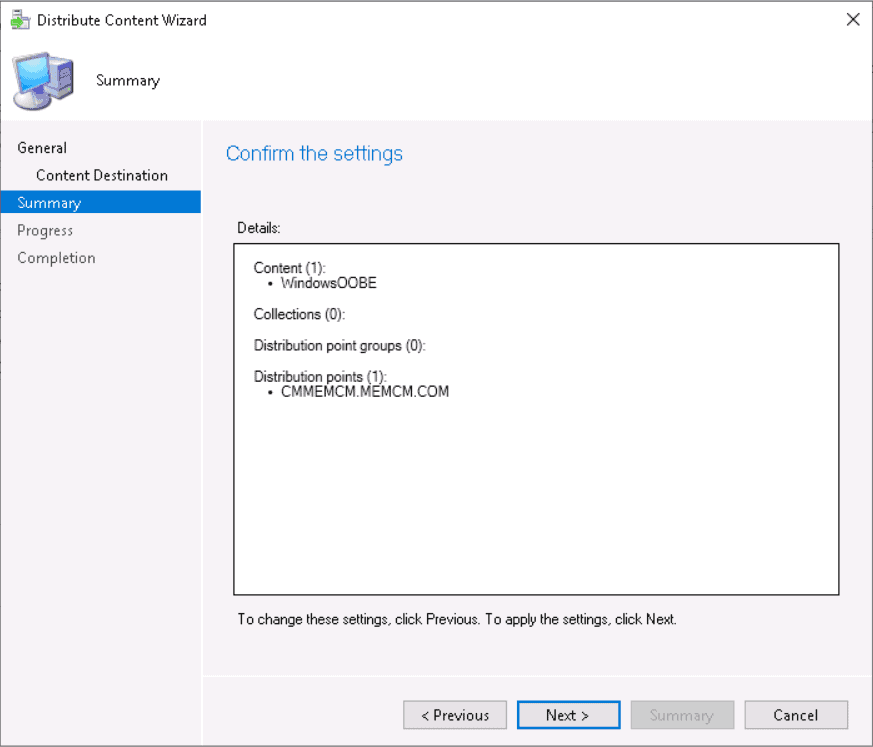

  • Review the settings and click Next.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 12
Confirm the settings

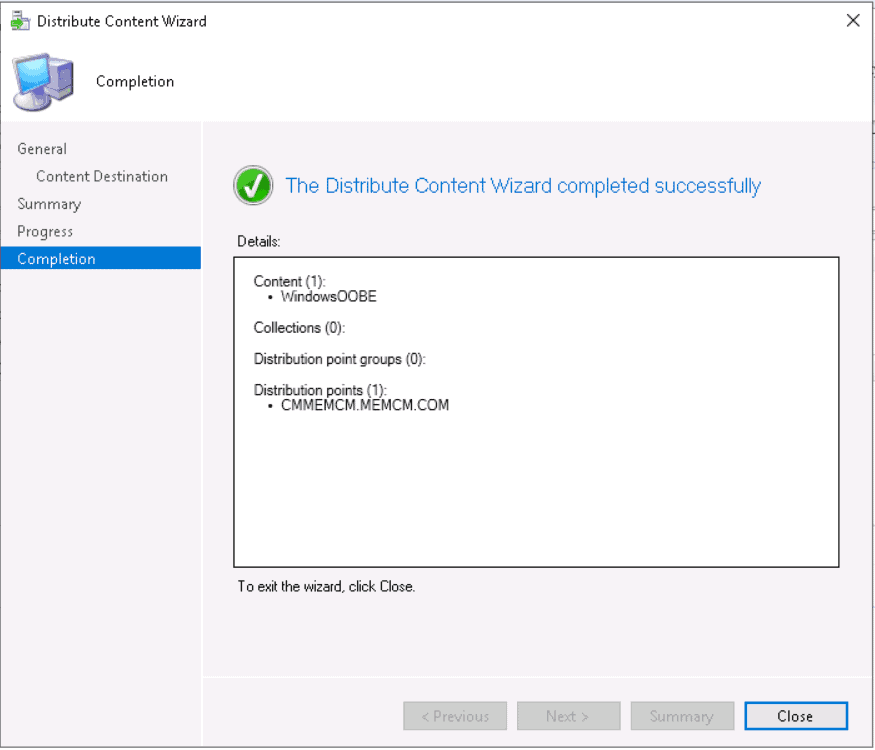

  • Click close to complete the Distribute Content wizard.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 13
The Distribute Content Wizard completed successfully

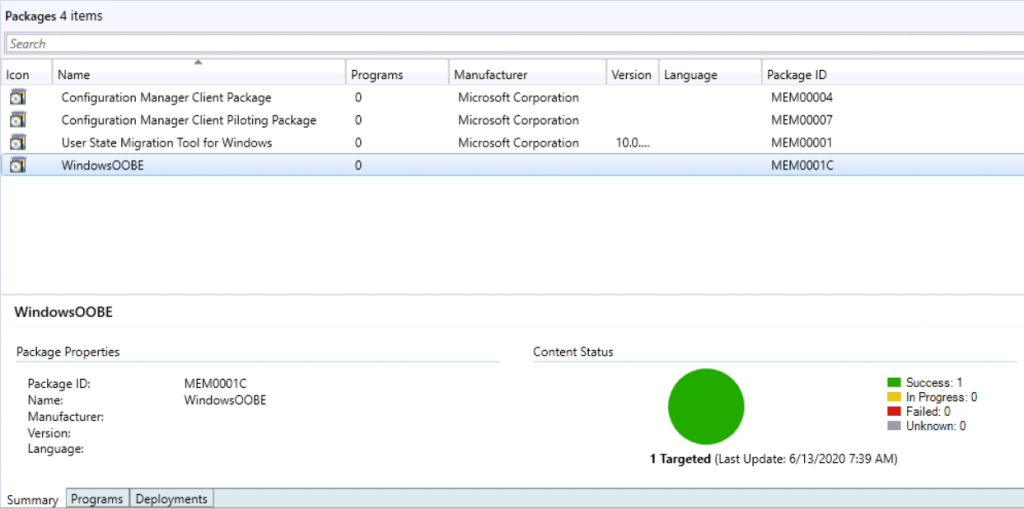

You can monitor the content status if its showing yellow color that means distribution is in progress. If the content distribution was successful, it will be appear with Green color as shown.

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 14

Create or Edit an Existing Task Sequence

This Guide will help you to create a Configuration Manager task sequence from scratch.

Customize Task Sequence

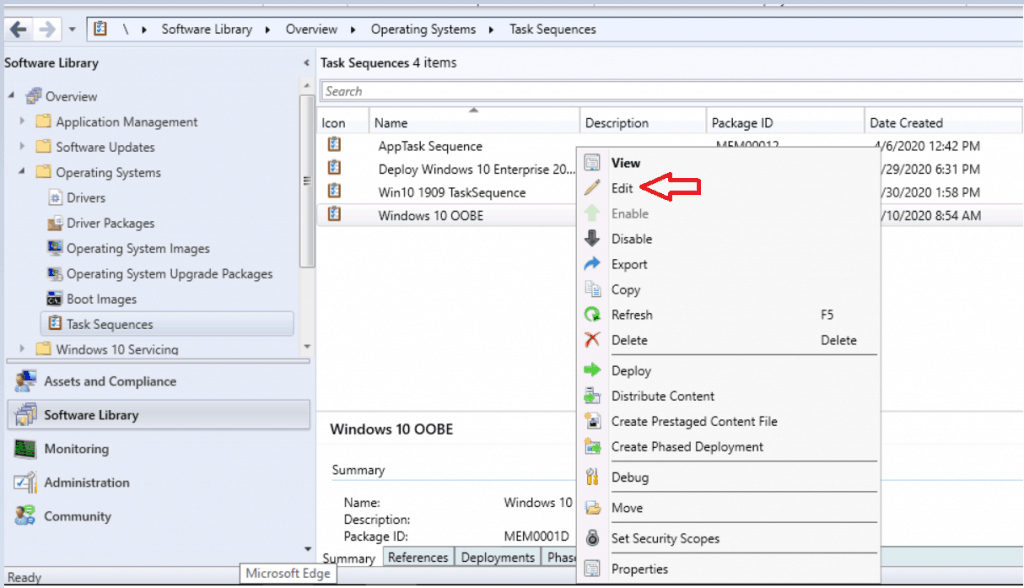

  • In the Configuration Manager console, go to the Software Library workspace, expand Operating Systems, and then select the Task Sequences node.
  • In the Task Sequence list, select the task sequence that you want to edit.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 15
Select Edit to open Task Sequence Editor

We are going to add following steps in task sequence.

Set Task Sequence Variable

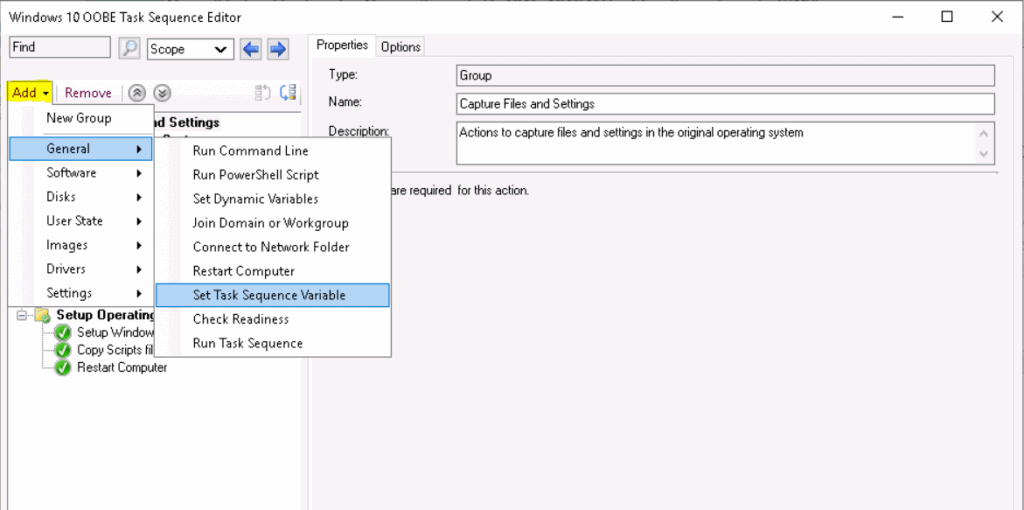

  • To add this step in the task sequence editor, select Add, select General, and select Set Task Sequence Variable.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 16
Add > General > Set Task Sequence Variable
  • On the Properties tab for this step, configure the settings described in this section. Specify the name of a task sequence action variable and Value.

SMSTSPostAction is a variable that contains a command that’s run after the task sequence completes.

  • In this step, I will run a PowerShell script that contains a command line to display the OOBE screen to the user.
Powershell.exe -ExecutionPolicy Bypass -File C:\Windows\Temp\WindowsOOBE.ps1

C:\Windows\Temp\WindowsOOBE.ps1 -<Path of Powershell Script>

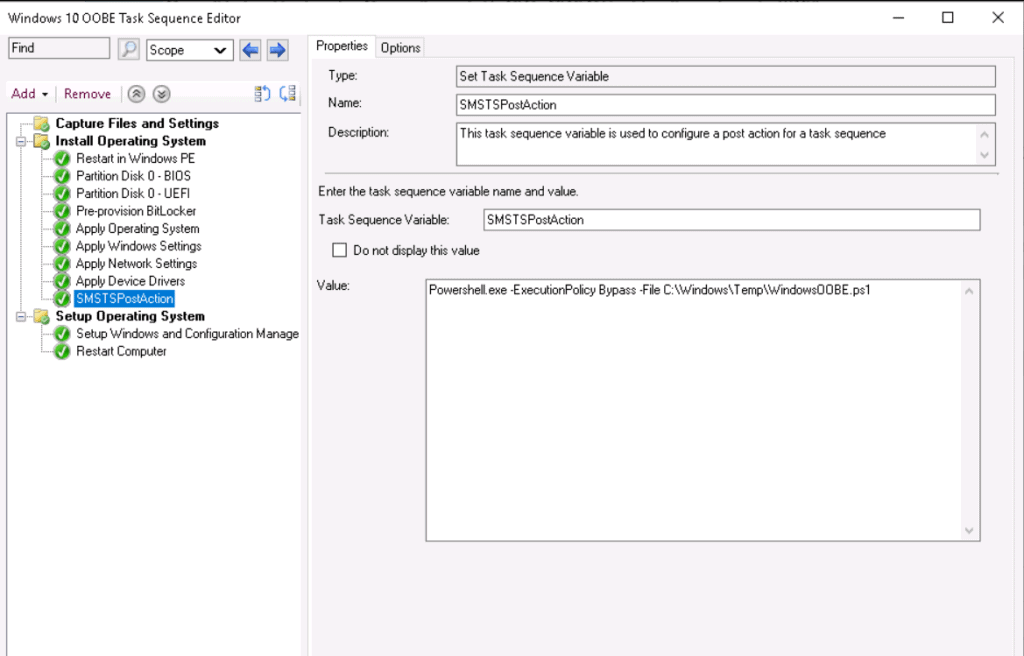

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 17
Provide Name, Task Sequence Variable and Value

Add Run Command Line

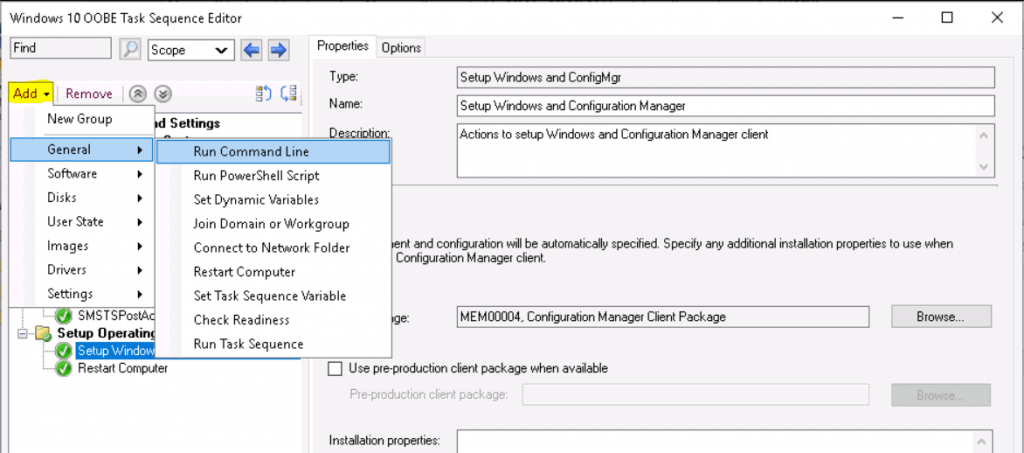

To add this step in the task sequence editor, select Add, select General, and select Run Command Line.

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 18
Add > General > Run Command Line

On the Properties tab for this step, configure the settings described in this section. Specifies the command line that the task sequence runs.

Package – Select this option to specify the Configuration Manager package that contains the necessary files.

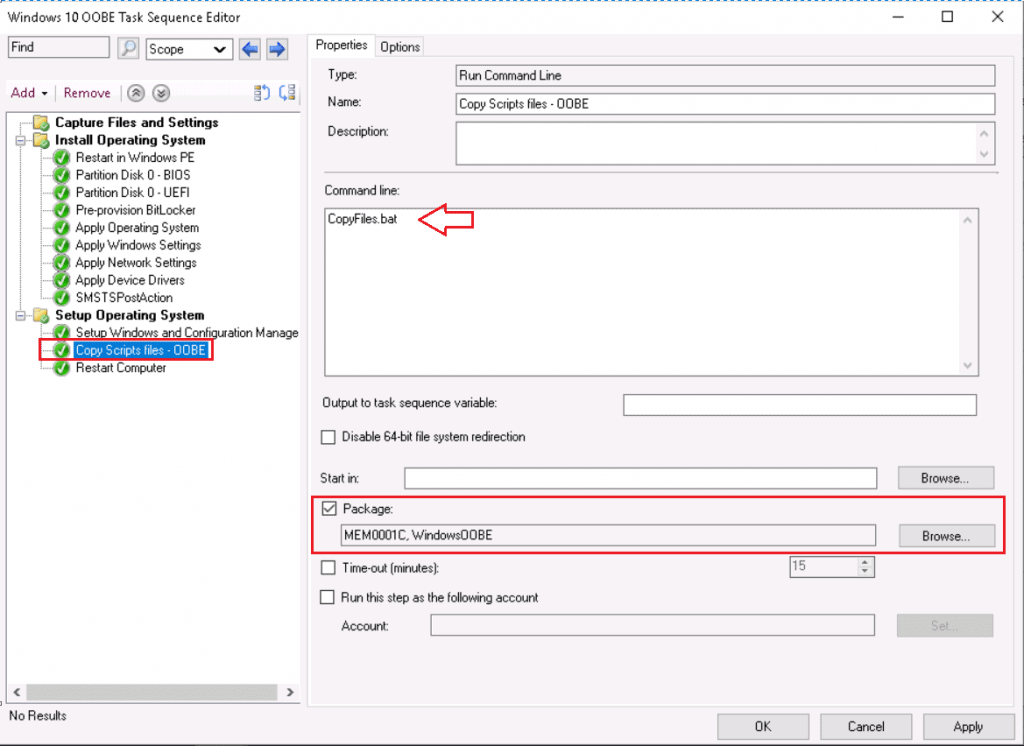

Don’t be confused with task sequence action, Here in mine case the CopyWindows OOBE step holds a command line called “CopyFiles.bat”. That will copy all the required files in target machine [C:\Windows\Temp] to perform the post action task.

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 19

Review others settings added in Task Sequence, make sure to apply all changes. Click Apply and OK, close the window.

Select the task sequence and target the Deployment to Collections.

User Experience

On Target Computers, depends on deployment settings. You will be presented with the Welcome to the Task Sequence Wizard.

Complete the Task Sequence Wizard by selecting deployed task sequence. Click Next.

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 20

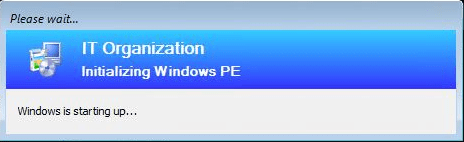

Initializing Windows PE

Once you complete the Wizard, the deployment of the new operating system begins.

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 21

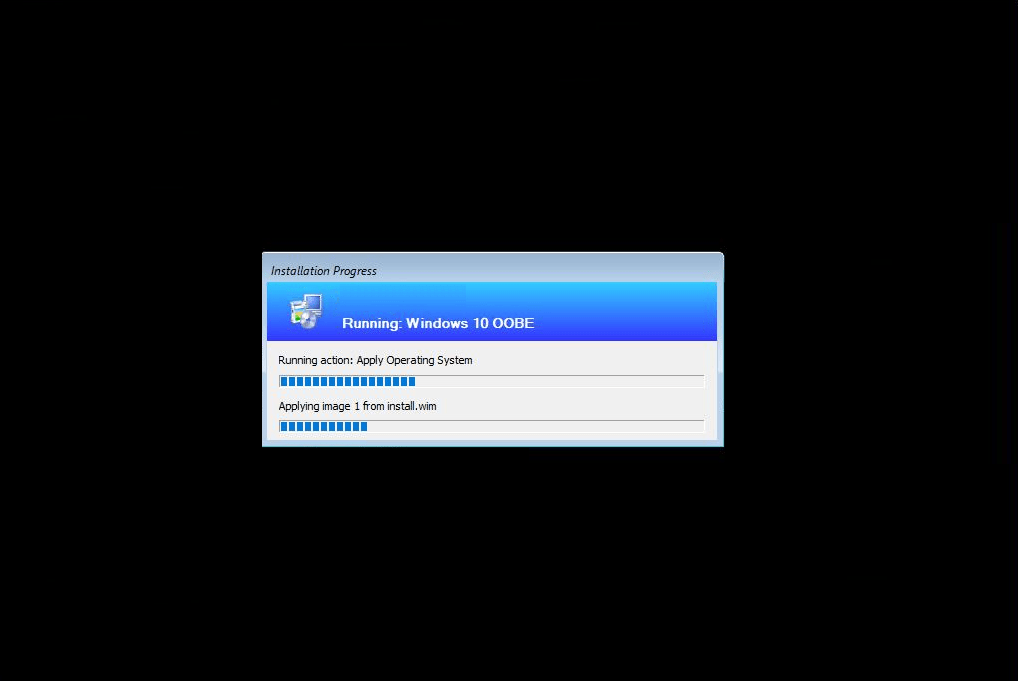

Running Action – Apply Operating System

Once the deployment completed successfully, you will see the Windows Out of Box Experience (OOBE). OOBE consists of a series of screens, the flow requests input from the user.

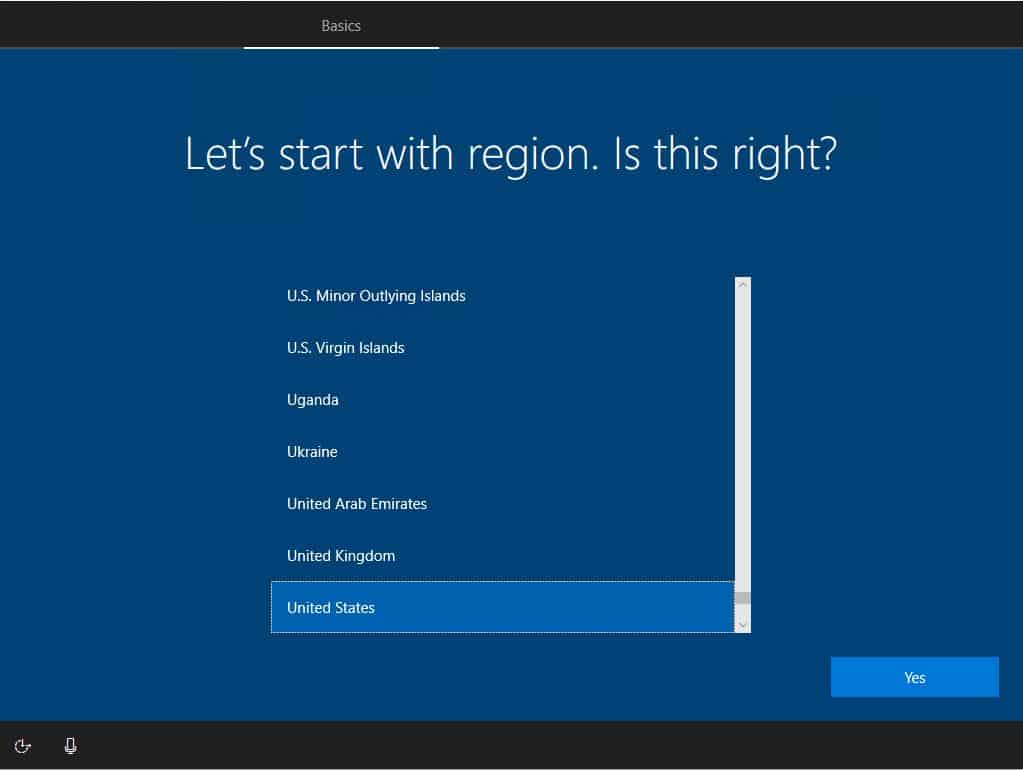

The first screen will prompt you to set region, This sets your time and date automatically. Select the region where your PCs are located. Then select Yes  to continue.

Choose a keyboard layout. This step configures the onscreen keyboard to match your keyboard’s physical layout. It also configures language and keyboard characters. Select Yes to continue.

SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 23

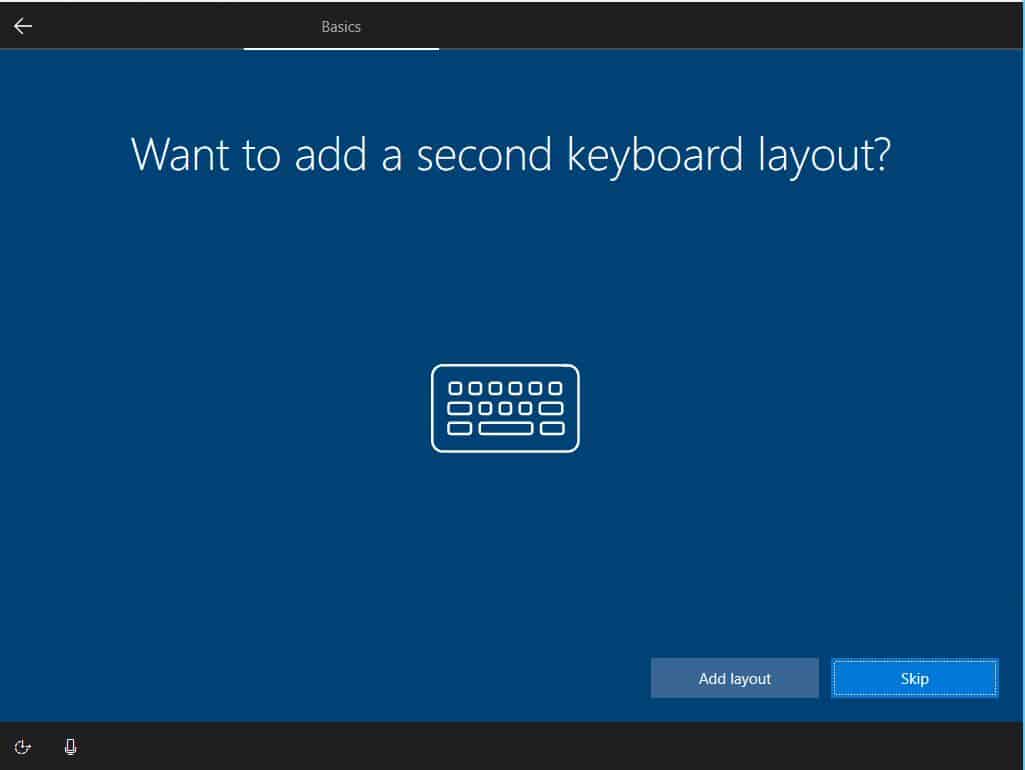

If you want to add another keyboard layout, select Add layout. Otherwise, select Skip.

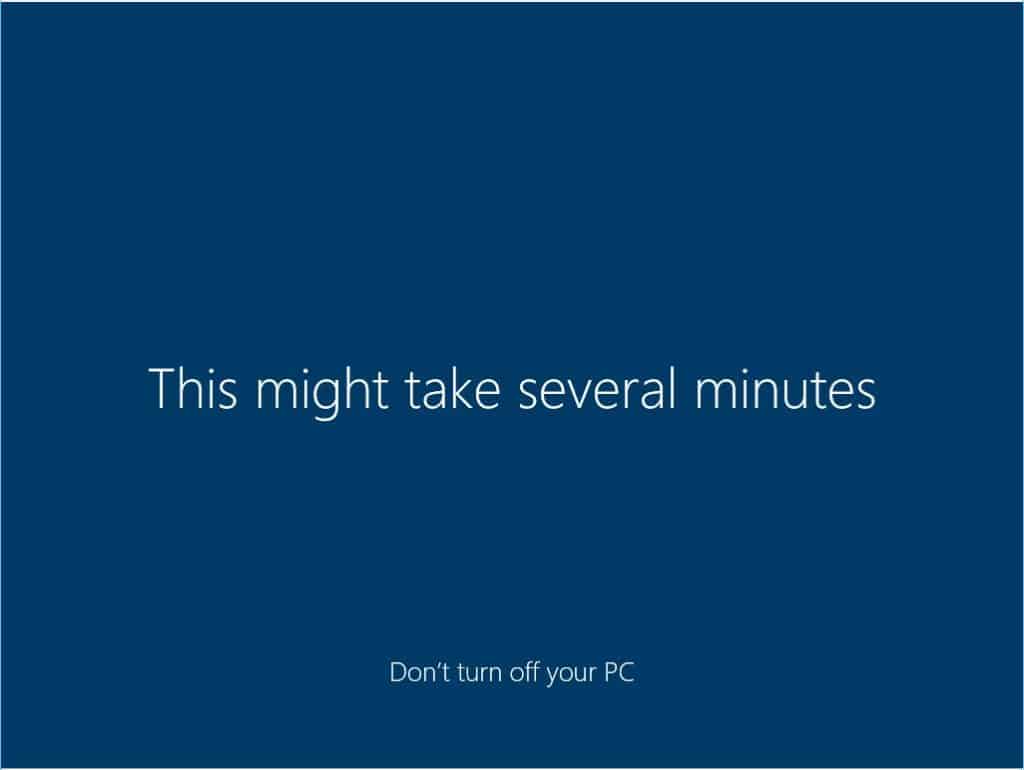

  •  It might take a few minutes to complete setup.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr 25

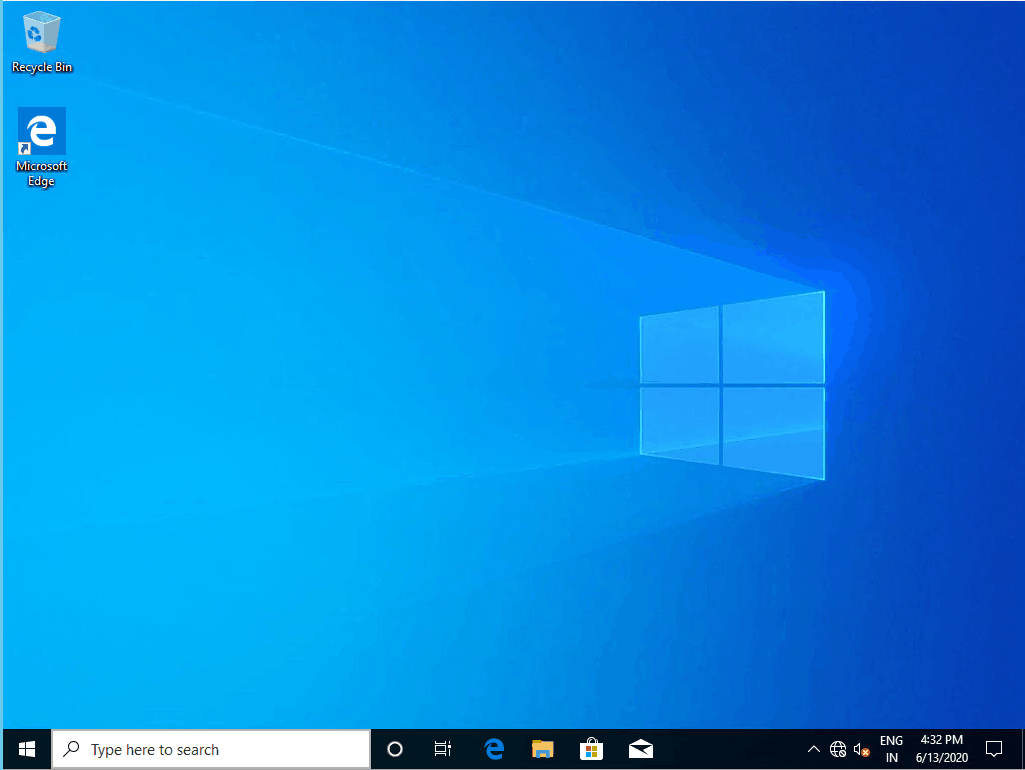

  • Once you finish the complete process. Devices are set up and ready to use.
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr
SCCM Customize Windows Out of Box Experience OOBE Using ConfigMgr

Resources – Customize Windows Out of Box Experience
