AVD Deployment Operation Failed | Add New VMs to Existing Host Pool

In this post, we will see errors in the AVD Deployment Operation Failed. We have already learned to add new session hosts to the existing host pool (AVD). Here is the document to help Add New Personal VMs to the Existing Host Pool | WVD v1 2019 Release.

This post applies only to the Azure Virtual Desktop spring 2020 release (a.k.a. AVD v2). The Spring 2020 update uses the Azure Resource Manager (ARM) Azure Virtual Desktop objects.

Host sessions are nothing but virtual machines part of the host pool. I plan to add two-session hosts to host pools using Azure Virtual Desktop’s new experience (a.k.a AVD).

Index
Add Session Hosts to AVD Host Pool
Virtual Machine Configuration for AVD
Network & Security
Domain Join Options
AVD Deployment Progress
Results Deployment Operation Failed – AVD Deployment Failed
FIX to AVD Deployment Operation Failed
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Table 1

NOTE! – Learn more about AVD v2 ARM model architecture.

Patch My PC

Add Session Hosts to AVD Host Pool

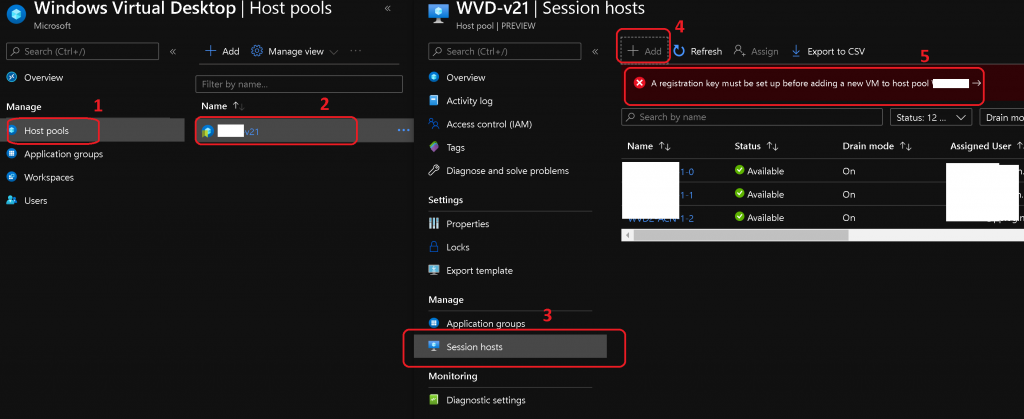

Let’s understand how to add session hosts or VMs to the AVD Host Pool.

Once you’ve created a host pool, workspace, and application group, you can add session hosts to the host pool for users to connect to. You may need to add more session hosts for extra capacity. You can create new virtual machines (VMs) to use as session hosts within the Azure Virtual Desktop service in the Azure portal or create VMs outside of the service and add them as session hosts to a host pool.

Adaptiva
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.1
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.1

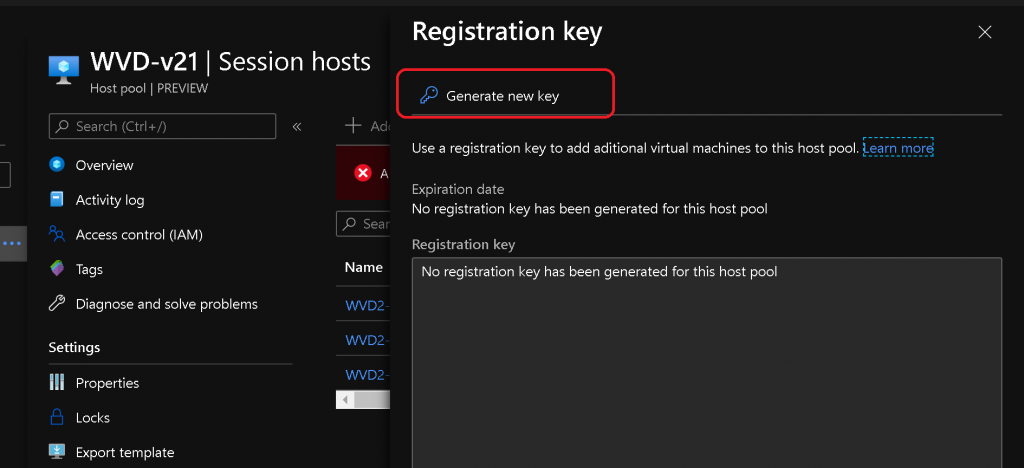

Click on Generate New Key. Use a registration key to add additional virtual machines to this host pool.

AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.2
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.2

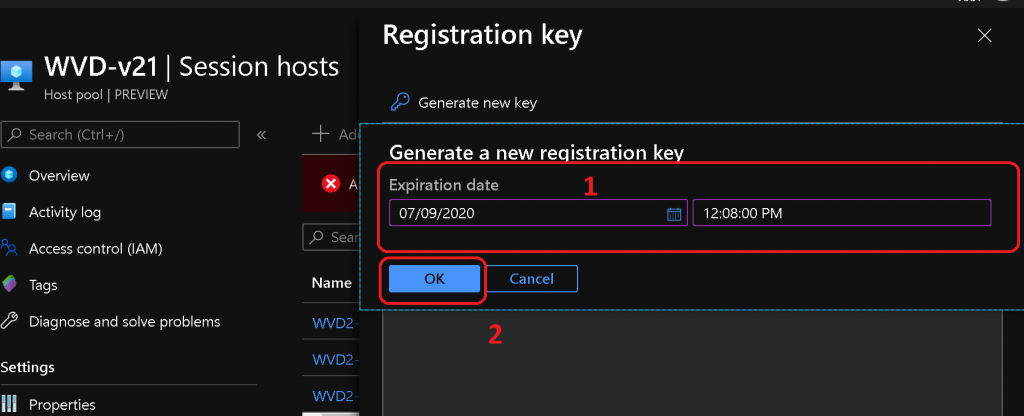

Then, set an expiration date for the new registration key.

AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.3
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.3

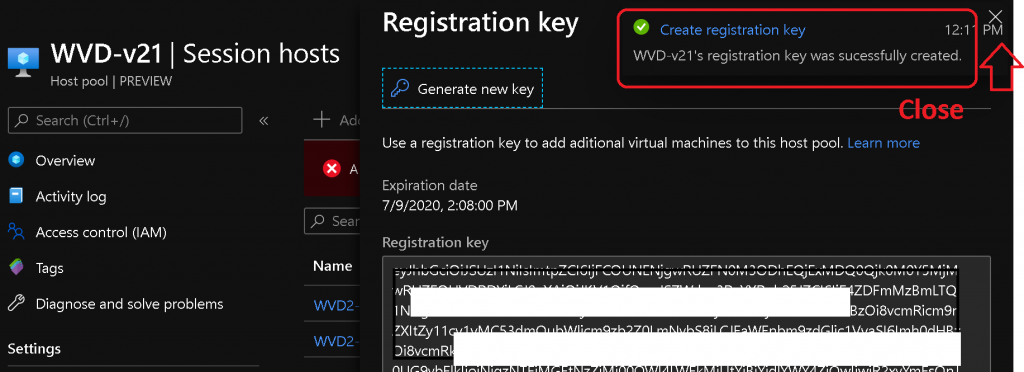

Once the Registration Key is generated, click on the X symbol, as shown in the following picture.

AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.4
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.4

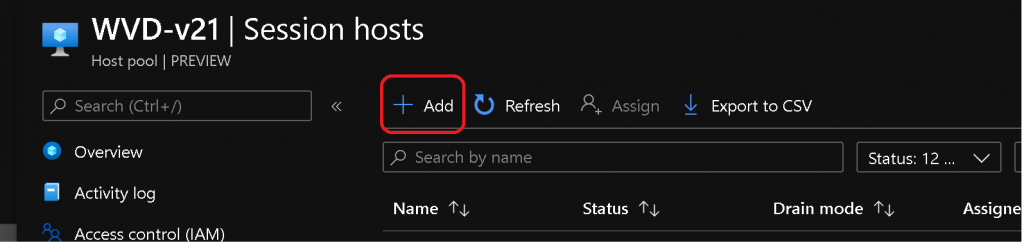

Click on Add

AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.5
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.5

Click on the Next button to continue.

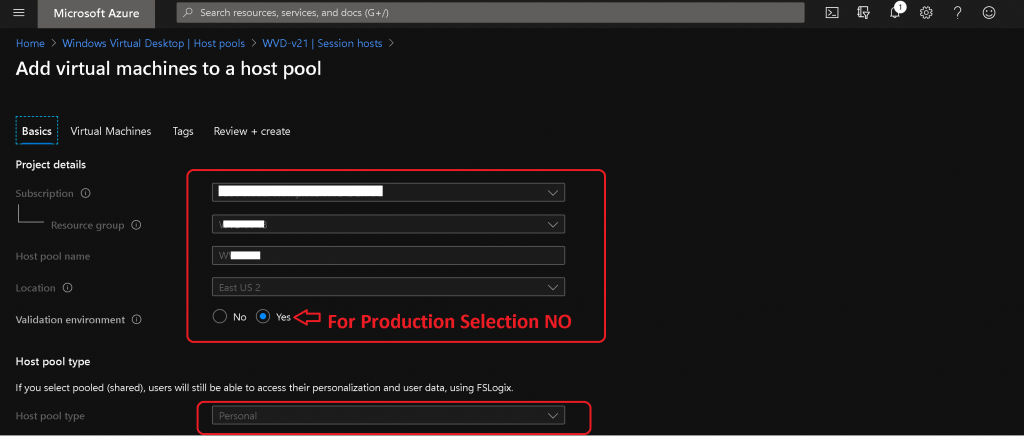

Change the validation environment option from Yes to NO if an AVD VM is deployed to production users.

NOTE! – Most entries are automatically populated or inherited from the existing host pool configuration. You don’t have any option to change those entries.

AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.6
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.6

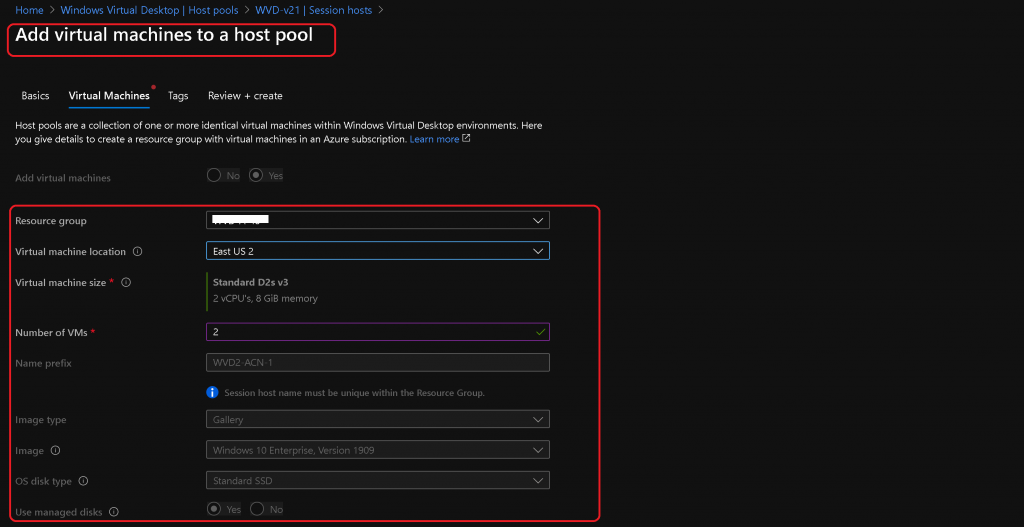

Virtual Machine Configuration for AVD

You have the option to change the following three things that you will need to take care of.

  • Resource Group
  • Virtual Machine Location
  • Number of VMs

NOTE! – None of the other options are editable. Those are inherited automatically from the host pool setting.

AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.7
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.7

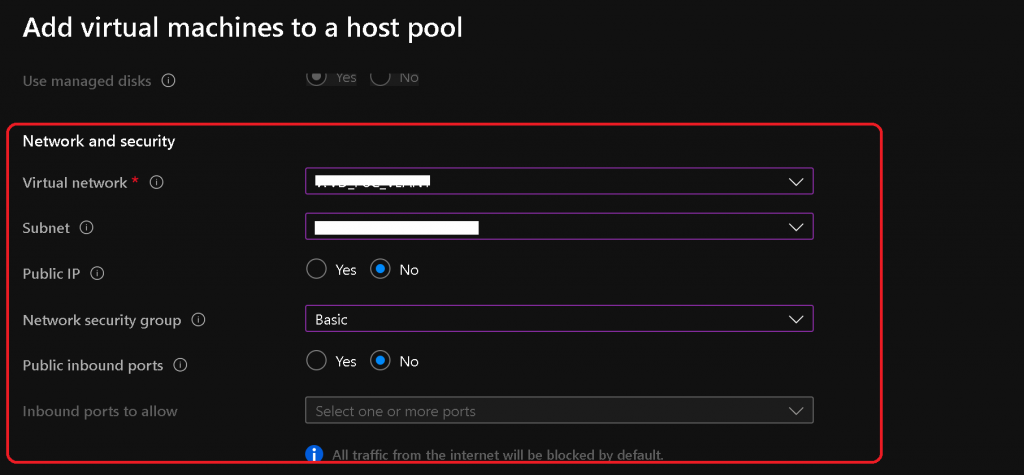

Network & Security

  • Select a Virtual network: Virtual networks are logically isolated in Azure. Like a traditional network in your data centre, you can configure their IP address ranges, subnets, route tables, gateways, and security settings. By default, virtual machines in the same virtual network can access each other.
  • Select A subnet. This is a range of IP addresses in your virtual network, which can be used to isolate virtual machines from each other or the Internet.
  • Public IP = NO
  • Select Network Security Group = Basic
  • Public inbound ports = NO
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.8
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.8

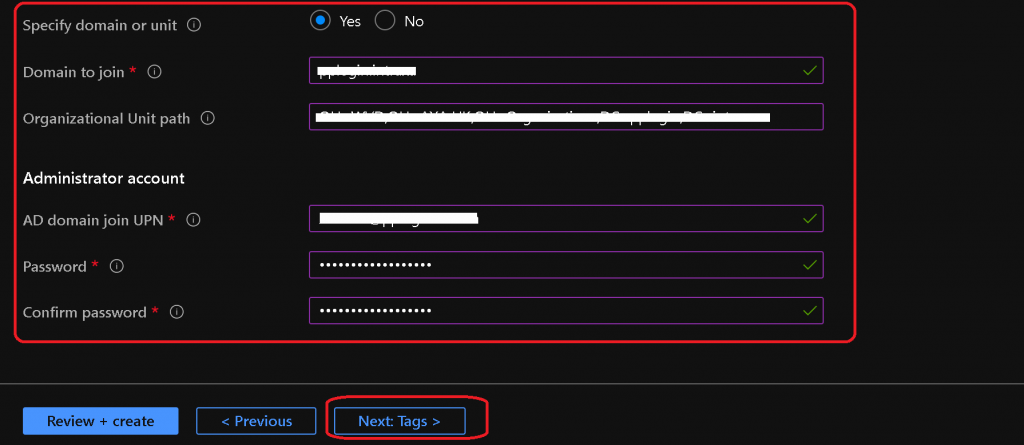

Domain Join Options

Enter the Full Domain FQDN – Full domain name of the Active Directory Domain to which session host VMs will be joined. For example, “contoso.com” or “site1.contoso.com”.

  • Enter the OU path where VMs should be located in the on-prem active directory.
  • Enter the administrative account details – This account must have access to join a device to the domain and the OU you mentioned above.
  • Click on Next Tags to continue.
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.9
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.9

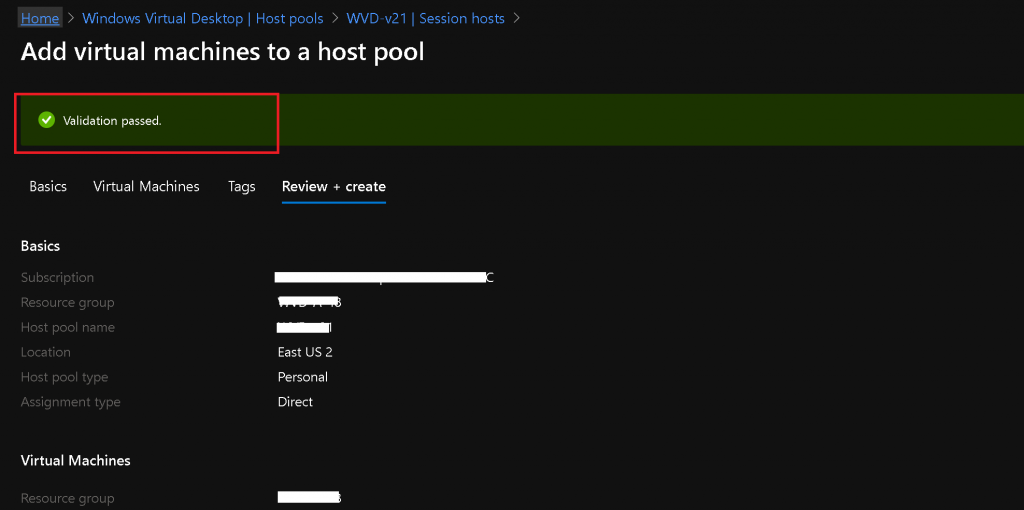

Click on Review + Create after reviewing the configuration.

AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.10
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.10
  • Once Validation is passed, you can click on the Create option.

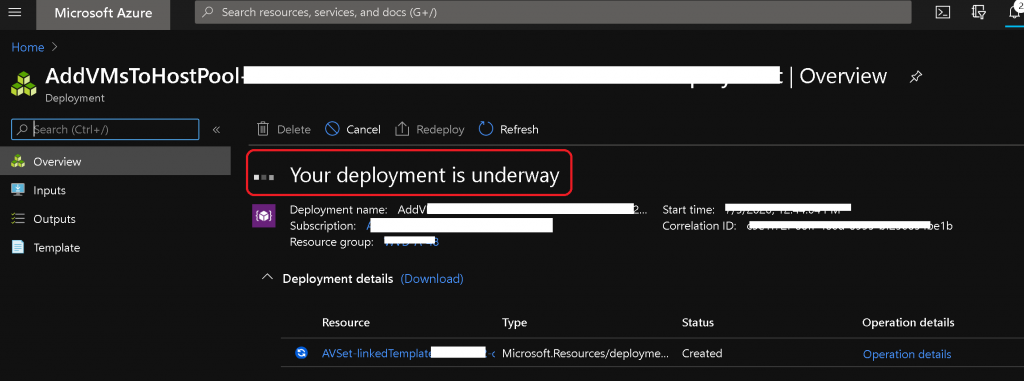

AVD Deployment Progress

Let’s wait until the AVD session host addition process finishes.

AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.11
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.11

Results Deployment Operation Failed – AVD Deployment Failed

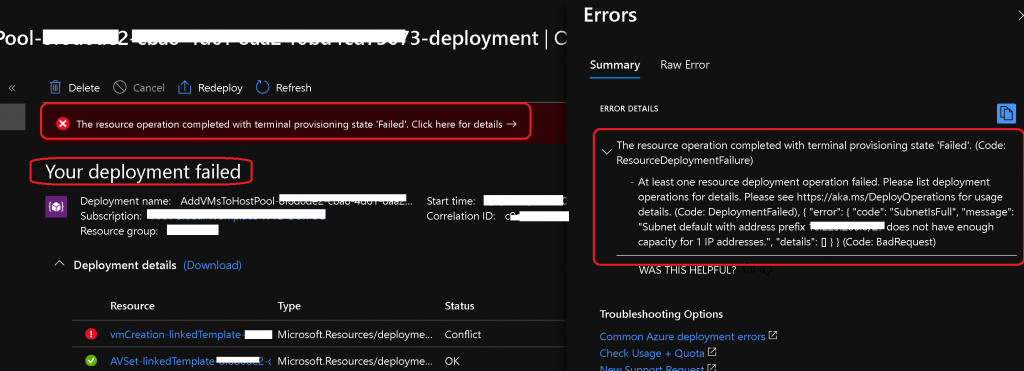

My deployment failed because of the following error. But there should be no issue if you have enough free IPs left in your subnet.

The resource operation is completed with the terminal provisioning state ‘Failed’. Click here for details- Your deployment failed.

Subnet default with address prefix 20.225.108.0/27 does not have enough capacity for 1 IP!

{"code":"DeploymentFailed","message":"At least one resource deployment operation failed. Please list deployment operations for details. Please see https://aka.ms/DeployOperations for usage details.","details":[{"code":"Conflict","message":"{\r\n \"status\": \"Failed\",\r\n \"error\": {\r\n \"code\": \"ResourceDeploymentFailure\",\r\n \"message\": \"The resource operation completed with terminal provisioning state 'Failed'.\",\r\n \"details\": [\r\n {\r\n \"code\": \"DeploymentFailed\",\r\n \"message\": \"At least one resource deployment operation failed. Please list deployment operations for details. Please see https://aka.ms/DeployOperations for usage details.\",\r\n \"details\": [\r\n {\r\n \"code\": \"BadRequest\",\r\n \"message\": \"{\\r\\n \\\"error\\\": {\\r\\n \\\"code\\\": \\\"SubnetIsFull\\\",\\r\\n \\\"message\\\": \\\"Subnet default with address prefix 20.225.108.0/27 does not have enough capacity for 1 IP addresses.\\\",\\r\\n \\\"details\\\": []\\r\\n }\\r\\n}\"\r\n }\r\n ]\r\n }\r\n ]\r\n }\r\n}"}]}

NOTE! I think AVD v1 was better in these terms (IP availability). It won’t let you select a subnet if there are no free IPs available in that subnet.

AVD Deployment Operation Failed | Add New VMs to Existing Host Pool - Fig.12
AVD Deployment Operation Failed | Add New VMs to Existing Host Pool – Fig.12

FIX to AVD Deployment Operation Failed

Free up IPs, if possible, from the subnet (for test environments).

Use a different subnet where IPs are available.

Repeat the steps mentioned above or try AVD Add New Session Hosts to Existing Host Pool | Registration Key
