ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager

Let’s explore the ConfigMgr Client Action called Software Updates Scan Cycle in more detail. Users and admins can initiate the Software Update (a.k.a. patching) scan cycle to speed up troubleshooting of patching-related scenarios.

In the previous post, I explained the software update deployment and evaluation cycle. But it’s also important to understand ConfigMgr Client Component Status details for troubleshooting. Each client component has three different status details: installed, disabled, and enabled.

Many admins are confused between the ConfigMgr Client App and the SCCM Software Center. Both are different and client actions are available with ConfigMgr Client App (a.k.a Configuration Manager Application) available in the control panel.

Index
Software-Updates-Scan-Cycle
Background Processes
Logs
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager – Table.1

Software Updates Scan Cycle

As of the ConfigMgr 2010 version, there are 8 (eight) client actions available in Configuration Manager client application properties. The Software Updates Scan Cycle client action is the Sixth (6th) one from the top.

Patch My PC

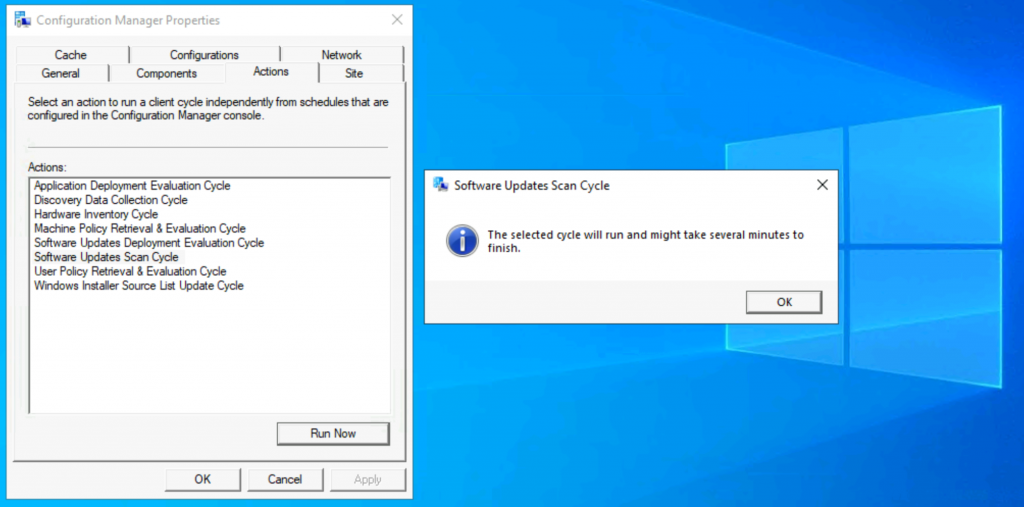

Navigate to:

  • You can launch the client app from any computer with an SCCM client installed.
  • Open Command Prompt
  • Run the following command – Control smscfgrc
  • Click on the Actions tab
  • Select Software Updates Scan Cycle
  • Click on OK from the Software Updates Scan Cycle popup window
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager - Fig.1
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager – Fig.1

Background Processes

Let’s understand the Software Update scan cycle via log files. The Scan agent and other components are triggered by initiating this action from the ConfigMgr client app. The default Software update deployment evaluation cycle can be configured in Client settings.

This SCCM client action Software Update scan cycle “immediately” triggers the patching process from the Windows 10 client. As per my quick analysis of three components:

  • Scan agent
  • Location Services Agent
  • Status Agent
  • Update Store Agent

These components help process the software updates scanning cycle and perform a full scan, as shown below. This scan is performed against all the patch deployments assigned to a Windows 10 client. The processes are shown in the following log snippets.

Adaptiva

The update store component stores the compliance status details for each software update (a.k.a. patches) assigned to a Windows 10 computer.

ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager - Fig.2
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager – Fig.2

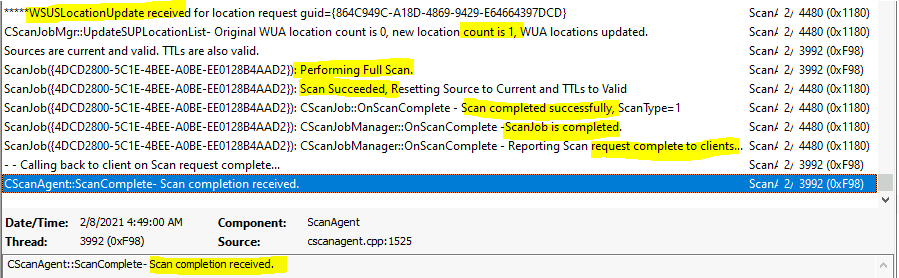

  • ScanAgent.log (Full Scan is performed)
    • UpdateSourceMessage MessageType=’ScanByUpdateSource
    • *ScanByUpdateSource request received with ForceReScan=2, ScanOptions=0x0000000a, WSUSLocationTimeout = 604800
    • Sources are current and valid. TTLs are also valid.
    • ScanJob({4DCD2800-5C1E-4BEE-A0BE-EE0128B4AAD2}): – – – – – -Locations requested for ScanJobID={4DCD2800-5C1E-4BEE-A0BE-EE0128B4AAD2} (LocationRequestID={864C949C-A18D-4869-9429-E64664397DCD}), will process the scan request once locations are available.
    • WSUSLocationUpdate received for location request guid={864C949C-A18D-4869-9429-E64664397DCD}
    • CScanJobMgr::UpdateSUPLocationList– Original WUA location count is 0, new location count is 1, WUA locations updated.
    • ScanJob({4DCD2800-5C1E-4BEE-A0BE-EE0128B4AAD2}): Performing Full Scan.
    • ScanJob({4DCD2800-5C1E-4BEE-A0BE-EE0128B4AAD2}): Scan Succeeded, Resetting Source to Current and TTLs to Valid
    • ScanJob({4DCD2800-5C1E-4BEE-A0BE-EE0128B4AAD2}): CScanJob::OnScanComplete – Scan completed successfully, ScanType=1
    • ScanJob({4DCD2800-5C1E-4BEE-A0BE-EE0128B4AAD2}): CScanJobManager::OnScanComplete –ScanJob is completed.
    • ScanJob({4DCD2800-5C1E-4BEE-A0BE-EE0128B4AAD2}): CScanJobManager::OnScanComplete – Reporting Scan request complete to clients…
    • Calling back to the client on Scan request complete
    • CScanAgent::ScanComplete- Scan completion received.
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager - Fig.3
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager – Fig.3

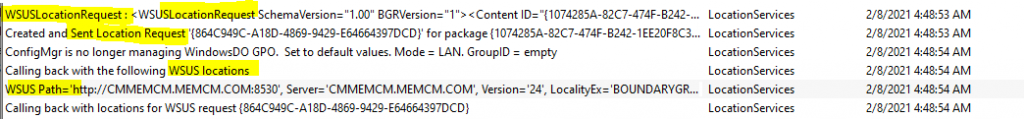

  • LocationServices.log (Helps to find the WSUS servers)
    • Executing Task LSRefreshLocationsTask
    • The current AD site of the machine is Default-First-Site-Name
    • WSUSLocationRequest: WSUSLocationRequest SchemaVersion
    • Created and Sent Location Request ‘{864C949C-A18D-4869-9429-E64664397DCD}’ for package {1074285A-82C7-474F-B242-1EE20F8C3CE5}
    • ConfigMgr is no longer managing WindowsDO GPO. Set to default values. Mode = LAN. GroupID = empty
    • Calling back with the following WSUS locations
    • WSUS Path=’http://CMMEMCM.MEMCM.COM:8530′, Server=’CMMEMCM.MEMCM.COM’, Version=’24’, LocalityEx=’BOUNDARYGROUP’, SUPFallbackIn=’0′
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager - Fig.4
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager – Fig.4

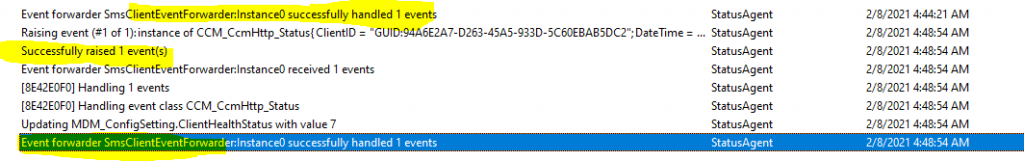

  • StatusAgent.log (Probably scan event is raised through this component)
    • Raising event (#1 of 1): an instance of CCM_CcmHttp_Status
    • Successfully raised 1 event(s)
    • Event forwarder SmsClientEventForwarder: Instance0 received 1 event
    • [8E42E0F0] Handling 1 event
    • [8E42E0F0] Handling event class CCM_CcmHttp_Status
    • Updating MDM_ConfigSetting.ClientHealthStatus with value 7
    • Event forwarder SmsClientEventForwarder: Instance0 successfully handled 1 event
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager - Fig.5
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager – Fig.5
  • UpdatesStore.log (Check each of the Software update deployments assigned to Windows 10 device)
    • Update status from update (075e46dd-7c09-4263-93d1-20f851ca76dd) already exists, will modify existing instance.
    • Update status from update (fca5309d-365d-4e9e-a7a0-d4129bac0914) already exists, will modify existing instance.
    • Successfully done with SetStatus() operation.
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager - Fig.6
ConfigMgr Software Updates Scan Cycle Client Action | SCCM | Configuration Manager – Fig.6

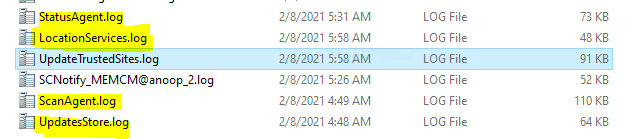

Logs

The following log files recorded a few entries when I triggered the Software Updates Scan Cycle. More details about SCCM clients logs are available here.

  • ScanAgent.log
  • LocationServices.log
  • StatusAgent.log
  • UpdatesStore.log
