FIX SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager

FIX SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager troubleshooting tips issues?

Microsoft released a patch KB 3192616 to add iOS 10 support to the SCCM CB hybrid environment. This patch will only be available in the SCCM console when your SCCM CB infra is already integrated with Intune. Otherwise, you won’t be able to see the hotfix KB 3192616 in your console.

Introduction – FIX SCCM ConfigMgr Failed to Process?

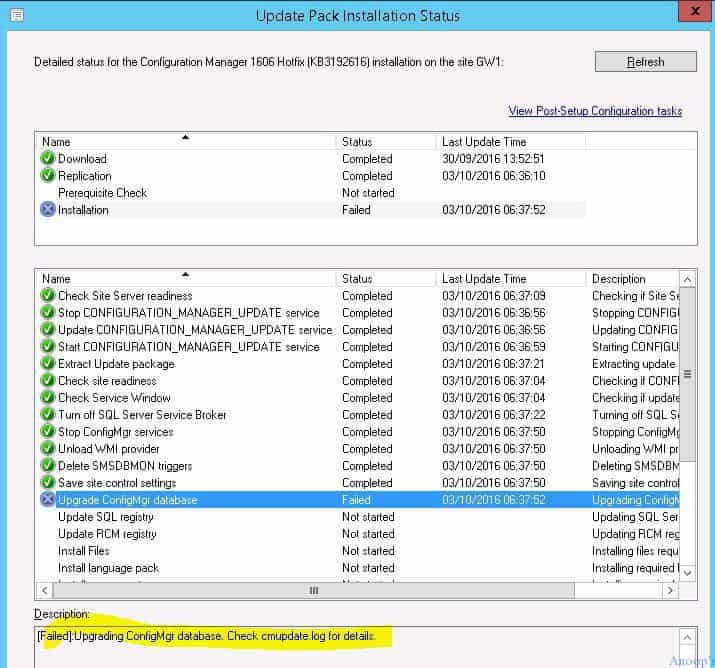

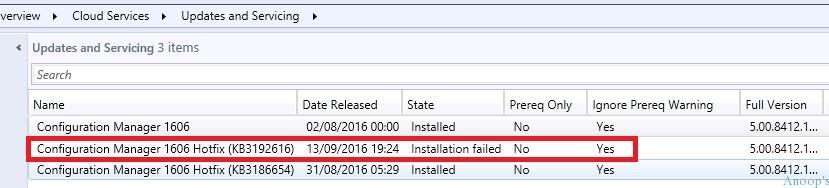

I’ve seen this error couple of times in different environments. When I tried to install this patch it failed with the following error “[Failed]: Upgrading ConfigMgr database. Check cmupdate.log for details.”. When I checked CMUpdate.log, it was giving me the following error 0x87d20b15 (as you can see in the following log snippet).

FIX  SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager
FIX SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager

FIX SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager?

Patch My PC
INFO: File \\?\D:\Program Files\Microsoft Configuration Manager\inboxes\sitecomp.box\shutdown.trn does not exist. No zapping needed. $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:00.385-120><thread=12084 (0x2F34)>
Old build 8412 is detected installed $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:00.386-120><thread=12084 (0x2F34)>
INFO: Installing Site Component Manager... $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:00.387-120><thread=12084 (0x2F34)>
INFO: Installing Site Component Manager under acct <NT AUTHORITY\SYSTEM> path <D:\Program Files\Microsoft Configuration Manager\bin\x64\sitecomp.exe>~ $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:00.388-120><thread=12084 (0x2F34)>
INFO: SQL Connection succeeded. Connection: SMS ACCESS, Type: Unsecure $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:00.528-120><thread=12084 (0x2F34)>
INFO: Running Post Auto Upgrade script. $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:00.528-120><thread=12084 (0x2F34)>
INFO: Starting Site Component Manager... $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:00.571-120><thread=12084 (0x2F34)>
INFO: Started Site Component Manager service $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:02.600-120><thread=12084 (0x2F34)>
INFO: Site Component Manager installation completed. $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:02.600-120><thread=12084 (0x2F34)>
INFO: SQL Connection succeeded. Connection: SMS ACCESS, Type: Secure $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:02.602-120><thread=12084 (0x2F34)>
Turned on activation for service broker queue $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:02.613-120><thread=12084 (0x2F34)>
Failed to apply update changes 0x87d20b15 $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:02.613-120><thread=12084 (0x2F34)>
ERROR: Failed to process configuration manager update. $<CONFIGURATION_MANAGER_UPDATE><10-03-2016 06:38:02.614-120><thread=12084 (0x2F34)>
FIX  SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager
FIX SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager

Solution :- FIX SCCM ConfigMgr Failed to Process

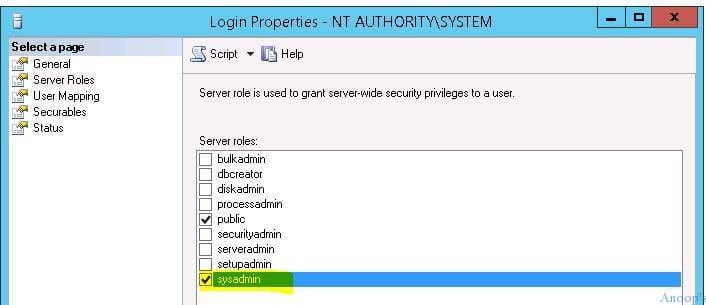

Provided the Sys Admin rights to the account called  in SQL management studio. I tried “Retry installation” from SCCM CB updates and servicing. I could see the following information on CMUpdate.log “INFO: Site Component Manager installation completed.

The installation of the patch was successful after providing the Sys Admin rights to NT Authority\System. Another tip is that don’t start the SCCM CB console update until the site component finishes it’s tasks of reinstalling the components.

You can monitor this progress from services (check whether the service “SMS_SERVER_BOOTSTRAP” is running or not) otherwise check the log file called sitecomp.log (if you can see the snippets like “Starting service SMS_SERVER_BOOTSTRAP” then wait for that service to complete). FIX SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager?

1E Nomad
FIX  SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager
FIX SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager

Result :- FIX SCCM ConfigMgr Failed to Process

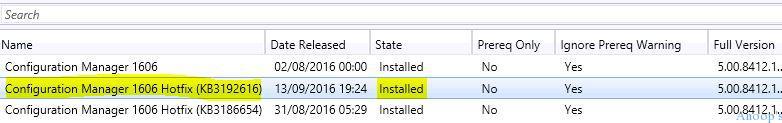

After giving the sysadmin access to the NT AUTHORITY\System account, the hotfix installation worked very well via SCCM CB updates and servicing.

FIX  SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager
FIX SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager

Resources

SCCM Related Posts Real World Experiences Of SCCM Admins (anoopcnair.com)

4 thoughts on “FIX SCCM ConfigMgr Failed to Process Configuration Manager Update 0x87d20b15 Endpoint Manager”

  1. Hello,

    Just wanted to add to this – ran into this very same issue on an upgrade from 1802 to 1902.

    The issue was resolved by doing a site reset and checking permissions on all accounts and machine accounts on the database, making sure they had the sysadmin role.

    Have a great day!

    Reply
  2. Hi,

    I also bumped into the same issue with my SCCM Current Branch 1810 while I was trying to apply the Update Rollup Hotfix 2 on top of this configuration. In my case, the error message was the same, however, reading a few lines above the actual error message in the cmupdate.log revealed that the update was trying to drop a function that was still being used by replication.

    Now, normally, upgrades would not start without replication being disabled (that is, if you have a distributor setup on the primary site server DB replicating the db to a replica db on one or more management points). I made sure to run the disable distributor and publisher wizard before starting the installation and that my pre-requisite check had also passed. Nevertheless, there could be a glitch (which I don’t know the reason why) while the disable wizard was running.

    To solve this, I logged into my SQL DB on the primary site server and ran the following SQL commands:
    USE “CM_DbName_xx”
    EXEC sp_dropdistributor

    The command completed successfully (https://docs.microsoft.com/en-us/sql/relational-databases/system-stored-procedures/sp-dropdistributor-transact-sql?view=sql-server-2017)

    As an additional step I also re-started the SMS_EXECUTIVE on the MP where the db replica was hosted.
    After taking these steps, I re-started my installation and it went like a breeze.

    Reply
