How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM | Configuration Manager Endpoint

Let’s look at the option(s) to Remove ConfigMgr Package from Multiple DPs at the same time. We have received a question in the HTMD forum and that triggered this post. Let’s find how to remove content from multiple DPs at the same time. I’ve also shared a PowerShell option to remove content from multiple DPs.

I have already explained the best way to remove package content from a single distribution point in the previous post. Also, you might be interested to know the features of the Content Library Explorer tool.

The following posts might help to understand related issues with content distribution. Learn about Fix ConfigMgr DP Issue RPC server is Unavailable Error Code 0x800706baFix SCCM SendFiles Failed 0x80070003 Error, and How to ConfigMgr Redistribute Content to Distribution Point.

Patch My PC

Remove Package Multiple DPs

The following is one of the best methods to Remove ConfigMgr Package Content from multiple DPs at the same time. Well, you can use PowerShell scripts also to remove the content from multiple DPs at the same time.

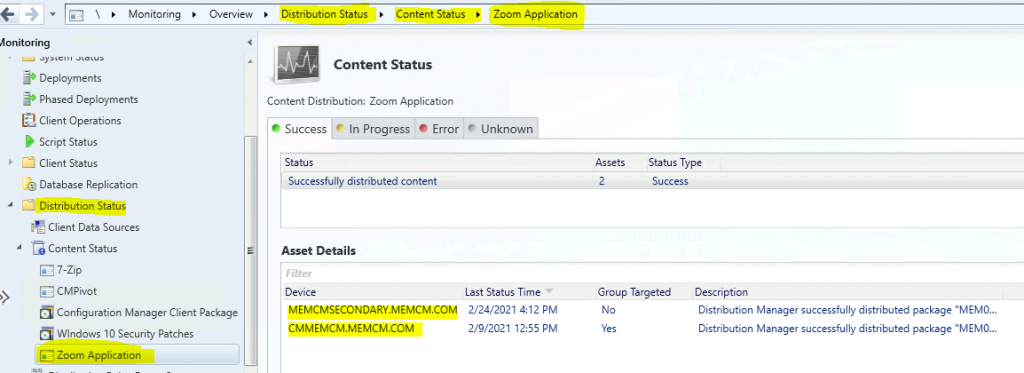

  • Navigate to \Monitoring\Overview\Distribution Status\Content Status
  • Use the search bar to find any deployment packages like Application, Task Sequence, Boot Image, or Software Update.
  • Select one particular package (CMPivot) that you want to remove.
  • Right-click and select View Check the View Status option.
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM

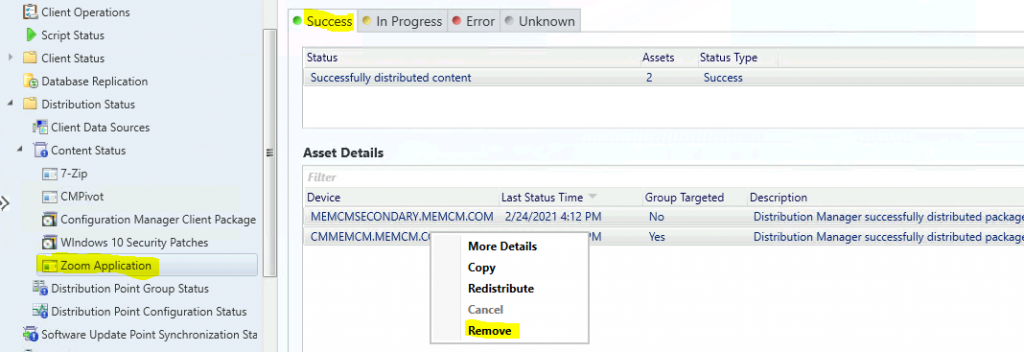

  • Select the DPs from where you want to remove the package content.
  • Right-click on the DPs and click on Remove.
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM

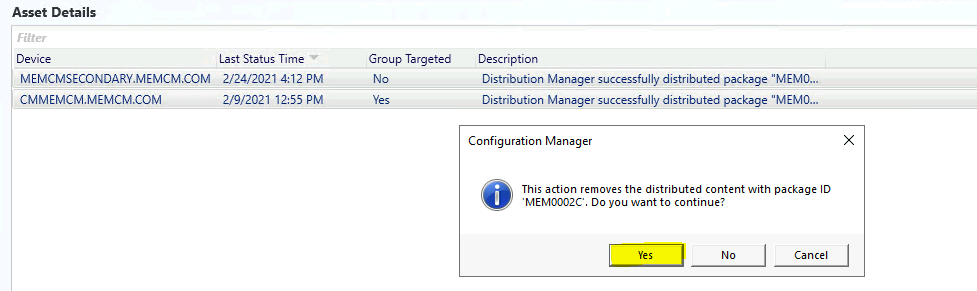

  • Click Yes on the warning window to initiate the removal of the content.
    • The action removes the distributed content with package ID ‘MEM0002C’. Do you want to continue?
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM

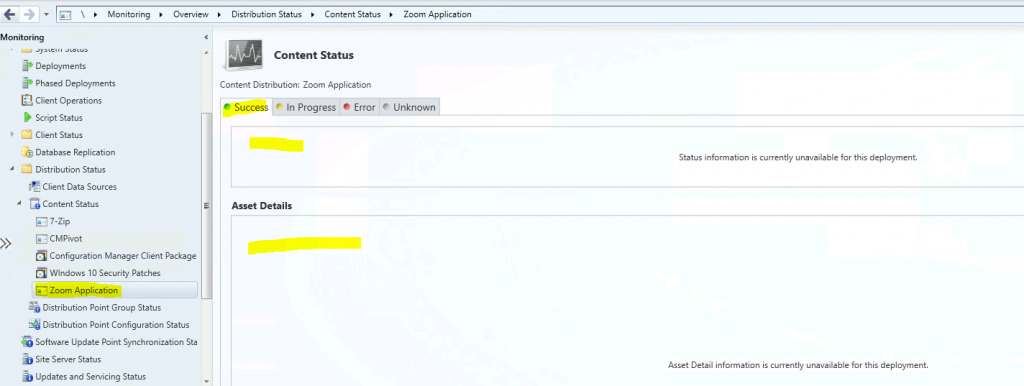

Result

The package is removed from two DPs at the same time as you can see in the below screenshot.

How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM

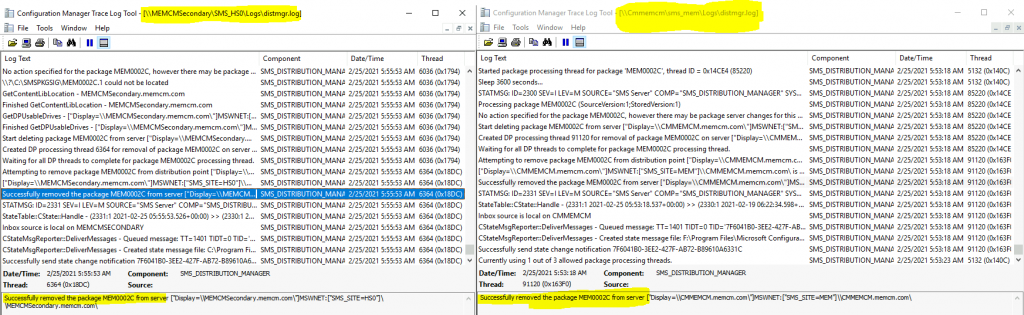

DistMgr.log – Package Content Removal Process

You can refer to DistMgr.log (@ primary & secondary server ) snippet to get an overview of the Package removal process. The following log entries might help you to troubleshoot and confirm whether the removal really worked for you or not. Let’s How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM.

1E Nomad

NOTE! – The package MEM00023 is removed from secondary server DP. So, I have not seen any activity on the primary server DistMgr.log.

  • Started package processing thread for package ‘MEM0002C’, thread ID = 0x1698 (5784)
  • \?\C:\SMSPKGSIG\MEM0002C.1 could not be located
  • GetContentLibLocation – MEMCMSecondary.memcm.com
  • Finished GetContentLibLocation – MEMCMSecondary.memcm.com
  • GetDPUsableDrives – [“Display=\MEMCMSecondary.memcm.com\”]MSWNET:[“SMS_SITE=HS0”]\MEMCMSecondary.memcm.com\
  • Finished GetDPUsableDrives – [“Display=\MEMCMSecondary.memcm.com\”]MSWNET:[“SMS_SITE=HS0”]\MEMCMSecondary.memcm.com\
  • Start deleting package MEM0002C from server [“Display=\MEMCMSecondary.memcm.com\”]MSWNET:[“SMS_SITE=HS0”]\MEMCMSecondary.memcm.com…
  • Created DP processing thread 5496 for removal of package MEM0002C on server [“Display=\MEMCMSecondary.memcm.com\”]MSWNET:[“SMS_SITE=HS0”]\MEMCMSecondary.memcm.com\
  • Waiting for all DP threads to complete for package MEM0002C processing thread.
  • Attempting to remove package MEM0002C from distribution point [“Display=\MEMCMSecondary.memcm.com\”]MSWNET:[“SMS_SITE=HS0”]\MEMCMSecondary.memcm.com\
  • [“Display=\MEMCMSecondary.memcm.com\”]MSWNET:[“SMS_SITE=HS0”]\MEMCMSecondary.memcm.com\ is NOT a Pull DP
  • Successfully removed the package MEM0002C from server [“Display=\MEMCMSecondary.memcm.com\”]MSWNET:[“SMS_SITE=HS0”]\MEMCMSecondary.memcm.com\
  • CStateMsgReporter::DeliverMessages – Created state message file: C:\Program Files\Microsoft Configuration Manager\inboxes\auth\statesys.box\incoming\xam513ne.SMX
  • Successfully send state change notification 8ACCAE01-5879-4FCD-B988-C1CD3005B698
  • Exiting package processing thread for package MEM0002C.
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM

Check the SCCM log files related to DPs. The PkgXferMgr.log file is your best friend for remote DP distribution/package replication issues.

distmgr.logPackage Application distribution process
PkgXferMgr.logRecords the actions of the SMS_Executive component that is responsible for sending content from an SCCM primary site to a remote DP.
Package Content Removal

NOTE! – The PkgXferMgr.log is the log file that you need to check to understand how removal works for remote DPs.

PowerShell Script to Remove Package from Multiple DPs

Following PowerShell script (command) helps to remove SCCM package content from Distribution Points. Ankit shared the following lines of script in the HTMD forum.

  • Make sure you have DP names (FQDN) listed inside DPList.csv.
  • You might need to execute the policy as per your security requirements. For my lab, I used -> Set-ExecutionPolicy Unrestricted

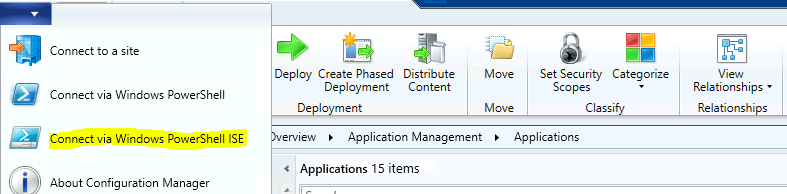

  • Connect via Windows PowerShell ISE from the admin console.
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM

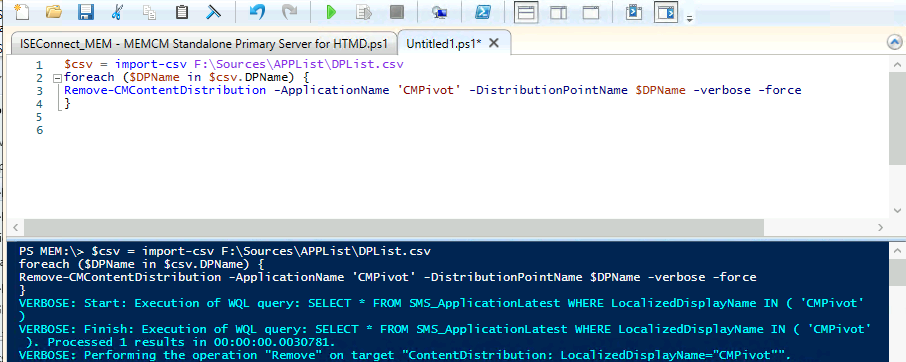

  • Run the command from the below section to remove the content from multiple DPs at the same time.
PS MEM:> $csv = import-csv F:\Sources\APPList\DPList.csv
 foreach ($DPName in $csv.DPName) {
 Remove-CMContentDistribution -ApplicationName 'CMPivot' -DistributionPointName $DPName -verbose -force
 }
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM
How to Remove ConfigMgr Package from Multiple DPs at the Same Time | SCCM

Log Entries of the above command for your reference:

VERBOSE: Start: Execution of WQL query: SELECT * FROM SMS_ApplicationLatest WHERE LocalizedDisplayName IN ( 'CMPivot'
 )
 VERBOSE: Finish: Execution of WQL query: SELECT * FROM SMS_ApplicationLatest WHERE LocalizedDisplayName IN ( 'CMPivot'
  ). Processed 1 results in 00:00:00.0030781.
 VERBOSE: Performing the operation "Remove" on target "ContentDistribution: LocalizedDisplayName="CMPivot"".
 VERBOSE: Start: Execution of WQL query: SELECT * FROM SMS_PackageContentServerInfo WHERE ObjectID IN ( 'SCOPEID_107428
 5A-82C7-474F-B242-1EE20F8C3CE5/APPLICATION_FE609216-3501-432E-B1F9-027B4E8B2766' )
 VERBOSE: Finish: Execution of WQL query: SELECT * FROM SMS_PackageContentServerInfo WHERE ObjectID IN ( 'SCOPEID_10742
 85A-82C7-474F-B242-1EE20F8C3CE5/APPLICATION_FE609216-3501-432E-B1F9-027B4E8B2766' ). Processed 2 results in 00:00:00.0
 257211.
 VERBOSE: Start: Execution of WQL query: SELECT COUNT() FROM SMS_DeploymentType WHERE AppModelName = "ScopeId_1074285A -82C7-474F-B242-1EE20F8C3CE5/Application_fe609216-3501-432e-b1f9-027b4e8b2766" AND Technology IN ("iOS", "Windows8App" , "WinPhone8", "Android", "MobileMsi") VERBOSE: Start: Execution of WQL query: SELECT COUNT() FROM SMS_DeploymentType WHERE AppModelName = "ScopeId_1074285A
 -82C7-474F-B242-1EE20F8C3CE5/Application_fe609216-3501-432e-b1f9-027b4e8b2766" AND Technology NOT IN ("iOS", "WinPhone
 8", "Android")
 VERBOSE: Start: Execution of WQL query: SELECT * FROM SMS_DistributionPointInfo WHERE Name IN ( 'MEMCMSecondary.memcm.
 com' )
 VERBOSE: Finish: Execution of WQL query: SELECT * FROM SMS_DistributionPointInfo WHERE Name IN ( 'MEMCMSecondary.memcm
 .com' ). Processed 1 results in 00:00:00.0001469.
 VERBOSE: Start: Execution of WQL query: Select pkg.* From SMS_ContentPackage As pkg Inner Join SMS_CIContentPackage As
  con On pkg.PackageID = con.PackageID Where con.CI_ID In ('16784472') Or con.CI_ID in (Select ToApplicationCIID From S
 MS_AppDependenceRelation_Flat Where FromApplicationCIID In ('16784472'))
 VERBOSE: Finish: Execution of WQL query: Select pkg.* From SMS_ContentPackage As pkg Inner Join SMS_CIContentPackage A
 s con On pkg.PackageID = con.PackageID Where con.CI_ID In ('16784472') Or con.CI_ID in (Select ToApplicationCIID From
 SMS_AppDependenceRelation_Flat Where FromApplicationCIID In ('16784472')). Processed 1 results in 00:00:00.2005933.
 VERBOSE: Start: Execution of WQL query: Select * From SMS_DistributionPoint Where PackageID In ('MEM00023') And Server
 NALPath = '["Display=\\MEMCMSecondary.memcm.com\"]MSWNET:["SMS_SITE=HS0"]\\MEMCMSecondary.memcm.com\'
 VERBOSE: Delete() object 'SMS_DistributionPoint.PackageID="MEM00023",ServerNALPath="[\"Display=\\MEMCMSecondary.memc
 m.com\\"]MSWNET:[\"SMS_SITE=HS0\"]\\MEMCMSecondary.memcm.com\",SiteCode="HS0"'
 VERBOSE: Finish: Execution of WQL query: Select * From SMS_DistributionPoint Where PackageID In ('MEM00023') And Serve
 rNALPath = '["Display=\\MEMCMSecondary.memcm.com\"]MSWNET:["SMS_SITE=HS0"]\\MEMCMSecondary.memcm.com\'. Processe
 d 1 results in 00:00:00.1381848.
 VERBOSE: Start: Execution of WQL query: SELECT * FROM SMS_ApplicationLatest WHERE LocalizedDisplayName IN ( 'CMPivot'
 )
 VERBOSE: Finish: Execution of WQL query: SELECT * FROM SMS_ApplicationLatest WHERE LocalizedDisplayName IN ( 'CMPivot'
  ). Processed 1 results in 00:00:00.0000604.
 VERBOSE: Performing the operation "Remove" on target "ContentDistribution: LocalizedDisplayName="CMPivot"".
 VERBOSE: Start: Execution of WQL query: SELECT * FROM SMS_PackageContentServerInfo WHERE ObjectID IN ( 'SCOPEID_107428
 5A-82C7-474F-B242-1EE20F8C3CE5/APPLICATION_FE609216-3501-432E-B1F9-027B4E8B2766' )
 VERBOSE: Finish: Execution of WQL query: SELECT * FROM SMS_PackageContentServerInfo WHERE ObjectID IN ( 'SCOPEID_10742
 85A-82C7-474F-B242-1EE20F8C3CE5/APPLICATION_FE609216-3501-432E-B1F9-027B4E8B2766' ). Processed 1 results in 00:00:00.0
 001185.
 VERBOSE: Start: Execution of WQL query: SELECT COUNT() FROM SMS_DeploymentType WHERE AppModelName = "ScopeId_1074285A -82C7-474F-B242-1EE20F8C3CE5/Application_fe609216-3501-432e-b1f9-027b4e8b2766" AND Technology IN ("iOS", "Windows8App" , "WinPhone8", "Android", "MobileMsi") VERBOSE: Start: Execution of WQL query: SELECT COUNT() FROM SMS_DeploymentType WHERE AppModelName = "ScopeId_1074285A
 -82C7-474F-B242-1EE20F8C3CE5/Application_fe609216-3501-432e-b1f9-027b4e8b2766" AND Technology NOT IN ("iOS", "WinPhone
 8", "Android")
 VERBOSE: Start: Execution of WQL query: SELECT * FROM SMS_DistributionPointInfo WHERE Name IN ( 'CMMEMCM.memcm.com' )
 VERBOSE: Finish: Execution of WQL query: SELECT * FROM SMS_DistributionPointInfo WHERE Name IN ( 'CMMEMCM.memcm.com' )
 . Processed 1 results in 00:00:00.0001227.
 VERBOSE: Start: Execution of WQL query: Select pkg.* From SMS_ContentPackage As pkg Inner Join SMS_CIContentPackage As
  con On pkg.PackageID = con.PackageID Where con.CI_ID In ('16784472') Or con.CI_ID in (Select ToApplicationCIID From S
 MS_AppDependenceRelation_Flat Where FromApplicationCIID In ('16784472'))
 VERBOSE: Finish: Execution of WQL query: Select pkg.* From SMS_ContentPackage As pkg Inner Join SMS_CIContentPackage A
 s con On pkg.PackageID = con.PackageID Where con.CI_ID In ('16784472') Or con.CI_ID in (Select ToApplicationCIID From
 SMS_AppDependenceRelation_Flat Where FromApplicationCIID In ('16784472')). Processed 1 results in 00:00:00.0987883.
 VERBOSE: Start: Execution of WQL query: Select * From SMS_DistributionPoint Where PackageID In ('MEM00023') And Server
 NALPath = '["Display=\\CMMEMCM.memcm.com\"]MSWNET:["SMS_SITE=MEM"]\\CMMEMCM.memcm.com\'
 VERBOSE: Delete() object 'SMS_DistributionPoint.PackageID="MEM00023",ServerNALPath="[\"Display=\\CMMEMCM.memcm.com\
 \"]MSWNET:[\"SMS_SITE=MEM\"]\\CMMEMCM.memcm.com\",SiteCode="MEM"'
 VERBOSE: Finish: Execution of WQL query: Select * From SMS_DistributionPoint Where PackageID In ('MEM00023') And Serve
 rNALPath = '["Display=\\CMMEMCM.memcm.com\"]MSWNET:["SMS_SITE=MEM"]\\CMMEMCM.memcm.com\'. Processed 1 results in
  00:00:00.0691612.
