Intune Architecture and Sample Architecture Diagram Explained

Intune Architecture and Sample Architecture Diagram are explained in this post. The architecture of Intune is designed to provide organizations with a reliable, scalable, and secure unified endpoint management solution. Let’s also check out the details of the Architecture diagram and what are the components of the diagram.

When organizations implement Microsoft Intune as part of their endpoint management strategy, they can make architecture decisions that align with their unique requirements and infrastructure. These architecture decisions are tailored to suit the organization’s specific needs and may vary based on company size, industry, security policies, and existing IT infrastructure.

Intune Design Considerations are important because they are based on the 6 pillars Futuristic, Aligned with Org Priorities, Connectivity, Migration, Secured, and Agile.

Intune architecture decisions are crucial for organizations, and they revolve around three key pillars: Existing Investments, Device Management, and Integration. These pillars serve as guiding principles when considering the design and implementation of Microsoft Intune.

Patch My PC

What are the Types of Microsoft Intune Architecture?

Intune Architecture and Sample Architecture Diagram Explained 1

The Microsoft Intune Architecture includes 3 types Microsoft Intune Internal Architecture, Microsoft Intune SaaS Architecture, and Integration Architecture.

What are the Pillars of Intune Architecture?

Intune Architecture and Sample Architecture Diagram Explained 2

Intune service is based on 6 main pillars as per Microsoft. These Pillars are very critical for Microsoft and Intune service. The Intune pillars include Availability, Reliability, Performance, Scale, Security, and Agility. SCCM Intune Architecture Decision Making Tips Sample Diagram Configuration Manager ConfigMgr.

Adaptiva

What is New Intune Architecture Diagram, and How to Decode it?

Intune-Architecture

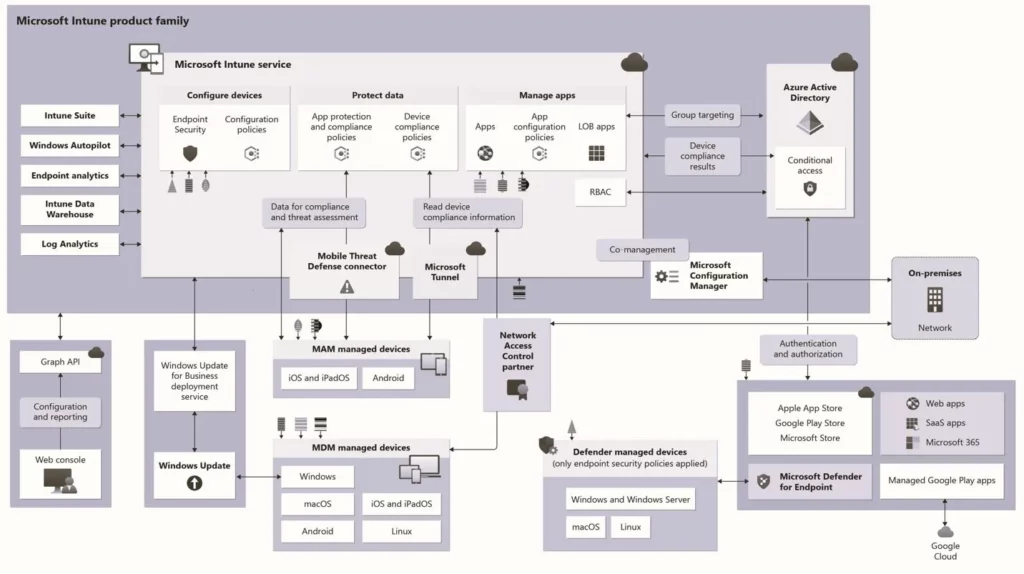

Intune architecture is the SaaS solution. Microsoft released an Intune Architecture diagram a few years back. Now Microsoft released the latest Intune architecture diagram with Intune suit representation etc. We will look into the old and new diagrams and then try to decode the latest architecture diagram.

Video What is Intune ArchitecturePart 1

In this video, you can see how Microsoft builds Intune Infrastructure in the Azure cloud. The architecture of Intune is a well-structured and intricately designed framework that empowers organizations to manage and secure their devices, applications, and data.

What is Intune Architecture and Sample Architecture Diagram Explained – Video 1

VideoSample Architecture Diagram Explained

In this video, you can see Intune architecture and what are the core components, what are the core services and what are the additional services with additional licenses and what all included in Intune product family, and what are the components outside of Microsoft and other vendors that can be integrated with Intune.

What is Intune Architecture and Sample Architecture Diagram Explained – Video 2

What is Microsoft Intune

Let’s see how the Intune service or Intune started within Microsoft. Initially, the Intune service ran on a physical machine hosted in a private data center. And it used a distributed service running on Azure for geographical reasons etc. The Usage of Intune began to scale in 2015. It is the Highly Scalable, Globally Distributed Cloud Service.

  • The public information from Microsoft is that they tried to analyze different vendors before redesigning Intune with Modern Azure Services, so they looked into competitors’ technology and tried to acquir them.
  • Most of the device management solutions were based on the client-server model. Now Intune is based on a Cloud service model even though it got a server and client part.
  • Intune service scales to Billions of devices and apps
  • To learn more about Microsoft Intune, click the What is Microsoft Intune?
What is Intune Architecture and Sample Architecture Diagram Explained - fig.1
Intune Architecture and Sample Architecture Diagram Explained – fig.1

What is Intune Architecture

This is the core part of Intune architecture public information available from Microsoft. Intune Architecture is built based on Azure Service Fabric (ASF) Clusters. In 2023, 29 of these clusters will be around 3 regions. Intune architecture is used as a case study for many presentations within Microsoft itself.

  • There are 2 types of Nodes: Front-end (FE) State-less Nodes and Middle-tier (MT) State-full Nodes.
What is Intune Architecture and Sample Architecture Diagram Explained - fig.2
Intune Architecture and Sample Architecture Diagram Explained – fig.2

Which are the Intune Tenant Locations

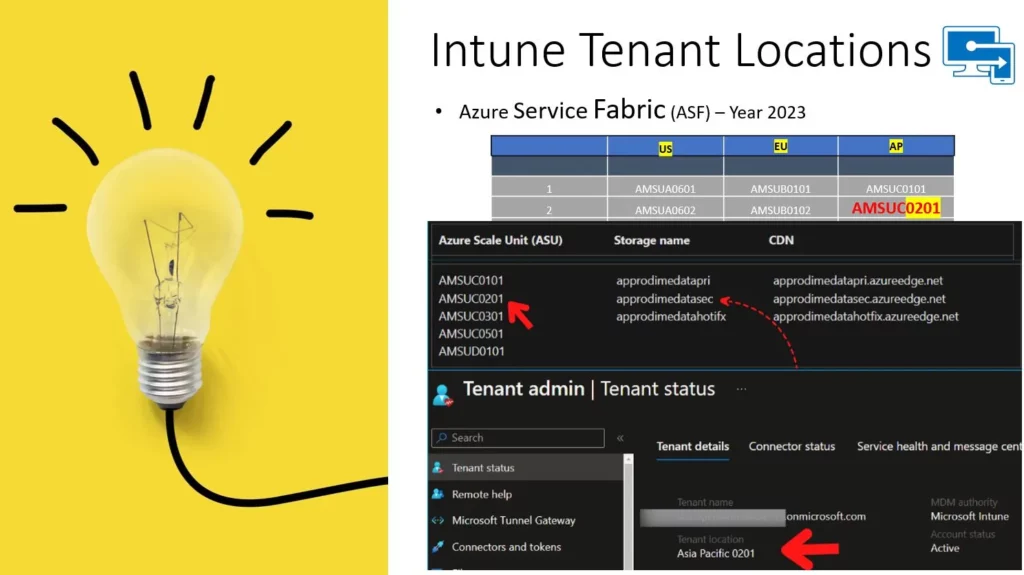

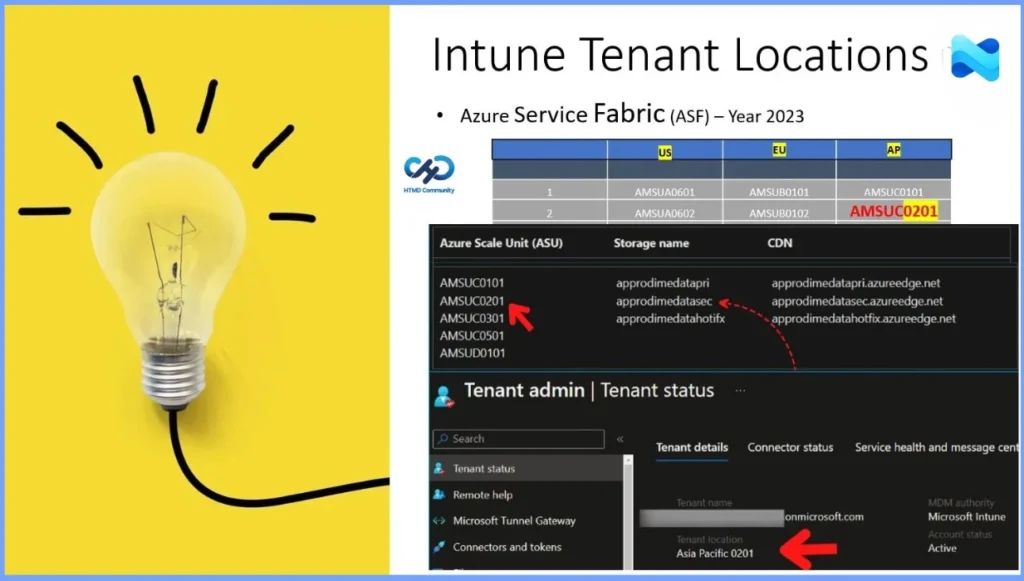

Azure scale units are Intune tenant locations. As per the public information available, the Microsoft clusters are based on Azure Service Fabric (ASF). This is the information from 2023. The window below helps you show details such as Azure scale unit, Storage name, CDN, etc.

Intune Architecture and Sample Architecture Diagram Explained - fig.3
Intune Architecture and Sample Architecture Diagram Explained – fig.3

Azure AMSU or Intune Tenant Locations

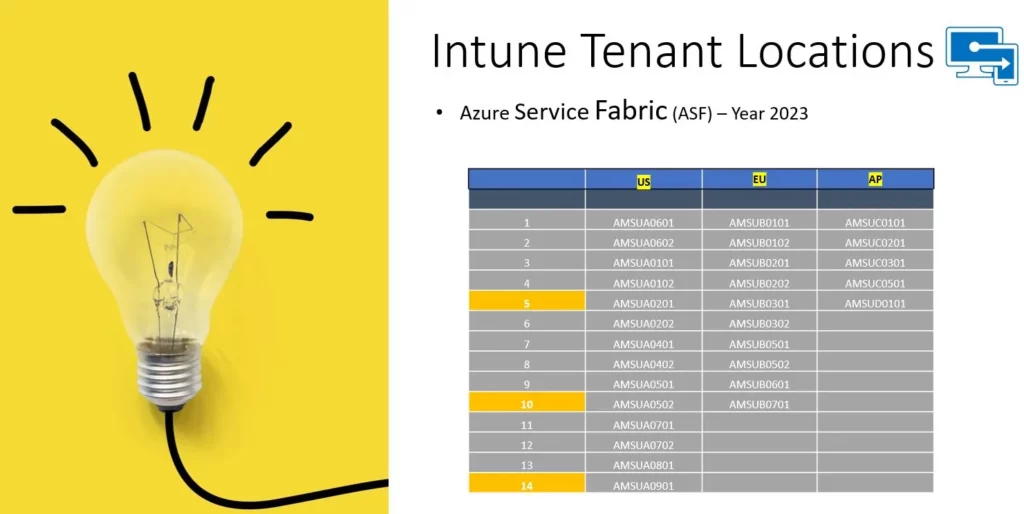

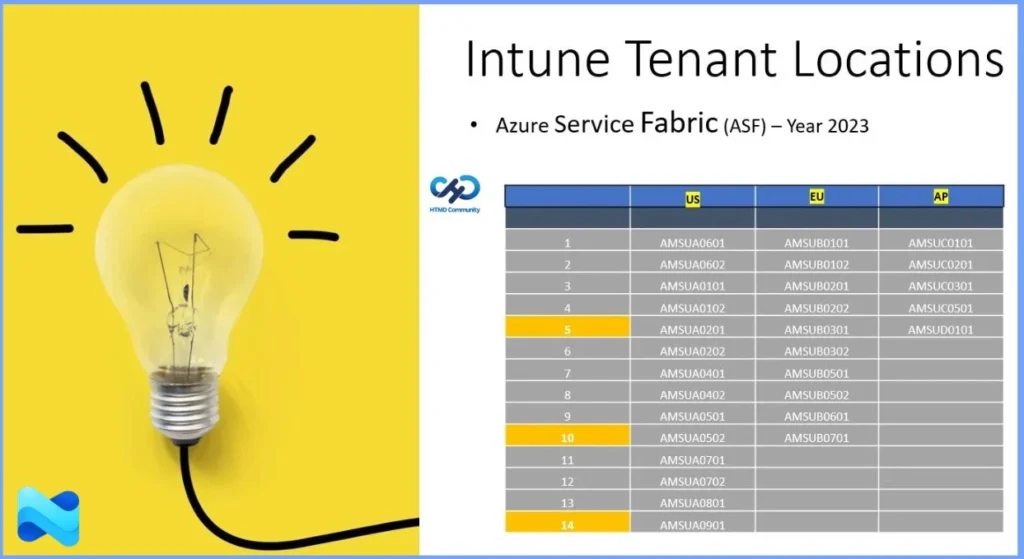

This is the 2023 Azure AMSU or tenant locations based on Azure service fabrics clusters. There are 14 AMSU tenant locations as service fabric clusters are available for America or US. The screenshot below helps you show the Azure AMSU or tenant locations based on Azure service fabrics clusters.

  • For Europe, you can see 10 AMSU are available
  • And in Asia, there are 5 AMSU available
  • Microsoft documentation shows the increasing number of AMSUs in different regions.
NumbersUSEUAP
1AMSUA0601AMSUB0101AMSUC0101
2AMSUA0602AMSUB0102AMSUC0201
3AMSUA0101AMSUB0201AMSUC0301
4AMSUA0102AMSUB0202AMSUC0501
5AMSUA0201AMSUB0301AMSUC0101
6AMSUA0202AMSUB0302
7AMSUA0401AMSUB0501
8AMSUA0402AMSUB0502
9AMSUA0501AMSUB0601
10AMSUA0502AMSUB0701
11AMSUA0701
12AMSUA0702
13AMSUA0801
14AMSUA0901
Intune Architecture and Sample Architecture Diagram Explained – Table 1
Intune Architecture and Sample Architecture Diagram Explained - fig.4
Intune Architecture and Sample Architecture Diagram Explained – fig.4

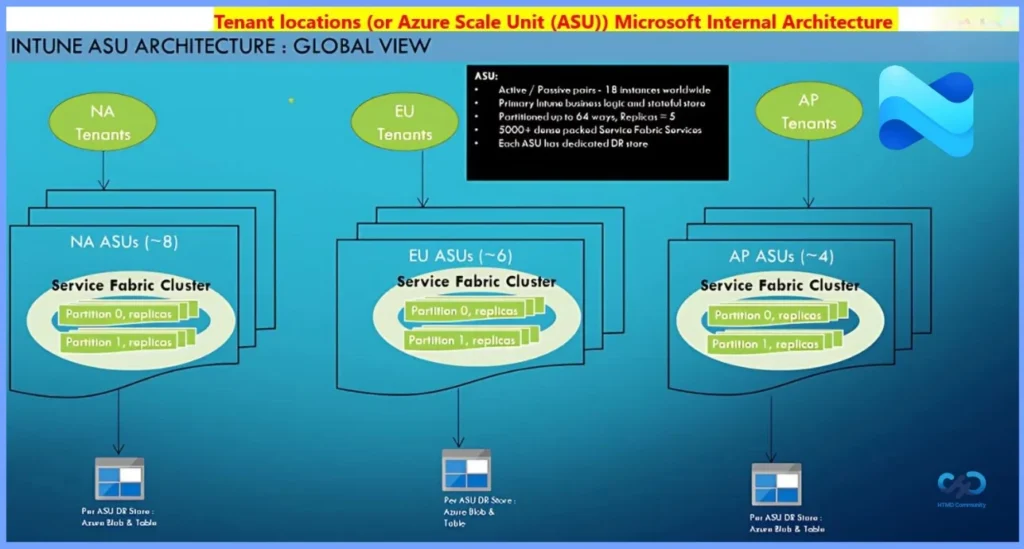

Intune Architecture shared by Microsoft in 2015

This is the 2015 Architecture shared by Microsoft. There is nothing changed in the core architecture. NA Tenants that is America. Only 8 ASUs or tenant locations based on service fabric clusters, but now in 2023, it is 14. If you locate EU ASUs, it is 6 ASUs or tenant locations, but it is now 2023; it is 10. AP ASUs is 4, but in 2023 it is 5.

Intune Architecture and Sample Architecture Diagram Explained - fig.5
Intune Architecture and Sample Architecture Diagram Explained – fig.5

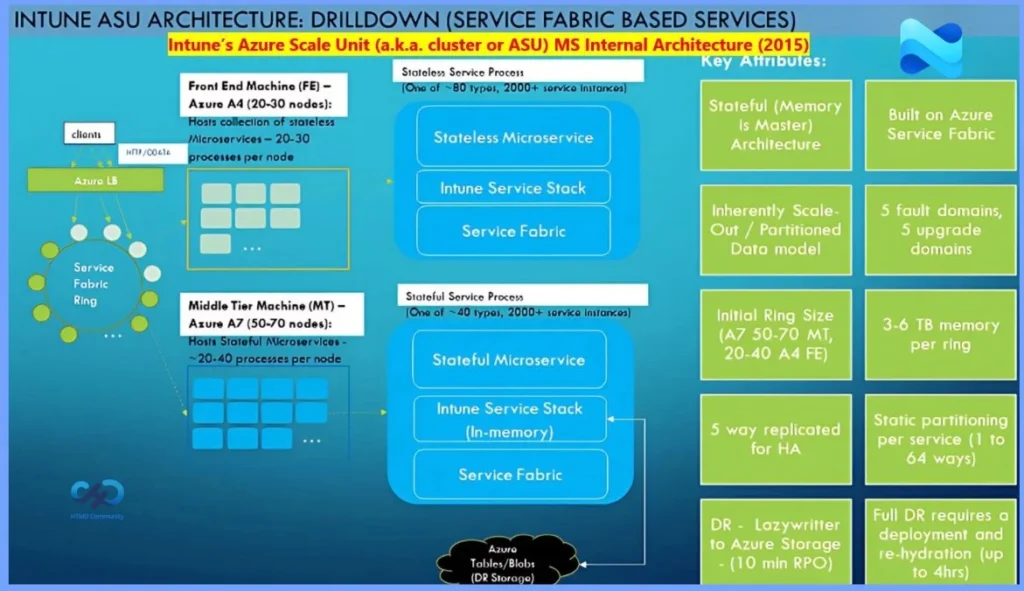

Intune ASU Architecture – Drilldown Service Fabric-Based Services

This Intune ASU architecture diagram is based on the data from 2015. In the Intune ASU Architecture, you can see the Clients are communicated with the Azure load balancer; then it goes to the Azure Service fabrics ring. It includes the Front End Machines (FE), the templates used at the time is Azure A4, and Middle Tier Machines (MT), the templates used at the time is Azure A7. The Key Attributes are as follows.

  • Stateful(Memory is Master)Architecture
  • Inherently Scale-Out/Partitioned Data model
  • Initial Ring Size(A7 50-70 MT,20-40 A4 FE)
  • 5-way replicated for HA
  • DR-Lazywritter to Azure Storage-(10 min RPO)
  • Built on Azure Service Fabric
  • 5 fault domains,5 upgrade domains
  • 3-6 TB memory per ring
  • Static partitioning per service (1 to 64 ways)
  • Full DR requires a deployment and re-hydration(up to4 hrs)
Stateless Service processStateful service process
80 Types40 types
2000 plus service instances2000 plus service instances
Components: Stateless MicroserviceComponents: Stateful Microservice
Intune Service StackIntune Service Stack
Service FabricService Fabric
Intune Architecture and Sample Architecture Diagram Explained – Table 2
What is Intune Architecture and How to Decode Intune Architecture Diagram - fig.6
Intune Architecture and Sample Architecture Diagram Explained – fig.6

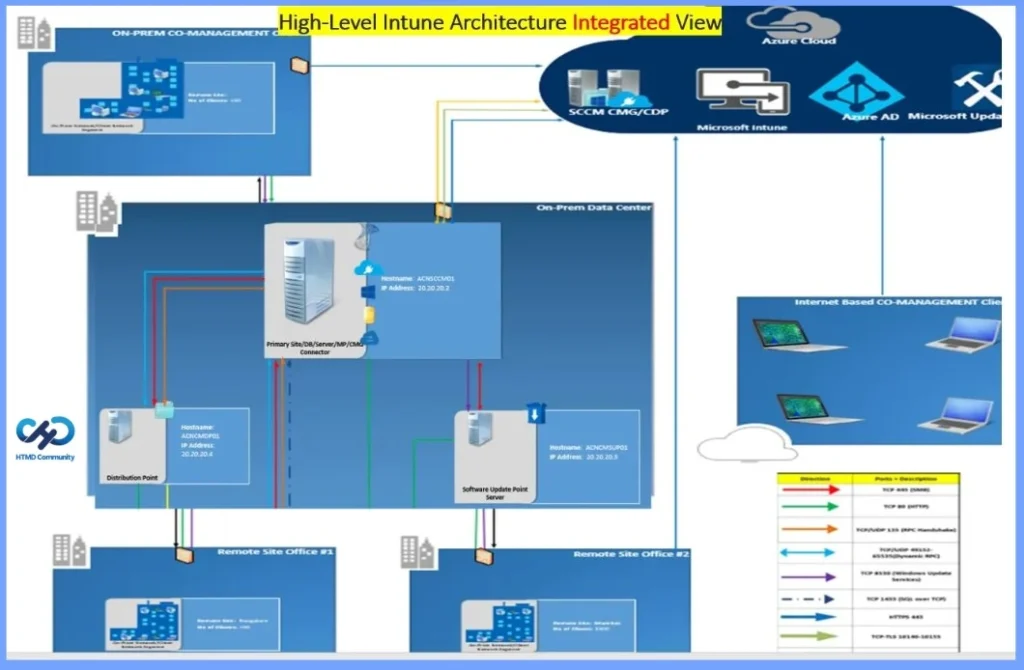

High-Level Intune Architecture Integrated View with SCCM

This architecture is about Integration. Here you can see Intune is integrated with SCCM, and you can also see the Azure cloud and Azure AD integration. Third-party Integration is also available.

Intune Architecture and Sample Architecture Diagram Explained - fig.7
Intune Architecture and Sample Architecture Diagram Explained – fig.7

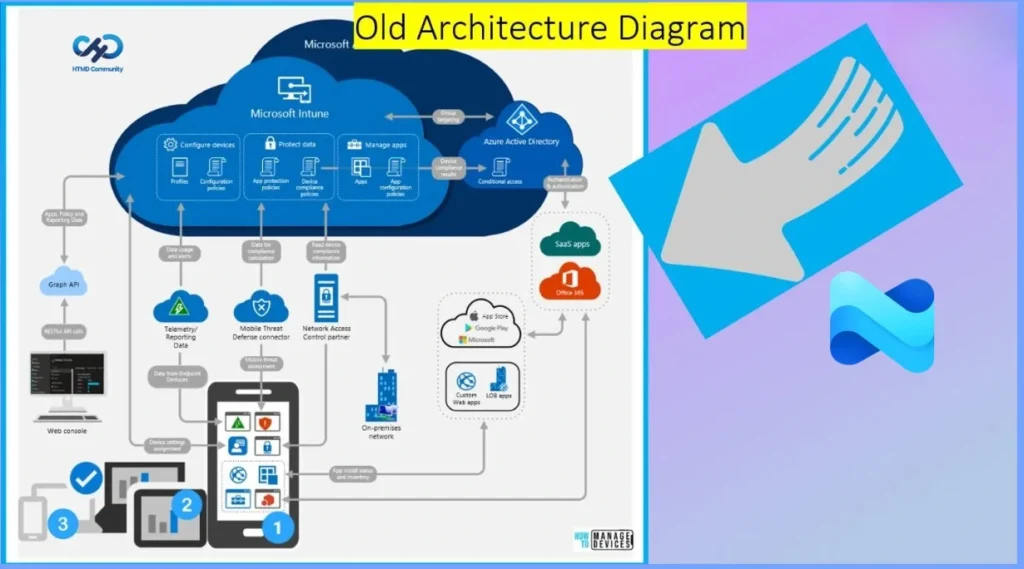

High-Level Intune Architecture SaaS View

This is the High-level Intune SaaS view, and it is the client perspective from an organizational perspective. You can manage mobile devices, tablets, phones, PSs, Windows, and Mac OS devices here. You can manage all those devices with this SAS architecture you can see over here in this diagram.

Intune Architecture and Sample Architecture Diagram Explained - fig.8
Intune Architecture and Sample Architecture Diagram Explained – fig.8

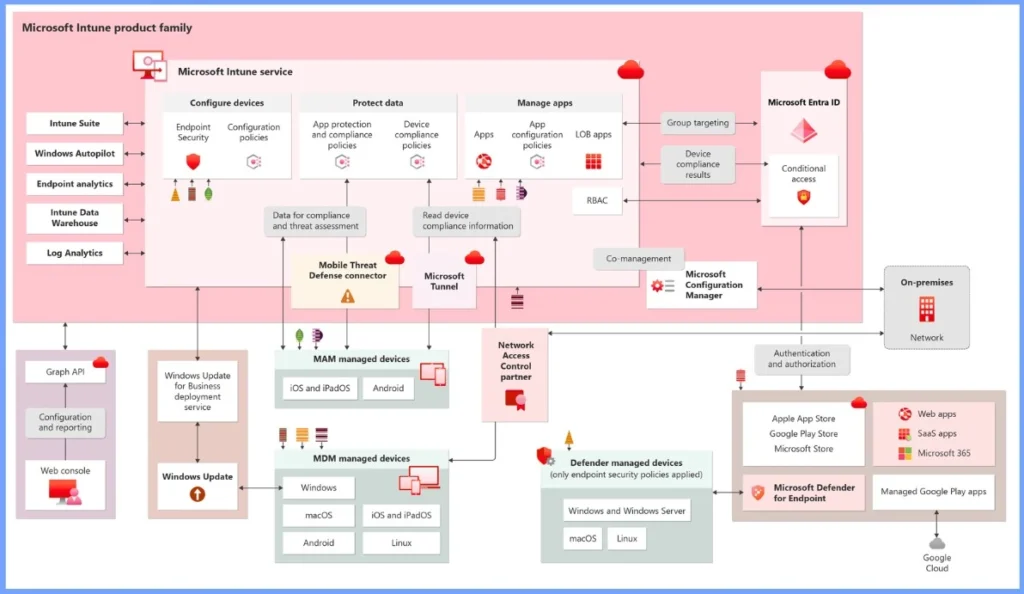

Download Sample Architecture Diagram Explained

This is the latest architecture diagram that microsoft released. This diagram is called the Microsoft Intune Product family, and the Biggest box inside this architecture diagram is the Microsoft Intune service, which is the core of the Intune product family.

The Azure active directory is also there in this main box. The left side of the diagram shows the Intune suite, which includes many new services. Intune suite, Windows Autopilot, Endpoint analytics, Intune Data Warehouse, and Log Analytics are part of Intune product family. The following diagram is explained in the video Intune Architecture Decoded | Clear understanding of Intune High Level Architecture – YouTube.

What is Intune Architecture and How to Decode Intune Architecture Diagram - fig.9
What is Intune Architecture and How to Decode Intune Architecture Diagram – fig.9

High-level architecture for Microsoft Intune | Microsoft Learn
