SCCM 1806 New Features Changes a Video Walkthrough

SCCM 1806 production version is available via fast ring (opt-in) channel. I have upgraded my lab environment, and it was a very smooth upgrade.

In this post, I will give you an overview of new or enhanced features of SCCM 1806 production version. This post also includes a video walkthrough of SCCM 1806 new features.

[Related PostHow to Upgrade SCCM Infra to 1806 Production Version and SCCM 1806 Production Version is Released in Slow Ring]

Content

  1. SCCM CMPivot Tool
  2. Primary Server Passive Mode Options
  3. Video SCCM 1806 New Features Walkthrough
  4. SCCM 1806 – Management Insights
  5. Eliminate Cloud DP. Instead, use Cloud Management Gateway
  6. Partial Download support in client peer cache to reduce WAN utilization
  7. Transition new workloads to Intune using co-management
  8. Other SCCM 1806 New Features

SCCM CMPivot Tool

CMPivot is a new in-console utility that provides access to the real-time state of devices in your environment. It immediately runs a query on all currently connected devices in the target collection and returns the results.

Patch My PC

I would recommend reading my previous post to get more details.

Primary Server Passive Mode Options

High availability for a stand-alone primary site server role is an SCCM-based solution to install an additional site server in passive mode. The site server in passive mode is in addition to your existing site server in the inactive mode.

A site server in passive mode is available for immediate use when needed. I recommend reading Microsoft doc for more details about primary server passive mode.

A site server in passive mode:

Adaptiva
  • Uses the same site database as your site server in active mode.
  • It doesn’t write data to the site database when it’s massively.
  • Uses the same content library as your site server in active mode.

Flow chart details of Primary server passive mode

Video SCCM 1806 New Features Walkthrough

A quick overview of SCCM 1806 new features in the following video. Please subscribe to my YouTube channel if you find the videos useful.

SCCM 1806 New Features Changes a Video Walkthrough 1

[Related PostHow to Upgrade SCCM Infra to 1806 Production Version]

SCCM 1806 – Management Insights

Management Insights will help you gain valuable insights into the current state of the SCCM 1806 environment based on data analysis in the site database.

One of the scenarios in the management insight would be useful to understand your environment better and take action based on the insight.

I have explained all the management insights of SCCM 1806 in the video tutorial above. The log file for management insight rules is SMS_DataEngine.log on the site server.

Eliminate Cloud DP. Instead, use Cloud Management Gateway.

With SCCM 1806, you got an option to avoid creating Cloud DP. Instead, the content can be downloaded from the Cloud Management Gateway (CMG).

I would recommend avoiding creating Cloud DP for your future deployments of SCCM 1806 or later.

SCCM CMG can now also serve content to clients. This CMG functionality reduces the required certificates and cost of extra Azure VMs.

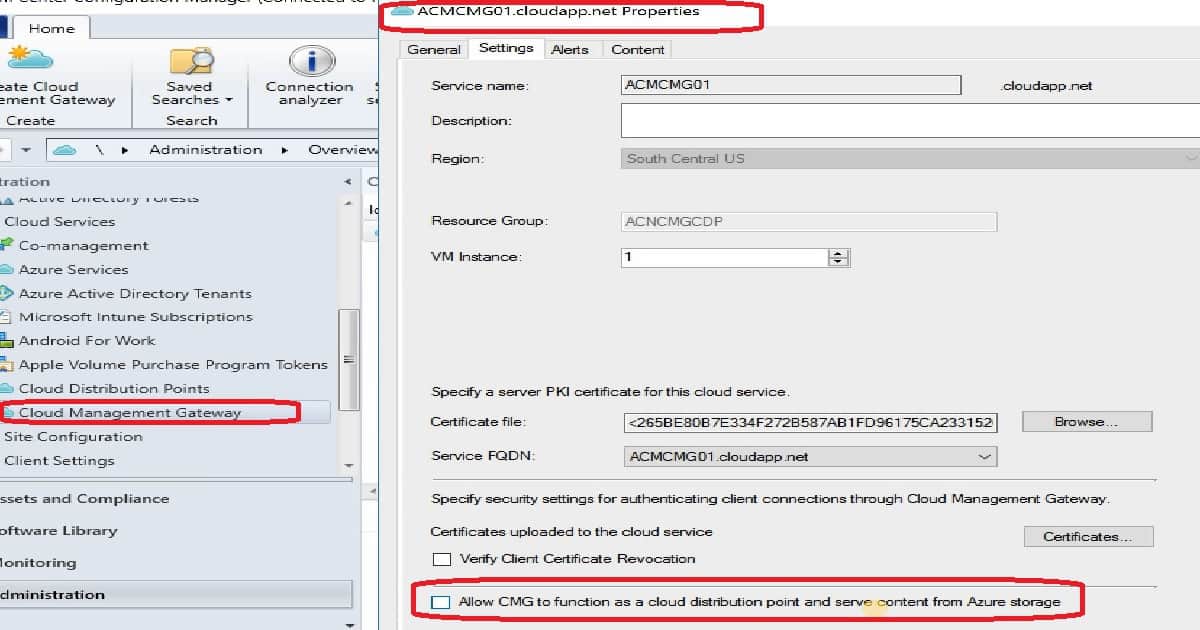

To enable this feature, enable the new option to Allow CMG to function as a cloud distribution point and serve content from Azure storage on the Settings tab of the CMG properties.

SCCM 1806 New Features
SCCM 1806 New Features Changes a Video Walkthrough 2

Partial Download support in client peer cache to reduce WAN utilization

SCCM 1806 or later Client peer cache sources can now divide content into parts. These parts minimize the network transfer to reduce WAN utilization.

The management point provides more detailed tracking of the content parts. It tries to eliminate more than one download of the same content per boundary group.

You can set this partial download of SCCM content up from SCCM 1806 console – Hierarchy settings properties.

  1. Set up boundary groups and peer cache sources. Check out Boundary group options for peer downloads option. Allow peer downloads in this boundary group.
  2. Go to the Administration workspace in the Configuration Manager console, expand Site Configuration, and select Sites. Click Hierarchy Settings in the ribbon.
  3. On the General tab, enable the option to Configure client peer cache sources to divide content into parts.
  4. Create a required deployment with content.

[Related PostHow to Upgrade SCCM Infra to 1806 Production Version and SCCM 1806 Production Version is Released in Slow Ring]

Transition new workloads to Intune using co-management

SCCM 1806 new features include options to transition new workloads to Intune via the co-management option of Windows 10. The following workloads are now able to transition from Configuration Manager to Intune after enabling co-management:

  • Device configuration: This workload lets you use Intune to deploy MDM policies while continuing to use SCCM for deploying applications.
  • Office 365: Devices don’t install Office 365 deployments from SCCM 1806 or later.
  • Mobile apps: Any available apps deployed from Intune are available in the Company Portal. Apps that you deploy from SCCM are available in the Software Center.


Other SCCM 1806 New Features

The rest of the SCCM 1806 new features are explained in the Video tutorial. The following are some of my favorite changes of SCCM 1806, which I explained in the above video tutorial.

I recommend reading Microsoft documentation on new features to get all the details.

Support for multiple hierarchies to one Intune tenant
Phased deployment of applications
MSIX Support for new Windows app package formats
Improvements to phased deployments
A network access account is not required for some scenarios
Third-party software updates
Filter automatic deployment rules by software update architecture

[Related PostHow to Upgrade SCCM Infra to 1806 Production Version and SCCM 1806 Production Version is Released in Slow Ring]
