SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager? After restoring the SCCM/ConfigMgr central server, I tried installing a remote site system.

After creating a new site server in the SCCM/ConfigMgr console, I waited enough time to install the site system role (SUP) on the remote server.

But nothing was happening; there were no specific log entries at all. I was continuously checking sitecomp.log and suddenly noticed an error related to registry access on the remote server.

However, the error did not clarify the remote registry access issue with the SCCM site server. The following is the error snippet from sitecomp.log. SCCM CB releases usually happen twice a year, in March (ending with “03”) and September (ending with “09”). The HTMD community expected and reported this, as mentioned in their post titled “Windows Client OS Release Cycle Getting Changed to 3 Years.

Patch My PC
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager - Fig.1
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager – Fig.1

SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager

ERROR: Cannot open the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\ProductOptions registry key for reading on server SUPRemote.  The operating system reported error 0: The operation completed successfully.

STATMSG: ID=1026 SEV=I LEV=M SOURCE="SMS Server" COMP="SMS_SITE_COMPONENT_MANAGER" SYS=SCCMPri SITE=PL0 PID=2276 TID=8576 GMTDATE=Sat Jan 28 03:33:42.032 2017 ISTR0="\\SUPRemote" ISTR1="" ISTR2="" ISTR3="" ISTR4="" ISTR5="" ISTR6="" ISTR7="" ISTR8="" ISTR9="" NUMATTRS=0

Cannot access Software\Microsoft\SMS\Security registry key on server SUPRemote.  The operating system reported error 0: The operation completed successfully.

When I tried to connect to the new site system’s remote registry from the SCCM/ConfigMgr central server, I received the following error, which gave me some clues that the SCCM site server’s remote registry was inaccessible.

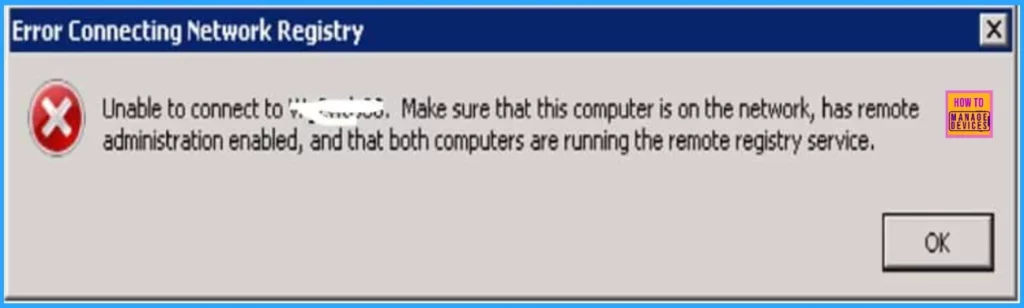

Unable to connect to SUPRemote. Make sure that this computer is on the network, has remote administrator enabled, and that both computers are running the remote registry service.
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager - Fig.2
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager – Fig.2

There are 2 possible issues in the above remote registry error. The first one checks whether the remote administrator is enabled or not. I have checked the server manager of the remote site server.

There is a setting called “configure server manager remote management“. “Enable remote management of this server from another computer” was already enabled for the remote site system.

Server Summary Help
Change System Properties
View Network Connections
Configure Remote Desktop
Configure Server Manager Remote Management
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager – Table 1
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager - Fig.3
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager – Fig.3

The second part of the error is to check whether both computers are running the remote registry service. When I checked the SCCM remote site server’s remote registry service, it was set to manual, and I was not in a running state.

Adaptiva
  • I started the “remote registry” service and changed its startup type to automatic (delayed).
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager - Fig.4
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager – Fig.4

The remote registry server was not started, which was the SCCM/ConfigMgr remote system issue. After starting this service, SCCM/ConfigMgr was able to connect to the site server’s remote registry successfully. Also, the installation of the remote SUP role has been completed successfully.

Starting service SMS_SERVER_BOOTSTRAP_SCCMPri with command-line arguments "CA0 D:\SMS /install \\SUPRemote\D$\SMS\bin\i386\comregsetup.exe "...
        "\\SUPRemote\D$\SMS\bin\i386\comregsetup.exe /install /siteserver:SCCMPri" executed successfully on server SUPRemote.
        Starting service SMS_SERVER_BOOTSTRAP_SCCMPri with command-line arguments "PL0 D:\SMS /install \\SUPRemote\ADMIN$\system32\smsmsgs\srvmsgs.cmd "...
STATMSG: ID=1014 SEV=I LEV=M SOURCE="SMS Server" COMP="SMS_MP_FILE_DISPATCH_MANAGER" SYS=SUPRemote SITE=PL0 PID=2248 TID=4788 GMTDATE=Sat Jan 28 05:13:50.430 2017 ISTR0="" ISTR1="" ISTR2="" ISTR3="" ISTR4="" ISTR5="" ISTR6="" ISTR7="" ISTR8="" ISTR9="" NUMATTRS=0
   Successfully called IAbstractNetwork::CreatePath() with NAL path "MSWNET:\\SUPRemote\admin$\".
<01-28-2017 06:14:08> Invoking process "C:\Windows\Microsoft.NET\Framework\v2.0.50727\RegAsm.exe" "D:\SMS\bin\i386\wsusmsp.dll"
<01-28-2017 06:14:34> Registered DLL D:\SMS\bin\i386\wsusmsp.dll
<01-28-2017 06:14:34> Installation was successful.

Here are some more tips: If you are struggling to remove your orphan remote site systems from the SCCM/ConfigMgr console, here is how. I don’t recommend editing the SCCM database; however, it’s better to remove the server name from the SCCM/ConfigMgr primary registry.

Once the registry is deleted, these changes will automatically reflect in SQL DB. Then, we will also have the option to delete the remote site system from the SCCM console. Yes, SMS/SCCM is a slow-moving server, so patience is key. You must wait at least a good amount of time to get the above changes in the SCCM console.

SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager - Fig.5
SCCM ConfigMgr Remote Site System Installation Error Cannot Open Registry | Configuration Manager – Fig.5
Registry entry :- HKLM/Software/Microsoft/SMS/Components/SMS_SITE_COMPONENT_MANAGER/Component/Servers
