Hi and welcome to today’s post titled “Easily track Windows 10 Intune App deployments from the Endpoint – Support Help #2“
This is a continuation of my previous post Easily track Windows 10 Intune MDM policies – Support Help #1 where I have tried to explain how you can use the Windows registry and events to help troubleshoot issues related to Windows 10 Intune MDM policy deployment issues.
Today we will continue on the same journey, exploring how we can troubleshoot Intune app deployment issues using the Windows 10 registry and events.
Let’s get started.
Types of Intune supported app deployment for Windows 10 platform
Intune supports a variety of app types and deployment scenarios for the Windows 10 platform as highlighted below.
- Weblink for internal web apps
- MSfB Online/Offline apps [Store Apps]
- M365 Apps (O365 Pro Plus package)
- Microsoft Edge
- LOB app (.msi, .appx, .appxbundle, .msix, and .msixbundle)
- Win32 (.exe wrapped as .intunewin)
However, all would agree to the fact that on a day-to-day basis for Windows 10 platform, as an Intune IT Pro, we mostly have to deal with issues related to LOB and Win32 app deployments.
Since Win32 app deployment troubleshooting is already covered previously on my blog titled Intune Management Extension Level 3 Troubleshooting Guide Intune win32 App, as such, I thought of keeping the focus of this article on the support of Windows 10 LOB app deployment from Intune.
Understanding Intune Windows 10 App Deployment High-level flow…
So first, let us understand the high-level flow of Windows 10 app deployment from Intune.
Consider an application created in Intune for Windows 10. Irrespective of the type of app being created, Store app/LOB app/Weblink, Intune will create an Application object identifiable via a GUID.
The Application Object is stored to the Azure Blob Storage which every Intune tenant comes with for storing all policy configuration settings and serves the Intune CDN for delivery and deployments.
If the app object is a Microsoft Store App, the object content is a deep-link to the respective Store app, and deployment of the app is handled by the Store services.
For a Microsoft Store for Business app,
- If the app type is Offline and is free of charge, the deployment is handled by Intune.
- If the app type is Online, the deployment is handled by the Store services.
For more info on the above, check here.
If it is a LOB app, the object content will contain the app package as uploaded during the app creation. Intune will handle the app deployment and the app will be served from the Intune CDN.
Now an app can be deployed either as an Available or Required.
Depending on the deployment type, the below flow of actions would be an overview of the process that will happen.
Application deployed as Available
- User opens the Company Portal app on the endpoint (or can be accessed via web https://portal.manage.microsoft.com/)
- User searches for the app

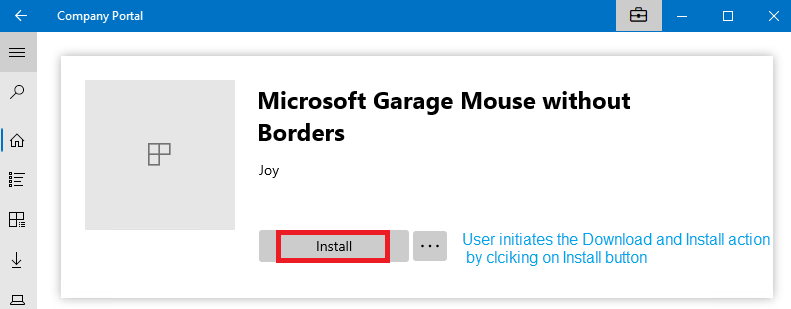

- The user initiates the app installation by clicking on the Install button triggering the DownloadInstall action.
Application deployed as Required
- Intune will initiate a Push Notification to invoke the DM Client of the endpoint.
- Push Notification Provider (WNS) will notify the DM client on the target device to initiate a connection to the service.
- DM client then initiates a connection to the management server. An OMA-DM session starts.
- Intune sends the app instruction with intent DownloadInstall or StoreInstall [Trigger the application installation depending on whether the app is a LOB or a Store app]
The DM client knows if the app install instruction as sent is for a Store App or LOB app by reading the LocURI
element of the SyncML instruction.
- If it is a Store app, the DM client invokes the EnterpriseModernAppManagement CSP which handles the rest.
This is what the SyncML instruction from Intune looks like which is received by the endpoint.
<Add> <CmdID>xx</CmdID> <Item> <Target> <LocURI>./User/Vendor/MSFT/EnterpriseModernAppManagement/AppInstallation/Microsoft.Office.Sway_8wekyb3d8bbwe</LocURI> </Target> </Item> </Add> <Exec> <CmdID>xx</CmdID> <Item> <Target> <LocURI>./User/Vendor/MSFT/EnterpriseModernAppManagement/AppInstallation/Microsoft.Office.Sway_8wekyb3d8bbwe/StoreInstall</LocURI> </Target> <Meta> <A:Format>xml</A:Format> <A:Type>text/plain</A:Type> </Meta> <Data><Application id="9WZDNCRD2G0J" flags="1" skuid="0016" /></Data> </Item> </Exec>
As an overview, the request is redirected to the respective store via the deep link and the Store handles the rest of the delivery mechanism and installation.
- If it is a LOB app (as shown above), the DM client invokes the EnterpriseDesktopAppManagement CSP which handles the rest.
This is what the SyncML instruction from Intune looks like when is received by the endpoint.
<Atomic> <CmdID>xx</CmdID> <Add> <CmdID>xx</CmdID> <Item> <Target> <LocURI>./Device/Vendor/MSFT/EnterpriseDesktopAppManagement/MSI/%7BD3BC954F-D661-474C-B367-30EB6E56542E%7D/DownloadInstall</LocURI> </Target> </Item> </Add> <Exec> <CmdID>xx</CmdID> <Item> <Target> <LocURI>./Device/Vendor/MSFT/EnterpriseDesktopAppManagement/MSI/%7BD3BC954F-D661-474C-B367-30EB6E56542E%7D/DownloadInstall</LocURI> </Target> <Meta> <A:Format>xml</A:Format> <A:Type>text/plain</A:Type> </Meta> <Data><MsiInstallJob id="{D3BC954F-D661-474C-B367-30EB6E56542E}"><Product Version="2.1.8.105"><Download><ContentURLList><ContentURL>https://fef.msuc02.manage.microsoft.com/ContentService/DownloadService/GetAppActive/WinRT?contentGuid=8edd097e-6f04-4919-a211-2ed5476240bd&amp;fileNameHash=e35b30c2-e68a-4cd8-aa5d-7ef8bb798cbc.msi.bin&amp;api-version=1.0</ContentURL></ContentURLList></Download><Validation><FileHash>C73D373275519DE5545824FF20E886E4C2D76770CB77F8B685C0B52A1C07E97D</FileHash></Validation><Enforcement><CommandLine>/qn</CommandLine><RetryCount>5</RetryCount><RetryInterval>3</RetryInterval></Enforcement></Product></MsiInstallJob></Data> </Item> </Exec> </Atomic>
As an overview, there is a BITS download job created to get the package downloaded from the Intune CDN post which there is an Exec operation during which the app is subjected to installation.
The difference in how the app deployments are handled on the endpoint based on the app type can be further understood by the difference in the Exec command that Intune sends for the two different app types.
- For an MSI LOB app, the
EXEC
instruction isDownloadInstall
- For a Store app, the
EXEC
instruction isStoreInstall
Windows 10 Intune App Deployment Issues – LOB (MSI) Application
As stated above already, MSI App deployment from Intune is taken care of by the EnterpriseDesktopAppManagement CSP on the endpoint which the DM Client will invoke when it receives an instruction from Intune to install a LOB app.
Tracking Intune Windows 10 LOB app deployment via Windows Events
You can track LOB app deployments (for both Available or Required) using Windows events as shown below.
Event 1901, DeviceManagement-Enterprise-Diagnostics-Provider EnterpriseDesktopAppManagement CSP: A node instance of was created successfully. MSI ProductCode: {D3BC954F-D661-474C-B367-30EB6E56542E}, MSI UpgradeCode: null, User SID: (S-0-0-00-0000000000-0000000000-000000000-000).

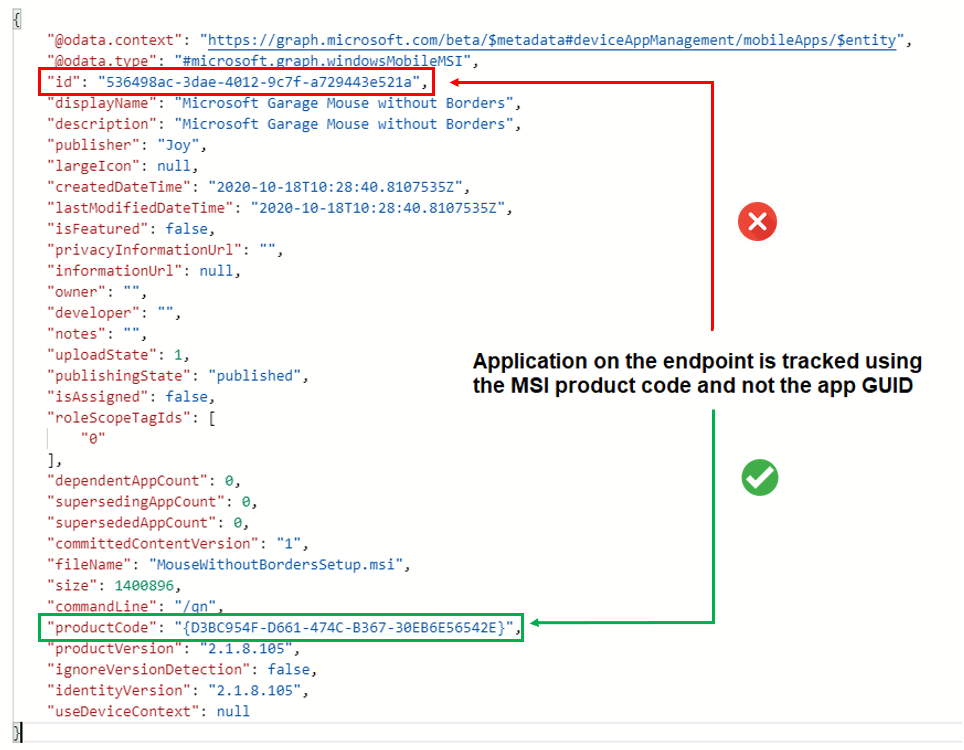

Note: MSI app deployment on the endpoint is tracked against the MSI product code and not the App GUID as seen in Intune.

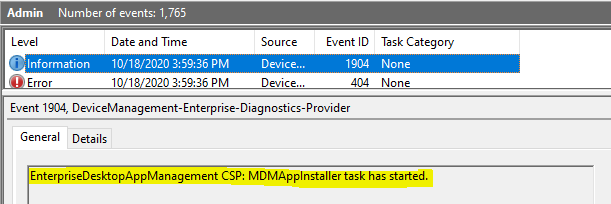

Event 1904, DeviceManagement-Enterprise-Diagnostics-Provider EnterpriseDesktopAppManagement CSP: MDMAppInstaller task has started.
A LOB (MSI) app deployment is a two-phase process on the endpoint –
- The download of the app package to the local storage on the endpoint
- Execution of the app package for the actual install

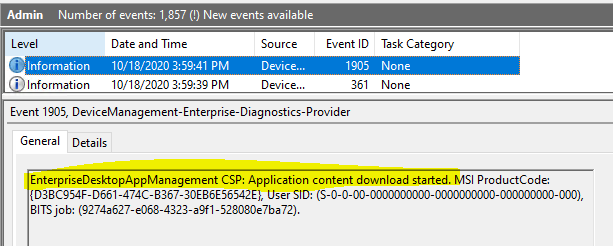

As such, once the app instance node is created, you would see a corresponding BITS job being created to get the MSI package downloaded from Intune CDN to the endpoint.
Event 1905, DeviceManagement-Enterprise-Diagnostics-Provider EnterpriseDesktopAppManagement CSP: Application content download started. MSI ProductCode: {D3BC954F-D661-474C-B367-30EB6E56542E}, User SID: (S-0-0-00-0000000000-0000000000-000000000-000), BITS job: (9274a627-e068-4323-a9f1-528080e7ba72).

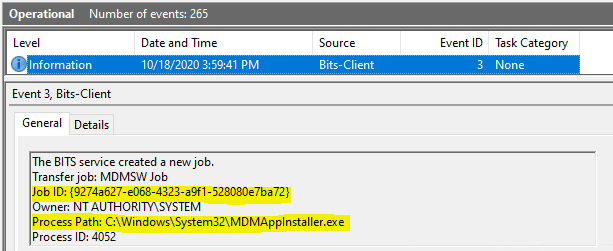

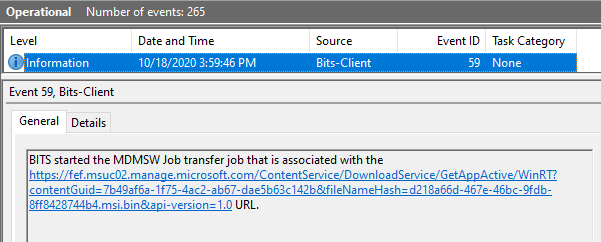

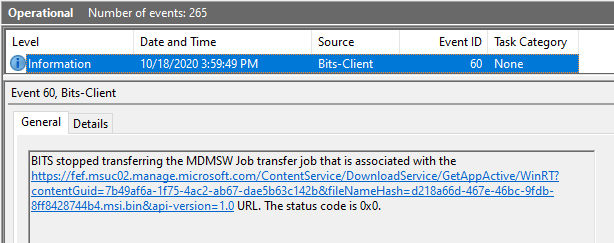

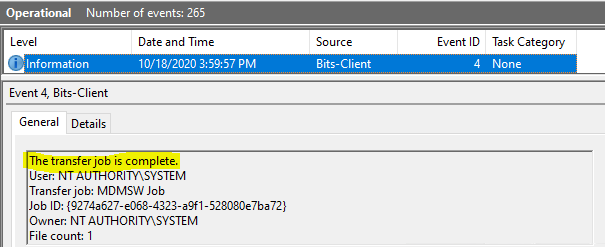

You will get information on the corresponding BITS jobs from the BITS-Client events which can help you to trace any errors faced during the download phase.
If the download phase has faced no errors and the BITS job is completed successfully as above, you get the corresponding DM-Ent-Diag-Prov
event as below

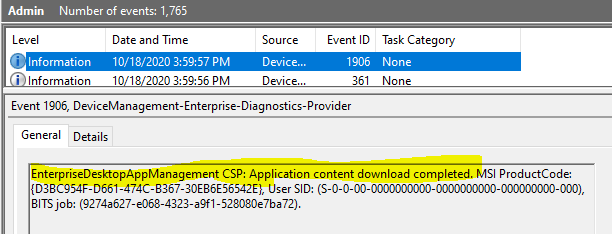

Event 1906, DeviceManagement-Enterprise-Diagnostics-Provider EnterpriseDesktopAppManagement CSP: Application content download completed. MSI ProductCode: {D3BC954F-D661-474C-B367-30EB6E56542E}, User SID: (S-0-0-00-0000000000-0000000000-000000000-000), BITS job: (9274a627-e068-4323-a9f1-528080e7ba72).
However, if there are any errors in the download phase itself, the BITS-Client events for the download job would help you to understand the issue.
Once the package download is complete, the next phase starts which is the Execution of the app package for the installation.
To which path is the MSI app package downloaded to the local storage on the endpoint?
The MSI app package is downloaded to the local storage path C:\Windows\system32\config\systemprofile\AppData\Local\mdm
The above path is a temporary cache location.
Once the installation is successful, the downloaded app package file is purged. If only the install fails, you will find the downloaded app package file here with the MSI product code as the file name.
How do we know that this is the location to which the app package is downloaded?
Well, the answer is there in the MsiInstaller events [Application Events].
Event 1040, MsiInstaller [Application Events] Beginning a Windows Installer transaction: C:\Windows\system32\config\systemprofile\AppData\Local\mdm\{D3BC954F-D661-474C-B367-30EB6E56542E}.msi. Client Process Id: 5596.
Note the location from where the app install is being triggered!
If the installation is successful, you would get a Success event as below.
Event 11707, MsiInstaller [Application Events] Product: Microsoft Garage Mouse without Borders - - Installation completed succesfully.
And the end of the process.
Event 11707, MsiInstaller [Application Events] Ending a Windows Installer transaction: C:\Windows\system32\config\systemprofile\AppData\Local\mdm\{D3BC954F-D661-474C-B367-30EB6E56542E}.msi. Client Process Id: 5596.
Else you would be seeing an Error event for the MsiInstaller process, using which you can further diagnose why the app package failed the install.
One of the most common issues for MSI app install failure is either issue with the command line provided to trigger the silent install or the package itself does not supports silent install as it requires user input to continue with the setup.
For success, you would get the corresponding event in DM-Ent-Diag-Prov
Events

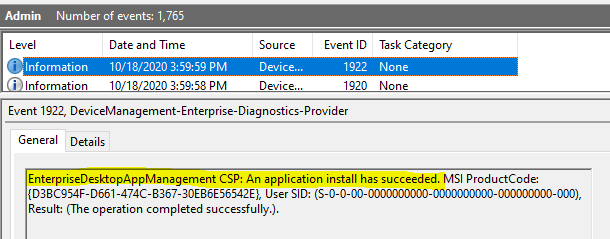

Event 1922, DeviceManagement-Enterprise-Diagnostics-Provider EnterpriseDesktopAppManagement CSP: An application install has succeeded. MSI ProductCode: {D3BC954F-D661-474C-B367-30EB6E56542E}, User SID: (S-0-0-00-0000000000-0000000000-000000000-000), Result: (The operation completed successfully.).
Whether the Execution exit status is a Successor an Error, there is a Status Alert sent to Intune to update the management service regarding the final deployment status for the current iteration.
Intune as a management service queries the endpoint on the status of the current transaction for the app deployment.
<Get> <CmdID>xx</CmdID> <Item> <Target> <LocURI>./Device/Vendor/MSFT/EnterpriseDesktopAppManagement/MSI/%7BD3BC954F-D661-474C-B367-30EB6E56542E%7D/Status</LocURI> </Target> </Item> </Get> <Get> <CmdID>xx</CmdID> <Item> <Target> <LocURI>./Device/Vendor/MSFT/EnterpriseDesktopAppManagement/MSI/%7BD3BC954F-D661-474C-B367-30EB6E56542E%7D/LastError</LocURI> </Target> </Item> </Get> <Get> <CmdID>xx</CmdID> <Item> <Target> <LocURI>./Device/Vendor/MSFT/EnterpriseDesktopAppManagement/MSI/%7BD3BC954F-D661-474C-B367-30EB6E56542E%7D/LastErrorDesc</LocURI> </Target> </Item> </Get>
And this is how the DM Client responds back.
<Results> <CmdID>xx</CmdID> <MsgRef>xx</MsgRef> <CmdRef>xx</CmdRef> <Item> <Source> <LocURI>./Device/Vendor/MSFT/EnterpriseDesktopAppManagement/MSI/%7BD3BC954F-D661-474C-B367-30EB6E56542E%7D/Status</LocURI> </Source> <Meta> <Format xmlns="syncml:metinf">int</Format> </Meta> <Data>70</Data> </Item> </Results> <Results> <CmdID>xx</CmdID> <MsgRef>xx</MsgRef> <CmdRef>xx</CmdRef> <Item> <Source> <LocURI>./Device/Vendor/MSFT/EnterpriseDesktopAppManagement/MSI/%7BD3BC954F-D661-474C-B367-30EB6E56542E%7D/LastError</LocURI> </Source> <Meta> <Format xmlns="syncml:metinf">int</Format> </Meta> <Data>0</Data> </Item> </Results> <Results> <CmdID>20</CmdID> <MsgRef>5</MsgRef> <CmdRef>11</CmdRef> <Item> <Source> <LocURI>./Device/Vendor/MSFT/EnterpriseDesktopAppManagement/MSI/%7BD3BC954F-D661-474C-B367-30EB6E56542E%7D/LastErrorDesc</LocURI> </Source> <Data>The operation completed successfully.</Data> </Item> </Results>
SyncML messages are thanks to SyncML Viewer by Oliver Kieselbach.

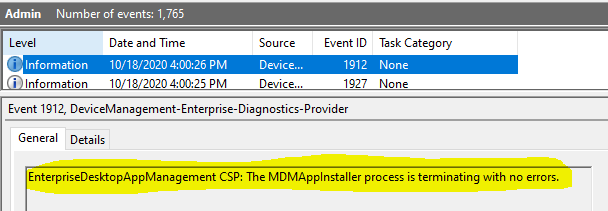

The corresponding events in the DM-Ent-Diag-Prov

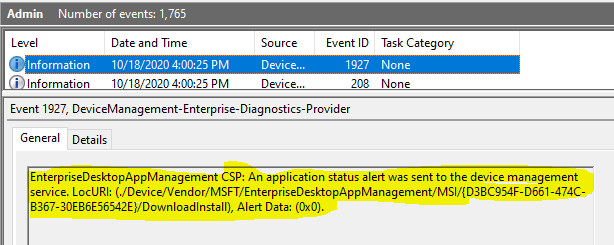

Event 1927, DeviceManagement-Enterprise-Diagnostics-Provider EnterpriseDesktopAppManagement CSP: An application status alert was sent to the device management service. LocURI: (./Device/Vendor/MSFT/EnterpriseDesktopAppManagement/MSI/{D3BC954F-D661-474C-B367-30EB6E56542E}/DownloadInstall), Alert Data: (0x0).
Event 1912, DeviceManagement-Enterprise-Diagnostics-Provider EnterpriseDesktopAppManagement CSP: The MDMAppInstaller process is terminating with no errors.
Tracking Intune Windows 10 LOB app deployment via Windows Registry
The app instance node creation as stated in DM-Ent-Diag Provider Event ID 1901 is actually creating the app entry in the registry. All the information as was provided above can also be easily tracked using the registry for tracing deployment issues.
LOB app deployment details can be checked from the following registry path HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\EnterpriseDesktopAppManagement
There will be two sub-keys corresponding to the
- system SID (all zeros) [will list all device context MSI deployments]
- user SID [will list all user context MSI deployments]
Under those subkeys, you will find the MSI app deployments from Intune listed using the MSI Product ID of the package.

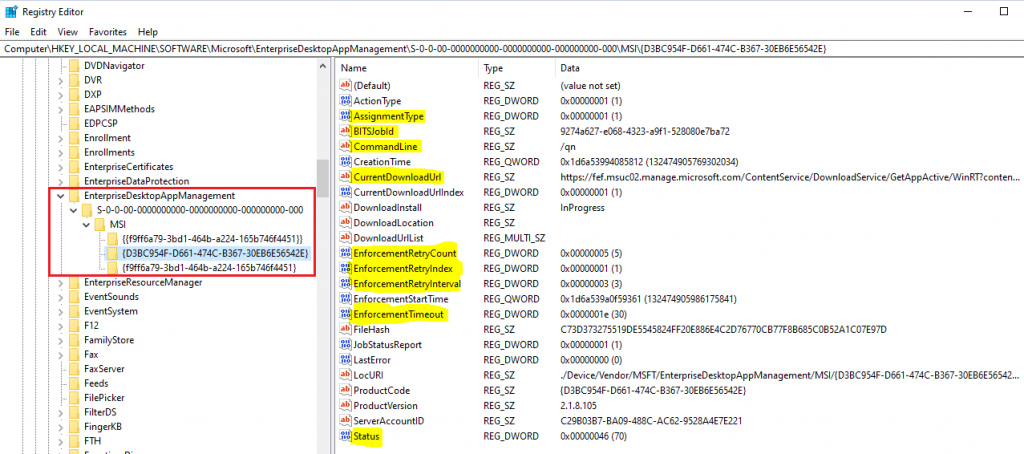

The important keys within an app entry are below.
AssignmentType
signifies the deployment, whether the assignment is Required or AvailableBITSJobId
points to the download job created to download the app packageCurrentDownloadUrl

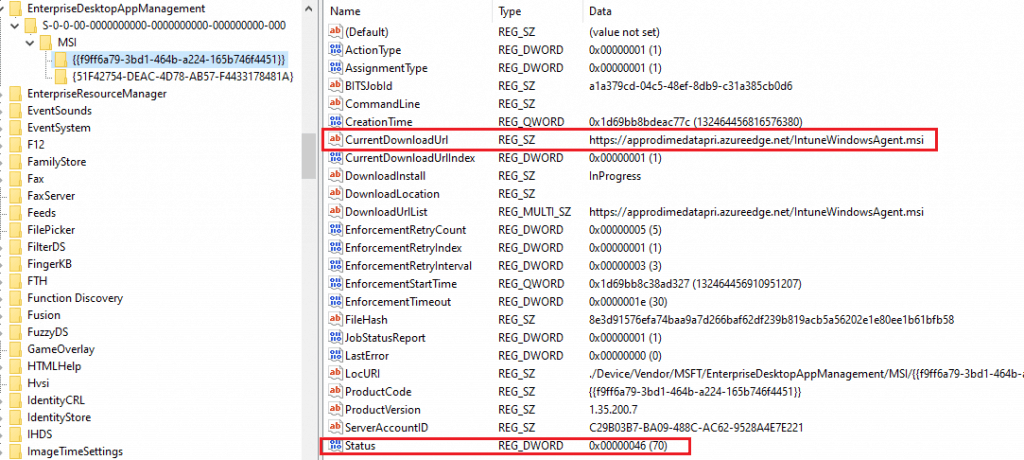

points to the Intune CDN from where the package will be downloadedCommandLine
shows the install command defined while creating the app package in IntuneStatus
shows the enforcement status, whether Success or Failed.
The below table shows the possible values that you may encounter for Status
Meaning | Value |
Initialized | 10 |
Download In Progress | 20 |
Pending Download Retry | 25 |
Download Failed | 30 |
Download Completed | 40 |
Pending User Session | 48 |
Enforcement In Progress | 50 |
Pending Enforcement Retry | 55 |
Enforcement Failed | 60 |
Enforcement Completed | 70 |
The registry will also give you some more important information in case you are actually working with a failure scenario.
EnforcementRetryCount
signifies the number of times the enforcement will be retried or re-attemptedEnforcementRetryIndex
signifies the current retry valueEnforcementRetryInterval
signifies the time in which the successive retry will be attempted (in minutes)EnforcementTimeout
is the time till which it will wait for the installer process to complete and report status (30 mins default)LastError
shows the Status of the last retry attempt
If the install fails post successful download of the LOB app package, the install execution is attempted thrice for the current enforcement before Global Re-evaluation Scheme (GRS) will kick in and block any further retry attempts for the next 24 hours. [Applicable for Required assignment]
To manually re-trigger the enforcement again for a LOB deployed with the Required intent, you need to
- clear the values for
LastError
andStatus
- reset values of
EnforcementRetryCount
andEnforcementRetryIndex
to 0
Need further help in troubleshooting MSI app deployment. Read this excellent blog available on the Microsoft Tech Community blogs.
Windows 10 Intune App Deployment Issues – Store Application
As stated earlier, Store App deployment from Intune is taken care of by the EnterpriseModernAppManagement CSP on the endpoint which the DM Client will invoke when it receives an instruction from Intune to install a Store app.
Intune as a management service only invokes the DM Client of the endpoint to start the transaction. However, it is just a deep link to the Store. The delivery and installation are taken care of by the Store services and the OS platform.

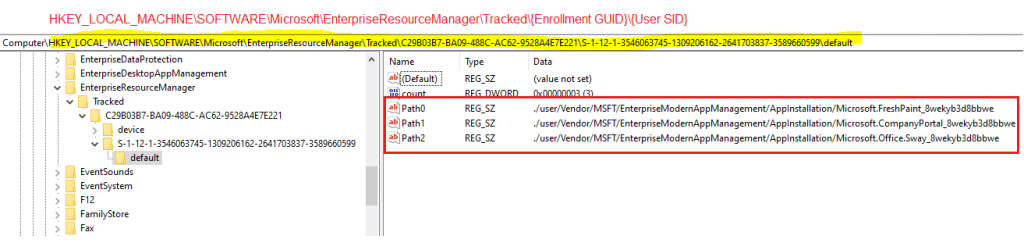

When it comes to tracking Store app deployments, I was only able to get to see the apps being deployed from Intune here at reg_path HKLM\Software\Microsoft\EnterpriseResourceManager\Tracked\{Enrollment GUID}\

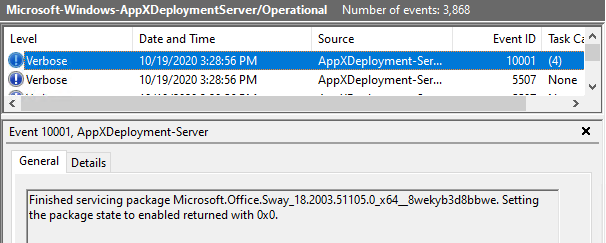

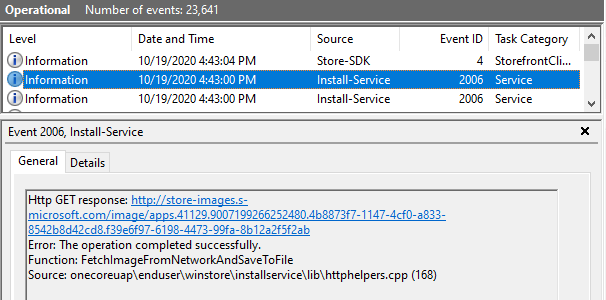

I was also able to view deployment-related events from under
Application and Services Logs > Microsoft > Windows > AppXDeployment-Server/Operational
Application and Services Logs > Microsoft > Windows > Store/Operational
Windows 10 Intune App Deployment Issues – Intune Sidecar deployments (Win32 and PS Scripts)
Win32 application deployments from Intune are via the Intune Sidecar a.k.a Intune Management Extension.
The IME agent is itself an MSI app package that gets deployed to the endpoints automatically if Intune evaluates there is a PS script or Win32 app deployment and the endpoint meets the prerequisites of Intune Sidecar.
As such in issues related to the IME agent installation itself, you can check the status as above using information from the registry and events.
Support of PS script (IME agent as such) for Azure AD registered devices (means BYOD yeah!) is a feature in development as I last checked documented here Microsoft post.
PowerShell Scripts information from Registry
- User Targeted – HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\IntuneManagementExtension\Policies\{UserGUID}\{ScriptGUID}
- Device Targeted – HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\IntuneManagementExtension\Policies\{0000}\{ScriptGUID}
You can refer to this blog post from Oliver Kieselbach for further troubleshooting help on PS script deployment issues.
Win32 Apps Information from Registry
- User Targeted – HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\IntuneManagementExtension\Win32Apps\{UserGUID}\{AppGUID}
- Device Targeted – HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\IntuneManagementExtension\Win32Apps\{0000}\{AppGUID}
You can collect IME logs from the location C:\ProgramData\Microsoft\IntuneManagementExtension\Logs
For more detailed troubleshooting help related to Win32 apps, you can refer to my own article here.
In my article on Endpoint Analytics, I had already covered how you can track Health Scripts a.k.a Proactive Remediation script packages since it utilizes the same IME architecture on the endpoint. Give it a read!
If you are yet to use Endpoint Analytics or planning to use it but have doubts, I would recommend giving it a try. Endpoint Analytics is in GA and not in preview anymore!
The End
I hope the information shared above will help you while dealing with Windows 10 Intune App deployment issues.
Well, that was all for today. Continue staying safe!
Additional articles you may want to check:
- Intune Win32 App Troubleshooting Client-Side Process Flow
- Troubleshoot Intune Deployments – Applications Policies Profiles Intune Issues
- Intune Win32 App Failure Log Collection Backend Secrets
- Intune Management Extension Level 3 Troubleshooting Guide Intune win32 App
- Windows 10 MDM Log Checklist – Ultimate Help Guide for ITPro #1
