YellowKey: BitLocker Bypass CVE‑2026‑45585 – Detect & Remediate Automatically with Microsoft Intune

Key Takeaways:

• The YellowKey vulnerability (CVE‑2026‑45585) is a critical BitLocker bypass in the WinRE
• It allows attackers with physical access to Windows 11 and Windows Server 2022/2025 machines to unlock encrypted drives without a password or recovery key.
• Windows 10 is not affected.
• It was discovered in May 2026 and publicly disclosed by researcher “Nightmare Eclipse.”

YellowKey: BitLocker Bypass CVE‑2026‑45585 – Detect & Remediate Automatically with Microsoft Intune! A new zero‑day dubbed YellowKey is undermining BitLocker — the very feature meant to safeguard sensitive data on Windows. First disclosed by researcher Chaotic Eclipse, this isn’t a theoretical flaw; it’s a practical bypass that grants attackers with physical access direct entry into encrypted drives on Windows 11 and Windows Server 2022/2025. For now, Windows 10 remains unaffected, offering its users a brief reprieve.

How YellowKey Gets Exploited – YellowKey: BitLocker Bypass CVE‑2026‑45585 – Detect & Remediate Automatically with Microsoft Intune

Windows Recovery Environment (WinRE) is a built‑in component on Windows 11 and Windows Server 2022/2025, stored in a hidden recovery partition. Attackers don’t need to mount it manually — it’s already part of the operating system. The YellowKey vulnerability is triggered when crafted FsTx logs are introduced through a USB drive or EFI partition.

During a reboot into WinRE, those logs manipulate the environment to delete winpeshl.ini. Without this file, WinRE defaults to launching a command shell. At that point, because the TPM has already unlocked the BitLocker drive, the attacker gains full, decrypted access. Importantly, there is no “YellowKey file” present on your system by default. The exploit relies on external malicious input combined with WinRE’s flawed logic.

• How to Check Your Windows 11 Edition
• Easy Methods to Know the Version of Installed Apps in Windows 11
• Windows 11 Version Numbers Build Numbers Major Minor Build Rev

How Hackers Unlock BitLocker with YellowKey

YellowKey isn’t a malware file you can spot — it’s a design flaw in how WinRE handles NTFS transaction logs. Attackers must have physical access to the device. They boot into WinRE (for example, by holding Shift + Restart or booting directly into recovery mode).

Sign up to get the best of How To Manage Devices straight to your inbox!

• 2026 June KB5094126 KB5093998 Windows 11 Patch | 3 Zero Day Vulnerabilities and 200 Flaws

NOTE! FsTx logs are NTFS transaction records used to guarantee file system consistency. They ensure that operations like file creation or deletion can be rolled back or completed safely after a crash. YellowKey abuses this mechanism by injecting crafted logs that trick WinRE into bypassing BitLocker.

Once in WinRE, they inject crafted FsTx logs via a USB drive or EFI partition. The exploit chain then runs automatically as WinRE processes those logs, ultimately bypassing BitLocker protection and granting decrypted access.

PowerShell Script to Detect the YellowKey Vulnerability

Having already analysed the impact of the YellowKey vulnerability (CVE‑2026‑45585) on enterprise security, I’ve developed a PowerShell script to detect it. This script can be seamlessly integrated into Intune Proactive Remediations as the detection logic, enabling automated identification across managed endpoints. You can download the PowerShell Script to detect the YellowKey Vulnerability from the GitHub repository.

<#
.SYNOPSIS
    Detection - checks WinRE for the YellowKey (autofstx.exe) entry.

.DESCRIPTION
    Mounts the device's WinRE image, loads its offline SYSTEM hive,
    and looks for 'autofstx.exe' inside the BootExecute registry value.
    The script is read-only; it always discards the mount.

    Exit 0 = Compliant     (entry not found, or WinRE is disabled)
    Exit 1 = Non-compliant  (entry found - remediation should run)

.NOTES
    Author : Sujin Nelladath
    Date   : 2026-06-11
    Run as : SYSTEM, 64-bit PowerShell (Intune Remediations)
#>

# ---------- Settings ----------
$EntryToCheck = "autofstx.exe"
$MountPath    = "C:\Mount"
$HiveName     = "WinREHive"
$LogDir       = "C:\temp\YellowKeyVulnerabilty\logs"

# ---------- Logging ----------
if (-not (Test-Path $LogDir)) {
    New-Item -ItemType Directory -Path $LogDir -Force | Out-Null
}
$LogFile = Join-Path $LogDir ("Detect-YellowKey_{0}.log" -f (Get-Date -Format "yyyyMMdd-HHmmss"))

function Write-Log {
    param(
        [string]$Message,
        [ValidateSet("INFO","WARN","ERROR","OK")]
        [string]$Level = "INFO"
    )
    $line = "{0} [{1}] {2}" -f (Get-Date -Format "yyyy-MM-dd HH:mm:ss"), $Level, $Message
    Add-Content -Path $LogFile -Value $line
    switch ($Level) {
        "ERROR" { Write-Host $line -ForegroundColor Red }
        "WARN"  { Write-Host $line -ForegroundColor Yellow }
        "OK"    { Write-Host $line -ForegroundColor Green }
        default { Write-Host $line }
    }
}

Write-Log "==== YellowKey detection started ===="
Write-Log "Looking for entry: $EntryToCheck"

# ---------- Step 1: Is WinRE enabled? ----------
# reagentc /info shows a "\\?\GLOBALROOT\device\..." path only when WinRE is enabled.
# This works on any Windows language (the path is not localized).
$reagentInfo = (& reagentc /info 2>&1) -join "`n"

if ($reagentInfo -notmatch '\\\\\?\\GLOBALROOT.*Recovery\\WindowsRE') {
    Write-Log "WinRE is disabled or not configured. Reporting compliant." "WARN"
    exit 0
}
Write-Log "WinRE is enabled." "OK"

# ---------- Step 2: Prepare an empty mount folder ----------
if (Test-Path $MountPath) {
    if (Get-ChildItem -Path $MountPath -Force) {
        Write-Log "Mount folder $MountPath is not empty. Aborting." "ERROR"
        exit 1
    }
} else {
    New-Item -ItemType Directory -Path $MountPath -Force | Out-Null
}

# ---------- Step 3: Mount WinRE ----------
& reagentc /mountre /path $MountPath | Out-Null
if ($LASTEXITCODE -ne 0) {
    Write-Log "reagentc /mountre failed (exit $LASTEXITCODE)." "ERROR"
    exit 1
}
Write-Log "WinRE mounted at $MountPath" "OK"

# ---------- Step 4: Load the offline SYSTEM hive ----------
$HivePath = "$MountPath\Windows\System32\config\SYSTEM"
& reg load "HKLM\$HiveName" $HivePath | Out-Null
if ($LASTEXITCODE -ne 0) {
    Write-Log "reg load failed - cannot read offline hive." "ERROR"
    & reagentc /unmountre /path $MountPath /discard | Out-Null
    Remove-Item $MountPath -Recurse -Force -ErrorAction SilentlyContinue
    exit 1
}
Write-Log "Offline hive loaded as HKLM\$HiveName" "OK"

# ---------- Step 5: Read BootExecute and look for the entry ----------
$RegPath     = "HKLM:\$HiveName\ControlSet001\Control\Session Manager"
$BootExecute = (Get-ItemProperty -Path $RegPath -Name "BootExecute" -ErrorAction SilentlyContinue).BootExecute
$Vulnerable  = $false

if ($BootExecute) {
    Write-Log "Current BootExecute: $($BootExecute -join ' | ')"
    foreach ($entry in $BootExecute) {
        # Match the entry whether it's "autofstx.exe" or "autofstx.exe <args>"
        if ($entry -match "^\s*$([regex]::Escape($EntryToCheck))(\s|$)") {
            Write-Log "Vulnerable entry found: $entry" "ERROR"
            $Vulnerable = $true
        }
    }
} else {
    Write-Log "BootExecute value not found (treating as compliant)."
}

# ---------- Step 6: Cleanup (detection never modifies the WIM) ----------
[gc]::Collect()
Start-Sleep -Seconds 1
& reg unload "HKLM\$HiveName" | Out-Null
& reagentc /unmountre /path $MountPath /discard | Out-Null
Remove-Item $MountPath -Recurse -Force -ErrorAction SilentlyContinue
Write-Log "Cleanup complete."

# ---------- Step 7: Report result ----------
if ($Vulnerable) {
    Write-Log "Result: NON-COMPLIANT" "ERROR"
    exit 1
}

Write-Log "Result: COMPLIANT" "OK"
exit 0

PowerShell Script to Remediate the YellowKey Vulnerability

The detection script identifies the presence of the YellowKey vulnerability, and now it’s time to move into remediation. Specifically, the code inspects the BootExecute registry value and flags devices as non‑compliant if it contains autofsxe.exe. The following remediation script then removes the malicious entry and restores system integrity, effectively fixing the YellowKey vulnerability. You can download the remediation code my GitHub Repository

<#
.SYNOPSIS
    Remediation - removes 'autofstx.exe' from WinRE BootExecute.

.DESCRIPTION
    Mounts the device's WinRE image, removes 'autofstx.exe' from the
    BootExecute registry value in the offline SYSTEM hive, commits the
    change back to the WIM, and re-seals WinRE so BitLocker re-measures it.

    Exit 0 = Success (or no change needed)
    Exit 1 = Failure

.NOTES
    Author : Sujin Nelladath
    Date   : 2026-06-11
    Run as : SYSTEM, 64-bit PowerShell (Intune Remediations)
#>

# ---------- Settings ----------
$EntryToRemove = "autofstx.exe"
$MountPath     = "C:\Mount"
$HiveName      = "WinREHive"
$LogDir        = "C:\temp\YellowKeyVulnerabilty\logs"

# ---------- Logging ----------
if (-not (Test-Path $LogDir)) {
    New-Item -ItemType Directory -Path $LogDir -Force | Out-Null
}
$LogFile = Join-Path $LogDir ("Remediate-YellowKey_{0}.log" -f (Get-Date -Format "yyyyMMdd-HHmmss"))

function Write-Log {
    param(
        [string]$Message,
        [ValidateSet("INFO","WARN","ERROR","OK")]
        [string]$Level = "INFO"
    )
    $line = "{0} [{1}] {2}" -f (Get-Date -Format "yyyy-MM-dd HH:mm:ss"), $Level, $Message
    Add-Content -Path $LogFile -Value $line
    switch ($Level) {
        "ERROR" { Write-Host $line -ForegroundColor Red }
        "WARN"  { Write-Host $line -ForegroundColor Yellow }
        "OK"    { Write-Host $line -ForegroundColor Green }
        default { Write-Host $line }
    }
}

Write-Log "==== YellowKey remediation started ===="
Write-Log "Entry to remove: $EntryToRemove"

# ---------- Step 1: Is WinRE enabled? ----------
$reagentInfo = (& reagentc /info 2>&1) -join "`n"

if ($reagentInfo -notmatch '\\\\\?\\GLOBALROOT.*Recovery\\WindowsRE') {
    Write-Log "WinRE is disabled. Nothing to remediate." "WARN"
    exit 0
}
Write-Log "WinRE is enabled." "OK"

# ---------- Step 2: Suspend BitLocker for one reboot (so PCRs don't trip) ----------
try {
    $bl = Get-BitLockerVolume -MountPoint $env:SystemDrive -ErrorAction Stop
    if ($bl.ProtectionStatus -eq 'On') {
        Suspend-BitLocker -MountPoint $env:SystemDrive -RebootCount 1 | Out-Null
        Write-Log "BitLocker suspended on $($env:SystemDrive) for 1 reboot." "OK"
    } else {
        Write-Log "BitLocker not active - no suspend needed."
    }
} catch {
    Write-Log "BitLocker check skipped: $($_.Exception.Message)" "WARN"
}

# ---------- Step 3: Prepare an empty mount folder ----------
if (Test-Path $MountPath) {
    if (Get-ChildItem -Path $MountPath -Force) {
        Write-Log "Mount folder $MountPath is not empty. Aborting." "ERROR"
        exit 1
    }
} else {
    New-Item -ItemType Directory -Path $MountPath -Force | Out-Null
}

# ---------- Step 4: Mount WinRE ----------
& reagentc /mountre /path $MountPath | Out-Null
if ($LASTEXITCODE -ne 0) {
    Write-Log "reagentc /mountre failed." "ERROR"
    exit 1
}
Write-Log "WinRE mounted at $MountPath" "OK"

# ---------- Step 5: Load the offline SYSTEM hive ----------
$HivePath = "$MountPath\Windows\System32\config\SYSTEM"
& reg load "HKLM\$HiveName" $HivePath | Out-Null
if ($LASTEXITCODE -ne 0) {
    Write-Log "reg load failed." "ERROR"
    & reagentc /unmountre /path $MountPath /discard | Out-Null
    Remove-Item $MountPath -Recurse -Force -ErrorAction SilentlyContinue
    exit 1
}
Write-Log "Offline hive loaded as HKLM\$HiveName" "OK"

# ---------- Step 6: Edit BootExecute ----------
$RegPath     = "HKLM:\$HiveName\ControlSet001\Control\Session Manager"
$Current     = (Get-ItemProperty -Path $RegPath -Name "BootExecute" -ErrorAction SilentlyContinue).BootExecute
$ChangesMade = $false

if ($Current) {
    Write-Log "Current BootExecute: $($Current -join ' | ')"

    # Keep every entry that does NOT start with autofstx.exe
    $Pattern = "^\s*$([regex]::Escape($EntryToRemove))(\s|$)"
    $Updated = @($Current | Where-Object { $_ -and ($_ -notmatch $Pattern) })

    if ($Updated.Count -lt $Current.Count) {
        # Force REG_MULTI_SZ so the value type stays correct even if 0/1 entries remain
        Set-ItemProperty -Path $RegPath -Name "BootExecute" -Value ([string[]]$Updated) -Type MultiString
        Write-Log "Removed '$EntryToRemove' from BootExecute." "OK"
        Write-Log "New BootExecute: $($Updated -join ' | ')"
        $ChangesMade = $true
    } else {
        Write-Log "'$EntryToRemove' not present - no change needed."
    }
} else {
    Write-Log "BootExecute value not found - no change needed."
}

# ---------- Step 7: Unload the hive ----------
[gc]::Collect()
Start-Sleep -Seconds 2
& reg unload "HKLM\$HiveName" | Out-Null
if ($LASTEXITCODE -ne 0) {
    # One retry - hive handles can take a moment to release
    Start-Sleep -Seconds 3
    & reg unload "HKLM\$HiveName" | Out-Null
}
Write-Log "Offline hive unloaded."

# ---------- Step 8: Unmount WinRE ----------
if ($ChangesMade) {
    & reagentc /unmountre /path $MountPath /commit | Out-Null
    Write-Log "WinRE unmounted and changes committed." "OK"
} else {
    & reagentc /unmountre /path $MountPath /discard | Out-Null
    Write-Log "WinRE unmounted (no changes)."
}
Remove-Item $MountPath -Recurse -Force -ErrorAction SilentlyContinue

# ---------- Step 9: Re-seal WinRE (only if we changed something) ----------
if ($ChangesMade) {
    & reagentc /disable | Out-Null
    & reagentc /enable | Out-Null
    if ($LASTEXITCODE -ne 0) {
        Write-Log "reagentc /enable failed - run it manually to recover." "ERROR"
        exit 1
    }
    Write-Log "WinRE re-sealed (disable + enable)." "OK"
}

Write-Log "==== Remediation complete ====" "OK"
exit 0

Create a Remediation Script Policy in Intune

Follow these steps to fix the YellowKey Vulnerability using the Intune Remediation Script Policy. Log in to the Microsoft Intune Admin Center using your admin credentials.

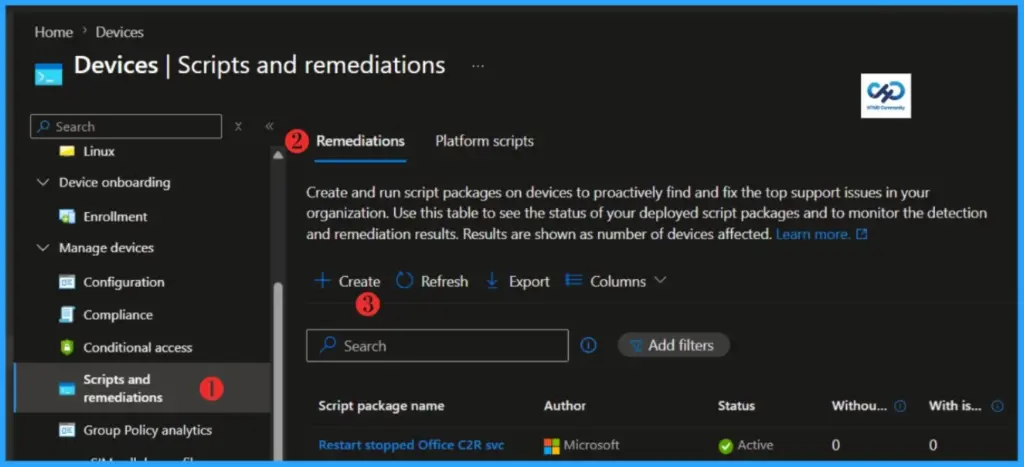

• Navigate to Devices > Windows > Scripts and remediations
• Click on Remediations > +Create

• Quick Fix to your Windows OS Issues with Detection and Remediation Scripts with Intune
• Quick and Easy way to Turn on PowerShell Audit using Intune Policy
• How to Install Microsoft Defender Browser Protection Extension using Intune PowerShell Script

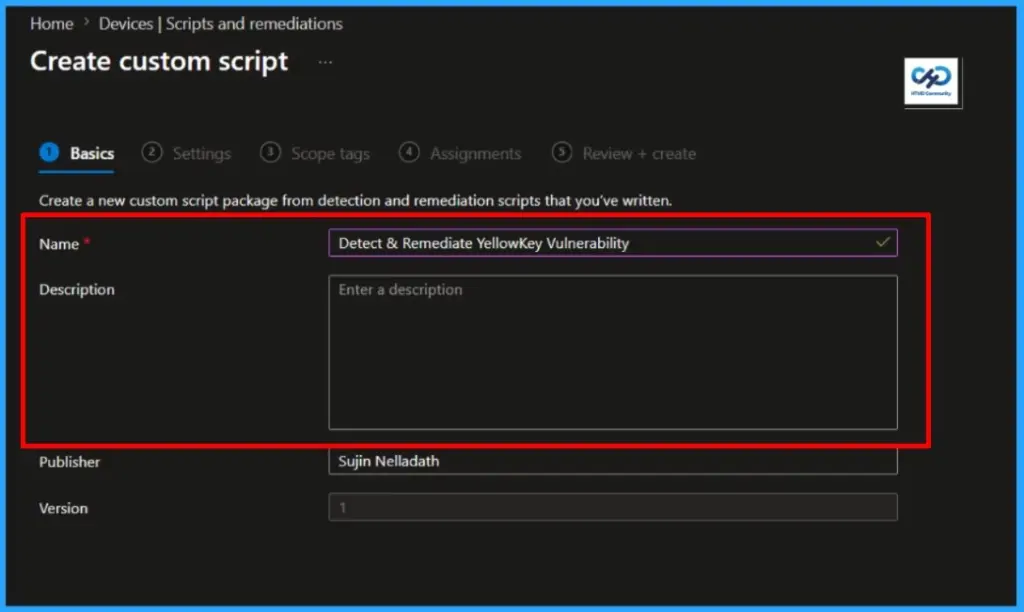

In the Basics details pane, we can name the PowerShell script as “Detect & Remediate YellowKey Vulnerability” If necessary, provide a brief description of the script and click Next.

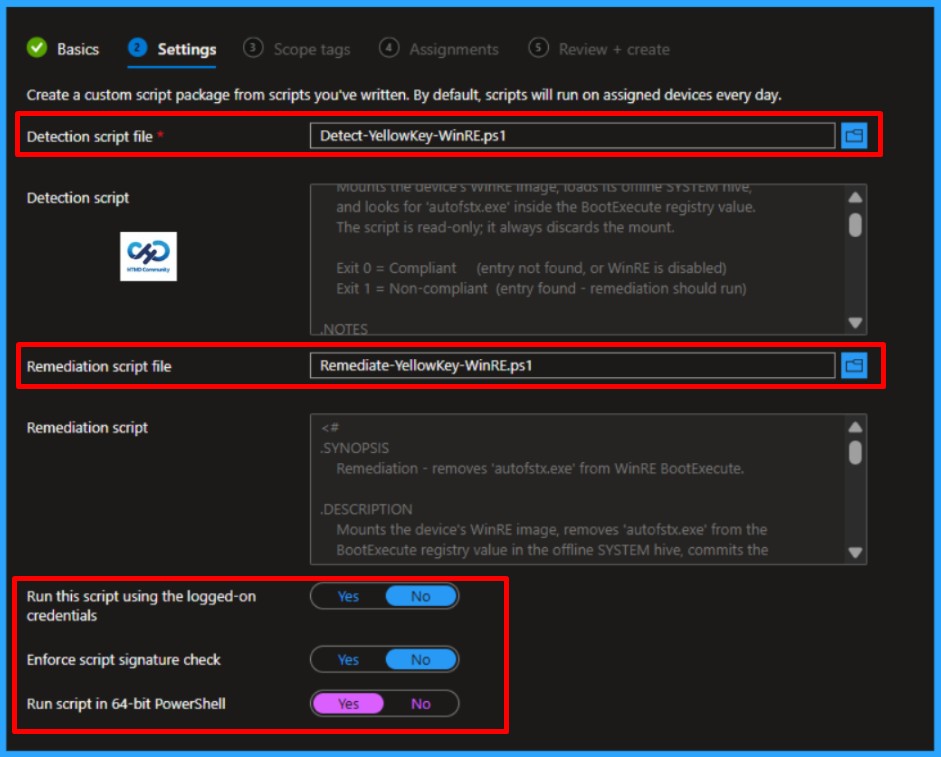

In the Script settings pane, we can set the configurations according to our requirements. The Detection script file and Remediation script file are mandatory; we must browse and select our saved PS Script here.

On the next page, keep the default scope tags. If any custom scope tags are available based on your requirements, you can select them for this script deployment. Click on Next and assign the script to HTMD – Test Computers. You can click Assign to and select the desired device group in the Selected groups section.

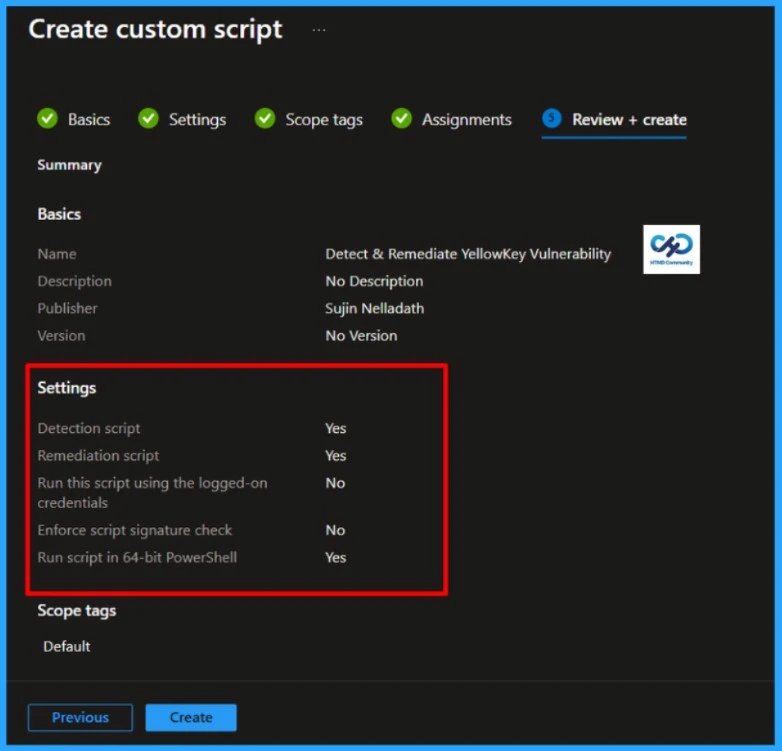

On the Review + create pane, thoroughly check all the settings you have defined. Once you confirm everything is correct, select Create to implement the changes.

• Easy way to Enable Fast Startup using Intune PowerShell Script
• Simple Method to Disable Office Online Repair with Intune PowerShell Script
• Easy Way to Install a Language Pack using Intune PowerShell Script

I trust that this article will significantly benefit you and your organization. I appreciate your patience in reading this post. I look forward to seeing you in the next post. Keep supporting the HTMD Community.

• Intune Security Baselines Policies for Windows 10 or Windows 11 Deployment Guide
• Intune Security Baseline Microsoft Defender Policy Troubleshooting Tips for Cloud PCs
• Update Security Baselines for Microsoft 365 Apps from Intune

Need Further Assistance or Have Technical Questions?

Join the LinkedIn Page and Telegram group to get the latest step-by-step guides and news updates. Join our Meetup Page to participate in User group meetings. Also, Join the WhatsApp Community to get the latest news on Microsoft Technologies. We are there on Reddit as well.

Author

About the Author: Sujin Nelladath, a Microsoft Graph MVP with over 13 years of experience in Intune device management and Automation solutions, writes and shares his experiences with Microsoft device management technologies, Azure, DevOps, Graph API and PowerShell automation.
