Best Guide to Deploy Windows 11 Using SCCM

This post will cover all the steps needed to deploy Windows 11 using SCCM (aka Configuration Manager). Microsoft officially released the new Windows 11 operating system on October 4th, also known as Windows 11 October 2021 Update [21H2]. Windows 11 balances a new, refreshed look and feel with the familiarity of Windows, offers a visually seamless experience across platforms.

Let’s check the steps to install the latest Windows version on a new computer (bare metal) using sccm. The bare metal scenario occurs when you have a blank machine you need to deploy or an existing device you want to wipe and redeploy without preserving any existing data.

You will need to make sure that all the Windows PCs meet the minimum hardware requirement to install Windows 11. Also, you will have to ensure that Windows 11 patching is enabled from the SCCM side. The Windows 11 patches should be deployed to Windows 11 device collection.

Patch My PC

This bare metal scenario helps us to install a new version of Windows on a new computer. It’s a fresh installation of the OS and doesn’t include any settings or user data migration. The deployment process for the new machine scenario is as follows:

  • Start the setup from boot media (CD, USB, ISO, or PXE).
  • Wipe the hard disk clean and create new volume.
  • Install the operating system image.
  • Apply device drivers by detecting device manufacturers.
  • Install applications.
  • Apply Customization, Additional settings if needed.
  • After taking these steps, the computer is ready for use.

Prerequisites – Windows 11 Deployment

Before you use to deploy Windows 11, You need to make sure the following prerequisites –

Supported SCCM (ConfigMgr) Version

Ensure you are running with the latest supported version of Configuration Manager 2107

1E Nomad

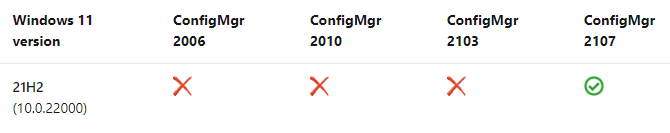

Supported SCCM (ConfigMgr) Version - Windows 11
Supported SCCM (ConfigMgr) Version – Windows 11

Windows 11 Hardware Requirements

The devices should meet the Windows 11 minimum requirements for Windows 11 upgrade. Using the PC Health Check app, you can check for compatibility to see if your current PC meets the minimum system requirements to run Windows 11. You have to download the Windows 11 PC Health Check App from the Microsoft site.

  • Make sure that you’re running a supported version of the Windows ADK. The ADK for Windows 10, version 2004, Windows 11 will work with Windows 11.
  • Add required Network and Storage drivers to the boot image.
  • Configured the boot image to deploy from a PXE-enabled distribution point.

Download Windows 11 ISO

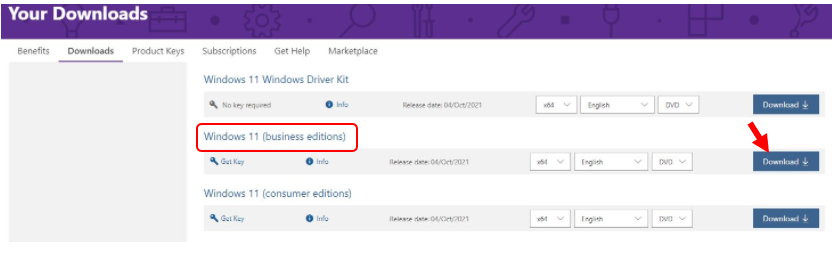

You can download Windows 11 ISO from MSDN or VLSC (Volume Licensing Service Center).

Find Windows 11 (business editions). Select the architecture and language. Click on Download.

Download Windows 11 (business editions)
Download Windows 11 (business editions) – Best Guide to Deploy Windows 11 Using SCCM

Mount and Extract Windows 11 ISO

Before importing the Windows 11 Operating System into SCCM, mount and extract or copy Windows 11 ISO contents to a folder. Create a shared folder, Mount the ISO using File Explorer or any other available options.

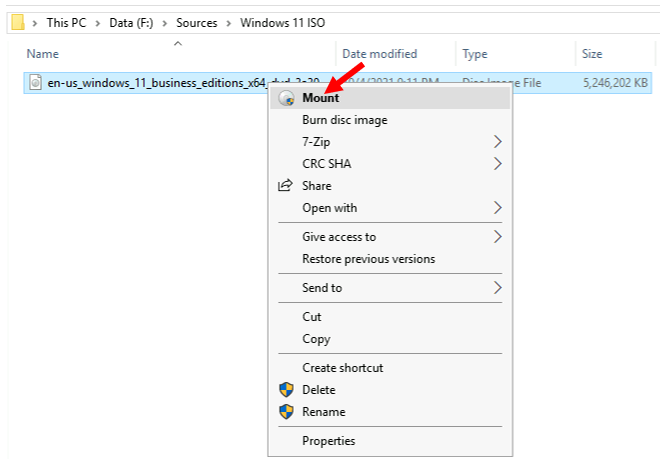

Copy the downloaded ISO to the SCCM site server, Double-click an ISO file to mount it, or Right-click an ISO file in file explorer. Select the Mount option.

Windows 11 ISO - Select Mount
Windows 11 ISO – Select Mount

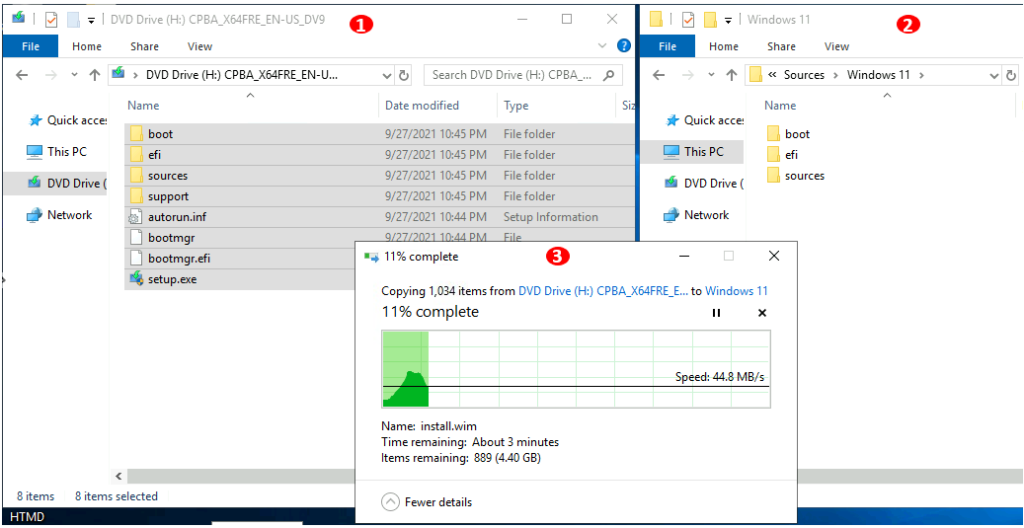

You will notice that Windows 11 ISO will create a disc drive that you can use to access contents. Select all contents and copy them to a shared source folder in SCCM Server. The content-copying process might take some time. Wait to complete the process.

Note – You can locate the default OS image in the Windows source folder \Sources\install.wim. Grab a file off of this ISO and Copy it to the shared directory to make use of it.

Copying Windows 11 Files to SCCM Server Source
Copying Windows 11 Files to SCCM Server- Best Guide to Deploy Windows 11 Using SCCM

Import Windows 11 Operating System Image

The operating system image contains the files necessary to install the operating system on the destination computer. Use the following to prepare the operating system image –

  • In Configuration Manager Console, Go to Software Library > Operating Systems > Operating System Images.
  • Right click on Operating Systems Images and click on Add Operating System Image.

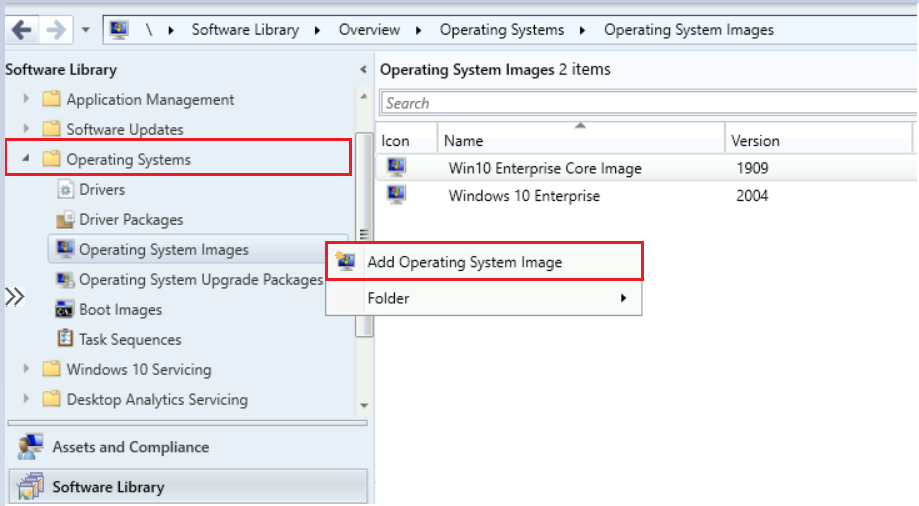

In Operating System Images node, Click on Add Operating System Image
Add Operating System Image – Best Guide to Deploy Windows 11 Using SCCM

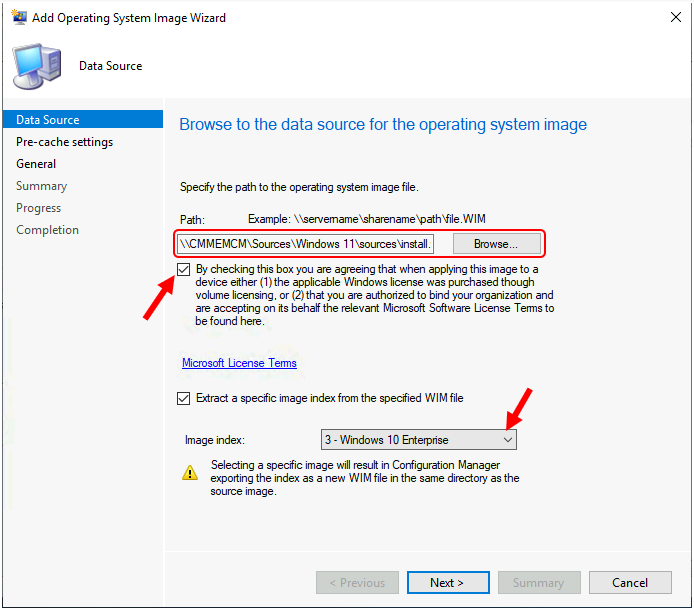

In Data Source, click Browse and specify the network shared path to the install.wim from Windows 11 Source directory where you extracted the source of an ISO file.

Note! Extract a specific image index from the specified WIM file – You can now automatically import a single Image index rather than all image indexes in the file. Using this option results in a smaller image file.

Specify the path to the operating system image file
Specify the path to the operating system image file

On Pre-cache settings page, select Architecture as x64 and Language English (United States), click Next. You can leave this option as default.

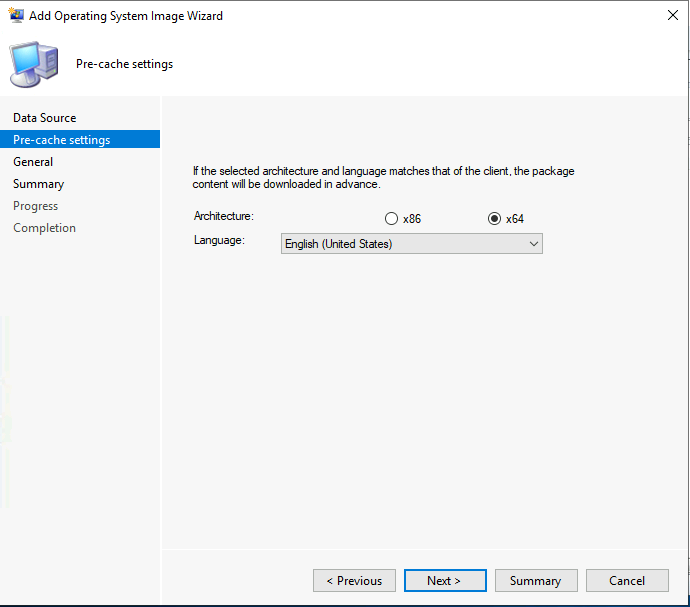

Pre-cache settings - Select Architecture, Language
Pre-cache settings > Select Architecture, Language – Deploy Windows 11 Using SCCM

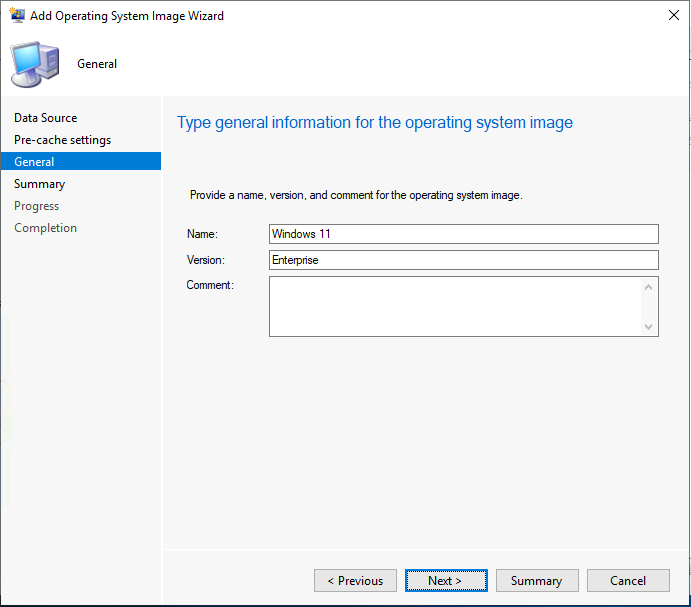

On the General page, Enter the NameVersion, and Comment for the Task Sequence. Click Next.

Provide Name, Version for the operating system image
Enter the Name, Version for the operating system image – Deploy Windows 11 Using SCCM

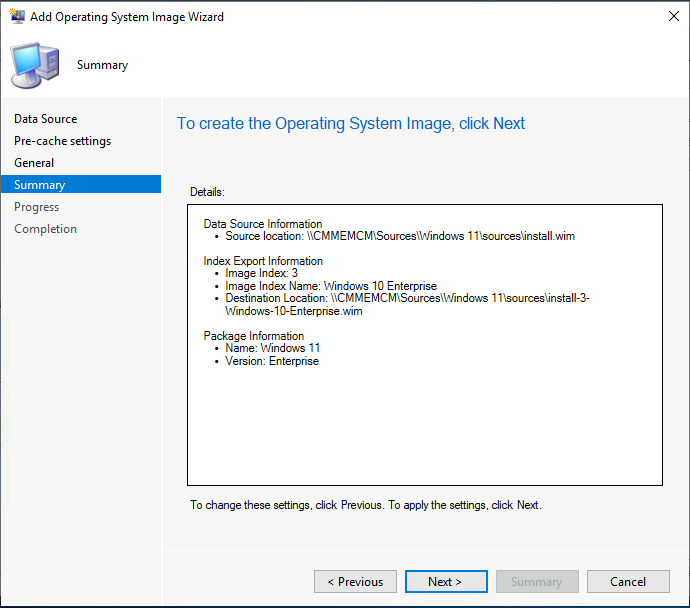

Review the provided information, click Next to complete the wizard.

Review Operating System Image Details
Review Operating System Image Details – Deploy Windows 11 Using SCCM

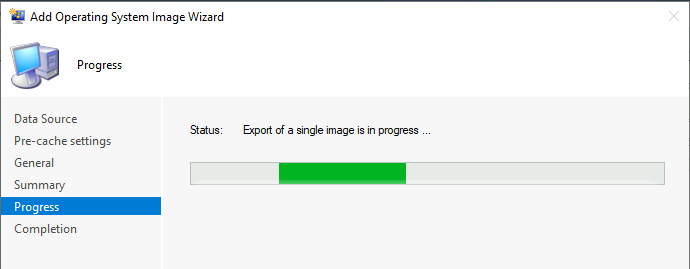

Wait for a moment while exporting is in progress.

Add Operating System Image Wizard - Export of a single image is in progress
Add Operating System Image Wizard – Export of a single image is in progress

After successfully completion, click Close to exit the wizard.

The task Add Operating System Image Wizard completed sucessfully
The task Add Operating System Image Wizard was completed successfully – Deploy Windows 11 Using SCCM

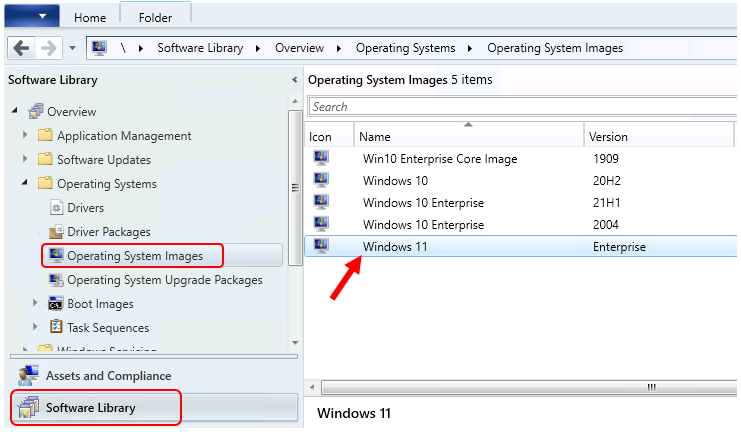

The Windows 11 Operating System Image now appears in the Operating System Images node of the Configuration Manager console.

Best Guide to Deploy Windows 11 Using SCCM
Best Guide to Deploy Windows 11 Using SCCM

Distribute Operating System Image

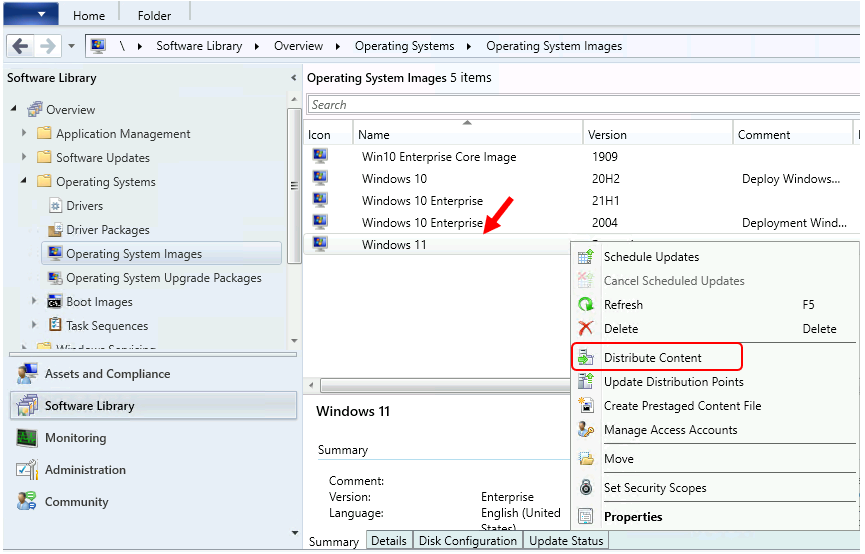

Right-click your Operating System Image, select Distribute Content and complete the Distribute Content wizard.

Click Distribute Content - Best Guide to Deploy Windows 11 Using SCCM
Click Distribute Content – Best Guide to Deploy Windows 11 Using SCCM

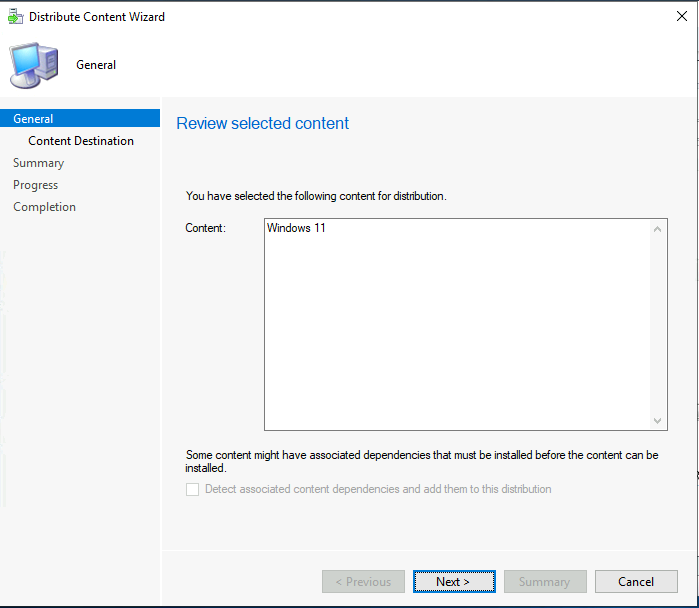

Review the selected content for distribution. Click Next.

Distribute Windows 11 Image - Review Selected Content
Distribute Windows 11 Image – Review Selected Content

Add the Distribution Point to distribute the content, Review the selected distribution points, groups. Click Next.

Distribute Windows 11 Image - Specify the DPs, DP Groups
Specify the DPs, DP Groups – Best Guide to Deploy Windows 11 Using SCCM

On the Summary page, review the settings. Click Next.

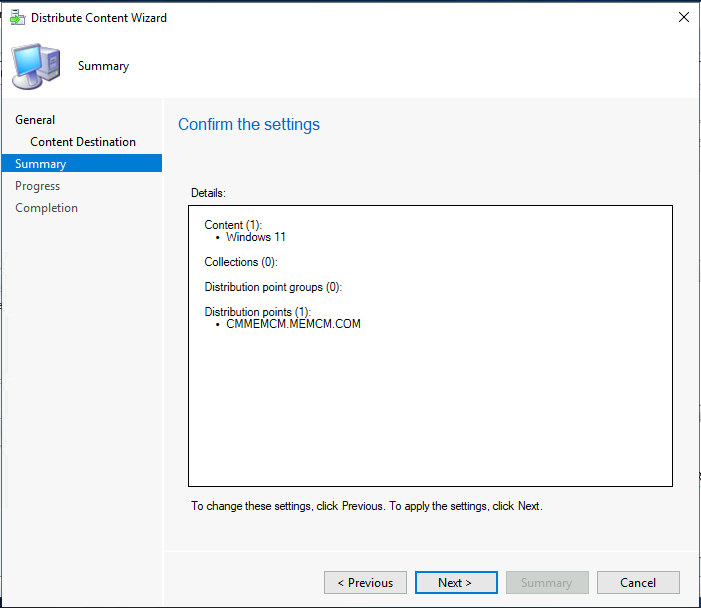

Distribute Windows 11 Image - Confirm the selection
Distribute Windows 11 Image – Best Guide to Deploy Windows 11 Using SCCM

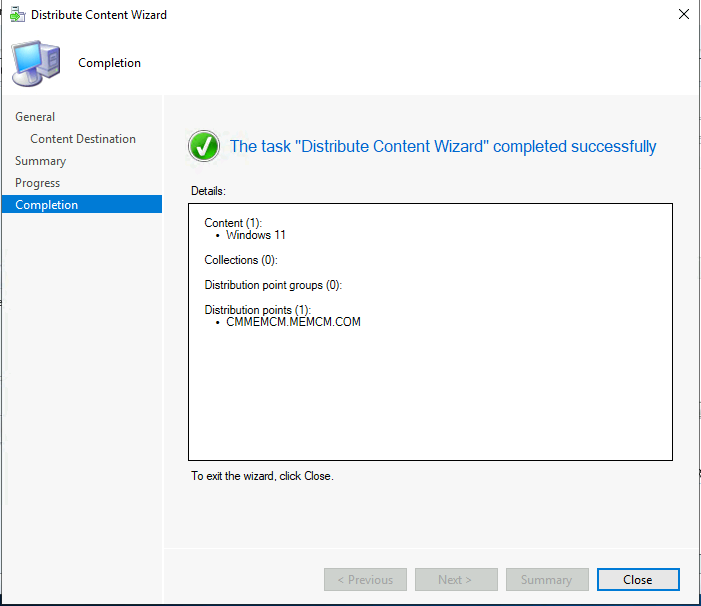

Click Close to complete the Distribute Content wizard.

The task Distribute Content Wizard completed sucessfully
The task Distribute Content Wizard completed successfully – Best Guide to Deploy Windows 11 Using SCCM

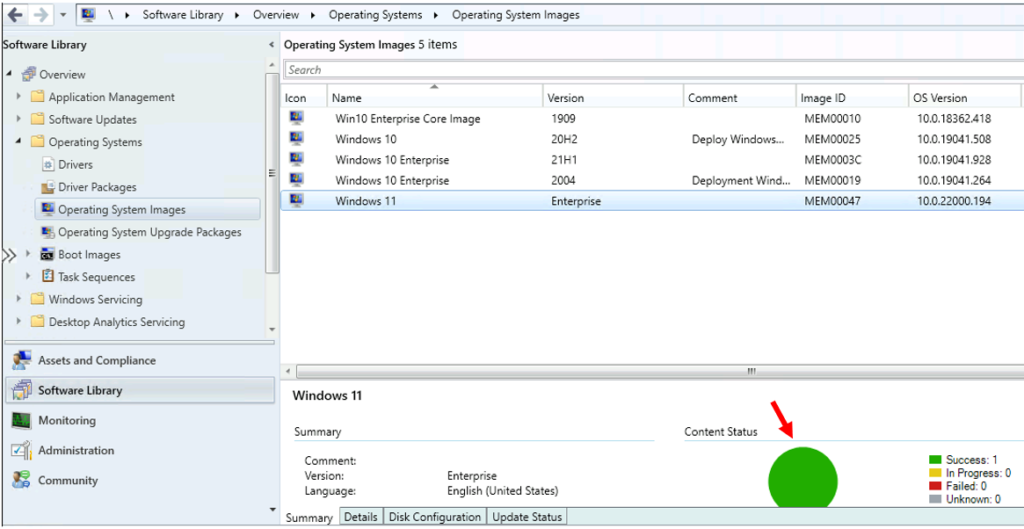

You can monitor the content status. If it’s showing the yellow color, that means distribution is in progress. If the content distribution were successful, it would appear with Green color as shown.

Content Distributed Sucessfully - Best Guide to Deploy Windows 11 Using SCCM
Content Distributed Successfully – Best Guide to Deploy Windows 11 Using SCCM

Create Task Sequence to Deploy Windows 11

In the Configuration Manager console, Go to the Software Library workspace, expand Operating Systems, right-click Task Sequences, and select Create Task Sequence.

Select Install an existing image package. This option creates a task sequence that installs the OS, migrates user settings, applies software updates, installs applications, and then selects Next.

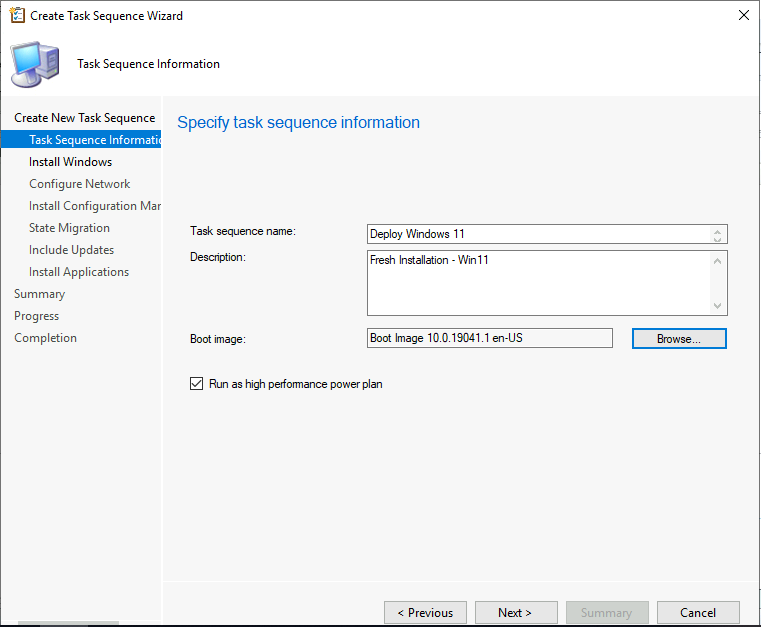

On the Task Sequence Information page, specify the following settings and click Next.

  • Task sequence name: Specify a name that identifies the task sequence.
  • Description: Optionally specify a description
  • On the Boot Image, Click Browse and select the available boot image package. Select Run as high performance power plan check box.
Create Task Sequence Wizard - Specify task sequence information
Specify task sequence information – Best Guide to Deploy Windows 11 Using SCCM

On the Install Windows page, specify the following settings and click Next.

Image package: Click on Browse to select the image. Select Partition and format the target computer installing the operating system.

  • Unchecked Configure task sequence for use with BitLocker – Since we don’t want to add the Bitlocker step to the task sequence,
  • Product key: you can specify the Windows product key for the OS to install.

Specify how to handle the administrator account for the new OS. Enable the account and specify the local administrator password – Windows uses the same password for the local administrator account on all computers where the task sequence deploys the OS image.

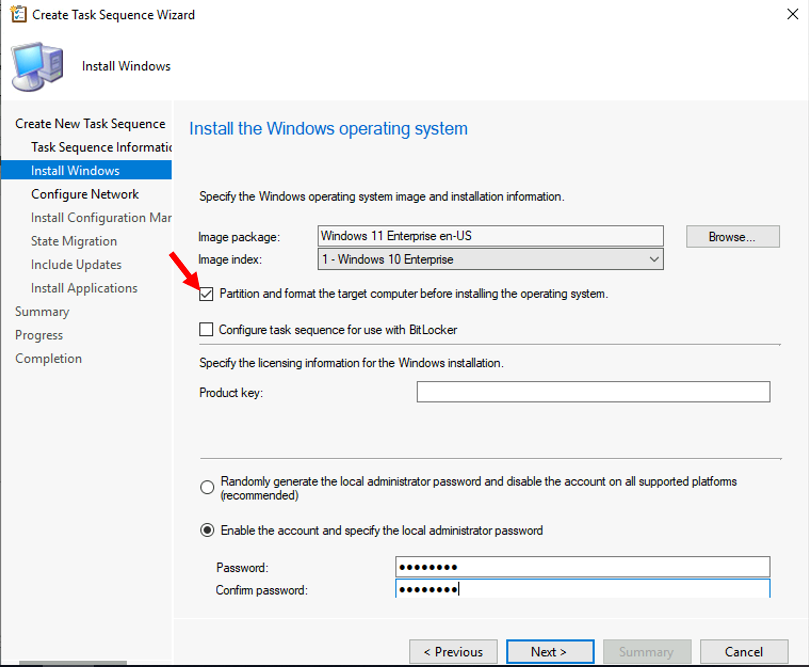

Create Task Sequence Wizard - Specify the Windows OS and Installation Information
Create Task Sequence Wizard – Specify the Windows OS and Installation Information

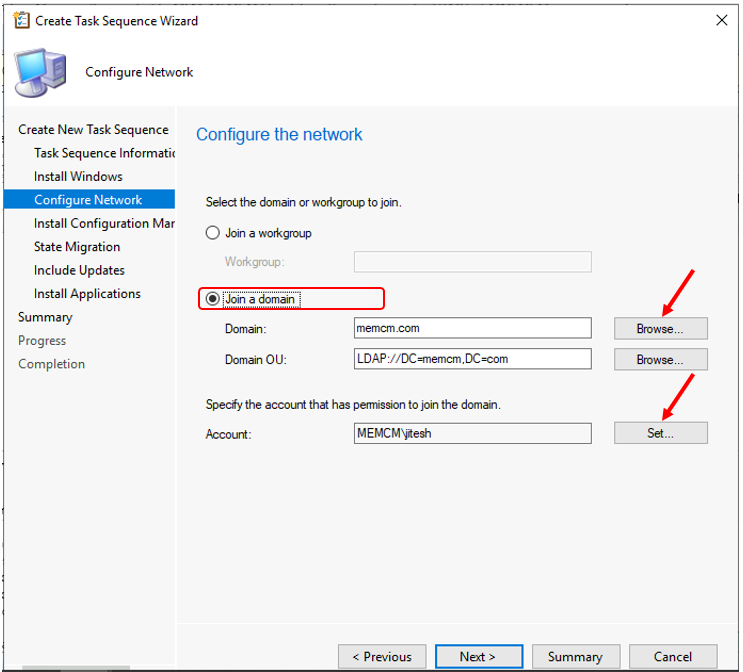

On the Configure Network page, specify the following settings. Click Next.

  • Join a workgroup: Add the destination computer to a workgroup.
  • Join a domain: Add the destination computer to a domain. In Domain, click Browse to specify the name of the domain. You can also specify an organizational unit (OU) in the Domain OU field. This setting is optional—Account: The user name and password for the account have permissions to join the specified domain.
Create Task Sequence Wizard - Configure the network
Create Task Sequence Wizard – Configure the network

On the Install Configuration Manager page, specify the Configuration Manager client package is selected automatically. If required, you can specify additional SCCM client installation properties. Click Next.

Create Task Sequence Wizard - Specify SCCM Client Package
Create Task Sequence Wizard – Specify SCCM Client Package

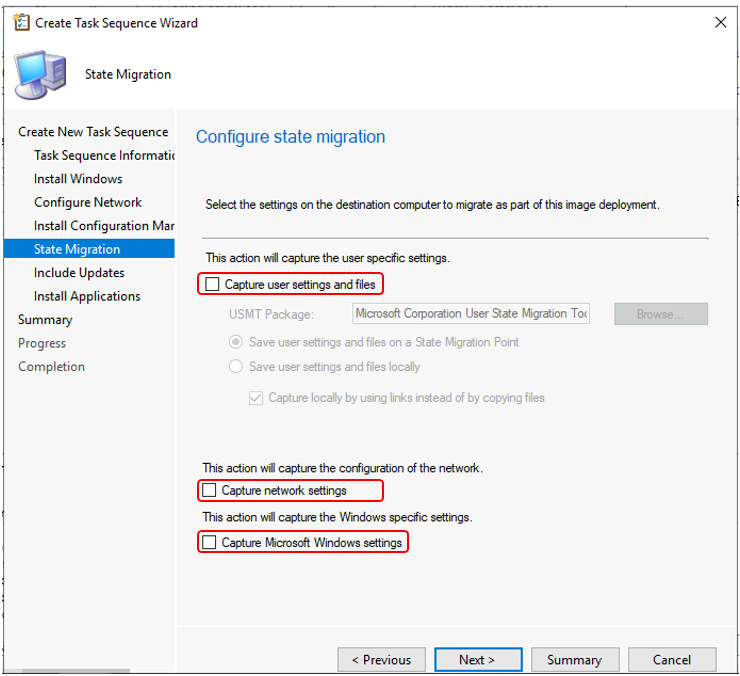

On the State Migration page, you can leave it to default or Uncheck all the options if you do not want to capture settings. These steps are condition-based in a task sequence that is not going to run automatically. Click Next.

Create Task Sequence Wizard - Configure state migration
Create Task Sequence Wizard – Configure state migration

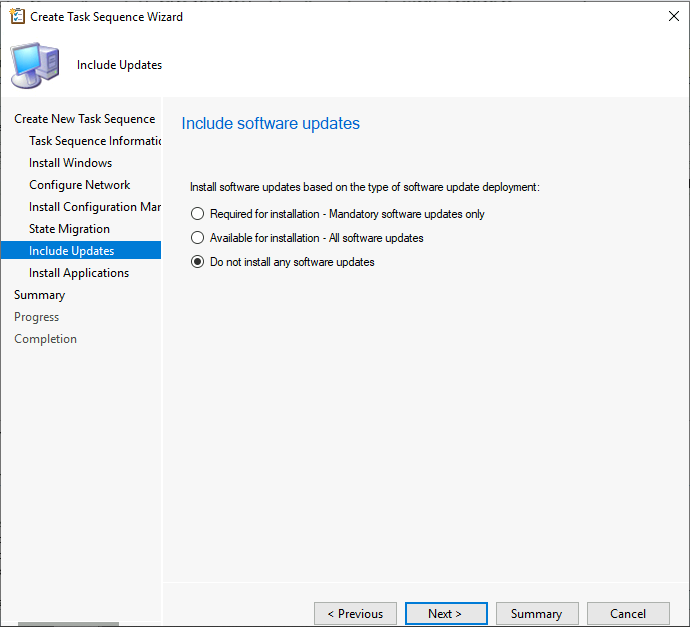

On the Include Updates page, you can specify whether to install required software updates, all software updates. Here I’m not installing any software updates, leaving the option default and Click Next.

Include Software Updates
Include Software Updates – Best Guide to Deploy Windows 11 Using SCCM

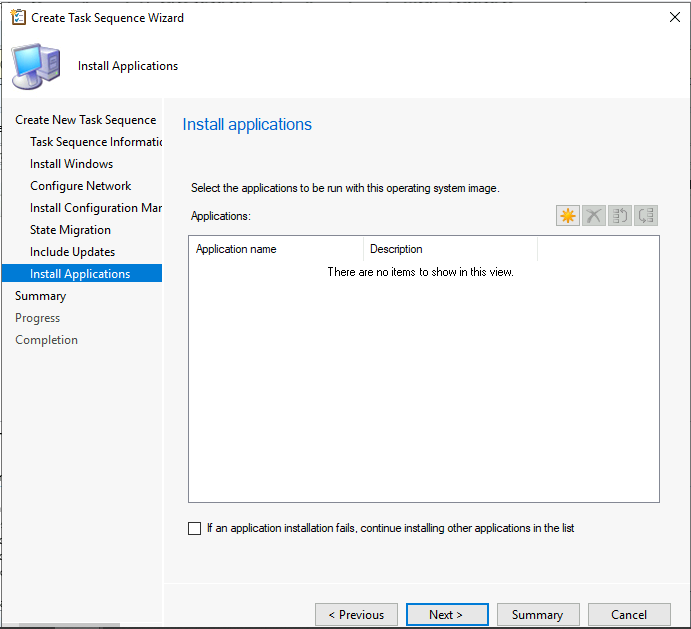

On the Install Applications page, specify the applications to install, or later you can add in task sequence steps. Click Next.

Select the applications to be run with this OS Image
Select the applications – Best Guide to Deploy Windows 11 Using SCCM

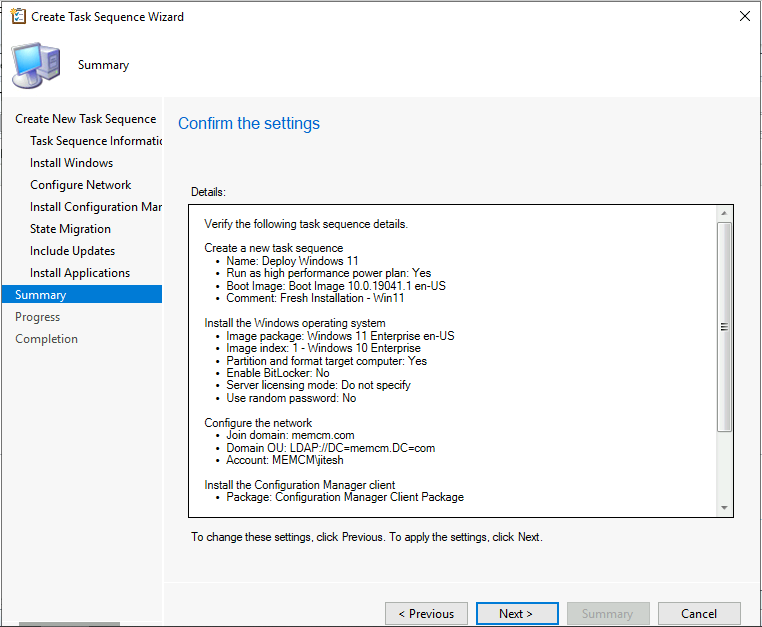

Review the task sequence details, Click Next.

Windows 11 Task Sequence - Confirm the task sequence details
Windows 11 Task Sequence – Confirm the task sequence details

Click Close to complete the wizard.

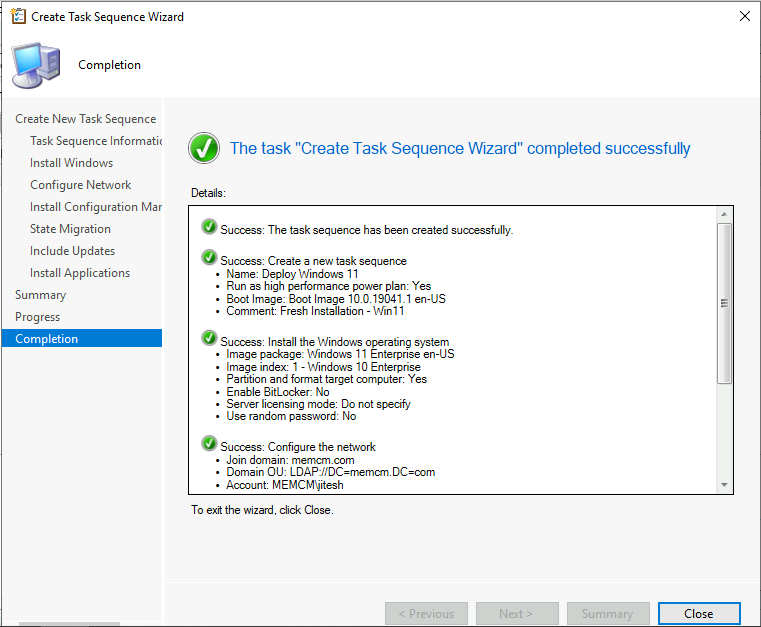

Windows 11 Task Sequence - Completed Sucessfully
Windows 11 Task Sequence – Completed Successfully

Edit Windows 11 Task Sequence

Let’s follow the steps to modify an existing task sequence in the Configuration Manager console –

Under Software Library > Operating Systems > Task SequencesRight-click on task sequence and select Edit.

Edit the Task Sequence to add or remove settings – The Task Sequence uses these phases to determine which tasks must be completed. You can use the task sequence editor to –

  • Add or remove steps and groups from the task sequence
  • Change the order of the steps of the task sequence
  • Set step options like whether the task sequence continues when an error occurs
  • Add conditions to the steps and groups of a task sequence
Best Guide to Deploy Windows 11 Using SCCM 1
Edit Windows 11 Task Sequence – Select Edit

Add Drivers

Let’s check the steps to Add Apply Driver Package Step to SCCM Task Sequence. Review drivers and applications that will be installed with the task sequence. Before you deploy the task sequence, make sure the drivers are compatible. To Import DriversCreate Driver packages and Process to Integrate Driver package into Task Sequence.

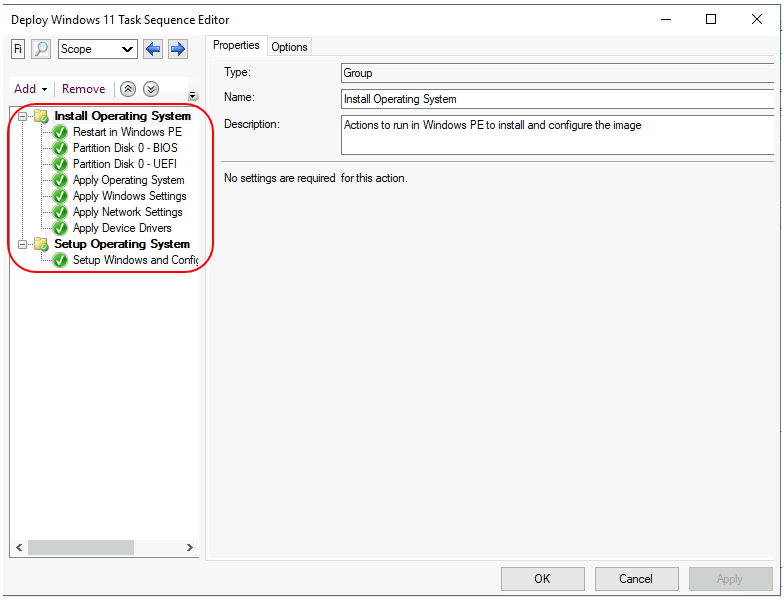

Edit Windows 11 Deployment Task Sequence
Edit Windows 11 Deployment Task Sequence – Best Guide to Deploy Windows 11 Using SCCM

You can refer to the following post to modify an existing task sequence –

Important⚠️- Review other settings added in Task Sequence. Make sure to apply all changes. Click Apply and OK, close the task sequence editor.

Deploy Windows 11 Using SCCM

Use the following procedure to deploy a task sequence to the computers in a collection.

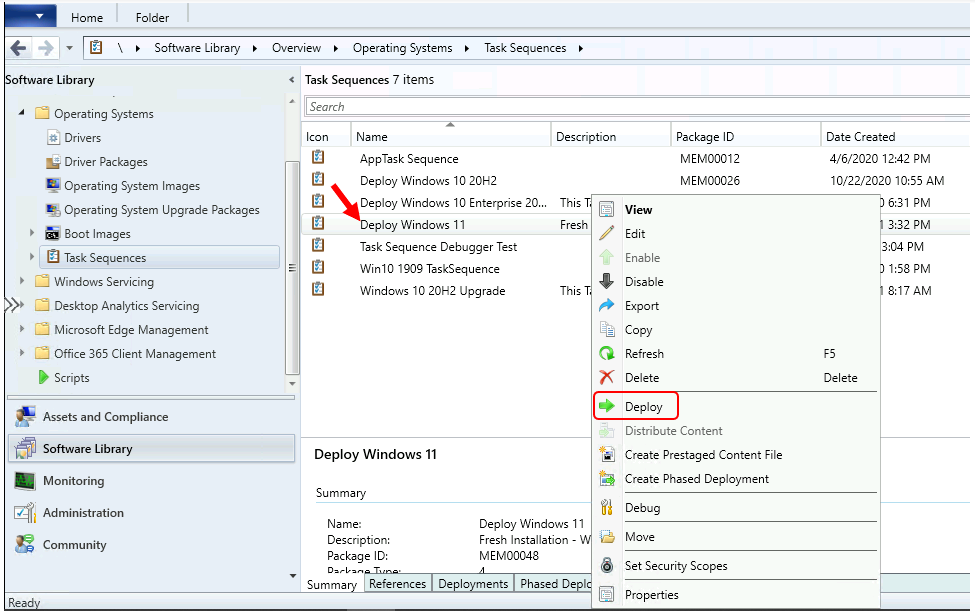

In the Task Sequence list, select the task sequence you have created, Right-click, and select Deploy.

Windows 11 Task Sequence - Select Deploy
Windows 11 Task Sequence – Select Deploy

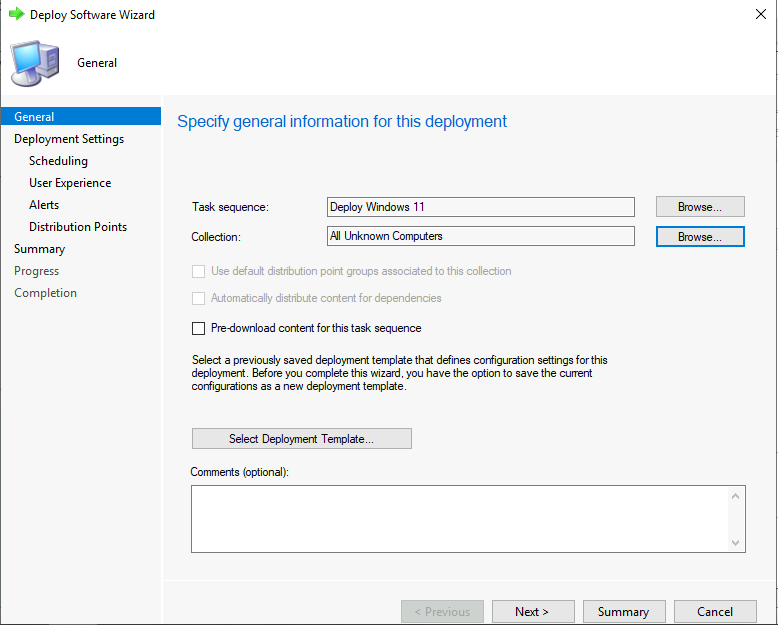

On the General, click Browse to select your device collection where you wish to perform the deployment.

Deploy to All Unknown Computers – Computers that are not managed by Configuration Manager or a computer not imported into Configuration Manager.

Deploy Windows 11 Task Sequence - Select Collection
Deploy Windows 11 Task Sequence – Select Collection

On the Deployment Settings, select the Purpose of the deployment.

Available – Available deployments require that the user is present at the destination computer. A user must press the F12 key to continue the PXE boot process. If a user isn’t present to press F12, the computer boots into the current OS, or from the next available boot device.

Required – Required deployments use PXE without any user intervention.

To use a PXE-initiated OS deployment, For the Make available to the following setting, select one of the following options –

Configuration Manager clients, media, and PXE
Only media and PXE
Only media and PXE (hidden)

Note – Use the Only media and PXE (hidden) setting for automated task sequence deployments. To have the computer automatically boot to the deployment without user interaction, select Allow unattended operating system deployment and set the SMSTSPreferredAdvertID variable as part of the media.

Deploy Windows 11 Task Sequence - Configure Deployment Settings
Deploy Windows 11 Task Sequence – Configure Deployment Settings

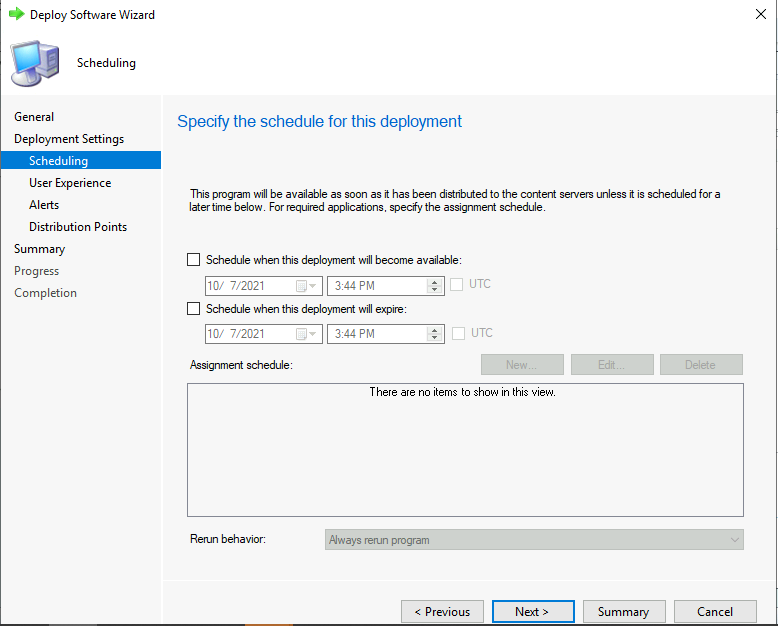

On the Scheduling tab, you can specify the schedule for this deployment. Click Next.

Specify the schedule for deployment
Specify the schedule for deployment – Best Guide to Deploy Windows 11 Using SCCM

On User Experience tab, leave the default selected options. Click Next.

Specify User Experience Settings
Specify User Experience Settings – Best Guide to Deploy Windows 11 Using SCCM

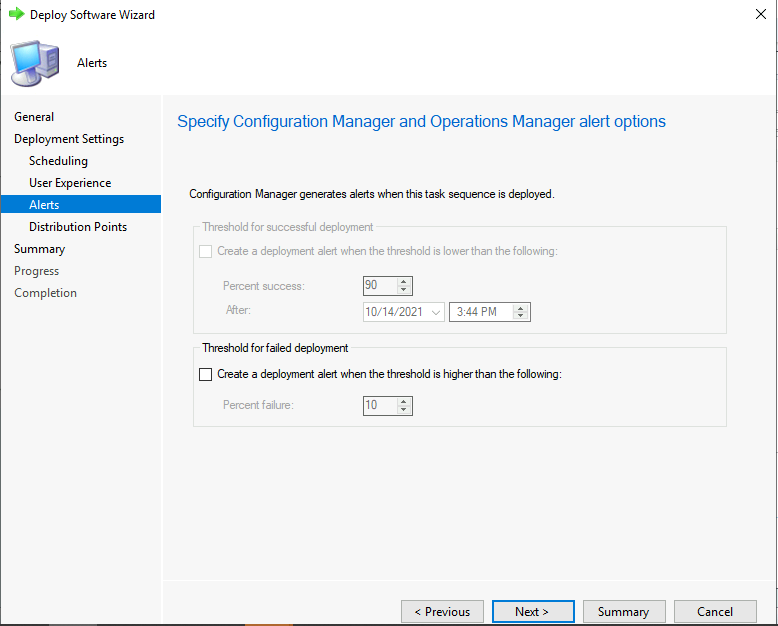

On Alerts page, leave it default. Click Next.

Best Guide to Deploy Windows 11 Using SCCM 2
Best Guide to Deploy Windows 11 Using SCCM

On Distribution Points page, you can specify how clients interact with the DPs to retrieve content from reference packages. Click Next.

To understand the available options in the Distribution Points tab during task sequence deployment – SCCM Task Sequence Available Deployment Options in Distribution Points Tab | ConfigMgr

Distribution Points
Distribution Points – Best Guide to Deploy Windows 11 Using SCCM

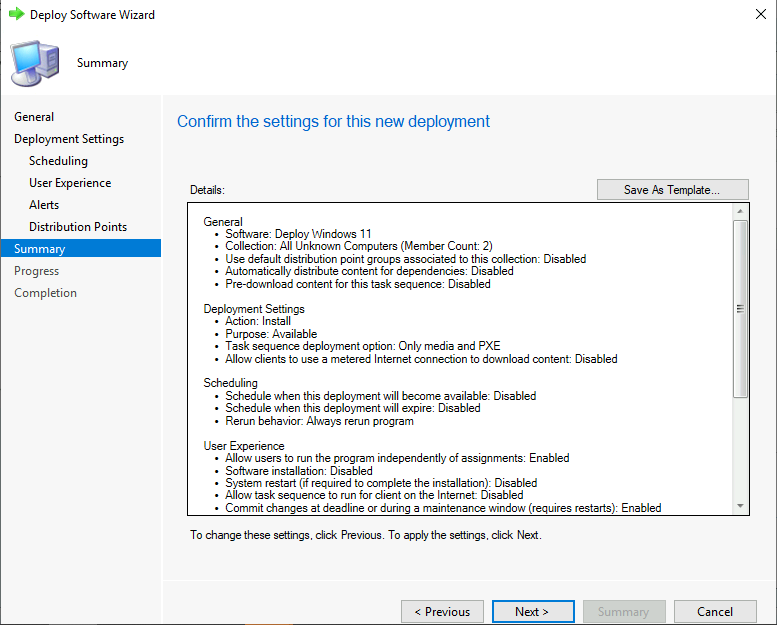

Review the selected settings and click Next.

Deploy Windows 11 Task Sequence - Review Selected Settings
Deploy Windows 11 Task Sequence – Review Selected Settings

The Deployment targeted successfully to collection. Click Close to exit the wizard.

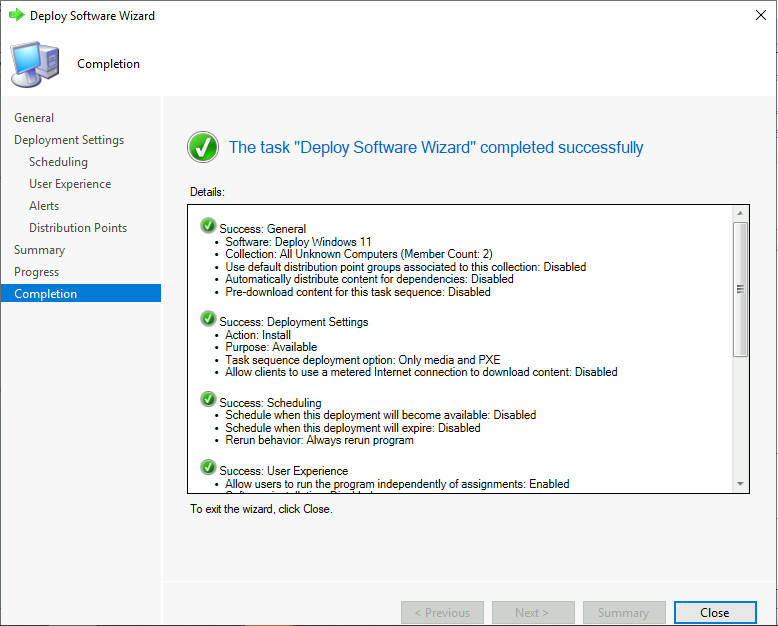

Deploy Windows 11 Task Sequence - Successfully Completed
Deploy Windows 11 Task Sequence – Successfully Completed

Results – Windows 11 21H2 Deployment

Different hardware models have different experiences for PXE. To boot to the network – UEFI-based devices typically use the key and BIOS-based devices use the key.

After the device successfully boots via PXE, the task sequence wizard appears. If you password-protect the media, the user has to enter the password on this welcome page. Click Next.

Task Sequence Wizard – Best Guide to Deploy Windows 11 Using SCCM | ConfigMgr
Task Sequence Wizard – Best Guide to Deploy Windows 11 Using SCCM | ConfigMgr

Select a task sequence to run: If you deploy more than one task sequence to the device, you see this page to select a task sequence. Make sure to use a name and description for your task sequence that users can understand. Complete the Task Sequence Wizard by selecting deployed task sequence.

Click Next. The task sequence begins when the policy for the task sequence is downloaded, and the content location is verified.

Best Guide to Deploy Windows 11 Using SCCM | ConfigMgr
Best Guide to Deploy Windows 11 Using SCCM

Once you complete the Wizard, the deployment of the new operating system begins. When the task sequence runs, it displays the Installation progress window. Check more How to Improve SCCM Task Sequence Progress Bar End User Experience | ConfigMgr

Please wait to complete the task sequence deployment. Sign in to the device with your domain or local credentials. Click Start, Type Winver, and Press Enter. You will see Windows 11 (OS Build 22000), was installed successfully.

Troubleshooting – Deploy Windows 11 Using SCCM

The SMSTS.log is one of the important log files that will help you troubleshoot installation issues related to Operating System Deployment (OSD) and fix those. Learn how to read SMSTS.log effectively for troubleshooting SCCM OSD Task Sequence. You can also check SCCM OSD SMSTS Log File Reading Tips with the built-in log reader tool CMTrace.

Author

About Author -> Jitesh has over 5 years of working experience in the IT Industry. He writes and shares his experiences related to Microsoft device management technologies and IT Infrastructure management. His primary focus area is Windows 10 Deployment solution with Configuration Manager, Microsoft Deployment Toolkit (MDT), and Microsoft Intune.

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
