How to Enable Disable Wake on LAN in Windows 11

Let’s learn how to enable and disable Wake on LAN in Windows 11. The Wake on LAN feature wakes the device from a low sleep mode when a network adapter detects a Wake on LAN event, such as a magic packet sent over the network.

In simple terms, Wake on LAN is a feature that permits a computer to be turned on or awakened from sleep mode by a network message. There are various methods to disable Wake on LAN in Windows 11.

Wake on LAN is an Ethernet networking standard that allows a network message to turn a computer on or wake up from a low-power state. This “magic packet” message is sent to the target computer from a Wake on LAN-enabled device over the network.

An Ethernet networking standard allows a properly configured network computer to be turned on or awakened by a network message. Wake on LAN is an industry-standard protocol for remotely waking computers up from a low-power mode.

Patch My PC
How to Enable Disable Wake on LAN in Windows 11 - Fig. 1
How to Enable Disable Wake on LAN in Windows 11 – Fig. 1

Methods to Enable Disable Wake on LAN in Windows 11

Microsoft provides settings that users can modify according to their choice. You can also modify the process to enable and disable Wake on LAN in Windows 11. You can enable or disable Wake on LAN as per your requirement. The methods to change the settings are listed below.

  • Enable Disable Wake on LAN using UEFI Firmware Settings
  • Enable Disable Wake on LAN using Windows Settings
  • Enable Disable Wake on LAN using Device Manager
  • Enable Disable Wake on LAN using Control Panel
  • Enable Disable Wake on LAN using Powercfg Commands

What is Wake on LAN?

How to Enable Disable Wake on LAN in Windows 11

Wake on LAN is an Ethernet or Token Ring computer networking standard that allows a computer to be turned on or awakened from sleep mode by a network message.
Microsoft supports the Wake on LAN feature when the user explicitly requests to enter the hibernate state. Of course, if you shut down your computer, the Wake on LAN feature is unsupported (this design is reasonable).

Enable Disable Wake on LAN using UEFI Firmware Settings

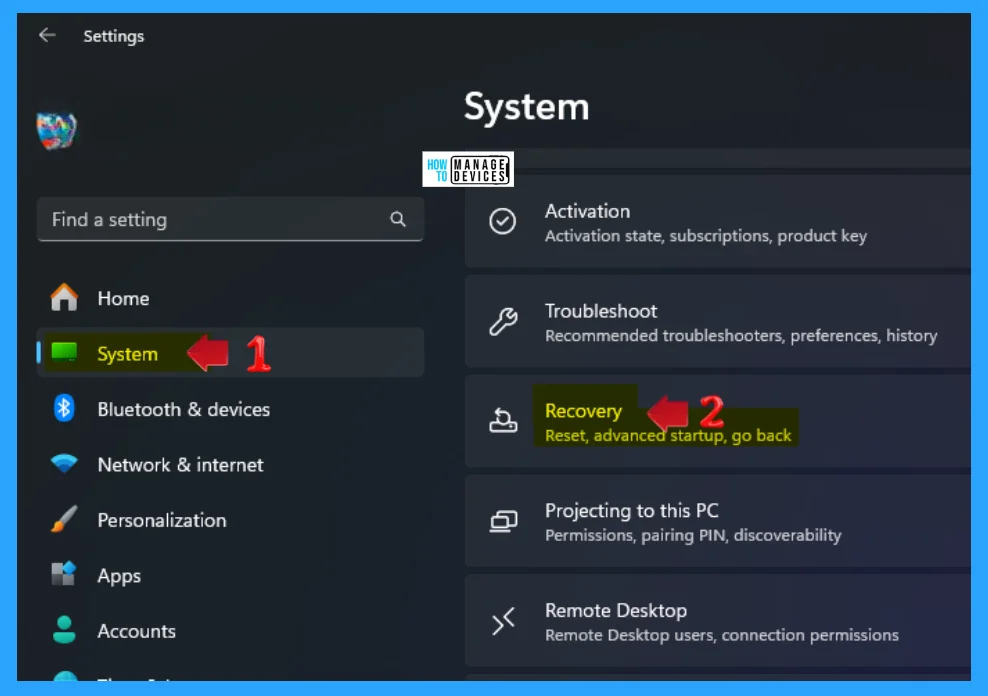

You can use Windows UEFI Firmware Settings to enable or disable Wake on LAN. Click on the Windows button, select Settings, or press Win Key + I to open settings directly. Then, under settings, click on the System option on the left panel, scroll down to find the Recovery in the right panel and click on it.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 2
How to Enable Disable Wake on LAN in Windows 11 – Fig. 2

The Recovery option provides that if you are having problems with your PC or want to reset it, these recovery options might help. Under Recovery Options, find the Advance Startup keyword, which helps you restart your device to change startup settings, including starting from a disc or USB drive. Click on the Restart button beside it.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 3
How to Enable Disable Wake on LAN in Windows 11 – Fig. 3

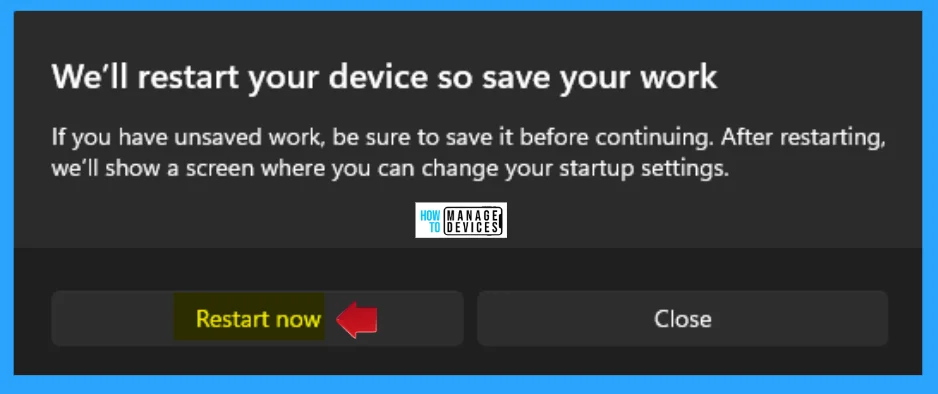

A warning pop-up appears when you click the restart button: “We will restart your device, so save your work. If you have unsaved work, be sure to save it before continuing. After restarting, we will show a screen where you can change your startup settings.” Click Restart now to continue.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 4
How to Enable Disable Wake on LAN in Windows 11 – Fig. 4

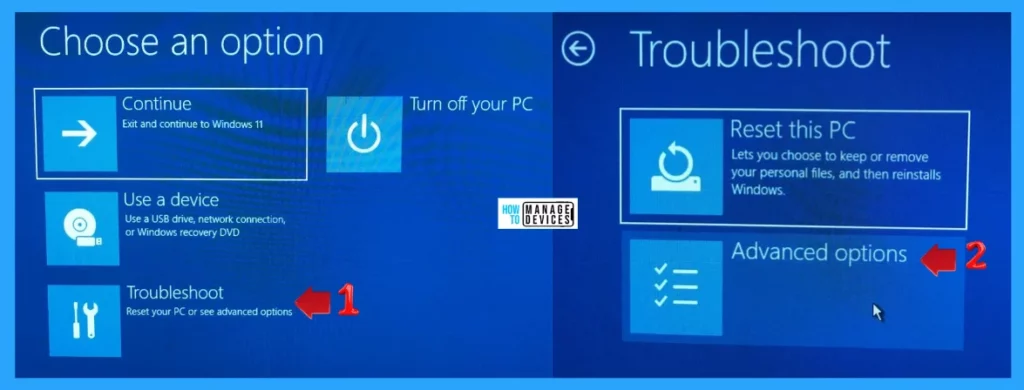

Here, the WinRE window opens with various options. Choose & click on the Troubleshoot option, which resets your PC or see the advanced option. Under the Troubleshoot option, click on the Advanced Options keyword, as shown in the image below.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 5
How to Enable Disable Wake on LAN in Windows 11 – Fig. 5

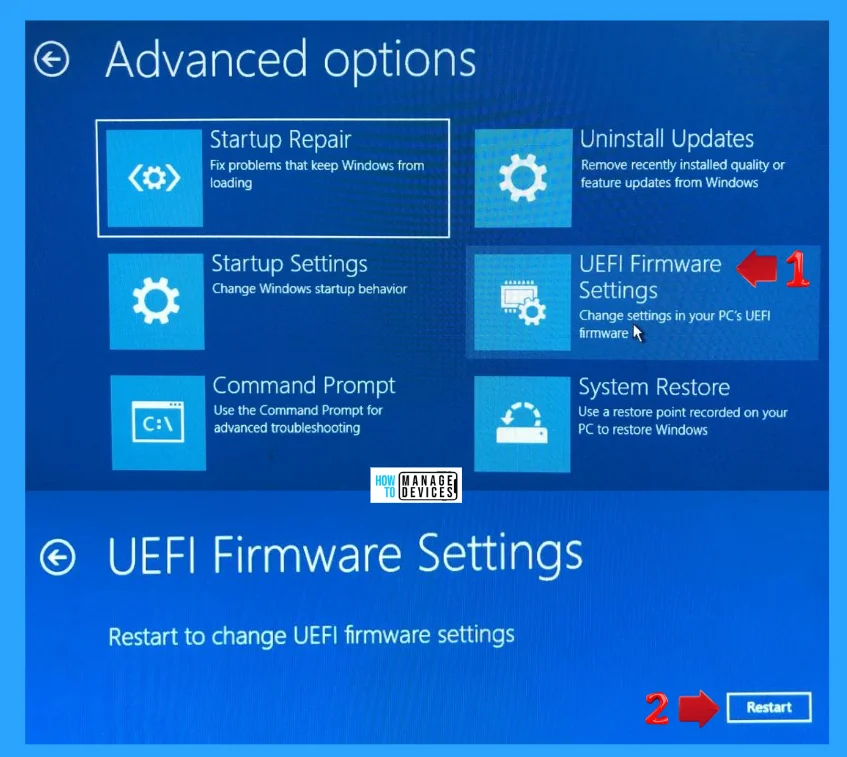

Now you can see the Advanced Options windows; here, some options are there. Choose and click on UEFI Firmware Setting to change settings in your PC’s UEFI firmware. Immediately after clicking on the said option, the next pop-up is a UEFI Firmware Settings screen. Click on Restart to continue, as shown below.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 6
How to Enable Disable Wake on LAN in Windows 11 – Fig. 6

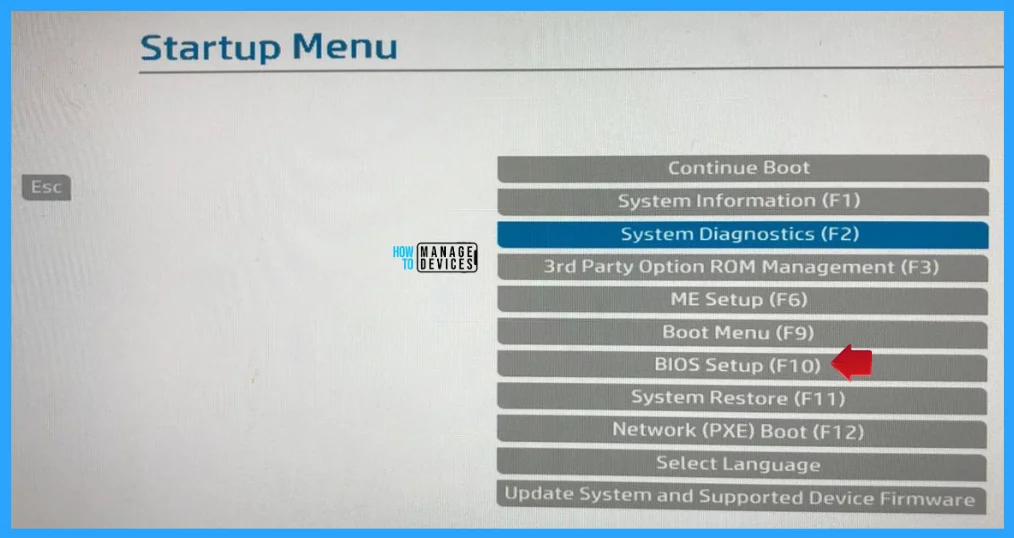

Now, you can see the Startup Menu, which includes many options regarding Windows setup. Choose the option BISO Setup or press F10 (or Fn + F10 in a laptop) to open BIOS Setup.

NOTE! This option may vary in different branding devices.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 7
How to Enable Disable Wake on LAN in Windows 11 – Fig. 7

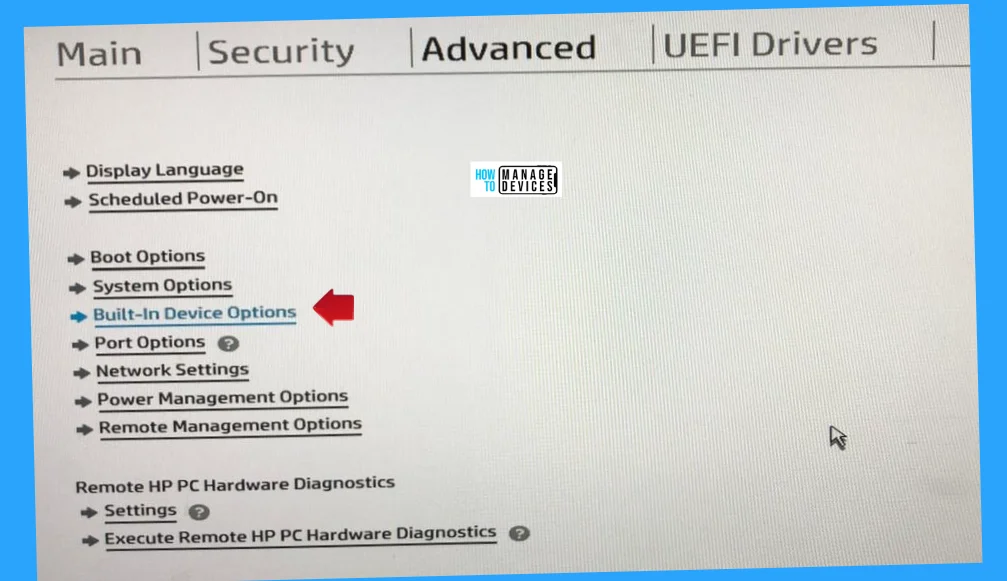

When the BIOS Setup opens, click on the Advanced tab as shown below (in many devices, you have to choose the Chipset option instead of Advanced). Click on Built-In Device Options to reach the destination (It varies from system to system branding).

How to Enable Disable Wake on LAN in Windows 11 - Fig. 8
How to Enable Disable Wake on LAN in Windows 11 – Fig. 8

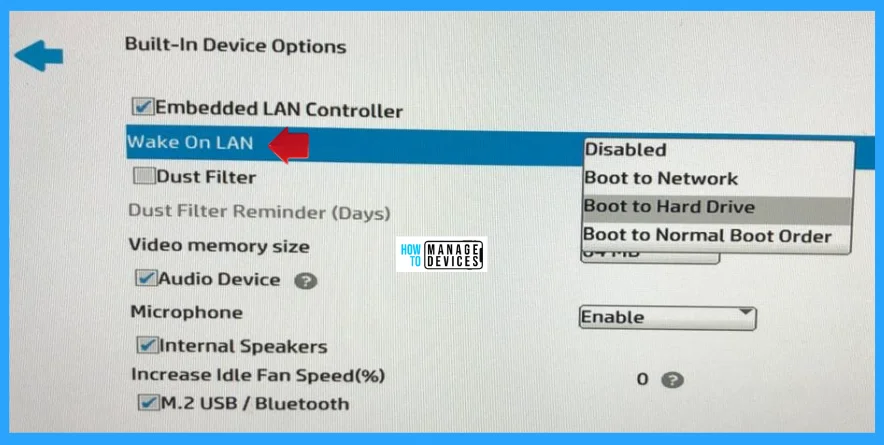

Under Built-In Device Options, you can see an option as Wake On LAN; click on the drop-down menu you can choose Disable to disable it or choose other options to enable the Wake on LAN in Windows.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 9
How to Enable Disable Wake on LAN in Windows 11 – Fig. 9

Enable Disable Wake on LAN using Windows Settings

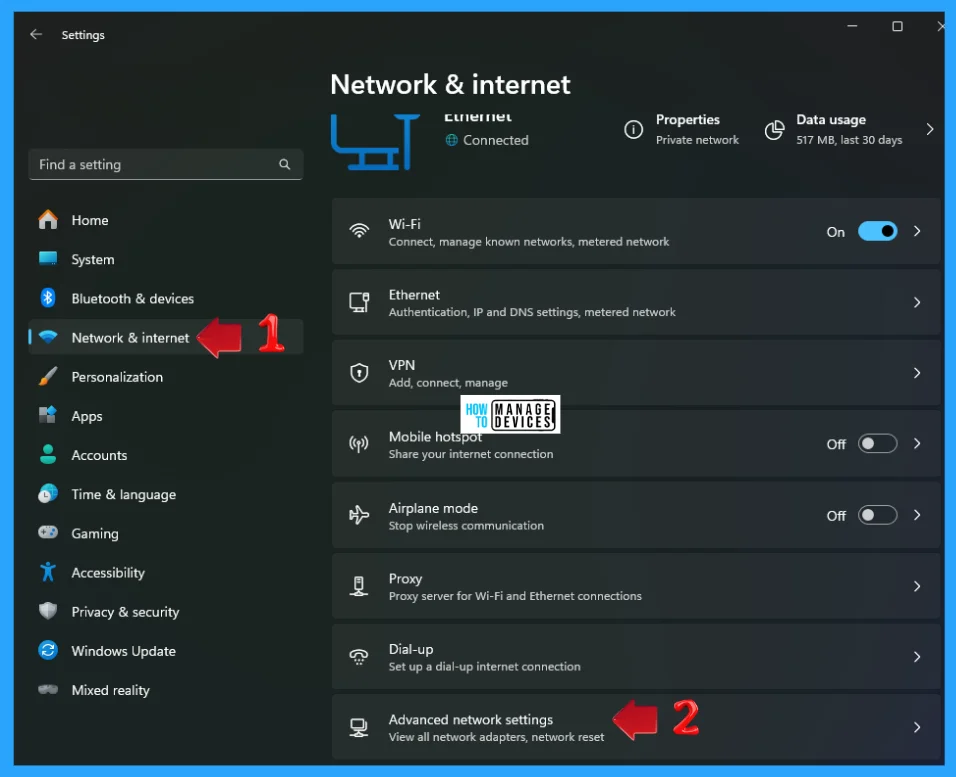

You can use Windows Settings to enable or disable Wake on LAN. Click on the Windows button, select Settings, or press Win Key + I to open settings directly. Then, under settings, click on the Network & Internet option on the left panel. Scroll down to find the Advanced Network Settings in the right panel, and click on it.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 10
How to Enable Disable Wake on LAN in Windows 11 – Fig. 10

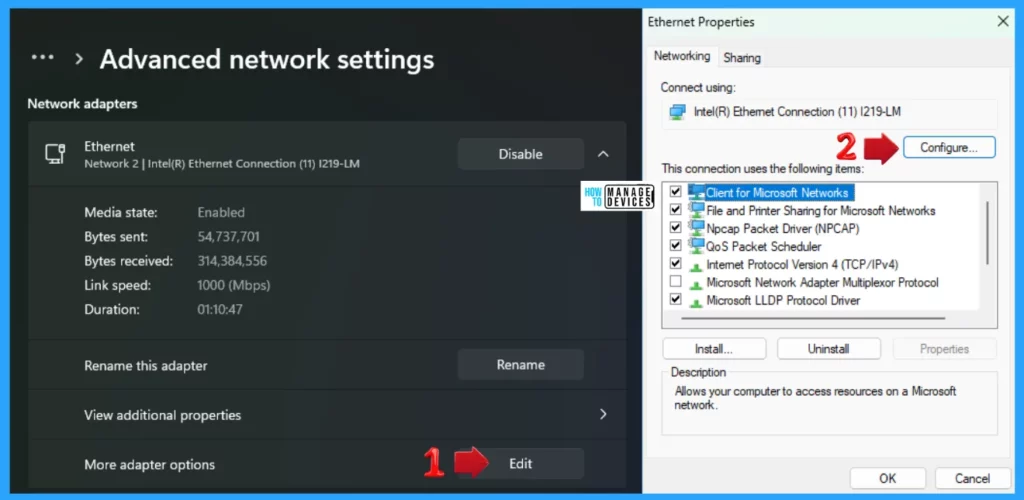

When the Advanced Network Settings window opens, expand the Ethernet option under Network Adapter, as shown in the image below. Find the More Adapter Option and click the Edit button beside it. Now, the Ethernet Properties window opens. Click the Configure button under the Networking tab.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 11
How to Enable Disable Wake on LAN in Windows 11 – Fig. 11

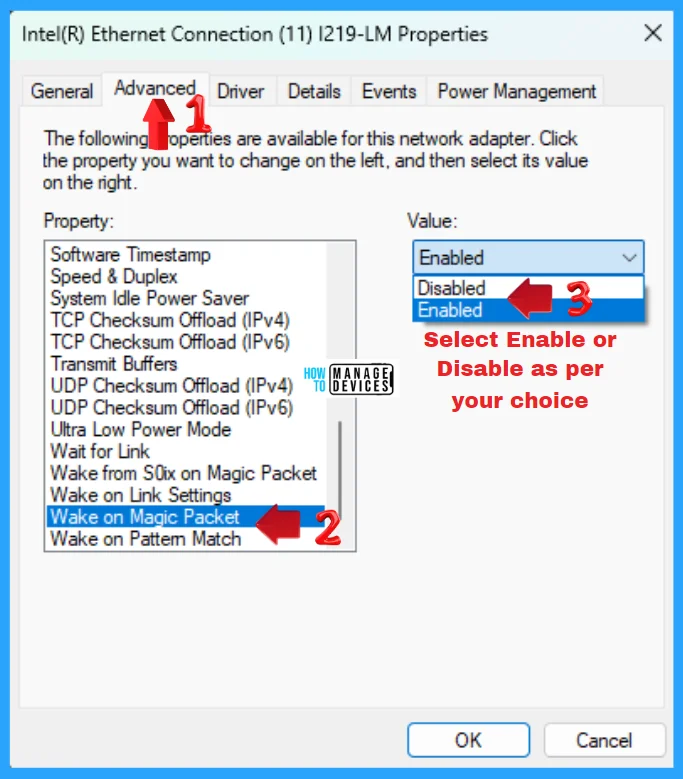

When the ethernet connection properties window opens, tap on the Advanced tab. The Advanced tab contains some networking properties and their values. The following properties are available for this network adapter. Click the property you want to change on the left, and then select its value on the right.

Scroll down the property to find the option Wake on Magic Packet and select it, then change its value to Enable or Disable as per your requirement.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 12
How to Enable Disable Wake on LAN in Windows 11 – Fig. 12

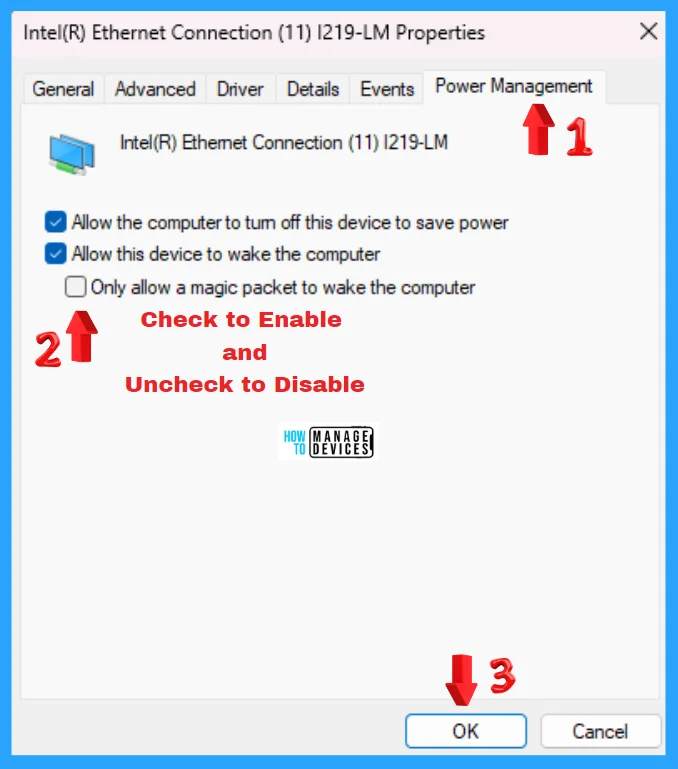

After performing the above settings, move to the Power Management tab and click on it. First, check “Allow the computer to turn off this device to save power”. Then check (enable—default) or uncheck (disable) “Allow this device to wake the computer”. Check (enable) or uncheck (disable-default) “Only allow a magic packet to wake the computer” as per your choice, and click on the OK button to complete the process.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 13
How to Enable Disable Wake on LAN in Windows 11 – Fig. 13

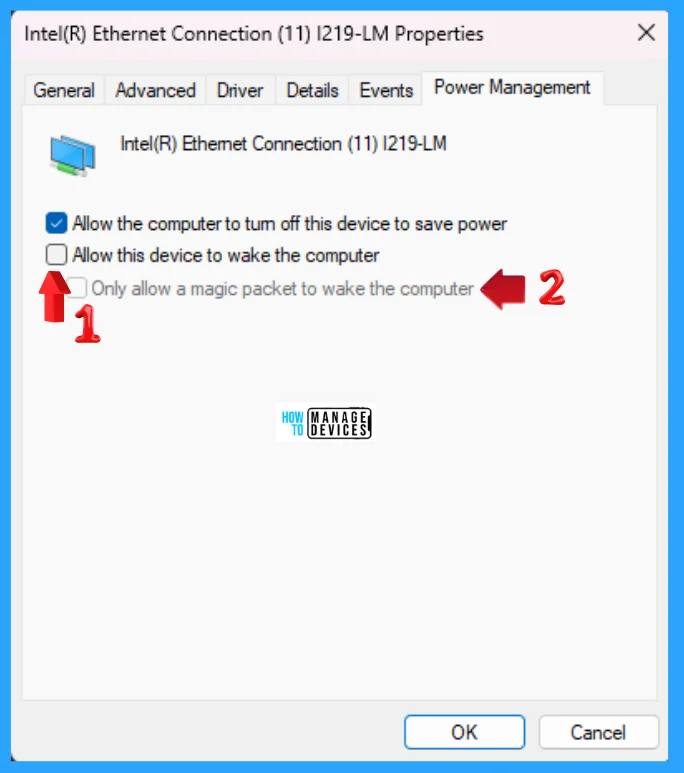

If you uncheck (disable) “Allow this device to wake the computer,” the “Only allow a magic packet to wake the computer” option is deactivated automatically, as shown in the image below.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 14
How to Enable Disable Wake on LAN in Windows 11 – Fig. 14

Enable Disable Wake on LAN using Device Manager

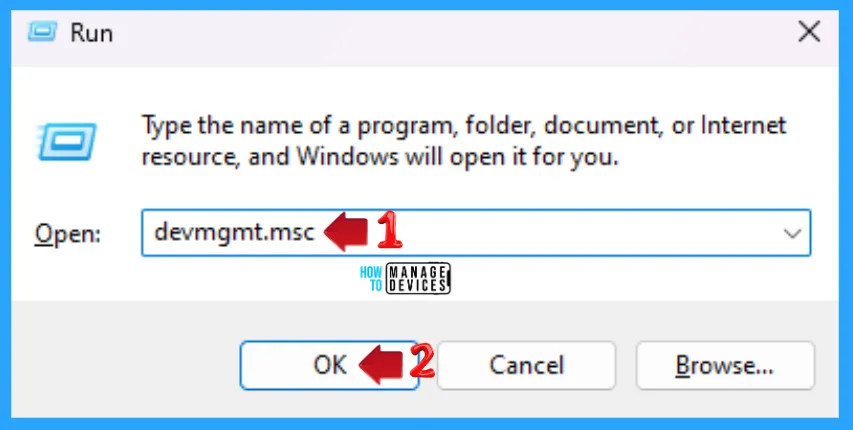

You can use the Device Manager to Enable Disable Wake on LAN in Windows 11. Type Device Manager in the Search Box on the taskbar, then select the appropriate option. Launch the command prompt, press Win Key + R, type devmgmt.msc in the Run dialogue box, and press Enter.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 15
How to Enable Disable Wake on LAN in Windows 11 – Fig. 15

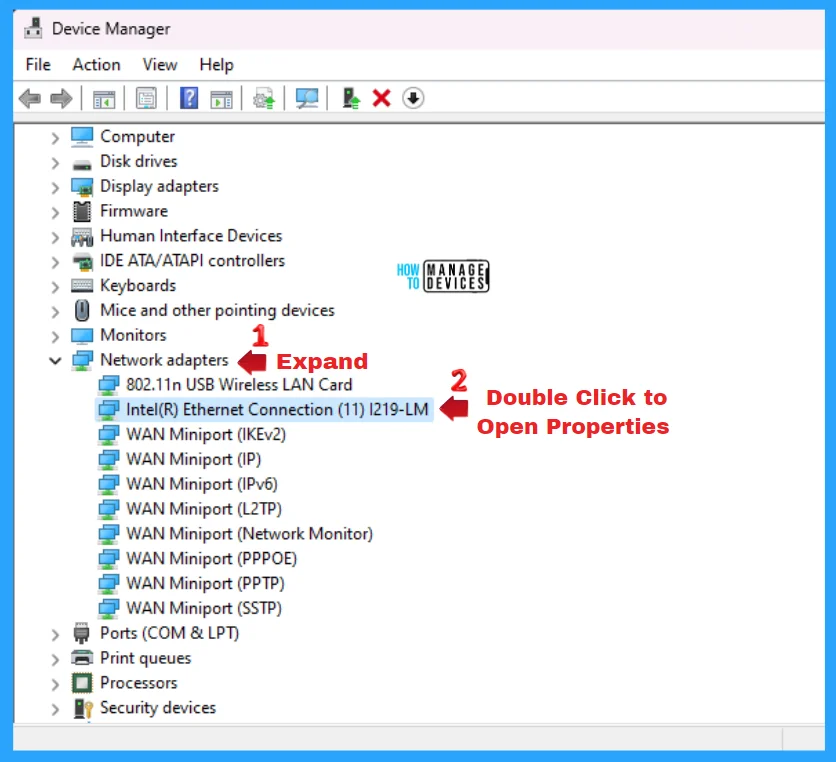

The Device Manager window is open now. Scroll down to find the Network Adapters option and expand it. After expanding, choose the Ethernet Connection option and double-click on it to enter its properties window.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 16
How to Enable Disable Wake on LAN in Windows 11 – Fig. 16

When the properties window opens, go to the Advanced tab, then move to the Power Management tab, and follow the steps shown in Figures 12 and 13 above.

Enable Disable Wake on LAN using Control Panel

You can follow another method using the Control Panel. To do so, type the control panel in the search box on the taskbar and then select the appropriate option to open the Control Panel.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 17
How to Enable Disable Wake on LAN in Windows 11 – Fig. 17

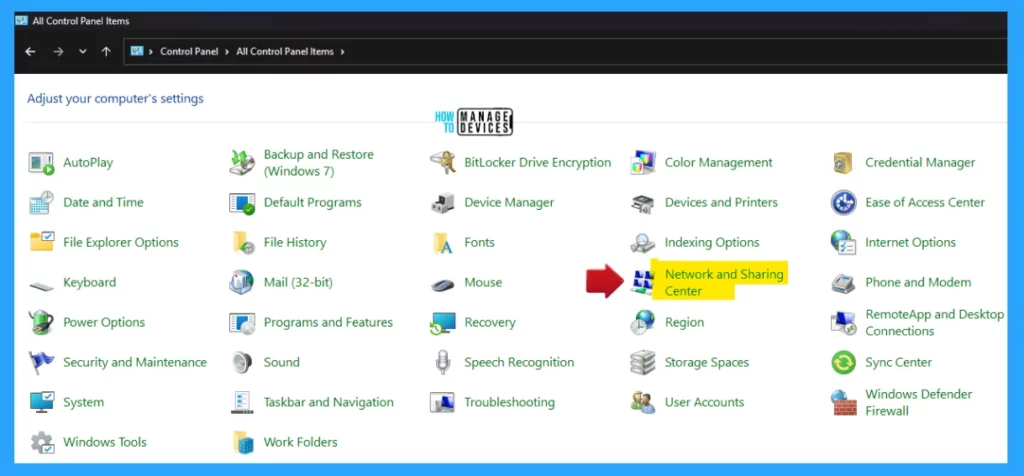

When the control panel opens, all the items listed below can be used to adjust your computer’s settings. Find the Network and Sharing Center from the list and open it for further processing.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 18
How to Enable Disable Wake on LAN in Windows 11 – Fig. 18

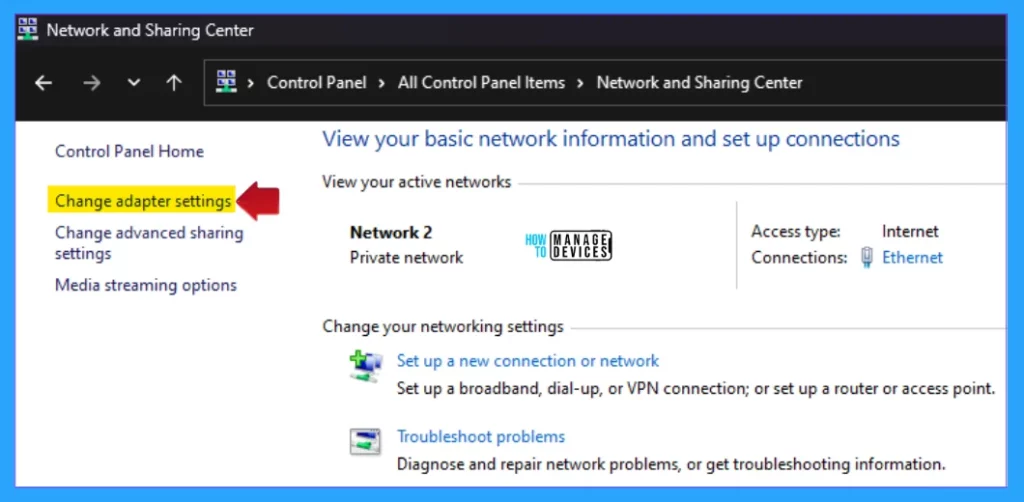

Now, the Network and Sharing Center window opens, where you can view your basic network information and set up connections. Select and click on the Change adapter settings option from the left pane.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 19
How to Enable Disable Wake on LAN in Windows 11 – Fig. 19

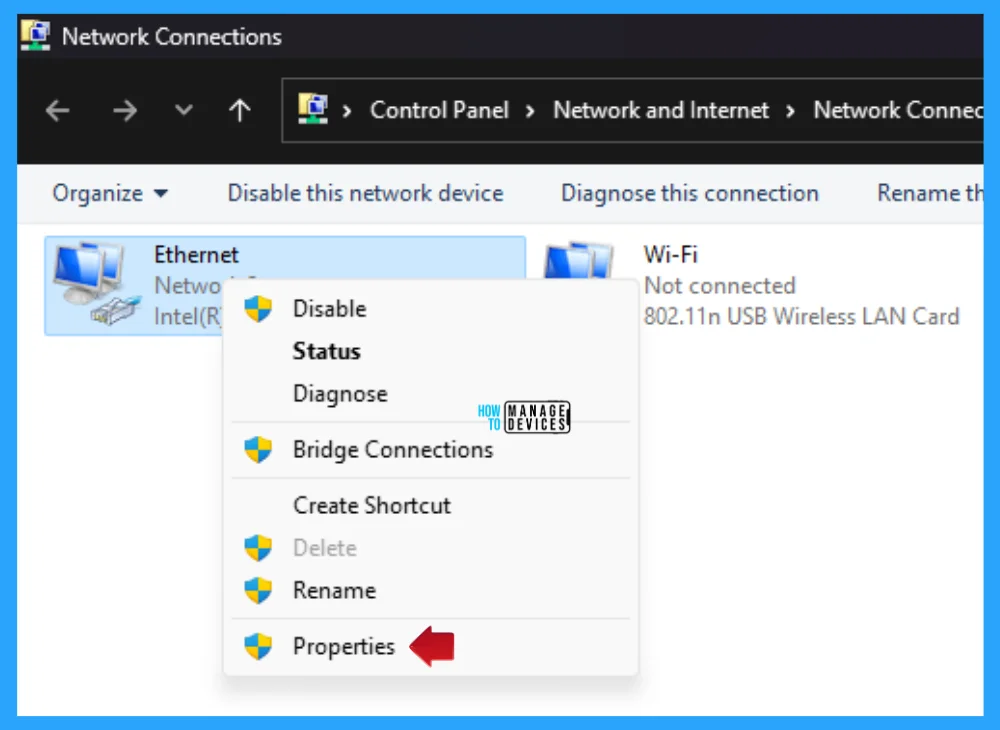

When you click on the change adapter settings option, you are taken to the Network Connections window, where you can find all the network connection details connected to your device. Choose the ethernet connection, right-click on it, and choose Properties from the options.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 20
How to Enable Disable Wake on LAN in Windows 11 – Fig. 20

When the properties window opens, go to the Advanced tab, then move to the Power Management tab, and follow the steps shown in Figures 12 and 13 above.

Enable Disable Wake on LAN using Powercfg Commands

You can use the Command Prompt or the PowerShell with Administrative privilege to get the list, if any. Let’s check for the list using the Elevated Command Prompt and follow the steps. You can find the details at – Manage to Enable Disable Devices to Wake Computers in Windows 11.

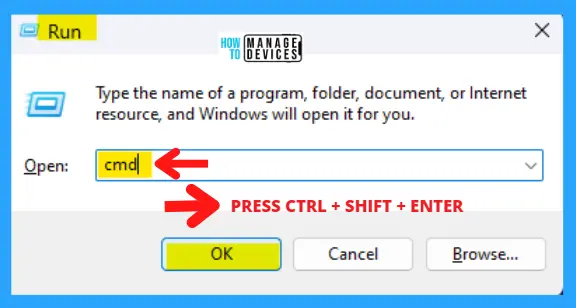

Open the Elevated Command Prompt, press Win Key + R simultaneously to open the run dialogue box, and follow the below steps. The Run window said to type the name of a program, folder, document, or internet resource, and Windows will open it for you.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 21
How to Enable Disable Wake on LAN in Windows 11 – Fig. 21

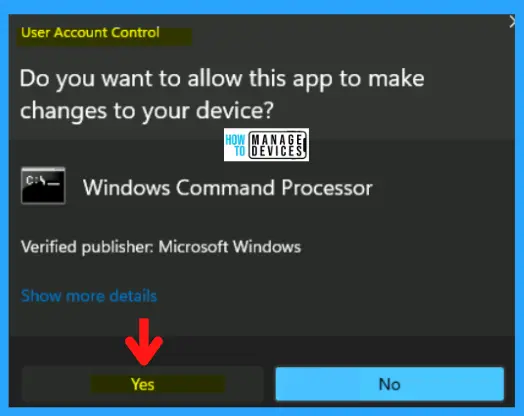

The next window appears as User Account Control, which asks, “Do you want to allow this app to make changes to your device?” For Windows Command Processor, press YES to continue. This window is an administrative approval to perform some tasks.

How to Enable Disable Wake on LAN in Windows 11 - Fig. 22
How to Enable Disable Wake on LAN in Windows 11 – Fig. 22

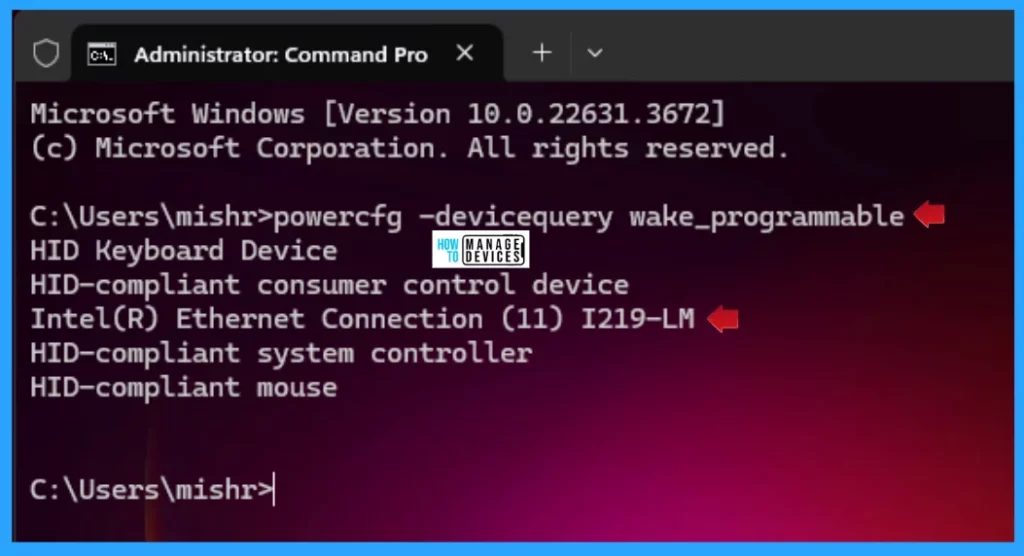

The Elevated Command Prompt window opens, and you can run some administrative commands. This window is represented as “Administrator: C:\WINDOWS\system32\cmd.exe“. Now, type the following command and then press Enter to get the list of all devices that wake computers in Windows 11.

powercfg -devicequery wake_programmable

How to Enable Disable Wake on LAN in Windows 11 - Fig. 23
How to Enable Disable Wake on LAN in Windows 11 – Fig. 23

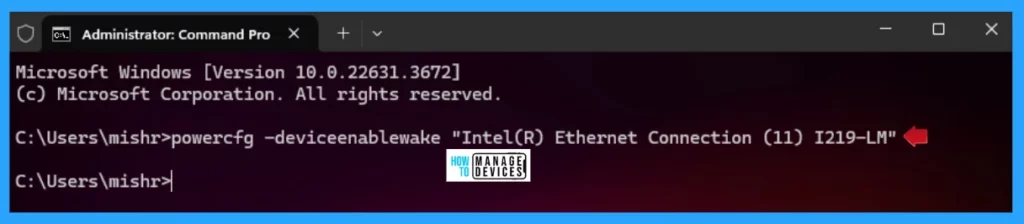

Using the above command, you can find the list of programmable devices that can be used to wake computers in Windows 11. Now copy the connection name that you want to enable the Wake on LAN option. Execute the following command to enable the devices.

powercfg -deviceenablewake “Device name”

NOTE! Replace the “Device Name” with the device you want to enable, for example (powercfg -deviceenablewake “Intel(R) Ethernet Connection (11) I219-LM”)

How to Enable Disable Wake on LAN in Windows 11 - Fig. 24
How to Enable Disable Wake on LAN in Windows 11 – Fig. 24

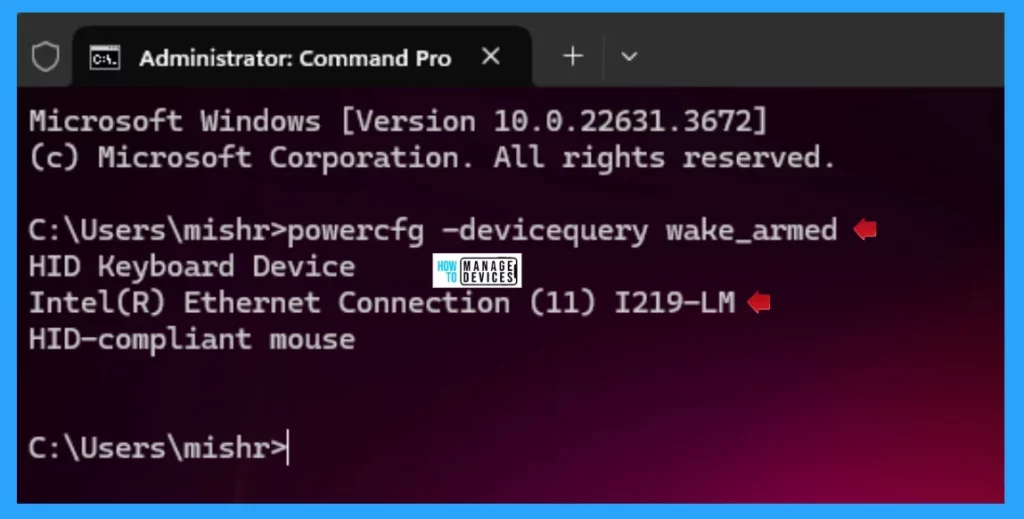

The Elevated Command Prompt is represented as “Administrator: C: WINDOWSsystem32cmd.exe. ” Now, type the following command and press Enter to get the list of all devices that used to Wake on LAN in Windows 11.

powercfg -devicequery wake_armed

How to Enable Disable Wake on LAN in Windows 11 - Fig. 25
How to Enable Disable Wake on LAN in Windows 11 – Fig. 25

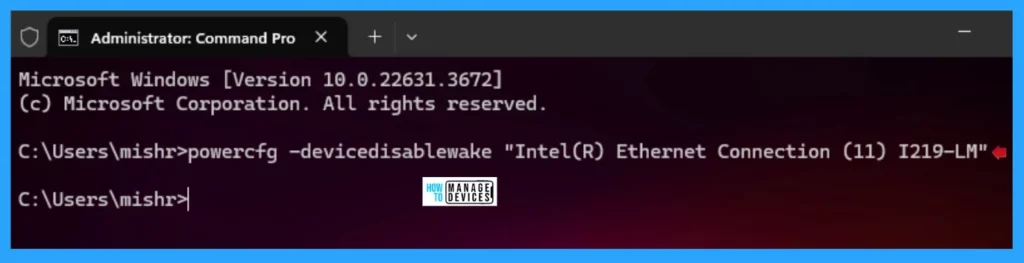

Using the above command, you can find the list of devices that can be used to Wake on LAN in Windows 11. Copy the network connection name you want to disable wake on LAN. Execute the following command to enable the devices.

powercfg -devicedisablewake “Device name”

NOTE! Replace the “Device Name” with the device you want to enable, for example (powercfg -devicedisablewake “Intel(R) Ethernet Connection (11) I219-LM”)

How to Enable Disable Wake on LAN in Windows 11 - Fig. 26
How to Enable Disable Wake on LAN in Windows 11 – Fig. 26

I hope the information on How to Enable Disable Wake on LAN in Windows 11 is helpful. Please follow us on the HTMD Community and visit our website, HTMD Forum, if you like our content. Suggest improvements, if any, and we would love to know which topic you want us to explore next.
