SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues

In this article, I will explore using SCCM and Microsoft connected Cache Integration to address bandwidth usage challenges. The focus will be on exploring the various SCCM and Microsoft-connected cache integration options, specifically understanding how Delivery Optimization (DO) plays a crucial role in optimizing content delivery.

The cache server operates as an on-demand transparent cache that stores content downloaded by Delivery Optimization. By configuring client settings, you can restrict access to this server so that it is only available to members of the local Configuration Manager boundary group.

It’s important to note that this cache is separate from Configuration Manager’s distribution point content, providing an added layer of versatility for content management within your network.

All the screenshots are taken from Andy Rivas’s and Narkis Engler’s Ignite session demo. The section below this post provides more details about the session and recording.

Patch My PC
Index
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues
Architecture Flow Diagram
SCCM and Connected Cache Integration
SCCM Server Side Configuration for Microsoft Connected Cache
SCCM Client-Side Policies for Microsoft Connected Server
Real-World Story – SCCM and Microsoft Connected Cache Integration
Session
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues – Table.1

Ignite 2019 Coverage

  1. Microsoft Endpoint Management SCCM Intune Windows Updates
  2. Microsoft Endpoint Manager is the future of SCCM Intune MEMMI MEMCM
  3. iOS Android macOS Mobile Enrollment Options with Intune
  4. Basics of Windows Dynamic Update Explained Update Management
  5. WVD End User Experience Availability Updates
  6. MSIX Updates from Ignite Reliability Network Disk-space
  7. Microsoft Learning Certification Exams Updates
  8. Intune Reporting Strategies Advanced Reporting
  9. Intune Endpoint Security Policies Enhancements
  10. Intune Policy Sets Collection of Workflows
  11. Windows Autopilot Updates Timelines
  12. Microsoft Connected Cache Container Instances in Azure via Intune
  13. SCCM and Microsoft Connected Cache Integration

SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues

Microsoft’s solution to network bandwidth issues in the modern workplace combines Microsoft Connected Cache, Delivery Optimization, and Microsoft Endpoint Manager. This post will focus on a hybrid solution closely integrated with SCCM investments, specifically on the EDGE.

Microsoft Connected Cache can seamlessly integrate with Microsoft Endpoint Manager solutions like SCCM/MEMCM.

The Microsoft-connected cache with DO solution is based on IIS and Application Request Routing (ARR) and the Windows Server native toolset. This Windows solution helps deliver the Microsoft-connected cache solution with DO and SCCM (MEMCM).

Adaptiva

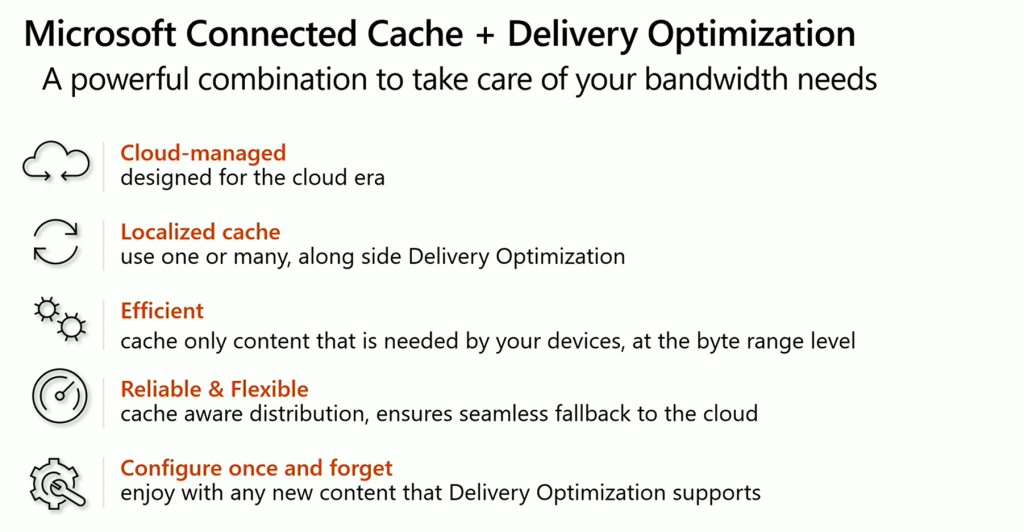

FeaturesDescription
Cloud ManagedMicrosoft Connected Cache is designed for the cloud era
Localized CacheUse one or many alongside Delivery Optimization
EfficientCache only content that is needed by your devices at the byte range level
Reliable & FlexibleCache-aware distribution ensures seamless fallback to the cloud
Configure once and forgetenjoy with any new content that Delivery Optimization supports
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues – Table 1
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues - Fig.1
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues – Fig.1

Architecture Flow Diagram

The Microsoft Connected Cache service can use Configuration Manager/SCCM or MEMCM DP as its connected Cache content location. SCCM clients can also get the content from the Connected Cache Container.

  • SCCM DP configured to enable Connected Cache service so that it can download the content from Microsoft CDN on client request
  • Clients configured with Connected Cache enablement policies
  • Client requests for Connected cache-supported content
  • Connected Cache container gets content from CDN and delivers it to the client
  • The client uses Delivery Optimization (DO) to share this content with other client devices
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues - Fig.2
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues – Fig.2

SCCM and Connected Cache Integration

You can fully unitize the existing investment with SCCM and Microsoft Connected Cache. The integration experience will be seamless for SCCM admins.

NOTE! The blog post explains more details on setting up and configuring Microsoft Connected Cache Containers and nodes.

SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues - Fig.4
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues – Fig.4

SCCM Server Side Configuration for Microsoft Connected Cache

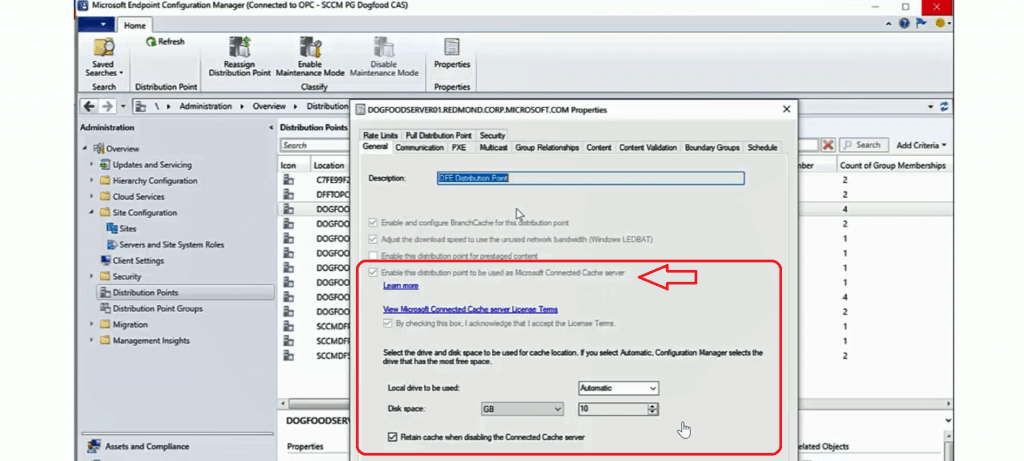

  • You can configure Microsoft Connection Cache from the SCCM console -> Distribution Point Properties.
  • Select the option – Enable Distribution Points to be used as Microsoft Connected Server.
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues - Fig.5
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues – Fig.5

SCCM Client-Side Policies for Microsoft Connected Server

You can configure the SCCM client policies from Client Agent policies.

  • Client Agent Policies – Delivery Optimization
  • Select YES for the configuration “Enable Devices Managed by Configuration Manager to use Microsoft Connected Cache servers for content download.
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues - Fig.6
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues – Fig.6

Real-World Story – SCCM and Microsoft Connected Cache Integration

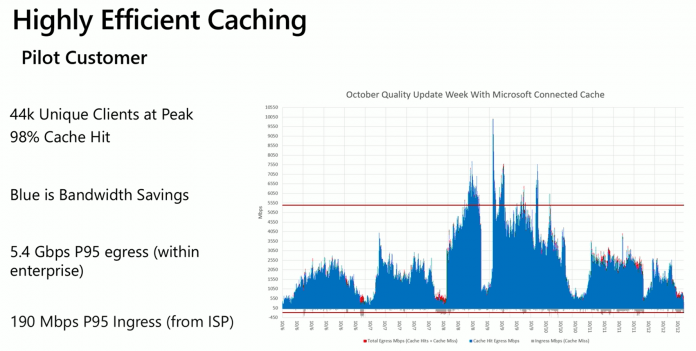

This SCCM + Connected Cache is the example provided in the Microsoft Ignite session. Highly efficient caching – the pilot customer.

SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues - Fig.7
SCCM and Microsoft Connected Cache Integration to Help with Bandwidth Issues – Fig.7

Session

Stay current while minimizing network traffic: The power of Delivery Optimization—session Recording by Andy Rivas & Narkis Engler.

Resources
