CMPivot Query for SCCM BitLocker Management Event Logs

Let’s check the CMPivot query for SCCM Bitlocker Management event logs. The SCCM CMPivot architecture is based on fast channel notification. This helps to get the reports back quickly from the Online Clients. In this post, find the easiest method to centrally monitor the MBAM event logs using SCCM.

The SCCM (ConfigMgr) Bitlocker management provides full BitLocker lifecycle management similar to MBAM (Microsoft BitLocker Administration and Monitoring). Configuration Manager BitLocker management uses the MDOP MBAM client in the background.

The client-side event logs for SCCM BitLocker management are the same as MBAM. You need to look into the same place to get more details on SCCM BitLocker troubleshooting scenarios. There are SCCM BitLocker management reports available to help with the first level of troubleshooting.

Patch My PC

There are different types of event logs for SCCM BitLocker Management, such as Admin, Operational, Analytic, and Debug logs. Admin and Operational logs are for the standard troubleshooting scenarios. The Analytics and Debug logs help to perform deep-level BitLocker management troubleshooting.

SCCM BitLocker Management Event Logs

Let’s look closely at the SCCM BitLocker Management-related event Logs before going into the details of CMPIvot queries. To collect the BitLocker event logs from the Windows 11 or 10 devices, you must look at MBAM event logs.

As explained before, there are 4 types of BitLocker Management (MBAM) event logs. But normally, the default ones are only visible unless and until you explicitly enable Analytic and Debug Logs. The default event logs for MBAM are:

  • SCCM BitLocker Management Event log path is the Applications and Services Logs – Microsoft – Windows – MBAM:
    • Admin
    • Operational

You can enable more detailed SCCM MBAM logs for troubleshooting purposes. You can enable this from Event Viewer, go to the View menu, and select Show Analytic and Debug Logs. Now onwards, you can see two additional logs called Analytic and Debug.

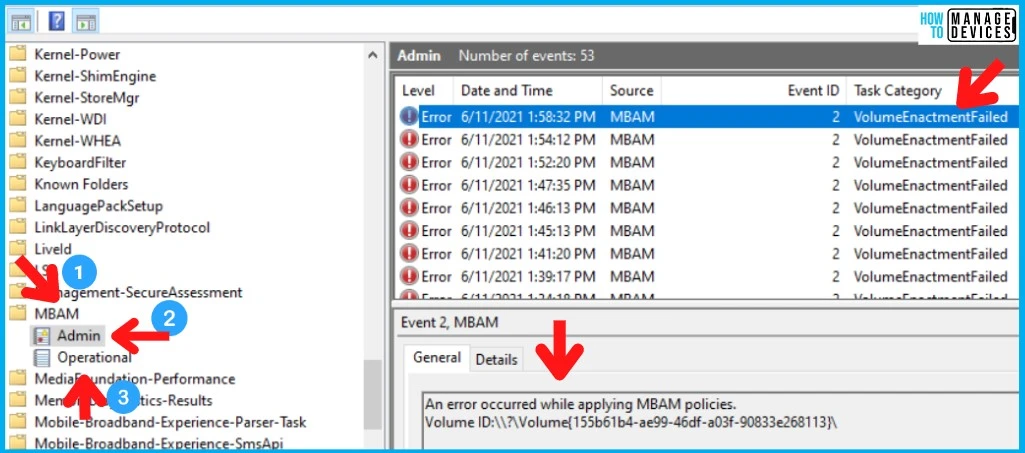

CMPivot Query for SCCM BitLocker Management Event Logs MBAM 3
CMPivot Query for SCCM BitLocker Management Event Logs MBAM

How to Launch SCCM CMPivot Tool

Let’s understand how to launch SCCM CMPivot Tool from the SCCM console or use CMPivot standalone tool or from the MEM admin center portal. You have three ways to launch SCCM CMPivot and find out the Windows 11 compatibility check details.

The following is one example to get the CMPivot from SCCM Cloud Attach (aka Tenant Attach) devices. This is the combination of the modern way with traditional power!

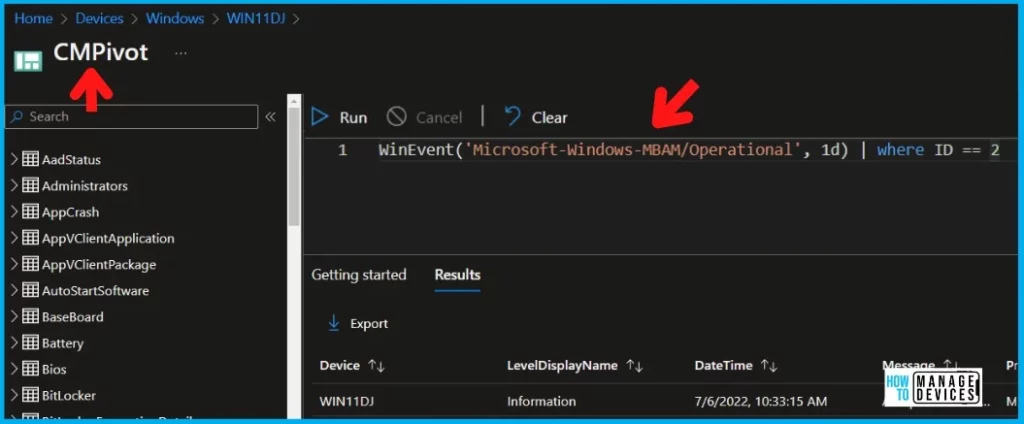

CMPivot Query for SCCM BitLocker Management Event Logs MBAM Using MEM Portal
CMPivot Query for SCCM BitLocker Management Event Logs MBAM Using MEM Portal

Start Using SCCM CMPivot for Reviewing MBAM Event Logs

It’s time to start using SCCM CMPivot for reviewing MBAM event logs. The CMPivot can collect the details from event logs from Online Clients. If the SCCM clients are offline, then you won’t be able to get the event log details from those clients.

For offline clients, it’s worth using the SCCM BitLocker management reports. Or you can re-run the CMPivot query multiple times depending on the availability of the online SCCM clients.

Let’s learn how to launch the CMPivot by selecting the appropriate device collection. Always use the smallest device collection as the first step for initial testing. This will help to understand whether the CMPivot query is working as expected or not.

  • Navigate to the Device Collections against which you want to run the CMPivot query to review the BitLocker Management event logs.
  • Select any one of the device collections as per your requirement.
  • Right-Click on Device collection.
  • Select Start CMPivot.
CMPivot Query for SCCM BitLocker Management Event Logs MBAM
CMPivot Query for SCCM BitLocker Management Event Logs MBAM 3

CMPivot for BitLocker Event Logs | MBAM

Let’s check the CMPivot for BitLocker Event Logs | MBAM in this section. You have already identified the event logs that you have to review to check whether everything is going well with their encryption process.

You can perform this activity if you want to quickly check the status of the BitLocker encryption using SCCM policies for newly provisioned Windows 11 laptops/desktops. CMpivot is the best tool to get live data from clients.

The following CMPivot query gives you the details of the Microsoft-Windows-MBAM/Admin event logs for the last one hour. Need to be careful here! You don’t want to choke up the entire network by pulling the data from thousands of clients together.

WinEvent('Microsoft-Windows-MBAM/Admin', 1h)

The following are some additional CMPivot queries that will help you to filter down to more specific events for a single Windows 11 or Windows 10 device.

WinEvent('Microsoft-Windows-MBAM/Admin', 1h) | where ID == 2
WinEvent('Microsoft-Windows-MBAM/Admin', 1h) | where Message contains 'An error occured while applying MBAM policies'

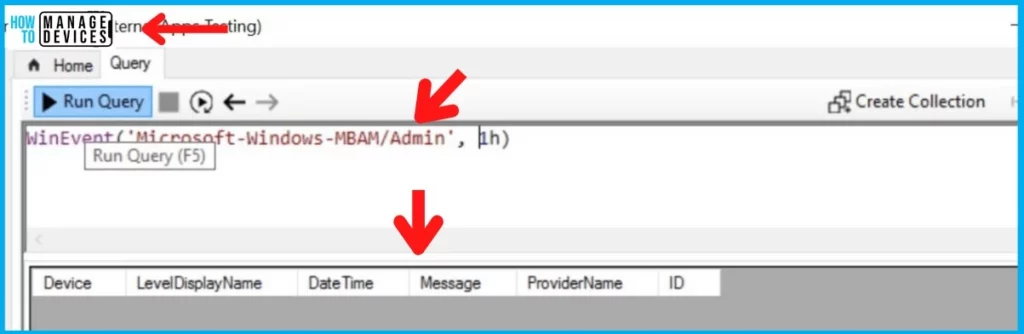

CMPivot Query for SCCM BitLocker Management Event Logs MBAM 2
CMPivot Query for SCCM BitLocker Management Event Logs MBAM 2

CMPivot for BitLocker Operational Event Logs

Let’s now check the CMPivot for BitLocker (MBAM) Operational Event Logs for the last hour. This is where more operational details will be available. You just need to copy the following CMPivot query to the Query window of CMPivot and hit on Run Query.

You can use different options to filter down the BitLocker event logs as per your requirement. You can change it to one day (1d) if you want to check event logs from a particular device for troubleshooting.

WinEvent('Microsoft-Windows-MBAM/Operational', 1h)
WinEvent('Microsoft-Windows-MBAM/Operational', 1d)

You can filter the MBAM event logs based on the event ID or Message details. Some of the sample CMPivot queries are given below with filter options.

WinEvent('Microsoft-Windows-MBAM/Operational', 1h) | where ID == 2
WinEvent('Microsoft-Windows-MBAM/Operational', 1h) | where Message contains 'An error occured while applying MBAM policies'

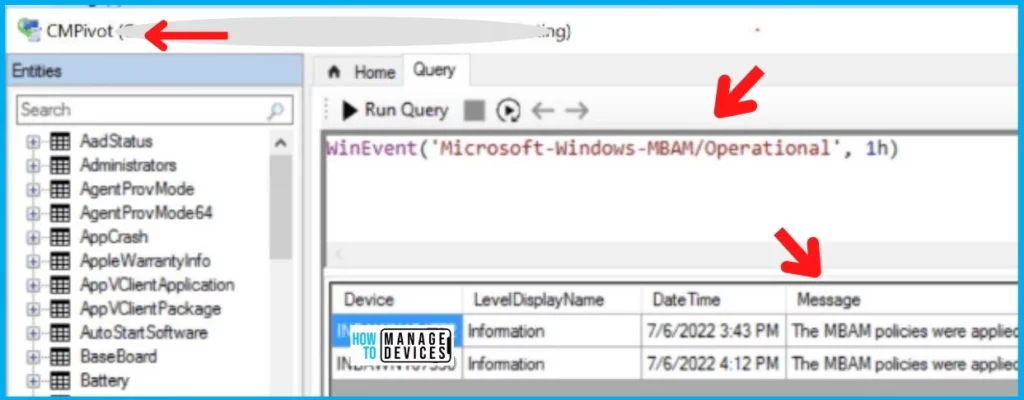

CMPivot Query for SCCM BitLocker Management Event Logs MBAM 1
CMPivot Query for SCCM BitLocker Management Event Logs MBAM 1

SCCM CMpivot Queries for MBAM Analytic and Debug Event Logs

Let’s find the best SCCM CMpivot Queries for MBAM Analytic and Debug Event Logs. You need to ensure that these event logs are enabled on the client devices using the method explained below before running the CMPivot queries.

How to Enable Analytic and Debug Event logs for BitLocker Management via SCCM -> You can enable this from Event Viewer, go to the View menu, and select Show Analytic and Debug Logs. Now onwards, you can see two additional logs called Analytic and Debug.

You can also get the advanced troubleshooting event logs such as Microsoft-Windows-MBAM/Analytic and Microsoft-Windows-MBAM/Debug using the following SCCM CMPivot queries for BitLocker encryption troubleshooting and review.

WinEvent('Microsoft-Windows-MBAM/Analytic', 1h)
WinEvent('Microsoft-Windows-MBAM/Debug', 1h)
