This post will cover all the steps to deploy Windows 10 21H1 using SCCM (a.k.a Configuration Manager). Microsoft released Windows 10 21H1, also known as the May 2021 Update. This update contains all features and fixes in previous cumulative updates to Windows 10, version 20H2.

Windows 10, version 21H1, is available for users with devices running Windows 10, versions 2004 and higher, who manually seek to Check for updates via Windows Update. The recommended servicing status is Semi-Annual Channel. Learn more about the Easiest Option to Upgrade to the Latest Version of Windows 10 21H1

Let’s check the steps to install the latest Windows version on a new computer (bare metal) using sccm. The bare metal scenario occurs when you have a blank machine you need to deploy or an existing machine you want to wipe and redeploy without preserving any existing data.

This scenario installs an OS on a new computer. It’s a fresh installation of the OS and doesn’t include any settings or user data migration.

Patch My PC

Prerequisites

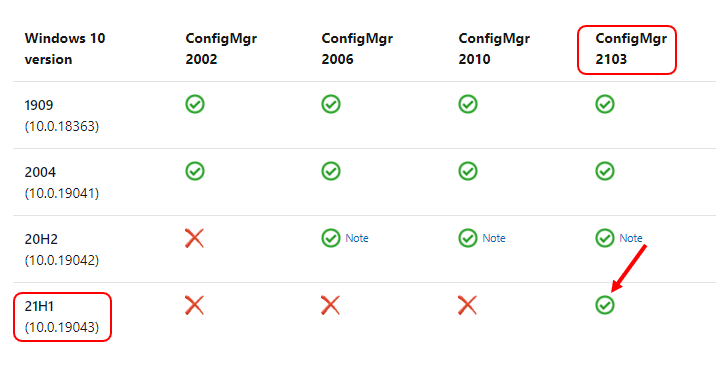

Ensure you run with supported Configuration Manager version 2103 to manage Windows 10 version 21H1 deployment. The following list of the versions of Windows 10 that you can use as a client, along with different versions of Configuration Manager. Check more about the supported lists of the versions of Windows 10 for Configuration Manager.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.1
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.1

There is no new ADK for Windows 10, version 21H1. The ADK for Windows 10, version 2004, will also work with it.

Download Windows 10 21H1 ISO

You can download the Windows 10 21H1 version ISO from MSDN or VLSC (Volume Licensing Service Center).

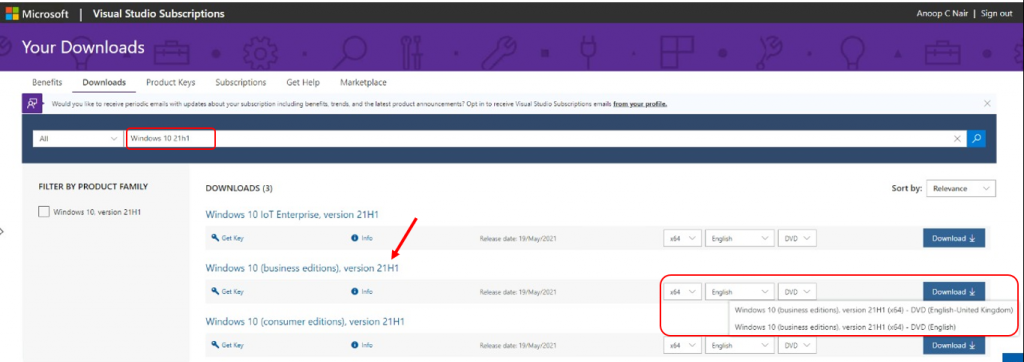

Find Windows 10 (business editions), Version 21H1. Select the architecture and language, and Click on Download.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.2
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.2

Mount and Extract Windows 10 ISO

Before you import the Windows 10 Operating System into SCCM, mount and extract or copy Windows 10 ISO contents to a folder, create a shared folder, and Mount the ISO using File Explorer or any other available options.

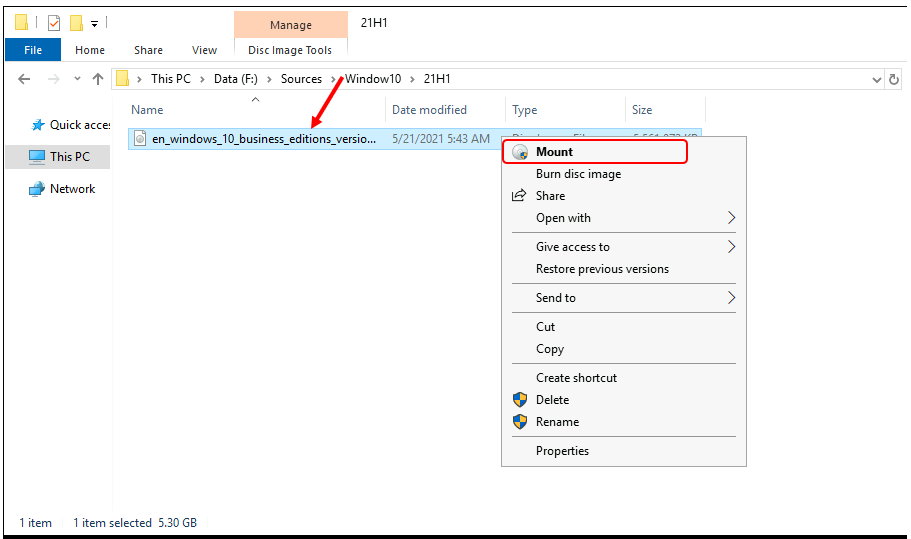

Copy the downloaded ISO to the SCCM site server. To mount an ISO file, double-click it or Right-click it in the file explorer and select the Mount option.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.3
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.3

You will notice that Windows 10 ISO will create a disc drive that you can use to access its contents. Select all contents and copy them to a shared source folder in the SCCM Server. The content-copying process might take some time; wait to complete it.

Note – You can locate the default OS image in the Windows source folder \Sources\install.wim. Grab a file from this ISO and copy it to the shared directory to use it.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.4
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.4

Import Windows 10 Operating System Image

The operating system image contains the files necessary to install the operating system on the destination computer. Use the following to prepare the operating system image –

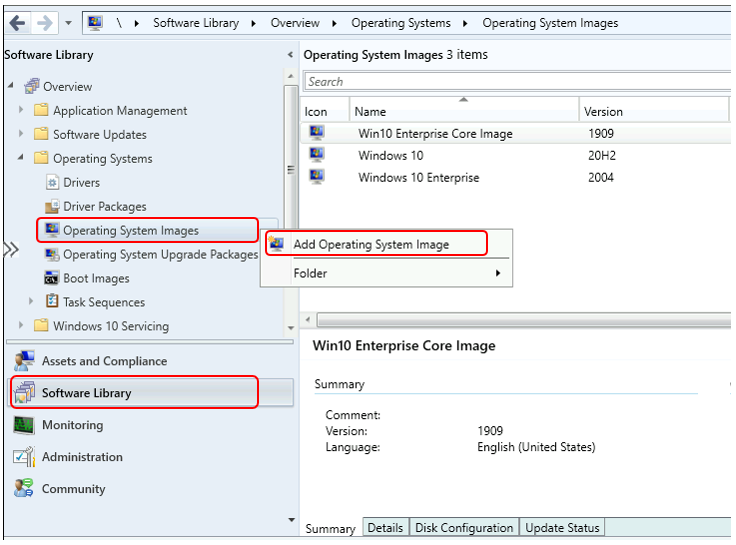

In Configuration Manager Console, Go to Software Library > Operating Systems > Operating System Images.

Right-click on Operating Systems Images and click on Add Operating System Image.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.5
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.5

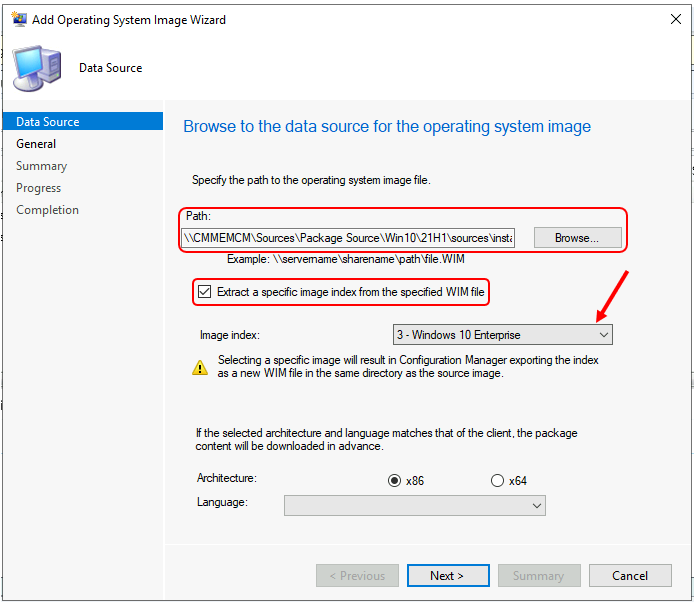

In Data Source, click Browse and specify the network shared path to the install.wim from the Windows 10 Source directory where you extracted the source of an ISO file.

Select the option to Extract a specific image index from the specified WIM file. Then, select the Image index from the drop-down list. Click Next.

Extract a specific image index from the specified WIM file – You can now automatically import a single Image index rather than all image indexes in the file. Using this option results in a smaller image file.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.6
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.6

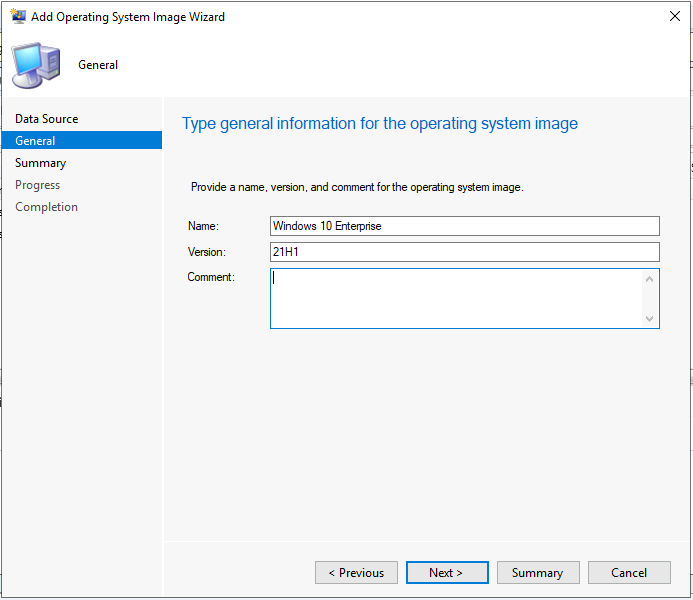

On the General page, assign the NameVersion, and Comment. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.7
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.7

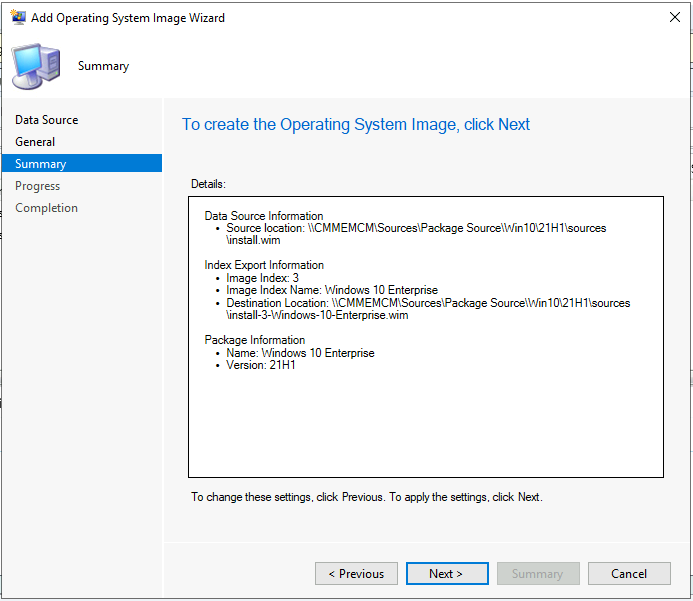

Review the provided information and click Next to complete the wizard.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.8
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.8

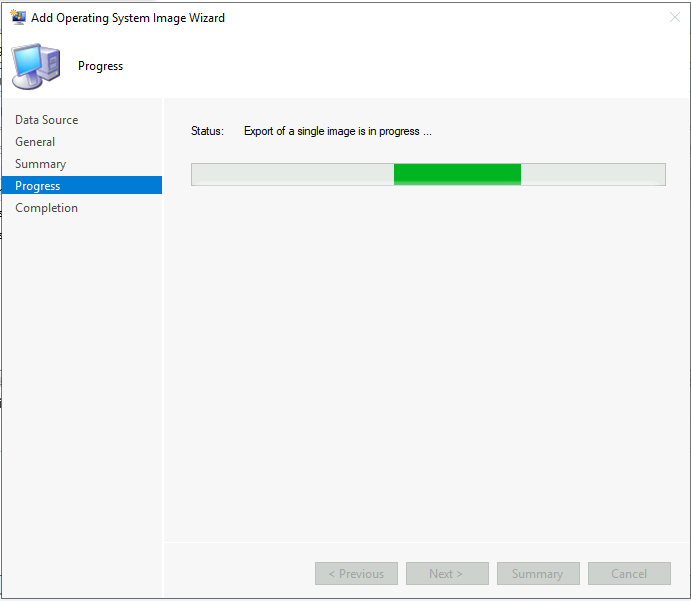

Wait for a moment while exporting is in progress.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.9
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.9

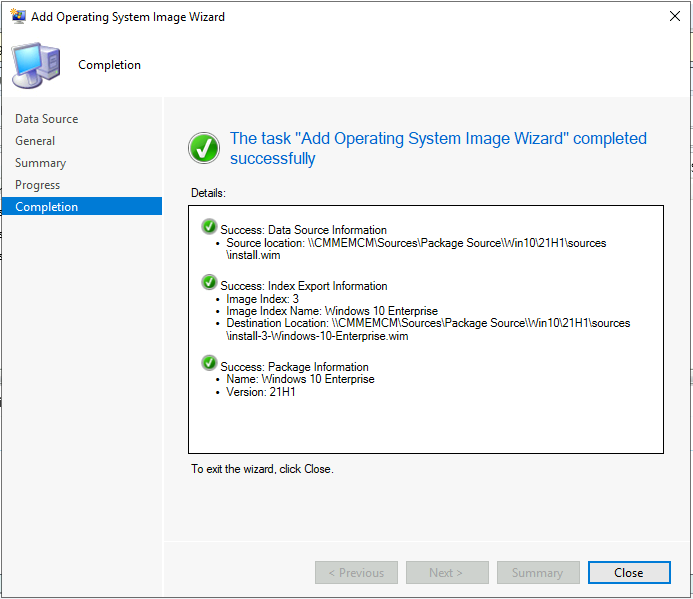

After successfully completion, click Close to exit the wizard.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.10
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.10

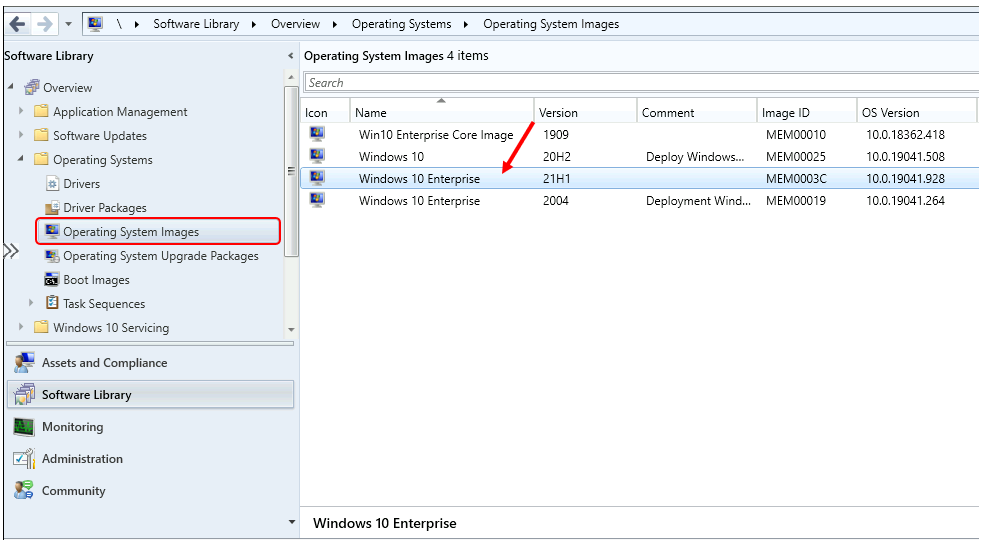

The new Operating System Image now appears in the Operating System Images node of the Configuration Manager console.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.11
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.11

Distribute Operating System Image

Let’s follow the steps to distribute the OS image to distribution points

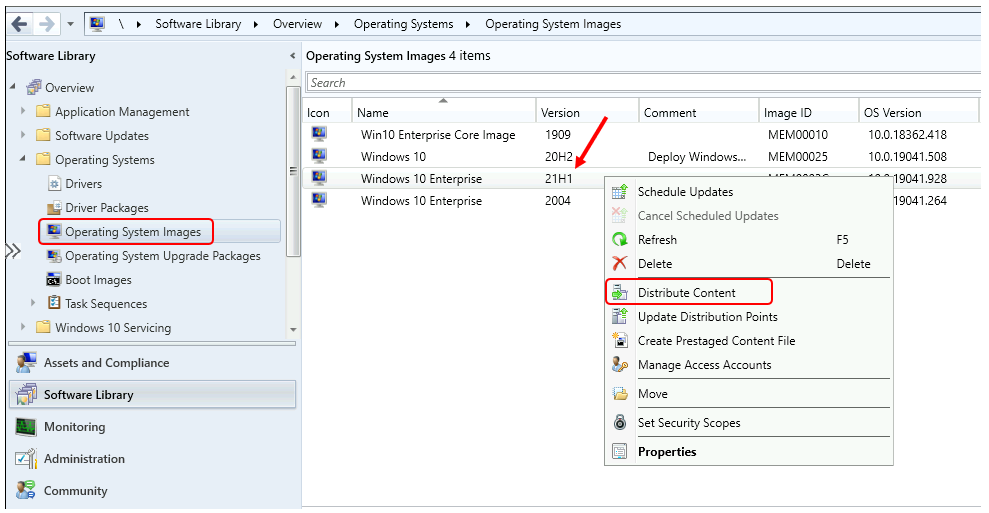

Right-click Operating System Image and select Distribute Content.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.12
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.12

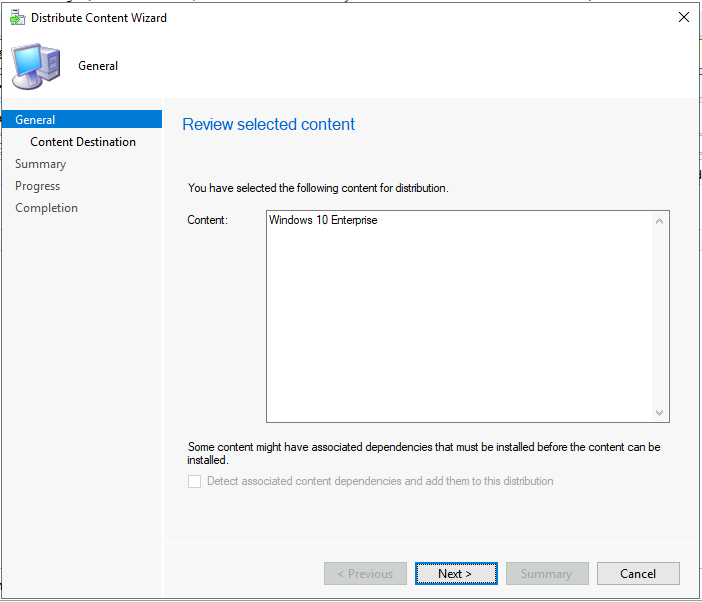

Review the selected content for distribution. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.13
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.13

Add the Distribution Point to distribute the content; review the selected distribution points and groups. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.14
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.14

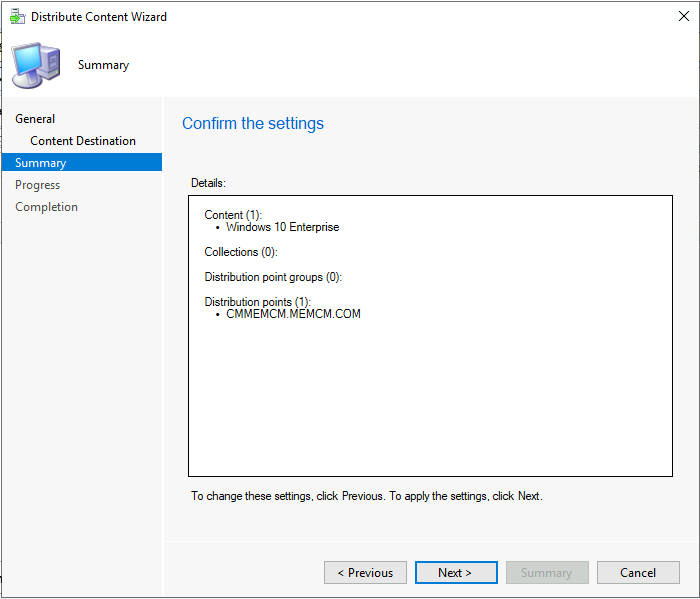

On the Summary page, review the settings. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.15
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.15

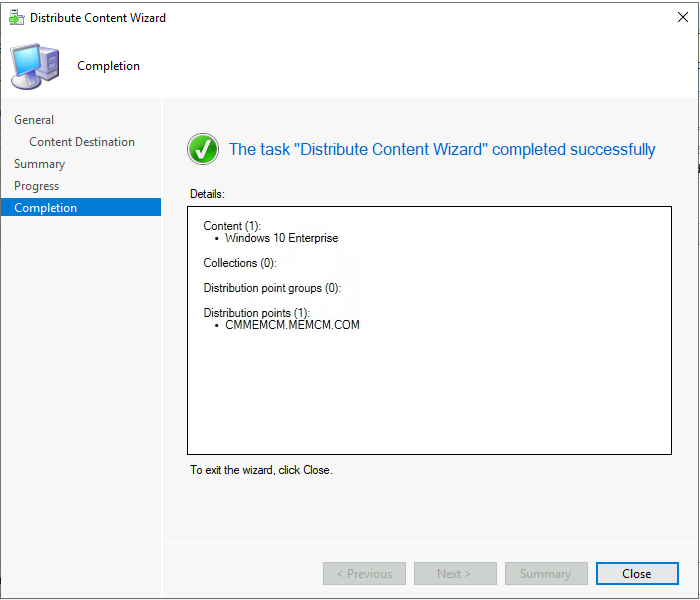

Click Close to complete the Distribute Content wizard.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.16
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.16

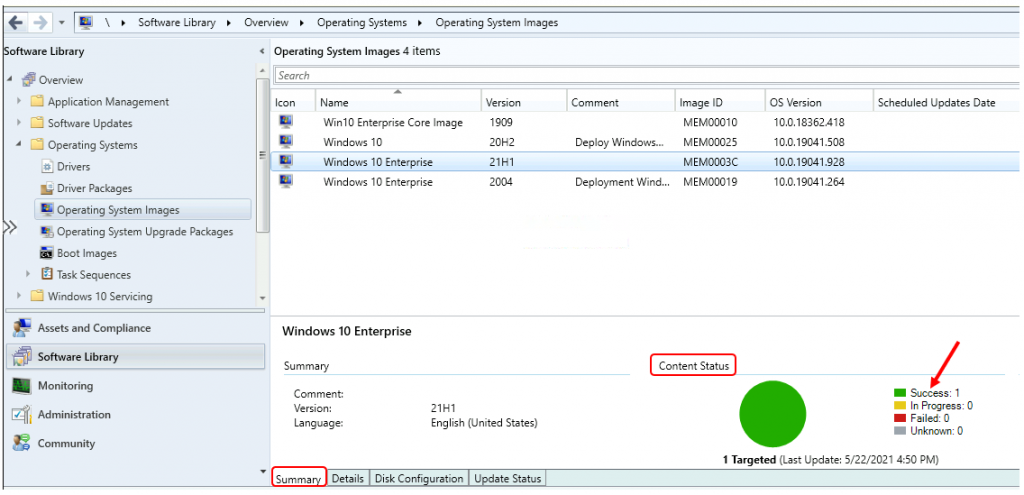

You can monitor the content status. If it shows a yellow color, that means distribution is in progress. If the content distribution were successful, it would appear with a Green color, as shown.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.17
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.17

Create a Task Sequence to deploy an OS

In the Configuration Manager console, Go to the Software Library workspace, expand Operating Systems, right-click Task Sequences and select Create Task Sequence.

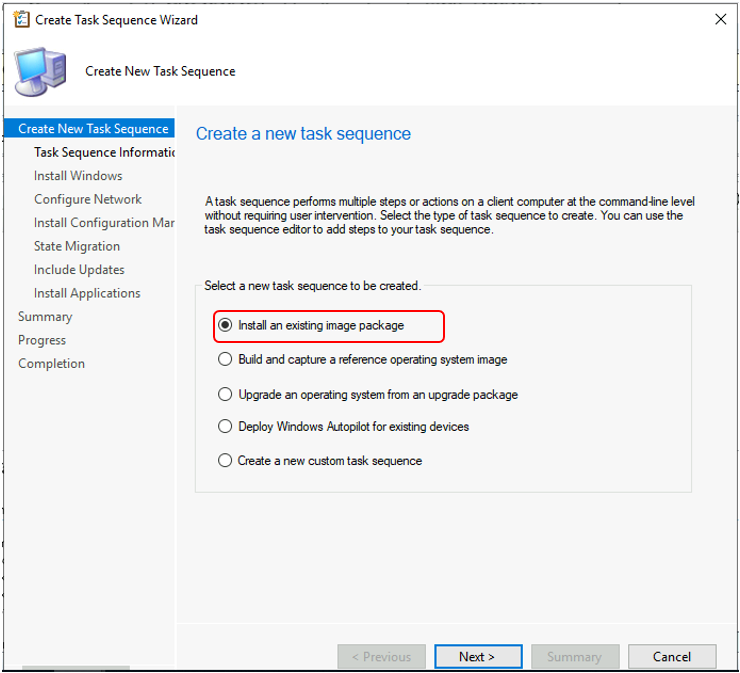

Select Install an existing image package. This option creates a task sequence that installs the OS, migrates user settings, applies software updates, installs applications, and selects Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.18
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.18

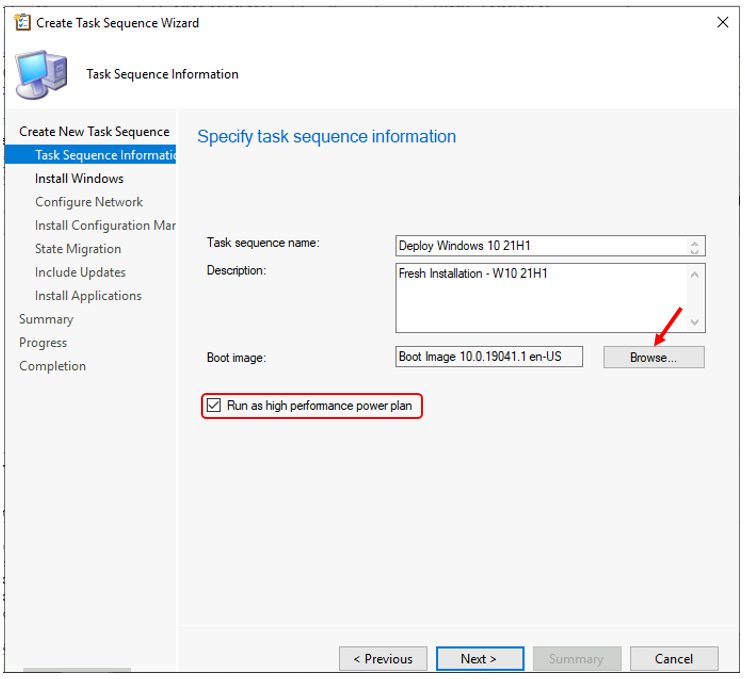

On the Task Sequence Information page, specify the following settings and click Next.

  • Task sequence name: Specify a name that identifies the task sequence.
  • Description: Optionally specify a description
  • On the Boot Image, Click Browse and select the available boot image package. Then, select Run as high performance power plan check box.
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.19
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.19

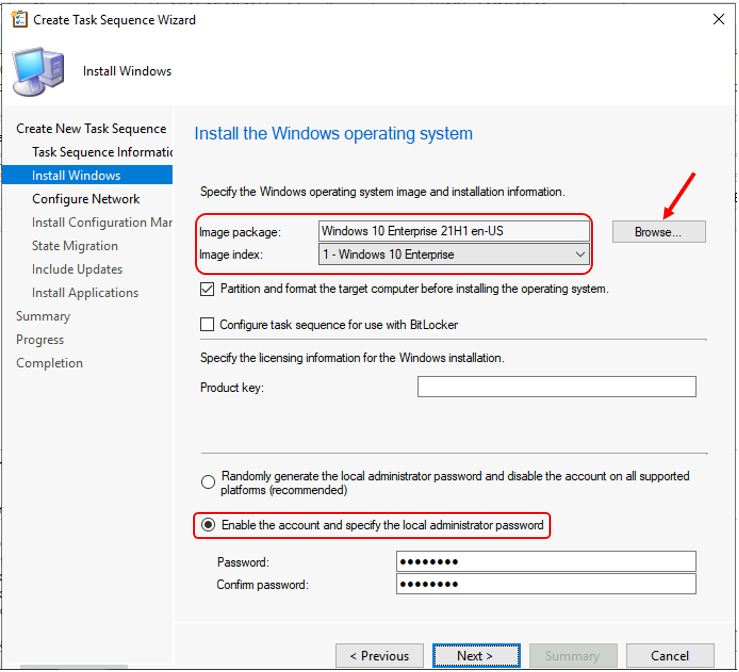

On the Install Windows page, specify the following settings and click Next.

  • Image package: Click on Browse to select the image. Select Partition and format the target computer installing the operating system.
  • Unchecked Configure task sequence for use with BitLocker – Since we don’t want to add the Bitlocker step to the task sequence,
  • Product key: you can specify the Windows product key for installing the OS.
  • Specify how to handle the new OS administrator account. Enable the account and specify the local administrator password. Windows uses the same password for the local administrator account on all computers where the task sequence deploys the OS image.
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.20
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.20

On the Configure Network page, specify the following settings. Click Next.

  • Join a workgroup: Add the destination computer to a workgroup.
  • Join a domain: Add the destination computer to a domain. In Domain, click Browse to specify the name of the domain. You can also select an organizational unit (OU) in the Domain OU field. This setting is optional—Account: The user name and password for the account have permission to join the specified domain.
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.21
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.21

On the Install Configuration Manager page, specify the Configuration Manager client package that will be selected automatically. If necessary, you can specify additional SCCM client installation properties. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.22
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.22

On the State Migration page, you can leave it to default or Uncheck all the options if you do not want to capture settings. These steps are condition-based in a task sequence that will not run automatically. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.23
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.23

On the Include Updates page, you can specify whether to install the required or all software updates. I’m not installing any software updates, leaving the option default and Clicking Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.24
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.24

Specify the applications to install on the Install Applications page, or you can add them later in the task sequence steps. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.25
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.25

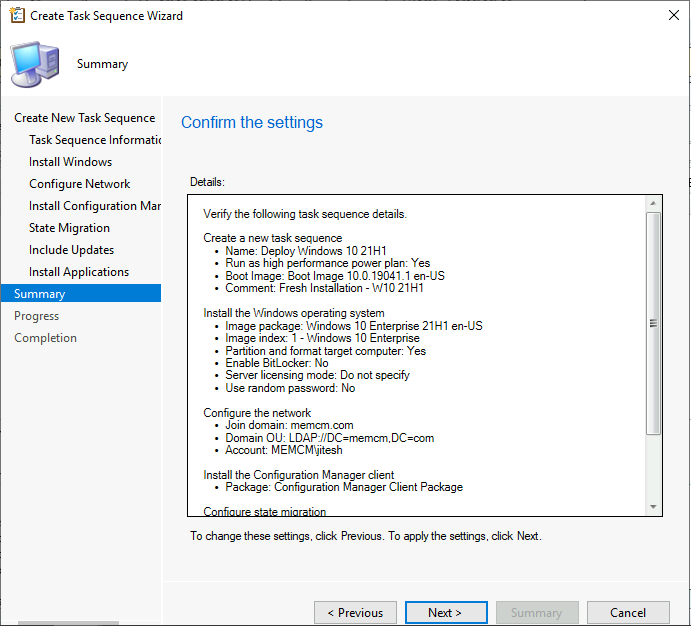

Review the settings, and click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.26
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.26

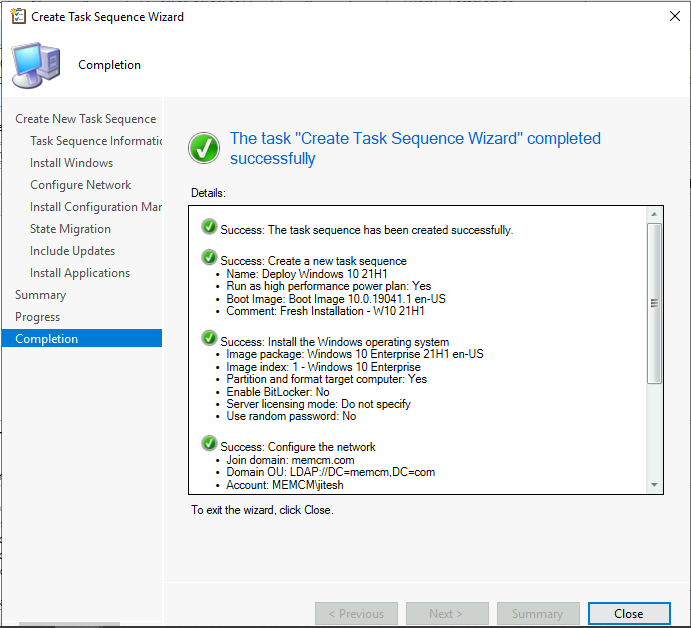

Click Close to complete the wizard.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.27
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.27

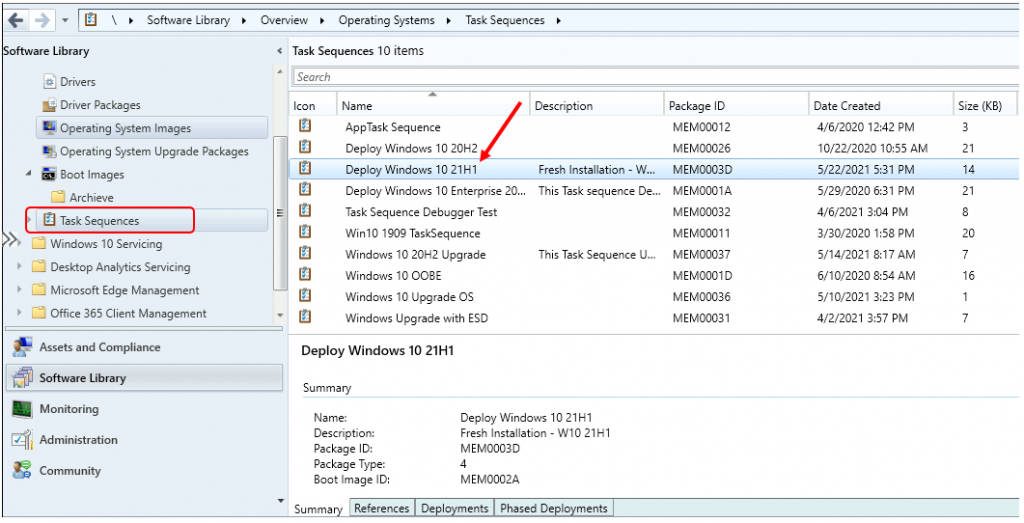

The new Windows 10 21H1 task sequence now appears in the Task Sequences node of the Configuration Manager console. You’ve finished creating a task sequence.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.28
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.28

Edit the Task Sequence

Use the following procedure to modify an existing task sequence

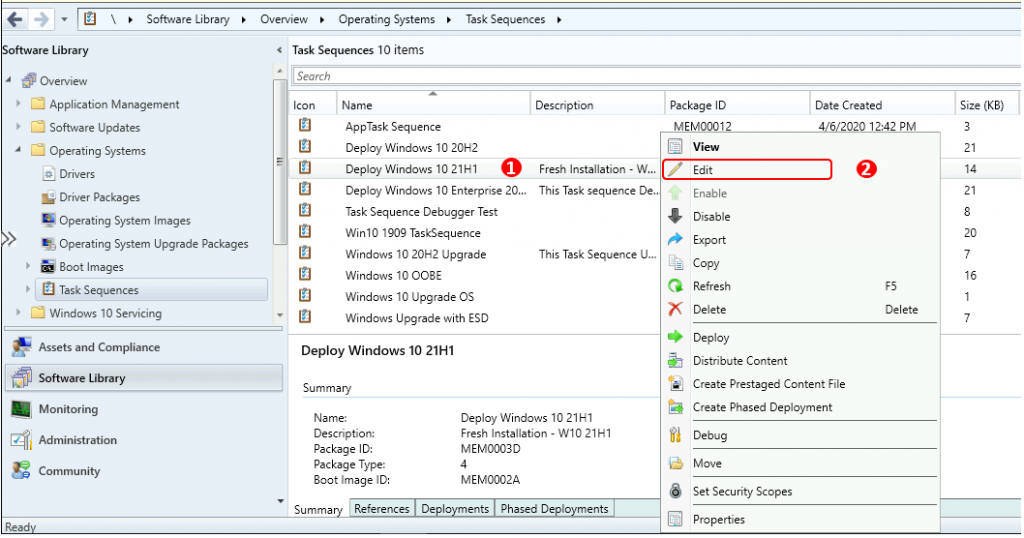

Under Software Library > Operating Systems > Task SequencesRight-click on the task sequence and select Edit.

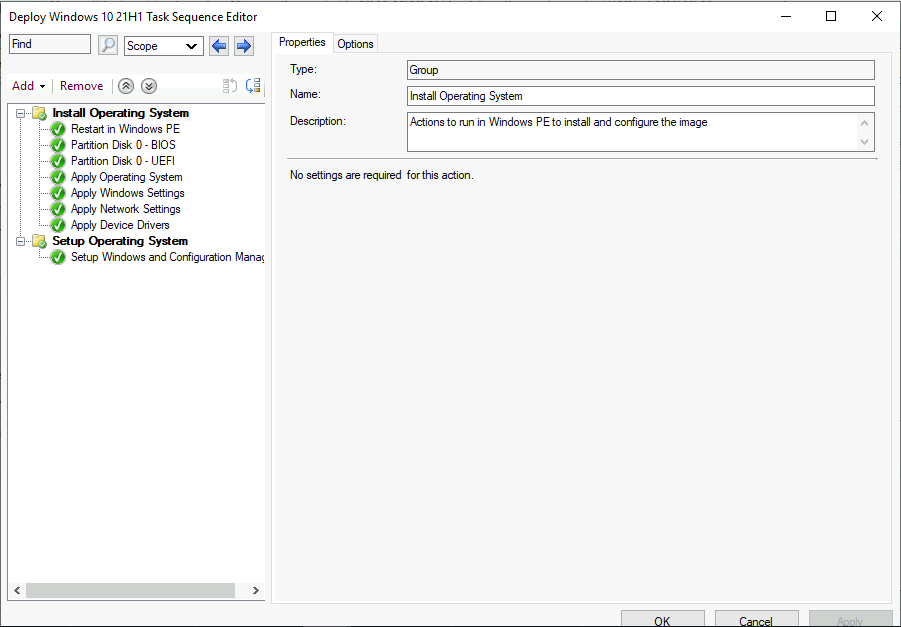

Edit the Task Sequence to add or remove settings – The Task Sequence uses these phases to determine which tasks must be completed.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.29
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.29

Add Drivers

Review drivers and applications that will be installed with task sequence. Before you deploy the task sequence, make sure the drivers are compatible. To Import DriversCreate Driver packages and Process to Integrate Driver package into Task Sequence.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.30
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.30

Review other settings added in Task Sequence. Make sure to apply all changes. Click Apply and OK, close the window.

Deploy Windows 10 21H1 Task Sequence

Use the following procedure to deploy a task sequence to the computers in a collection.

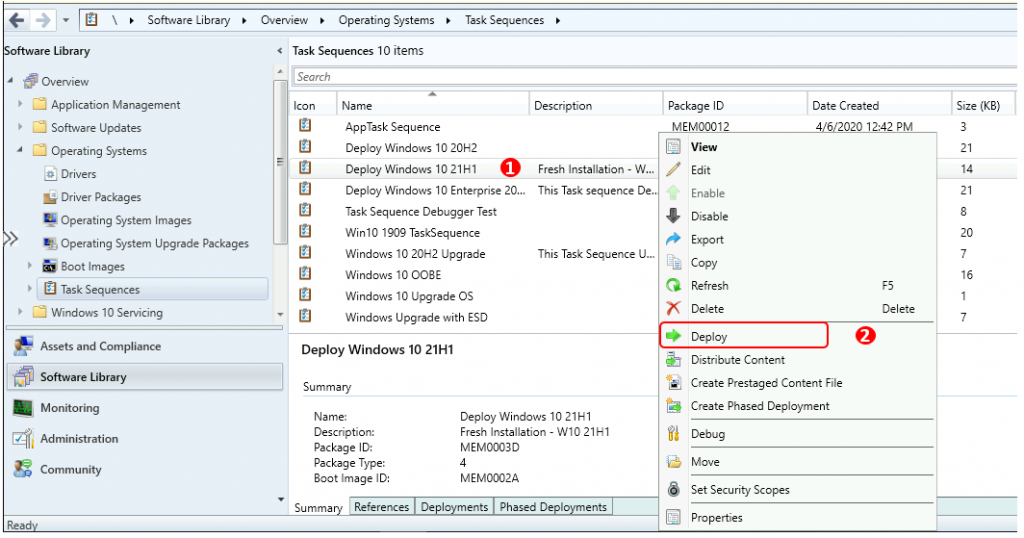

In the Task Sequence list, select the task sequence you created, Right-click, and select Deploy.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.31
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.31

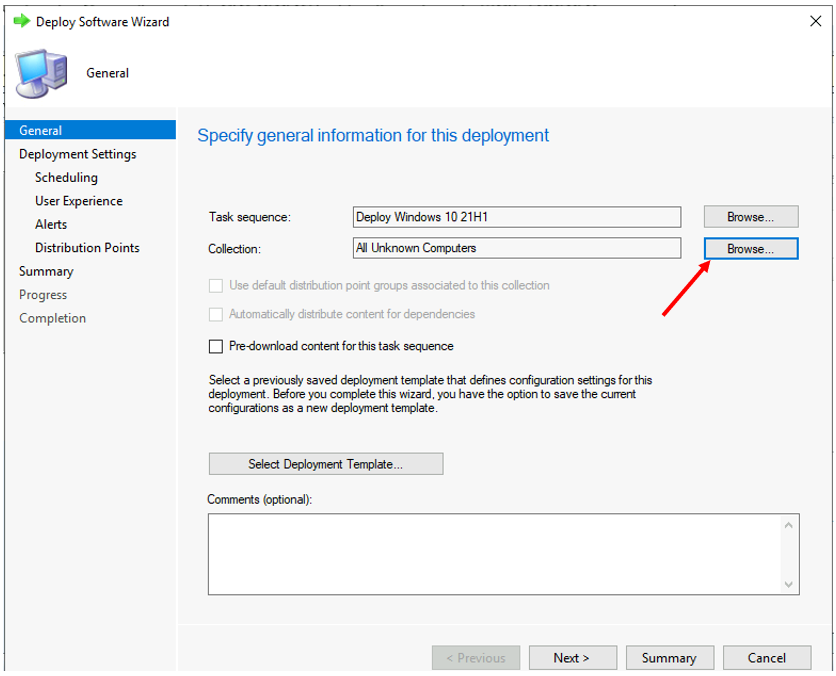

On the General, click Browse to select the device collection where you wish to perform the deployment.

Deploy to All Unknown Computers—Computers that are not managed by Configuration Manager or that are not imported into Configuration Manager.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.32
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.32

On the Deployment Settings, select the Purpose of the deployment.

Available – Available deployments require that the user is present at the destination computer. A user must press the F12 key to continue the PXE boot process. If a user isn’t present to press F12, the computer boots into the current OS, or from the next available boot device.

Required – Required deployments use PXE without any user intervention.

To use a PXE-initiated OS deployment, For the Make available to the following setting, select one of the following options –

Configuration Manager clients, media, and PXE
Only media and PXE
Only media and PXE (hidden)

Note: Use the Only media and PXE (hidden) setting for automated task sequence deployments. To have the computer automatically boot to the deployment without user interaction, select Allow unattended operating system deployment and set the SMSTSPreferredAdvertID variable as part of the media.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.33
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.33

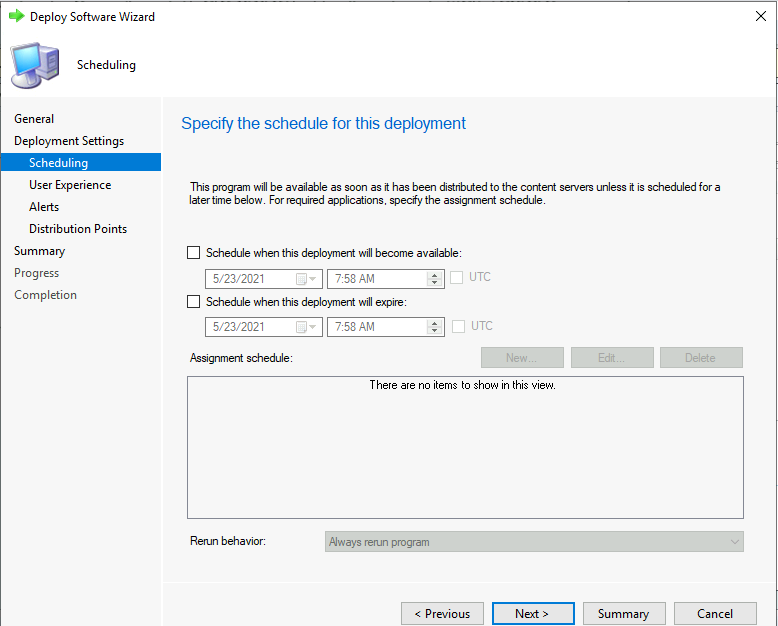

On the Scheduling tab, you can specify the schedule for this deployment. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.34
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.34

On the User Experience tab, leave the default selected options. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.35
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.35

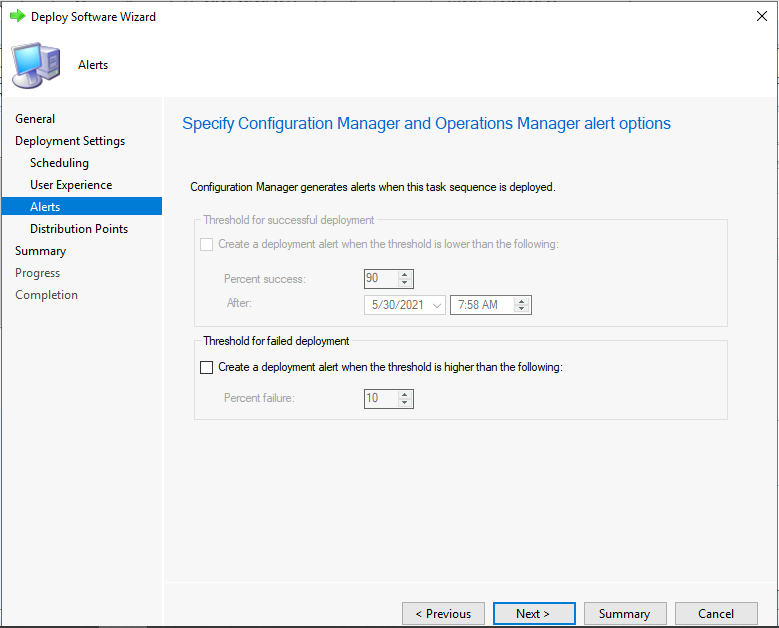

On the Alerts page, leave it as default. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.36
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.36

On the Distribution Points page, you can specify how clients interact with the DPs to retrieve content from reference packages. Click Next.

To understand the available options in the Distribution Points tab during task sequence deployment – SCCM Task Sequence Available Deployment Options in Distribution Points Tab | ConfigMgr

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.37
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.37

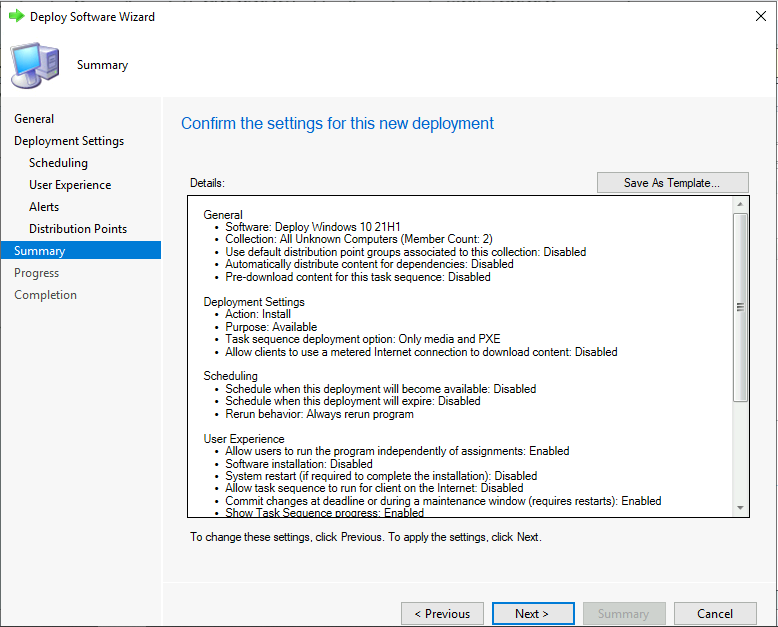

Review the selected settings and click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.38
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.38

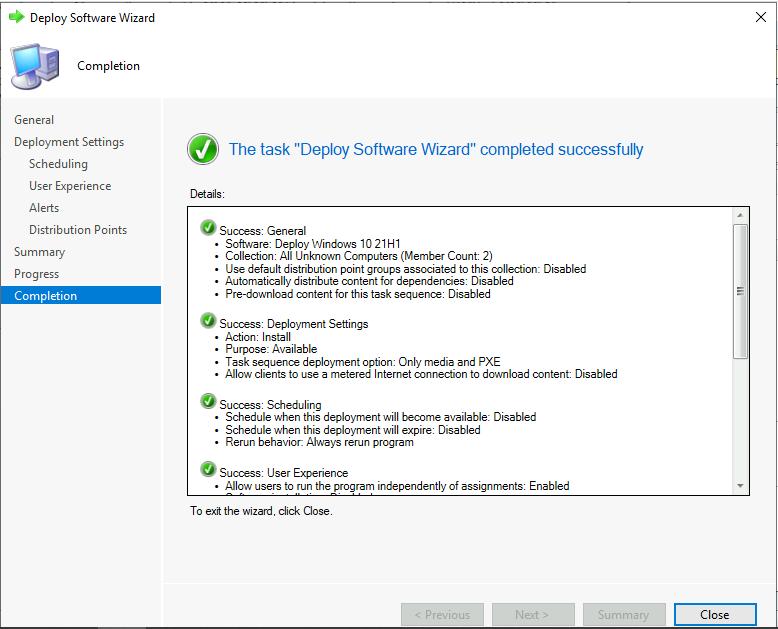

The Deployment was targeted successfully to collection. Click Close to exit the wizard.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.39
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.39

Results – Windows 10 21H1 Deployment

Different hardware models have different experiences for PXE. To boot to the network – UEFI-based devices typically use the Enter key and BIOS-based devices use the F12 key.

After the device successfully boots via PXE, the task sequence wizard appears. If you password-protect the media, the user has to enter the password on this welcome page. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.40
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.40

Select a task sequence to run: If you deploy more than one task sequence to the device, you see this page to select a task sequence. Use a name and description for your task sequence that users can understand. Complete the Task Sequence Wizard by choosing the deployed task sequence. Click Next.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.41
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.41

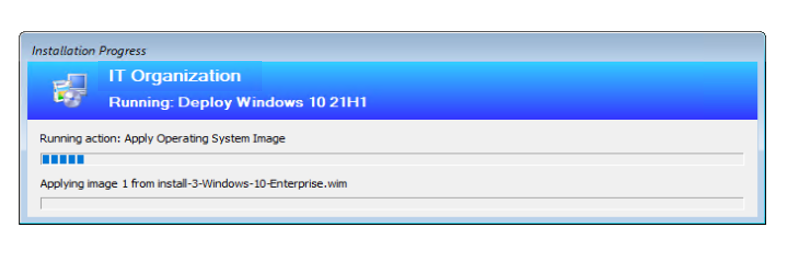

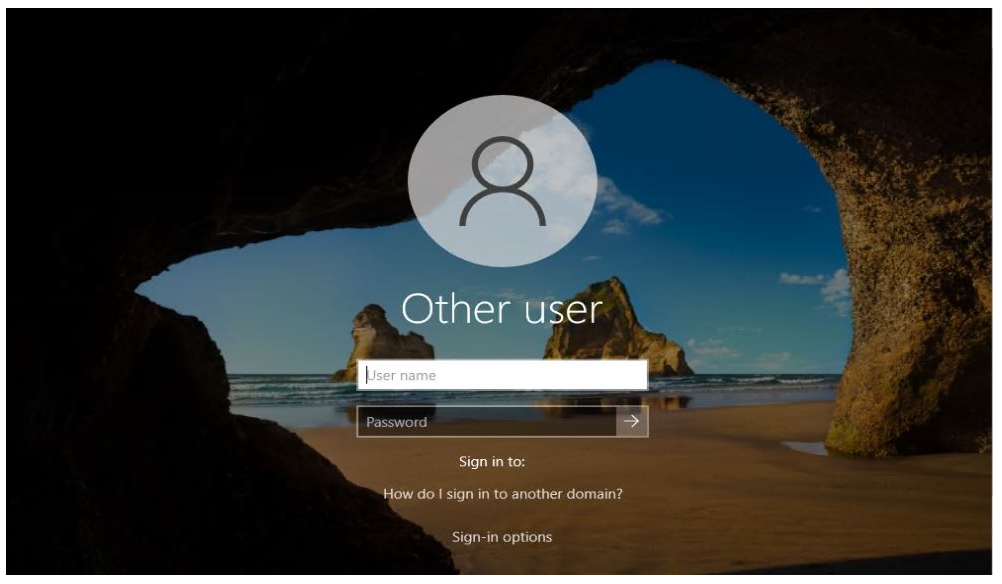

The task sequence begins when the policy for the task sequence is downloaded, and the content location is verified.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.42
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.42

Once you complete the Wizard, the deployment of the new operating system begins. When the task sequence runs, the Installation progress window is displayed. Check more How to Improve SCCM Task Sequence Progress Bar End User Experience | ConfigMgr

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.43
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.43

When the deployment process is complete, you will be prompted to Sign in to the device on-screen.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.44
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.44

Sign in to the device with your domain or local credentials. Click Start, Type Winver, and Press Enter. You will see Windows 10, version 21H1 (OS Build 19043), was installed successfully.

Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step - Fig.45
Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step – Fig.45

Known Issue

You might experience problems when importing an OS to SCCM, and Its OS Version appears as 10.0.19041.928 in the Operating Systems node. The OS Major number for Windows 10 Version 21H1 is the same as Windows version 20H2. You can refer to the blog post for more details about the buildmajorminor versions of Windows 10.

Workaround: Mount the WIM on a fully patched 20hx or 21h1 host machine (without the ADK installed) and unmount the commit. Now, the offline metadata should be updated.

As mentioned, the next version of the ADK has a fix for this! For more, check the Twitter thread.

Troubleshooting Reference – Windows 10 21H1 Using SCCM

The first basic step to troubleshooting SCCM OSD Task Sequence issues is to check out the SMSTS.log. More details on how to read SMSTS.log effectively to troubleshoot the SCCM OSD Task Sequence.

Learn about SCCM OSD SMSTS Log File Reading Tips with the built-in log reader tool CMTraceSCCM OSD SMSTS Log File Reading Tips | ConfigMgr | MEMCM

Related Posts Learn How to Troubleshoot SCCM Task Sequence Debugger | OSD Known Issues Troubleshooting Guide |SCCM |ConfigMgr

Resources

We are on WhatsApp. To get the latest step-by-step guides and news updates, Join our Channel. Click here –HTMD WhatsApp.

Author

JiteshMicrosoft MVP, has over six years of working experience in the IT Industry. He writes about and shares his experiences related to Microsoft device management technologies and IT infrastructure management. His primary focus is Windows 10/11 Deployment solution with Configuration Manager, Microsoft Deployment Toolkit (MDT), and Microsoft Intune.

2 thoughts on “Easy Guide to Deploy Windows 10 21H1 Using SCCM Task Sequence | ConfigMgr | Step-by-Step”

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
