Not SCCM 2016 Configuration Manager SCCM Current Branch version Download and Install? At last, the wait is over. Microsoft released the newest version of SCCM /ConfigMgr, known as SCCM/ConfigMgr Current Branch (CB).

SCCM CB will be updated every quarter, along with Windows 10. It will be called SCCM 1511.

As I mentioned in the previous blog post (What is the Next Version of SCCM ConfigMgr As A Service), the version of SCCM won’t be called SCCM/ConfigMgr 2016. To avoid confusion, don’t get confused with SCCM 2016; we don’t know whether there will be something called SCCM 2016 or 2017.

In this post, you will get all the details of the Not SCCM 2016 Configuration Manager SCCM Current Branch version. Download and install the software.

Patch My PC

Not SCCM 2016 Configuration Manager

This version is the current branch of SCCM and will be updated every four months. Download SCCM/ConfigMgr 1511 (not 2016) from MSDN here, Microsoft Evaluation Center, and Volume Licensing Service Center. I installed the SCCM 1511 version in the lab, and it has a few new options enabled that were not there in the SCCM vNext Technical Preview versions.

  • One is the installed SCCM/ConfigMgr CAS (Central Administration Site) server.
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install - Fig.1
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Fig.1

CAS is not required for most of our organizations as the SCCM 1511 primary server can support up to 200000 clients (200K). I’ve escaped from CAS now!! What a relief. More details about SCCM 1511 are available here on the ConfigMgr team blog.

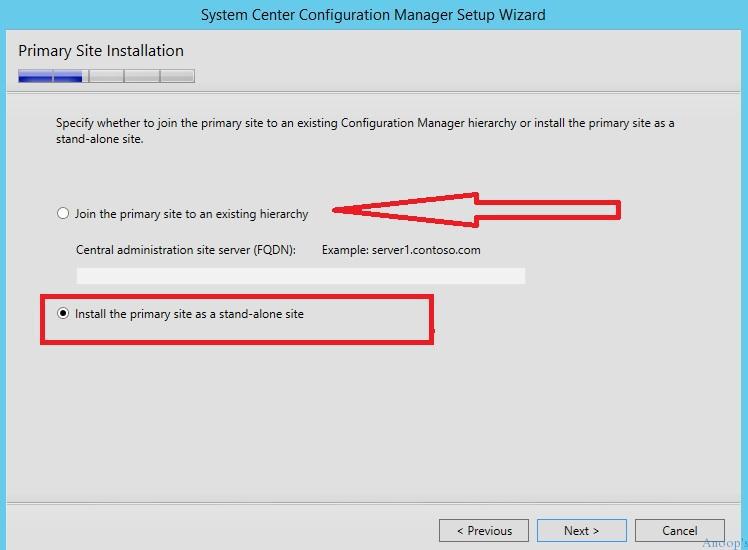

Specify whether to join the primary site to an existing configuration manager hierarchy or install the primary site as a stand-alone site
Install the Primary Site as a Stand alone site.
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Table 1
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install - Fig.2
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Fig.2

If your client count is near 200k, I suggest using a single SCCM 1511 primary server. After that, we can add the SCCM/ConfigMgr 1511 CAS server. The following is the option to add CAS to your environment.

Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install - Fig.3
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Fig.3

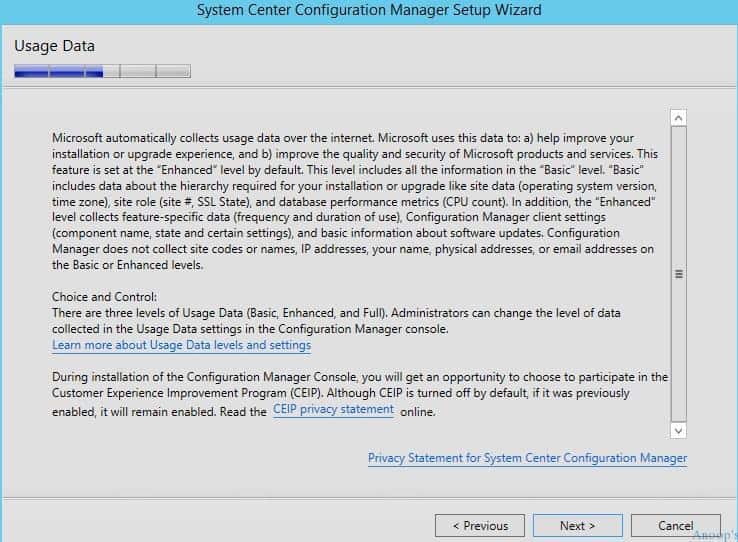

The option is “Join the Primary Site to an existing Hierarchy.” Another critical point to take care of during the SCCM 1511 primary/CAS server installation is “Usage Data (telemetry).”

Adaptiva

The telemetry (Usage Data) helps SCCM 1511 collect the data over the internet to improve the product quality and installation/upgrade experience of the SCCM application. All the usage data sent to Microsoft will be encrypted, and there won’t be anything from which Microsoft can identify the customer details.

  • All the data will be hashed. More details are provided in the TechNet article here.
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install - Fig.4
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Fig.4

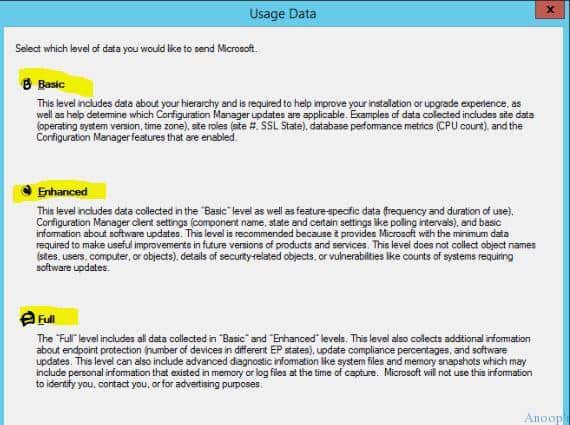

The Choose and Control option is in the above Wizard, where you can select usage data options like  1. Basic, 2. Enhanced, and 3. Full. Basic level data includes data about the SCCM hierarchy; this data will help improve the installation and upgrade experience.

Examples of data collected would be site data, operating system version, time zone, Site roles, site numbers, DB performance metrics, and details of SCCM features enabled on the SCCM site.

Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install - Fig.5
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Fig.5

Another new feature is to keep SCCM/ConfigMgr updated/up to date by connecting the on-prem SCCM infrastructure to the ConfigMgr /SCCM cloud service. As I mentioned in the previous blog post, this will help to upgrade and update the SCCM / ConfigMgr environment quickly.

Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install - Fig.6
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Fig.6

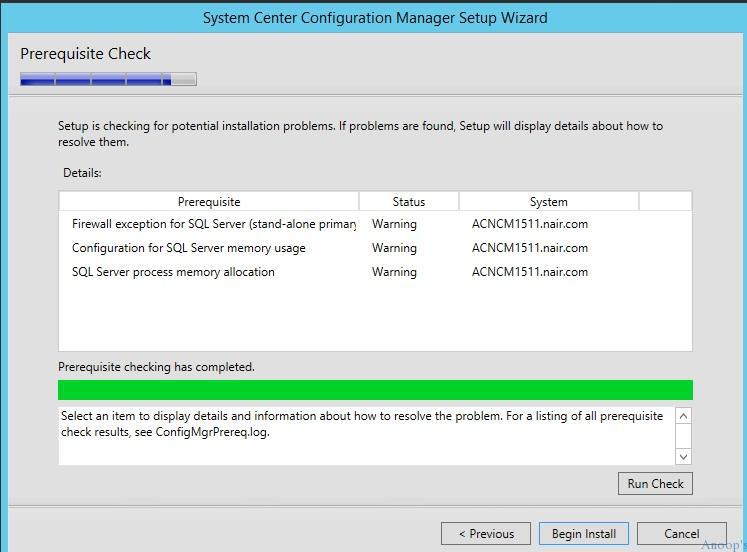

Another important point I’ve noticed with SCCM/ConfigMgr 151 prerequisite checks is that the AD system management cont-permission-relate-delated warning (known bug) in the pre-requisite check seems to be fixed in the latest SCCM / ConfigMgr 1511 version.

Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install - Fig.7
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Fig.7

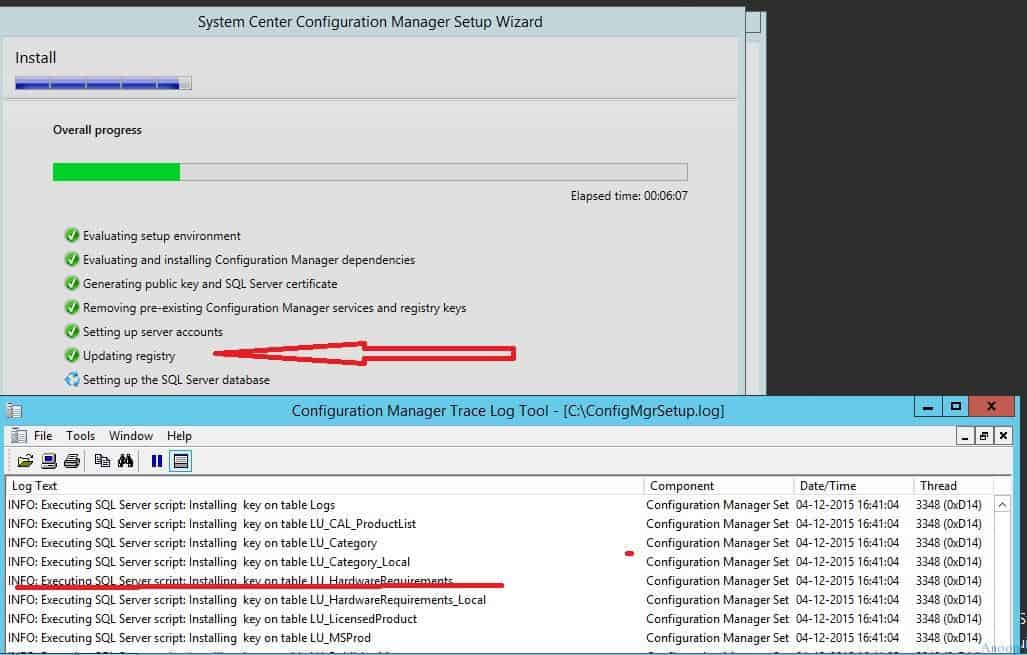

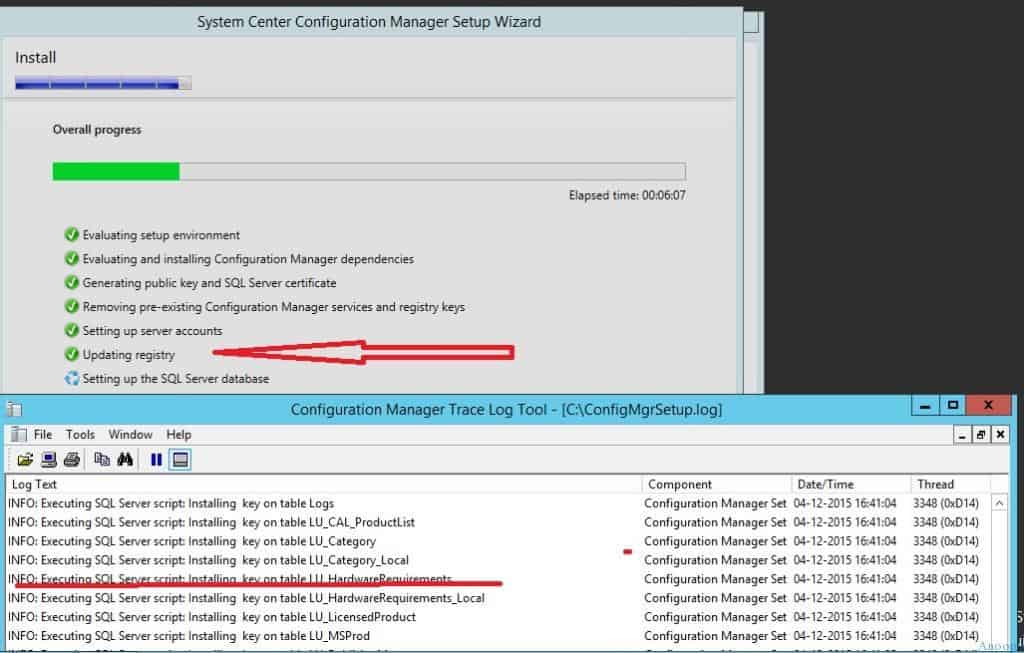

This is the famous progress bar of SCCM/ConfigMgr 1511 primary site installation; nothing changes here.

Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install - Fig.8
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Fig.8

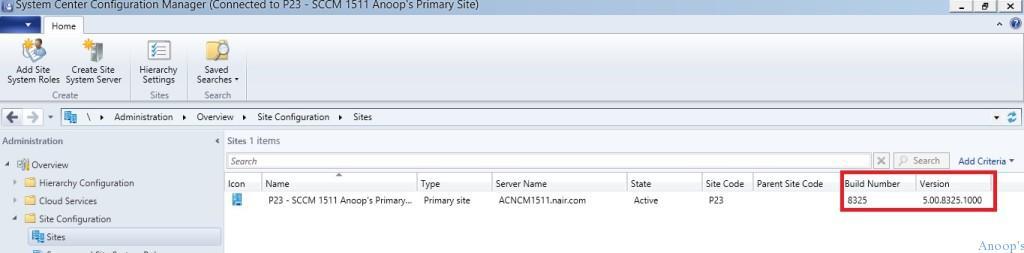

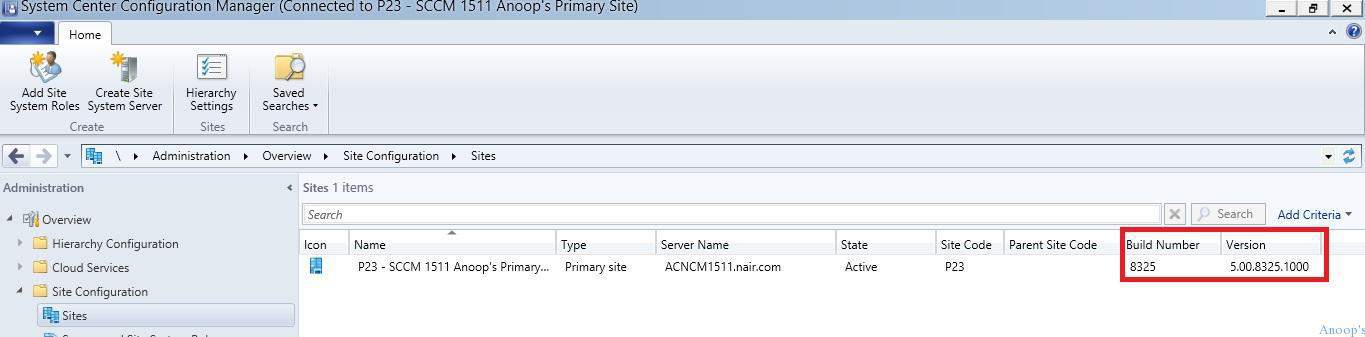

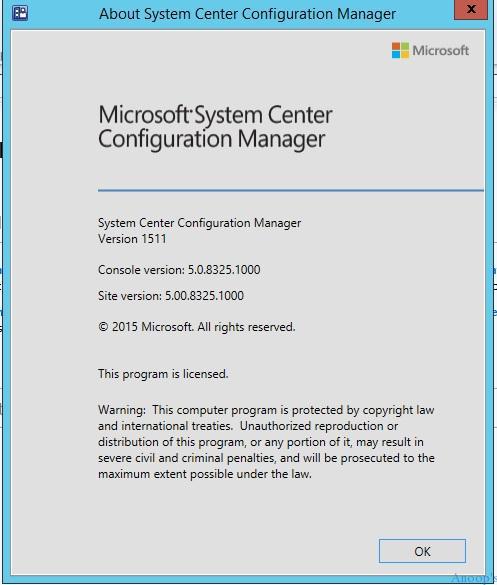

 Here we go! The latest System Center Configuration Manager (SCCM/ConfigMgr) 1511.  The version of the SCCM/ConfigMgr console is 5.0.8325.1000. The site version of the latest SCCM/ConfigMgr release 1511 is 5.00.8325.1000

Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install - Fig.9
Not SCCM 2016 Configuration Manager SCCM Current Branch Version Download Install – Fig.9
